Sony HDC1500R User manual

HD COLOR CAMERA
HDC1500R
HDC1400R
HDC1550R
HDC1450R
OPERATION MANUAL [English]
1st Edition

2
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
Afin de réduire les risques d’incendie ou
d’électrocution, ne pas exposer cet
appareil à la pluie ou à l’humidité.
Afin d’écarter tout risque d’électrocution,
garder le coffret fermé. Ne confier
l’entretien de l’appareil qu’à un personnel
qualifié.
Um die Gefahr von Bränden oder
elektrischen Schlägen zu verringern, darf
dieses Gerät nicht Regen oder Feuchtigkeit
ausgesetzt werden.
Um einen elektrischen Schlag zu
vermeiden, darf das Gehäuse nicht
geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur qualifiziertem
Fachpersonal.
For the customers in the U.S.A.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC Rules.
For the State of California, USA only
Perchlorate Material - special handling may apply, See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material : Lithium battery contains perchlorate.
For the customers in Taiwan only
AVERTISSEMENT
WARNUNG
WARNING
For laser-related devices
(HDC1500R/1400R only)
This HD Color Camera is classified as a CLASS 1 LASER
PRODUCT.
Laser diode properties
Wave length: 1310±40 nm
Emission duration: Pulse Modulation
Laser output power: 141 µW
Daten der Laserdiode
Wellenlänge: 1310±40 nm
Emissionsdauer: Pulsmodulation
Laser-Ausgangsleistung: 141 µW
Egenskaber for laserdiode
Bølgelængde: 1310±40 nm
Strålingsvarighed: Pulse Modulation
Afgivet lasereffekt: 141 µW
Laserdiod - Egenskaper
Våglängd: 1310±40 nm
Strålningens varaktighet: Pulsmodulering
Lasereffekt: 141 µW
Egenskaper for laserdiode
Bølgelengde: 1310±40 nm
Strålingsvarighet: Pulsmodulasjon
Utgangseffekt for laser: 141 µW
CAUTION
The use of optical instruments with this product will
increase eye hazard.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
+37
- 29
+37
- 29
+37
- 29
+37
- 29
+37
- 29

3
For the customers in Europe
This product with the CE marking complies with both the EMC
Directive and the Low Voltage Directive issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the
following European standards:
• EN60950-1: Product Safety
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environments:
E1 (residential), E2 (commercial and light industrial), E3
(urban outdoors), E4 (controlled EMC environment, ex. TV
studio).
The manufacturer of this product is Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product safety is
Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or guarantee matters
please refer to the addresses given in separate service or
guarantee documents.
Pour les clients en Europe
Ce produit portant la marque CE est conforme à la fois à la
Directive sur la compatibilité électromagnétique (EMC) et à la
Directive sur les basses tensions émises par la Commission
de la Communauté Européenne.
La conformité à ces directives implique la conformité aux
normes européennes suivantes:
• EN60950-1 : Sécurité des produits
• EN55103-1 : Interférences électromagnétiques (émission)
• EN55103-2 : Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans le senvironnements
électromagnétiques suivants : E1 (résidentiel), E2
(commercial et industrie légère), E3 (urbain extérieur) et E4
(environnement EMC contrôlé, ex. studio de télévision).
Le fabricant de ce produit est Sony Corporation, 1-7-1 Konan,
Minato-ku, Tokyo, Japon.
Le représentant autorisé pour EMC et la sécurité des produits
est Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Allemagne. Pour toute question concernant le
service ou lagarantie, veuillez consulter les adresses
indiquées dans les documents de service ou de garantie
séparés.
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die
EMV-Richtlinie sowie die Niederspannungsrichtlinie der EG-
Kommission.
Angewandte Normen:
• EN60950-1: Sicherheitsbestimmungen
• EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
• EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
Für die folgenden elektromagnetischen Umgebungen:
E1 (Wohnbereich), E2 (kommerzieller und in beschränktem
Maße industrieller Bereich), E3 (Stadtbereichim Freien) und
E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio).
Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1
Konan, Minato-ku, Tokyo, Japan.
Der autorisierte Repräsentant für EMV und Produktsicherheit
ist Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Deutschland. Bei jeglichen Angelegenheiten in
Bezug auf Kundendienst oder Garantie wenden Sie sich bitte
an die in den separaten Kundendienst- oder
Garantiedokumenten aufgeführten Anschriften.

4Table of Contents
Table of Contents
Overview ................................................................................. 5
Features........................................................................................5

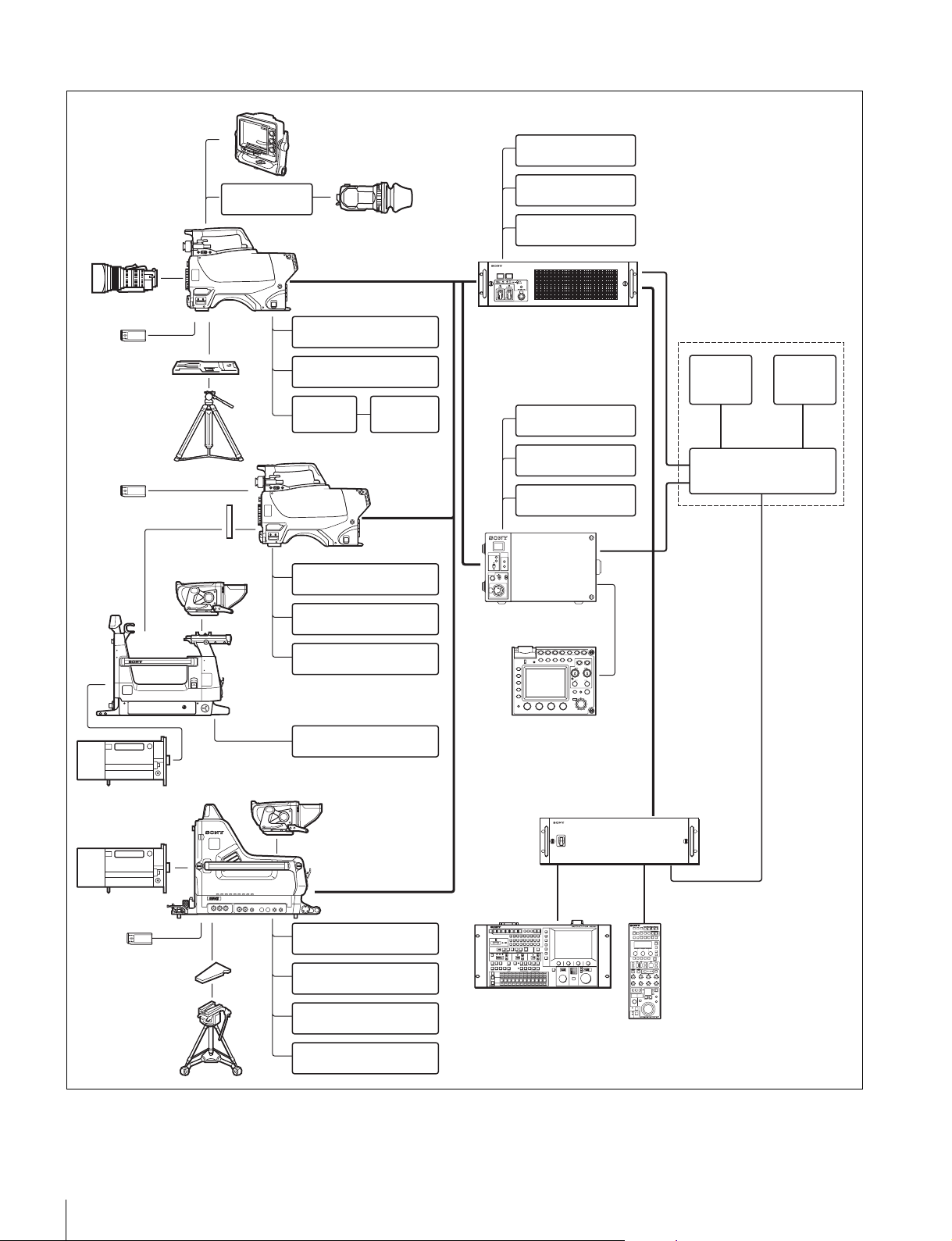

System Configuration..................................................................7
Precautions .......................................................................... 11
Phenomena Specific to CCD Image Sensors.............................11

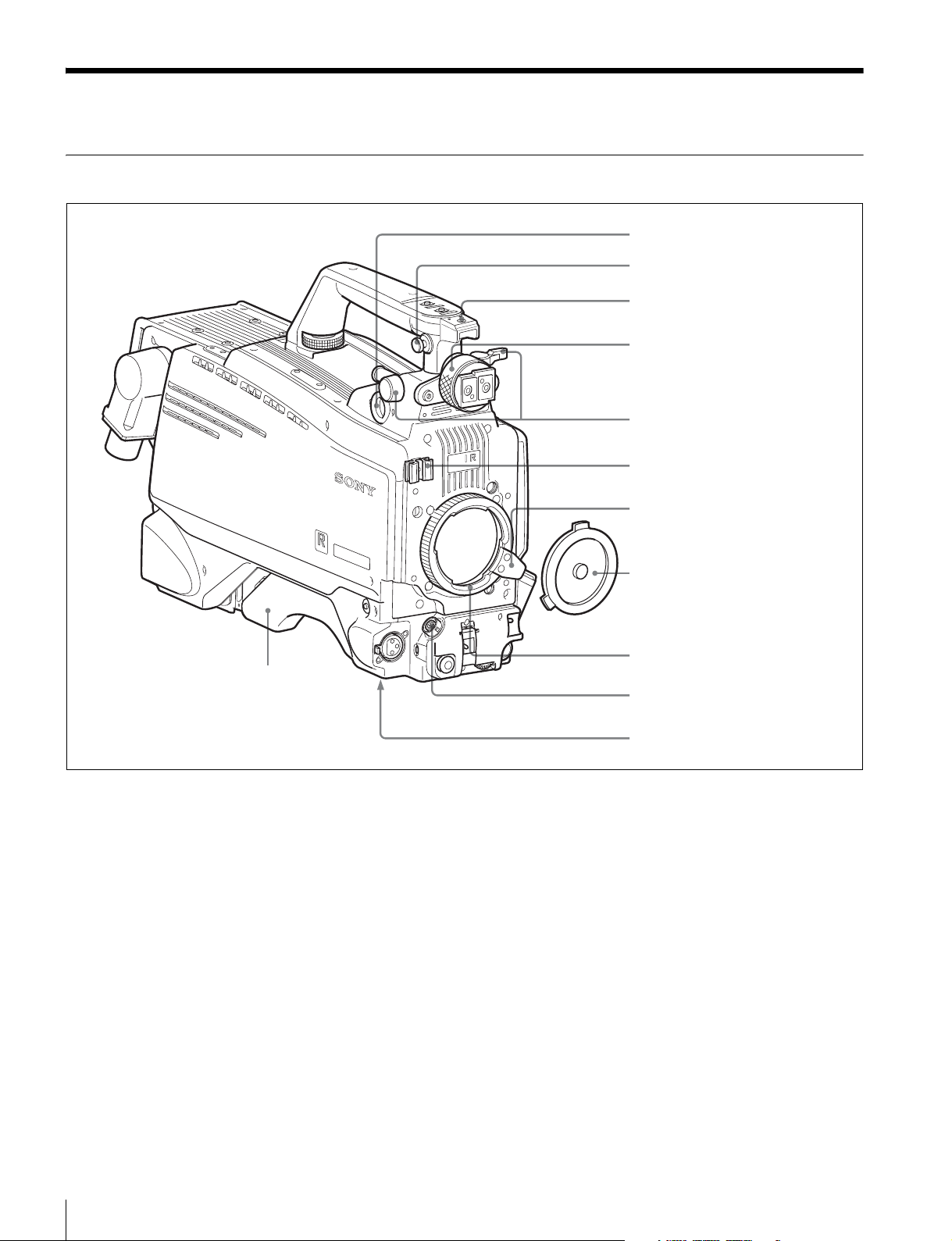

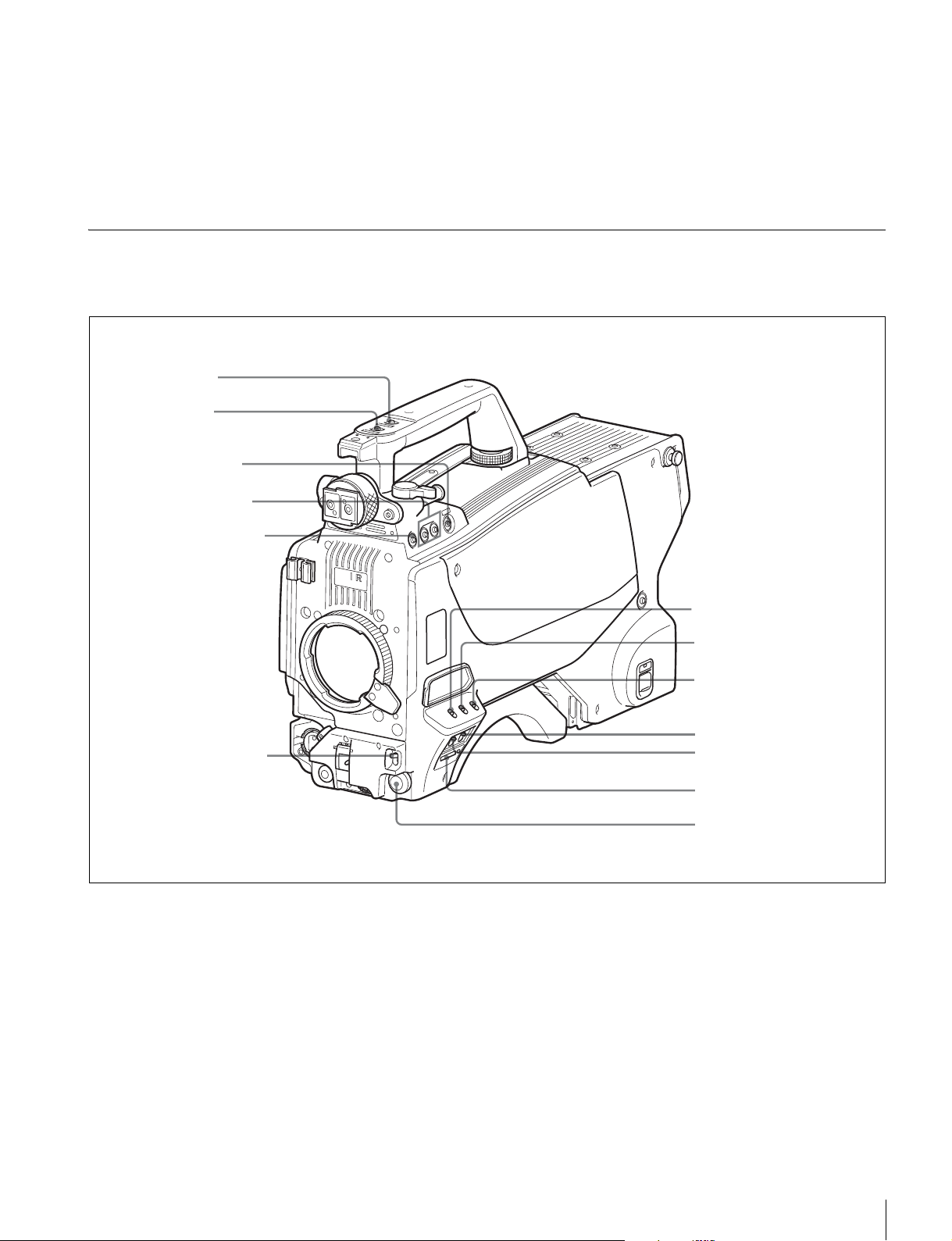

Locations and Functions of Parts ...................................... 12
Accessory Attachments .............................................................12
Controls and Connectors ...........................................................13
Preparations ......................................................................... 21
Attaching a Lens........................................................................21
Adjusting the Flange Focal Length ...........................................21
Attaching a Viewfinder .............................................................21
Attaching the Cable Clamp Belt (Supplied)..............................23
Adjusting the Shoulder Pad Position.........................................24
Mounting the Camera to a Tripod .............................................24
Adjustments and Settings for Shooting ............................ 26
Adjusting the Black Balance and White Balance......................26
Setting the Electronic Shutter....................................................28
Setting the Focus Assist Functions............................................29
Setting the Camera Outputs ............................................... 31
Viewfinder Screen Status Display ...................................... 33
Menu Operations.................................................................. 34
Starting Menu Operations..........................................................34
Selecting Pages..........................................................................35
Setting the Menu Items..............................................................36
Editing the USER Menu............................................................36
Menu List .............................................................................. 40
OPERATION Menu ..................................................................40
PAINT Menu .............................................................................46
MAINTENANCE Menu ...........................................................51
FILE Menu ................................................................................55
DIAGNOSIS Menu ...................................................................57
Using a “Memory Stick” ...................................................... 58
Specifications....................................................................... 59
HDC1500R ................................................................................59
HDC1400R ................................................................................60
HDC1550R ................................................................................61
HDC1450R ................................................................................62
Optional Accessories and Related Equipment ..........................63
Dimensions ................................................................................64

5
Overview
Overview
The HDC1500R, HDC1550R, HDC1400R, and
HDC1450R are 2/3-type high-definition portable video
cameras equipped with CCD for 2,200,000 pixels. They
incorporate the latest pickup elements and digital signal-
processing LSI to yield higher picture quality and higher
stability in image creation while maintaining conventional
popular functions and operability.
The differences among the models are shown below:
Features
High picture quality and high performance
The new 2/3-type Progressive IT CCD for 2,200,000 pixels
conforms to driving formats up to 1080/59.94P, achieving
high sensitivity and low smear. In addition, the 14-bit A/D
converter and a unique signal-processing LSI provide
picture quality of optimal grade.
Multiple formats
The HDC1500R covers ten video formats, HDC1550R
covers eight video formats, and HDC1400R and
HDC1450R covers two video formats. With the
HDC1500R, signal output of 1080/50P and 59.94P from
the camera head is also possible via the Dual Link
interface.
Newly designed integrated unit with low
center of gravity
A stylish appearance with low-slung design has been
adopted. When used in combination with the HDLA1500-
series Large Lens Adaptor, it permits the viewfinder to be
mounted at a low position, making the viewfinder position
closer to the optical axis of the lens.
Optimized handle shape and VF slide
mechanism for stable shooting
A new handle design has been adopted. A slight protrusion
of the upper front part of the handle enables stable holding
of the camera while you are shooting, by holding the front
part of the handle.
Furthermore, the movable range of a front-rear slide
mechanism for the viewfinder attachment has been
widened. Any difference in weight balance caused by
having a different lens attached can be counteracted by
adjusting the viewfinder attachment position, in
combination with the movable shoulder pad position. This
provides the best balance for shooting with the camera on
your shoulder.
HDC1500R HDC1550R HDC1400R HDC1450R
JN4/SYL
models CED/E33 models UC7 model CED model JN3/JN4 models CED/E33 models UC7 model CED model
Operation
panel SY type European type SY type European type SY type European type SY type European type
Control
connector Fiber Triax Fiber Triax
Video format
coverage 1080/50i, 1080/59.94i, 1080/23.98PsF,
1080/24PsF, 1080/25PsF,
1080/29.97PsF, 720/50P,
720/59.94P, 1080/50P,
1080/59.94P
1080/50i, 1080/59.94i,
1080/23.98PsF,
1080/24PsF, 1080/25PsF,
1080/29.97PsF, 720/50P,
720/59.94P
1080/59.94i,
720/59.94P
1080/50i,
720/50P
1080/59.94i,
720/59.94P
1080/50i,
720/50P
Built-in filters Optical ND filters (clear, 1/4ND, 1/8ND, 1/16ND,1/
64ND)
Optical CC filters (cross, 3200K, 4300K, 6300K, 8000K)
Electric filter (5600K)
Optical ND filters (clear, 1/4ND, 1/16ND,1/64ND)
Optical cross filter
Electric filter (5600K)
HD-SDI output BNC connector ×2 BNC connector ×1 TT
Prompter
output 2 channels 1 channel TT

6Overview
Swing handle
The swinging structure of the handle enables the large
viewfinder mounted on the HDLA1500-series Large Lens
Adaptor to be shifted forward, giving it the same total
longitudinal size as a standard studio-use camera, for
operability equivalent to that of a standard studio-use
camera.
Position-adjustable shoulder pad
The position of the shoulder pad can be adjusted for stable
shooting according to the build of the camera operator, the
type of lens in use, or the shooting style.
A low-repulsion shoulder pad (position fixed) is available
as an option (Part No.: A-8286-346-A).
Function-assignable switches
The camera has a switch to which various functions can be
assigned on the side panel. You can activate your desired
function, such as electronic color-temperature conversion,
instantly when shooting by assigning it to the switch in
advance. Switches on the handle are also available as
function assignable switches.
Auto Lens Aberration Compensation
function
The Auto Lens Aberration Compensation function
(ALAC) is provided with this camera. This automatically
reduces chromatic aberration of magnification when a lens
that supports auto aberration compensation is attached.
For details on lenses supporting auto aberration
compensation, contact a Sony sales representative or Sony
service representative.
Focus assist functions
The VF detail function and focus assist indicator function
facilitate focusing.
VF detail
Various functions are provided for the VF detail signal,
which can be added only on images on the viewfinder
screen in order to facilitate focusing in various situations:
Functions for coloring the VF detail signal, flickering the
VF detail signal by adding modulation, thickening the VF
detail signal, and automatically compensating the VF
detail level according to the zoom position.
Focus assist indicator
The focusing level indicator on the viewfinder screen
provides a guide for focusing. The best focus setting can be
easily determined by observing fluctuation of the level
indicator as a guide.
“Memory Stick” 1) operation
The camera is equipped with a “Memory Stick” port,
which enables setup data storage and software upgrading
using a “Memory Stick.”
1) Memory Stick and are trademarks of Sony
Corporation.
Various color-reproduction functions
Selection of multiple gamma tables
Seven types of standard and 4 types of hyper gamma tables
are provided with this camera. The hyper gamma values
enable cinemalike image creations with wide dynamic
range, which are different from those achieved with
conventional video gamma.
HZC-UG444 User Gamma Application Software
Installing the HZC-UG444 User Gamma Application
Software enables the camera to support CvpFileEditorTM
and RGB4:4:4 outputs (HDC1500R only).
For details, refer to the HZC-UG444 Operation Manual.
Multimatrix color correction
In addition the standard 6-axis matrix function, the camera
has a multimatrix function that permits you to adjust the
hue and chroma for color components in 16-axis directions
independently. This is quite useful in color matching
among multiple cameras.
Knee saturation
Change of hue and decrease in chroma that occur in
highlighted areas can be compensated.
This enables reproduction of natural skin tones under
strong lighting.
Low key saturation
Hue and saturation in low-key zones can be compensated.
Thus, compensation for color reproduction in all zones is
enabled in combination with matrix color compensation
and knee saturation functions.
Versatile detail control functions
Skin-tone detail function
This function allows control (emphasis or suppression) of
the detail level for just a certain hue or chroma area in the
image, by creating a detail gate signal from color
components of your specified hue, such as skin tones.
The detail levels of three hues can be adjusted
independently at the same time.

7
Overview
Detail boost-frequency control
The boost frequency can be adjusted from 20 to 30 MHz.
This allows the detail thickness to be set appropriately for
the subject, thus enabling more subtle image expression.
H/V ratio control
The ratio between horizontal and vertical detail can be
adjusted.
White/black limiter
The white and black details can be limited independently.
Easy menu-based setting
Selections and settings for viewfinder display items,
safety-zone marker 2) or center marker,3) screen size
marker, etc. can be made quickly and easily, using setup
menus displayed on the viewfinder screen or an external
monitor.
2) Safety zone marker:
A box-shaped marker displayed on the viewfinder screen which indicates
80%, 90%, 92.5%, or 95% of the total screen area
3) Center marker:
A cross-shaped marker which indicates the center of the viewfinder screen
Wide variety of viewfinder display options
Along with items such as operation messages, a zebra
pattern,4) a safety-zone marker, and a center marker,
camera settings may also be displayed on the viewfinder
screen. Furthermore, there are other indicators arranged
above and below the viewfinder, such as a tally lamp,
battery warning indicator, and an indicator to tell you that
one or more settings are other than standard. This makes it
simple to check the status of the camera.
4) Zebra pattern:
A stripe pattern displayed on the viewfinder screen which indicates the
portions where the video level is above about 70% or 100%. Used to check
the video level of the subject.
Optical digital transmission (HDC1500R/
1400R)
The camera uses electro-optical coding cable for 1.5-
gigabit digital optical transmission between the camera
and a Camera Control Unit.
High-resolution monochrome and color
multiformat viewfinders (optional)
The HDVF-20A/200 multiformat 2-type monochrome
CRT viewfinders and the HDVF-C35W (3.5-type) /
HDVF-C30WR (2.7-type) multiformat color LCD
viewfinders are available as options to cover various
applications.
Prevention of electrical shock
When the power connection is unsafe, the power supply
from the connected Camera Control Unit will be shut off.
System Configuration
Peripherals and related devices for the cameras are shown
in the figures on the subsequent pages.
Production of some of the peripherals and related devices
shown in the figures has been discontinued. For advice on
choosing devices, please contact your Sony dealer or a
Sony sales representative.
Note

8Overview
Connection example 1 (HDC1500R/1400R)
HD CAMERA CONTROL UNIT
PROD
SHORT
OPEN
CAM
MAIN
CABLE
ALARM
INCOM
POWER
1
ENGPGM
ONMIC
OFF PRIV
FUNCTION
MAINTE
NANCE
SCENE
PAIN T
ALARM
PANE L
ACTIVE
MEMORY
STICK
STANDARD MONITOR TEST BARS
5600K AUTO
KNEE
SKIN
DETAIL
BLACK
GAMMA
KNEE
SATURATION
CLOSE
AWB
AUTO
IRIS
IRIS/MB
ACTIVE MASTER
BLACK
REMOTE CONTROLUNIT
EXT
IRIS
ABS
WHITE
BLACK
ABB
VTR
START/STOP
1
Zoom Lens
(for ENG/EFP)
“Memory Stick”
VCT-14
Tripod Adaptor
Tripod
Zoom Lens
(for studio use)
“Memory Stick”
HDLA1500-series
Large Lens Adaptor
Zoom Lens
(for studio use)
“Memory Stick”
V-wedge shoe
(supplied with
the tripod)
Tripod
HDVF-C730W/C950W/550
Viewfinder
BKW-401 Viewfinder
Rotation Bracket
HDVF-20A
HDVF-200
HDVF-C30WR
HDVF-C35W
Viewfinder
HDC1500R/1400R
Optical Fiber Cable
CAC-6
Return Video Selector
Intercom Headset
CAC-12
Microphone
holder
Microphone
HDVF-EL100/700A
Viewfinder
HDC1500R/1400R
CAC-6
Return Video Selector
Intercom Headset
Microphone
BKP-7911 Script Holder
HDVF-EL100
HDVF-700A
Viewfinder
HDC1000R
studio camera
CAC-6
Return Video Selector
Intercom Headset
Microphone
BKP-7911 Script Holder
HKCU1001
HKCU1003
HKCU1005
HDCU1000 HD Camera
Control Unit
HKCU1001
HKCU1003
HKCU1005
HDCU1500
HD Camera Control Unit
RM-B750
Remote Control Unit
CNU-700
Camera Command
Network Unit
MSU-900/950
Master Setup Unit
RCP-700/900-series
Remote Control Panel
BNC (SD)BNC (SD)
BNC
(VBS)
BNC
(VBS)
CCA-5 CCA-5
CCA-5 CCA-5
With HKCU1001
or HKCU1003
Monitor
Waveform
Monitor
VCS-700
Video Selector
HKCU1005
Camera hangers a)
a) supplied with the HDLA1500, Part No.: A-1128-405-A

9
Overview
Connection example 2 (HDC1550R/1450R)
HD CAMERA CONTROL UNIT
PROD
SHORT
OPEN
CAM
MAIN
CABLE
ALARM
INCOM
POWER
1
ENGPGM
ONMIC
OFF PRIV
FUNCTION
MAINTE
NANCE
SCENE
PAIN T
ALARM
PANE L
ACTIVE
MEMORY
STICK
STANDARD MONITOR TEST BARS
5600K AUTO
KNEE
SKIN
DETAIL
BLACK
GAMMA
KNEE
SATURATION
CLOSE
AWB
AUTO
IRIS
IRIS/MB
ACTIVE MASTER
BLACK
REMOTE CONTROLUNIT
EXT
IRIS
ABS
WHITE
BLACK
ABB
VTR
START/STOP
Zoom Lens
(for ENG/EFP)
“Memory Stick”
VCT-14
Tripod Adaptor
Tripod
“Memory Stick”
HDLA1500-series
Large Lens Adaptor
HDVF-C730W/C950Wa)/550
Viewfinder
BKW-401 Viewfinder
Rotation Bracket
HDVF-20A
HDVF-200
HDVF-C30WR
HDVF-C35W
a)
Viewfinder
HDC1550R/1450R
Triax Cable
b)
CAC-6
Return Video Selector
Intercom Headset
CAC-12
Microphone
holder
Microphone
HDVF-EL100/700A
Viewfinder
HDC1550R/1450R
CAC-6
Return Video Selector
Intercom Headset
Microphone
BKP-7911 Script Holder
HKCU1001
HKCU1003
HKCU1005
HDCU1000 HD Camera
Control Unit
HKCU1001
HKCU1003
HKCU1005
HDCU1500
HD Camera Control Unit
RM-B750
Remote Control Unit
CNU-700
Camera Command
Network Unit
MSU-900/950
Master Setup Unit
RCP-700/900-series
Remote Control Panel
BNC (SD)BNC (SD)
BNC
(VBS)
BNC
(VBS)
CCA-5 CCA-5 CCA-5
CCA-5
With HKCU1001
or HKCU1003
Monitor
Waveform
Monitor
VCS-700
Video Selector
Camera hangers
c)
a) The HDVF-C730W/C950W and HDVF-C35W function as
monochrome viewfinders when monitoring a return video with the
HDC1550R/1450R.
b) The maximum Triax cable length between the HDC1550R/1450R and
the HDFX100 depends on the type of cable.
For details, refer to the Operation Manual of the HDFX100.
c) supplied with the HDLA1500, Part No.: A-1128-405-A
Optical Fiber
Cable
Triax cable
b)
Zoom Lens
(for studio use)
HDFX100
HD Triax
CCU Adaptor

10 Overview
Connection example 3
Maximum cable run with Triax cable
The maximum Triax cable length between the
HDC1550R/1450R and the HDFX100 or between the
HDFX100 and the HDTX100 depends on the type of
cable.
For details, refer to the Operation Manual of the
HDFX100/HDTX100.
• The viewfinders function as monochrome viewfinders
when monitoring a return video using the HDFX100 and
the HDTX100.
• The skin gate signal is superimposed on the camera
video signal. When tally becomes ON, the skin gate
signal is forced to OFF.
HDC1550R/1450R HD Color Video Camera
+Large Lens Adaptor
+HDVF-C730W/C950W Electronic Viewfinder
RCP-700/900-series
Remote Control Panel
HDC1550R/1450R HD Color Video Camera
HDC1500R/1400R
HD Color Video Camera
2)
HDC1500R/1400R
HD Color Video Camera
1)
+Large Lens Adaptor
HDC1000R
HD Color Video Camera
+Large Lens Adaptor
1) HDC1500R with Large Lens Adaptor attached is illustrated.
2) HDC1500R is illustrated.
Notes

11
Precautions
Precautions
Note on laser beams
Laser beams may damage the CCDs. If you shoot a scene
that includes a laser beam, be careful not to let a laser beam
become directed into the lens of the camera.
Do not subject to severe shocks
Damage to the case or internal components may result.
When finished using
Set the power switch to OFF.
Operation and storage environment
Store in a level place with air conditioning.
If the unit gets wet, make sure it is completely dry before
storage.
Avoid use or storage in the following places:
• Extremely hot or cold places
• Places with high humidity
• Places with strong vibration
• Near strong magnetic fields
• In places where it receives much direct sunlight, or near
heating equipment
Condensation
If you move the camera from a very cold place to a warm
place, or use it in a damp location, condensation may form
on the lens or inside the camera.
The camera has no built-in condensation indicator. If you
find condensation on the body or lens, switch the camera
off and wait for the condensation to disappear for about
one hour.
Phenomena Specific to CCD Image
Sensors
The following phenomena that may appear in images are
specific to CCD (Charge Coupled Device) image sensors.
They do not indicate malfunctions.
White flecks
Although the CCD image sensors are produced with high-
precision technologies, fine white flecks may be generated
on the screen in rare cases, caused by cosmic rays.
This is related to the principle of CCD image sensors and
is not a malfunction.
The white flecks especially tend to be seen
• when operating at a high environmental temperature
• when you have raised the master gain (sensitivity)
This product has a compensation function and the problem
may be alleviated by automatic black balance adjustment
(see page 26).
Smear
When an extremely bright object, such as a strong spotlight
or flashlight, is being shot, vertical tails may be produced
on the screen, or the image may be distorted.
Aliasing
When fine patterns, stripes, or lines are shot, they may
appear jagged or flicker.

12 Locations and Functions of Parts
Locations and Functions of Parts
Accessory Attachments
aVF (viewfinder) connector (20-pin)
Connect the cable of the viewfinder (not supplied).
bShoulder strap fitting post
Attach one end of a shoulder strap (not supplied) to this
fitting post, and the other end to the fitting post on the other
side of the camera.
cAccessory shoe
To attach an accessory using a 1/4-inch screw.
dViewfinder left-right positioning ring
Loosen this ring to adjust the viewfinder position towards
the left or right.
eViewfinder front-rear positioning lever and lock
knob
Loosen the lever and knob to adjust the viewfinder position
towards the front or rear.
For details on adjusting the viewfinder position, see
“Attaching a Viewfinder” on page 21.
fLens cable clamp
To secure the cable of the lens (not supplied).
gLens fixing lever
To secure the lens in the lens mount.
hLens mount cap
The cover can be removed by moving the lens fixing lever
upwards. Always keep the lens mount covered with this
cap when a lens is not attached.
iLens mount
To attach a lens (not supplied).
SERIES
HD
MULTI FORMA
T SERIES
lShoulder pad
bShoulder strap fitting post
aVF connector
dViewfinder left-right positioning
ring
eViewfinder front-rear positioning
lever and lock knob
fLens cable clamp
gLens fixing lever
hLens mount cap
iLens mount
jLENS connector
kTripod mount (bottom)
cAccessory shoe

13
Locations and Functions of Parts
jLENS connector (12-pin)
Connect the lens cable. The camera can control the lens
functions through this cable.
kTripod mount
Attach the VCT-14 Tripod Adaptor when mounting the
camera on a tripod.
lShoulder pad
You can adjust the position so that you can get the best
balance for shooting with the camera on your shoulder.
For details, see “Adjusting the Shoulder Pad Position” on
page 24.
Controls and Connectors
Front right
aINCOM (intercom 1) button
The intercom 1 microphone is turned ON while this button
is held pressed.
You can also assign other functions to this button, using the
menu displayed on the viewfinder screen.
bRET 1 (return video 1) button
The return video 1 signal from the camera control unit is
monitored on the viewfinder screen while this button is
pressed. It function the same as the RET 1 button on the
side (page 15) and that on the operation panel on the rear
of the camera (page 17 or 18).
You can also assign other functions to this button, using the
menu displayed on the viewfinder screen.
cAssignable switch
You can assign a function using the menu displayed on the
viewfinder screen.
dFilter select buttons
HDC1500R/1550R
You can switch the built-in ND and CC (color temperature
conversion) filters by pressing the selectors while holding
the FILTER LOCAL button depressed.
HD
MULTI FORMA
T SERIES
mMENU SEL knob/ENTER
button
aINCOM button
bRET 1 button
cAssignable switch
gGAIN switch
hOUTPUT/AUTO KNEE switch
iWHITE BAL switch
jDISPLAY switch
kCANCEL/STATUS switch
fAUTO W/B BAL switch
dFilter select buttons
eFILTER LOCAL button
l“Memory Stick” section

14 Locations and Functions of Parts
Pressing the left button selects the available ND filters
(clear, 1/4ND, 1/8ND, 1/16ND,1/64ND) in sequence.
Pressing the right button selects the available CC filters
(cross, 3200K, 4300K, 6300K, 8000K) in sequence.
HDC1400R/1450R
You can switch the built-in optical filters (clear, 1/4ND,
1/16ND,1/64ND, cross) by pressing either of these buttons
while holding the FILTER LOCAL button depressed.
eFILTER LOCAL button
While holding this button depressed, press either of the
filter select buttons to select the built-in optical filters.
fAUTO W/B BAL (white and black balance
automatic adjustment) switch
To automatically adjust white and black balance when the
camera is used in standalone status without connecting to
the camera control unit.
WHT: Automatically adjust white balance.
BLK: Automatically adjust black balance.
gGAIN switch
To select the gain of the video amplifier based on lighting
conditions when the camera is used in standalone status
without connecting a camera control unit.
When shipped from the factory, the values set are L = 0 dB,
M = 6 dB, and H = 12 dB.
hOUTPUT (output signal selection)/AUTO KNEE
switch
To select the signal (color bar signal or camera’s video
signal) to be used as output to a VTR, the viewfinder or a
video monitor when the camera is used in standalone status
without connecting a camera control unit.
When the camera’s video signal is being used as output,
the auto knee function may be used.
The relationship between the switch setting and the output
signal and auto knee function is shown in the table below.
iWHITE BAL (white balance memory selection)
switch
To select the white balance adjustment method or the
memory used to store the adjusted value when the camera
is used in standalone status without connecting a camera
control unit.
PRST (preset): White balance is adjusted to a preset value
corresponding to a color temperature of 3200K.
A or B: Selects memory A or B.
jDISPLAY switch
The functions of the DISPLAY switch are as follows:
ON: Characters and messages showing the camera settings
and operating status may be displayed on the
viewfinder screen.
OFF: Status messages will not appear on the viewfinder
screen.
MENU: Menus for camera settings will be displayed on
the viewfinder screen.
kCANCEL/STATUS switch
CANCEL: When a menu is displayed on the viewfinder
screen, you can cancel any changed settings or return
the display to the previous menu.
STATUS: When no menu is displayed on the viewfinder
screen, the status information of this camera is
displayed.
l“Memory Stick” section
A slot to accommodate a “Memory Stick” and an access
lamp are provided behind the panel.
The access lamp lights in red while writing or reading data
to/from a “Memory Stick.”
When the access lamp is lit, do not insert/remove the
“Memory Stick” or turn off the camera.
mMENU SEL (menu select) knob/ENTER button
(rotary encoder)
To select settings from menus displayed on the viewfinder
screen (by rotating the knob) and to confirm settings (by
pushing the button).
When a camera control unit or a remote control device,
such as MSU-900/950 and the RCP-700/900-series
Remote Control Panel, is connected, the functions of 6to
9are controlled from the external control device and the
controls on the camera are disabled.
OUTPUT AUTO KNEE Function
BARS OFF Output is a color bar signal.
CAM OFF Output is the camera’s video
signal. The auto knee circuit is
disabled.
CAM ON Output is the camera’s video
signal. The auto knee circuit is
enabled.
Note
Note

15
Locations and Functions of Parts

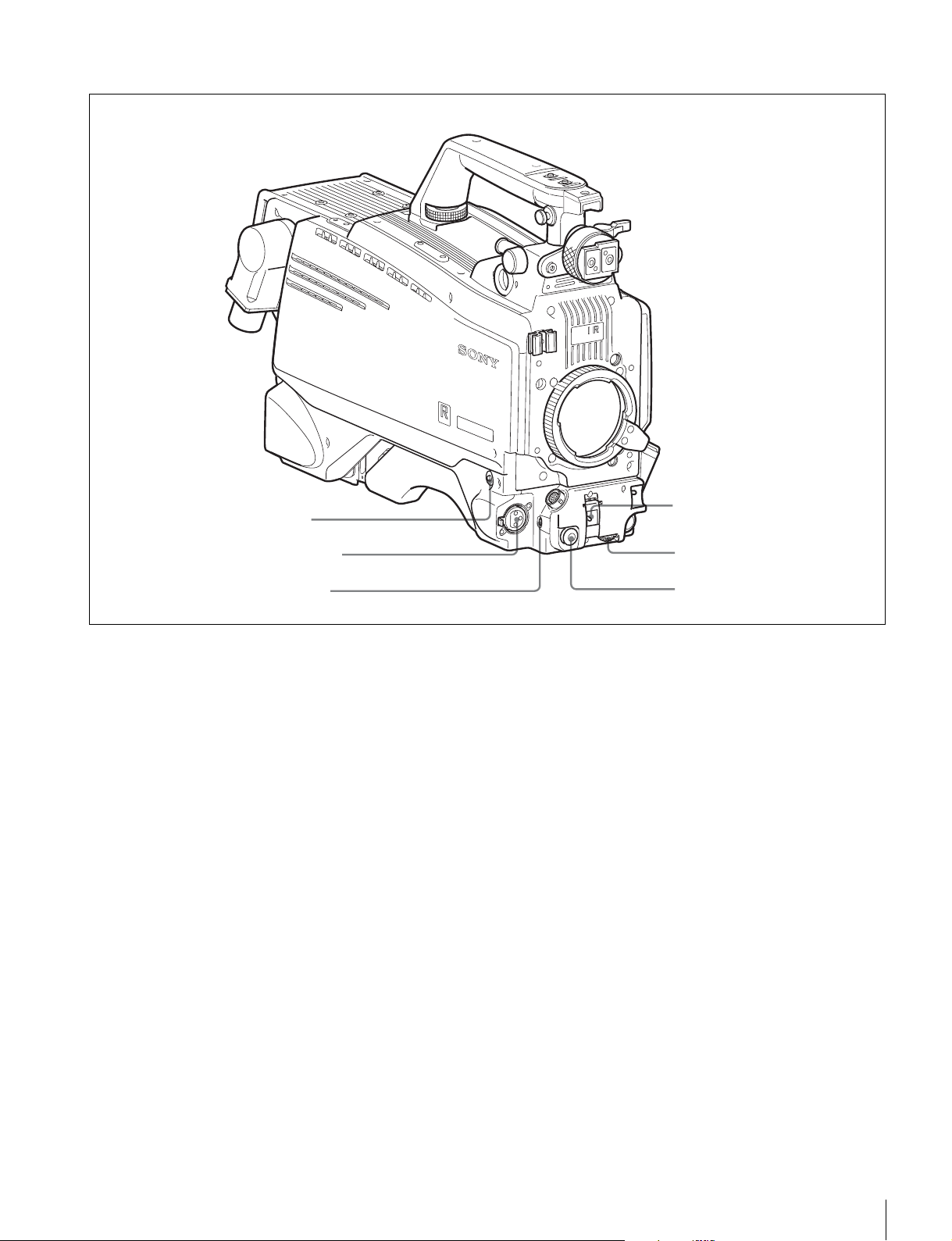

Front left
aRET 1 (return video 1) button
The return video 1 signal from the camera control unit is
monitored on the viewfinder screen while this button is
pressed. It function the same as the RET1 buttons on the
handle (page 13) and that on the operation panel on the rear
of the camera (page 17 or 18).
You can also assign other functions to this button, using the
menu displayed on the viewfinder screen.
bMIC 1 IN (microphone 1 input) connector (XLR 3-
pin)
Connect a microphone.
This connector and the AUDIO IN CH-1 connector (page
20) on the operation panel on the rear of the camera are
alternately activated with the CH1 audio input select
switch (page 20).
cMIC (microphone) power switch
+48V: To supply a power of +48 V to the connected
microphone.
OFF: Not to supply a power to the connected microphone.
dSHUTTER switch
For setting the electronic shutter functions when the
camera is used in standalone status without connecting a
camera control unit.
OFF: The electronic shutter does not function.
ON: The electronic shutter is activated.
SEL: The shutter speed and shutter mode change each
time the switch is set to this position.
For details, see “Setting the Electronic Shutter” on page
28.
eINTERCOM LEVEL control
To adjust the intercom/earphone volume level.
The intercom level adjustment is enabled when the
INTERCOM 1 and 2 LEVEL/MIC switches (on the SY-
type operation panel, page 17) or the LEVEL switch (on
the European-type operation panel, page 18) on the rear of
the camera are set to “FRONT.”
fRET 2 (return video 2) button
When this button is pressed, the picture on the viewfinder
screen changes to the return video signal selected with the
RET 2 select switch (page 17 or 18) on the operation panel
on the rear of the camera.
You can also assign other functions to this button, using the
menu displayed on the viewfinder screen.
HD
MULTI FORMA
TSERIES
SERIES
dSHUTTER switch
eINTERCOM LEVEL control
fRET 2 button
bMIC 1 IN connector
aRET 1 button
cMIC power switch

16 Locations and Functions of Parts
Rear
aCAMERA POWER switch
CCU: Power supply will be received from the camera
control unit.
EXT: Power supply will be received through the DC IN
connector.
bTally lamp and switch
ON: The tally lamp lights when a tally signal is input to the
connected camera control unit or a call signal is
generated in response to pressing of a CALL button.
OFF: The tally lamp is prevented from lighting.
cCCU (Camera Control Unit) connector (optical/
electrical multi-connector) (HDC1500R/1400R)
Connect a camera control unit using an optical electro-
composite cable.
3HDCU/HDFX (HD Triax CCU) connector (Triax
connector) (HDC1550R/1450R)
Connect the HDFX100 HD Triax CCU Adaptor using a
Triax cable. A camera control unit can be connected via the
HDFX100.
dSDI 1 (serial digital interface 1) connector (BNC
type) (HDC1500R only)
For HD-SDI signal output
ePROMPTER2 connector (BNC type) (HDC1500R
only)
For prompter 2 signal output.
This operates only when a camera control unit having a
prompter 2 input is connected.
fCALL button
When you press this button, the red tally lamp of the RCP-
700/900-series Remote Control Panel or the MSU-900/950
Master Setup Unit, will light. Use to call the operator of the
RCP or MSU.
aCAMERA POWER switch
Shoulder strap fitting post (page 12)
cCCU connector (HDC1500R/1400R)
HDCU/HDFX connector
(HDC1550R/1450R)
dSDI 1 connector (HDC1500R only)
fCALL button
Operation panel (page 17, page 18)
Connector panel (page 19)
bTally lamp and switch
ePROMPTER2 connector
(HDC1500R only)
The figure shows HDC1500R.

17
Locations and Functions of Parts
Operation panel
SY type: For JN3/JN4/SYL/UC7 (USA, Canada, East Asia and other countries) models (for NTSC areas)
For details on the differences among models, see “Overview” on page 5.
aINTERCOM1 and INTERCOM2 controls and
switches
There are PGM1 and 2 controls incorporated with a line
select switch, a LEVEL/MIC switch, and INCOM level
control each for intercom line 1 and 2.
PGM1 (program 1) control
Adjust the audio listening level of program 1.
PGM2 (program 2) control
Adjust the audio listening level of program 2.
LEVEL/MIC switch
REAR/ON: The intercom headset microphone is turned
on. The intercom audio listening level is adjusted with
the INCOM level control.
REAR/OFF: The intercom headset microphone is turned
off. The intercom audio listening level is adjusted with
the INCOM level control.
FRONT/OFF: The intercom headset microphone is
turned off. The intercom audio listening level is
adjusted with the INCOM level control and the
INTERCOM LEVEL control on the front of the camera
(page 15).
INCOM level control
Adjust the intercom audio listening level.
Line select switch
Select the intercom line.
PROD: Producer line
ENG: Engineer line
bRET 1 (return video 1) button and select switch
The return video signal selected with the switch is
displayed on the viewfinder screen while the button is
pressed.
cRET 2 (return video 2) button and select switch
When other return video systems are used in addition to
return video 1, you can monitor the signal selected with the
switch on the viewfinder screen while pressing the button.
The RET 1 button has priority over the RET 2 button if
both buttons are pressed.
dLIGHT switch
Set to ON to illuminate the operation panel.
RET1
PGM1 PGM2
1
23
4
RET2
1
23
4LIGHT
INCOM
INTERCOM 1
ON
OFF
PROD
LEVEL
REAR
FRONT
MIC
ON
OFF ENG
PGM1 PGM2
INCOM
INTERCOM 2
PROD
LEVEL
REAR
FRONT
MIC
ON
OFF ENG
PGM1 PGM2
INCOM
INTERCOM 1
PROD
LEVEL
REAR
FRONT
MIC
ON
OFF ENG
PGM1 PGM2
INCOM
INTERCOM 2
PROD
LEVEL
REAR
FRONT
MIC
ON
OFF ENG
bRET 1 button and select switch
cRET 2 button and select switch
dLIGHT switch
aINTERCOM1 and INTERCOM2 controls and switches
PGM1 control
PGM2 control
INCOM level control
Line select switch
LEVEL/MIC switch
Note

18 Locations and Functions of Parts
European type: For CED (Europe) and E33 (China and South Asia) models (for PAL areas)
For details on the differences among models, see “Overview” on page 5.
aINTERCOM1 and INTERCOM2 controls and
switches
The reception level controls are common to intercom 1 and
intercom 2. The talk lines can be set independently for
intercom 1 and intercom 2.
ENG (engineer line) control:
Adjust the intercom audio listening level of the engineer
line.
PROD (producer line) control
Adjust the intercom audio listening level of the producer
line.
PGM1 (program 1) control
Adjust the audio listening level of program 1.
PGM2 (program 2) control
Adjust the audio listening level of program 2.
TRACKER control
Adjust the intercom audio listening level at the TRACKER
connector (page 19) on the connector panel when using the
connector for intercom.
MIC LINE1 (intercom microphone line 1) switch
Select the talk line for intercom 1.
PROD: To talk over the producer line
OFF: To turn off the headset microphone for intercom line
1.
ENG: To talk over the engineer line
MIC LINE2 (intercom microphone line 2) switch
Select the talk line for intercom 2.
PROD: To talk over the producer line
OFF: To turn off the headset microphone for intercom line
2.
ENG: To talk over the engineer line
LEVEL switch
REAR: The intercom audio listening level is adjusted with
the controls on this panel.
FRONT: The intercom audio listening level is adjusted
with the INTERCOM LEVEL control on the front of
the camera.
bRET 1 (return video 1) button and select switch
The return video signal selected with the switch is
displayed on the viewfinder screen while the button is
pressed.
cRET 2 (return video 2) button and select switch
When other return video systems are used in addition to
return video 1, you can monitor the signal selected with the
switch on the viewfinder screen while pressing the button.
The RET 1 button has priority over the RET 2 button if
both buttons are pressed.
dLIGHT switch
Set to ON to illuminate the operation panel.
RET1
ENG PROD
1
23
4
RET2 LIGHT
INTERCOM 1
ON
OFF
MIC
LINE1 PROD
OFF
ENG
MIC
LINE2 PROD
OFF
ENG
PGM1 PGM2
TRACKER
INTERCOM 2
LEVEL
REAR
FRONT
1
23
4
ENG PROD
INTERCOM 1
MIC
LINE1 PROD
OFF
ENG
MIC
LINE2 PROD
OFF
ENG
PGM1 PGM2
TRACKER
INTERCOM 2
LEVEL
REAR
FRONT
bRET 1 button and select switch
cRET 2 button and select switch
dLIGHT switch
aINTERCOM1 and INTERCOM2 controls and switches
PGM1 control
PGM2 control
TRACKER control
LEVEL switch
MIC LINE1 switch
ENG control
PROD control
MIC LINE2 switch
Note

19
Locations and Functions of Parts
Connector panel
aEARPHONE jack (stereo minijack)
For connecting an earphone or headset to hear the intercom
audio.
bRET CTRL (return control) connector (6-pin)
For connection to a CAC-6 Return Video Selector.
cCRANE connector (12-pin)
For external interface, such as viewfinder (and external
data with HDC1500R/1400R).
dTRACKER connector (10-pin)
For external interface, such as intercom and tally.
eDC OUT (DC power supply output) connector (4-
pin)
To supply power to devices such as a wireless receiver
(optional).
fDC IN (DC power supply input) connector (XLR 4-
pin)
Used for connection to the AC-DN10 AC Adaptor to
supply power to the camera.
gINTERCOM1 and 2 (intercom 1 and 2) connectors
(XLR 5-pin)
Used for input and output of intercom audio signals if an
XLR 5-pin headset is connected.
The INTERCOM 1 connector can be used for
communication over the engineer line even when the
power is off, as long as the power LED is lit in red.
hREMOTE connector (8-pin)
For connection to an RM-B150/B750 Remote Control
Unit, RCP-700/900-series Remote Control Panel, or MSU-
900/950 Master Setup Unit.
When the camera is connected to a CCU, do not connect
any remote control device, such as RCP and MSU, to this
connector.
iGENLOCK IN/RET IN/PROMPTER (external
gen-lock signal input/return video signal input/
prompter 1 signal output) connector (BNC type)
and switch
Set the switch according to the signal at the connector.
GENLOCK IN: For input of an external gen-lock signal
(VBS or 3-level sync) when the camera is used without
a camera control unit connected
RET IN: For input of the return video signal when the
camera is used without a camera control unit
connected.
The connector accepts analog HD signals only. SDI
signals are not acceptable. Supply a signal of 1080i
(720P is not acceptable).
The signal supplied to this connector cannot be fed as
RET OUT from the TEST OUT or SDI OUT
connector.
PROMPTER: For output of the prompter 1 signal (valid
only when a camera control unit is connected). When a
camera control unit having two prompter inputs is
OFF
+48V
MIC
FRONT MIC
DC OUT AUDIO IN
CH1 CH2
TEST
OUT
SDI 2
DC IN 10.5-17V
PROMPTER
RET IN
GENLOCK IN
LINE
OFF
+48V
MIC
AES/EBU
LINE
EARPHONE REMOTE RET CTRL
CRANETRACKER
gINTERCOM1 and 2 connectors
aEARPHONE jack
dTRACKER connector
cCRANE connector
i GENLOCK IN/RET IN/PROMPTER
connector and switch
lAUDIO IN CH1 and CH2 connectors and switches
bRET CTRL connector hREMOTE connector
jTEST OUT connector
eDC OUT connector
fDC IN connector kSDI 2 connector (HDC1500R)
SDI connector (HDC1550R/1400R/
1450R)
The figure shows HDC1500R.
Note

20 Locations and Functions of Parts
connected, the signal of input 1 is output from this
connector.
jTEST OUT connector (BNC type)
To output the analog signal.
This also supplies the VBS signal, an HD signal nearly
equal to the signal output from the VF connector, an HD-
SYNC signal, or an SD-SYNC signal depending on which
of these you have selected on the menu.
For details on the output signals, see “Setting the Camera
Outputs” (page 31).
kSDI 2 (serial digital interface 2) connector (BNC
type) (HDC1500R)
For HD-SDI or SD-SDI signal output.
For details on the output signals, see “Setting the Camera
Outputs” (page 31).
qa SDI (serial digital interface) connector (BNC type)
(HDC1550R/1400R/1450R)
For HD-SDI or SD-SDI signal output.
For details on the output signals, see “Setting the Camera
Outputs” (page 31).
lAUDIO IN CH1 and CH2 connectors (XLR 3-pin)
and switches
Connect audio signals. An input select switch and
microphone power switch are provided for each channel.
CH1 audio input select switch
Set to the appropriate position according to the equipment
connected to the AUDIO IN CH1 connector.
LINE: When a line-level (0 dBu) signal source is
connected
FRONT MIC: When using the microphone connected to
the MIC 1 IN connector
MIC: When an external microphone is connected
CH2 audio input select switch
Set to the appropriate position according to the equipment
connected to the AUDIO IN CH2 connector.
LINE: When a line-level (0 dBu) signal source is
connected
AES/EBU (HDC1500R/1400R only): When a digital
audio signal is connected (The signal must be in
synchronization with the camera output). The
corresponding position on the HDC1550R/1450R is
invalid (NC).
MIC: When an external microphone is connected
Microphone power switches
When a microphone is connected to the corresponding
AUDIO IN connector, set whether or not to supply a power
to the microphone.
+48V: To supply a power of +48 V
OFF: Not to supply a power
(No function has been assigned to the lowermost position.
No power is supplied to the microphone.)
To supply a power of +12 V, modification of the camera is
required.
CH 1
48V
OFF
MIC LINE
48V
OFF
MIC LINE
AES/EBU
FRONT MIC
AUDIO IN
CH 2
CH2 audio input select switch
CH1 audio input select switch
Microphone power switches
AUDIO IN CH1 connector AUDIO IN CH2 connector
The figure shows HDC1500R.
Note
