4K/HD system camera
HDC-4300
The next level in live production

2
HDC-4300
Live production in 4K and HD
Sports, music and entertainment will never be the same

3
Build the system that works
for you
Maybe you’re looking to enhance HD broadcasts with stunning
HD 1080 60P or high frame rate images. Maybe you’re diving into
4K live production or planning a long term migration from HD to 4K.
Whatever your agenda, the HDC-4300 is ready. It works side-by-side
with Sony’s legendary HDC-2000 Series cameras, using many of the
same accessories. It steps up to 8x HD high frame rate with SZC-4002
software. You can get 4K output with SZC-4001 software. You can
even choose from permanent or pay-per-use software options to
get exactly the camera that meets your needs.

4
Three 2/3-inch 4K sensors for 4K and HD output
4K establishes a new world of imagery. The HDC-4300 can take you
there with three 2/3-inch native 4K CMOS imagers and an advanced
optical system. The camera supports the ITU-R BT.2020 video
specification beautifully, including the format’s extended color gamut.*
The result is a transformation in live production.
* Does not cover the BT.2020 color gamut in full.
B4 lens mount
While the HDC-4300 establishes a new era in production possibilities, it
uses the same, familiar 2/3-inch B4 lenses that broadcasters already
know and appreciate. You’ve got the same choice of glass, the same
familiar zoom ranges, the same high-powered box lenses and the same
depth of field.
HDC-4300
The world’s first three 2/3-inch camera with 4K sensors

5
8x ultra high frame rate
Nothing reveals the ballet of sports like high frame rate images.
And no broadcast system camera performs high frame rate like the
HDC-4300. The base camera captures Full HD at up to 3x high frame
rate. The SZC-4002 software, available on a permanent or pay-per-use
basis, expands HD high frame rates to 4x, 6x and 8x. You get up to
479.52 fps (60 Hz) or 400 fps (50 Hz) to display all the intricacies of the
action .
Logical migration from HD to 4K
The HDC-4300 fits directly into Sony’s growing 4K live production
environment, alongside the PMW-F55 and F65 Super 35mm live camera
configurations. The HDC-4300 connects to the same BPU-4000
processor, which accepts SZC-4001 software to enable 4K capture and
4K/HD outputs. The BPU-4000 also works directly with the HDCU-2000
and HDCU-2500 camera control units.
Compatible with Sony HDC-2000 Series
accessories
Part of Sony’s acclaimed HDC Series, the HDC-4300 works with the
infrastructure that so many broadcasters and OB van operators already
have, including viewfinders, large lens adaptors, remote control panels
and camera control units.

6

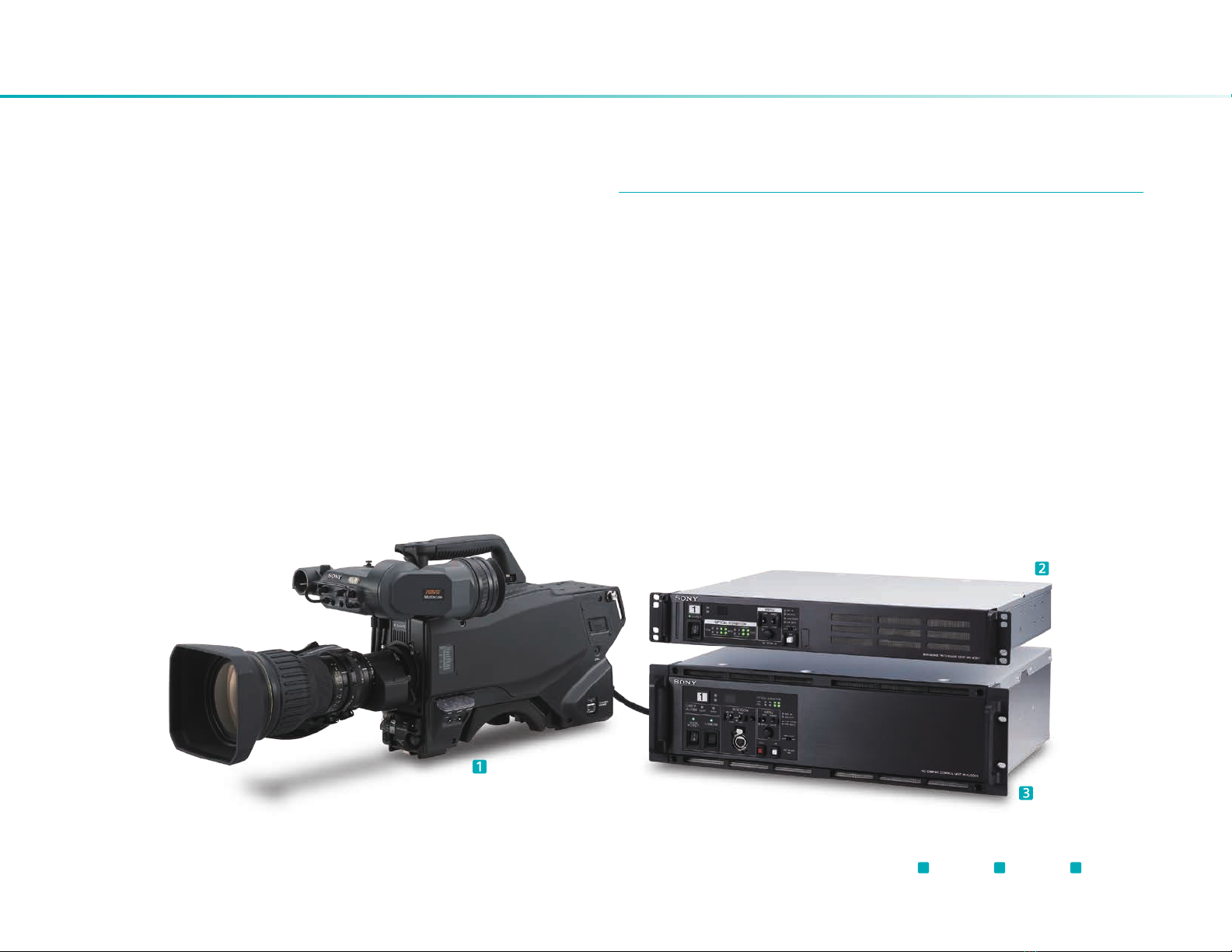

HDC-4300 BPU-4000 HDCU-2000
1 2 3
Sony’s 4K/HD live production ecosystem
The HDC-4300 fits directly into Sony’s established 4K live camera system.
Like the PMW-F55 and F65, the HDC-4300 works in combination with the
BPU-4000 baseband processor unit and the HDCU-2000 or HDCU-2500
camera control unit. So you can control and power the camera through
standard SMPTE fiber cables. And you can tweak settings via RCP-1000
Series remote control panels or MSU-1000 Series master setup units.
You can also add the HDC-4300 to an existing HDC-2000 Series camera
system, for multi-camera operation with seamlessly matched colorimetry.
With the SZC-4001 software, the HDC-4300 camera can provide multiple
HD and 4K outputs, perfect for operating side-by-side with the PMW-F55
(equipped with the CA-4000 adaptor) or the F65 (equipped with the
SKC-4065 and CA-4000 adaptors).
Sony’s 4K live ecosystem includes other landmark
components
•The PWS-4400 server enables HD and 4K recording and high frame rate
capture with up to 8x replay (requires V1.4 upgrade).
•The MVS-8000X and MVS-7000X multi-format switchers perform real-time 4K
signal processing.
•The BVM-X300 OLED evaluation monitor is a triple threat, providing 4K
resolution, High Dynamic Range and wide color gamut.
•The PVM-X300 4K LCD picture monitor is the choice for general applications
Whether you need pure 4K live production or a logical migration from HD to 4K,
Sony’s ecosystem enables you to deliver spectacular imagery to audiences
worldwide.

7
4K resolution (with SCZ-4001), wide dynamic range and
wide color gamut
The HDC-4300 embodies Sony’s unrivalled expertise with purpose-built
innovations, including the world’s first three 2/3-inch 4K imagers and
ultra-precise alignment to mount the chips to a newly-developed prism.
This cutting-edge optical system takes advantage of the wide color gamut*
defined by the ITU-R BT.2020 specification. So you can deliver exquisite color
reproduction in live broadcasts.
* Does not cover the BT.2020 color gamut in full.
You can’t build the future with yesterday’s technology
Up to 8x high frame rate in HD with SZC-4002 software
for the BPU-4000
The base-level HDC-4300 provides HD high frame rates at 2x and 3x. Using
SZC-4002 software, the BPU-4000 baseband processor unit expands HD high
frame rates to 4x, 6x and 8x capture—a maximum of 479.52 fps (60 Hz) or 400
fps (50 Hz). The output remains remarkably consistent across the range of
operating frequencies, even at 8x. You get excellent image quality at both
normal speed and high frame rates, adjustable with the same paint
parameters.
You can record to the PWS-4400 4K/HD server for up to 8x high frame rate
replay (requires software upgrade V1.4). Some third party servers may also be
used.
Simulated image

8
Original 4K full-source image
Simple HD mode:
Simulated images
Cutout HD image (2)
Cutout HD image (1)

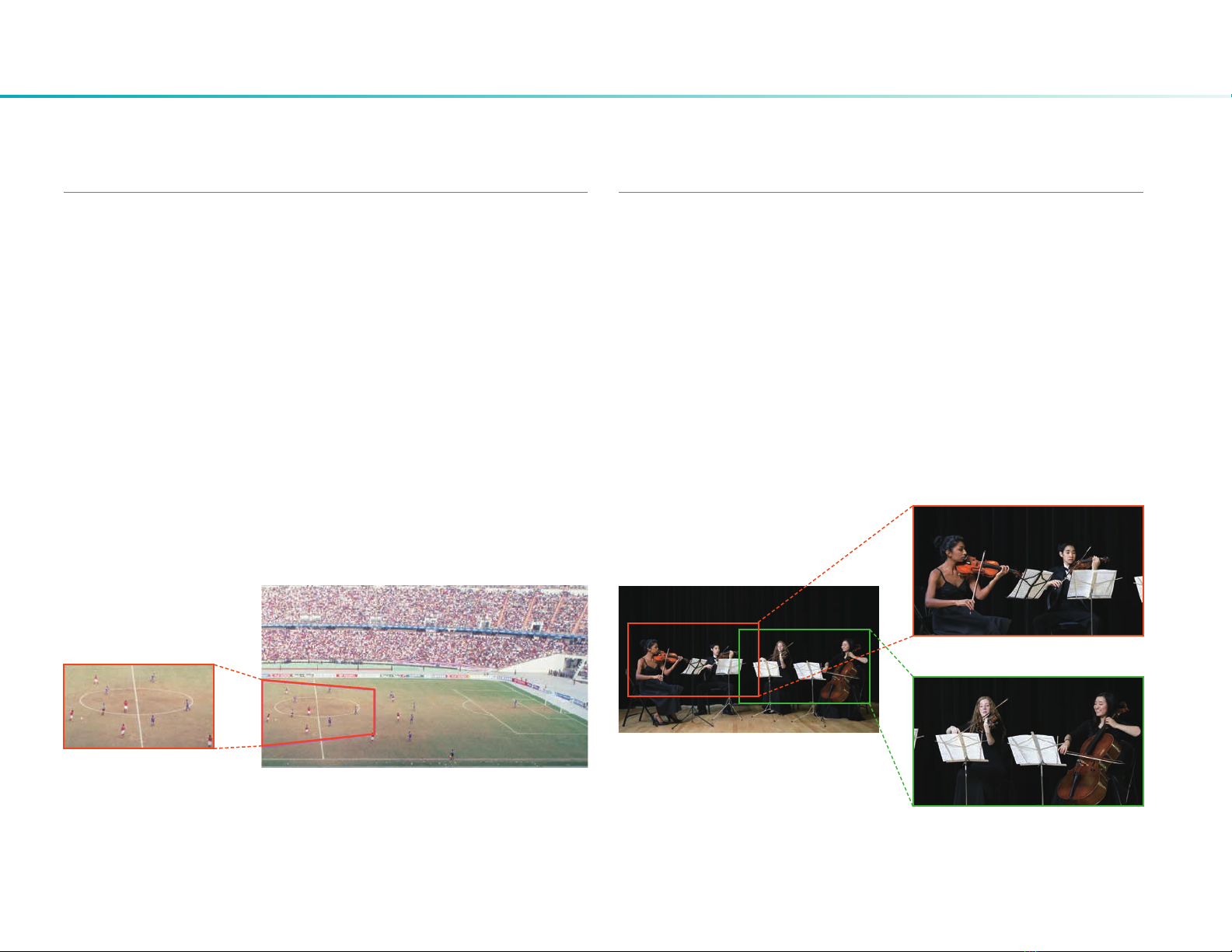

HD cutout, pan and zoom with SZC-2001 software for
BPU-4000
Imagine using the 4K canvas to create an entirely new narrative during replay.
The Sony BPU-4000 baseband processor unit and SZC-2001 software enable
you to keep the camera in a fixed position, then zoom into the 4K image,
creating an HD “cutout.” You can also pan around in real time, following the
play as never before. In Zoom & Perspective mode, you can cut out one portion
while performing perspective transformation, according to the lens focal length.
In Simple HD mode, two portions can be cut out at the same time. Sony’s
cut-outs and zooms give viewers a beautifully clear image.
You can control the cutout region with a mouse or other devices connected
to the controllers such as the CNA-1 camera control network adaptor.
The BPU-4000 can output the cutout images and the 4K full-source image
simultaneously. HD images down-converted from the 4K full-source image
can also be output from the BPU-4000 and the HDCU-2000/HDCU-2500.
In addition, a wire frame indicating the cutout region can be displayed on
the signal from the BPU-4000.
Sony innovations to inspire your productions
Picture adjustment functions of HDC Series cameras
supported in the 4K live camera system
The HDC-4300 system supports a robust range of live camera adjustments in
4K operation.
•Dynamic focus (4K focus assist): Because focus in 4K is especially critical,
you can display a marker in the viewfinder when 4K resolution is achieved.
•Auto Lens Aberration Compensation 2 (ALAC2)
•Color adjustments
•Gamma table selection
•User gamma
•Natural skin-tone detail
•Knee saturation
•Low-key saturation
Zoom & Perspective mode:
Cutout HD image
Original 4K full-source image

9

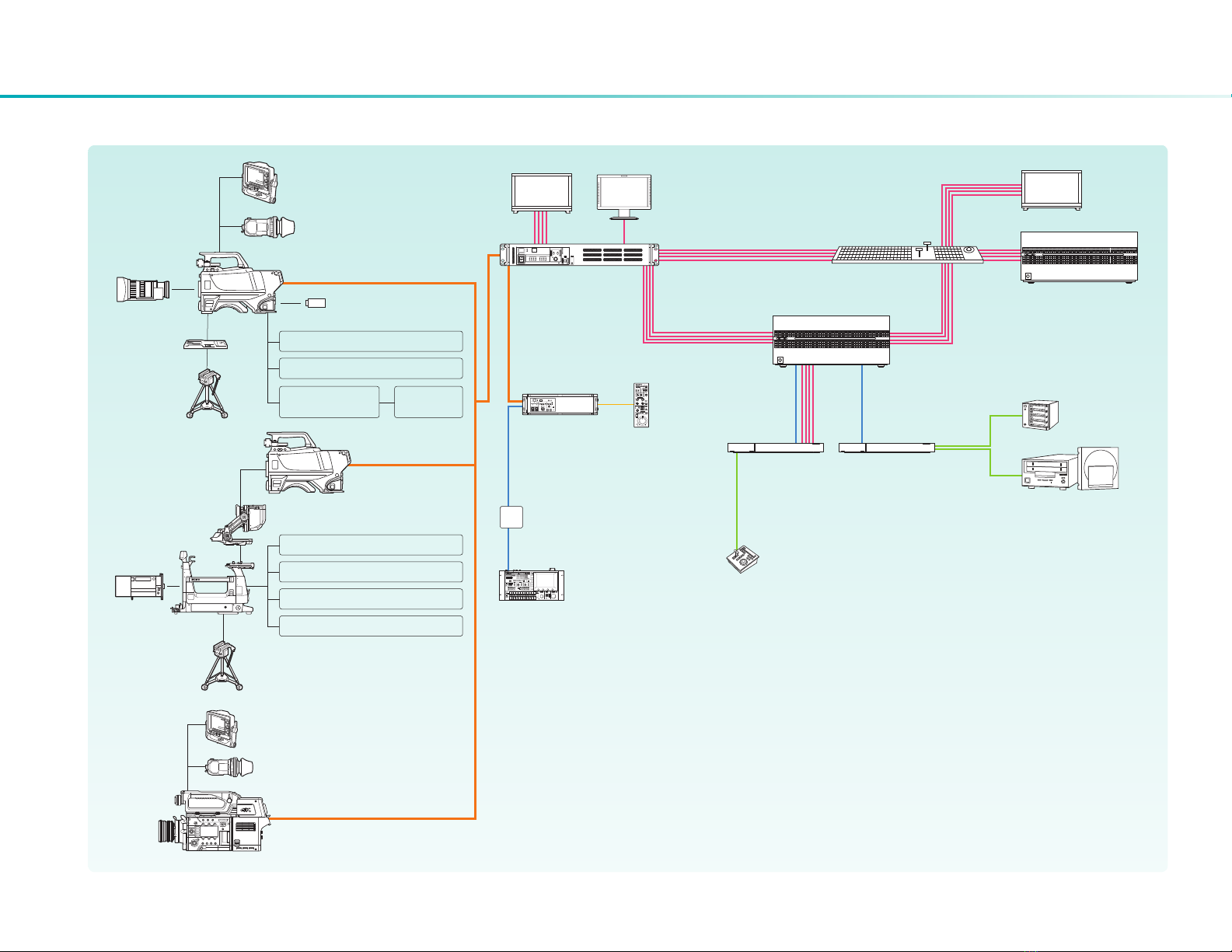

System Configuration Examples
BNC x 4 BNC BNC x 4
BNC x 4 BNC x 4
BNC x 4
BNC x 4
PL-mount
Lens
ENG/EFP Lens
PMW-F55
4K Camera
HDC-4300
HDC-4300
CA-4000
Camera System Adaptor
Optical Disc Archive Unit
HDD
PWS-4400 (Server)
Multi Port AV Storage Unit
MVS-8000X/7000X
Multi-format Switcher
PWSK-4403
USB Control Device
PWS-100MG1
Media Gateway
Station
PWS-100PR1
Production Control
Workstation
PWS-4400 (Server)
Multi Port AV Storage Unit
* Maximum transmission distance from HDCU to HDC-4300
2000 m for HDCU-2000 (max.)
1000 m for HDCU-2500 (max.)
HDCU-2000 or
HDCU-2500
Camera Control Unit
BPU-4000
Baseband Processor Unit
HD Video Monitor
BVM-X300
4K Video Monitor
PVM-X300
4K Video
Monitor
+
HDLA-1500 Series
Large Lens Adaptor
HDVF-EL70/700A
Viewfinder
B4-mount
Large Lens
HDVF-550/C730W/
C550W/EL75
Viewfinder
HDVF-20A/200/
C30WR/C35W
Viewfinder
HDVF-EL75, DVF-L700
Viewfinder
DVF-EL100/L350
Viewfinder
Optical fiber cable
Optical fiber cable
Optical fiber cable
Optical fiber cable
LAN cable
LAN cable BNC x 4 LAN cable
LAN cable
CCA-5
USB flash drive
Tripod
Tripod
VCT-14
Tripod Adaptor
CAC-6 Return Video Selector
Intercom Headset
CAC-6 Return Video Selector
Intercom Headset
Microphone
BKP-7911 Script Holder
Microphone
CAC-12 Camera
Microphone Holder
USB
USB
USB
RCP-1000 Series
Remote Control
Panel
MSU-1000 Series
Master Setup Unit
Hub
**

10
Related Products
Baseband Processor Unit
BPU-4000
The BPU-4000 accepts HDC-4300 signals via an optical fiber cable, performs
real-time 4K digital signal processing and then outputs 4K and down-converted
HD simultaneously. You can optimize detail separately for 4K and HD.
• Parallel processors for 4K/HD
• 4K to HD down-converter
• HD Cutout using SZC-2001 software
• HD High-fame-rate operation using SZC-4002 software
Camera Control Unit
HDCU-2000
HDCU-2500
The HDC-4300 works with the same, full-rack-size HDCU-2000 and half-rack
HDCU-2500 camera control units (CCUs) that are well established for Sony’s
immensely popular HDC-2000 and HDC-2500 cameras. These CCUs supply power
to the camera; interface with peripheral equipment; and transfer Intercom, Tally,
Prompter, Audio, and other signals. Fiber transmission maintains the camera’s
pristine picture quality.
When you’re going on-location and need to travel light, you can operate without
an HDCU-2000/HDCU-2500. Just supply power to the HDC-4300 locally.
HDLA-1500
Large Lens Adaptor
HDLA-1500, HDLA-1505, HDLA-1507
To minimize setup time, Sony’s large lens adaptors connect via a cable-less
interface. Our clever interlocking mechanism passes power, video and control
signals directly from the HDC-4300 camera. You can attach and detach the
camera without removing large lenses. And you can remove a lens from the
HDLA-1500 or HDLA-1505, even when the camera is mounted on the adaptor.
Setup becomes astonishingly quick and smooth.
HDLA-1507HDLA-1505

11

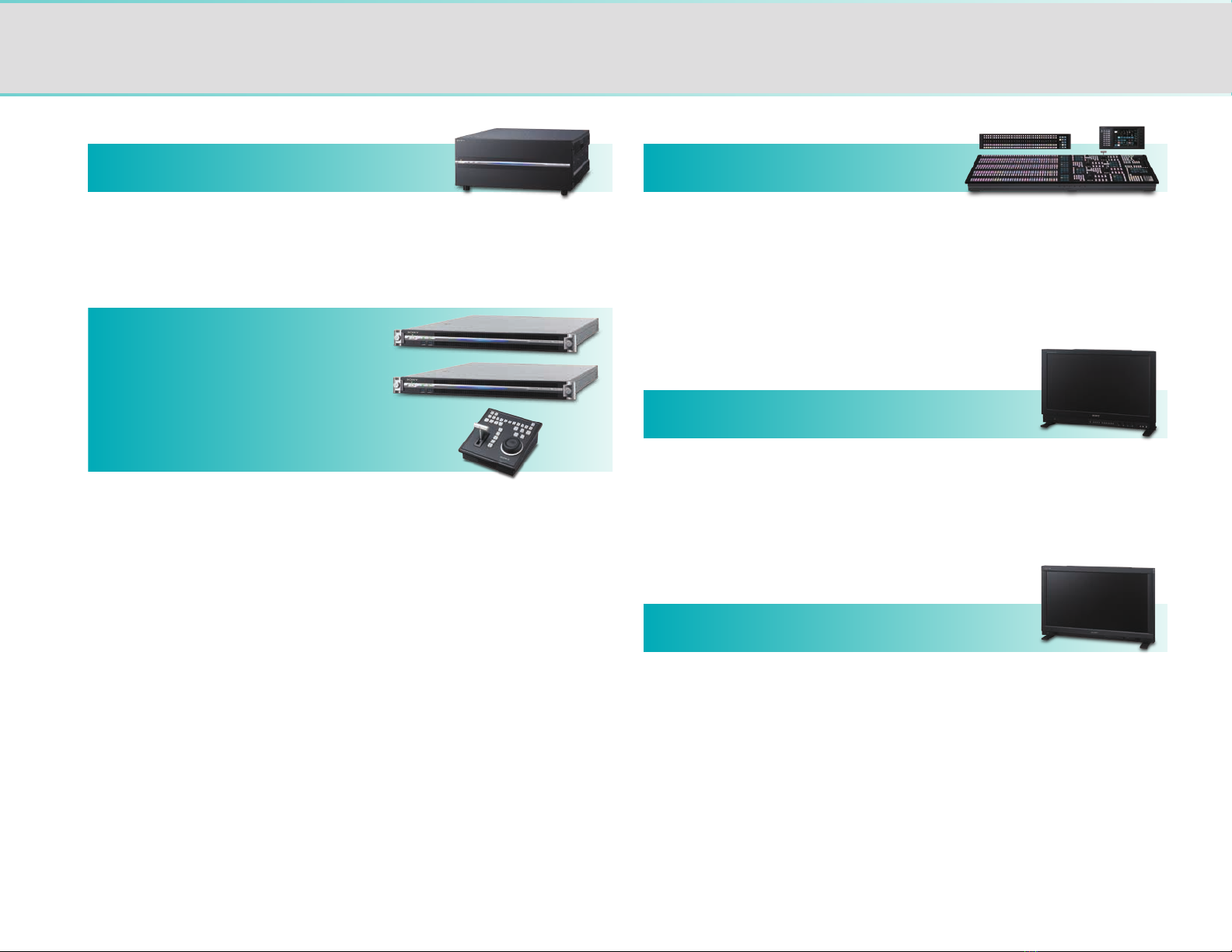

Related Products
Multi Port AV Storage Unit
PWS-4400
This server records both 4K and HD video signals (up to four 4K channels)
using Sony’s highly efficient XAVC® video format. It’s easy to recall and control
recorded content for high frame rate replay. (V1.4 software required for 8x high
frame rate.)
Production Control Station
PWS-100PR1
Media Gateway Station
PWS-100MG1
USB Control Device
PWSK-4403
Operate live slow motion with the PWS-100PR1 and PWSK-4403. The PWS-100MG1
transfers content to and from removable media such as USB hard drives and
Optical Disc Archive units. For 8x slow motion reply, the PWS-4400 system requires
software upgrade V1.4.
Multi-format Switcher
MVS-8000X, MVS-7000X
Sony’s flagship switchers support 4K via software upgrades. The optional
MKS-8460X 4K format converter board enables high-performance HD-to-4K
up-conversion.
Upgrade software:
BZS-8570X for MVS-8000X
BZS-7570X for MVS-7000X
4K OLED Evaluation Monitor
BVM-X300
One monitor combines Sony’s amazing TRIMASTER EL™ OLED performance
with 4K resolution, High Dynamic Range mode and wide color gamut
supporting DCI-P3 and the BT.2020* video format color space, as defined
by the ITU-R specification.
* Does not cover the BT.2020 color gamut in full.
4K LCD Picture Monitor
PVM-X300
See your 4K picture with pixel-for-pixel accuracy. The PVM-X300 is ideal for 4K
live production camera control and program preview, in addition to 4K digital
cinematography and 4K presentation.

12

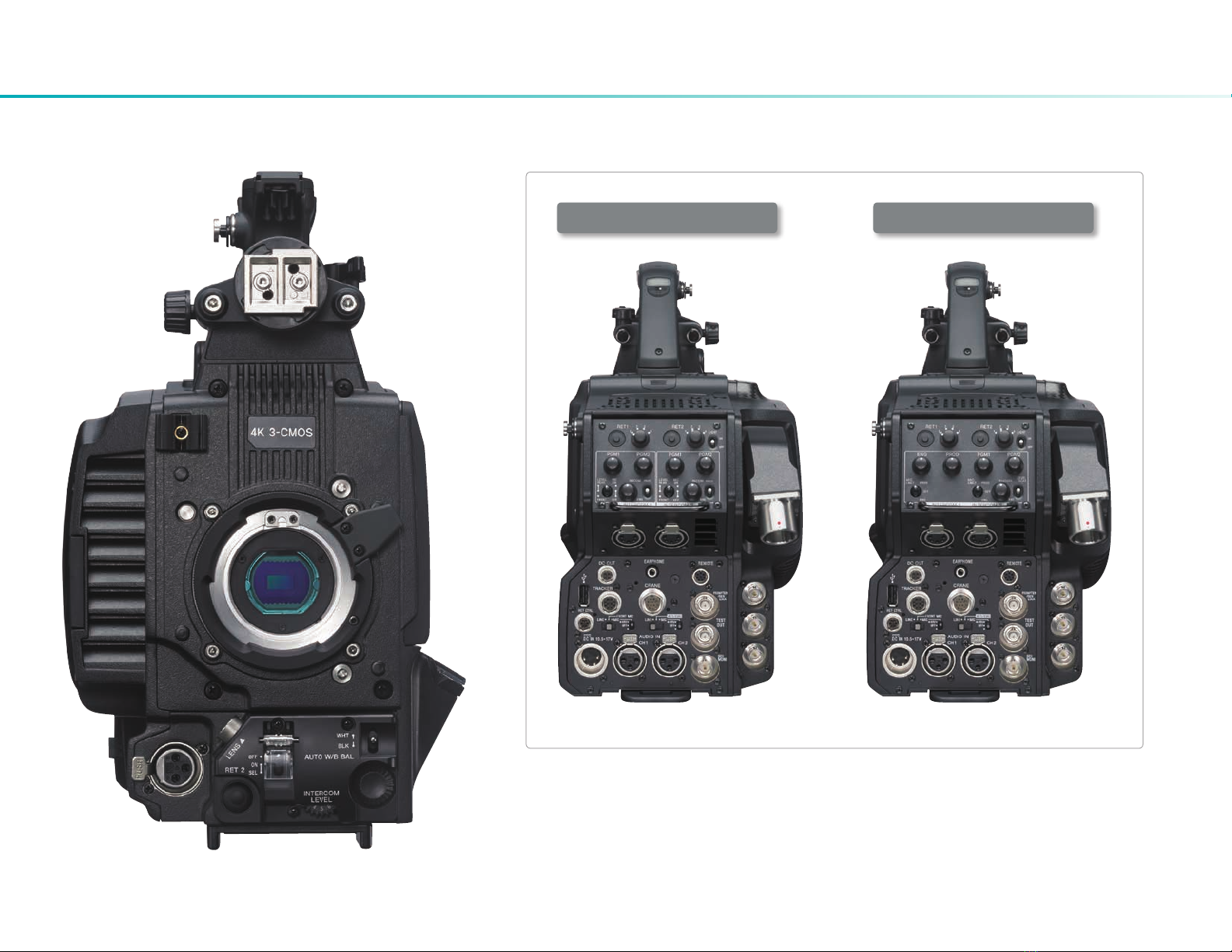

HDC-4300
For 50 Hz countriesFor 60 Hz countries
Front Rear (with HDVF-20A)

13
BPU-4000
Front
Rear
Yellow tally light
Red tally light
Green tally light
CCU number display
Menu control block
Status display indicators
Optical signal condition indicators Menu lock switch
Assignable button
Network indicator
Reference sync signal input/output
Return video input (SDI1, SDI2)
Remote LAN Camera Camera control unit
3G/HD SDI output
3G/HD SDI output
HD SDI output

14
Optional Accessories
MSU-1000
Master Setup Unit
MSU-1500
Master Setup Unit
RCP-1000
Remote Control Panel
RCP-1001
Remote Control Panel
RCP-1500
Remote Control Panel
RCP-1501
Remote Control Panel
RCP-1530
Remote Control Panel
HDVF-EL75
7.4-inch* OLED Color Viewfinder
VFH-790
Outdoor Hood for HDVF-EL70/EL75
HDVF-L770
7-inch* LCD Color Viewfinder
HDVF-20A
2.0-inch* CRT B/W Viewfinder
BKP-7911
Script Holder
CAC-6
Return Video Selector
CAC-12
Mic Holder
VCT-14
Tripod Adaptor
HDCE-100
Camera Extension Adaptor
CNA-1
Camera Control Network Adaptor
* Viewable area measured diagonally.

15
Specifications
BPU-4000
General
Power requirements AC 100 V to AC 240 V, 50/60 Hz
Operating temperature 41°F to 104°F (5°C to 40°C)
Storage temperature -4°F to +140°F (-20°C to +60°C)
Weight Approx. 15 lb (6.8 kg)
Dimension (W x H x D) 16 3/4 x 2 5/8 x15 5/8 inches (424 x 66 x395 mm)
excluding protrusions
Input/output connectors
Camera Optical fiber (x1)
CCU Optical fiber (x1)
Remote 8-pin multi-connector (x1)
LAN 8-pin (x1)
SDI input BNC (x2)
3G-SDI: SMPTE ST424/425 Level-B, 2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
Reference input BNC (x1)
HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω
SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω, PAL: 0.3 Vp-p, 75 Ω)
3G/HD-SDI output BNC (x18)
3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω,
2.970 Gbps/2.967 Gbps
HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω,
1.485 Gbps/1.4835 Gbps, 3G-SDI/HD-SDI selectable
HD-SDI output BNC (x2)
SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps
Reference output BNC (x1)
HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω
SD: Composite sync, 0.3 Vp-p, 75 Ω,
HD sync/SD sync selectable
Supplied accessories
Number plates (1 set), Operation Guide (1),
Operation Manual (CD-ROM) (1)
HDC-4300
General
Power requirements AC 240 V, 1.4 A (max.), DC 180 V, 1.0 A (max.), DC 12 V, 7 A (max.)
Operating temperature -4°F to +113°F (-20°C to +45°C)
Storage temperature -4°F to +140°F (-20°C to +60°C)
Weight Approx. 11 lb 0.37 oz (5.0 kg) (unit onlly)
Camera section
Pickup device 3-chip 2/3-inch type CMOS
Spectrum system F1.4 prism
Built-in filters ND: 1: CLEAR, 2: 1/4ND, 3: 1/8ND, 4: 1/16ND, 5: 1/64ND
CC: A: CROSS, B: 3200K, C: 4300K, D: 6300K
Sensitivity F8.0 (2000 lx, 89.9% reflection)
Signal-to-noise ratio -62 dB (HD/59.94i)
Horizontal resolution 2000 TV lines (at center) in 4K, 5% or higher modulation
Input/output connectors
BPU Optical/electrical multi-connector (1)
Audio input (CH1, CH2) XLR-type 3-pin, female (1 each)
For MIC: -60 dBu (can be set to a value up to -20 dBu
using the menu or from the HDCU2000/2500), balanced
For LINE: 0 dBu, balanced
Mic input XLR-type 3-pin, female (x 1)
Return control 6-pin (x1)
Prompter/Genlock BNC (x1), 1 Vp-p, 75 Ω
Prompter 2 BNC (x1), 1 Vp-p, 75 Ω
DC input XLR-type 4-pin (x1), DC 10.5 V to 17 V
DC output 4-pin (x1), DC 10.5 V to 17 V, 0.5 A (max.)
2-pin (x1), DC 10.5 V to 17 V, 2.5 A (max.)
(Limitations may apply, depending on the load and input conditions.)
Test out BNC (x1)
SDI (1, 2) BNC (1 each)
SDI Monitor BNC (x1)
Earphone Stereo mini jack (x1)
Tracker 10-pin (x1)
Crane 12-pin (x1)
Intercom (1, 2) XLR-type 5-pin, female (1 each)
Remote 8-pin (x1)
Network trunk RJ-45 8-pin (x1)
Lens 12-pin (x1)
Viewfinder 20-pin (x1)
USB USB 2.0, Type A, 4-pin (x1)
Supplied accessories
Operation manual (1), Cable clamp belt (1set),
Number plates (1set), Screws (+B3x8) (2)

©2015 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features, design, and specifications are subject to change without notice.
Weight and dimensions are approximate.
Sony, TRIMASTER EL XAVC and the Sony logo are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
Production of some of the peripherals and related
devices shown in the figures has been discontinued.
For advice on choosing devices, please contact your
Sony dealer or a Sony sales representative.
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
V-2620 (MK1189V1) Printed in USA (4/15)
