Sony UWP-D11 User manual

UWP-D Series

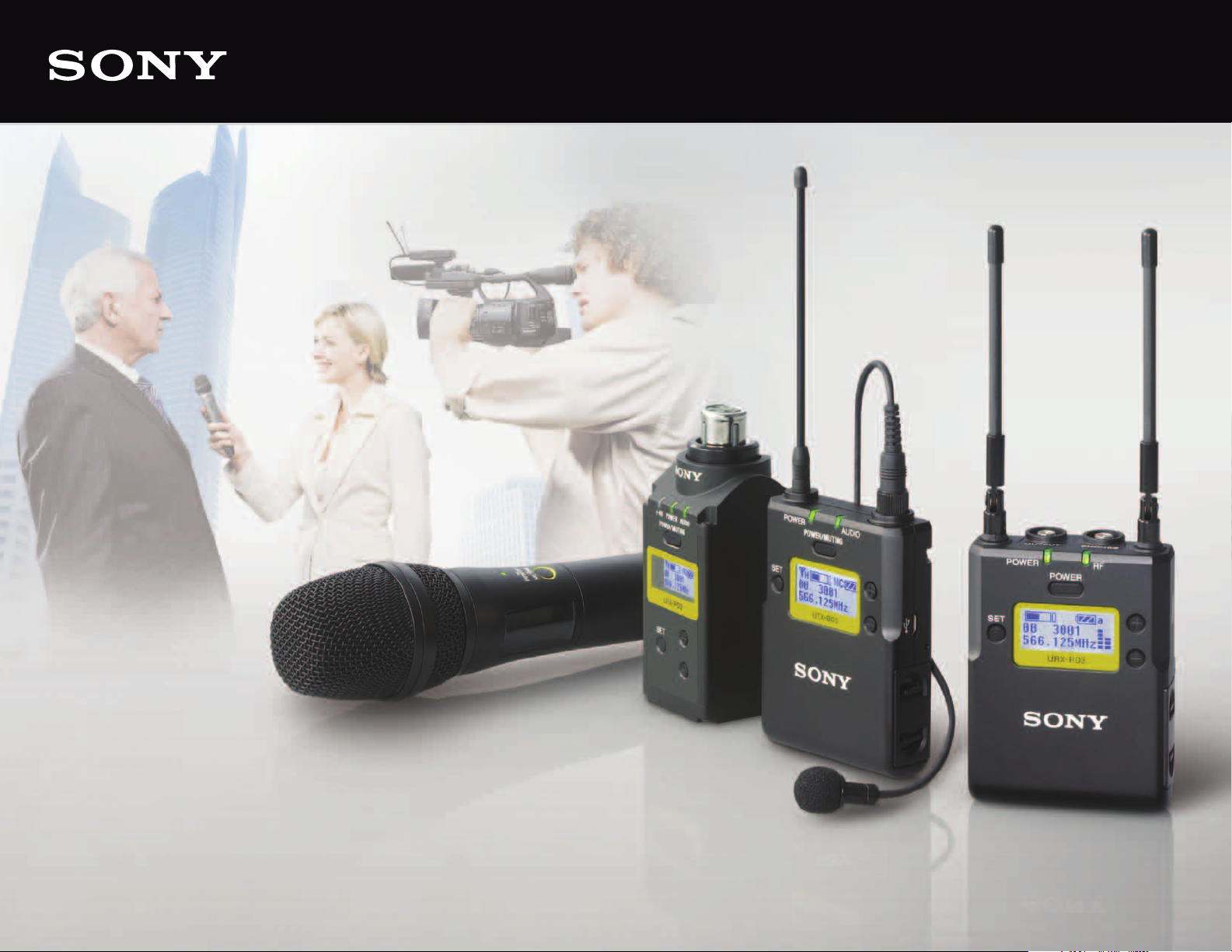

UHF Wireless Microphone Package
(UWP-D11 , UWP-D12 , UWP-D16)

The Ultimate in Hybrid Digital Sound
Innovation in Sound -- Introducing the new UWP-D Series wireless microphone system,
which realizes high-quality sound and stable wireless transmission utilizing true diversity reception system.
Since its introduction in 2003, the UWP Series has been widely used in a broad range of applications,
not only for ENG (electronic news gathering) and EFP (electronic field production), but also for live concerts, sporting events,
documentaries, and weddings.
High-quality Sound
Sony’s Hybrid Digital Processing technology improves transient response performance, and realizes high-quality sound.
Superior Operability
Performs channel settings via Automatic Channel Setting mode.
Low Profile and Lightweight
The small body size and lightweight design are ideal for use in small camcorders or interchangeable-lens digital cameras.
U W P - D11 UWP- D12 UWP- D16
2

UWP-D Series
CONVENTIONAL ANALOG SYSTEM
SONY’S HYBRID DIGITAL PROCESSING
Transmitter Receiver
Transmitter Receiver
Analog FM Modulation
Analog
Compander
Digital
Compander
Digital
Expander
AD ADDA DA
RF
modulation
RF
modulation
RF
modulation
Analog
Expander
RF
modulation
Analog FM Modulation
Input Output
Input Output
24-bit digital processing 24-bit digital processing
Sound quality is the most important issue in wireless transmission. Conventional
analog systems make use of companders to provide the required dynamic
range. However, while compander systems have improved over time, their
inherent problems with sound quality and transient response performance
have yet to be completely solved.
Sony’s newly developed Hybrid Digital Processing, which uses DSP (digital
signal processing) for digital companding, realizes high sound quality.
The Clear Channel Scan function searches for a channel that is not being
used by another wireless device or by a TV station. This makes it easy to
find an available channel so the wireless microphone can be used without
interference. The Active Channel Scan function detects Sony’s wireless
transmitter from the channel lists within a selected group.
The receiver can transfer the desired frequency to the transmitter via IR
connection, and allows for quick and simple setup.
The system’s operating bandwidth (up to 72 MHz*1) achieves great mobility
to cover a wide area and provide more channel options.
DSP optimizes the audio signal processing applied between the transmitter
and receiver. It provides superb transient response performance. While analog
companding systems cannot reproduce sounds such as a bell or tee shot with
precision, Sony’s Hybrid Digital Processing can reproduce them very accurately.
DSP also can correct characteristics of frequency response in the transmission
process for precise reproduction of original sounds.
Original Sound Analog System Hybrid Digital Processing
Dynamic Response
Choose the AUTO SET menu on the receiver
Complete the channel setting of transmitter and
receiver
Scans and determines available channel
Then automatically sends setting information to the
transmitter via IR (infrared) connection
Easy-to-use Automatic Channel Setting ModeSony’s Hybrid Digital Processing
Clear Channel Scan & Active Channel Scan
IR Sync
Wide Frequency Coverage
*1 Depends on the country or frequency version.
The Ultimate in Hybrid Digital Sound
Innovation in Sound -- Introducing the new UWP-D Series wireless microphone system,
which realizes high-quality sound and stable wireless transmission utilizing true diversity reception system.
Since its introduction in 2003, the UWP Series has been widely used in a broad range of applications,
not only for ENG (electronic news gathering) and EFP (electronic field production), but also for live concerts, sporting events,
documentaries, and weddings.
High-quality Sound
Sony’s Hybrid Digital Processing technology improves transient response performance, and realizes high-quality sound.
Superior Operability
Performs channel settings via Automatic Channel Setting mode.
Low Profile and Lightweight
The small body size and lightweight design are ideal for use in small camcorders or interchangeable-lens digital cameras.
U W P - D11 UWP- D12 UWP- D16
3

UWP-D Series

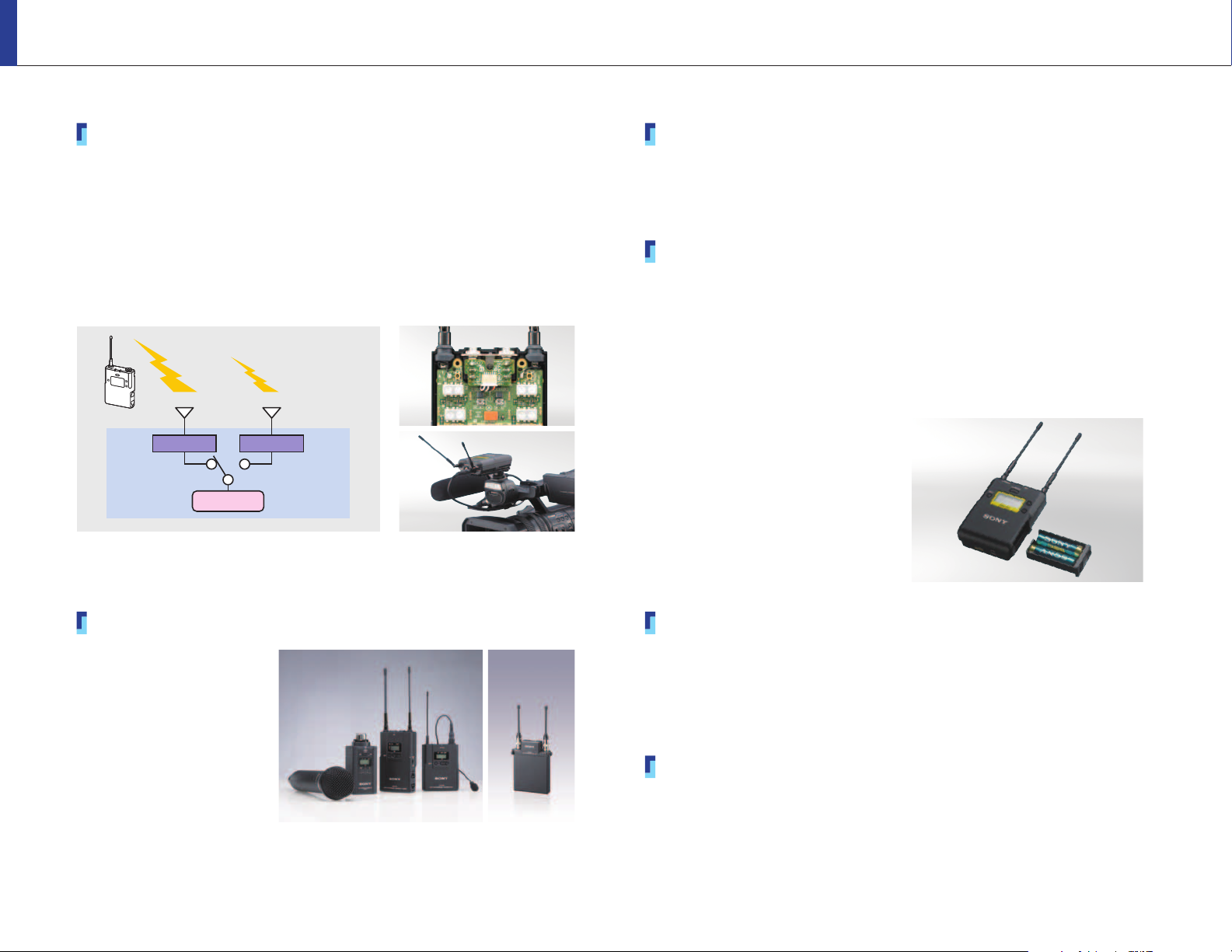

Typically, wireless microphone transmission systems are subject to interruptions in
reception (RF signal dropout), but the UWP-D Series reduces this to a minimum.
Utilizing a true diversity reception system, it achieves highly stable reception
because of its two receiving antennas, each with RF circuits. RF signals from the
two antennas are compared and the stronger signal is automatically selected for
output. The angle of the antennas on the portable receiver can also be adjusted,
which helps to further eliminate signal dropout.
Sound can be monitored directly from the receiver. This is especially
convenient when using a camera that does not have a headphone output.
This receiver function enables control of the receiver output sound level:
±12 dB. This is useful because some video cameras don’t offer manual
input level control.
Switchable MIC or LINE input level and adjustable attenuators allow the
user to select proper audio input levels.
A DC power drive can be utilized for long-term use or as an emergency
power supply*1. Rechargeable battery operation is also available with
Ni-MH batteries*2.
The supplied battery cartridge is
compatible with Sony’s DWZ Series,
and allows for quick and easy
battery exchange.
DSP enables a digital com-
pander to match Sony’s
analog wireless system.
The UWP-D transmitter can
be used with a UWP Series
or WL-800 Series receiver,
and a UWP Series or WL-800
Series transmitter can be
used with a UWP-D receiver.
True Diversity Reception System for Stable Reception
Headphone Output for Monitoring
Output Level Control
Line Input Available for Body Pack Transmitter
Smart Battery Operation
Compatibility with UWP Series / WL-800 Series
Antenna a
Tuner 1 Tuner 2
Antenna b
switching
receiver
level : high level : low
Audio out
USB for Power Supply or Charging Batteries
Cartridge-type Battery Case*3
*1 Excludes the UTX-M03. *2 Not supplied.
*3 For the UTX-B03, UTX-P03, and URX-P03 only.
4

UWP-D Series
The supplied high-quality dynamic
cardioid microphone capsule can be
used with the handheld microphone.
Alternatively, any of Sony’s DWX Series
capsules such as the CU-C31, F31,
or F32 can also be used (the thread
pitch is 1.25”/28 (31.3 mm/pitch 1.0
mm threading))*1.
This function enables direct connection of condenser microphones
requiring DC 48 V powering.
An easy-to-read large LCD and
sophisticated yet easy-to-operate
menu allows for secure and speedy
settings.
All components of the UWP-D Series –
the body pack transmitter, handheld
microphone, plug-on transmitter, and
portable receiver – utilize an extremely
robust metal chassis that is ideal for
heavy-duty wireless operation. The metal
body also allows for an extremely compact
and lightweight design, providing the
high level of mobility required for ENG
and EFP operations.
Interchangeable Microphone Capsules
Sony’s UWP-D Series is ideal for compact video
cameras and interchangeable-lens digital cameras
How to Attach the Soft Case (LCS-URXP3)
+48 V Power Supply for Plug-on Transmitter
Large Display and Advanced Selectable Menu
Compact, Lightweight, and Robust Design
*1 Use of third-party capsules may cause RFI or EMF noise.
CU -C31 CU-F31, F32
SMAD-V1
V-Shoe Mount Adaptor
LCS-URXP3
Soft Case
A-8278-057-B
Mounting Bracket
A-8278-057-B
Mounting Bracket
A-1528-515-A
Mounting Plate
LCS-URXP3
Soft Case
LCS-URXP3
Soft Case
On the Grip Belt
On Top of the Battery
V-Shoe Mount
Direct Mount
For Handheld Camcorders
For Shoulder Camcorders
SMAD-V1
V-Shoe Mount Adaptor
* Remove the V-Shoe part
11.5 m m
(15/32 inch)
27.8mm
(1 1/8 inches)
5

UWP-D Series
470 MHz to 542 MHz
version
UC
Operating frequencies
CE
Selectable frequencies
Frequencies as follows
version
Selectable frequencies
CN
version
Selectable frequencies
E
version
Selectable frequencies
J
version
Selectable frequencies
KR3
version
Selectable frequencies
*1 566 MHz to 608 MHz and 614 MHz to 638 MHz
564 (in 125-kHz steps)
2772 (in 25-kHz steps)
UC14
567 (in 125-kHz steps)
2880 (in 25-kHz steps)
CE21
566 MHz to 638 MHz
517 (in 125-kHz steps)
2541 (in 25-kHz steps)
UC30*1
504 (in 125-kHz steps)
2560 (in 25-kHz steps)
CE33
638 MHz to 694 MHz
441 (in 125-kHz steps)
2240 (in 25-kHz steps)
CE42
638 MHz to 698 MHz
564 (in 125-kHz steps)
2772 (in 25-kHz steps)
UC42
710 MHz to 782 MHz
567 (in 125-kHz steps)
2880 (in 25-kHz steps)
CE51
564 (in 125-kHz steps)
2772 (in 25-kHz steps)
CN38
794 MHz to 806 MHz
94 (in 125-kHz steps)
E
806 MHz to 810 MHz
30 (in 125-kHz steps)
JB
925 MHz to 937 MHz
99 (in 125-kHz steps)
KR3
KR3
UWP-D16
Omni-directional
Lavalier Microphone
Microphone
Holder Clip
Soft CaseWindscreen
UC14 UC30 UC42
CE21 CE33 CE42 CE51
E
XLR-BMP
Cable
Stereo Mini-
BMP Cable
Belt Clip Shoe Mount
Adapter
UWP-D12
UWP-D11
UTX-B03 :
Bodypack Transmitter
UTX-P03 :
Plug-on Transmitter
URX-P03 :
Portable Receiver
KR3
UC14 UC30 UC42
CE21 CE33 CE42 CE51
CN38 EJB
UTX-M03 :
Handheld Wireless
Microphone
URX-P03 :
Portable Receiver
Microphone
Holder
Belt Clip
XLR-BMP
Cable
Shoe Mount
Adapter
UC14 UC30 UC42
CE21 CE33 CE42 CE51
CN38 EJB KR3
UTX-B03 :
Bodypack Transmitter
URX-P03 :
Portable Receiver
Omni-directional
Lavalier Microphone
Microphone
Holder Clip
Windscreen
XLR-BMP
Cable
Belt Clip Shoe Mount
Adapter
Stereo Mini-
BMP Cable
Stereo Mini-
BMP Cable
Package Lineup
Frequencies
6

UWP-D Series
UTX-P03 Plug-on Transmitter
Sony’s Hybrid Digital Processing
Converts a wired microphone to a wireless microphone
via an XLR-type connector
Compatibility with UWP Series / WL-800 Series
USB for power supply or charging batteries
Extremely compact, lightweight, and robust metal body
+48 V power supply
UTX-B03 Bodypack Transmitter
Sony’s Hybrid Digital Processing
Compatibility with UWP Series / WL-800 Series
Extremely compact, lightweight, and robust metal body
USB for power supply or charging batteries
Switchable MIC/LINE input level and adjustable
attenuator (0 dB to 21 dB, 3-dB steps)
Supplied with omni-directional lavalier microphone
URX-P03 Portable Receiver
Sony’s Hybrid Digital Processing
Easy-to-use Automatic Channel Setting mode
Space Diversity Reception System for stable reception
Compatibility with UWP Series / WL-800 Series
Headphone output for monitoring
Extremely compact, lightweight, and robust metal body
USB for power supply or charging batteries
Output level control
UTX-M03 Handheld Wireless Microphone
Sony’s Hybrid Digital Processing
Incorporates an all-metal, robust, uni-directional dynamic
microphone capsule with minimized popping and wind noise
Compatibility with UWP Series / WL-800 Series
USB for charging batteries
Interchangeable microphone capsule
ECM-V1BMP
Omni-directional
Lavalier Microphone
LCS-URXP3
Soft Case
AD-RV1B2
Windscreen Pack
(5PCS)
SMAD-V1
V-Shoe Mount
Adaptor
SAD-HV1B2
Holder Clip Pack
(4PCS)
ECM-X7BMP
Lavalier Microphone
BATC-3AA
Battery Case
ECM-77BMP
Omni-directional
Lavalier Microphone
SMAD-P2
Shoe Mount Adaptor
ECM-44BMP
Omni-directional
Lavalier Microphone
BLC-BP2
Belt Clip (2PCS)
ECM-166BMP
Uni-directional
Lavalier Microphone
SAD-M01
Microphone Holder
ECM-FT5BMP
Omni-directional
Lavalier Microphone
EC-0.46BX
3-pole Locking Mini
Plug-XLR(M) Cable
ECM-LZ1UBMP
Uni-directional
Lavalier Microphone
EC-0.8BM
3-pole Locking Mini
Plug-Stereo Mini
Plug Cable
ECM-322BMP
Omni-directional
Headset Microphone
EC-1.5BX
3-pole Locking Mini
Plug-XLR(F) Cable
ECM-HZ1UBMP
Uni-directional
Headset Microphone
Products
Accessories
7

00
5
5
0
30
60
90
120
150
180
-30
-30
-35
-35
-20
-20
-25
-25
-15
-15
-5
-5
-10
-10
400 Hz 1,000 Hz 4,000 Hz 8,000 Hz
0.0
10.0
10 100 1 k 10 k
-40.0
-30.0
-20.0
-10.0
20.0
Gain[dB]
Frequency[Hz]
On axis 90° 180° On axis 90° 180°
0.0
10.0
10 100 1 k 10 k
-40.0
-30.0
-20.0
-10.0
20.0
Gain[dB]
Frequency[Hz]
55
0
30
60
90
120
150
180
150
120
90
60
30
-25
-25
-20
-20
-15
-15
-5
-5
-10
-10
00
UTX-M03 ECM-V1BMP
Directivity
Characteristics (1 kHz)
Directivity
Characteristics (1 kHz)
Frequency Response Characteristics Frequency Response Characteristics
400 Hz 1,000 Hz 4,000 Hz 8,000 Hz
150
120
90
60
30
Oscillator Type
Antenna Type
Type of Emission
UTX-B03 Bodypack transmitter UTX-M03 Handheld wireless microphone UTX-P03 Plug-on transmitter
Crystal-controlled PLL Synthesizer
1/4 wave length wire 1/4 wave length wire (internal) Integral type
Electret condenser Dynamic
F3E
Carrier Frequencies
RF Power
Capsule Type
Omni-directional Uni-directional
Directivity
UC
CE7
CN
UC14 : 470.125 MHz to 541.875 MHz
UC30 : 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz
UC42 : 638.125 MHz to 697.875 MHz
CE21 : 470.025 MHz to 542.000 MHz
CE33 : 566.025 MHz to 630.000 MHz
CE42 : 638.025 MHz to 694.000 MHz
CE51 : 710.025 MHz to 782.000 MHz
CN38 : 710.025 MHz to 782.000 MHz
-
-
EE: 794.125 MHz to 805.875 MHz
J JB: 806.125 MHz to 809.750 MHz
KR3
UC
CE7
CN
J
KR3/E
UC/CE7/
CN/KR3/E
J
KR3: 925.125 MHz to 937.500 MHz
30 mW / 5 mW
UC/CE7/CN: Approx. eight hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW output
E/KR3/J: Approx. 10 hours with Sony's AA-size alkaline (LR6) batteries at 25°C (77°F) at 30-mW output
10 mW / 2 mW
50 mW / 5 mW
30 mW / 5 mW
-
-
-
-
3-pole locking mini jack -
Input Connector XLR-3-11C (female)
- -
Phantom Power Voltage +48 V
MIC: -60 dBV (at 0-dB attenuator level) / LINE: +4 dBu -
Reference Input Level MIC: -60 dBV (at 0-dB attenuator level) / LINE: +4 dBu
96 dB (max deviation,A-weighted)
Signal-to-Noise Ratio
Approx. 0.35 msec
Audio Delay
32 kHz / 32.382 kHz / 32.768 kHz
Pilot Tone Signal
Battery Operating Time
32°F to 122°F (0°C to 50°C)
Operating Temperature
-4°F to +131°F (-20°C to +55°C)
Storage/
Transport Temperature
Approx. 5.3 oz (149 g) (including batteries) Approx. 10 oz (296 g) (including batteries)
Weight Approx. 6.9 oz (197 g) (including batteries)
LCD
Display
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0 V (via USB micro-B)
Power Requirements
-151 dB SPL (at 21-dB attenuator level)
Maximum Input Level -
0 dB to 21 dB (in 3-dB steps): Mic input 0 dB to 21 dB (in 3-dB steps)
Audio Attenuator
Adjustment Range 0 dB to 21 dB (in 3-dB steps): Mic input
Transmission: 23 Hz to 18 kHz (typical) Transmission: 23 Hz to 18 kHz (typical)
Capsule Unit: 70 Hz to 18 kHz
Frequency Response
Transmission: 23 Hz to 18 kHz (typical)
2 1/2 x 3 1/4 x 13/16 inches (63 x 82 x 20 mm)
(excluding the anntenas) (W x H x D)
Dimensions 1 11/16 x 1 11/16 x 4 1/8 inches (42 x 42 x 102 mm)
(W x H x D)
UC: Approx. six hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F) at 50-mW output
CE7: Approx. eight hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F) at 30-mW output
E/KR3: Approx. 10 hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F) at 10-mW output
Transmission: 40 Hz to 15 kHz (typical) Transmission: 23 Hz to 15 kHz (typical)
Capsule Unit: 70 Hz to 18 kHz -
10 mW / 2 mW
Oscillator Type
URX-P03 Portable receiver
Crystal-controlled PLL Synthesizer
Reception Type True diversity
Antenna Type
Carrier Frequencies
1/4 wave length wire
Frequency Response 23 Hz to 18 kHz (tyipcal)
Signal-to-Noise Ratio 96 dB (max deviation,A-weighted)
Distortion (T.H.D) 0.9% or less (-60 dBV, 1 kHz input)
Audio Delay Approx. 0.35 msec
Analog Output 3-pole mini jack, unbalanced
Analog Output Level -60 dBV (at ±5 kHz deviation)
Headphone Output
Headphone Output Level 5 mW (at 16-ohm load)
Pilot Tone Signal 32 kHz / 32.382 kHz / 32.768 kHz
Display LCD
Operating Temperature 32°F to 122°F (0°C to 50°C)
Weight Approx. 6.2 oz (176 g) (including batteries)
Storage/
Transport Temperature -4°F to +131°F (-20°C to +55°C)
Dimensions 2 1/2 x 3 1/4 x 15/16 inches (63 x 82 x 23.8 mm)
(excluding the anntenas) (W x H x D)
Power Requirements DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Battery Operating Time Approx. six hours with Sony's AA-size alkaline (LR6)
batteries at 25°C (77°F)
DC 5.0 V (via USB micro-B)
Analog Output
Adjust Range -12 dB to +12 dB (3-dB step)
UC14 : 470.125 MHz to 541.875 MHz
CE21 : 470.025 MHz to 542.000 MHz
CE33 : 566.025 MHz to 630.000 MHz
CE42 : 638.025 MHz to 694.000 MHz
UC42 : 638.125 MHz to 697.875 MHz
UC30 : 566.125 MHz to 607.875 MHz and
614.125 MHz to 637.875 MHz
UC
CE7
CE51 : 710.025 MHz to 782.000 MHz
CN CN38 : 710.025 MHz to 782.000 MHz
EE: 794.125 MHz to 805.875 MHz
JJB: 806.125 MHz to 809.750 MHz
KR3 KR3: 925.125 MHz to 937.500 MHz
Model Code
Frequency Response
Directivity
Capsule Type
Sensitivity
Dynamic Range
40 Hz to 20 kHz
Omni-directional
Condenser
–43.0 dB ±3.0 dB (1 kHz/Pa)
86 dB or more
Microphone Head
Mic Cable
Power Requirements
Supplied Accessories
Maximum Input
Sound Pressure Level
120 dB SPL
3.9 feet (1.2 m)
DC 5 V
Windscreen (1)
Horizontal Clip (1)
ECM-V1BMP
9/32 X 25/32 inches
(6.8 x 19.5 mm)
(diameter/length)
1 15/16 x 10 1/4 inches (48 x 260 mm)
(diameter / length)
3.5 mm (5/32 inch) stereo mini jack

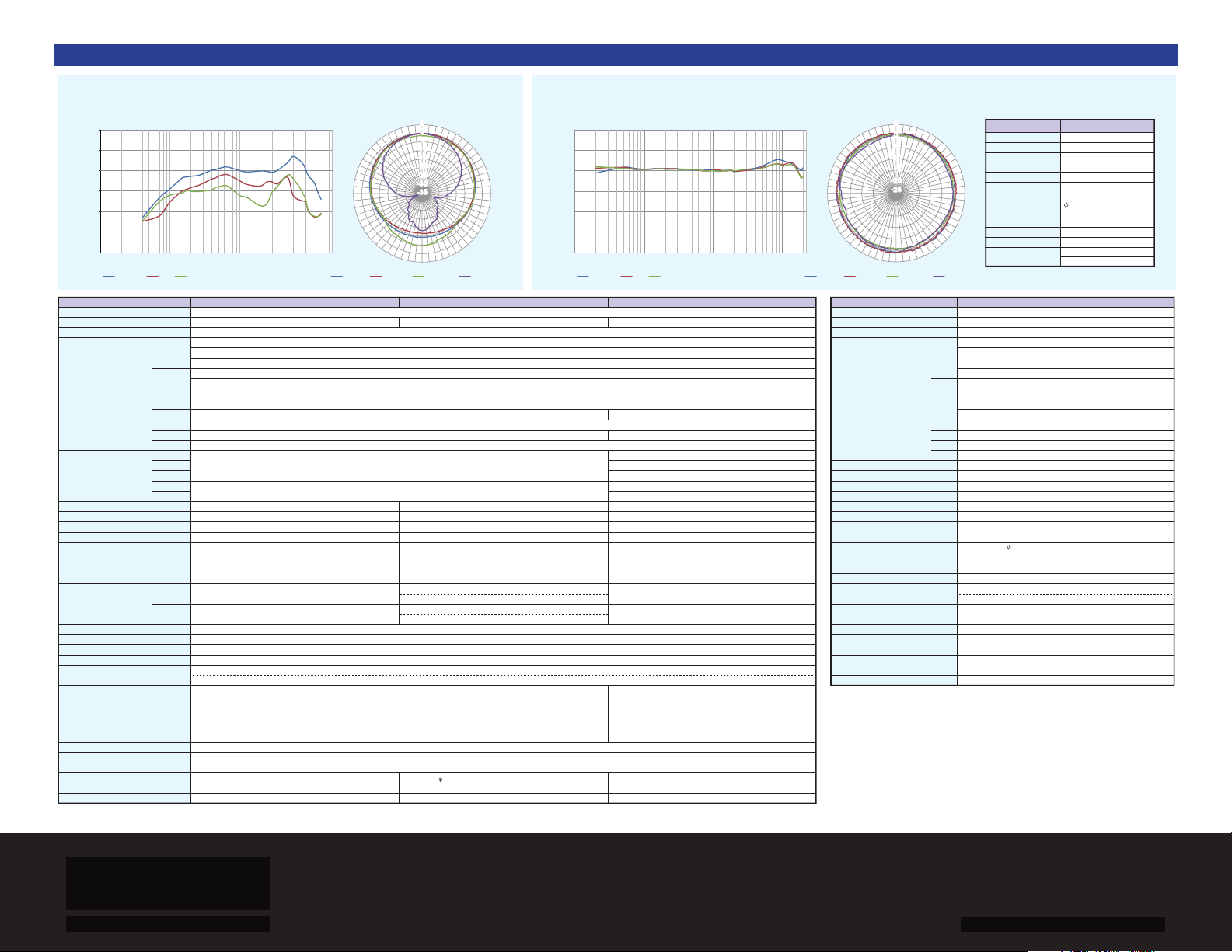

SPECIFICATIONS
©2014 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for weight and dimension are approximate.“SONY” is a trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/proaudio
A-1200 (MK11109V1) Printed in USA (1/14)
Other manuals for UWP-D11
3
This manual suits for next models
3
Table of contents
Other Sony Microphone System manuals

Sony
Sony DWRS02D/14 User manual

Sony
Sony UWP-V1 User manual

Sony
Sony DWZM70 User manual

Sony
Sony DWZ-B50GB User manual

Sony
Sony UWP-D21 User manual

Sony
Sony Digital Wireless Generation 3 User manual

Sony
Sony DWZB30GB User manual

Sony
Sony UWP-C1 User manual

Sony
Sony DWZB70HL User manual

Sony
Sony WRT-800A User manual
