Sony DWZB30GB User manual

DWZ Series
Digital Wireless Microphone Package
simulated image
DWZ-M50 DWZ-B30GB

Power to the Wireless,
Power to your Performance
2

Power to the Wireless,
Power to your Performance
3
simulated image

Enjoy powerful sound experiences from Sony! The DWZ-M50
package for vocalists and the DWZ-B30GB package for
guitarists provide astonishing sound quality without complex
operation. With 24-bit linear PCM digital, you get high sound
quality with reliable RF transmission, utilizing unique transmission
technology developed by Sony.
Great Audio Experiences for all Musicians
The DWZ-M50 vocal package and DWZ-B30GB
guitar package provide two selectable RF
modes. Simply choose the one that makes best
use of your actual 2.4 GHz RF environment.
Two RF Modes for Reliable Transmission
This mode reduces interference with other wireless
equipment used in the same environment, such as
Wi-Fi. It doesn’t require you to have any technical
knowledge about radio frequency. Wide Band
Hopping Mode also supports additional error
correction for more secure transmission*.
[ Wide Band Hopping Mode ]
CH 6
CH 5
CH 4
CH 3
CH 2
CH 1
2402MHz 2482MHz Hopping
** Audio delay: Approx. 3 ms
*Audio delay: Approx. 6 ms
This mode helps you to avoid interference from other
devices – for example, 2.4 GHz wireless remote controllers
that are commonly used for lighting control. This
enables you to coordinate frequencies when using
multiple wireless systems simultaneously**.
[ Narrow Band Hopping Mode ]
CH f
CH e
CH d
CH c
CH b
CH a
2402MHz 2482MHz Hopping
DWZ-M50 DWZ-B30GB
High-quality 24-bit linear PCM digital transmission
offers a pristine audio experience, and a wide
frequency range of 10 Hz to 22 kHz. With
these high-quality digital sound packages,
you can experience professional musical
performances from vocalists, guitarists, and
bassists. And the audio performance degradation
that’s typical of conventional analog wireless
systems is avoided, as these packages are
designed without the need for a compander.
Superb Digital Sound Quality

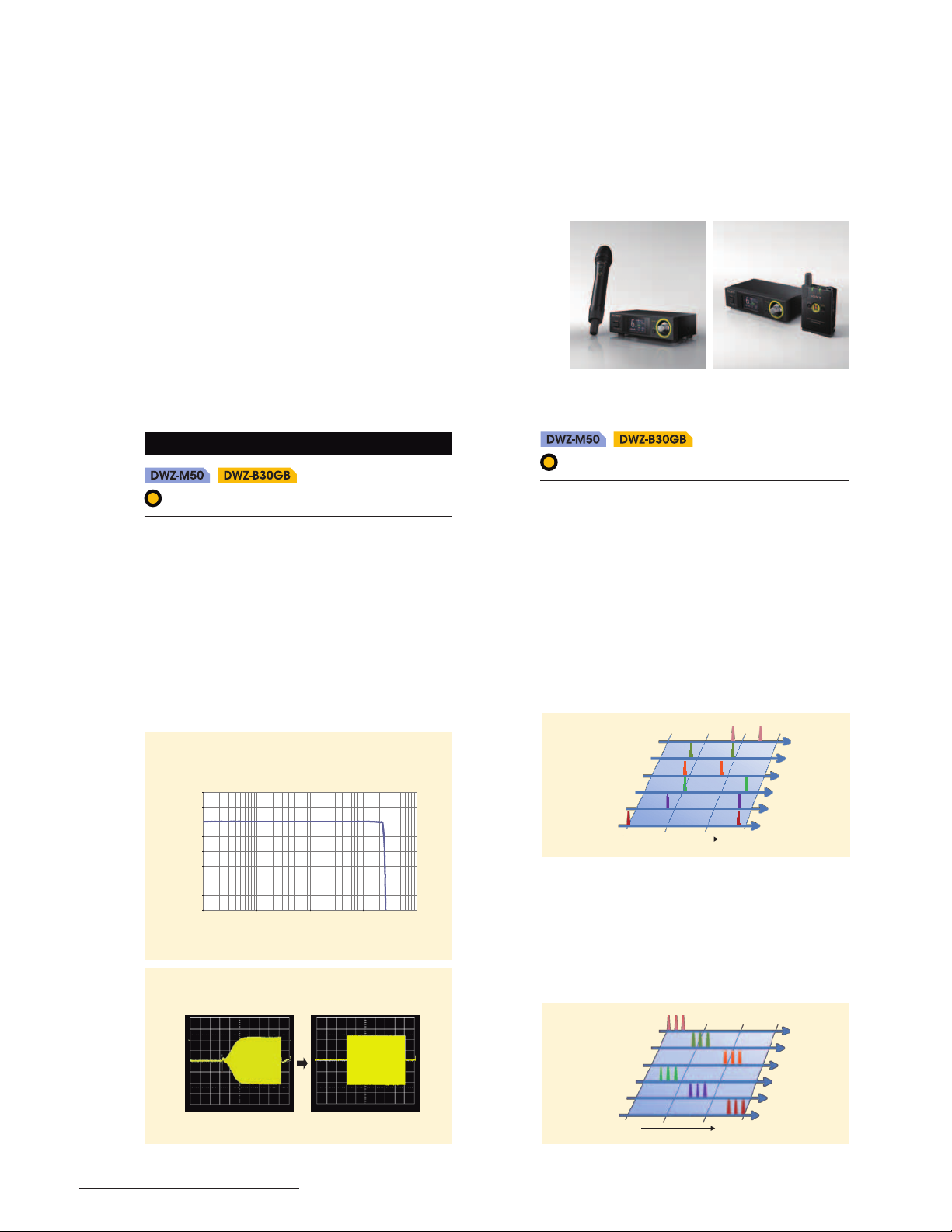

FEATURES and TECHNOLOGIES
Frequency Response
Dynamic Response
Digital SystemAnalog System
Level [dB]
Frequency[Hz]
10 100 1k 10k 100k
-30
-25
-20
-15
-10
-5
0
5
10
4

The half-rack ZRX-HR50 has Clear Channel
Scan and Best Channel Selection features
which detect unoccupied channels and select
the most appropriate channel automatically.
These features allow you to achieve fast and
easy system setup.
Fast and Easy Setup
The ZRX-HR50 half-rack size receiver
(supplied with the DWZ-M50 package for
vocalists) includes a large color LCD
display to provide you with a detailed
visual status of your selected channel,
signal, and five-band digital equalizer,
along with your audio level, and transmitter
battery life.
Large Color LCD
The ZRX-C30 compact-size receiver (supplied
with the DWZ-B30GB package for guitarists)
supports three types of powering. With the 9V
battery, you can use the receiver as a portable
device for up to 3.5 hours, setting you free from
an AC adaptor cord and maximizing layout
exibility. Also, using this battery provides a simple
solution for eliminating noise pick-up caused by
external power supplies. For long-duration use,
you can power the receiver with the supplied
12V AC adaptor, or the 9V DC jack (for use with
a power distributor).
Multiple Power Supplies
Adaptor
Battery
9V DC jack
(for use with power distributor)
Interruptions in reception (signal drop-
out) can be a problem with wireless
microphone transmission systems. With
the DWZ Series, however, this is reduced
to a minimum. Utilizing a space diversity
reception system, this series achieves
stable reception by using dual-antenna
inputs/reception circuits. These receive
signals over two different paths and
automatically select the stronger RF signal
for output.
Stable Transmission
5
With the handheld transmitter, you can use the
supplied high-quality dynamic cardioid
microphone capsule. Alternatively, you can
select any of the mic capsules from Sony’s DWX
Series capsules (The thread pitch is 1.25”/28
(31.3 mm/pitch 1.0 mm threading))*.
Interchangeable Capsules
CU- C31 CU-F31 / CU-F32
* Use of third party capsules may cause RFI or EMF noise.

The antenna for the compact ZRX-C30 receiver
is built-in. This protects the antenna from
breakage under rough handling conditions.
Built-in Antenna
With the five-band digital equalizer in the
half-rack ZRX-HR50 receiver, you can adjust
the sound character of your handheld
microphone as desired.
Five-band Equalizer
The ZTX-M01 handheld microphone (supplied
with the DWZ-M50 package for vocalists)
and the ZTX-B01 bodypack transmitter
(supplied with the DWZ-B30GB package
for guitarists) are made of strong durable
metal. Metal construction supports reliable
use in rough operating conditions.
Robust Metal Body
XLR balanced output is useful for your bass
guitar or acoustic guitar. It can directly connect
to a mixer without the need for a DI box.
XLR Balanced Output
Adjustable transmitter attenuators allow
you to select proper audio input levels
from the microphone and instruments. You
can switch the ZTX-B01 between instrument
and microphone input.
Adjustable Attenuator
Tuner output is available for guitar tuning.
The ZRX-HR50 also has a transmitter-muting
selector which gives you a choice for AUX
output with or without the muting function.
Tuner Out Interface
The ZRX-C30 has a light and compact design. Its
weight is just 205 g (7.2 oz) including battery, and
its size is a mere 132 x 41 x 74 mm (5 1/4 x 1 5/8 x 3
inches). This lightweight, slim design allows you to
t the receiver into a pedal board system, or place
it on top of your guitar amplier.
Lightweight and Compact
The compact ZRX-C30 is equipped with a Cable
Tone Generator feature to simulate wired tone
when using wireless. You don’t need to adjust
the equalizer setting on your amplier when
switching between wired and wireless. All you
have to do is adjust the dial on the ZRX-C30
receiver to match the desired wired tone.
Wired / Wireless Seamless Operation
60
40
20
0
-20
- 40
- 60
- 80
-100
10 100 1k 10k
OFF 1m 3m 5m
8m 12m 18m 25m
Cable Tone Generator
Gain[dB]
Frequency[Hz]
6

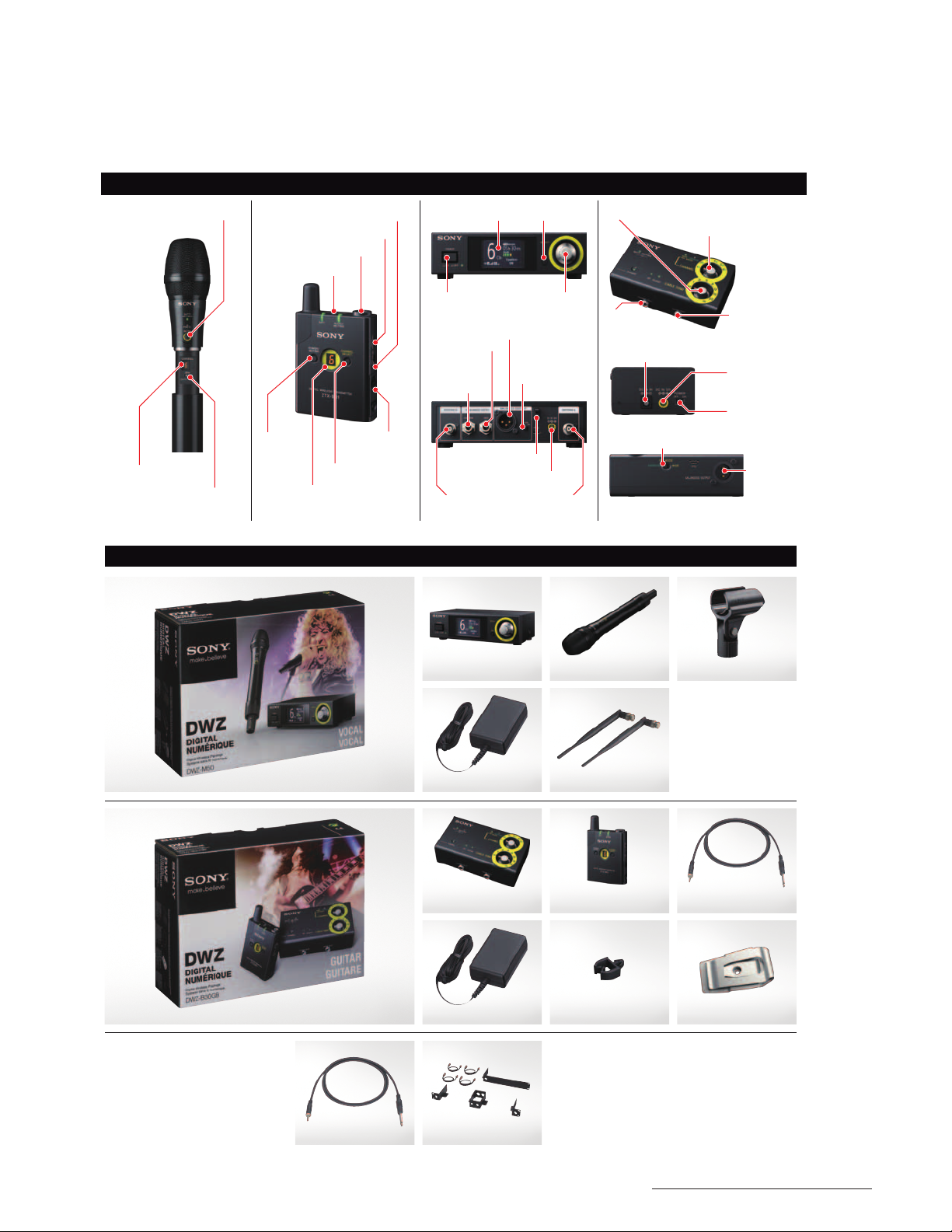

BUTTONS and INTERFACES
DWZ-B30GB
DWZ-M50
Rack mount kit *For single/double use
*
RMM-HRD1
Optional Accessory
AC Adaptor
Half-rack receiver
Antenna
Handheld microphone
Compact receiver
Cable Clamp Belt Clip
Bodypack transmitter Guitar cable
ZRX-HR50 ZTX-M01 Microphone Holder
ZRX-C30 ZTX-B01 GC-0.7BMP
Guitar cable
GC-0.7BMP
AC Adaptor
PACKAGE LINEUP
Button Lock Switch
Channel Display
Audio Input
Power/
Muting
Button
Channel Select
Button
Battery
Compartment
Input Switch
ATT (attenuator) Switch
ZTX-B01
Power/Muting Button
Channel Display
Button Lock Switch
ZTX-M01
Display
Power Button
Unbalanced
Main Output
Mic/Line
(audio output level)
Switch
Unbalanced
Tuner/
AUX Output
Antenna a/b Connector
Cable Clamp
DC 12V Input
Balanced Output
Rotary Encoder
Escape Button
ZRX-HR50
Main OutputTuner
Output
Balanced
Output
RF Mode Select Switch
Cable Tone Generator Switch
Channel Selection Switch
ZRX-C30
DC 9V Input
Power Switch
DC 12V Input
7

Model Code DWZ-M50 DWZ-B30GB
Transmitter Type Handheld Bodypack
Carrier Frequencies 2402.0-2478.5 MHz 2402.0-2478.5 MHz
RF Power Output 10mW (e.i.r.p) 10mW (e.i.r.p)
Receiving
Section
Receiver Type Rack-mount (Half / 1 channel) Compact (1 channel)
Reception Type Space diversity Space diversity
Antenna Type External whip antenna Internal monopole antenna
Receiving Frequencies 2402.0-2478.5 MHz 2402.0-2478.5 MHz
RF Sensitivity 24 dBμV or less 30 dBμV or less
Capsule Type Dynamic -
Directivity Uni-directional -
Maximum Input Level 142 dB SPL (with 12 dB attenuator) MIC: -22 dBu / INST: +8 dBu (when attenuator level is 0 dB)
Audio Attenuator
Adjustment Range
0 / 6 / 12 dB 0 / 10 / 20 dB
Frequency Response 10 Hz to 22 kHz
Dynamic Range 102 dB (A-weighted) MIC: 102 dB (A-weighted) / INST: 98 dB (A-weighted)
Audio Delay Narrow band:Approx. 3ms / Wide band: Approx. 6 ms Narrow band: Approx. 3ms / Wide band: Approx. 6 ms
Distortion (T.H.D) 0.03% or less (-38 dBu, 1 kHz input) 0.03% or less (-38 dBu, 1 kHz input)
Analog Output XLR-3-32, balanced (x1) / Phone jack, unbalanced (x2) XLR-3-32, balanced (x1) / Phone jack, unbalanced (x2)
Reference
Output Level
Other
Equipment
Display Color LCD -
USB Port
(for rmware update)
TX x1 / RX x 1 TX x1 / RX x 1
General
Power Requirements DC 12 V DC 12 V / DC 9V / Square 9V 6LR61 battery
Battery Operating Time Approx. 10 hours of continuous use (25 °C (77 °F) ambient
temperature, with two Sony LR6 (size AA) alkaline dry cell batteries)
ZTX-B01: Approx. 10 hours of continuous use (25 °C (77 °F) ambient
temperature, with two Sony LR6 (size AA) alkaline dry cell batteries)
ZRX-C30: Approx. 3.5 hours of continuous use (25 °C (77 °F) ambient
temperature, Sony square 9 V alkaline dry cell battery)
Operating Temperature 32°F to 122°F / 0°C to 50°C 32°F to 122°F / 0°C to 50°C
Storage/
Transport Temperature
-4°F to +140°F /-20°C to +60°C -4°F to +140°F /-20°C to +60°C
Dimensions
Weight
Supplied
Accessories
Microphone holder (1),Antenna (2),AC adapter (1), Operating instructions (1) Guitar cable (1), Belt clip (1), Belt clip screw (1), Cable clamp (1),AC adapter (1),
Operating instructions (1)
Transmission: 10 Hz to 22 kHz
Microphone unit: 70 Hz to 16 kHz
-Balanced output: MIC: –58 dBu / LINE: –12 dBu
-Unbalanced output: –28 dBu
-Balanced output: –20 dBu
-Main/Tuner output: –28 dBu
ZTX-M01: Approx. 11 oz. (305 g) (including batteries)
ZRX-HR50: Approx. 1 lb. 2.0 oz. (510 g)
ZTX-B01: 2 1/2 × 3 1/4 × 13/16 inches (63 x 80 x 20 mm) (w/h/d)
(excluding the antenna)
ZRX-C30: 5 1/4 × 1 5/8 × 3 inches (132 x 41 x 74 mm) (w/h/d)
ZTX-B01: Approx. 5.5 oz. (165 g) (including batteries)
ZRX-C30: Approx. 7.2 oz. (205 g) (including battery)
ZTX-M01: 1 15/16 × 10 1/4 inches (48 x 258 mm) (diameter/length)
ZRX-HR50: 6 5/8×1 3/4 ×3 7/8 inches (168 x 44 x 96 mm) (w/h/d)
Transmitting
Section
Audio
Section
Directivity
Characteristics (1 kHz)
0.000.00
5.00
5.00
0
30
60
90
120
150
180
210
240
270
300
330
-25.00
-25.00
-20.00
-20.00
-15.00
-15.00
-5.00
-5.00
-10.00
-10.00
0.0
10.0
10 100 1k 10k
Gain[dB]
Frequency[Hz]
-40.0
-30.0
-20.0
-10.0
20.0
ZTX-M01
Frequency Response Characteristics
On A 90 d 180 400Hz 1000Hz 4000Hz 8000Hz

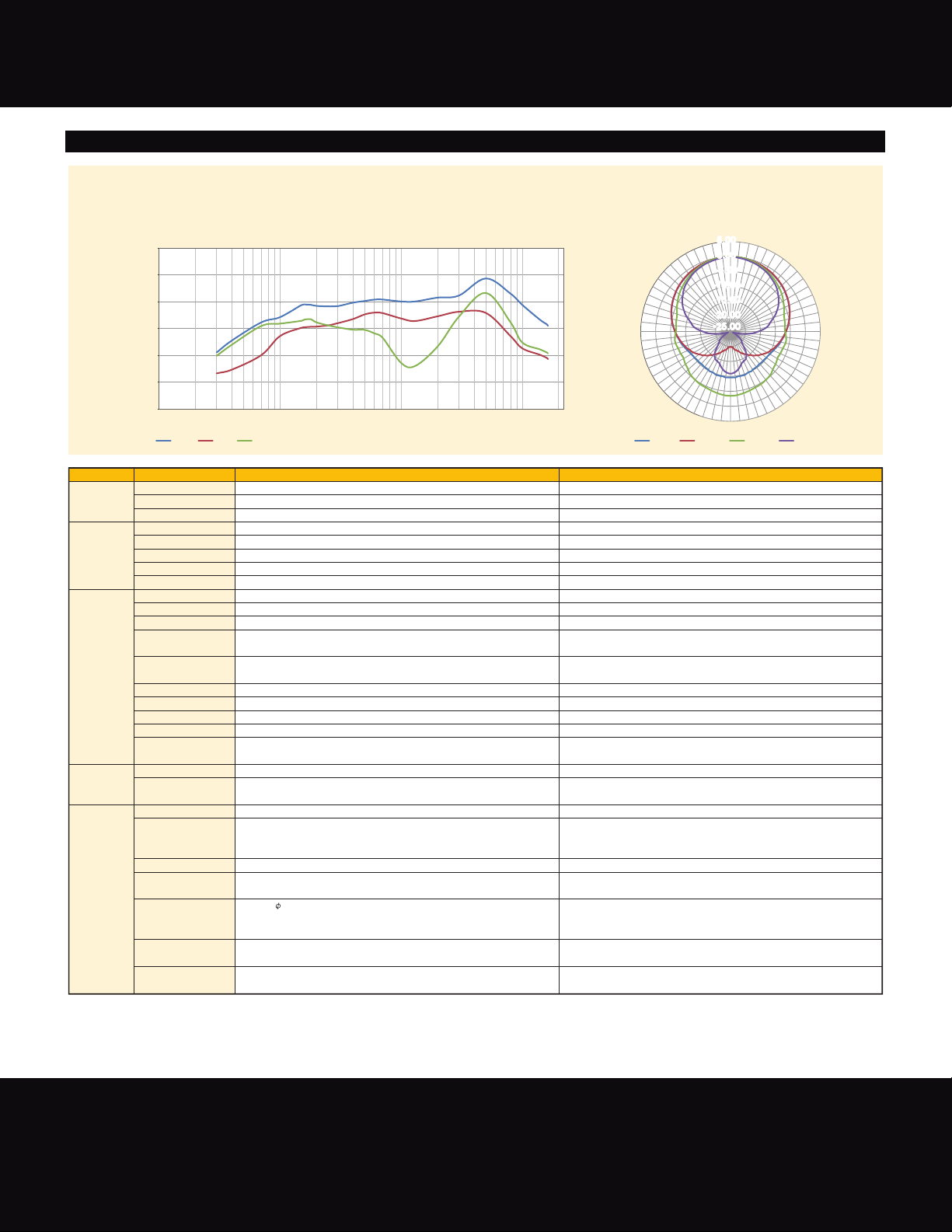

SPECIFICATIONS
Printed in USA (1/13)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
A-1193 (MK10989V1)
©2013 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features, design, and specifications are subject to change without notice.
The values for mass and dimension are approximate.
SONY and make.believe are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
