Sony BRIGHTERA VPL-FH30 User manual

www.pro.sony.eu/projectors
VPL-FH30
4300 WUXGA
Installation Projector
product
design
award
2011

High Picture Quality
High Picture Quality and Bright Images
By combining a new-generation optical
system that uses Sony’s BrightEra™ Long
Lasting Optics technology* and a 3LCD
projection system, the VPL-FH30 offers
high picture quality in WUXGA (1920 x
1200) resolution and a high brightness of
4300 lumens.
* BrightEra with Long Lasting Optics is the brand name for a
new generation of optical system, which is a more advanced
version of Sony‘s original BrightEra technology. In addition to the
adoption of LCD panels that have pixels with large aperture
ratios and inorganic alignment layers, BrightEra with Long Lasting
Optics technology also
uses an inorganic layer for
polarisation plates to greatly
enhance reliability.
“Blend-in” design
The VPL-FH30 showcases a newly designed
low profile chassis, so the projector appears
to blend into the ceiling on which it is
mounted. The connector panel is located
on the front of the
unit so its cables
cannot be seen by
the audience, to
further ensure the
projector fits elegantly
into the installation
environment.
Features
VPL-FH30
Packing the most advanced projector technologies into an “blend-in” design, the VPL-FH30 is an excellent choice for universities, corporates,
museums and medical (DICOM) applications. Delivering a dramatic colour brightness of 4300 lumens and ultra high-quality images with
WUXGA resolution, the VPL-FH30 offers peace of mind operation, amazing installation flexibility and hassle-free maintenance
in a stylish design that blends into any decor.
The maintenance cycles of the lamp and cleaning filters are synchronised and exceptionally long, which cuts maintenance time and cost.
In addition, the VPL-FH30 is designed to deliver a low total cost of ownership and includes environmentally conscious features, thanks to its
long-lasting lamp and low power consumption.
Installation flexibility and
trouble-free maintenance
with a stylish “blend-in” design

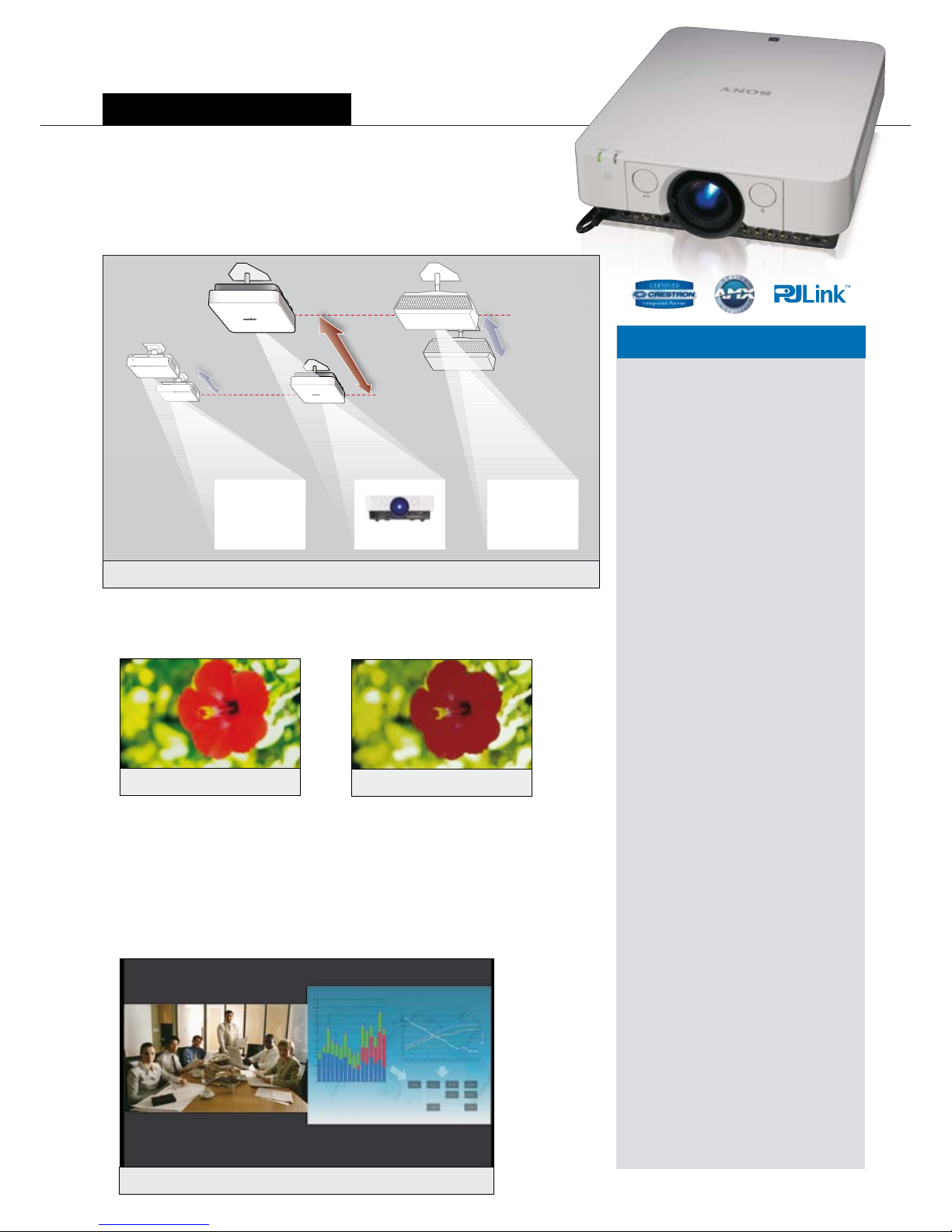

FH30’s Shift Range
Installation Advantages
Lens Shift Functions
The VPL-FH30 is equipped with horizontal and vertical lens shift functions for
greater installation flexibility. Using this function, the position of the projected
image can be moved vertically by up to 60% and horizontally from -32%
through to +32%. Images can be easily adjusted to the desired settings
during installation.
Horizontal
Vertical
Market Volume
(FY2000 FY2005 World Wide)
US
Europe
Japan
Others

Features
Excellent Total Cost of Ownership and
ECO-friendly Features
Long-lasting Lamp
By incorporating a newly developed
high-performance lamp and
advanced lamp-control technology,
the projectors offer the recommended
lamp replacement time of
approximately 4,000 hours.*
* In Standard mode.
Low Power Consumption
The projector offers remarkably
low power consumption, allowing
users to make significant savings on
electricity expenses.
*1 These values are approximate

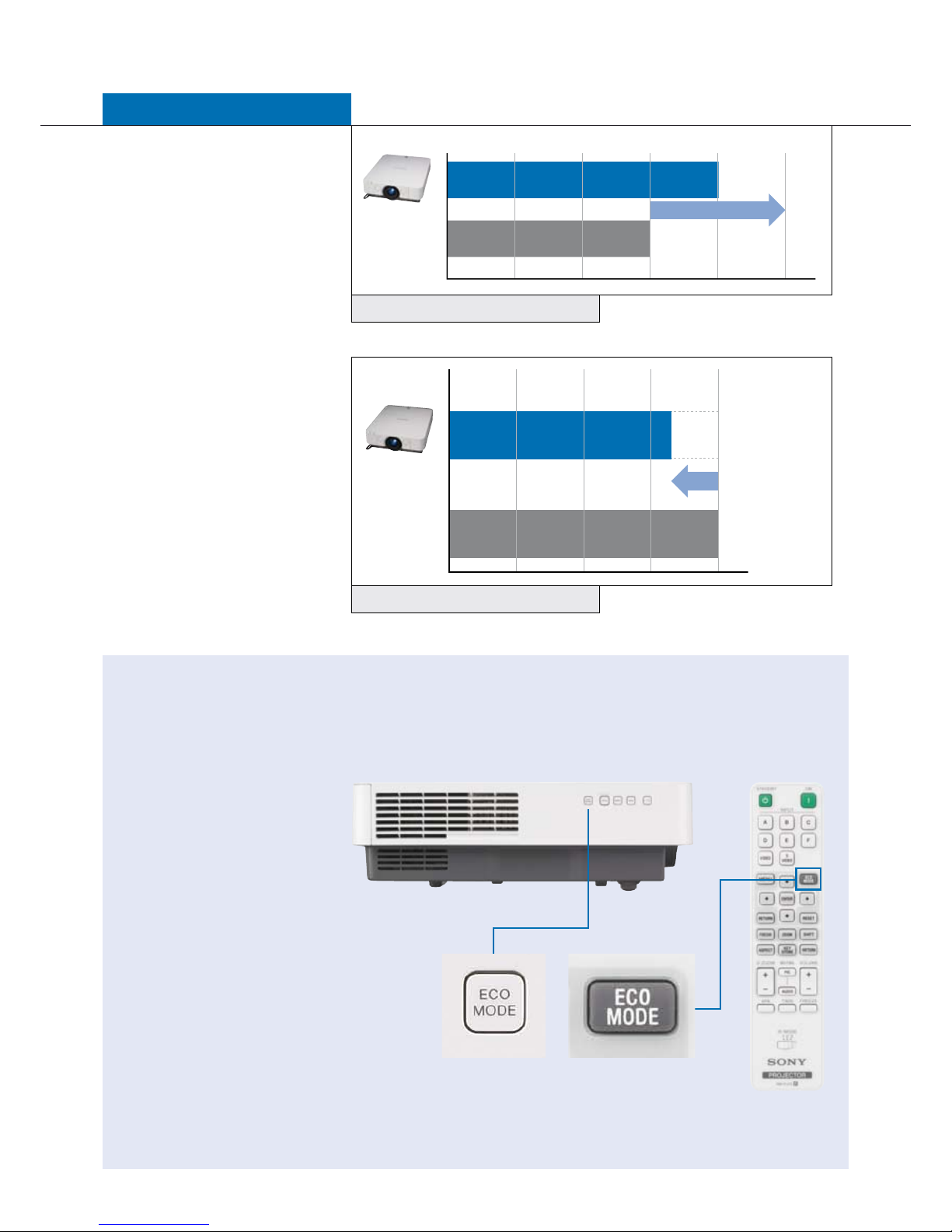

ECO MODE Key
With a single push of the ECO MODE key on either the projector or the
supplied Remote Commander™ unit, the user can select an energy-
saving setting in the ECO Mode menu.
VPL-FH30
VPL-FH30
Longer Lamp Exchange Time*1
Higher Energy Efficiency
ECO MODE
Eco Mode optimises combinations
of the following functions.
• Lamp mode
“High / Standard”
- Saving the consumption of
lamp wattage.
• Power Saving mode
“Lamp Cutoff / Projector
Standby”
- When set to “On“, the projector
goes into power saving mode
if there is no operation for 10
minutes without
any signal input.
Lamp Cutoff ; The lamp goes off.
The lamp lights again when a signal
is input or any key is pressed.
Projector Standby ; “Standard / Low”
In “Standard”, power consumption
is 12W and is reduced to 0.3W in
“Low”*.
*Network function cannot be operated
Conventional
Model
Conventional
Model
4000 hours
Lower Power
Consumption
Approx. 18%
Down
3000 hours

VPL-FH30
Excellent Throw Ratio Coverage for Old Projector Replacement
The 1.6x zoom and 1.39 to 2.23 throw ratio standard lens enables installation
flexibility when replacing an existing projector with the VPL-FH30 there’s no need
to change ceiling mount positions. For applications where more than a standard
lens is needed, the projector is compatible with the optional VPLL-Z1024PK and
VPLL-Z1032PK accessory lenses designed for Sony’s current VPL-FX40 Series.
Freeze Function
Freezes the projected image
Digital Zoom Function
Enlarges a section of the image
Picture Muting Function via Built-in
Mechanical Shutter
Mutes the projection of images on screen
via a built-in mechanical shutter. This
function can be easily operated with just the
touch of a button on the supplied Remote
Commander unit
Other Features
Panel Alignment
Allows the user to adjust colour alignment
for ultimate picture perfect images
Whole picture alignment - Adjustment
range: ±2.0 dot by 0.1 dot
Desired Zone alignment: Selects the desired
range (H:16 x V:10 = 160 cross points)
Adjustment range: ±2.0 dot by 0.1 dot
Colour Matching
Allows the user to adjust brightness and
colour of the whole projected image to
match the original image
Quiet Noise Operation
Low frequency sound
Closed Captioning
Official teletext broadcasting, developed
by the NCI, USA
Security Pack
Security lock (password and mechanical),
security bar, panel key lock and security label
Test Pattern Key
For easy screen adjustment
ID Mode
For individual control of multiple projectors
Audio Monitor Function
Allows audio to be selected based on input
selection
Smart APA
Auto pixel alignment
Direct Power On/Off
Direct power control using the circuit breaker
on the switch board
High Altitude Mode
For projector operation at high altitude
Network and Control
Controls and monitors projector status
Compatible with various control systems
Excellent Throw Ratio Coverage for Old Projector Replacement
Presentation Functions
VPL-FH30
Conventional 1
Shorter throw
ratio
Conventional 2
Longer throw
ratio
12-bit 10-bit
Picture-by-Picture simulated image
12-bit 3D Gamma Correction
The VPL-FH30 incorporates 12-bit 3D Gamma Correction circuitry to perform highly
accurate gamma correction, achieving smoother gradations and richer grey-scale.
I/P Conversion and Film Mode
The video signal processing technology that Sony has incorporated in the VPL-
FH30 offers I/P conversion and 2-3 pull-down to generate high-quality images with
outstanding clarity.
Picture-by-Picture
With this feature, users can project two different images at the same time, greatly
expanding creative possibilities and enabling exciting new applications.

Centered Lens Design
The centered lens provides
symmetry for a balanced installation
and makes set up very simple.
Trouble-free Maintenance
Easy Lamp and Filter Maintenance
When the air filter must be cleaned, a timely message is clearly displayed on screen.
The lamp and the filter are accessible from the same side, so their replacement can
be performed without uninstalling the projector. With typical usage, replacement
filters have an approximate 15000-hour cleaning cycle. This is achieved by a Quad
Filter System enabling both the lamp and the filters to be replaced at the same time,
even in tough environments, saving maintenance time and cost. Note: Filters are
supplied with replacement lamps for ultimate performance.
Features PrimeSupport
All Sony Professional’s business
projectors sold into the EU, Norway and
Switzerland come supplied with a 3 year
PrimeSupport pack. This offers unique
services and benefits over and above
standard warranty:-
3 Years Cover
Freephone telephone helpdesk support
(00800 7898 7898) in 5 languages.
Collection, repair and return anywhere
in EU, Norway and Switzerland
In addition, optional PrimeSupport Plus
packs can be purchased which can
further enhance the 3 year support to
give extra peace of mind:-
• A 2 year extension to give long-term
assurance of expert support and technical
assistance
• Provision of a loan unit throughout the 3
year of PrimeSupport cover to minimise
disruption to business
• Free replacement lamp throughout the
3 year PrimeSupport cover to reduce
unexpected running costs
Standard 2.2 DICOM GSDF simulation
DICOM GSDF Simulation*
The VPL-FH30 is equipped with a new gamma mode,
called DICOM GSDF Simulation. This is ideal for viewing
digital medical imagery for non-diagnostic applications.
0 200 400 600 800 1000
0
10
20
30
40
50
60
70
80
90
100
Output Luminance [%]
Input Level
Standard 2.2
DICOM GSDF sim.
Gamma curve
* Conforms to GSDF (Grayscale Standard Display Function)
medical standards for DICOM
(Digital Imaging and Communications in Medicine).
* This function is for training and reference only, and
cannot be used for medical diagnosis.
Simulated image
Quad Filter System

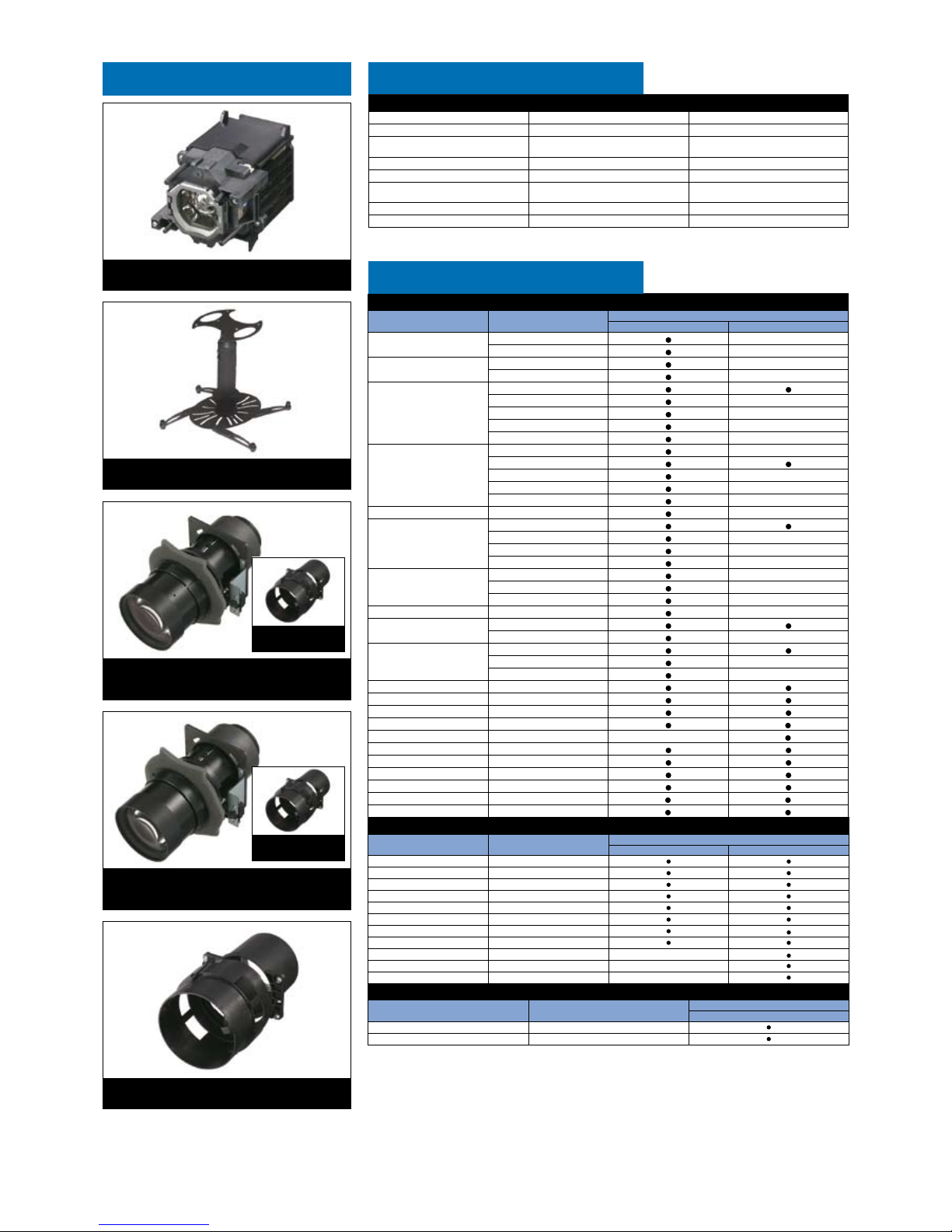

Optional Accessories Optional Lenses
LMP-F272
Projector Lamp (for replacement)
PAM-300
Projector Suspension Support
VPLL-Z1024PK
Projector Lens supplied with PK-F30LA1 Projector Lens Adapter
Throw Ratio 2.34 to 3.19
VPLL-Z1032PK
Projector Lens supplied with PK-F30LA1 Projector Lens Adapter
Throw Ratio 3.18-4.84
PK-F30LA1
Projector Lens Adapter
PK-F30LA1
Projector Lens Adapter
PK-F30LA1
Projector Lens Adapter
Projection Lens VPLL-Z1024PK VPLL-Z1032PK
Throw ratio 2.34 to 3.19 3.18 to 4.84
Zoom / Focus Manual / Manual Manual / Manual
Lens shift Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Aperture f/2.00 to 2.30 f/2.00 to 2.40
Screen size* 40” to 600” 40” to 600”
Dimensions W 97 x H 87 x D 180 mm
(W 3 13/16 x H 3 7/16 x D 7 3/32 in)
W 97 x H 87 x D 177 mm
(W 3 13/16 x H 3 7/16 x D 6 31/32 in)
Mass 1.1 kg / 2 lb 7 oz 1.1 kg / 2 lb 7 oz
Required projection lens adapter PK-F30LA1 PK-F30LA1
* Viewable area, measured diagonally.
*1: INPUT A, INPUT B *2: INPUT C *3: INPUT D *4: INPUT A *5: Available for VESA Reduced Blanking signals only.
*6: INPUT C is determined as a computer signal;
INPUT D is determined as a digital TV signal.
• When a signal other than the signals listed in the table is input, the picture may not be displayed properly.
• An input signal meant for a screen resolution different to that of the panel will not be displayed in its original resolution. Text and lines
may be uneven.
• Some actual values may differ slightly from the design values given in the table.
Preset Signal Chart
Computer Signal
Resolution fH [kHz]/
fV [Hz]
Input connector
RGB*1 DVI-D*2/HDMI*3
640 x 350 31.5/70 —
37.9/85 —
640 x 400 31.5/70 —
37.9/85 —
640 x 480
31.5/60
35.0/67 —
37.9/73 —
37.5/75 —
43.3/85 —
800 x 600
35.2/56 —
37.9/60
48.1/72 —
46.9/75 —
53.7/85 —
832 x 624 49.7/75 —
1024 x 768
48.4/60
56.5/70 —
60.0/75 —
68.7/85 —
1152 × 864
64.0/70 —
67.5/75 —
77.5/85 —
1152 x 900 61.8/66 —
1280 x 960 60.0/60
75.0/75 —
1280 x 1024
64.0/60
80.0/75 —
91.1/85 —
1400 x 1050 65.3/60
1600 x 1200 75.0/60
1280 x 768 47.8/60
1280 x 720 45.0/60 *6
1920 x 1080 67.5/60 —*6
1360 x 768 47.7/60
1440 x 900 55.9/60
1680 x 1050 65.3/60
1280 x 800 49.7/60
1920 x 1200 74.0/60 *5*5
1600 x 900 60.0/60 *5*5
Analogue TV Signal
Signal fV [Hz] Input Connector
VIDEO/S VIDEO
480i 60
576i 50
Digital TV Signal
Signal fV [Hz] Input Connector
RGB/YPBPR*4 DVI-D*2/HDMI*3
480i 60
576i 50
480p 60
576p 50
1080i 60
1080i 50
720p 60 *6
720p 50
1080p 60 —*6
1080p 50 —
1080p 24 —

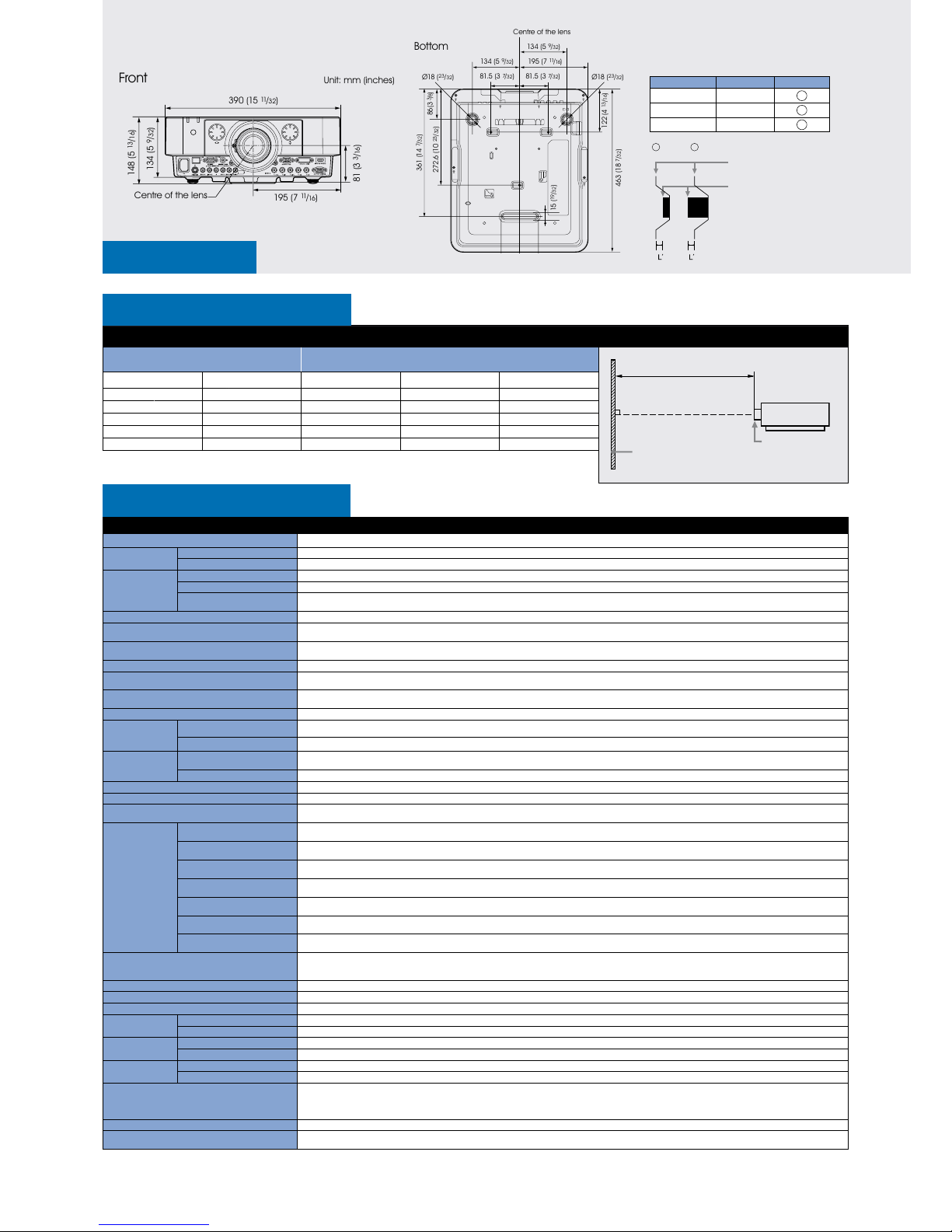

Specifications
Projection Distance
Projection Image Size Projection Distance (L)
Diagonal Width x Height Standard Lens VPLL-Z1024PK VPLL-Z1032PK
80-inch (2.03 m) 1.72 x 1.08 (68 x 42) 2.39 – 3.83 (95 – 150) 4.00 – 5.48 (158 – 215) 5.45 – 8.32 (215 – 327)
100-inch (2.54 m) 2.15 x 1.35 (85 x 53) 3.00 – 4.80 (119 – 189) 5.03 – 6.87 (198 – 270) 6.84 – 10.43 (270 – 410)
120-inch (3.05 m) 2.58 x 1.62 (102 x 64) 3.61 – 5.77 (143 – 227) 6.05 – 8.27 (238 – 325) 8.24 – 12.55 (325 – 494)
150-inch (3.81 m) 3.23 x 2.02 (127 x 79) 4.53 – 7.22 (179 – 284) 7.59 – 10.36 (299 – 408) 10.33 – 15.72 (407 – 619)
200-inch (5.08 m) 4.31 × 2.69 (170 × 106) 6.05 – 9.64 (238 – 379) 10.15 – 13.85 (400 – 545) 13.82 – 21.00 (544 – 827)
Installation Diagram
*1 The figures are expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used.
*2 This value is average. *3 Available for the VESA Reduced Blanking signal. *4 From INPUT A and INPUT B. *5 Works as an audio switcher function. Output from a selected channel; not available in standby.
Dimensions
Projection distance (L)
Projected Image Front of the lens
VPL-FH30
Display system 3 LCD system
Display device Size of effective display area 0.76” (19.3 mm) x 3, BrightEra, Aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels
Projection lens Zoom Manual (Approx. 1.6 x)
Focus Manual
Lens shift Manual, Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Light source High-pressure mercury lamp, 275 W type
Recommended lamp replacement time*13000 H (Lamp mode: High)
4000 H (Lamp mode: Standard)
Filter cleaning cycle Max. 15000 H*1
Same time as the lamp replacement is recommended
Screen size 40” to 600” (1.02 m to 15.24 m)*2
Light output 4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
Colour light output 4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
Contrast ratio (full white / full black)*22000:1
Displayable
scanning
frequency
Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution Computer signal input Maximum display resolution: 1920 x 1200 dots*3
Panel display resolution: 1920 x 1200 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p
Colour system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical: Max. +/- 5 degrees
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese,
Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)
Computer and
video signal
input/output
INPUT A RGB / Y PBPRinput connector: 5BNC (female)
Audio input connector: Stereo mini jack
INPUT B RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
Audio input connector: Stereo mini jack (shared with INPUT B)
INPUT D HDMI input connector: Digital RGB/Y PBPR
Digital Audio: PCN (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
S VIDEO IN S video input connector: Mini DIN 4-pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN Video input connector: Pin jack
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack (variable out)
Control signal input/output RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC 5 V
Operating temperature (Operating humidity) 0°C to 40°C / 32°F to 104°F (35% to 85%; no condensation)
Storage temperature (Storage humidity) -20°C to +60°C / -4°F to +140°F (10% to 90%)
Power requirements AC 100 V to 240 V, 4 A to 1.6 A, 50/60 Hz
Power
consumption
AC 100 V to 120 V 400 W
AC 220 V to 240 V 380 W
Standby mode
power consumption
AC 100 V to 120 V 9 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
AC 220 V to 240 V 10 W (Standby mode: Standard) / 0.3 W (Standby mode: Low)
Heat dissipation AC 100 V to 120 V 1365 BTU
AC 220 V to 240 V 1297 BTU
Outside dimensions W 390 x H 148 x D 477 mm
(W 15 11/32 x H 5 13/16 x D 18 25/32 in)
W 390 x H 134 x D 463 mm
(W 15 11/32 x H 5 9/32 x D 18 7/32 in) (without protrusions)
Mass 8.1 kg / 17 lb 14 oz
Supplied accessories RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2), AC Power Cord (1), Cable ties (2), Quick Reference Manual (1), Security Label (1),
Operating Instructions (1)
1 2
Front of the cabinet
Front of the lens
Unit: mm (inches)
Lens L’ Type
Standard lens 12.2 (15/32) 1
VPLL-Z1024PK 1.6 (1/16) 2
VPLL-Z1032PK 0.3 (1/32) 1
The distance L’ is between the front
of the lens (centre) and the front of
the cabinet
463 (18 7/32)
Ø18 (23/32)Ø18 (23/32)
50 (1 31/32)50 (1 31/32)
122 (4 13/16)
15 (19/32)
Centre of the lens
134 (5 9/32)
195 (7 1 1 /1 6 )
81.5 (3 7/32)81.5 (3 7/32)
134 (5 9/32)
272.6 (10 23/32)86 (3 3/8)
361 (14 7/32)
Front Unit: mm (inches)
Bottom
390 (15 1 1 /32)
81 (3 3/16)
195 (7 1 1 /16)
134 (5 9/32)
148 (5 13/16)
Centre of the lens
463 (18 7/32)
Ø18 (23/32)Ø18 (23/32)
50 (1 31/32)50 (1 31/32)
122 (4 13/16)
15 (19/32)
Centre of the lens
134 (5 9/32)
195 (7 11 /16)
81.5 (3 7/32)81.5 (3 7/32)
134 (5 9/32)
272.6 (10 23/32)86 (3 3/8)
361 (14 7/32)
Front Unit: mm (inches)
Bottom
390 (15 1 1 /32)
81 (3 3/16)
195 (7 11 /16)
134 (5 9/32)
148 (5 13/16)
Centre of the lens

At Sony Professional we believe images
have immeasurable power
Images nurture life
connect cultures
grow economies
deliver justice
inspire education
energise entertainment
advance science
liberate imagination
capture history
even promote peace
We use the power of images to increase
business value
We turn images into assets
This is Visual Wealth
Distributed by
About Sony Professional
Sony Professional is the leading supplier of AV/IT solutions to businesses across a wide variety of sectors including, Media and Broadcast, Video
Security and Retail, Transport & Large Venue markets. It delivers products, systems and applications to enable the creation, manipulation and
distribution of digital audio-visual content that add value to businesses and their customers. With over 25 years’ experience in delivering innovative
market-leading products, Sony Professional is ideally placed to deliver exceptional quality and value to its customers. Sony’s Professional Services
division, its systems integration arm, offers its customers access to the expertise and local knowledge of skilled professionals across Europe.
Collaborating with a network of established technology partners, Sony Professional delivers end to end solutions that address the customer’s needs,
integrating software and systems to achieve each organisations’ individual business goals. For more information please visit www.pro.sony.eu
HCT_10227_UK_03/2011
© 2011 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are
approximate. “SONY” and “make.believe”, “BrightEra” and “Remote Commander” are trademarks of Sony Corporation. Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other
countries and areas. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other trademarks are the property of their respective owners. “Blend-in” design of
the VPL-FX30 is well respected and has won the iF Product. Design Award Gold 2011. The VPL-FH30 employs “Blend-in” design concept.
