Sony KP-46XBR35 User manual

SONTY.
3-759-349-21(1)
Color
Rear
Video
Projector
Operating Instructions EN
Manual de instrucciones ES
KP-46XBR35
KP-53XBR35
KP-61XBR38
©1994 by Sony Corporation

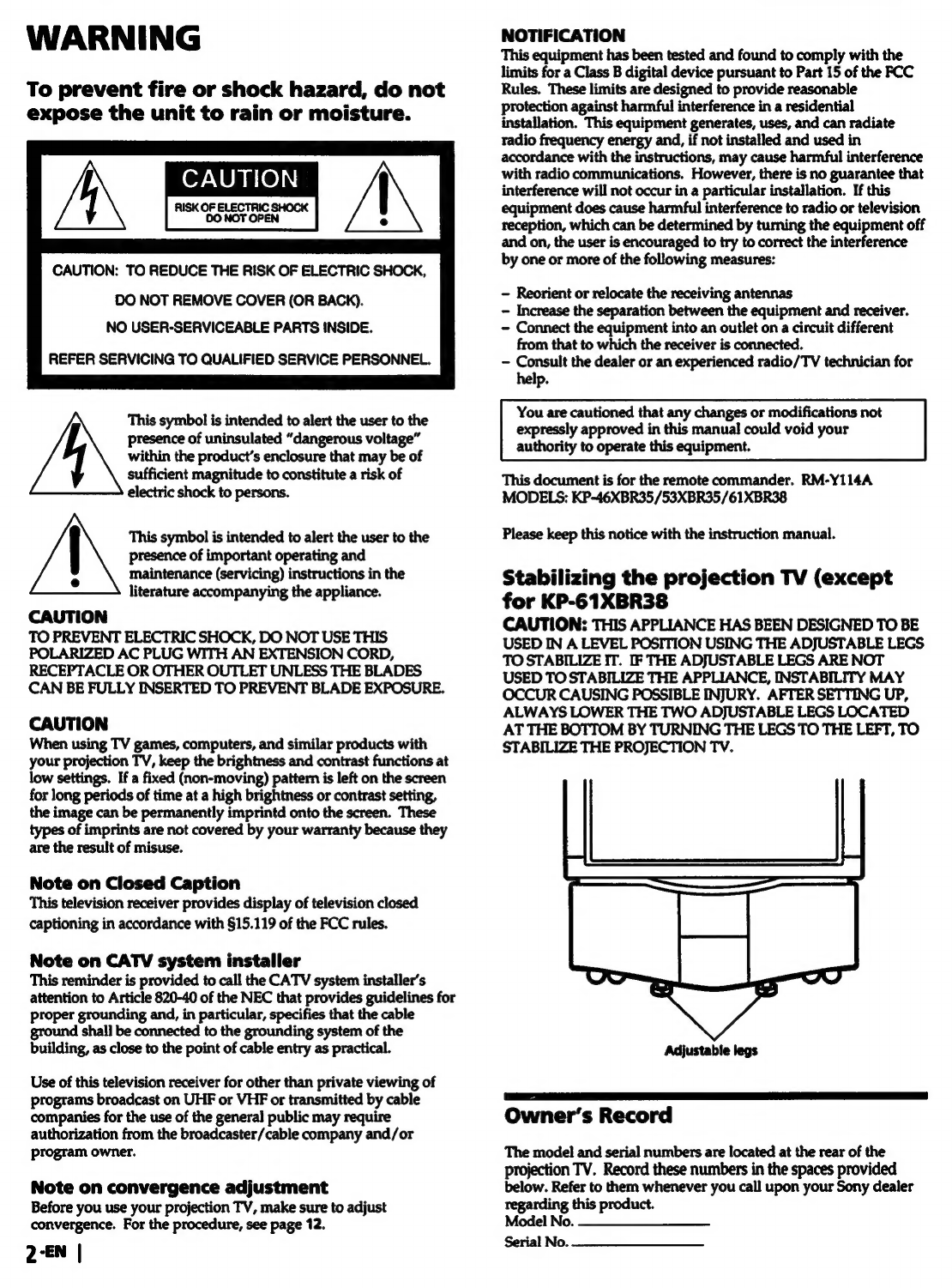

WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
00 NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
CAUTION
When using TV games, computers, and similar products with
your projection TV, keep the brightness and contrast functions at
low settings. If a fixed (non-moving) pattern is left on the screen
for long periods of time at a high brightness or contrast setting,
the image can be permanently imprintd onto the screen. These
types of imprints are not covered by your warranty because they
are the result of misuse.
Note on Closed Caption
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
Note on CATV system installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Use of this television receiver for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the genera] public may require
authorization from the broadcaster/cable company and/or
program owner.
Note on convergence adjustment
Before you use your projection TV, make sure to adjust
convergence. For the procedure, see page 12.
2-EN |
NOTIFICATION
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
with radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antennas
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
This document is for the remote commander. RM-Y114A
MODELS: KP-46XBR35/53XBR35/61XBR38
Please keep this notice with the instruction manual.
Stabilizing the projection TV (except
for KP-61XBR38
CAUTION: THIS APPLIANCE HAS BEEN DESIGNED TO BE
USED IN A LEVEL POSITION USING THE ADJUSTABLE LEGS
TO STABILIZE !T. IF THE ADJUSTABLE LEGS ARE NOT
USED TO STABILIZE THE APPLIANCE, INSTABILITY MAY
OCCUR CAUSING POSSIBLE INJURY. AFTER SETTING UP,
ALWAYS LOWER THE TWO ADJUSTABLE LEGS LOCATED
AT THE BOTTOM BY TURNING THE LEGS TO THE LEFT, TO
STABILIZE THE PROJECTION TV.
Adjustable legs
Owner’s Record
The model and serial numbers are located at the rear of the
projection TV. Record these numbers in the spaces provided
below. Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No.
Serial No.

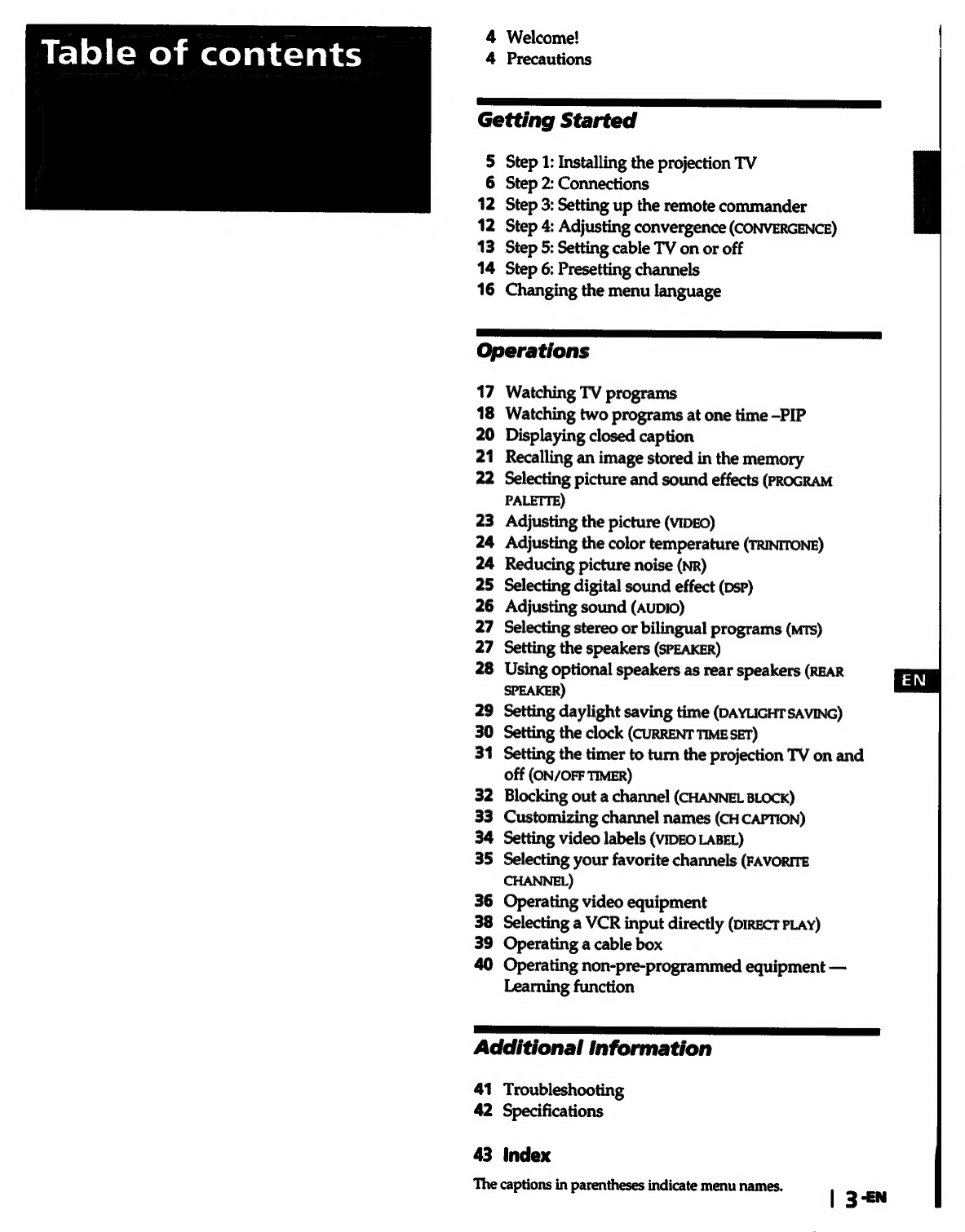

DFloli-mey mee) aicil ale
4 Welcome!
4 Precautions
Getting Started
5 Step 1: Installing the projection TV
6 Step 2: Connections

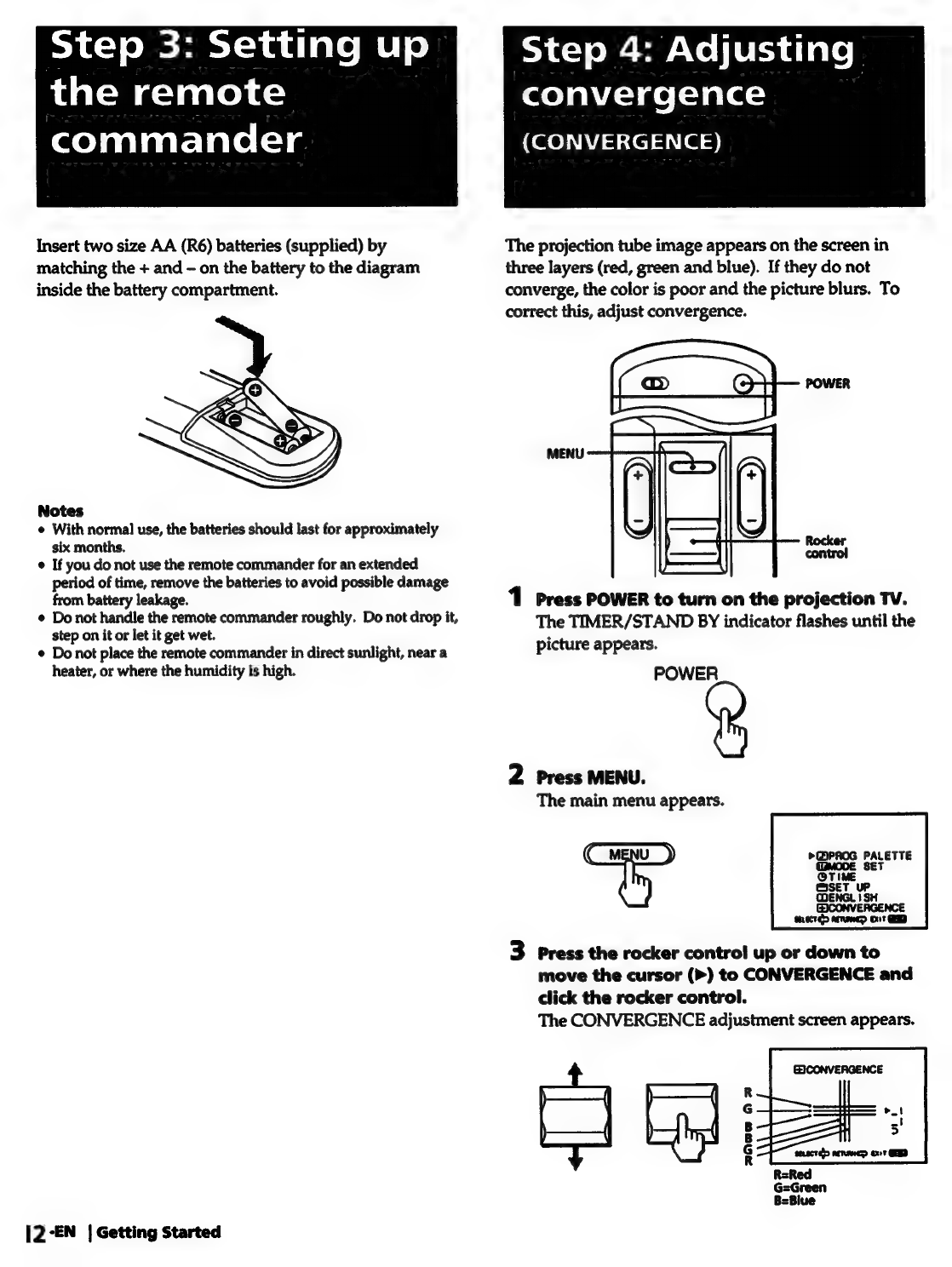

12 Step 3: Setting up the remote commander
12 Step 4: Adjusting convergence (CONVERGENCE)
13 Step 5: Setting cable TV on or off

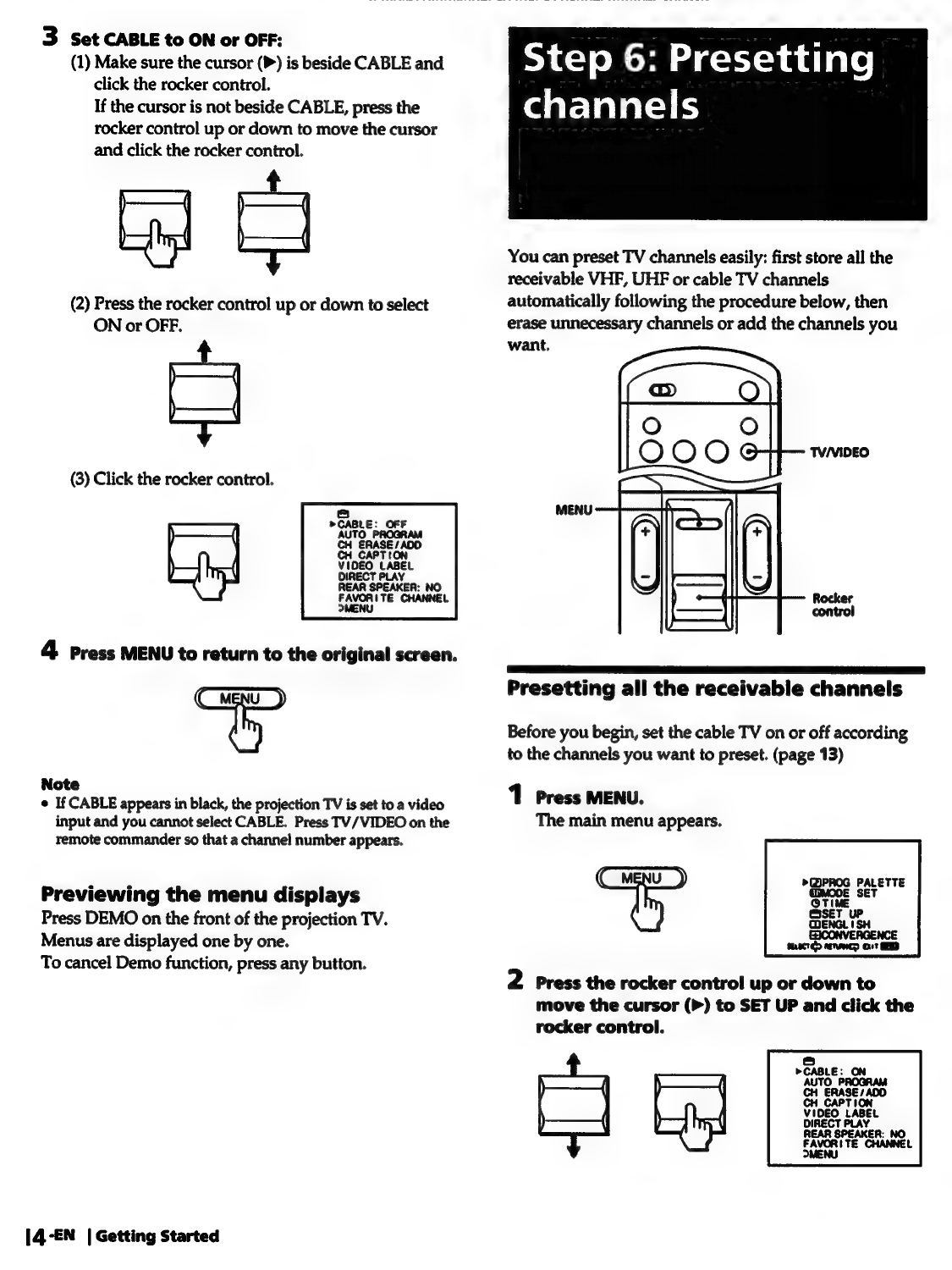

14 Step 6: Presetting channels

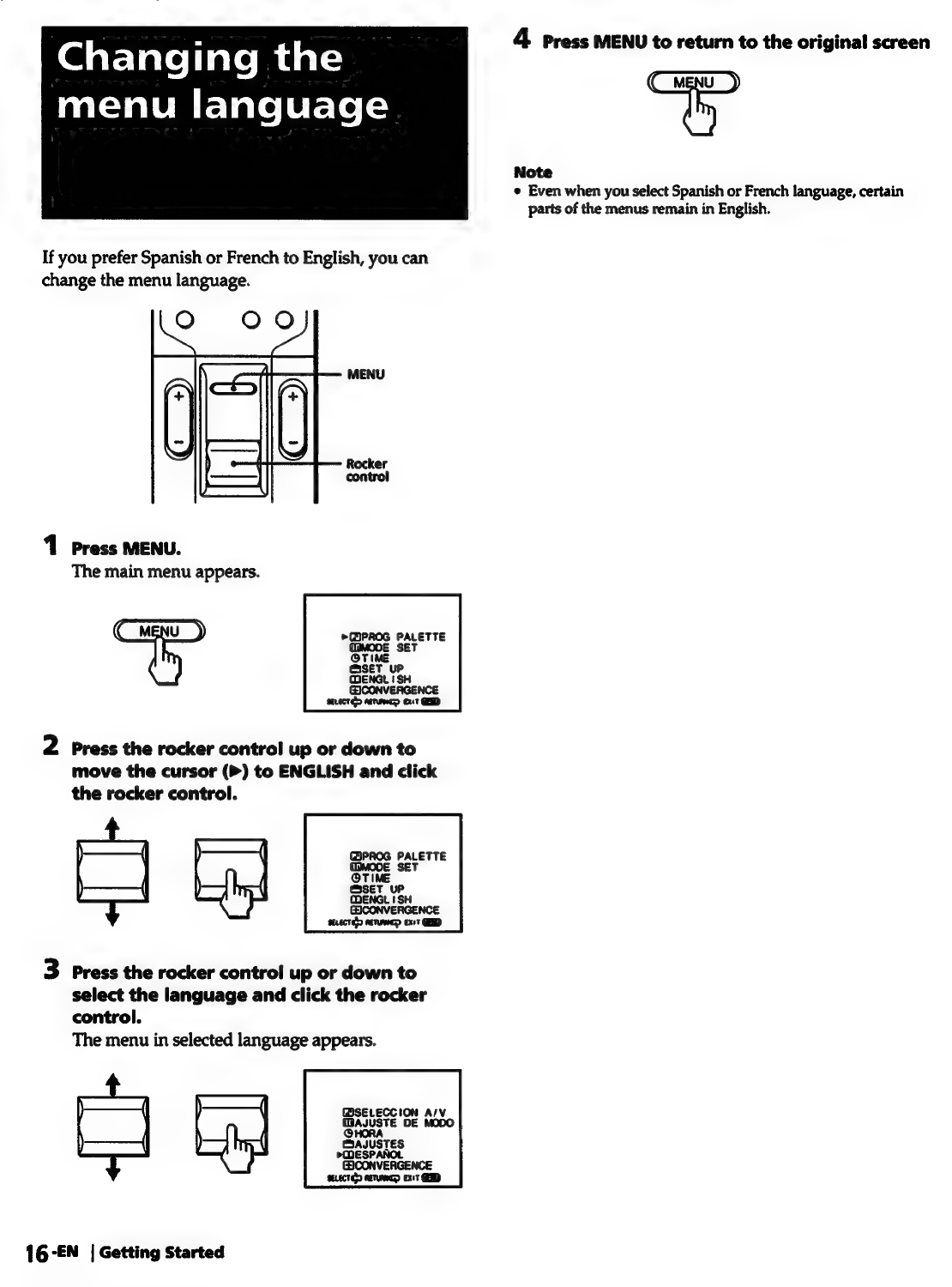

16 Changing the menu language
SSS a a a
Operations

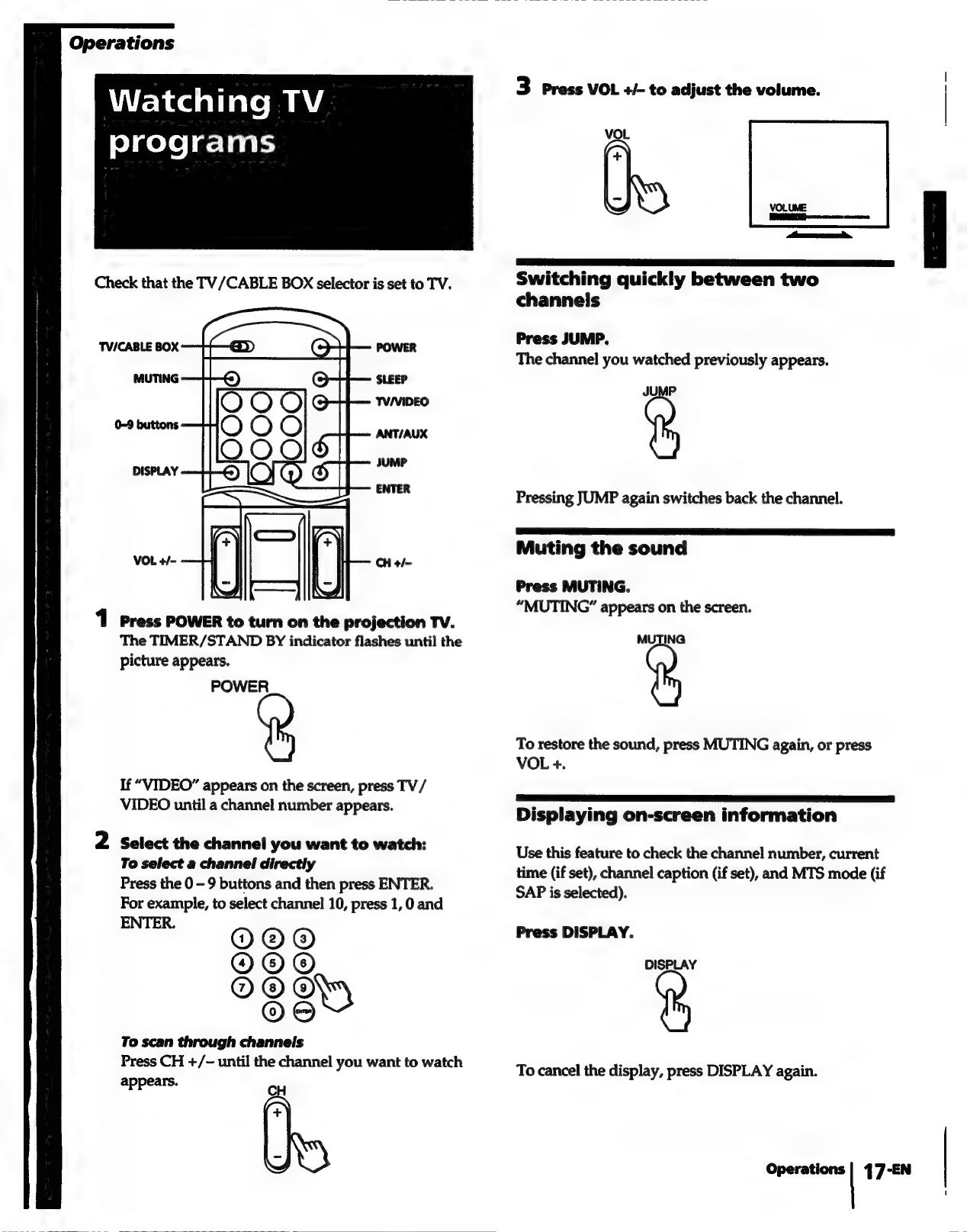

17 Watching TV programs
18 Watching two programs at one time -PIP
20 Displaying closed caption
21 Recalling an image stored in the memory
22 Selecting picture and sound effects (PROGRAM
PALETTE)
23 Adjusting the picture (VIDEO)
24 Adjusting the color temperature (TRINITONE)
24 Reducing picture noise (NR)
25 Selecting digital sound effect (DsP)
26 Adjusting sound (AUDIO)
27 Selecting stereo or bilingual programs (MTs)
27 Setting the speakers (SPEAKER)
28 Using optional speakers as rear speakers (REAR
SPEAKER)
29 Setting daylight saving time (DAYLIGHT SAVING)
30 Setting the clock (CURRENT TIME SET)
31 Setting the timer to turn the projection TV on and
off (ON/OFF TIMER)
32 Blocking out a channel (CHANNEL BLOCK)
33 Customizing channel names (CH CAPTION)
34 Setting video labels (VIDEO LABEL)
35 Selecting your favorite channels (FAVORITE
CHANNEL)
36 Operating video equipment
38 Selecting a VCR input directly (DIRECT PLAY)
39 Operating a cable box
40 Operating non-pre-programmed equipment —
Learning function
Additional information
41 Troubleshooting
42 Specifications
43 Index
The
captions
in
parentheses
indicate
menu
names.
|
3-EN

Thank you for purchasing the Sony Color Rear Video
Projection TV. Here are some of the features you will
enjoy with your projection TV:
e On Screen menus that let you set the picture quality,
sound, and other settings
e Picture-in-Picture that allows you to watch another TV
channel, video or cable image as a window picture
¢ On/off timer that allows you to make the TV program
of your choice be displayed on the screen for a
specified duration
e DSP (Digital Sound Processor) Axis Sound System
that gives you a choice of various sound effects
e Dynamic Focus circuitry that automatically focuses
the scanning electron beam for enhanced sharpness,
especially at the corners
e Rocker remote commander supplied that allows you to
operate Sony and other manufacturers’ video and
audio equipment
About this manual
The instructions in this manual are for models KP-
46XBR35, KP-53XBR35 and KP-61XBR38. Before you
start reading this manual, please check your model
number, located at the rear of the projection TV. Model
KP-61XBR38 is used for illustration purposes in this
manual. There are no differences between these
models in operation. The differences in specifications
are indicated in the text.
Instructions in this manual are based on use of the
remote commander. You can also use the controls on
the projection TV if they have the same name as those
on the remote commander. However, note that the
following controls are of different types, but have the
same function.
Prejection TV Remote commander
4+/¥- buttons Rocker control (press up or down)
RETURN button Rocker control (click)
This projectior
To prevent fire
precautions be
Safety
¢ Operate the prc
© One blade of th
and will fit intc
to insert the pli
¢ Should any liq:
projection TV a
operating it fur
e Unplug the prc
going to use it!
pull it out by tt
For details conce
leaflet” IMPORT:
Installing
¢ To prevent inte
openings.
¢ Donot install t
place subject tc
e Avoid operatir
(41°F).
e If the projectio:
location, or if
picture may be
moisture has a
happens, let th
TV.
© To obtain the b
illumination 01
lighting directe
that face the sc
install the proj
not of reflectin
carpeting or w
Note on clez
Clean the cabine
remove dust fro
Stubborn stains |
with a mild dete
as thinner or ber
If the picture bec
long period of ti:
projection TV. C

Getting Started
Step 1: Installing
the projection TV
For the best picture quality, install the projection TV
within the areas shown below.
Optimum viewing area (Horizontal)
Optimum viewing area (Vertical )
Preparing for your projection TV
Before you use your projection TV, adjust convergence.
For the procedure, see “Step 4: Adjusting convergence
(CONVERGENCE)” on page 12.
Getting Started | 5 -EN

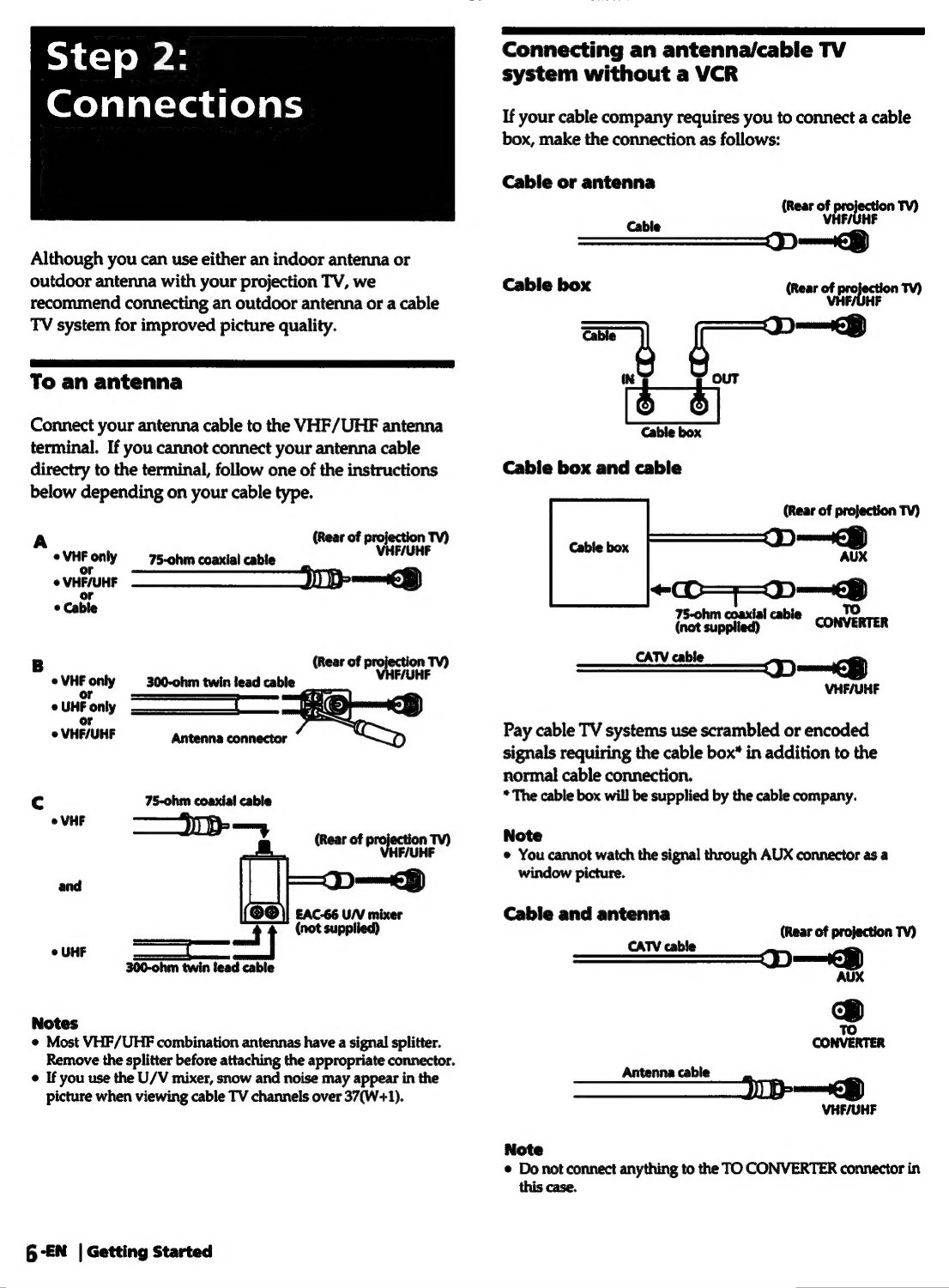

Step 2:
‘@oyalaradelat
Although you can use either an indoor antenna or
outdoor antenna with your projection TV, we
recommend connecting an outdoor antenna or a cable
TV system for improved picture quality.
To an antenna
Connect your antenna cable to the VHF/UHF antenna
terminal. If you cannot connect your antenna cable
directry to the terminal, follow one of the instructions
below depending on your cable type.
(Rear of projection TV)
* VHF only _75.ohm coaxial cable laid
+ VHFIUHE ——ie fp)
° Cable
B (Rear of projection TV)
e VHF only 300-ohm twin lead cable Varun
or
eUHF only
or
o VHF/UHF
Antenna connector
Cc 75-ohm coaxial cable
eo VHF
’ (Rear of bah ror et Tv)
and ——
EAC-66 U/V mixer
4 (not supplied)
eo UHF
300-ohm twin lead cable
Notes
¢ Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
If you use the U/V mixer, snow and noise may appear in the
picture when viewing cable TV channels over 37(W+1).
6 -EN | Getting Started
on i
Connecting an antenna/cabie TV
system without a VCR
If your cable company requires you to connect a cable
box, make the connection as follows:
Cable or antenna
(Rear of projection TV)
Cable VHF/UHF
—————=Pp—«p)
Cable box ™
LJ box
Cable box and cable
(Rear of projection TV)
Cable box AUX
To
Bi cole
CATV cable D eB
VHF/UHF
Pay cable TV systems use scrambled or encoded
signals requiring the cable box” in addition to the
normal cable connection.
* The cable box will be supplied by the cable company.
Note
© You cannot watch the signal through AUX connector as a
window picture.
Cable and antenna
(Rear of projection TV)
CATV cable 2. 2 |
AUX
®@
CONVERTER
——— JDP —<®)
VHF/UHF
Note
¢ Donot connect anything to the TO CONVERTER connector in
this case.

a ae ee a a a NS Ne ED
Connecting an antenna/cable TV system with a VCR
For details on connection, see the instruction manual of
your VCR. Before connecting, disconnect the AC
power cords of the equipment to be connected.
After making these connections, you will be able to do
the following:
e View the playback of video tapes
¢ Record one TV program while viewing another
program
To a conventional VCR
Without a cable box
(Rear of projection TV)
VHF/UHF output
Antenna cable
Gp uer input
VCR
Video and audio outputs
VIDEO(yellow)
VMC-810S/820S (not supplied)
Note
© To connect a monaural VCR, connect the audio output of the
VCR to AUDIO-L (mono) of VIDEO 1/2/3 IN on the
projection TV.
With a cable box
(Rear of projection TV)
VIDEO(yellow)
Cable
Cb=
VMC-810S/820S (not supplied) Spl
(Not supplied)
Getting Started | 7 -EN

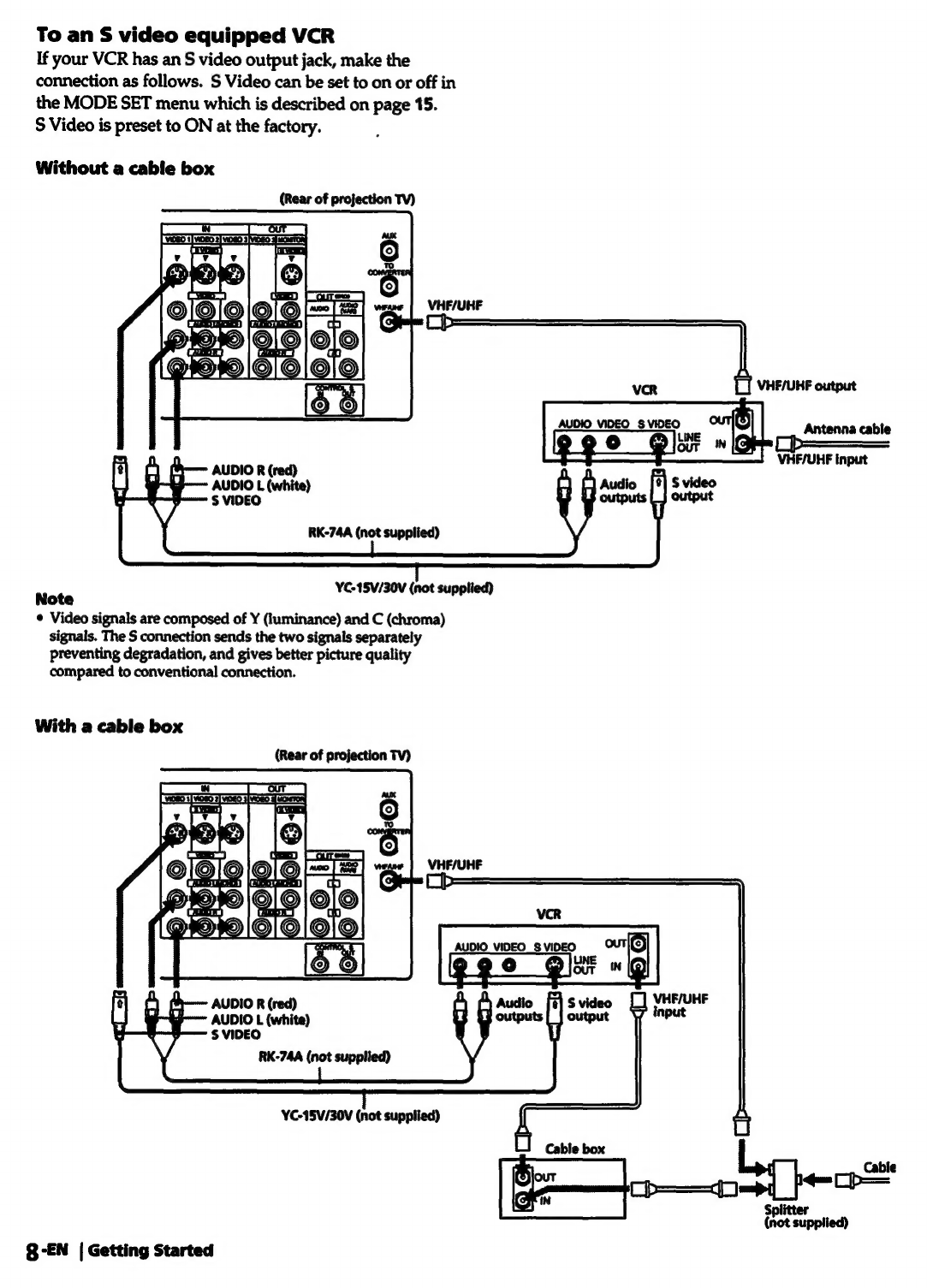

To an S video equipped VCR
If your VCR has an S video output jack, make the
connection as follows. S Video can be set to on or off in
the MODE SET menu which is described on page 15.
S Video is preset to ON at the factory.
Without a cable box
(Rear of projection TV)
VHF/UHF
AUDIO R (red)
AUDIO L (white)
S VIDEO
RK-74A (not supplied)
YC-15V/30V (not supplied)
Note
¢ Video signals are composed of Y (luminance) and C (chroma)
signals. The S connection sends the two signals separately
preventing degradation, and gives better picture quality
compared to conventional connection.
With a cable box
(Rear of projection TV)
AUDIO R (red)
AUDIO L (white)
S VIDEO
RK-74A (not supplied)
YC-15V/30V (not supplied)
Cable
pr bec
Splitter
(not supplied)
§-EN | Getting Started

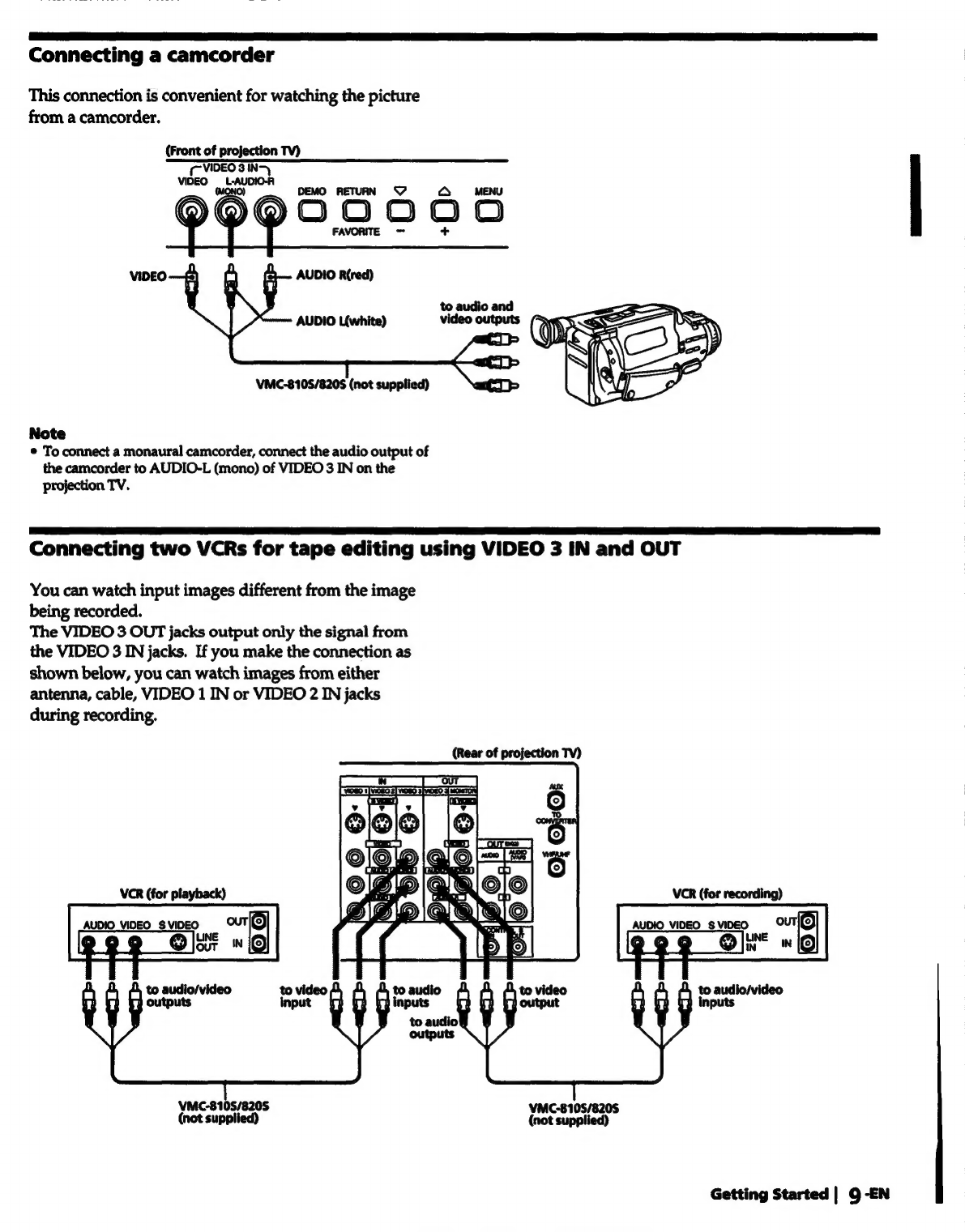

Connecting a camcorder
This connection is convenient for watching the picture
from a camcorder.
(Front of projection TV)
[VIDEO 3 IN-)
VIDEO __L-AUDIO-A
(MONO)
DEMO RETURN a MENU
OO
FAVORITE — +
AUDIO R(red)
AUDIO L(white)
VMC-8105/820S (not supplied)
Note
© To connect a monaural camcorder, connect the audio output of
the camcorder to AUDIO-L (mono) of VIDEO 3 IN on the
projection TV.
Connecting two VCRs for tape editing using VIDEO 3 IN and OUT
You can watch input images different from the image
being recorded.
The VIDEO 3 OUT jacks output only the signal from
the VIDEO 3 IN jacks. If you make the connection as
shown below, you can watch images from either
antenna, cable, VIDEO 1 IN or VIDEO 2 IN jacks
during recording.
VCR (for playback)
AUDIO VIDEO svincO )§=—_« OUTIL)
»Ooe¢ UNE wi
VCR (for recording)
AUDIO_VIDEO_$ VIDEO ae
. oo in (0)
ONE wn
to audio/video to audio/video
outputs inputs
to audio
VMC-810S/820S VMC-810S/820S
(not supplied) (not supplied)
Getting Started | 9 -EN

Connecting two VCRs for tape editing using MONITOR OUT
You can record input images displayed on the screen.
This type of connection should be used only when you
connect from the line input of one VCR, and from the
line output of a second VCR.
(Rear of projection TV)
VCR (for playback)
AUDIO VIDEO _S VIDEO 2G
Oe é LINE
OUT ©
VCR (for recording)
AUDIO VIDEO SvinEQ «= « OUTIL)
to audio/video to video
to audio/video
outputs input inputs In
to audio
outputs
VMC-810S/820S VMC-810S/820S
(not supptied) (not supplied)
Notes
©
Do
not
change
the
input
signal
while
editing
through
¢
You
can
use the
S
video
jack
to
connect
a
VCR
for
playback
MONITOR
OUT,
or
the
output
signal
will
also
change.
and
either
S
video
or
composite
video
jack
to
connect
a
VCR
e
When
connecting
a
single
VCR
to
the
projection
TV,
do
not
for
recording.
connect MONITOR OUT to the VCR’s line input, while at the
same time connecting from the projection TV’s VIDEO IN jacks
to the VCR's line output.
Connecting an audio system
When connecting audio equipment, see page 27 for
more information.
(Rear of projection TV)
Set the amplifiers
function to fine input.
Notes
© When you connect a stereo system to AUDIO (VAR) OUT, you
can adjust the volume, bass, treble and balance, or select an SRS
(Sound
Retrieval
System)
or
an
MTS
(Multichannel
TV
Sound)
P————]
=
mode
with
the
supplied
remote
commander.
Stereo
amplifier
© When connecting a stereo system to AUDIO OUT, adjust the
volume, bass and treble with the amplifier‘s controls.
1Q-EN | Getting Started

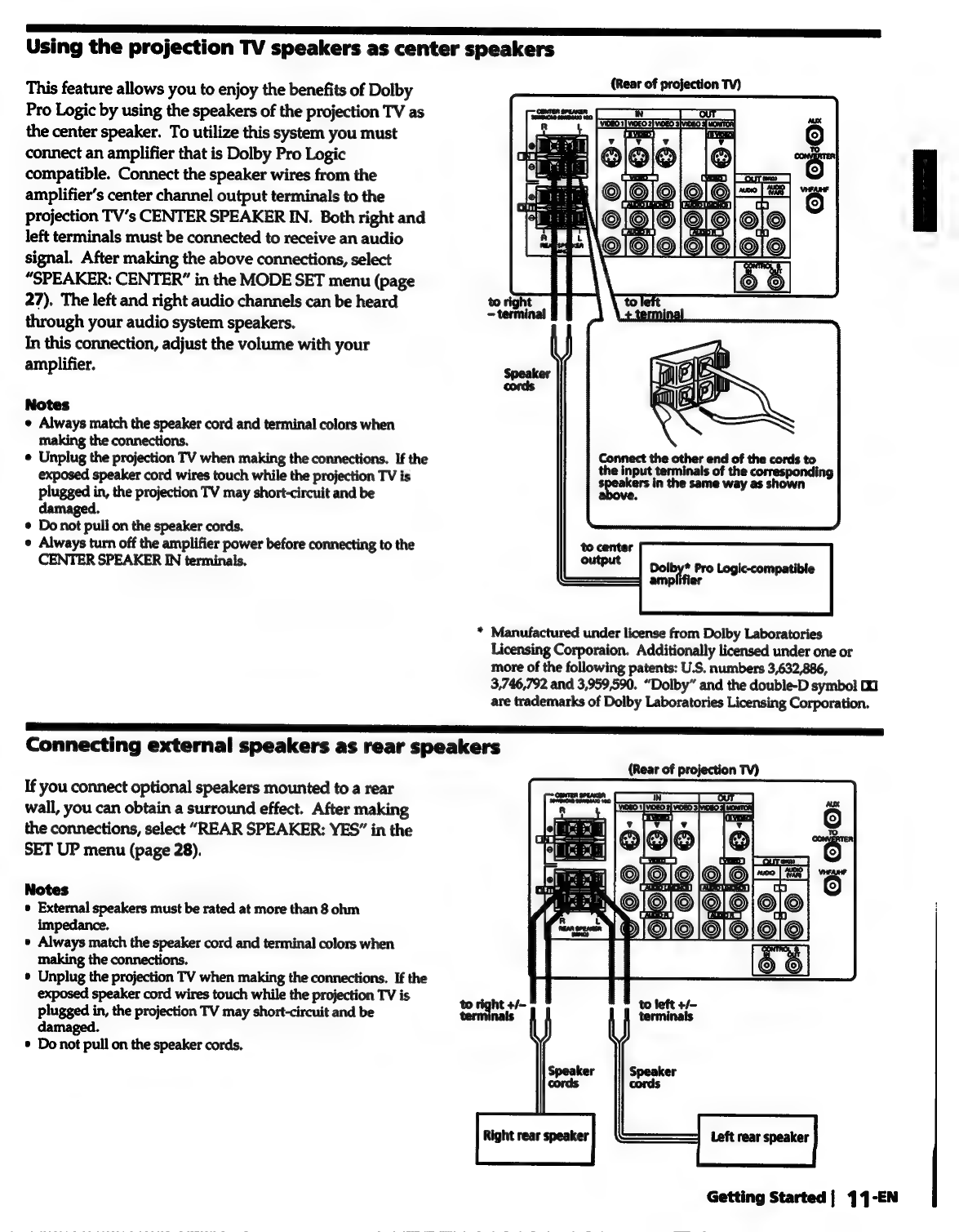

Using
the
projection
TV
speakers
as
center
speakers
This feature allows you to enjoy the benefits of Dolby
Pro Logic by using the speakers of the projection TV as
the center speaker. To utilize this system you must
connect an amplifier that is Dolby Pro Logic
compatible. Connect the speaker wires from the
amplifier’s center channel output terminals to the
projection TV’s CENTER SPEAKER IN. Both right and
left terminals must be connected to receive an audio
signal. After making the above connections, select
“SPEAKER: CENTER” in the MODE SET menu (page
27). The left and right audio channels can be heard
through your audio system speakers.
In this connection, adjust the volume with your
amplifier.
Notes
e Always match the speaker cord and terminal colors when
making the connections.
© Unplug the projection TV when making the connections. If the
exposed speaker cord wires touch while the projection TV is
plugged in, the projection TV may short-circuit and be
damaged
e Donot pull on the speaker cords.
e Always turn off the amplifier power before connecting to the
CENTER SPEAKER IN terminals.
(Rear of projection TV)
Connect the other end of the cords to
the input terminals of the corresponding
sueeters in the same way as shown
above.
Dolby Pro Logic-compatible
amplifier
* Manufactured under license from Dolby Laboratories
Licensing Corporaion. Additionally licensed under one or
more of the following patents: U.S. numbers 3,632,886,
3,746,792 and 3,959,590. “Dolby” and the double-D symbo! 00
are trademarks of Dolby Laboratories Licensing Corporation.
Connecting external speakers as rear speakers
If you connect optional speakers mounted to a rear
wall, you can obtain a surround effect. After making
the connections, select “REAR SPEAKER: YES” in the
SET UP menu (page 28).
Notes
e External speakers must be rated at more than 8 ohm
impedance.
» Always match the speaker cord and terminal colors when
making the connections.
» Unplug the projection TV when making the connections. If the
exposed speaker cord wires touch while the projection TV is
plugged in, the projection TV may short-circuit and be
dama
® Do not pull on the speaker cords.
(Rear of projection TV)
Getting Started | 44-EN

Step 3: Setting up Step 4: Adjusting
the remote convergence
rxolaataatclareiata
Casiiaiicattes)
Insert two size AA (R6) batteries (supplied) by The projection tube image appears on the screen in
matching the + and - on the battery to the diagram three layers (red, green and blue). If they do not
inside the battery compartment. converge, the color is poor and the picture blurs. To
correct this, adjust convergence.
Caz =
Notes
¢ With normal use, the batteries should last for approximately
six months.
© If you do not use the remote commander for an extended
period of time, remove the batteries to avoid possible damage
from battery leakage. ; 1 Press POWER to turn on the projection TV.
© Do not handle the remote commander roughly. Do not drop it, The TIMER/STAND BY indicator flashes until the
step on it or let it get wet. ict
¢ Do not place the remote commander in direct sunlight, near a PI “Pes
heater, or where the humidity is high. POWER
2 Press MENU.
The main menu appears.
>GIPROG PALETTE
GIMODE SET
GICONVERGENCE
nected nevuwey Ot GD
3 Press the rocker contro! up or down to
move the cursor (>) to CONVERGENCE and
click the rocker control.
The CONVERGENCE adjustment screen appears.
ales
ROGe Oz
[2 -EN | Getting Started

4 Press the rocker control up or down to
move the cursor (>) to the symbol showing
the line you want to adjust, and click the
rocker control.
a
I: Red vertical line (left/right adjustment)
Red horizontal line (up/down adjustment)
|: Blue vertical line (left/right adjustment)
Blue horizontal line (up/down adjustment)
Press the rocker control up or down to
move the line until it converges with the
center green line, and click the rocker
control.
=
To move up/right, press the rocker control up.
To move down/left, press the rocker control down.
GEICONVERGENCE
Repeat steps 4 and 5 to adjust the other
lines until all three lines converge and are
seen as a white cross.
white cross
SELECTED RETNED EXIT
7 Press MENU to return to the original screen.
Note
© If more than 90 seconds elapse after you press a button, the
menu disappears automatically.
Step 5: Setting
ts} 0) (=m AV Are) aie) ae) ai
If you have connected the projection TV to a cable TV
system, you should set the cable connection on or off.
Set CABLE to ON, the factory setting, to preset or
watch cable TV channels. Set to OFF to preset or watch
VHF/UHF channels.
1 Press MENU.
The main menu appears.
>GOPROG PALETTE
GQMODE SET
2 Press the rocker control up or down to
move the cursor (>) to SET UP and click the
rocker control.
The SET UP menu appears.
= Hd REAR SPEAKER: NO
FAVORITE CHANNEL
MENU
(continued)
Getting Started | 43-EN

3 Set CABLE to ON or OFF:
(1)
Make
sure
the
cursor
(P)
is
beside
CABLE
and
Step
6:
Presetting
click the rocker control.
If the cursor is not beside CABLE, press the C h rsialelo. I S
rocker control up or down to move the cursor
and click the rocker control.
ed = You can preset TV channels easily: first store all the
receivable VHF, UHF or cable TV channels
(2) Press the rocker control up or down to select automatically following the procedure below, then
ON or OFF. erase unnecessary channels or add the channels you
want.
(3) Click the rocker control.
REAR SPEAKER: NO
FAVORITE CHANNEL
OMENU
4 Press MENU to return to the original screen.
8
Presetting all the receivable channels
; Before you begin, set the cable TV on or off according
to the channels you want to preset. (page 13)
Note
« If CABLE appears in black, the projection TV is set to a video 1 Press MENU.
input and you cannot select CABLE. Press TV/VIDEO on the The main menu appears.
remote commander so that a channel number appears.
° ° ° >@PROG PALETTE
Previewing the menu displays re eT
Press DEMO on the front of the projection TV. Geno. SH
Menus are displayed one by one. Sane or
To cancel Demo function, press any button.
2 Press the rocker control up or down to
move the cursor (>) to SET UP and click the
rocker control.
i=]
: ON
AUTO PROGRAM
CH _CAPTION
VIOEO LABEL
DIRECT PLAY
REAR SPEAKER: NO
FAVORITE CHANNEL
OMENU
[4-EN | Getting Started

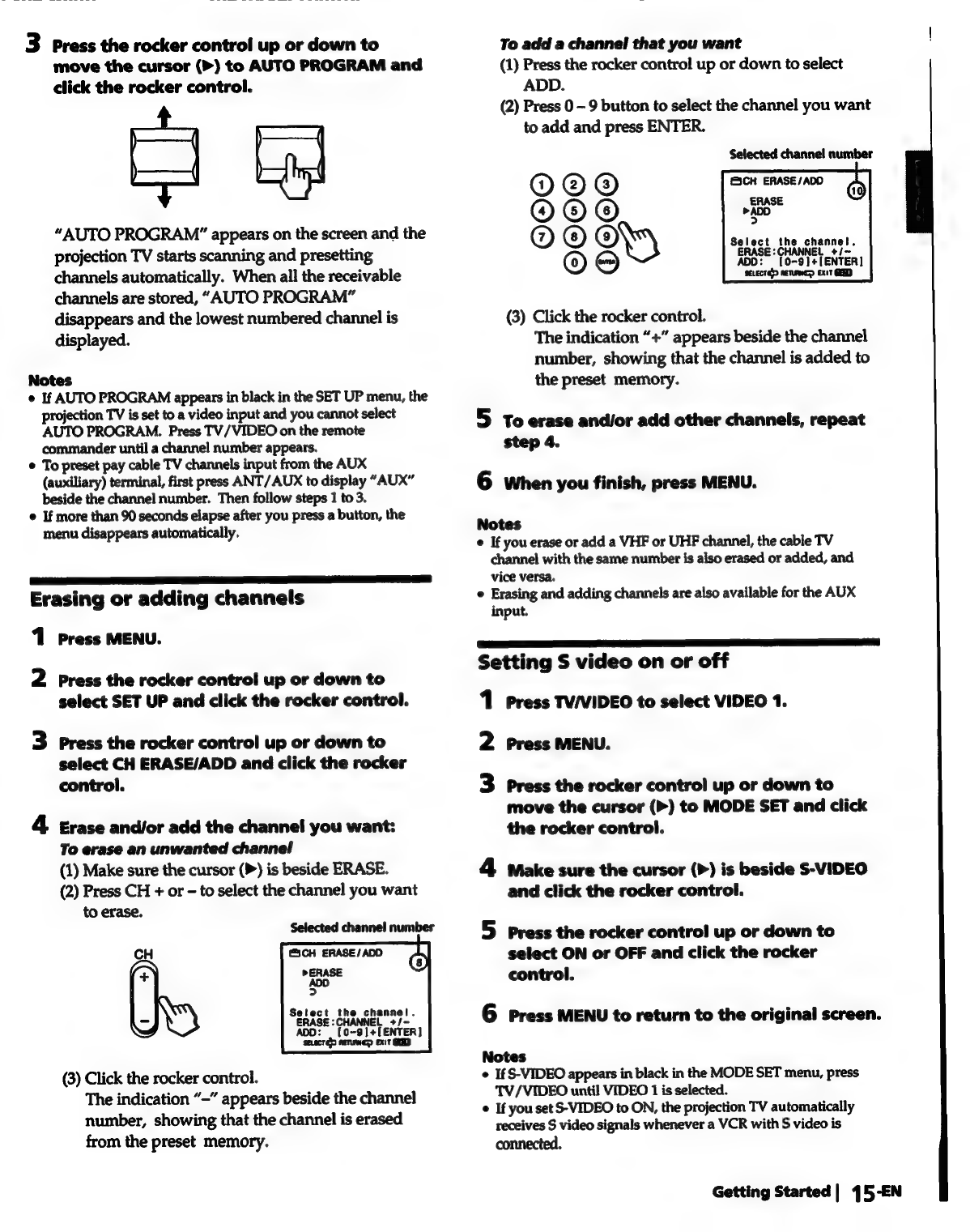

3 Press the rocker control up or down to
move the cursor (>) to AUTO PROGRAM and
click the rocker control.
a
“AUTO PROGRAM” appears on the screen and the
projection TV starts scanning and presetting
channels automatically. When all the receivable
channels are stored, “AUTO PROGRAM”
disappears and the lowest numbered channel is
displayed.
Notes
e If AUTO PROGRAM appears in black in the SET UP menu, the
projection TV is set to a video input and you cannot select
AUTO PROGRAM. Press TV/VIDEO on the remote
commander until a channel number appears.
¢ To preset pay cable TV channels input from the AUX
(auxiliary) terminal, first press ANT/AUX to display “AUX”
beside the channel number. Then follow steps 1 to 3.
e If more than 90 seconds elapse after you press a button, the
menu disappears automatically.
Erasing or adding channels
1 press MENU.
2 press the rocker control up or down to
select SET UP and click the rocker control.
3 press the rocker control up or down to
select CH ERASE/ADD and click the rocker
control.
Erase and/or add the channel you want:
To erase an unwanted channel
(1) Make sure the cursor () is beside ERASE.
(2) Press CH + or — to select the channel you want
to erase.
Selected channel number
(CH ERASE/ADD
"00
CH
Setect the en anee le
iad HANNEL +
(onsleleNteR]
RETURNED
ges
(3) Click the rocker control.
The indication “—” appears beside the channel
number, showing that the channel is erased
from the preset memory.
To add a channel that you want
(1) Press the rocker control up or down to select
ADD.
(2) Press 0 — 9 button to select the channel you want
to add and press ENTER.
Selected channel number
SICH ERASE/ ADO
ERASE
ADD
a A the channel.
El NEL +/~
ADDS ‘Toss s ENTER]
serecte> neTewcp xit GED
(3) Click the rocker control.
The indication “+” appears beside the channel
number, showing that the channel is added to
the preset memory.
5 to erase and/or add other channels, repeat
step 4.
6 when you finish, press MENU.
Notes
e If you erase or add a VHF or UHF channel, the cable TV
channel with the same number is also erased or added, and
vice versa.
e Erasing and adding channels are also available for the AUX
input.
Setting S video on or off
1
2
Press TV/VIDEO to select VIDEO 1.
Press MENU.
Press the rocker control up or down to
move the cursor (>) to MODE SET and click
the rocker control.
Make sure the cursor (P) is beside S-VIDEO
and click the rocker control.
Press the rocker control up or down to
select ON or OFF and click the rocker
control.
6
Notes
If S-VIDEO appears in black in the MODE SET menu, press
TV/VIDEO until VIDEO 1 is selected.
e If you set S-VIDEO to ON, the projection TV automatically
receives S video signals whenever a VCR with S video is
connected.
Press MENU to return to the original screen.
Getting Started | 45-EN

4 press MENU to return to the original screen
@aklaleiiale Mm dats
aalsvalemr-laleler-le(= ih
Note
e Even when you select Spanish or French language, certain
parts of the menus remain in English.
If you prefer Spanish or French to English, you can
change the menu language.
MENU
Rocker
control
1 Press MENU.
The main menu appears.
>GPROG PALETTE
GOMOOE SET
OTIME
CSET uP
2 Press the rocker control up or down to
move the cursor (P) to ENGLISH and click
the rocker control.
GPROG PALETTE
GMOOE SET
OTl
SET UP
GICONVERGENC!
3 Press the rocker control up or down to
select the language and click the rocker
control.
The menu in selected language appears.
GISELECCION A/V
GRAJUSTE DE M000
@HORA
GAJUSTES
>COESPANOL
GICONVERGENCE
LECTED PeTURNCD Exit ERD
16-EN | Getting Started

Operations
Watching TV
elgetel eel aak
Check that the TV/CABLE BOX selector is set to TV.
POWER
SLEEP
TVNVIDEO
ANT/AUX
JUMP
ENTER
VOL +/- CH +/-
1 Press POWER to turn on the projection TV.
The TIMER/STAND BY indicator flashes until the
picture appears.
POWER
If “VIDEO” appears on the screen, press TV/
VIDEO until a channel number appears.
2 Select the channel you want to watch:
To select a channel directly
Press the 0 - 9 buttons and then press ENTER.
For example, to select channel 10, press 1, 0 and
To scan through channels
Press CH +/- until the channel you want to watch
appears.
3 Press VOL +/- to adjust the volume.
VOL
Switching quickly between two
channels
Press JUMP.
The channel you watched previously appears.
JUMP
Pressing JUMP again switches back the channel.
Muting the sound
Press MUTING.
“MUTING” appears on the screen.
MUTING
To restore the sound, press MUTING again, or press
VOL +.
Displaying on-screen information
Use this feature to check the channel number, current
time (if set), channel caption (if set), and MTS mode (if
SAP is selected).
Press DISPLAY.
DISPLAY
To cancel the display, press DISPLAY again.
Operations | 17-EN |

Setting the Sleep Timer
The projection TV stays on for the length of time you
specify and then shuts off automatically.
Press SLEEP repeatedly until the time (in
minutes) you want appears.
Each time you press SLEEP, the time changes as
follows: 30 —> 60 —> 90 —» OFF.
SLEEP
“SLEEP” appears about one minute before the
projection TV shuts off.
To cancel the Sleep Timer, press SLEEP repeatedly until
“SLEEP OFF” appears, or turn off the projection TV.
SL aa Le
Watching a video input picture
Press TV/VIDEO repeatedly until the desired
video input appears.
Each time you press TV/VIDEO, the display changes
as follows: Channel number — VIDEO 1 —+ VIDEO 2
—» VIDEO 3.
TVNIDEO
To return to TV picture, press TV/VIDEO again until a
channel number appears.
Changing the VHF/UHF input to the
AUX input
Press ANT/AUX.
“AUX” appears beside the channel number.
ANT/AUX
Pressing ANT/ AUX again switches back to the
previous input.
18-EN | Operations
WEN Cdallale mance
re) cole] eles kwr- hae) al=
time — PIP
The Picture-in-Picture (PIP) feature allows you to
watch two channels at the same time by displaying a
window picture within the main picture.
(Inner panel)
Displaying a window picture
Press PIP.
Input-source mode or TV
channel for the main picture
PIP Main picture
Window picture
(1/4 size)
input-source mode or TV channel
for the window picture
Press PIP again to display a smaller window
picture.
PIP Main picture
Window picture
(1/9 size)
Each time you press PIP, a 1/4 or 1/9 size window
picture appears alternately.
To remove the window picture, press OFF.

suweGes
©
If
the
main
is
not
receiving
an
image,
the
window
may
be
in
black
and
white.
*
The
window
may
be
affected
by
the
condition
of
the
main
picture.
*
You
can
listen
to
the
window
picture's
sound
through
the
AUDIO
(VAR)
OUT
jacks.
Changing
TV
channels
in
the
window
Press PIP CH +/-.
Changing
the
window
input
mode
Press
TV/VIDEO
in
the
PIP
control
area
of
the
remote
commander
to
select
the
input
mode.
Each
time
you
press
TV/VIDEO,
a
channel
number,
“VIDEO
1,”
“VIDEO
2”
and
“VIDEO
3”
appear
in
sequence.
TVNIDEO
a
ry
ED
Listening
to
the
sound
of
the
window
Press AUDIO.
“)”
appears
for
a
few
seconds,
indicating
that
the
window
sound
is being
received.
AUDIO
To
restore
the
main
sound,
press
AUDIO
again.
Changing
the
position
of
the
window
Press POSITION.
Each
time
you
press
POSITION,
the
window
will
move
as
illustrated.
POSITION
Swapping
the
main
and
window
pictures
Press SWAP.
Each
time
you
press
SWAP,
the
images
and
sound
from
the
main
and
window
pictures
switch
places
with
another.
Replaying the main picture as a
window picture
Press REPLAY.
The
that
appeared
in
the
main
two
seconds
before
is
displayed
as
a
window
picture.
REPLAY
To return to the normal screen, press OFF.
Operations | 49-EN |

ee ee
Splitting the screen with the main and
window pictures
Press SPLIT.
The window picture is displayed on the left half of the
screen and the main picture on the right half.
SPLIT
To return to the normal screen, press OFF.
Window picture Main picture
Note
e Ina split screen the images appear elongated.
Watching eight or sixteen TV channels
at the same time
Press CH INDEX 8 to display a main picture and
seven window pictures.
Each time you press CH INDEX 8, the next seven
sequential channels appear. The main picture does not
change.
CH INDEX
Press CH INDEX 16 to display sixteen window
pictures.
The sixteen TV channels appear in numerical sequence
as window pictures.
Each time you press CH INDEX 16, the next sixteen
sequential channels appear.
CH INDEX
To return to the normal screen, press OFF.
IQ-EN | Operations
Some progran
(Caption Visic
either CC1, Ct
C.CAPTION t
CC1 or CC2 s]
version of the
(The mode sh:
TEXT1 or TEX
presented usi
is usually not
Press C.CAP
closed capti
Each time you
shown below.
CC OFF—»¢
a
CC
If you do not:
select CC OFT
Note
¢ Captions may
of a certain w:
cause errors i1
