Sony VPL-EX281 User manual

4-447-763-02 (1)
© 2012 Sony Corporation
Data
Projector
Operating Instructions
Before operating the unit, please read this manual thoroughly and retain it for future reference.
VPL-EW275/ EW245/EW225
VPL-EX275/ EX245/EX225
VPL-EX281/EX271/ EX241/EX221
Not all models are available in all countries and area. Please check
with your local Sony Authorized Dealer.

2WARNING
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
WARNING
THIS APPARATUS MUST BE
EARTHED.
WARNING
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, or connect the power plug to an
easily accessible socket-outlet near the unit.
If a fault should occur during operation of
the unit, operate the disconnect device to
switch the power supply off, or disconnect
the power plug.
CAUTION
About the LAN connector
For safety, do not connect the connector for
peripheral device wiring that might have
excessive voltage to this port.
WARNING:
1Use the approved Power Cord (3-core
mains lead) / Appliance Connector / Plug
with earthing-contacts that conforms to
the safety regulations of each country if
applicable.
2Use the Power Cord (3-core mains lead) /
Appliance Connector / Plug conforming
to the proper ratings (Voltage, Ampere).
If you have questions on the use of the above
Power Cord / Appliance Connector / Plug,
please consult a qualified service personnel.
IMPORTANT
The nameplate is located on the bottom.

3
Table of Contents
Table of Contents
Precautions .........................................5
Checking the Supplied
Accessories .....................................9
Selecting the Menu Language ..........10
Overview
Location and Function of
Controls ........................................11
Main Unit ...................................11
Connector Panel .........................12
Remote Commander and Control
Panel Keys ...............................13
Preparation
Connecting the Projector ..................16
Connecting a Computer ..............16
Connecting a Video
equipment ................................17
Connecting a microphone ...........19
Connecting a USB memory
device ......................................19
Connecting a USB wireless LAN
module .....................................20
Connecting an External Monitor and
Audio Equipment ....................20
Projecting/Adjusting an
Projecting an Image .........................21
Adjusting the Projected
image .......................................22
Turning Off the Power ................25
Adjustments and Settings
Using a Menu
Using a MENU ................................ 26
The Picture Menu ............................ 27
The Screen Menu ............................. 28
The Function Menu ......................... 32
The Operation Menu ........................ 33
The Connection/Power Menu .......... 34
The Installation Menu ...................... 36
The Information Menu .................... 37
Network
Using Network Features .................. 38
Displaying the Control Window of
the Projector with a Web
Browser ................................... 38
Confirming the Information
regarding the Projector ........... 39
Operating the Projector from a
Computer ................................ 39
Using the e-mail report
Function .................................. 40
Presentation Function via
Network
Using Presentation Function via
Network ........................................ 42
Installing Projector Station for
Network Presentation ............. 42
Starting Projector Station for
Network Presentation ............. 42
Projecting an Image ................... 43
Connection Settings ................... 43
Using the Controller ................... 44

4Table of Contents
Projecting an Image using
USB Connection
Projecting an Image using USB
Connection ....................................45
Starting USB Display .................45
Projecting an Image ....................45
Using the Controller ...................45
USB Media Viewer
Using USB Media Viewer ................46
Thumbnail Mode ........................47
Option Menu ...............................47
Display Mode .............................48
Option Menu ...............................48
Slideshow Mode .........................48
Option Menu ...............................49
Others
Indicators ..........................................50
Messages List ...................................51
Troubleshooting ...............................52
Replacing the Lamp .........................54
Cleaning the Air Filter .....................56
Specifications ...................................57
Projection Distance ..........................65
Dimensions .......................................79
Index .................................................85

5
Precautions
Precautions
• Check that the operating voltage of your
unit is identical with the voltage of your
local power supply. If voltage adaptation
is required, consult with qualified Sony
personnel.
• Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified Sony personnel
before operating it further.
• Unplug the unit from the wall outlet if it is
not to be used for several days.
• To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The wall outlet should be near the unit and
easily accessible.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
• Do not look into the lens while the lamp is
on.
• Do not place your hand or objects near the
ventilation holes — the air coming out is
hot.
• Be careful not to catch your fingers by the
front feet (adjustable) when you adjust the
height of the unit. Do not push hard on the
top of the unit with the front feet
(adjustable) out.
• Avoid using an extension cord with a low
voltage limited since it may cause the
short-circuit and physical incidents.
• Do not catch your finger between the unit
and surface of the floor when moving the
projector installed on the floor.
• Do not move the projector when it is
turned on and the cabinet cover is open.
• Do not install the unit in a location near
heat sources such as radiators or air ducts,
or in a place subject to direct sunlight,
excessive dust or humidity, mechanical
vibration or shock.
• Never mount the projector on the ceiling
or move it by yourself. Be sure to consult
with qualified Sony personnel (charged).
• If the ventilation holes are blocked,
internal heat builds up, and it may cause a
fire or damage the unit. To allow adequate
air circulation and prevent internal heat
build-up, follow the items below:
• Leave space around the unit (page 6).
• Avoid using something to cover the
ventilation holes (exhaust/intake).
• Do not place the unit on surfaces such as
an original packing sheet, soft cloth,
papers, rugs, or scraps of paper. The
ventilation holes may take in such
materials.
• Do not place any object just in front of the
lens that may block the light during
projection. Heat from the light may
damage the object. Use the picture muting
function to cut off the picture.
On safety

6Precautions
• Do not use the Security bar for the purpose
of preventing theft for transporting or
installing the unit. If you lift the unit by the
Security bar or hang the unit by this bar, it
may cause the unit to fall and be damaged,
and may result in personal injury.
For dealers
• Be sure to secure the cabinet cover firmly
when installing to the ceiling firmly.
• When installing the unit, leave space
between any walls, etc. and the unit as
illustrated.
• Avoid using if the unit is tilted more than
15 degrees horizontally.
• Avoid using the unit in a location where
the temperature or humidity is very high,
or temperature is very low.
• Avoid installing the unit in a location
subject to direct cool or warm air from an
air-conditioner. Installing in such a
location may cause malfunction of the unit
due to moisture condensation or rise in
temperature.
• Avoid installing the unit in a location near
a heat or smoke sensor. Installing in such a
location may cause malfunction of the
sensor.
• Avoid installing the unit in a very dusty or
extremely smoky environment.
Otherwise, the air filter will become
obstructed, and this may cause a
malfunction of the unit or damage it.
On Installation
More than 30 cm
(11 7/8inches)
More than
30 cm
(11 7/8
inches)
More than
30 cm
(
11
7/8
inches)
15°
15°

7
Precautions
• When using the unit at an altitude of 1,500
m or higher, set “High Altitude Mode” to
“On” in the Installation menu. Failing to
set this mode when using the unit at high
altitudes could have adverse effects, such
as reducing the reliability of certain
components.
• Set “Installation Attitude” on the
Installation menu correctly to suit to the
Installation angle. Continuing to use the
wrong setting may affect component
reliability.
• Be sure to disconnect the AC power cord
from the AC outlet before cleaning.
• If you rub on the unit with a stained cloth,
the cabinet may be scratched.
• If the unit is exposed to volatile materials
such as insecticide, or the unit is in contact
with a rubber or vinyl resin product for a
long period of time, the unit may
deteriorate or the coating may come off.
• Do not touch the lens with bare hands.
• On cleaning the lens surface:
Wipe the lens gently with a soft cloth, such
as a glass cleaning cloth. Stubborn stains
may be removed with a soft cloth lightly
dampened with water. Never use solvent
such as alcohol, benzene or thinner, or
acid, alkaline or abrasive detergent, or a
chemical cleaning cloth.
• On cleaning the cabinet:
Clean the cabinet gently with a soft cloth.
Stubborn stains may be removed with a
soft cloth lightly dampened with mild
detergent solution and wrung, followed by
wiping with a soft dry cloth. Never use
solvent such as alcohol, benzene or
thinner, or acid, alkaline or abrasive
detergent, or a chemical cleaning cloth.
To obtain the best picture, the front of the
screen should not be exposed to direct
lighting or sunlight.
The LCD projector is manufactured using
high-precision technology. You may,
however, see tiny black points and/or bright
points (red, blue, or green) that continuously
appear on the LCD projector. This is a
normal result of the manufacturing process
and does not indicate a malfunction.
Also, when you use multiple LCD projectors
to project onto a screen, even if they are of
the same model, the color reproduction
among projectors may vary, since color
balance may be set differently from one
projector to the next.
When using a screen with an uneven surface,
stripes pattern may rarely appear on the
screen depending on the distance between
the screen and the unit or the zooming
magnifications. This is not a malfunction of
the unit.
Since the projector is equipped with fans
inside to prevent internal temperature from
rising, there may be some noise. This is a
normal result of the manufacturing process
and does not indicate a malfunction. If,
however, in a case of abnormal noise,
consult with qualified Sony personnel.
The lamp used as a light source contains
mercury that has high internal pressure. A
high-pressure mercury lamp has the
following characteristics:
• Brightness of the lamp will be lowered as
the elapse of time used.
• The lamp may break with a loud noise as a
result of shock, damage, or deterioration
caused by the elapse of time. The lamp
may become unlit and may burn out.
• The lamp life varies with individual
differences or usage conditions of each
lamp. Therefore, it may break or will not
On cleaning the lens and the
cabinet
On Illumination
On LCD Projector
On Screen
On Fan
On Lamp

8Precautions
light even before the specified
replacement time.
• It may possibly break after the
replacement time has elapsed. Replace the
lamp with a new one as soon as possible if
a message displayed on the projected
image, even if the lamp normally lights.
This unit is precision equipment. When
carrying the unit, do not subject the unit to
shocks, or fall. It may damage the unit.
For carrying

9
Checking the Supplied Accessories
Checking the Supplied Accessories
RM-PJ8 Remote Commander (1)
Lithium battery (CR2025) (1)
The battery is already installed. Before
using the remote commander, remove the
insulation film.
AC power cord (1)
Mini D-sub 15 pin cable (1.8 m) (1) (1-838-
938-11/Sony)
Operating Instructions (this manual) (1)
Projector Station for Network Presentation
application (CD-ROM) (1)
1Close all running applications.
2Insert the supplied CD-ROM into the
CD-ROM drive of the computer.
3Open the CD-ROM and double-click
the .exe file.
When the message “User Account
Control” is displayed, click “Allow” or
“Yes.”
4Follow the on-screen instructions to
install the software.
1Pull out the lithium battery
compartment.
Pull out the battery compartment with a
stick as shown in the illustration.
2Insert a lithium battery.
3Close the lithium battery
compartment.
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent
type recommended by the manufacturer.
When you dispose of the battery, you must
obey the law in the relative area or country.
Installing batteries
One lithium battery (CR2025) is supplied
for the RM-PJ8 Remote Commander. To
avoid risk of explosion, use a lithium battery
(CR2025).
Installing Projector Station
for Network Presentation
Installing Batteries
With the 3(plus)
side facing up.

10 Selecting the Menu Language
Selecting the Menu Language
The factory setting for the language for displaying menus, messages, etc. is English.
To change the on-screen language, proceed as follows:
1Plug in the AC power cord into a wall
outlet.
2Turn on the projector.
Press the ?/1key.
3Press the MENU key to display the
menu.
If the display cannot be properly seen,
adjust the focus, size, and position of the
projected image (page 22).
4Select the menu language.
1Press the Vor vkey to select the
Operation ( ) menu then press
the ENTER key.
2Press the Vor vkey to select
“Language ( )” then press the
ENTER key.
3Press the V/v/B/bkey to select a
language, then press the ENTER
key.
5Press the MENU key to turn off the
menu screen.
MENU
1
3
2
Language English
Status OnStatus OnStatus
Security Lock Off
Control Key Lock Off
Operation
Sel Set Back

11

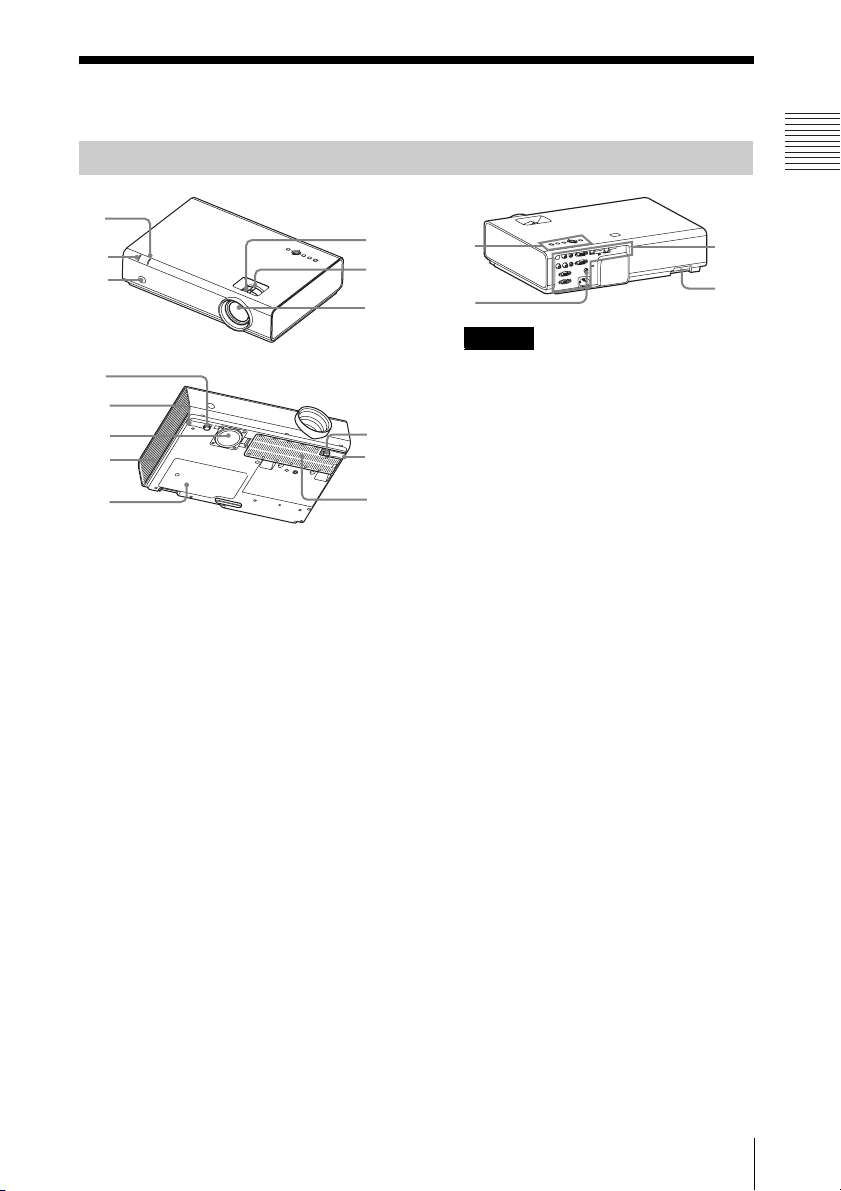

Location and Function of Controls
Overview
BOverview
Location and Function of Controls
aFocus ring (page 22)
bZoom ring (page 22)
cLens
dRemote control detector
eON/STANDBY indicator
(page 50)
fLAMP/COVER indicator
(page 50)
gFront feet (adjustable) (page 23)
hFoot adjust button (page 23)
iAir filter cover/Ventilation holes
(intake) (page 56)
jLamp cover (page 54)
kVentilation holes (exhaust)
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
lSpeaker (VPL-EW275/EW245/
EW225/EX275/EX245/EX225
only)
mConnector panel (page 12)
nSecurity bar
Connects to a commercially available
security chain or wire.
oSecurity lock
Connects to an optional security cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
pControl panel keys (page 13)
Main Unit
5
4
3
2
1
6
8
7
9
qa
qs
7
8
0
Caution
qh
qf
qd
q
g

12 Location and Function of Controls
VPL-EW275/EW245/EW225/EX275/EX245/EX225
VPL-EX281/EX271/EX241/EX221
Input (pages 16, 17)
aINPUT A
Video: RGB/YPBPRinput connector
(RGB/YPBPR)
Audio: Audio input connector (AUDIO)
bINPUT B
Video: RGB input connector (RGB)
Audio: Audio input connector (AUDIO)
cINPUT C
Video: HDMI input connector (HDMI)
Audio: HDMI input connector (HDMI)
dS VIDEO (S VIDEO IN)
Video: S video input connector (S
VIDEO IN)
Audio: Audio input connector (L
(MONO) AUDIO/R)
eVIDEO (VIDEO IN)
Video: Video input connector (VIDEO)
Audio: Audio input connector (L
(MONO) AUDIO/R)
• The audio inputs of S VIDEO and VIDEO
are shared.
• The audio input connector and audio output
from the HDMI connector are available only
on VPL-EW275/EW245/EW225/EX275/
EX245/EX225.
Output (page 20)
fOUTPUT
Video: Monitor output connector
(MONITOR)
Audio: Audio output connector
(AUDIO)

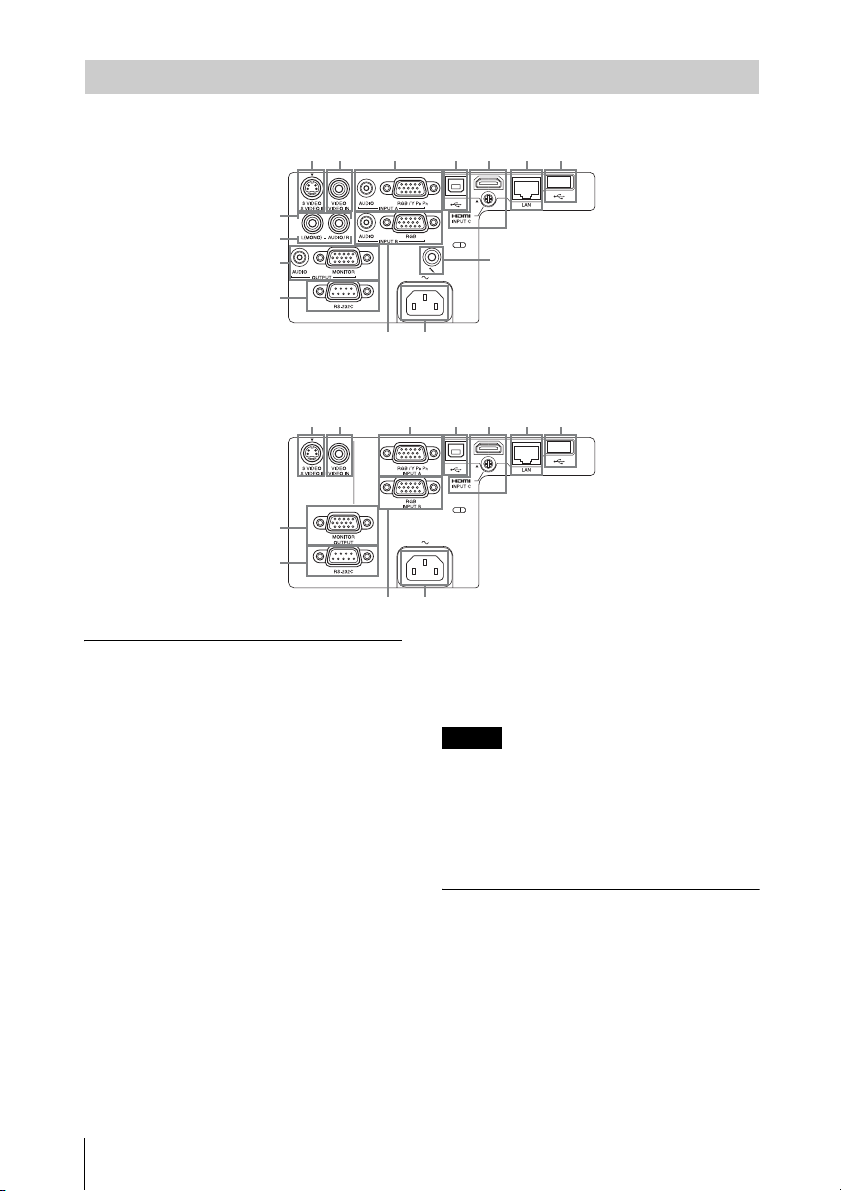

Connector Panel
54
4
5
7
6
1
29
8q;3
qs
qa
54
7
6
1
29
8q;3qa
Notes

13
Location and Function of Controls
Overview
• This connector outputs the projected image
or audio only when INPUT A or INPUT B is
used.
• The audio output connector is available only
on VPL-EW275/EW245/EW225/EX275/
EX245/EX225.
Others
gRS-232C connector (RS-232C)
RS-232C compatible control connector.
Connects the computer’s RS-232C
connector and the RS-232C cross cables.
hLAN connector (page 38)
iAC IN (∼) socket
Connects the supplied AC power cord.
jUSB connector (Type A) ( )
(pages 19, 46)
kUSB connector (Type B) ( )
(page 45)
lMicrophone input ( )
Microphone input is available only on VPL-
EW275/EW245/EW225/EX275/EX245/
EX225.

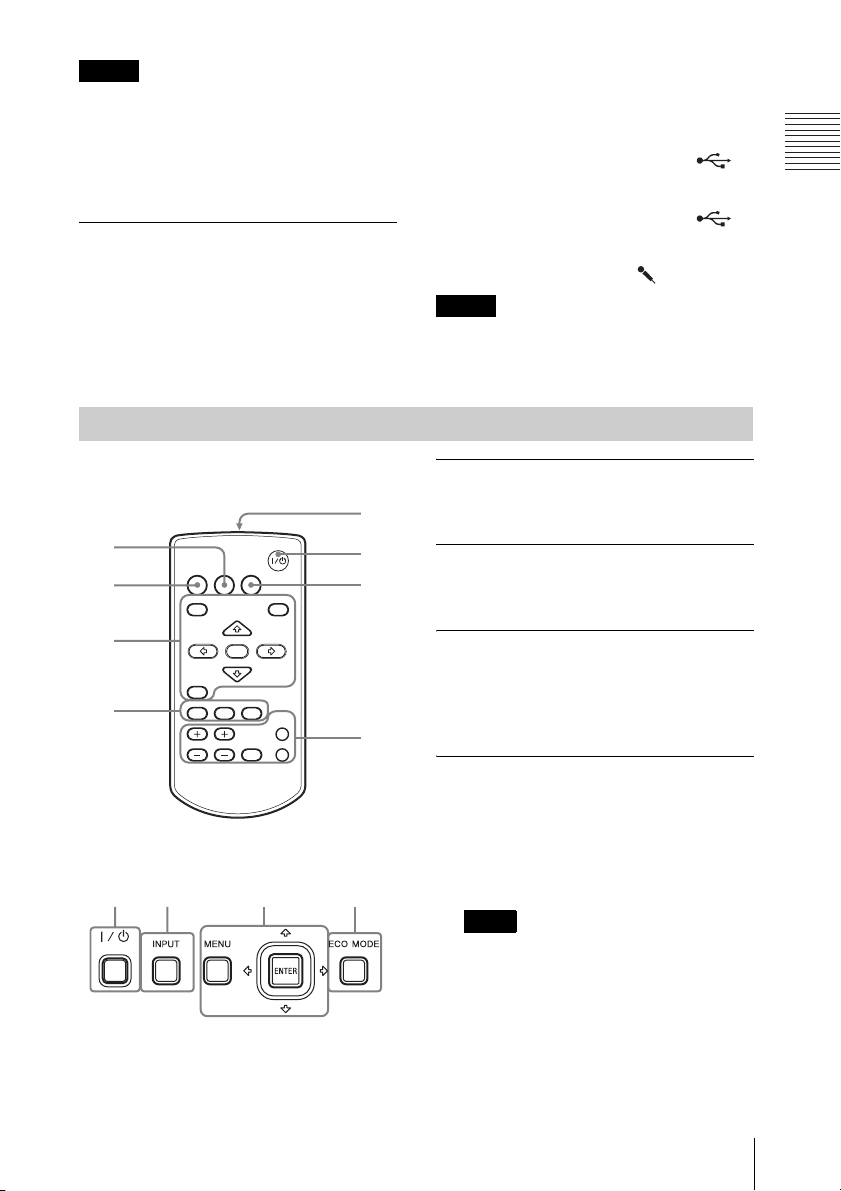

Remote Commander
Control Panel Keys
aTurning on the power/Going to
standby mode
?/1(On/Standby) key
bSelecting an input signal
(page 21)
INPUT key
cOperating a menu (page 26)
MENU key
RESET key
ENTER /V/v/B/b(arrow) keys
RETURN key
dAdjusting the image (page 22)
ASPECT key (page 28)
KEYSTONE key (page 24)
PATTERN key (page 24)
APA (Auto Pixel Alignment) key*
(page 24)
*Use this key when inputting a computer
signal via the RGB input connector
(INPUT A or INPUT B).
Notes
Note
Remote Commander and Control Panel Keys
2
3
4
5
6
1
4
7
INPUT
MENU
APA ECO MODE
RETURN
ASPECT
D ZOOM
KEYSTONE
ENTER
VOLUME
PATTERN
FREEZE
BLANK
MUTING
RESET
36
12
Note

14 Location and Function of Controls
eUsing various functions during
projecting
D ZOOM (Digital Zoom) +/– key*1
Enlarges a portion of the image while
projecting.
1Press the D ZOOM + key to display
the digital zoom icon on the projected
image.
2Press the V/v/B/bkeys to move the
digital zoom icon to the point on the
image you want to enlarge.
3Press the D ZOOM + key or the D
ZOOM – key repeatedly to change the
enlargement ratio. The image can be
enlarged up to 4 times.
Press the RESET key to restore the
previous image.
BLANK key
Cuts off the projected image
temporarily. Press again to restore the
previous image. Picture muting helps
reduce power consumption.
MUTING key (VPL-EW275/EW245/
EW225/EX275/EX245/EX225 only)
Mutes the audio output temporarily.
Press again to restore the previous
volume.
VOLUME +/– key (VPL-EW275/
EW245/EW225/EX275/EX245/
EX225 only)
Adjusts the volume output.
FREEZE key*2
Pauses a projected image. Press again to
restore the image.
*1: Use this key when inputting a
computer signal. But it may not be
used depending on the resolution of
the input signal.
*2: Use this key when inputting a
computer signal. You cannot use this
key when “Type A USB”, “Type B
USB”or “Network”is selected as the
input.
fSetting the energy–saving mode
easily
ECO MODE key
Energy-saving mode can be set easily.
Energy-saving mode consists of “Lamp
Mode,” “With No Input,” “With Static
Signal” and “Standby Mode.”
1Press the ECO MODE key to display
the ECO Mode menu.
2Press the V/vkey or ECO MODE key
to select “ECO” or “User” mode.
ECO: Sets each mode to the optimum
energy-saving value.
Lamp Mode: Low
With No Input: Standby
With Static Signal: Lamp
Dimming
Standby Mode: Low
User: Sets each item of the ECO
Mode menu as you desire (go to
step 3).
3Select “User” then press the bkey.
The setting items appear.
4Press the V/vkey to select the item
then press the ENTER key.
5Press the V/vkey to select the setting
value.
6Press the ENTER key.
The screen returns to the User screen.
For details on ECO Mode settings, see
“Lamp Mode,” “With No Input,” “With
Static Signal” and “Standby Mode” on
the Connection/Power menu (page 34).
Notes
RETURN
ECO
User
ECO Mode
:Sel :Back
RETURN
Lamp Mode High
Auto Power Saving
Standby Mode
Off
With No Input
Lamp Dimming
With Static Signal
Standard
User
:Sel :Set :Back

15
Location and Function of Controls
Overview
Others
gInfrared transmitter
About remote commander operation
• Direct the remote commander toward the
remote control detector.
• The shorter the distance between the
remote commander and the projector is,
the wider the angle within which the
remote commander can control the
projector becomes.
• Make sure that nothing obstructs the
infrared beam between the remote
commander and the remote control
detector on the projector.

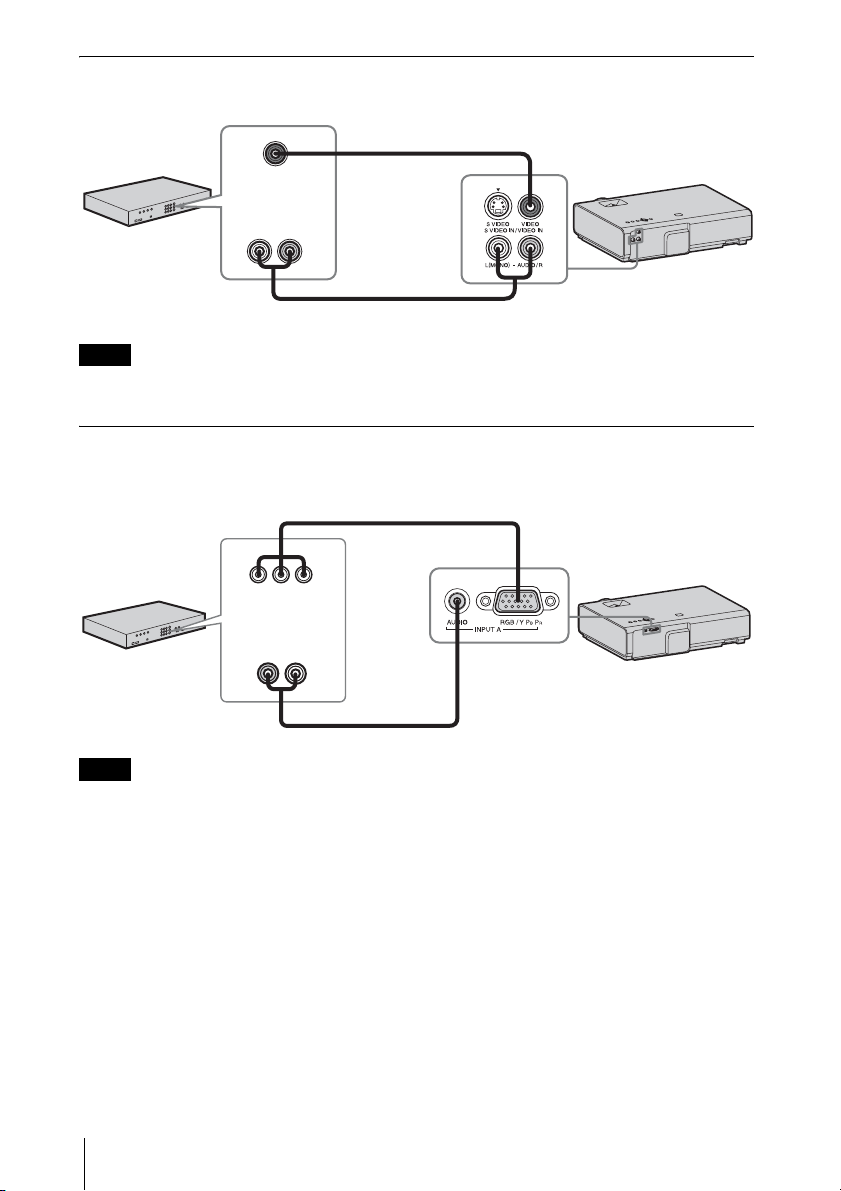

16 Connecting the Projector
BPreparation
Connecting the Projector
• Make sure all the equipment is powered off when connecting the projector.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you are connecting.
• Use a no-resistance audio cable.
Connection with a computer is explained for each input signal.
INPUT A/INPUT B
• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/
EX225.
• It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-EW275/
EW245/EW225) or 1024 × 768 pixels (VPL-EX281/EX275/EX271/EX245/EX241/EX225/
EX221) for the external monitor.
INPUT C
Notes
Connecting a Computer
For connecting a computer with an RGB output connector.
RGB output
connector
Audio output
connector
Mini D-sub 15-pin cable (supplied)
Computer
Audio cable (Stereo mini plug)
(not supplied)
Notes
For connecting a computer with an HDMI output connector.
HDMI output
connector
HDMI cable
(not supplied)
Computer

17
Connecting the Projector
Preparation
• Audio output from the HDMI connector is available only on VPL-EW275/EW245/EW225/
EX275/EX245/EX225.
• Use HDMI-compatible equipment which has the HDMI Logo.
• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are
recommended.)
• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
USB connector (Type B) ( )

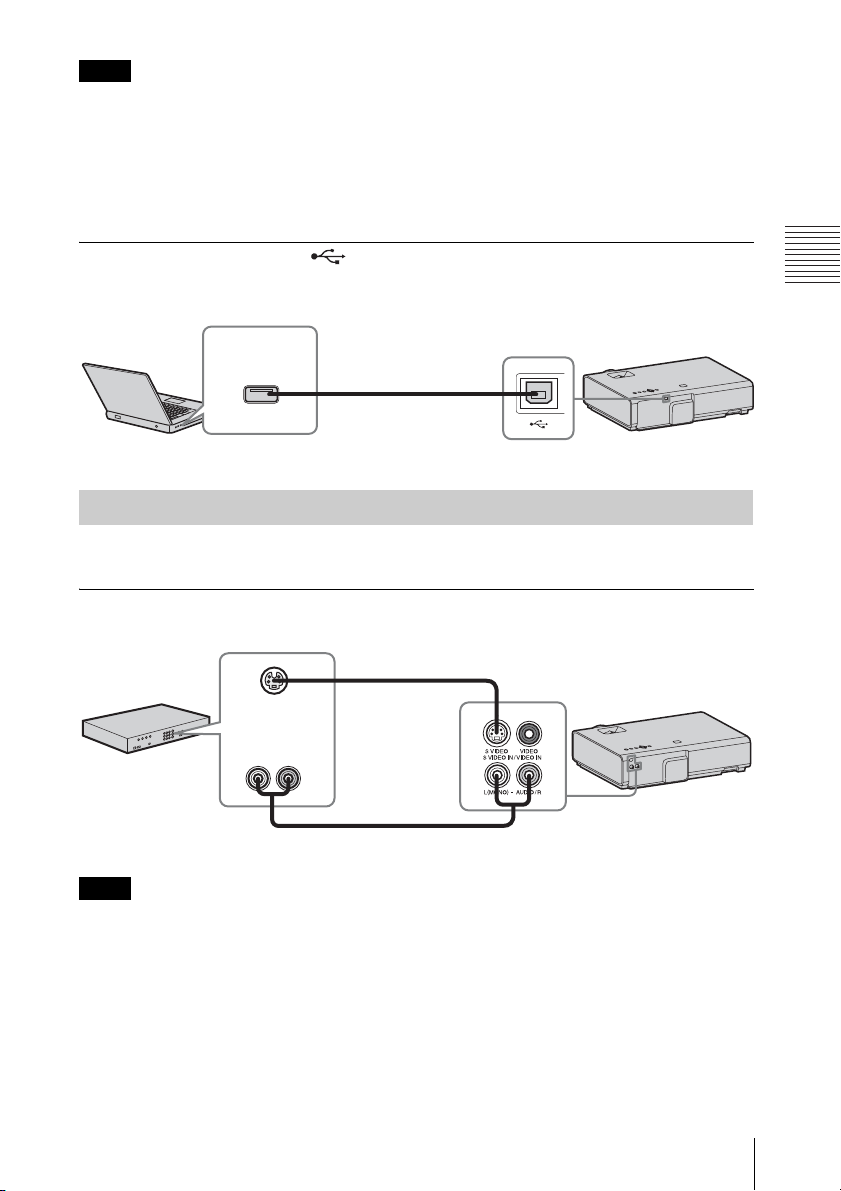

For connecting to a computer with a USB connector (“Projecting an Image using USB
Connection” (page 45)).
Connections with a VHS video deck, DVD player, or BD player are explained for each input
signal.
S VIDEO IN
For connecting video equipment with an S-video output connector.
The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/
EX225.
Notes
Connecting a Video equipment
USB A-B cable (not
supplied)
Computer
USB connector
(Type A)
Note
S video output
connector
Audio output
connector
S video cable (not supplied)
Computer
Audio cable (Phono plug × 2)
(not supplied)

18 Connecting the Projector
VIDEO IN
For connecting video equipment with a video output connector.
The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/
EX225.
INPUT A
For connecting video equipment with a YPBPRoutput connector.
The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/
EX225.
Note
Note
Video cable (not supplied)
Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)
Video output
connector
Audio output
connector
Video equipment
Component – Mini D-sub 15-pin cable (not supplied)
Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)
Video equipment
YPBPRoutput
connector
Audio output
connector

19
Connecting the Projector
Preparation
INPUT C
• Audio output from the HDMI connector is available only on VPL-EW275/EW245/EW225/
EX275/EX245/EX225.
• Use HDMI-compatible equipment which has the HDMI Logo.
• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are
recommended.)
• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal
or CEC (Consumer Electronics Control) Signal.
Microphone ( )
For connecting a microphone.
• The microphone input is available only on VPL-EW275/EW245/EW225/EX275/EX245/EX225.
• Only dynamic microphones are supported.
USB connector (Type A) ( )
For connecting a USB memory device (“Using USB Media Viewer” (page 46)).
Notes
Connecting a microphone
Notes
Connecting a USB memory device
Video equipment
HDMI cable
(not supplied)
HDMI output
connector
For connecting video equipment with an HDMI output connector.
Microphone
(not supplied)
USB memory device
(not supplied)

20 Connecting the Projector
USB connector (Type A) ( )
For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation
Function via Network” (page 42)).
• Undesignated USB wireless LAN modules do not work.
• When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in
Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

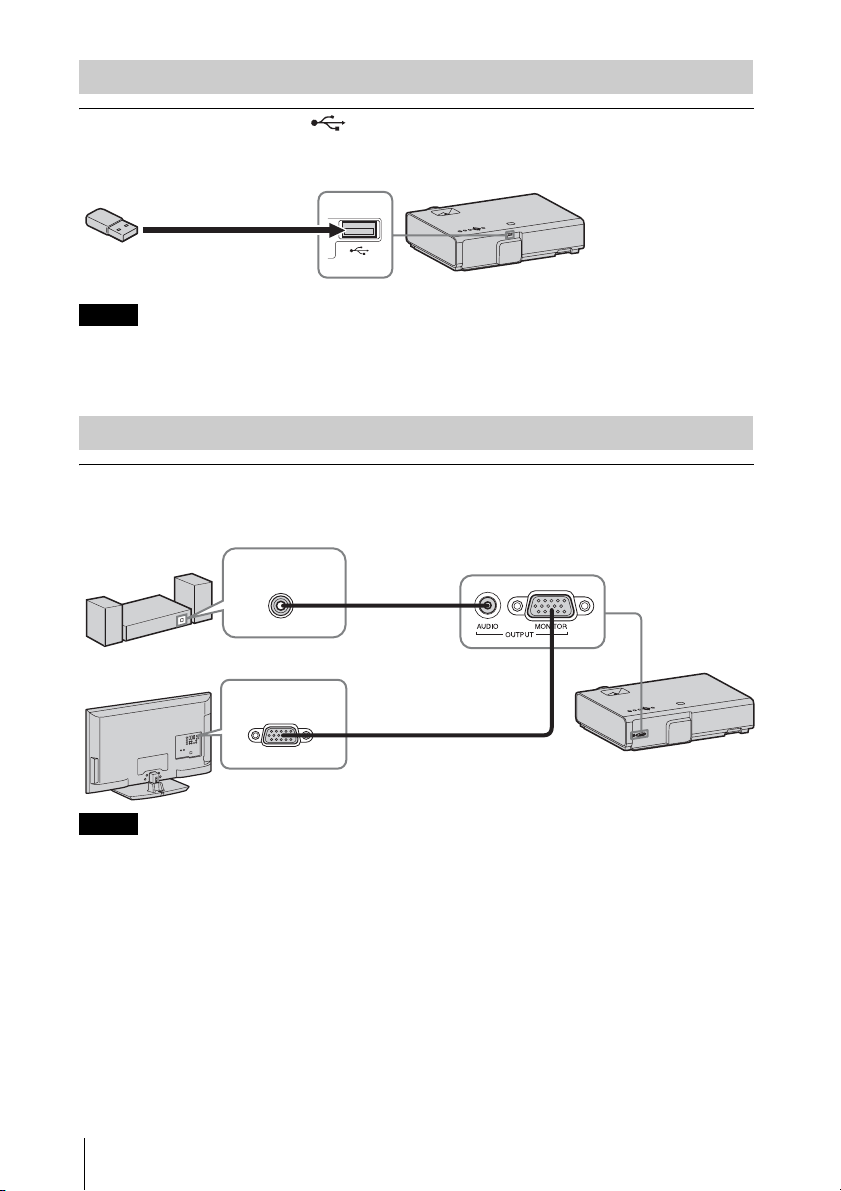

OUTPUT
Projected images or input audio can be output to display equipment such as a monitor or audio
equipment such as speakers with a built-in amplifier.
• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/
EX225.
• Projected images and audio can be output.
Connecting a USB wireless LAN module
Notes
Connecting an External Monitor and Audio Equipment
Notes
USB wireless LAN module
IFU-WLM3 (not supplied)
Audio cable
(stereo mini plug)
(not supplied)
Audio input
connector
Mini D-sub 15-pin cable
(supplied)
RGB input
connector
Audio equipment
Display equipment
This manual suits for next models
9
Table of contents
Other Sony Projector manuals

Sony
Sony VPL-VW260ES User manual

Sony
Sony VPL-VW760ES User manual

Sony
Sony VPL-SW125 User manual

Sony
Sony VPL-EX100 User manual

Sony
Sony BRAVIA VPL-VW70 User manual

Sony
Sony VPL-VW11HT - Lcd Video Projector User manual

Sony
Sony VPH-1272Q User manual

Sony
Sony VPL-FHZ700L User manual

Sony
Sony VPL-VW95ES User manual

Sony
Sony VPL-PX31 User manual

Sony
Sony VPL-CX75 User manual

Sony
Sony VPL-ES1 User manual

Sony
Sony VPL-MX20 User manual

Sony
Sony VPL-HW20A User manual

Sony
Sony VPL-SW125 User manual

Sony
Sony HDMI VPL-EX70 User manual

Sony
Sony VPL-PX11 User manual

Sony
Sony VPL-SC60U User manual

Sony
Sony VPL-VW5000ES User manual

Sony
Sony VPL-CS4 - Compact Lcd Projector Reference guide
