Sony VPL-FH500L User manual

Data Projector
VPL-FH500L

Sales Points
High resolution WUXGA
with Full HD compatibility
Twin-lamp System
Great Lens Compatibility &
Extreme lens shift
Good TCO & ECO Friendly
Blend-in Design
6
For Dealers
For Decision makers
For User
For Decision makers
For User
NEW

7
Performance
Specification table (1/6)
Name of product type VPL-FH500L (Falcon H)
Display system 3 LCD system
Display device Size of effective
display area 0.95” (24.1 mm) x 3, aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels
Projection lens
Zoom Powered / Manual (Depend on lens)
Focus Powered / Manual (Depend on lens)
Lens shift Powered
Light source High-pressure mercury lamp 330 W type
Recommended lamp replacement time*1 6000 H (Lamp mode : High) / 8000 H (Lamp mode : Standard) *2
Filter replacement cycle Same time as the lamp replacement
Screen size 40” to 600'„ (1.02 m to 15.24 m) (Depend on lens)
Light output 7000 lm (Lamp mode: High) / 5600 lm (Lamp mode: Standard) *3
Color light output 7000 lm (Lamp mode: High) / 5600 lm (Lamp mode: Standard) *3
Contrast ratio (full white/full black)*4 2500:1
*1: The figures are approximate. They vary depending on the environment or how the projector is used. Jigyobu cannot guarantee them.
*2: With two lamp sequential use.
*3: When attaching the VPLL-ZP41
*4: This value is average with lamp dimming.
NEW
This color texts are different points from FX500

8
Performance
Specification table (2/6)
Name of product type VPL-FH500L (Falcon H)
Speaker No
Displayable
scanning frequency Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution Computer signal
input Maximum display resolution: 1920 x 1200 dots*5
Panel display resolution: 1920 x 1200 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i,
1080/50i, 1080/60p, 1080/50p, 1080/48i*６, 1080/24p, 1080/30p*６
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical: Max. +/- 5 degrees
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese ,Turkish, Polish,
Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean,
Thai, Vietnamese, Arabic, Persian)
*5: Available for VESA Reduced Blanking signal.
*6:Available via BKM-FW16
NEW
This color texts are different points from FX500

9
Performance
Specification table (3/6)
Name of product type VPL-FH500L (Falcon H)
Computer and Video
signal input/output INPUT A RGB / Y PBPRinput connector: 5BNC (female)
INPUT B RGB input connector: Mini D-sub 15-pin (female)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
INPUT D HDMI input connector: Digital RGB/Y PBPR
INPUT E Optional adapter slot (For HD-SDI/SDI Input Adapter “BKM-FW16”)
S VIDEO IN S video input connector: Mini DIN-4 pin
VIDEO IN Video input connector: BNC
OUTPUT Monitor output connector*7: Mini D-sub-15 pin (female)
Control signal input/output RS-232C connector: D-sub-9 pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC5V
Control S output connector: Stereo mini jack
*7: From INPUT A (RGB/YPBPR) and INPUT B (RGB)
NEW
This color texts are different points from FX500

10
Performance
Specification table (4/6)
Name of product type VPL-FH500L (Falcon H)
Acoustic noise 39 dB (Lamp mode: High) / 35 dB (Lamp mode: Standard)
Operating temperature (Operating
humidity) 0°C to 40°C / 32°F to 104°F (35% to 85% (no condensation))
Storage temperature (Storage humidity) -20°C to +60°C / -4°F to +140°F (10% to 90%)
Power requirements AC 100 V to 240 V, 4.9 A to 2.0A, 50 Hz / 60 Hz
Power consumption AC 100 V to 120 V 490 W
AC 220V to 240 V 460 W
Standby mode
power consumption AC 100 V to 120 V 11 W (Standby mode: Standard) / 0.1 W (Standby mode: Low)
AC 220V to 240 V 10 W (Standby Mode: Standard) / 0.2 W (Standby mode: Low)
Heat dissipation AC 100 V to 120 V 1672 BTU
AC 220V to 240 V 1569 BTU
MTBF 28,039 H
Safety regulations WW model UL60950-1 2nd Edition, cUL (No.60950-1 2nd Edition), FCC/IC ClassA, CE EN60950-1 2nd
Edition (LVD,EMC), C-Tick, 電気用品安全技術基準省令２項, VCCIクラスA情報技術装置, 電
源高調波自主規制 JIS C 61000-3-2, 電気通信事業法 技術基準（10/100Base）, GOST-R
Body color White / Gray
Outside dimensions W 530 x H 213 x D 545 mm / W 20 7/8 x H 8 3/8 x D 21 15/32 in
W 530 x H 204 x D 545 mm / W 20 7/8 x H 8 1/32 x D 21 15/32 in
(without protrusions)
Mass 20 kg / 44 lb 1 oz
The values for mass and dimensions are approximate.
NEW
This color texts are different points from FX500

11
Performance
Specification table (5/6)
Name of product type VPL-FH500L (Falcon H)
Supplied accessories RM-PJ19 Remote Commander (1)
Size AA (R6) batteries (2)
AC Power Cord (1) (@local)
Cable ties (2)
Cable tie holder for HDMI (1)
Lens installation screws (4)
Lens gap cover (1)
Quick Reference Manual (1)*8
Warranty Card (1) (@local)*9
Security Label (1)
Operating Instructions: CD-ROM*10 (1)
Battery for the
remote commander
of the projector
Category Battery Manganese
Type Size AA (R6)
Weight of single
battery (g) Approx. 18g
Number of batteries
per package 2
*8: World Wide model only. Languages are JP/GB/FR/DE/IT/ES/CS. Lens replacement instructions to be added
*9: When revise warranty period, must consult with Jigyoubu
*10: CD-ROM contents: Operating Instructions (JP/GB/FR/DE/IT/ES/CS/RU) Installation manual is to be integrated into operating instruction.
NEW
This color texts are different points from FX500

12
Performance
Specification table (6/6)
Name of product type VPL-FH500L (Falcon H)
Optional accessories
Projector Lamp (for replacement) : LMP-F330
Projector Suspension Support: PSS-630
Projector Suspension Support Joint Pole: PSS-630P
Projection Lens: VPLL-FM22
Projection Lens: VPLL-ZM32
Projection Lens: VPLL-ZM42
Projection Lens: VPLL-ZP41
Projection Lens: VPLL-ZM102
Projection Lens: VPLL-4008
Projection Lens: VPLL-Z4015
Projection Lens: VPLL-Z4019
Projection Lens: VPLL-Z4025
Projection Lens: VPLL-Z4045
Projection Lens Adapter: PK-F500LA1
Projection Lens Adapter: PK-F500LA2
HD-SDI/SDI Input Adaptor: BKM-FW16
NEW
This color texts are different points from FX500

Functions
Picture by Picture (TWIN)
DICOM GSDF simulation gamma
Screen Aspect
V Center & Vertical Size
Panel Alignment
Color Matching
Picture Muting -Mechanical Shutter-
ECO Mode
Security Pack
Network
Discrete Power key
Test Pattern
Digital Zoom
Smart APA (Auto Pixel Alignment)
Freeze
Configuration Reset
ID Mode
Closed Captioning (CC Display)
Direct Power On/Off
Installation Attitude
High Altitude Mode 13
NEW
Changed
Same as FX500, refer its PIL

Functions

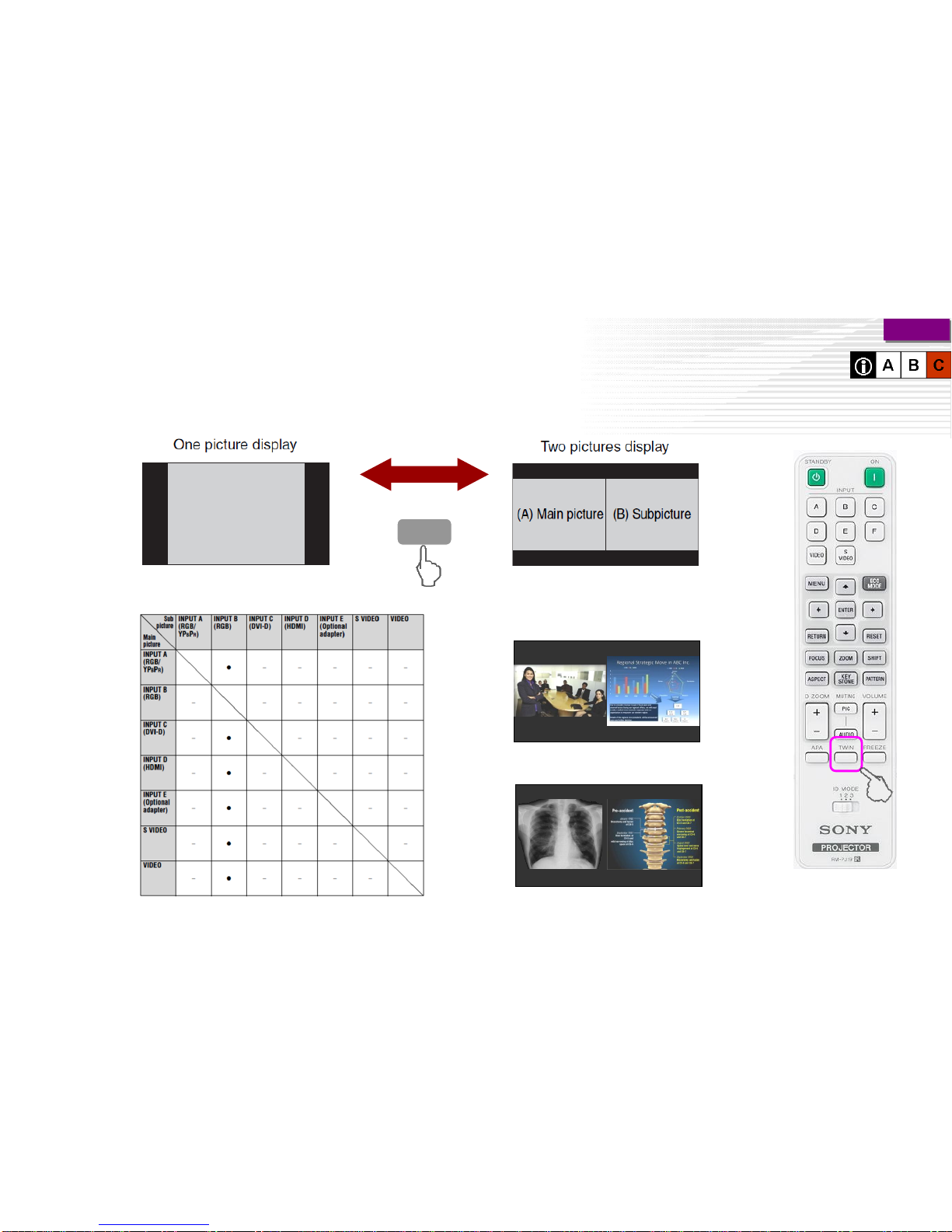

Picture by Picture (TWIN)
14
This function simultaneously displays two different pictures
Case 1: Video Conference
Case 2: Using two materials
TWIN
Input signals combinations
Only form
INPUT B (Fixed)
NEW

Functions

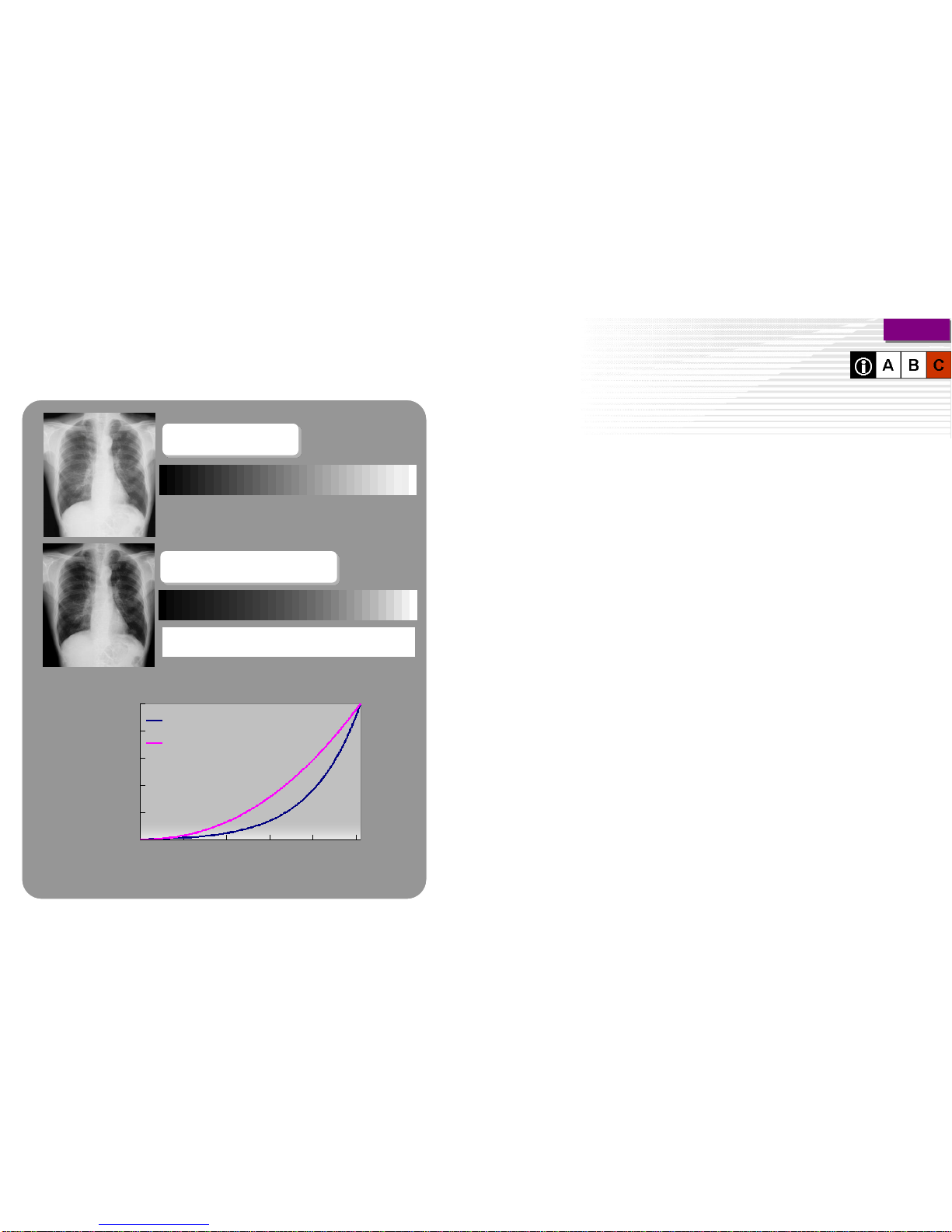

DICOM GSDF Simulation gamma
15
The new WUXGA models have new gamma mode
“DICOM GSDF Simulation” with Input C (DVI) & D
(HDMI with computer signals)
It improves the reproduction of high-definition data
that is used for medical training, etc,.
Conforms to GSDF (Grayscale Standard Display
Function) of medical standards for DICOM (Digital
Imaging and Communications in Medicine).
*This function is for training and reference only, cannot be
used for medical diagnosis
Applicable contents;
Medical pictures such as X-ray, CT and MRI etc.
Target applications;
University, Hospital, Medical center, etc.
- Medical Education
-Academic Conference
Gamma Curve
0
20
40
60
80
100
0200 400 600 800 1000
Input (10bit)
Output Luminace [%]
DICOM
2.2
DICOM GSDF sim.
Standard 2.2
More visible than standard gamma
NEW

Functions
Screen Aspect
16
When the aspect ratio of screen and image does not match*, this function allows to fit
projected image to the screen. So even image are switched between different aspect
signals, always the projected image can be fit into the screen.
*Using same aspect between screen and projector is ideal
Previous products had fitting issues. Projected Image or Some OSD messages are out of screen
Panel Screen 16:10 signal 16:9 signal 4:3 signal
16:10 16:9 Out of
the screen OK Out of the screen
4:3 Out of
the screen OK
Out of
the screen
By setting the “Screen Aspect” via OSD menu (with electric compression)
16:10
Panel Screen 16:10 signal 16:9 signal 4:3 signal
16:10 OK OK
OK
OK
OK
OK
16:9
4:3
16:10 OK OK OK
OK OK OK
NEW

Functions
V Center & Vertical Size
17
These functions allow you to adjust the subtitle position in movie contents.
Input signal Customer likes to
zoom for bigger size Adjust V Center
Subtitle to be visible, some of upper side is invisible instead
Panel area
Gray area (Subtitle) is behind
Vertical Size
Vertical compression
Input signal Customer likes to
zoom for bigger size Adjust V Size
V Center
Subtitle to be visible
NEW

Functions
Panel Alignment
18
Adjustable range
-Shift
Shifts the whole picture
Adjustment range : ±2.0dot by 0.1
This feature allows you to adjust the gaps in the color of characters or the picture
-Zone
Selects the desired range
(H:16 x V:10 = 160 cross points)
Adjustment range : ±2.0dot by 0.1
NEW

Functions
Color Matching
19

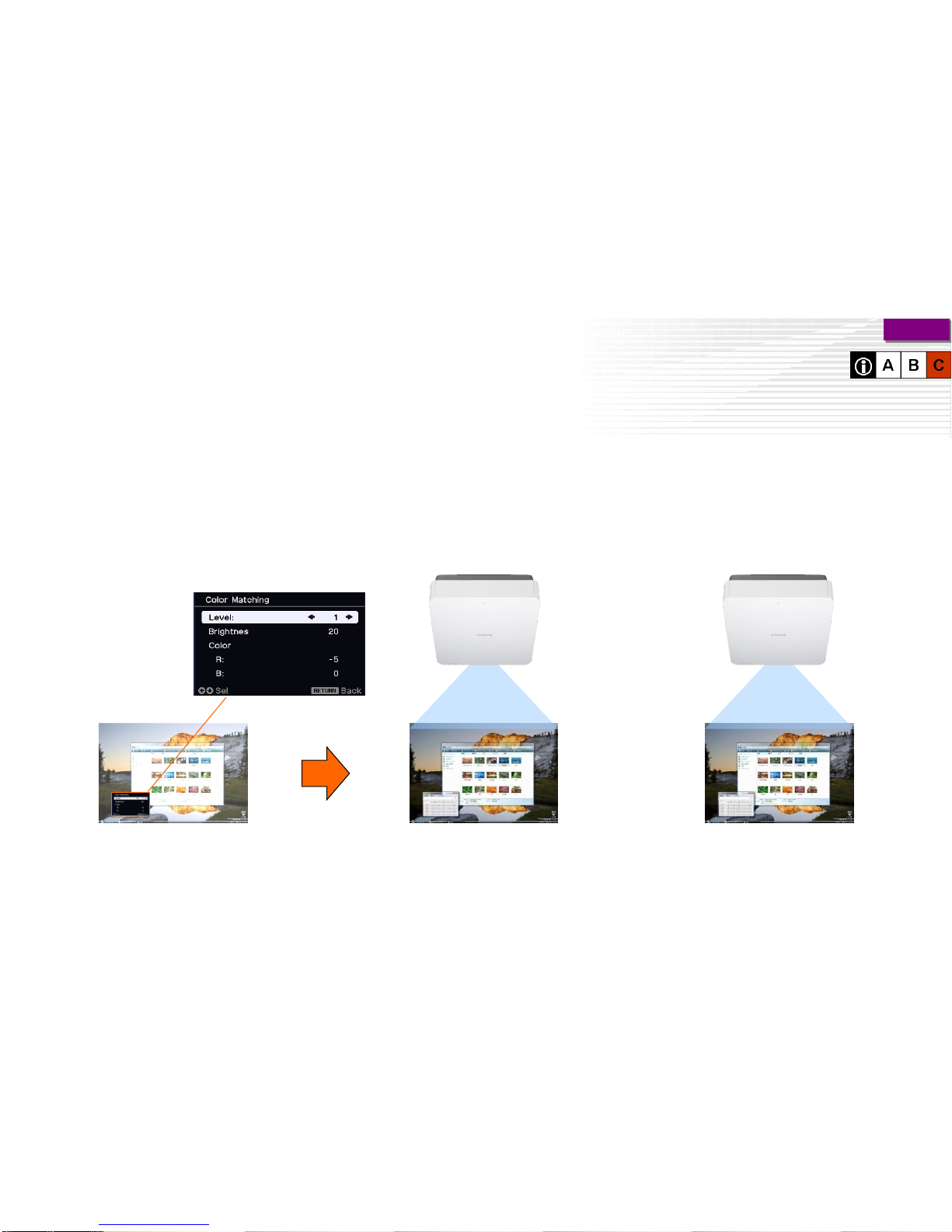

For correcting the brightness and color of the whole projected image
manually from the signal level in six steps
Dealers can adjust easier than previous in the field.
*The brightness and color of the projected image may not match completely, even after you adjust
“Brightness” and “Color.”
Reference picture
Adjust
NEW

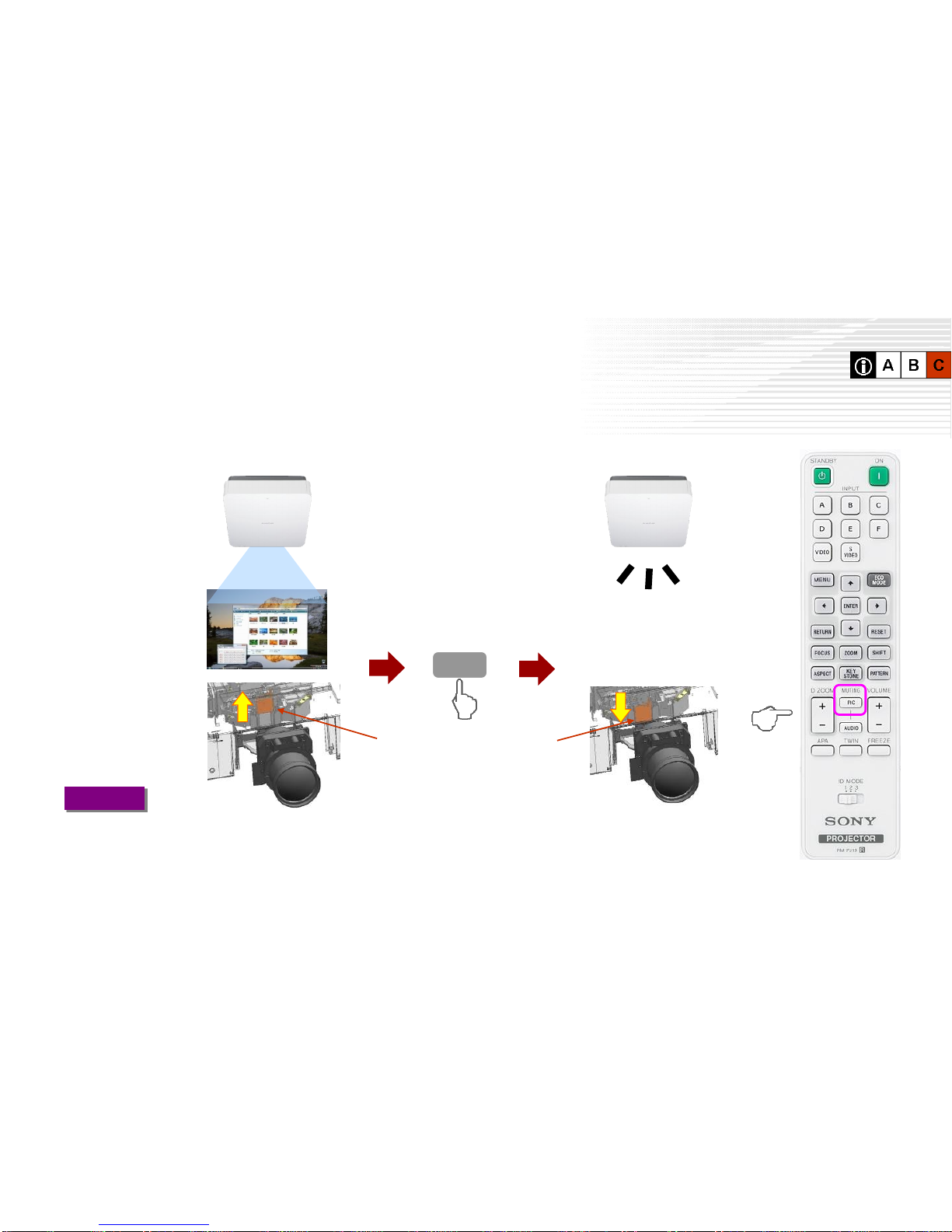

You can cut mute the image by just a one press of dedicated key on
remote commander. You can resume it by pressing again.
Functions
Picture Muting -Mechanical Shutter-
MUTING
“PIC” The projection
is cut off
20
Mechanical Shutter
From this product, shutter timing has been changed (FX500L‟s timing will be also changed as
running change).
-Before: Shutter closes after “Muting On” message disappeared (Approx. 3sec.)
- After: Shutter Immediately closes
Changed

Functions
ECO Mode
21

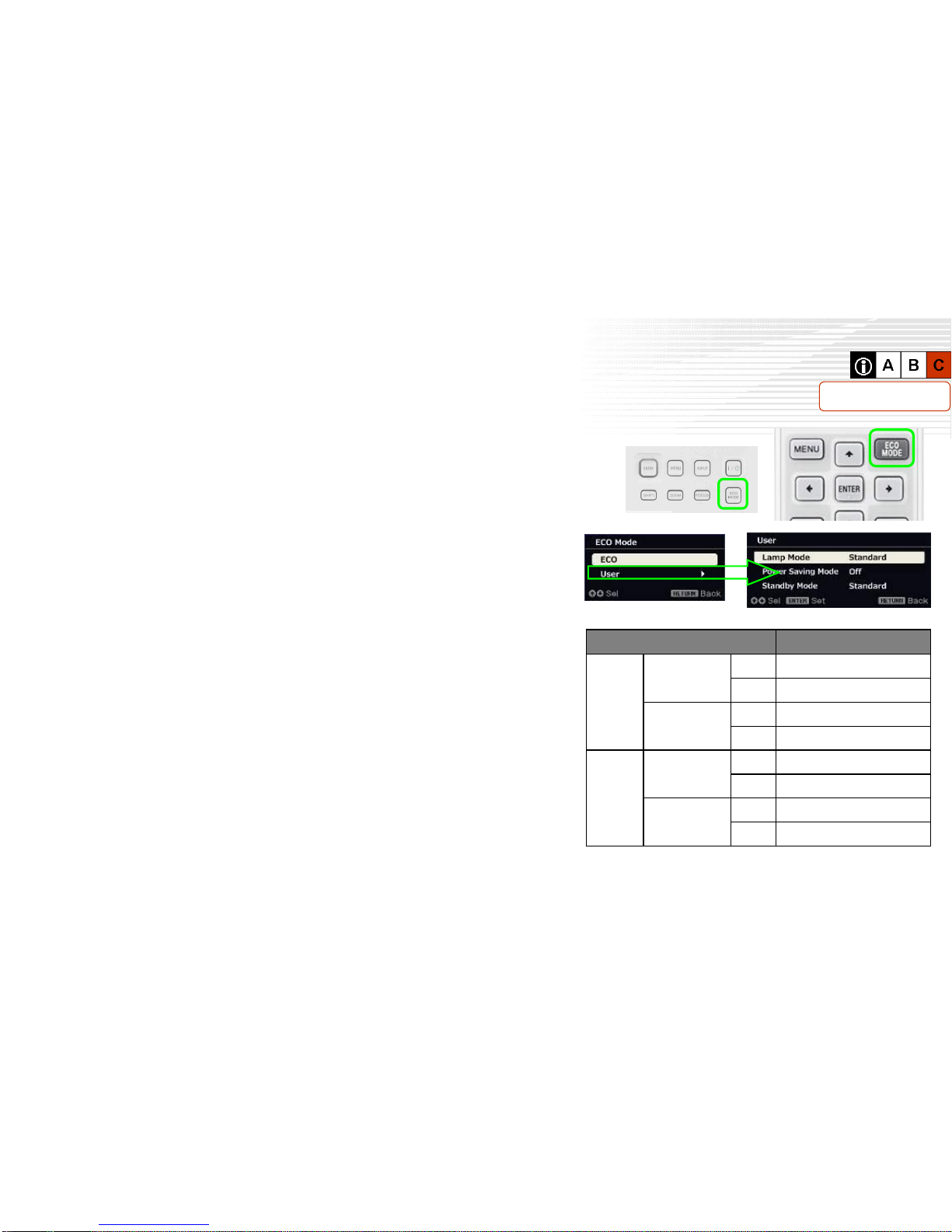

Lamp mode “High / Standard”
-Saving the consumption of lamp wattage.
Power Saving mode “Lamp Cutoff / Standby / Off”
-When set to "On“, goes into power saving mode if
there is no operation for 10 minutes without any
signal input.
Lamp Cutoff ; The lamp goes off. The lamp lights again when a
signal is input or any key is pressed.
Standby ; The projector goes into Standby mode. To use it, turn
on the power again.
Standby mode “Standard / Low”
-“Low” can reduce power consumption in standby*
*Network function cannot be operated
Power status VPL-FH500L
AC100V
to
AC120V
Power
consumption
High 490W
Std Approx. 80%
Standby Std 11W
Low 0.1W
AC220V
to
AC240V
Power
consumption
High 460W
Std Approx. 80%
Standby Std 10W
Low 0.2W
Can optimize combinations of following functions.
OSD menu
Direct keys
Same as FX500

Other Product Information
Connector Panel
On Screen Menu
Preset Signals
Installation Diagram
Replacement Lamp
Remote Commander (RM-PJ19)
Control Panel
Replacing Lamp
Replacing Air Filter
Lens Replacement
Dimensions
Installation Conditions
Installation Positioning
22
Same as FX500, refer its PIL

Other Product Information
Connector Panel
23

Other Product Information

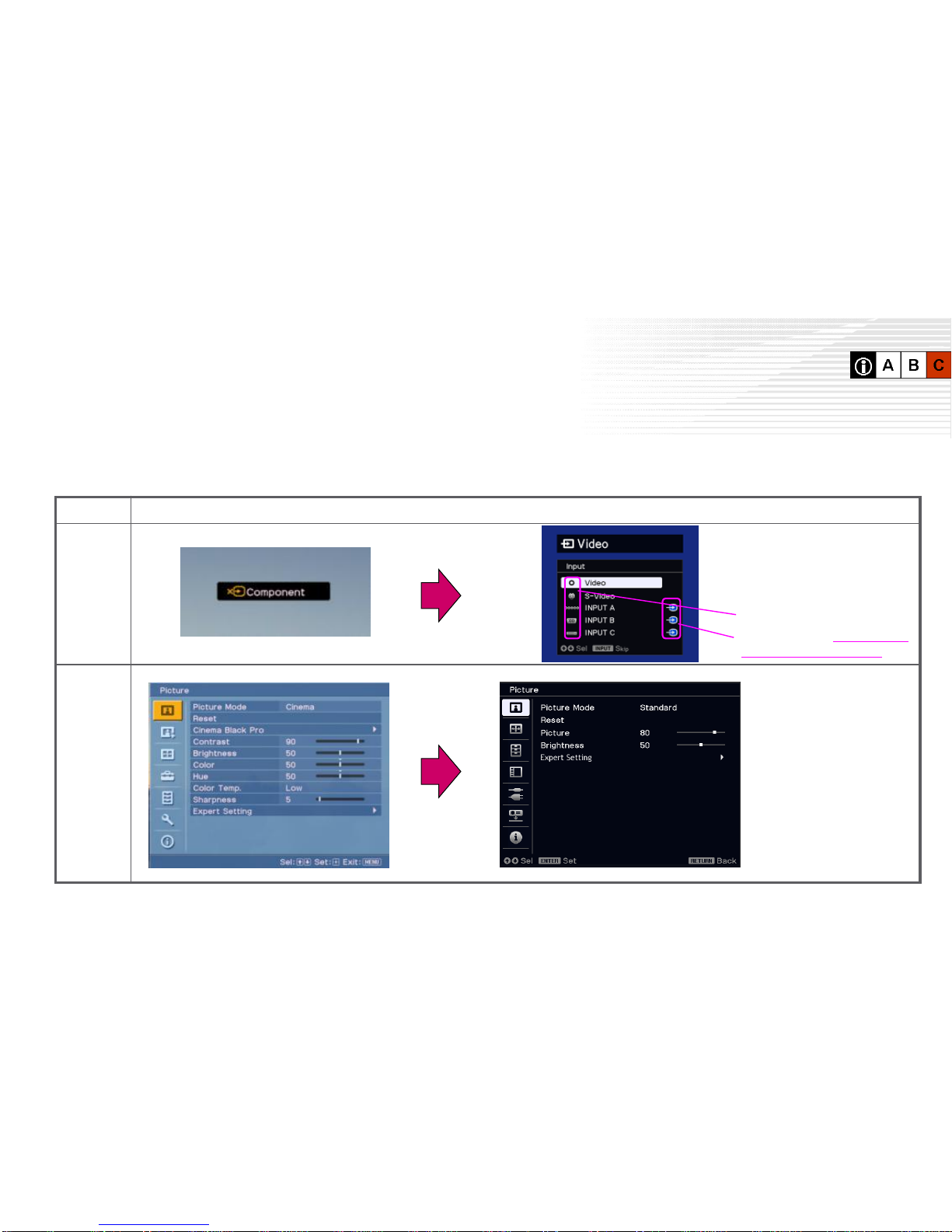

On Screen Menu (1/7)
24
UI design will be new.
Meet the Sony UI design
For impression as new generation
Current New
Input
pallet
For user friendly, shows each
input status as list. Can be
shown by pressing input key of
projector.
1. Connector shape
2. When detect input signal,
icons are shown. (Not displayed
during TWIN picture mode)
Menu
