VPL -VW50
SXRD ™ 1080PHomeTheaterFrontProjector
Key Features
Supports Full HD 1080p resolution with 3 SXRD™1920 x 1080
SXRD™Panels (0.61 ” )
Up to 15,000:1 Contrast Ratio (with Advanced Iris Auto function
on)
ARC-F (All Range Crisp Focus) Lens
1080/24p Input Capable
Ultra High Pressure Lamp (200W) delivers natural, accurate color
Advanced Iris 2 Function (Auto, On, Off)
Low Fan Noise (22dB)
1.8X Zoom
Blanking function allows the user to add an adjustable black
frame over unusable portions of the image
Noise Reduction
Lens Shift
RCP (Real Color Processing) Function (User 1, 2, 3 and Off)
HD I/P Converter
12-bit Panel Drive Full Digital Chassis
3D Comb Filter
HDMI ™Connectors (x2) with PC timing support
1
Picture Mode (Dynamic, Standard, Cinema, Custom)
Black Level Adjustment (High, Low, Off)
Gamma Correction (Gamma 1, 2, 3 and Off)
Color Temperature (High, Medium, Low and Custom 1, 2, 3)
Color Space (Normal and Wide)
User Selectable Over Scan Function (choice of ON or OFF)
PC Input (D-sub 15)
1
Key Technologies
SXRD™1920 x 1080p Full HD Panels SXRD is a display technology developed by the legendary television
engineers at Sony to meet and exceed the demands of a High Definition image at its full 1080 line resolution. It is
a 1920 x 1080p panel characterized by several key benefits -- full HD resolution, smooth film - like image with
minimal screen door effects, high response times (2.5ms rise and fall), high contrast ratios and accurate color
rendition.
Advanced Iris 2 The latest evolution of Sony’s own Advanced Iris function uses algorithms designed to analyze
the histogram of each picture along with nonlinear amplification to dynamically adjust the iris for its optimum
opening. The result is a stunningly high contrast ratio of up to 15,000:1. Images in bright scenes are crisp and clear
and black levels in dark scenes are deep and detailed. A manual adjustment option is also available to fix the iris
opening for specific image conditions.
Ultra Quiet Fan An exclusive Sony - designed fan efficiently removes heat at a barely noticeable noise spec of
22dB. Obtrusive fan noise is virtually eliminated to allow for flexibility in room placement.
ARC-F (All Range Crisp Focus) Lens A specially developed crisp focus lens was developed to take full
advantage of the full 1920 x 1080 HD resolution that the SXRD panel device offers. It offers superior resolution and
focus.
RCP (Real Color Processing) Real Color Processing allows the user to target specific colors on the picture and
fine adjust their color and hue without changing the overall picture's color and hue. For instance, the color of a
strawberry can be fine adjusted without impacting the skin tones. Or the blue in a sky can be adjusted without
affecting the color of water. And green grass can be adjusted without influencing the other colors in the picture.

SonyElectronicsInc. • 16530ViaEsprillo • SanDiego,CA92127 • 800.222.7669 • www.sony.com
LastUpdated:05/11/2007
VPL -VW50
SXRD ™ 1080PHomeTheaterFrontProjector
PleasevisittheDealerNetworkforcurrent
informationatwww.sony.com/dn
Features
General
Vertical Keystone: Yes
Standby Mode: Yes
Lens Control: Off, On
High Altitude Mode: Off, On
Information Menu: Horizontal and Vertical
frequency display
Acceptable Computer Signals: fH: 19 to 72 kHz,
fV: 48 to 92 Hz, fV: 60 Hz
Input A: Auto, Computer, Component, Video
GBR
DVI Signal Setting: Auto, Computer, Video GBR
Video
Video Processing: 10-bit processing
Comb Filter: Yes (3DY)
DRC® Palette Presets: Mode 1, Mode 2
Vertical Position: Yes
Wide Mode: Wide Mode (Full, Normal, Wide
Zoom, Zoom)
Display Technology: SXRD™Technology
High Definition: Yes (Full HD 1080)
Horizontal Size: Yes
Dot Phase: Yes
Picture Shift Function: Yes
Title Area Control: Yes
Film Mode: Yes
Acceptable Video Signals: 15 kHz
(RGB/Component) 50/60Hz, Progressive
component 50/60 Hz, DTV (480/60i, 575/50i,
480/60p, 575/50p, 720/60p, 720/50p, 1080/60i,
1080/50i, 1080/60p- DVI and HDMI inputs
only, 1080/50p- DBI and HDMI inputs only,
Composite video, Y/C video.
Micro Display Type: 0.61” chip (2,073,600 pixels
per chip. 6,220,800 total pixels)
Convenience
Multiple Language Display: 15 languages
(including English, French, Spanish, German
and Chinese)
Power Save Mode: On, Off
Auto Input Search: Yes
Test Pattern: Yes
Image Flip: HV, H, V, Off
IR Receiver: Front & Rear, Front, Rear
Illumination: Off, On
Specifications
General
Lens: fl 8.7 to 33.7 mm/F2.54 to 3.53 mm
Projection Picture Size: 40" to 300" measured
diagonally
Color System: Auto, NTSC, PAL, SECAM
Television Type: Front Projection
Video
Native Resolution: 1080p
Contrast Ratio: Up to 15000:1 (with Advanced
Iris Auto ON)
Display Resolution: 1920 x 1080
Overscan: Yes
Inputs and Outputs
Component Video (Y/Pb/Pr ) Input(s): 1 (Side)
Composite Video Input(s): 1 (Side) Vp-p+/-2 dB
sync negative (75 ohms terminated)
S -Video Input(s): Y/C mini DIN 4-pin type, Y
(luminance): 1 Vp-p+/-2 dB sync negative (75
ohms terminated) C (chrominance): burst
0.286 1 Vp-p+/-2 dB (NTSC) sync negative (75
ohms terminated) burst 0.3 1 Vp-p+/-2 dB
(PAL) sync negative (75 ohms terminated)
HDMI ™ Connection(s): 2 (Side) Digital
RGB/Y/Cb(Pb)Cr(Pr) with PC timing support
PC Input(s): D-Sub15 and HDMI (Side) fH: 19 to
72kHz / fV: 48 to 92 Hz / Maximum resolution
(HDMI only): 1920 x 1080 fV: 60Hz
Remote Network Connection(s): 1 (Side) RS-
232C: D-sub 9-pin (female) RJ-45 10 BASE-
T/100BASE-TX (For gamma adjustment using
included ImageDirector2 software.)
RS232 Control: Remote Connector
Component/Progressive: DTV (480/60i, 575/50i,
480/60p, 575/50p, 720/60p, 720/50p, 1080/60i,
1080/50i), 1080/60p (DVI and HDMI channel
only), Composite video, Y/X video
12V Trigger Input(s): 1 (1 Side) Mini Jack - Power
On: DC 12V, output impedance: 4/7 kilohms
Power Off: 0V
Power
Power Consumption (in Operation): 300W
Power Consumption (in Standby): 8W
Power Requirements: AC 100 to 240V, 1.3 to 3A,
50/60Hz
Service and Warranty Information
Limited Warranty: Product Warranty- 2 Years
Parts and Labor except the lamp. Lamp
Warranty - 90 Days from date of purchase.
Dimensions
Weight: 24.25lbs (11kg)
Measurements: 15.55 x 6.83 x 18.56" (395 x 173.5
x 471.4mm)
Operating Conditions
Operating Temperature: 5 ° C to 35 ° C (41 ° F to 95 °
F)
Operating Humidity: 35% to 85% (no
condensation)
Supplied Accessories

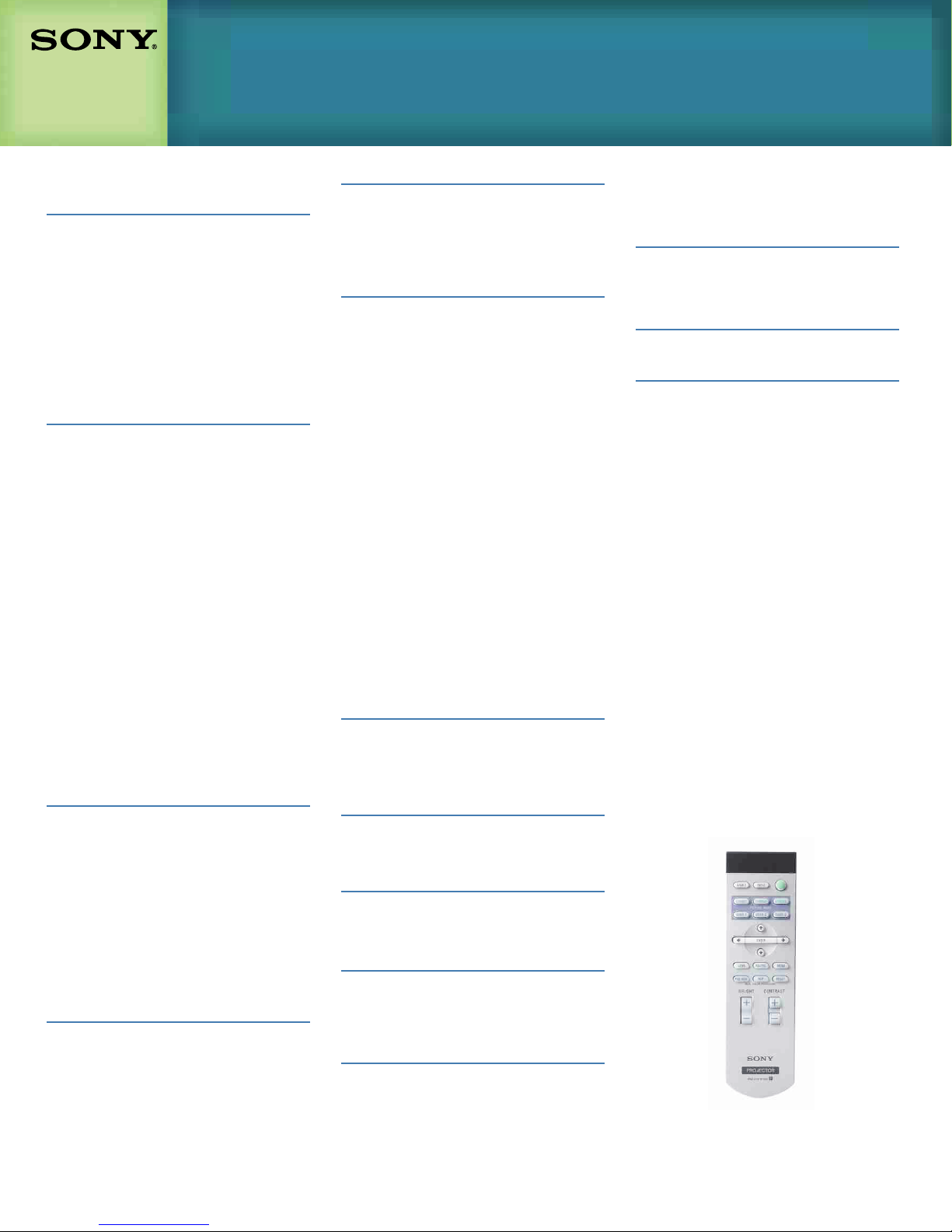

Remote Control (RM-PJVW100)
Instruction Manual
AC Cord
1
2
CD ROM Image Director 2)
Lens Cap
Size AA (R6) batteries x2
Optional Accessories
Ultra High Pressure Replacement Lamp (LMP-
H200)
Black Ceiling Mount (PSS-610)
White Ceiling Mount (PSS- H10)
Color: White
UPC Code: 027242694002
1.For supported resolutions andtiming please refer touser manual.
2.Limited to resolutions supportedby both the PCand the SonyTV.See
SonyTV users manual andPC documentation for supportedresolutions
©2006Sony Electronics Inc.
Sonyand SXRD are trademarksof Sony. This TVincorporates High -
DefinitionMultimedia Interface™ ( HDMI ™ ) technology.HDMI, the HMDIlogo
andHigh - DefinitionMultimedia Interface aretrademarksor registered
trademarksof HDMI Licensing LLC.All other trademarksarethe property of
theirrespective owners.
Featuresand specifications are subjectto change without notice.Non -
metricweights and measures areapproximate.
