About the Quick Reference Manual
US 2
This Quick Reference Manual explains the installation and basic operations for projecting pictures.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Refer to “About Indicators,” “Cleaning the Air Filter,” and “Cleaning,” as necessary.
For details on the operations, refer to the Operating Instructions contained in the supplied CD-ROM.
About the Quick Reference Manual
Installing the Unit................................................... Page 3
Adjusting .................................................................. Page 7
Connecting the Unit............................................ Page 10
Attaching the Covers.......................................... Page 11

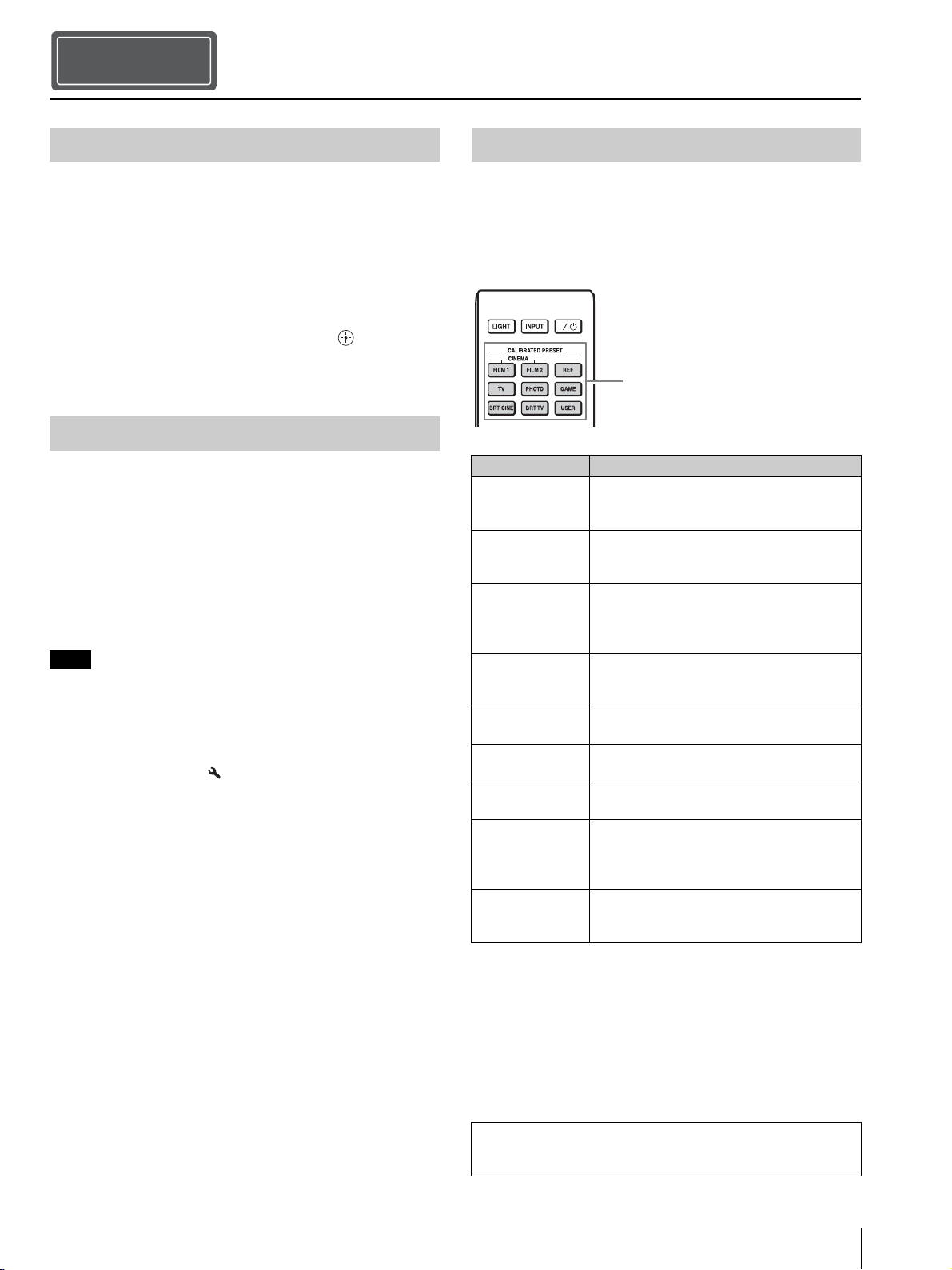

Projecting ............................................................... Page 13
Error Handling About Indicators....................................................................... Page 14

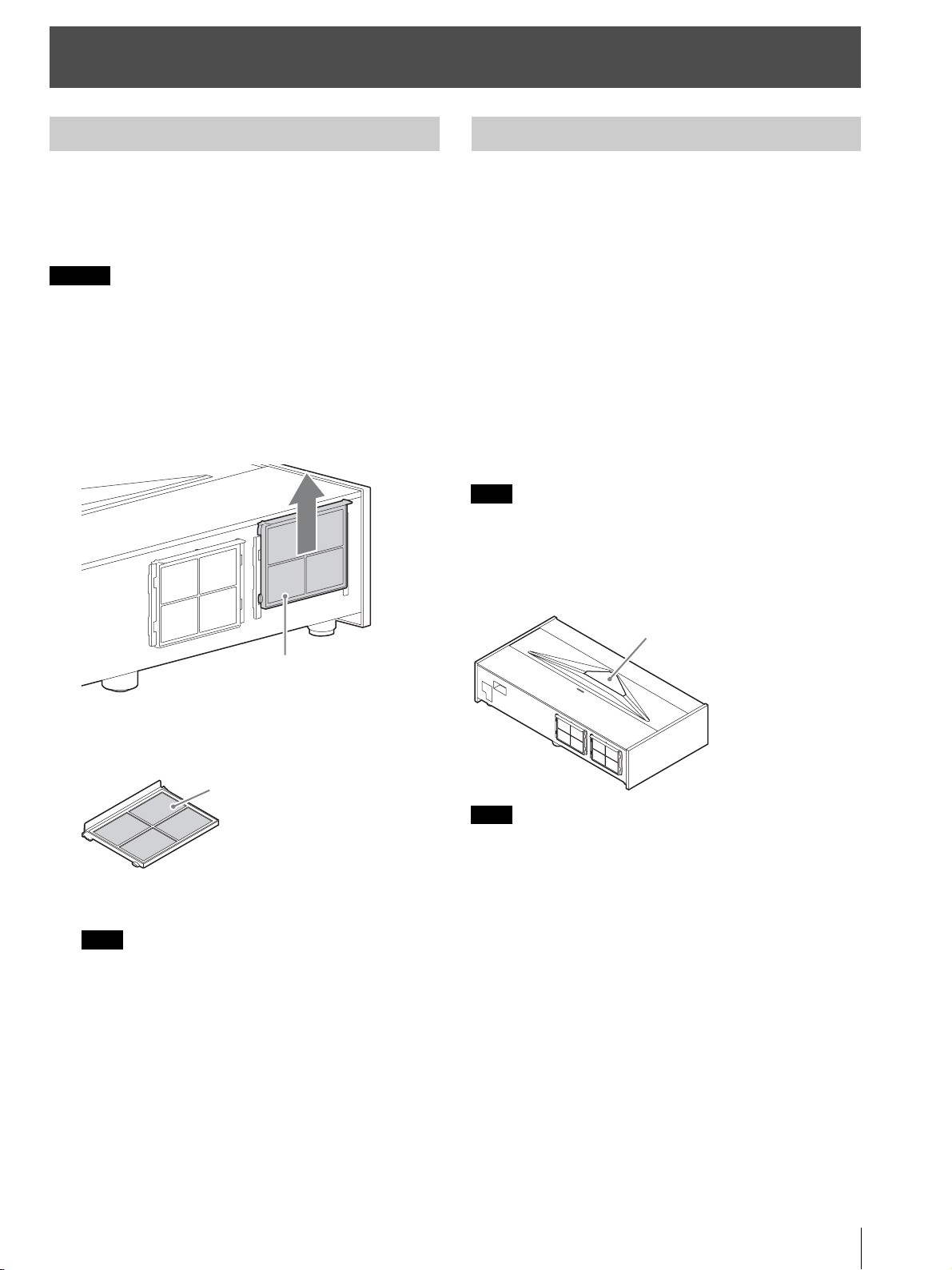

Maintenance Cleaning the Air Filter.............................................................. Page 15
Cleaning .................................................................................... Page 15
Step 1
Step 2
Step 3
Step 4
Step 5
Using the CD-ROM manual
The manual can be read on a computer with Adobe
Reader installed.
You can download Adobe Reader free from the Adobe
website.
1Open the index.html file in the CD-ROM.
2Select and click on the manual that you want to read.
If you have lost or damaged the CD-ROM, you can purchase a new
one from your Sony dealer or Sony service counter.
Adobe and Adobe Reader are trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
Note

Installing the Unit 3US
Check the carton to make sure it contains the following
items:
• Remote control RM-PJ28 (1)
• Size AA (R6) manganese batteries (2)
• AC power cord (1)
• Plug holder (1)
• Top cover (1)
• Side covers (2)
• Straps for side covers (2)
• Rivets for side covers (2)
• Cleaning cloth (1)
• Quick Reference Manual (this manual) (1)
• Safety Regulations (1)
• Operating Instructions (CD-ROM) (1)
Caution about handling the remote control
• Handle the remote control with care. Do not drop or step
on it, or spill liquid of any kind onto it.
• Do not place the remote control in a location near a heat
source, a place subject to direct sunlight, or a damp
room.

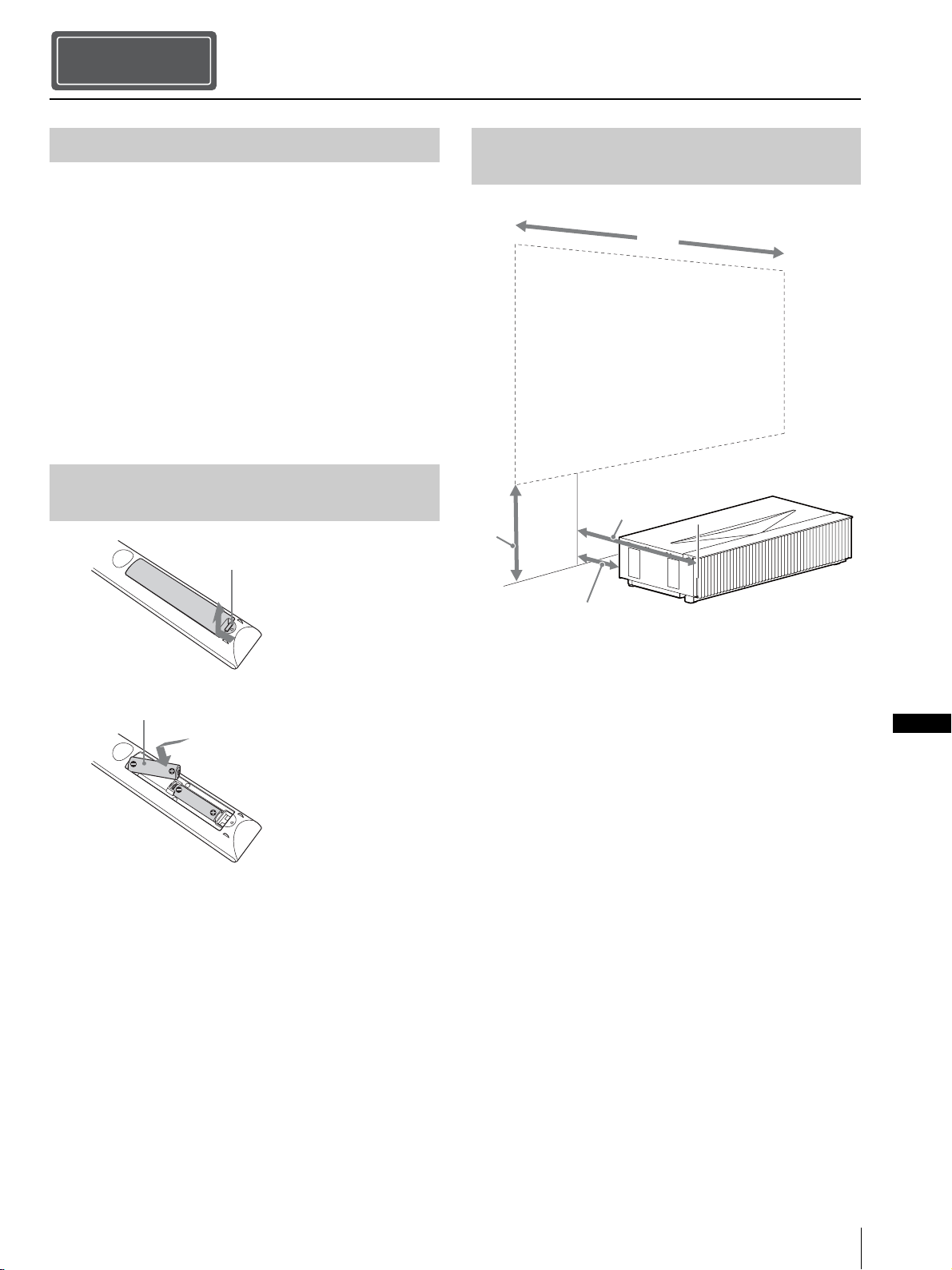

L1: Distance from a projection surface to the rear of the
unit
L2: Distance from a projection surface to the front of the
unit
H: Distance from the installation surface to the bottom of
the screen
W: Horizontal width of the screen
Installing the Unit
Step 1
Checking the Supplied Accessories
Inserting the Batteries into the
Remote Control
Push and slide to open.
Insert the batteries Eside first.
Installation Distance and Projection
Image Size
L2
L1
W
H
US

Installing the Unit
US 4
When projecting in 1.90:1 (Native Full Display 17:9) format
Formula 1 (calculates an installation distance from a
projection image size)
Unit: cm (inches)
Formula 2 (calculates a projection image size from an
installation distance)
Unit: cm (inches)
Formula 3 (calculates a distance from the installation
surface to the bottom of a projection image)
Unit: cm (inches)
Projection image size Installation distance Adjustment amount of picture
shift Adjustment amount of picture size
Diagonal
(D) Width × Height Bottom height (H)
From a
projection
surface to the
rear of the unit
(L1)
From a
projection
surface to the
front of the
unit (L2)
Horizontal
direction Vertical direction Horizontal direction Vertical direction
84-inch
(2.14 m) 1.89 m × 1.00 m (74 inches × 39
inches)
39.0 cm
(15.3 inches) 5.0 cm (2.0 inches) 52.0 cm (20.5 inches) +/_5.3 cm (+/_2.1 inches) +/_6.0 cm (+/_2.4 inches) +/_1.9 cm (+/_0.7 inches) +/_1.0 cm (+/_0.4 inches)
95-inch
(2.40 m) 2.13 m × 1.12 m (84 inches × 44
inches)
41.8 cm
(16.5 inches) 10.2 cm (4.0 inches) 57.2 cm (22.5 inches) +/_6.0 cm (+/_2.4 inches) +/_6.7 cm (+/_2.6 inches) +/_2.1 cm (+/_0.8 inches) +/_1.1 cm (+/_0.4 inches)
105-inch
(2.67 m) 2.36 m × 1.24 m (93 inches × 49
inches)
44.7 cm
(17.6 inches) 15.5 cm (6.1 inches) 62.5 cm (24.6 inches) +/_6.6 cm (+/_2.6 inches) +/_7.5 cm (+/_2.9 inches) +/_2.4 cm (+/_0.9 inches) +/_1.2 cm
(+/_0.5 inches)
116-inch
(2.94 m) 2.60 m × 1.37 m (102 inches × 54
inches)
47.6 cm
(18.7 inches) 20.7 cm (8.2 inches) 67.7 cm (26.7 inches) +/_7.3 cm (+/_2.9 inches) +/_8.2 cm (+/_3.2 inches) +/_2.6 cm (+/_0.9 inches) +/_1.4 cm (+/_0.6 inches)
126-inch
(3.21 m) 2.84 m × 1.49 m (112 inches × 59
inches)
50.4 cm
(19.9 inches) 26.0 cm (10.2 inches) 73.0 cm (28.7 inches) +/_8.0 cm (+/_3.1 inches) +/_9.0 cm (+/_3.5 inches) +/_2.8 cm (+/_1.1 inches) +/_1.5 cm (+/_0.6 inches)
1.90
1
Projection image size
L1 = 0.2219 × W - 36.9398 (L1 = 0.2219 × W - 14.5432)
L2 = 0.2219 × W + 10.0602 (L2 = 0.2219 × W + 3.9607)
From a projection surface to the rear of the unit
W = 4.5069 × L1 + 166.4916 (W = 4.5069 × L1 + 65.5479)
Projection image size
H = 0.1213 × W + 16.0372 (H = 0.1213 × W + 6.3139)

Installing the Unit 5US
When projecting in 1.78:1 (16:9) format
Formula 1 (calculates an installation distance from a
projection image size)
Unit: cm (inches)
Formula 2 (calculates a projection image size from an
installation distance)
Unit: cm (inches)
Formula 3 (calculates a distance from the installation
surface to the bottom of a projection image)
Unit: cm (inches)
Projection image size Installation distance Adjustment amount of picture
shift Adjustment amount of picture size
Diagonal
(D) Width × Height Bottom height (H)
From a
projection
surface to the
rear of the unit
(L1)
From a
projection
surface to the
front of the
unit (L2)
Horizontal
direction Vertical direction Horizontal direction Vertical direction
80-inch
(2.03 m) 1.77 m × 1.00 m (70 inches × 39
inches)
39.0 cm
(15.3 inches) 5.0 cm (2.0 inches) 52.0 cm (20.5 inches) +/_5.3 cm (+/_2.1 inches) +/_6.0 cm (+/_2.4 inches) +/_1.8 cm (+/_0.7 inches) +/_1.0 cm (+/_0.4 inches)
90-inch
(2.29 m) 1.99 m × 1.12 m (78 inches × 44
inches)
41.8 cm
(16.5 inches) 10.2 cm (4.0 inches) 57.2 cm (22.5 inches) +/_6.0 cm (+/_2.4 inches) +/_6.7 cm (+/_2.6 inches) +/_2.0 cm (+/_0.8 inches) +/_1.1 cm (+/_0.4 inches)
100-inch
(2.54 m) 2.22 m × 1.24 m (87 inches × 49
inches)
44.7 cm
(17.6 inches) 15.5 cm (6.1 inches) 62.5 cm (24.6 inches) +/_6.6 cm (+/_2.6 inches) +/_7.5 cm (+/_2.9 inches) +/_2.2 cm (+/_0.9 inches) +/_1.2 cm
(+/_0.5 inches)
110-inch
(2.79 m) 2.44 m × 1.37 m (96 inches × 54
inches)
47.6 cm
(18.7 inches) 20.7 cm (8.2 inches) 67.7 cm (26.7 inches) +/_7.3 cm (+/_2.9 inches) +/_8.2 cm (+/_3.2 inches) +/_2.4 cm (+/_0.9 inches) +/_1.4 cm (+/_0.6 inches)
120-inch
(3.05 m) 2.66 m × 1.49 m (105 inches × 59
inches)
50.4 cm
(19.9 inches) 26.0 cm (10.2 inches) 73.0 cm (28.7 inches) +/_8.0 cm (+/_3.1 inches) +/_9.0 cm (+/_3.5 inches) +/_2.7 cm (+/_1.1 inches) +/_1.5 cm (+/_0.6 inches)
1.78
1Video display area
Projection area
Projection image size
L1 = 0.2368 × W - 36.9638 (L1 = 0.2368 × W - 14.5527)
L2 = 0.2368 × W + 10.0362 (L2 = 0.2368 × W + 3.9512)
From a projection surface to the rear of the unit
W = 4.2226 × L1 + 156.0908 (W = 4.2226 × L1 + 61.4531)
Projection image size
H = 0.1295 × W + 16.0240 (H = 0.1295 × W + 6.3087)

Installing the Unit
US 6
The installation distance between the unit and a projection
surface varies depending on the projection size. Install this
unit so that it fits the desired projection size.
For customers
CAUTION
When mounting the projector to the ceiling or moving it to
a different location, do not do so by yourself.
For dealers
• When installing the unit on a ceiling, be sure to read
“Safety precautions for installing the unit on a ceiling” in
the Safety Regulations (supplied separately).
• When installing the unit on a ceiling, remove the feet
first, and follow the instructions below.
Screw diameter: M10
Fixing positions: 5 positions
Insertion length of screws: 10 mm - 50 mm (13/32 -
2 inches)
Recommended tightening torque: 1.3 - 1.5 N•m
1Position the unit so that the unit is parallel to the
projection surface.
Top view

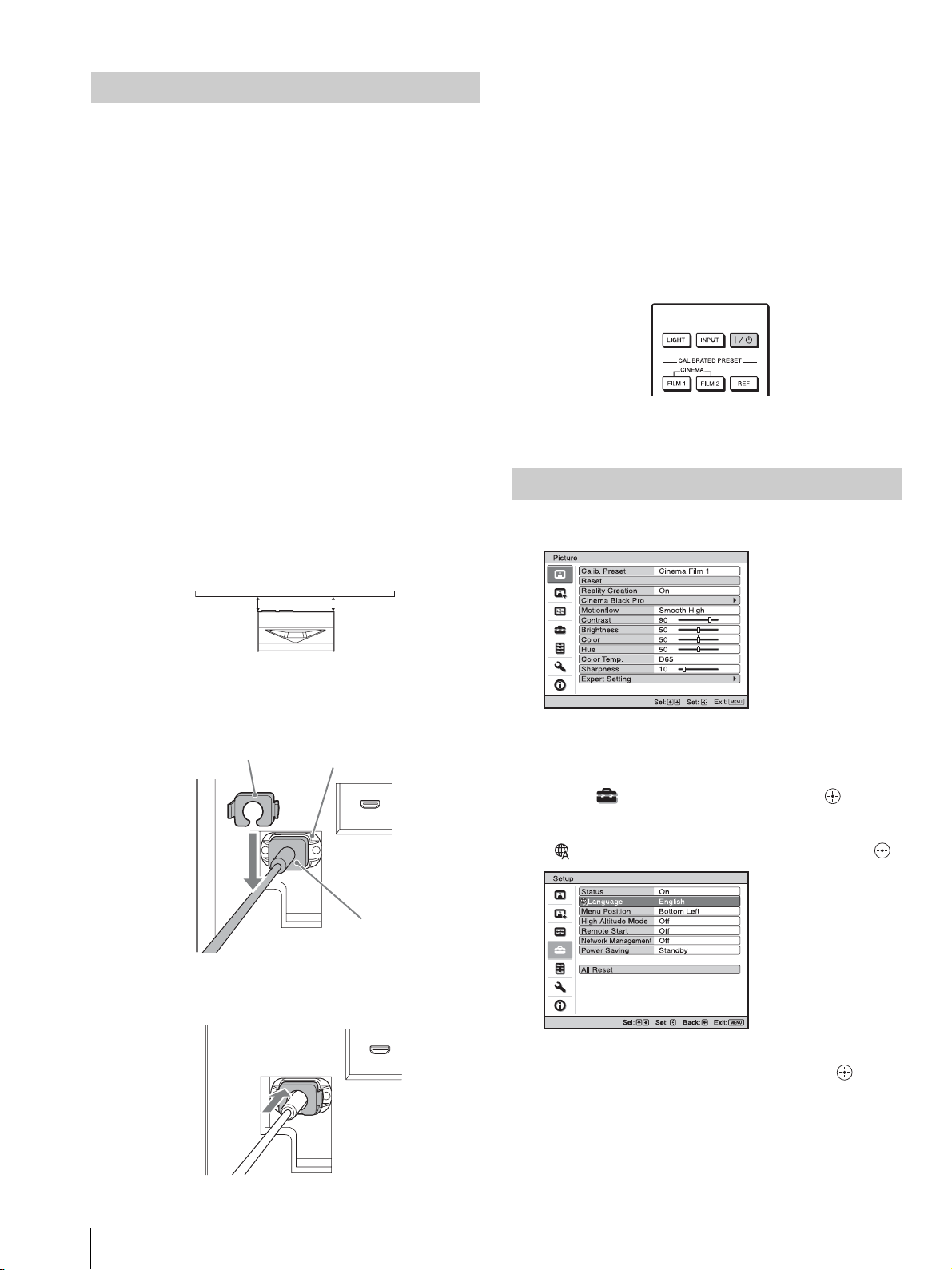

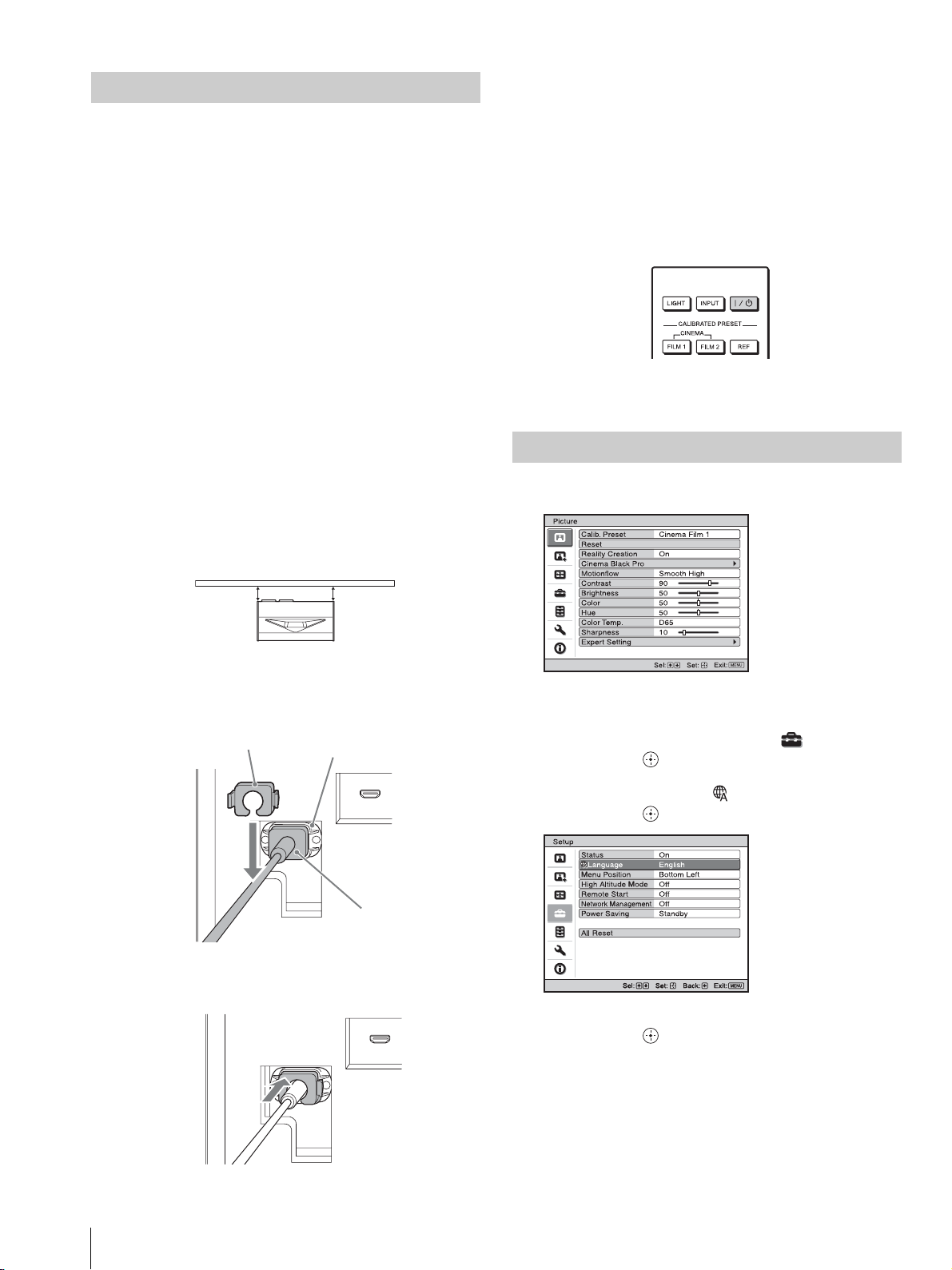

2Plug the AC power cord into the AC IN socket, then
attach the plug holder to the AC power cord.
3Slide the plug holder over the AC power cord to fix to
the unit.
4Plug the AC power cord into a wall outlet.
The unit goes into standby mode.
Tip
After connecting the AC power cord to the unit, the LED
indicator may blink.
You may not be able to control the unit while the indicator is
blinking, but this is not a malfunction. Wait until it stops
blinking.
5Press the ?/1(On/Standby) button to turn on the unit.
The LED indicator lights in white.
1Press MENU to display the menu.
2Select the menu language.
aPress M/mto select the Setup menu, then
press ,or .
bPress M/mto select “ Language,” then
press ,or .
cPress M/m/</,to select a language, then
press ,or .
3Press MENU to turn off the menu window.
Installing the Unit
ab
a = b
Projection surface
Plug holder (supplied) AC IN socket
AC power cord
(supplied)
Selecting the Menu Language
Setup
Status
Language
MenuPosition
High Altitude Mode
Remote Start
Network Management
Power Saving
All Reset
On
English
Bottom Left
Off
Off
Off
Standby

Adjusting 7US
Tip

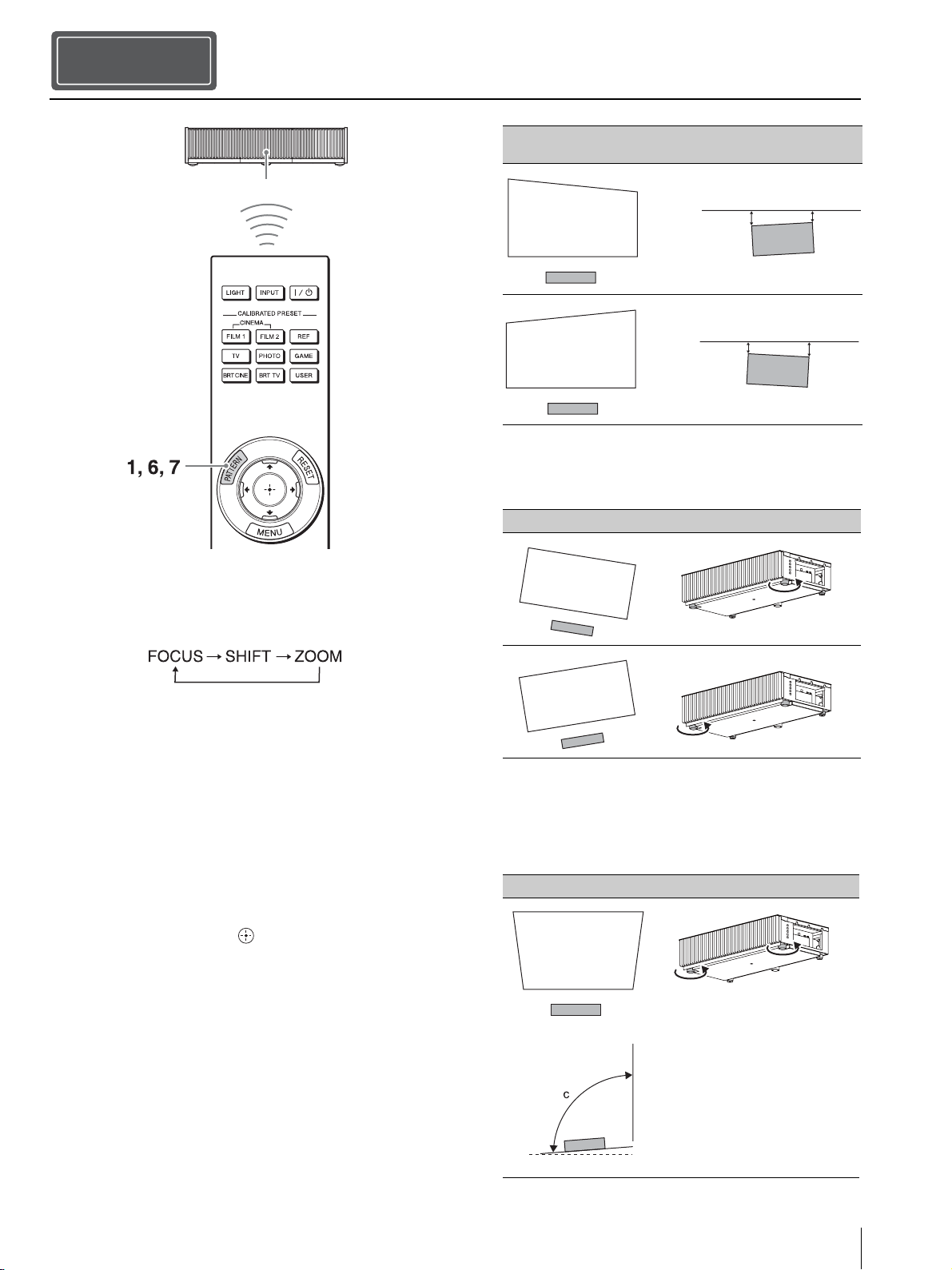

When adjusting the lens, each time you press the PATTERN button
of the remote control or the LENS button on the unit, the lens
adjustment function switches as follows.
1Press the PATTERN button to display the Lens Focus
adjustment window, and adjust the focus of the picture
by pressing the M/m/</, buttons.
Tips
• The factory default for focus has been adjusted to the 100-
inch screen. Make fine adjustments according to the screen
size and installing position.
• Adjust by checking the entire test pattern. The amplitude of
the pattern focus on the top of the picture becomes large with
the ultra short focus projector.
• If you press the RESET button on the remote control while
the Lens Focus adjustment window is displayed, the focus
setting returns to the factory default.
• Whenever you press the button, the test pattern
disappears.

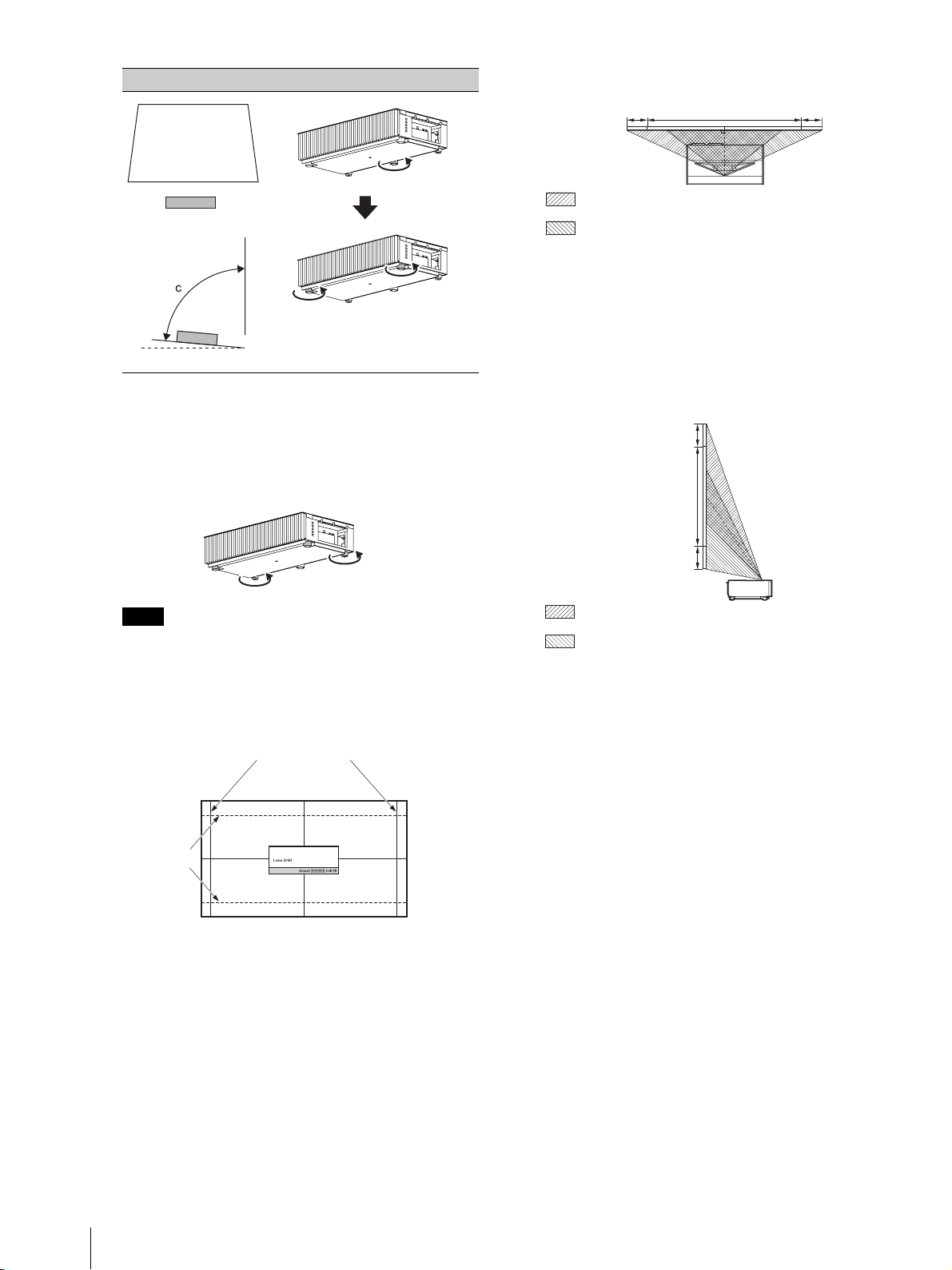

2Check if the upper side and lower side of the picture
are parallel.
If not, install the unit in a position parallel to the
projection surface (a=b).
3Check if the lower side of the picture is horizontal.
If not, use the left/right feet (adjustable) to keep the
unit level. For details on adjusting the feet, see page 9.
4Check if the left side and right side of the picture are
vertical.
If not, use the feet (adjustable) to keep the unit vertical
to the projection surface. For details on adjusting the
feet, see page 9.
Adjusting
Step 2
Remote control detector
Image distortion Installation state to the projection surface
(Top view)
Image distortion Feet adjustment
Image distortion Feet adjustment
ab
a > b
ab
a < b
c > 90°
Side view

Adjusting
US 8
If the frame of the projection surface is rectangle and
parallel to the floor, adjustment is completed.
Tip
If the picture remains distorted, repeat step 2and 3.
5Adjust the feet for preventing backlash to the floor.
The picture may be distorted if you turn the feet for preventing
backlash too much.
6Press the PATTERN button to display the Lens Shift
adjustment window, and adjust the picture position by
pressing the M/m/</,buttons.
Tip
If you press the RESET button on the remote control while the
Lens Shift adjustment window is displayed, the picture
position returns to the center of the lens (factory default
position).
To adjust the horizontal position
When pressing the </,button, the picture
projected on the screen moves right or left by a
maximum of 3% of the screen width from the center
of the lens.
Top view
* For 17:9 display, the range of movement will be +/_2.8%.
To adjust the vertical position
When pressing the M/mbutton, the picture projected
on the screen moves up or down by a maximum of 6%
of the screen height from the center of the lens.
Side view
7Press the PATTERN button again to display the Lens
Zoom adjustment window. Then adjust the size of the
picture by pressing the M/m/</,buttons.
To make the picture larger, press M/,.
To make the picture smaller, press m/<.
Note
Image distortion Feet adjustment
c < 90°
Side view
Adjust the foot
near the rear
side so that it is
longer.
Adjust the
height with the
feet near the
front side.
1.78:1 (16:9)
2.35:1
The dashed lines show the screen sizes of
each aspect ratio.
3%* 3%*1 screen width
: Picture position when moving the picture to the left at
maximum
: Picture position when moving the picture to the right at
maximum
6%
6%
1 screen
height
: Picture position when moving the picture upward at
maximum
: Picture position when moving the picture downward at
maximum

Adjusting 9US
Adjusting the height of the feet
You can adjust the height and tilt of the unit using the three
feet at the bottom of the unit, and prevent backlash of the
unit using the two feet.
Tips
• The feet for adjusting the tilt can be adjusted by 1.5 mm with every
full turn.
• The left and right feet near the rear side can be used to prevent the
backlash. You can adjust these feet to the same height as the feet
for adjusting the tilt.
• Be careful not to get your finger caught when turning the feet for
adjusting the tilt or feet for preventing backlash.
• You can adjust the foot height up to 20 mm. If the foot height is
more than 30 mm, the foot may come off and the unit may drop
causing an injury.
Notes
Foot
height
Foot
height
Foot for adjusting
the tilt Foot for preventing backlash

Connecting the Unit
US 10
When making connections, be sure to do the following:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor picture quality. When
pulling out a cable, be sure to pull it out from the plug, not the cable itself.
• Refer to the operating instructions of the connected equipment.
• Use a High Speed or Premium High Speed HDMI cable on which the cable type logo is specified. With a standard HDMI cable, images of
1080p, DeepColor, 3D video and 4K video may not be displayed properly.
• When you want to display a picture in a more detailed HDMI format, use the “Premium High Speed” type.
• When connecting an HDMI cable to the unit, make sure the Vmark on the upper part of the HDMI input of the unit and the vmark on the
connector of the cable are faced at each other.
• If the picture from equipment connected to the unit with an HDMI cable is not correct, check the settings of the connected equipment.
• If you use a notebook computer and set the computer to output the signal to both the computer’s display and an external monitor, the picture
may not appear on the unit properly. Set your computer to output the signal to only the external monitor. For settings of the computer, consult
with the manufacturer of the computer.
Connecting the Unit
Connecting to Video Equipment or a Computer
Notes
Step 3
Right side of the unit
Equipment with HDMI
output connectors
to HDMI
output
HDMI cable (not supplied)
Computer
Rear side of the unit
: Video signal flow
AV amplifier Speakers
to HDMI input
to HDMI input
