Sony VPL-X600U Mk II User manual

3-862-352-13 (3)
VPL-X600U
VPL-X600E
VPL-X600M
Operating Instructions
LCD Data Projector
EN

2(EN)
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
English WARNING
This label is located on the
rear of the Remote
Commander.
This label is located on the
rear of the Remote
Commander.
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
RAYONNEMENT LASER
NE PAS REGARDER DANS LE FAISCEAU
APPAREIL A LASER DE CLASSE 2
LASER–STRAHLING
NIGHT IN DEN STRAHL BLICKEN
LASER KLASSE 2
MAX OUTPUT:1mW
WAVE LENGTH:645nm
LASER RADIATION
DO NOT STARE INTO BEAM
WAVE LENGTH:645nm
MAX OUTPUT:1mW
CLASS II LASER PRODUCT
COMPLIESWITH DHHS 21 CFR
SUBCHAPTER J
SONY CORPORATION
6-7-35 KITASHINAGAWA
SHINAGAWA-KU,TOKYO,JAPAN
A
MANUFACTURED;
CAUTION
AVOID EXPOSURE- LASER
RADIATION IS EMITTED
FROM THIS APERTURE.
This label is located on the
rear of the Remote
Commander.
Laser light shines out of this window.
For the customers in the USA
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Caution
use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
Notes
• Do not aim the laser at people or not look into the laser
transmitter.
• When the Remote Commander causes mulfunction, consult
with qualified Sony personnel. We change the Remote
Commander as new one according to the guarantee.
For the customers of VPL-X600E/X600M
For the customers of VPL-X600U
This label is located on the
side of the Remote
Commander.

3(EN)
For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-
003.
For the customers in the United Kingdom
WARNING
THIS APPARATUS MUST BE EARTHED
IMPORTANT
The wires in this mains lead are coloured in accordance with
the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol Yor coloured green or
green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
Voor de klanten in Nederland
Bij dit produkt zijn batterijen geleverd. Wanneer
deze leeg zijn, moet u ze niet weggooien maar
inleveren als KCA.
The socket-outlet should be installed near the equipment
and be easily accessible.

5(EN)
Table of Contents
English
EN
Overview
Precautions ................................................................6 (EN)
Features......................................................................8 (EN)
Location and Function of Controls..........................9 (EN)
Front..........................................................................9 (EN)
Rear .........................................................................13 (EN)
Remote Commander ...............................................15 (EN)
Setting up and projecting
Installing the Projector............................................17 (EN)
Connecting...............................................................18 (EN)
Connecting with a Computer ..................................18 (EN)
Connecting with a VCR..........................................20 (EN)
Connecting 15k RGB/Component Equipment .......21 (EN)
Projecting .................................................................22 (EN)
Adjustments and settings using the menu
Using the MENU.......................................................25 (EN)
The PICTURE CTRL Menu ......................................26 (EN)
The INPUT SETTING Menu .....................................28 (EN)
The SET SETTING Menu .........................................31 (EN)
Installation
Installation Examples..............................................33 (EN)
Floor Installation.....................................................33 (EN)
Ceiling Installation..................................................34 (EN)
Unsuitable Installation ............................................35 (EN)
Notes on Installation ...............................................36 (EN)
Maintenance
Maintenance.............................................................37 (EN)
Note on the Time to Replace the Lamp ..................37 (EN)
Cleaning the Air Filter ............................................37 (EN)
Troubleshooting ......................................................38 (EN)
Other
Specifications ..........................................................40 (EN)
Index .........................................................................46 (EN)

6(EN)
On safety
•Check that the operating voltage of your unit is identical with the voltage
of your local power supply. If voltage adaptation is required, consult with
qualified Sony personnel.
•Should any liquid or solid object fall into the cabinet, unplug the unit and
have it checked by qualified personnel before operating it further.
•Unplug the unit from the wall outlet if it is not to be used for several
days.
•To disconnect the cord, pull it out by the plug. Never pull the cord itself.
•The wall outlet should be near the unit and easily accessible.
•The unit is not disconnected to the AC power source (mains) as long as it
is connected to the wall outlet, even if the unit itself has been turned off.
•Do not look into the lens while the lamp is on.
•Do not aim the laser at people or not look into the laser transmitter.
•Do not place your hand or objects near the ventilation holes — the air
coming out is hot.
•When the projector is mounted on the ceiling, the Sony PSS-600
Projector Suspension Support must be used for installation.
•Be careful not to catch your fingers by the adjusters when you lift up the
projector. Do not push hard on the top of the projector with the adjusters
out.
On illumination
•To obtain the best picture, the front of the screen should not be exposed
to direct lighting or sunlight.
•Ceiling-mounted spot lighting is recommended. Use a cover over
fluorescent lamps to avoid lowering the contrast ratio.
•Cover any windows that face the screen with opaque draperies.
•It is desirable to install the projector in a room where floor and walls are
not of light-reflecting material. If the floor and walls are of reflecting
material, it is recommended that the carpet and wall paper be changed to
a dark color.
On preventing internal heat build-up
After you turn off the power with the I / u key on the Remote Commander
or on the control panel, do not disconnect the unit from the wall outlet
while the cooling fan is still running.
Caution
The projector is equipped with ventilation holes (intake) at the bottom and
ventilation holes (exhaust) on the front. Do not block or place anything
near these holes, or internal heat build-up may occur, causing picture
degradation or damage to the projector.
Precautions

7(EN)
On cleaning
•To keep the cabinet looking new, periodically clean it with a soft cloth.
Stubborn stains may be removed with a cloth lightly dampened with a
mild detergent solution. Never use strong solvents, such as thinner,
benzene, or abrasive cleansers, since these will damage the cabinet.
•Avoid touching the lens. To remove dust on the lens, use a soft dry cloth.
Do not use a damp cloth, detergent solution, or thinner.
•Clean the filter at regular intervals.
On repacking
•Save the original shipping carton and packing material; they will come in
handy if you ever have to ship your unit. For maximum protection,
repack your unit as it was originally packed at the factory.
Overview

8(EN)
Features
High brightness, high picture quality
•High brightness
Adopting the new developed optical system and the 120 W UHP lamp
allow high brightness (light output 600 ANSI lumen) and excellent
uniformity on the picture.
•High resolution
By adopting three 1.3-inch, about 790,000-pixel XGA panels, this
projector offers resolution of 1024 ×768 dots for RGB input and 750
horizontal TV lines for video input.
Simple setup
•Sony original APA (Auto Pixel Alignment) function
You can get the clearest picture automatically by simply pressing the
APA key when the signal is input from a computer.
•Simple setup with external equipment
This projector has 37 kinds of preset data for input signals. You can get a
suitable picture by connecting an equipment with supplied cable and
pressing the APA key.
Easy presentation
•Remote Commander with mouse control and laser pointer functions
You can operate a computer with the Remote Commander since the unit
has a build-in mouse receiver. For your presentation, you can use the
laser pointer built in the Remote Commander as well.
•High portability
This projector has come to miniaturized to 5.8 kg (12 lb 13 oz) of mass
and 12 cm (4 3/4 inches) of height. With such a feature, a carrying handle
and a front cover to keep the Remote Commander contribute to a
convenient carrying.
Accepts various input signals
•Scan converter loaded
This projector has a build-in scan converter which converts the input
signal within 1024 ×768 dots.
•Compatible input signals
This projector accepts video signals of the composite, S video, and
component as well as the 15 k RGB, VGA1), SVGA1) XGA1), and SXGA1)
signals, which all can be displayed.
•Compatible with five color systems
NTSC, PAL, SECAM, NTSC 4.432), or PAL-M color system can be
selected automatically or manually.
Note on the VPL-X600E model
The optional IFB-X600E Interface Board is required for video composite
input.
..........................................................................................................................................................................................................
1) VGA, SVGA, XGA, and SXGA are registered trademarks of the International Business Machines Corporation,
U.S.A.
2) NTSC4.43 is the color system used when playing back a video recorded on NTSC on a NTSC4.43 system VCR.

9(EN)
Location and Function of Controls
Front
1Front cover
Installs the Remote Commander in the back of the
front cover.
2Front adjuster button
3Lens
Remove the front cover and the lens cap before
projection.
4Focus ring
Adjusts the picture focus.
5Ventilation holes (bottom / intake)
6Zoom ring
Adjusts the size of the picture.
7Front adjuster
Used to keep the projector level if it is installed on an
uneven surface.
For details on how to use the adjusters, see “How to use the
adjusters” on page 10 (EN).
8Front remote control detector
9Ventilation holes (exhaust)
Notes
•Do not place anything near the ventilation holes as it
may cause internal heat build-up.
•Do not place your hand or objects near the ventilation
holes — the air coming out is hot.
!º Lamp cover (bottom)
!¡ Carrying handle
Used for carrying the projector.
!™ Security lock
Connects to an optional security cable (Kensington’s).
!£!¢!∞
3
1
4
2
6
!¡ !™
87
09
5
The security lock corresponds to Kensington’s
MicroSaver Security System.
If you have any comment, contact
Kensington
2853 Campus Drive, San Mates, CA 94403
U.S.A.
Tel: [phone]: extension 3348
Home page address: http://www.kensington.com/

10(EN)
Location and Function of Controls
!£ Speakers
!¢ Control panel
For details, see “Control panel” on page 11 (EN).
!∞ Lens hood
How to use the carrying handle
Pull up the handle from the projector for carrying.
How to attach the front cover
Attach the front cover on the front cabinet by
stretching out both right and left sides on the front
cover.
Notes
• Do not plug or turn on the projector when the front
cover is attached.
• Do not hold the front cover when you carry the
projector.
How to remove the front cover
Remove the front cover from the front cabinet by
stretching out both right and left sides on the front
cover.
How to install the Remote Commander in
the front cover
Install the Remote Commander in the back of the front
cover and fix it with the velcro tapes. When housing
the Remote Commander, make sure that the infrared
transmitter faces outside and rear faces upwards.
Note
Set the COMMAND ON/OFF switch on the Remote
Commander to OFF before installing the Remote
Commander.

11(EN)
Control panel
ON
I / u
INPUT
MENU
+
VOLUME
–
LIGHT
PATTERN
APA
RESET
B
v
V
b
ENTER
POWER
SAVINGSTANDBYTEMP/FANLAMP/COVER
01
2
3
4
5
!¡
9
8
7
6
1 I /u ( on / standby ) key
Turns on and off the projector when the projector is in
the standby mode. The ON indicator lights in green
when the power is turned on.
When turning off the power, press the
I /u key
twice following the message on the screen, or press
and hold the key for about one second.
For details on steps for turning off the power, see “To turn off
the power” on page 24 (EN).
2INPUT key
Selects the input signal. Each time you press the key,
the input signal switches as follows:
nVIDEO IN/AUDIO IN
INPUT B NINPUT A N
(Continued)
Note on the VPL-X600E model
The optional IFB-X600E Interface Board is required
for VIDEO IN and AUDIO IN jacks.
3MENU key
Displays the on-screen menu. Press again to clear the
menu.
4Arrow keys (V/v/B/b)
Used to select the menu or to make various
adjustments.
To raise
the projector
To lower
the projector
Front adjuster button
As for the rear adjusters, turn them for adjustment.
Notes
• Be careful not to let the projector down on your fingers.
•Do not push hard on the top of the projector with the
adjusters out.
•Do not force the rear adjusters when you turn them.
Using too much force may result in damage.

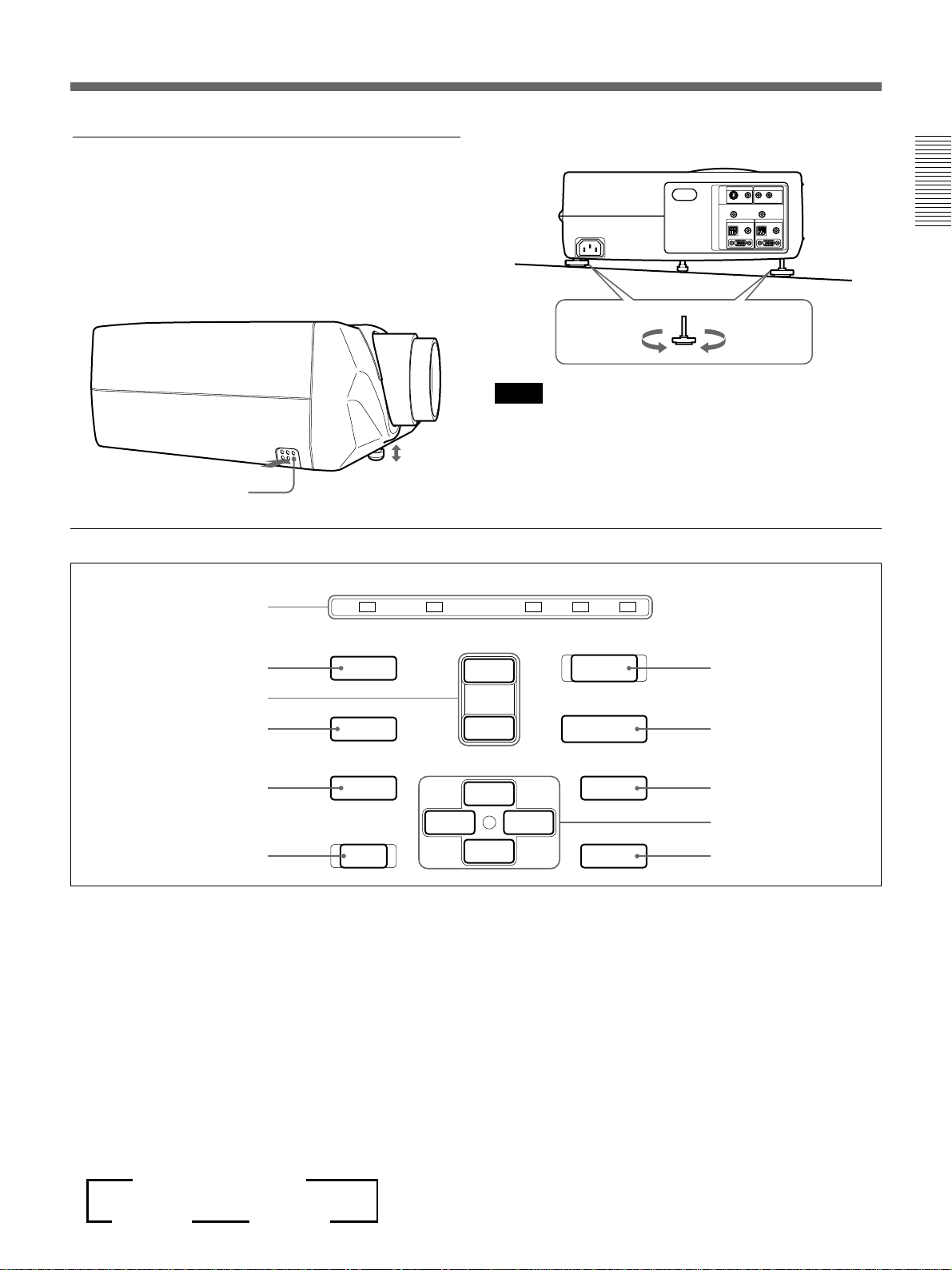

How to use the adjusters
While lifting the projector, adjust the height so that the
projector becomes level.
There are one adjuster at the front and two at the rear
of the projector.
As for the front adjuster, press the front adjuster
button while lifting the projector to adjust the height.
Turn the front adjuster for fine adjustment.

12(EN)
Location and Function of Controls
5ENTER key
Enters the settings of items in the menu system.
6RESET key
Resets the value of an item back to its factory preset
value. This key functions when the menu or a setting
item is displayed on the screen.
7APA
( Auto Pixel Alignment ) key
Adjusts a picture to be projected clearest automatically
while a signal from the computer is input.
8PATTERN key
Displays an H pattern on the screen for focus, zoom
adjustments. Press again to clear the pattern.
9VOLUME +/– keys
Adjust the volume of the built-in speakers and output
level of the AUDIO OUT jacks.
+ : Increases the volume.
– : Decreases the volume.
!º LIGHT key
Lights the back lighting (orange) for the keys on the
control panel when the power is turned on. Press again
to turn off the back lighting.
!¡ Indicators
ON: Lights in green when the power is turned on.
Flashes in green while the cooling fan runs after
turning off the power with the
I / u key. The fan
runs for about 90 seconds after turning off the
power.
The ON indicator flashes quickly for the first 30
seconds.
During this time, you cannot turn the power back
on with the
I / u key.
POWER SAVING: Lights up when the projector is
in the power saving mode. When POWER
SAVING in the SET SETTING menu is set to
ON, the projector goes into the power saving
mode if no signal is input for 10 minutes.
Although the lamp goes out, the cooling fan keeps
running. In the power saving mode, any key does
not function for the first 30 seconds. The power
saving mode is canceled when a signal is input or
any key is pressed.
STANDBY: Lights in red when the AC power cord
is plugged into the wall outlet.
Once in the standby mode, you can turn on the
projector with the
I / u key on the Remote
Commander or on the control panel.
TEMP (Temperature)/FAN: Lights up or flashes
under the following conditions:
• Lights up when temperature inside the projector
becomes unusually high.
• Flashes when the fan is broken.
LAMP/COVER: Lights up or flashes under the
following conditions:
• Lights up when the lamp has reached the end of
its life.
• Flashes when the lamp cover or air filter cover is
not secured firmly.
For details on the LAMP/COVER and the TEMP/FAN
indicators, see page 39 (EN).

13(EN)

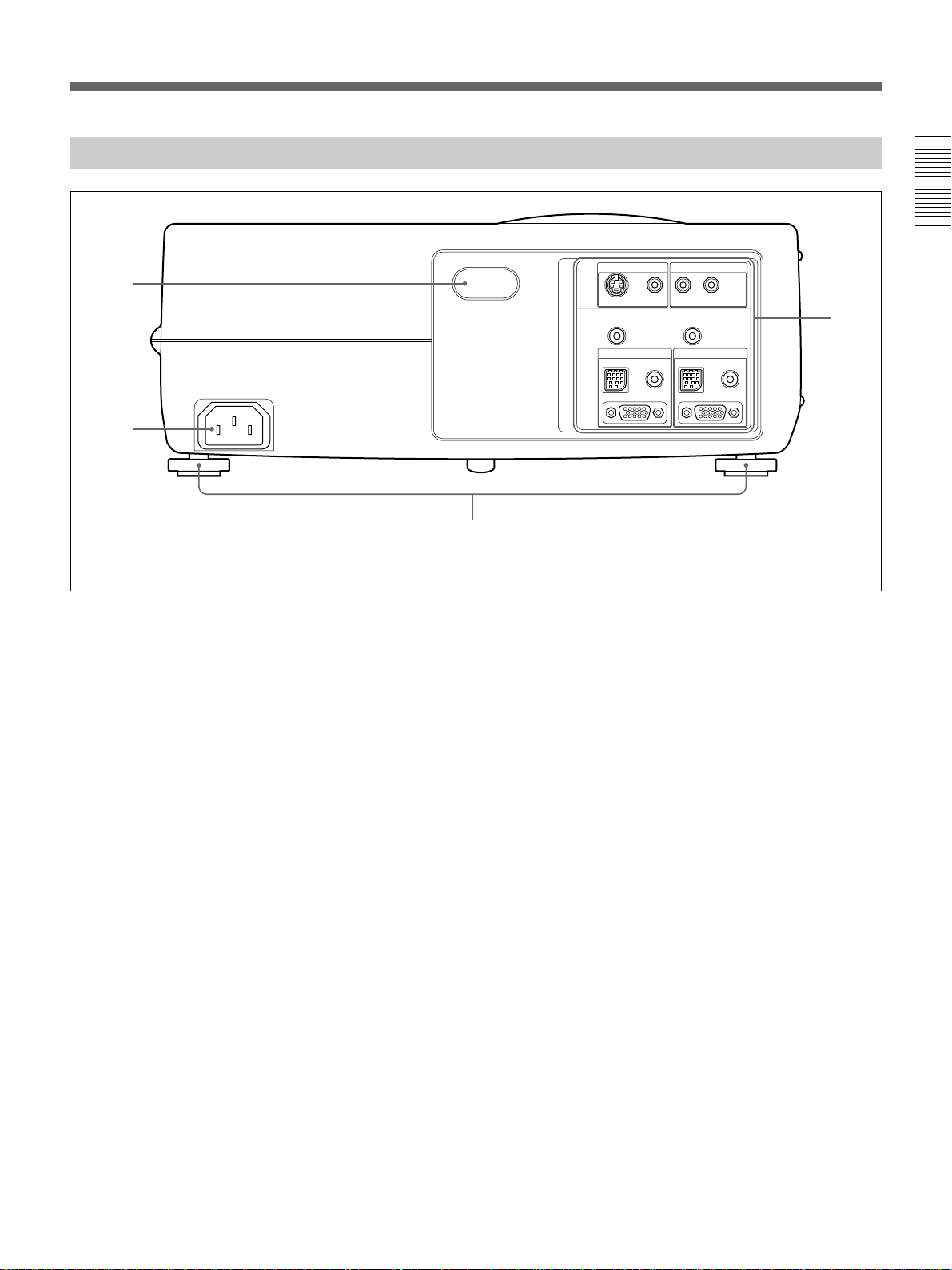

1Rear remote control detector
2AC IN socket
Connects the supplied AC power cord.
3Rear adjusters
Used to keep the projector level if it is installed on an
uneven surface.
For details on using the adjusters, see “How to use the
adjusters” on page 10 (EN) .
4Connector panel
For details, see page 14 (EN).
Rear
VIDEO IN
INPUT A
MOUSE AUDIO
S VIDEO
AUDIO OUT
INPUT B
MOUSE AUDIO
CONTROL S IN
PLUG IN POWER
VIDEO L
(MONO)
R
AUDIO IN
3
4
1
2
The illustration above is the VPL-X600U/M model.

14(EN)

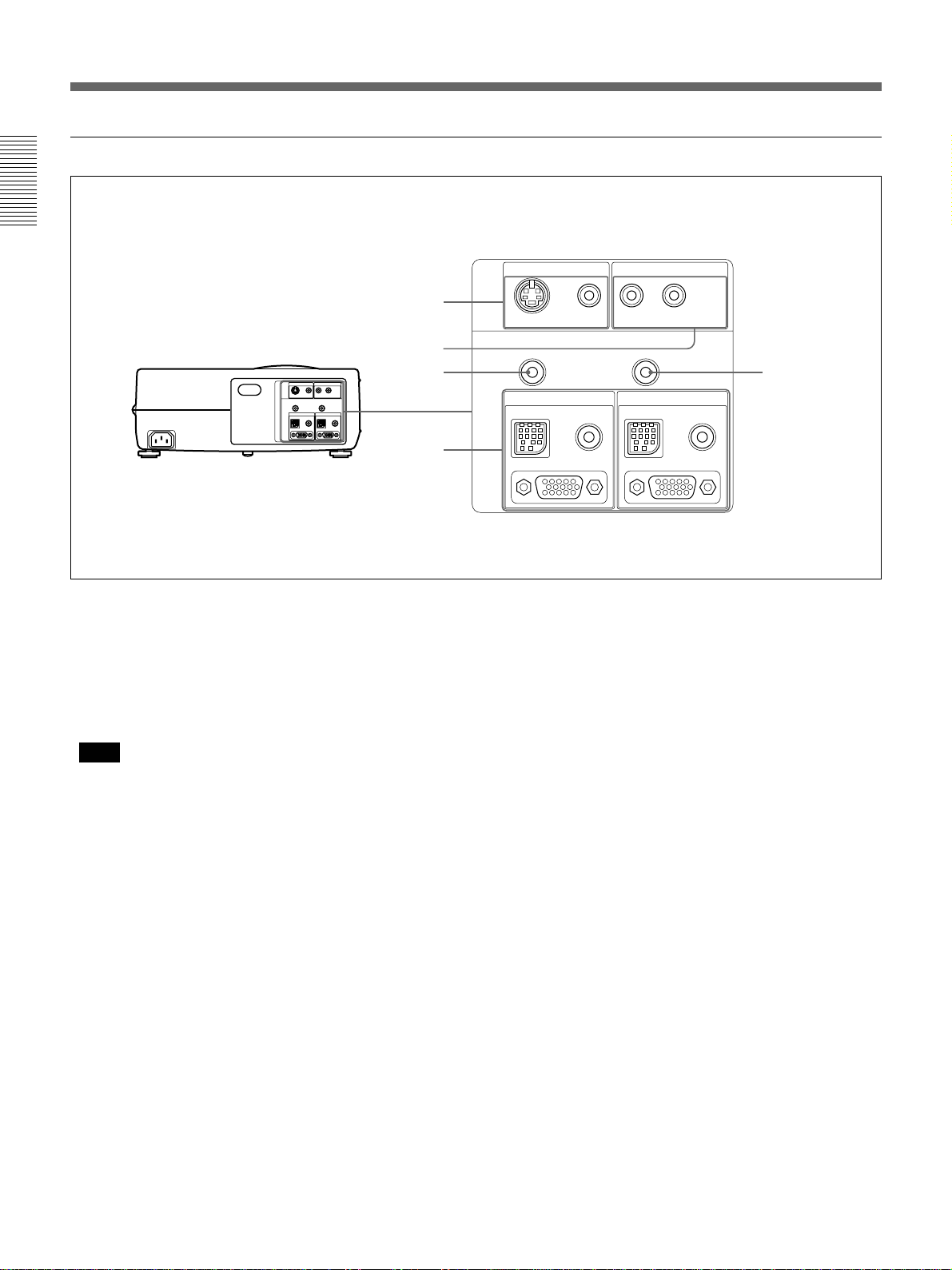

Connector panel
1VIDEO IN jacks
Connect to external video equipment such as a VCR.
S VIDEO (mini DIN 4-pin): Connects to the S video
output (Y/C video output) of a video equipment.
VIDEO (phono type): Connects to the composite
video output of video equipment.
Note
If you connect video equipment to both the S VIDEO
and VIDEO jacks, the signal from the S VIDEO jack
is selected. When projecting the picture via the
VIDEO jack, be sure not to connect a cable to the S
VIDEO jack.
2AUDIO IN L (MONO)/R jacks (phono type)
Connect to the audio output of equipment. For stereo
equipment, use both the L and R jacks; for monaural
equipment, use the L (MONO) jack only.
3AUDIO OUT jack (stereo minijack)
Connects to external active speakers.
The volume of the speakers can be controled by the
VOLUME keys on the Remote Commander or the
control panel.
4INPUT A/INPUT B connectors
Connect to external equipment such as a computer.
You can control the mouse signal with the Remote
Commander.
MOUSE (13-pin): Connects to the mouse port on a
computer to control the mouse function using the
supplied mouse cable.
AUDIO (stereo minijack): Connects to the audio
output on a computer to input the audio signal.
RGB input (HD D-sub 15-pin, female): Connects to
the monitor output on a computer using the
supplied cable. When inputting a component, or
15k RGB signal, use the optional cable.
5CONTROL S IN/PLUG IN POWER jack
(DC 5 V output, stereo minijack)
Connects to the CONTROL S OUT jack on the
supplied Remote Commander with the stereo
connecting cable (not supplied) when using it as a
wired Remote Commander. You do not need to install
the batteries since the power is supplied via this jack.
Batteries are required when you use the laser pointer
function.
Note on the VPL-X600E model
The optional IFB-X600E Interface Board is required
for the VIDEO IN 1and AUDIO IN 2jacks.
Location and Function of Controls
VIDEO IN
INPUT A
MOUSE AUDIO
S VIDEO
AUDIO OUT
INPUT B
MOUSE AUDIO
CONTROL S IN
PLUG IN POWER
VIDEO L
(MONO)
R
AUDIO IN
5
1
3
4
2
Rear
The illustration above is the VPL-X600U/M model.

15(EN)
The Remote Commander can be used as a wireless or
wired Remote Commander.
The keys which have the same names as on the control
panel function identically.
You can control a connected computer using the
Remote Commander.

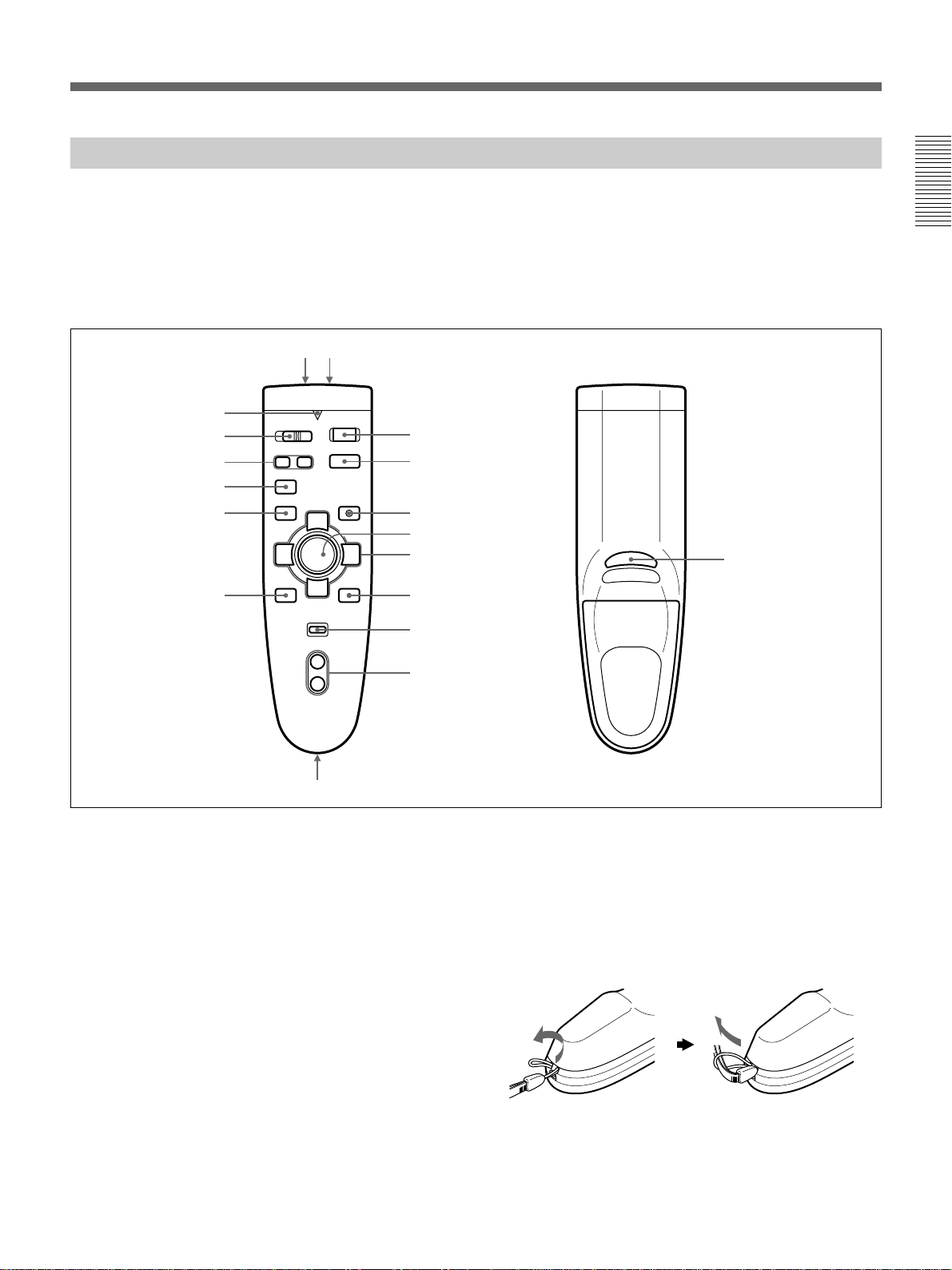

Remote Commander
For details, see “Connecting with a Computer” on page
18 (EN).
Notes on laser beam
•Do not look into the laser transmitter.
•Do not aim the laser at people.
1 I /u key
2INPUT key
3LASER key
Emits laser beam from the laser transmitter when you
press this key.
4Joy stick
Functions as a mouse of a computer connected to the
unit.
5Arrow keys (V/v/B/b)
6R CLICK key
Functions as a right button on a mouse. When
connected to a Macintosh1) computer, the R CLICK
key functions as a mouse button.
Front Rear
1) Macintosh is a registered trademark of Apple Computer, Inc.
..........................................................................................................................................................................................................
7RESET key
8VOLUME +/– keys
9Strap holder
Attaches the supplied strap.
(Continued)
COMMAND
MUTING
I / u
INPUT
APA
MENU LASER
V
bB
v
ENTER
RESET
VOLUME
+
–
R CLICK
PICTUREAUDIO
ONOFF
1
2
3
5
7
6
8
4
!¡
!™
!£
!¢
!∞
!§
!¶ !•
9, 0
!ª

16(EN)
Location and Function of Controls
!º CONTROL S OUT jack (stereo minijack)
Connects to the CONTROL S IN jack on the projector
with the connecting cable (not supplied) when using
the Remote Commander as a wired one. In this case,
you do not need to install the batteries since the power
is supplied via the CONTROL S IN jack on the
projector.
!¡ ENTER key
!™ MENU key
!£ APA (Auto Pixel Alignment) key
!¢ MUTING keys
Cut off the picture and sound.
PICTURE: Cuts off the picture. Press again to
restore the picture.
AUDIO: Cuts off the sound from speakers and
AUDIO OUT jack. Press again or press the
VOLUME + key to restore the sound.
!∞ COMMAND ON/OFF switch
When this switch is set to OFF, no key on the Remote
Commander function. This saves the battery power.
!§ Transmission indicator
Lights up when you press a key on the Remote
Commander.
This indicator does not light up when you use the laser
pointer.
!¶ Infrared transmitter
!• Laser transmitter
!ª L CLICK key
Functions as a left button on a mouse. When connected
to a Macintosh computer, the L CLICK key functions
as a mouse button.

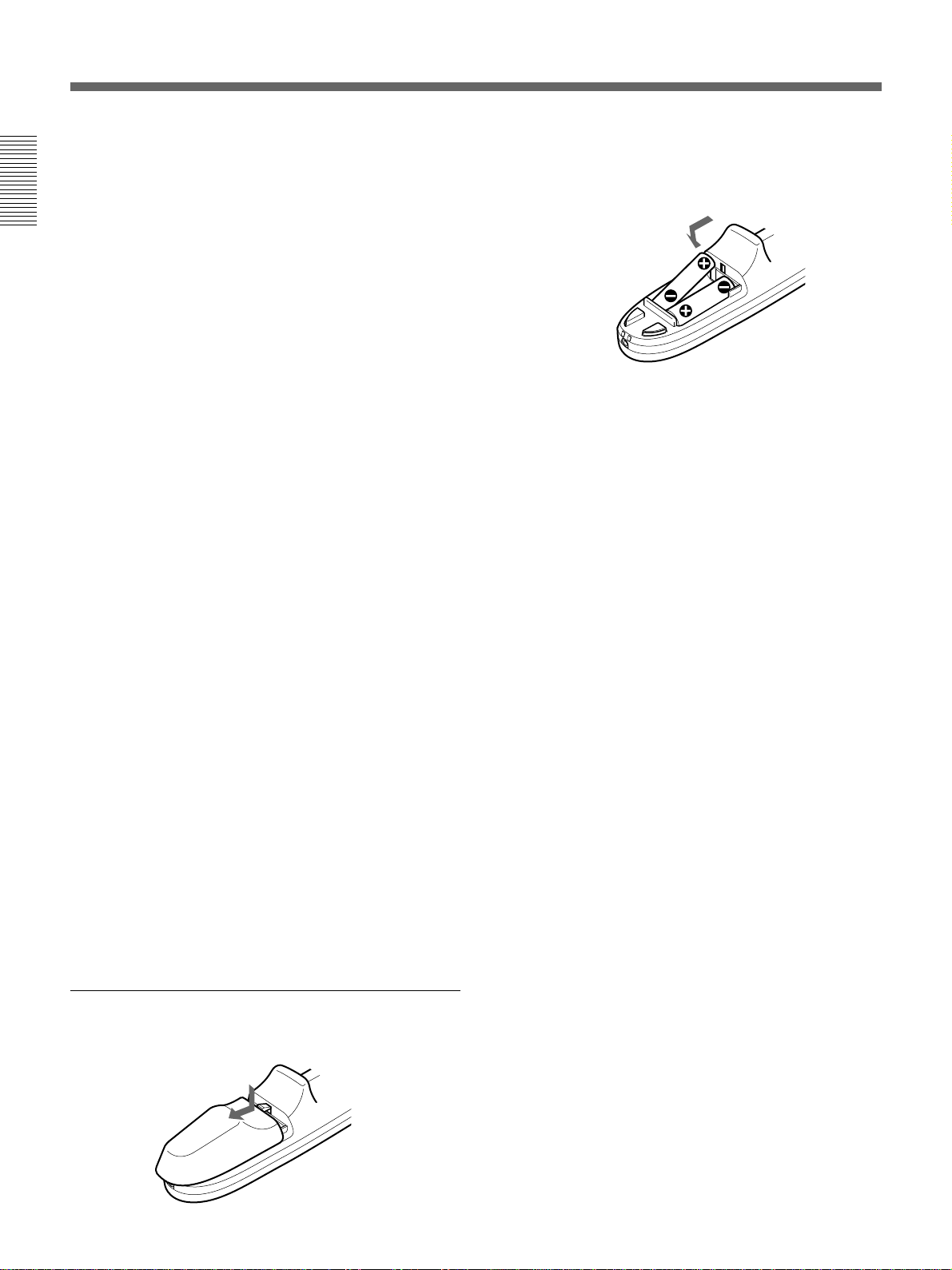

Battery installation
1Push and slide to open the lid.
Be sure to install
the battery from
the ’side.
2Install the two size AA (R6) batteries (supplied)
with the correct polarity.
3Replace the lid.
Notes on batteries
•Make sure that the battery orientation is correct when
inserting batteries.
•Do not mix an old battery with a new one, or
different types of batteries.
•If you will not use the Remote Commander for a long
time, remove the batteries to avoid damage from
battery leakage. If batteries have leaked, remove
them, wipe the battery compartment dry and replace
the batteries with new ones.
Notes on wireless Remote Commander
operation
•Make sure that there is nothing to obstruct the
infrared beam between the Remote Commander and
the remote control detector on the projector.
•The operation range is limited. The shorter the
distance between the Remote Commander and the
projector is, the wider the angle within which the
commander can control the projector.
•The remote control detectors on the projector do not
function when the connecting cable (not supplied) is
connected to the projector. When using the Remote
Commander as a wireless Remote Commander,
remove the connecting cable from both the Remote
Commander and the projector.
Note on wired Remote Commander operation
The laser pointer function does not work when you use
the Remote Commander as a wired one without
batteries.

17(EN)
This section describes the installation arrangements for installing the
projector on a table. For ceiling installation, consult with qualified Sony
personnel (see page 34 (EN)).
Installing the Projector
Horizontal center
of the screen
The distance between the lens and the screen varies
depending on the size of the screen. Use the following table
as a guide.
Setting up and projecting
Adjust the vertical and horizontal positioning of the projector.
Vertical positioning (side view)
Adjust the height of the projector so that the center of
the lens is just above the bottom edge of the screen.
Horizontal positioning (top view)
Adjust the horizontal positioning of the projector so that the lens
is aligned with the horizontal center of the screen.
Screen size (inches) 40 60 80 100 120 150 180 200 250 300
Distance Minimum 1.5 (4.9) 2.3 (7.5) 3.1 (10.1) 3.9 (12.7) 4.6 (15.2) 5.8 (19.1) 7.0 (23) 7.8 (25.6) 9.7 (32) 11.7 (38.5)
Maximum 1.9 (6.2) 2.9 (9.4) 3.9 (12.7) 4.8 (15.9) 5.8 (19.2) 7.3 (24) 8.8 (28.9) 9.8 (32.1) 12.2 (40.2) 14.7 (48.4)
Unit: m (feet)
For detailed information on installation measurements, see page 33 (EN).
Screen
Screen
Center of
the lens
57.5 mm
(2 3/8
inches)
Center of
the unit
Note
Install the projector to be level.
Avoid followings which may cause malfunction.
•The projector topples over on its side.
•The projector titles more than 20 degrees.
UVW_`a
JKL
20 degrees
20 degrees 20 degrees
MN

18(EN)
Note on the VPL-X600E model
The optional IFB-X600E Interface Board is required for the VIDEO IN
and AUDIO IN jacks.
Connecting
Connecting with a Computer
This section describes how to connect the projector with a computer.
For details on how to connect VCR, see page 20 (EN), and to connect
other equipment, see page 21 (EN).
When the projector is connected to a computer, you can control the mouse
of a computer by the Remote Commander.
The R/L CLICK keys and joy stick function as follows.
Note
Make sure that there is nothing to obstruct the infrared beam between the
Remote Commander and the remoter control detector on the projector.
Key and joy stick IBM PC/ATa) Macintosh
compatible, Serial
R CLICK (front) Right button Mouse button
L CLICK (rear) Left button Mouse button
Joy stick Corresponds with the movements of the mouse
a) IBM PC/AT is a registered trademark of International Business Machines
Corporation, U.S.A.
Also refer to the instruction manual of equipment to be connected.
Notes
•This unit accepts the VGA, SVGA, XGA, and SXGA1) signals. However,
we recommend you to set the output mode of your computer to the XGA
mode for the external monitor. (For Macintosh computer, set the output
mode to 19-inch mode.)
•If you set your computer, such as a notebook type IBM PC/AT
compatible, to output the signal to both the display of your computer and
the external monitor, the picture of the external monitor may not appear
properly. In such cases, set the output mode of your computer to output
the signal to only the external monitor.
For details, refer to the operating instructions supplied with your computer.
When making connections, be sure to:
•turn off all equipment before making any connections.
•use the proper cables for each connection.
•insert the plugs of the cables properly; plugs that are not fully inserted
often generate noise. When pulling out a cable, be sure to pull it out from
the plug, not the cable itself.
Function
..........................................................................................................................................................................................................
1) Compressed SXGA signal is reproduced.

19(EN)
VIDEO IN
INPUT A
MOUSE AUDIO
S VIDEO
AUDIO OUT
INPUT B
MOUSE AUDIO
CONTROL S IN
PLUG IN POWER
VIDEO L
(MONO) R
AUDIO IN

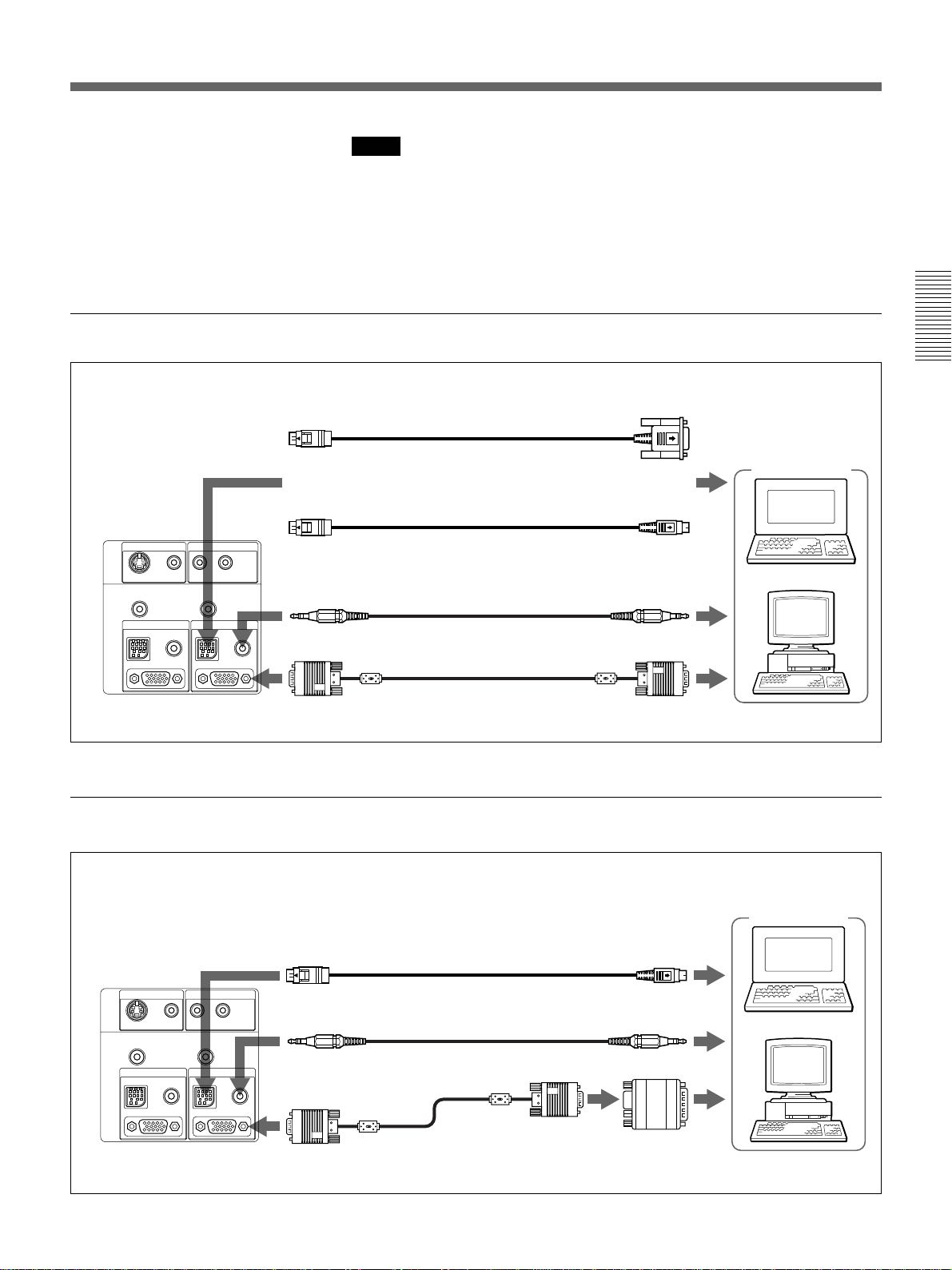

When connecting with an IBM PC/AT compatible computer
When connecting with a Macintosh computer
Computer
Rear
to INPUT A or
INPUT B
SIC-S21 Mouse cable for serial port (supplied)
to serial port
to mouse port
SIC-S22 Mouse cable for PS/2 port (supplied)
to audio out
Stereo audio connecting
cable (not supplied)
to monitor out
Rear
to INPUT A or
INPUT B SIC-S20 Mouse cable (supplied) to mouse port
to audio out
Stereo audio connecting
cable (not supplied)
to monitor out
SMF-401 HD D-sub 15-
pin cable (supplied)
Signal adapter
(supplied)
For details on the DIP switch setting of the adapter, see page 43 (EN).
VIDEO IN
INPUT A
MOUSE AUDIO
S VIDEO
AUDIO OUT
INPUT B
MOUSE AUDIO
CONTROL S IN
PLUG IN POWER
VIDEO L
(MONO) R
AUDIO IN
Notes
•Connect all the connecting cables to the INPUT A connector when you
input a signal from the INPUT A connector. Connect all the cables to the
INPUT B connector when you input a signal from the INPUT B
connector as well.
•Supplied mouse cable may not work properly according to your
computer.
or
Computer
SMF-401 HD D-sub 15-pin
cable (supplied)

20(EN)
Connecting with aVCR
This section describes how to connect the projector with a VCR and
external active speakers.
For details on how to connect a computer, see page 18 (EN), and to
connect other equipment, see page 21 (EN).
Also refer to the instruction manuals of equipment to be connected.
When making connections, be sure to:
•turn off all equipment before making any connections.
•use the proper cables for each connection.
•insert the plugs of the cables properly; plugs that are not fully inserted
often generate noise. When pulling out a cable, be sure to pull it out from
the plug, not the cable itself.
S-Video cable
(not supplied) Audio/video cable
(VPL-X600U/M: supplied
VPL-X600E: supplied with the
IFB-X600E Interface Board)
Active speakers
to audio/video
outputs1)
to S video
output1)
VCR
Rear
Connecting
VIDEO IN
INPUT A
MOUSE AUDIO
S VIDEO
AUDIO OUT
INPUT B
MOUSE AUDIO
CONTROL S IN
PLUG IN POWER
VIDEO L
(MONO)
R
AUDIO IN
1) When both the S VIDEO and VIDEO jacks are connected to the external equipment, the input signal from the S VIDEO jack is selected.
Note on the VPL-X600E model
The optional IFB-X600E Interface Board is required for
the VIDEO IN and AUDIO IN jacks.

21(EN)
Connecting 15k RGB/Component Equipment
This section describes how to connect the projector with 15k RGB and
component equipment.
For details on how to connect a computer, see page 18 (EN), and to
connect a VCR and external active speakers, see page 20 (EN). Also refer
to the instruction manual of equipment to be connected.
When making connections, be sure to:
•turn off all equipment before making any connections.
•use the proper cables for each connection.
•insert the plugs of the cables properly; plugs that are not fully inserted
often generate noise. When pulling out a cable, be sure to pull it out from
the plug, not the cable itself.
Notes
•Select the RGB or component signal with INPUT-A or INPUT-B in the
SET SETTING menu.
•Use the composite sync signal when you input the external sync signal
from 15k RGB/component equipment.
Rear
15k RGB/component equipment
to
RGB/component output
SMF-402 Signal Cable (not supplied)
3X phono jack ˜HD D-sub
15-pin (male)
or
SMF-400 Video Signal Cable (not supplied)
5X BNC ˜HD D-sub 15-pin (male)
VIDEO IN
INPUT A
MOUSE AUDIO
S VIDEO
AUDIO OUT
INPUT B
MOUSE AUDIO
CONTROL S IN
PLUG IN POWER
VIDEO L
(MONO)
R
AUDIO IN
Stereo audio
connecting cable
(not supplied)
