Sony STR-DH810 - Audio Video Receiver User manual

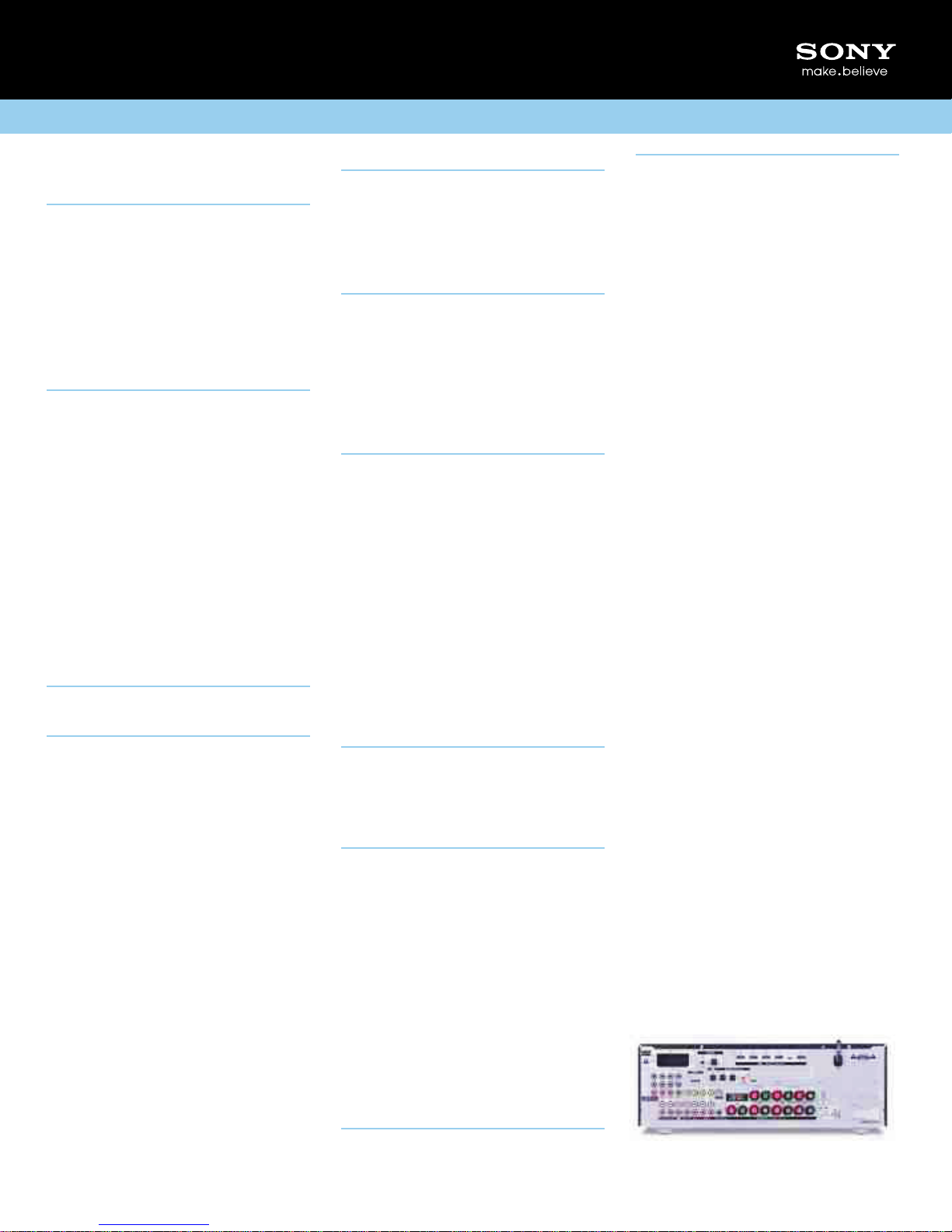

STR-DH810
7.1 channel Blu - ray Disc ™ A/V Receiver
Key Features
7.1 Channel A/V Receiver (110W x7 @ 8 ohms 1kHz 1% THD)
7 HD Inputs (4 HDMI, 3 Component)
3D pass - through
10
Upconvert/Upscale from analog to 1080p via HDMI
1
Dolby ® TrueHD and dts ® HD Enhanced Audio Codecs
2
Wireless 2nd Zone audio (S - AIR™multi - room capability)
3
Digital Cinema Audio Calibration for Quick Speaker Set - Up
Audio Return Channel uses just one cable for TV audio
4
Standby pass - through of Audio & Video via HDMI connected
devices
Fully Assignable inputs allows for use of all connections
BRAVIA ® Sync ™for multi - device control w/ one remote
5
Multi Function Digital Media Port
6
Universal Remote Control
Key Technologies
7 HD Inputs Get versatile HD connection options with seven HD inputs. Four HDMI™inputs (up to 1080/24p capable) let you connect
a Sony® PlayStation® 3 entertainment system, Blu -ray Disc™player, any 2 other HDMI-capable devices, for high definition video and
audio. Three component inputs (1080/60i capable) provide added HD-capable connectivity and versatility.
9
3D Pass - through Compatible with 3D Blu-ray Disc™movies, video games and other 3D content
10
Upconvert/Upscales DVD's to near HD via HDMI™ Improve image quality of analog connected devices to near HD. Analog
connected device signals are converted to digital and output via HDMI, making one cable connection from the receiver to the TV
possible.
1
Blu - ray Disc™Audio Decoding Experience sound closer to the way it was captured with LPCM, Dolby® trueHD and dts ®-HD
master audio codecs.
3
Wireless 2nd Zone Audio (S - AIR™Multi - room Ready) Share music in up to 10 rooms when you add S-AIR™ receiver/speaker
systems (AIR-SA10) and a S-AIR™Card (EZW-T100) to your S-AIR Capable System (S-AIR Speaker Systems and S-Air Card sold
separately).
2
Digital Cinema Auto Calibration - Quick Speaker Set Up Ensure you get the best sound experience from your A/V receiver and
speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will be seated and settings are
automatically optimized based on the distance, delays and placement of your speakers.
Audio Return Channel Eliminate the need for extra cables connected to your TV. This feature allows audio to be sent from your
compatible TV to your receiver through the same HDMI™cable already being used to send audio and video to your TV.
4
Standby pass - through of Audio & Video Conveniently access all your HDMI connected devices without having to power on the
receiver.
Assignable digital audio and video inputs Get the most out of each audio and video input with the ability to reassign inputs to
support connected devices.
BRAVIA ® Sync ™Capable Conveniently operate and control all your HDMI™ connected BRAVIA ® Sync devices with one remote
including: Blu-ray Disc™Players, BRAVIA® HDTVs, home theater products, Handycam® Camcorders and Cyber- shot ® Digital
Cameras.
5
Digital Media Port Connect a Digital Media Port (DMP) adapter (sold separately) to your receiver and access music from your
iPod®, Walkman®, Bluetooth® or PC device.
6

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 07/14/2010
STR-DH810
7.1 channel Blu - ray Disc ™ A/V Receiver
Please visit the Dealer Source for current
information at www.sony.com/dealersource
Features
General
PowerConsumption: 240W
Power Stand By: 0.3W
AutoStandby: Yes
Display: 10 digit dot matrix
Panel: Mold, Black
PinJack: Nickel
PowerRequirement: 120V 60Hz
RemoteCommander: PP; RM - AAP049
SleepTimer: Yes
Video
A/V SYNC: Yes(Variable)
A/V Sync Sampling Frequency: 96kHz
A/V Sync Time (msec): 300msec
Assignable Component Video IN: Yes
Assignable HDMI Video IN: Yes
BRAVIA ® SYNC ™( CEC Control): Yes
HDMI Pass Through: Yes
Theater Mode Selector: Yes
Audio Return Channel: Yes
HDMI™Video Output Capability: 1080p;
1080/24p; Deep Color; x.v.Color (xvYCC)
Video Upscaler & Converter (Analog to
Component/HDMI): No/Yes(1080p) -
from composite input only
3D: Yes
HDMI Active Intelligence: Yes
Convenience
AutoTuning: Yes
Amplifier
(8Ohms 1kHz) THD RMS: 1%
(8Ohms 20 - 20kHz)THD: 0.09%
8Ohms 1kHz RMS: 110W+110W
8Ohms 20 - 20kHz: 100W + 100W
HeadphoneOut: Yes(Gold)
NightMode: Yes
Number of Amp channels: 7ch
Portable Audio Enhancer: Yes
Sound Field Program (2ch): 2
Sound Field Program (A.F.D.): 2
Sound Field Program (Headphone): 2
Sound Field Program (Movie): 8
Sound Field Program (Music): 10
SpeakerSelector: A/B/ A+B
SpeakerTerminal: Screw
4 Ohm/8 Ohm Switching: No(8 Ohm only)
AnalogDirect: Yes
Cinema Studio EX. A/B/C mode: Yes
DSP: Titanium(DA788)
Equalizer(F/C/Sur/Sur B) Bass,Mid,Treble:
B,T/ - / - / -
Sound Field Link (w Lock): Yes( - )
Sub Woofer X' Over: 17 points (40 - 200Hz)
Type: Analog
Bi - AMP: YES
DCAC
Band: 6
DCAC: SILVER
Mic: MONO
Specifications
S - Air Feature
Multi Room (In case of Multi Source)
Transfer Down Mixed 2ch Signal: Yes
WirelessSurround - Source for Headphone:
Yes
WirelessSurround - Surround Back
Lch/Rch: Yes
WirelessSurround - Surround Lch/Rch: Yes
S- AIR Ready Transmitter: Yes
Inputs and Outputs
A/V In/Out (S - Video I/O): Including Front
AV: 4/1(0/0)
Analog Audio In (Inc TV CEC)/Out (excl.
tuner)/TV(CEC): 2/1/Yes
Coaxial: 1/0
Component Video In/Out (Pass through):
3/1
DMPORT: 1
Digital Input Assign: Yes
FrontInput: AV(Gold)
HDMI In/Out: (Front input): 4/1
Monitor Out (S - VideoOut): 1(0)
Opt. In/Out/TV(CEC): incl Front input & TV
(CEC): 3/0/Yes
PreOut: SW x1
SPDIFUPDATE: Yes
Tuner
AutoTuning: Yes
DirectTuning: Yes(RM)
PresetChannel: TTL60 ( - / - / 30/30)
StationName: Yes
Decoding Format(S)
96k/24BitPCM: Yes
DTS96/24: Yes
DTS HD/DolbyTruHD/Dolby Digital+:
Yes/Yes/Yes
DTSNEO:6: Yes
DTS - ES(MATRIX6.1/DISCRETE6.1): Yes
(Yes/Yes)
Dolby Digital EX: Yes
DolbyDigital/DTS: Yes/Yes
Dolby Dual Mono: Yes
Dolby Prologic: Yes
Dolby Prologic II: Yes
Dolby Prologic IIx: Yes
LPCM (2CH/5.1CH/7.1CH) thru HDMI:
Yes/Yes/Yes
Dolby Prologic IIz: Yes
Color: Black
UPC Code: 027242779969
1.RequiresconnectionviaHDMI ™ cable(soldseparately)toequivalent
HDTV.Upscaled/upconverted image and sound quality will vary
depending on source.
2.Transmitsupto164feet.Signalandsound quality may vary. S - AIR™
receiver/speakersystems and a S - AIR™ Cardrequired and sold
separately.
3.Dolby® True - HD and dts ® - HDMasterAudiodecoding require HDMI ™
cable and capable source device (both sold separately).
4.RequiressourcesconnectedwithHDMI ™ cables(sold separately) and
compatible HDTV. Sound quality will vary depending on source.
5.Works with other BRAVIA® Sync orTheatreSync™ labeledhome
audio/videoproductswhen connected via HDMI ™ interface.
6. iPod ® supportis limited to the following players with theoptionaldock:
iPod ® touch, iPod ® classic, iPod ® Nano1st, 2nd &3rdgeneration,
iPod ®4th& 5th generation & iPod® Mini.TheTDM - IP50dockwill
supportiPhone ® as well.
7.Remote is compatible with most major brands ofTVs.Check your
ownersguide for compatibility.
8. 24p playback capable device required, sold separately
9. HDMI cable required and sold separately.
10.Firmware update maybe required, 3Dviewing requires 3Dcontent,
3D HDTV and high speed HDMI ™ cable.Other 3Daccessories
(including 3D glasses) may also be required.
