Box Camera Selection Guide
Box Camera
Picture Model No. Feature Sensor TVL Min Illumination Lens Voltage Page
RYK-AF302A
Auto Focus Zoom
35x
1/4” CL WDR
470 0.01 Lux (Night / BW)
0.5 Lux (Day / Color)
35x Zoom
(ICR)
DC
03
RYK-AF301A
1/4” CL
(EX-View)
RYK-AF204A
Auto Focus Zoom
22x
22x Zoom
(ICR)
05
RYK-AF203A
1/4" CL
330 0.1 Lux (Night / BW)
0.3 Lux (Day / Color)
RYK-AF201A 330 0.3 Lux
22x Zoom
RYK-AF202A 470 0.7 Lux
RYK-AF302
Auto Focus Zoom
35x
1/4” CL WDR
470 0.01 Lux (Night / BW)
0.5 Lux (Day / Color)
35x Zoom
(ICR)
DC
04
RYK-AF301
1/4” CL
(EX-View)
RYK-200ZRX
Auto Focus Zoom
22x
22x Zoom
(ICR)
06
RYK-20AZR
1/4" CL
330 0.1 Lux (Night / BW)
0.3 Lux (Day / Color)
RYK-20AZ 330 0.3 Lux
22x Zoom
RYK-200Z 470 0.7 Lux
RYK-491DR WDR / ICR / OSD 1/3” CL 470 0.1 Lux (Night / BW)
0.001 Lux (DSS)
C/CS Mount AC, Dual
07
RYK-493DR
ICR / OSD
Super HR
1/3” CL
550
0.05 Lux (Night / BW)
0.8 Lux (Day / Color)
08
RYK-493DRX 1/3” CL
(EX-View)
0.01 Lux (Night / BW)
0.5 Lux (Day / Color)
RYK-235LVR3 ICR / LED
Vari-Focal 1/3” CL
380 0.2 Lux Vari Focal
(ICR) DC, Dual 09
RYK-232LVR3 470 0.3 Lux
RYK-475ZM3(ZM9)
Vari-Focal
1/3” CL
380 0.2 Lux
Vari Focal AC, Dual 10
RYK-472ZM3(ZM9) 470 0.3 Lux
RYK-775ZM3(ZM9)
1/3” BW
420 0.1 Lux
RYK-777ZM3(ZM9) 600 0.2 Lux
RYK-213F
Super HR 1/3” CL 550 0.2 Lux C/CS Mount
DC
11
RYK-413F AC, Dual
RYK-275F
Standard Type
1/3” CL
380 0.1 Lux
C/CS Mount
DC
RYK-475F AC, Dual
RYK-272F
470 0.2 Lux
DC
RYK-472F AC, Dual
RYK-277F
1/4” CL 330 0.2 Lux
DC
RYK-477F AC, Dual
RYK-575F
1/3” BW
420 0.05 Lux
DC
12
RYK-775F AC, Dual
RYK-577F
600 0.1 Lux
DC
RYK-777F AC, Dual
RYK-572F
B/W DSP
510 0.05 Lux
DC
RYK-772F AC, Dual
RYK-573F
710 0.1 Lux
DC
RYK-773F AC, Dual
RYK-264K Mini Size
All In One
(Kit)
1/4” CL 330 0.5 Lux
Board Lens DC 13
RYK-569K 1/3” BW 400 0.3 Lux

03

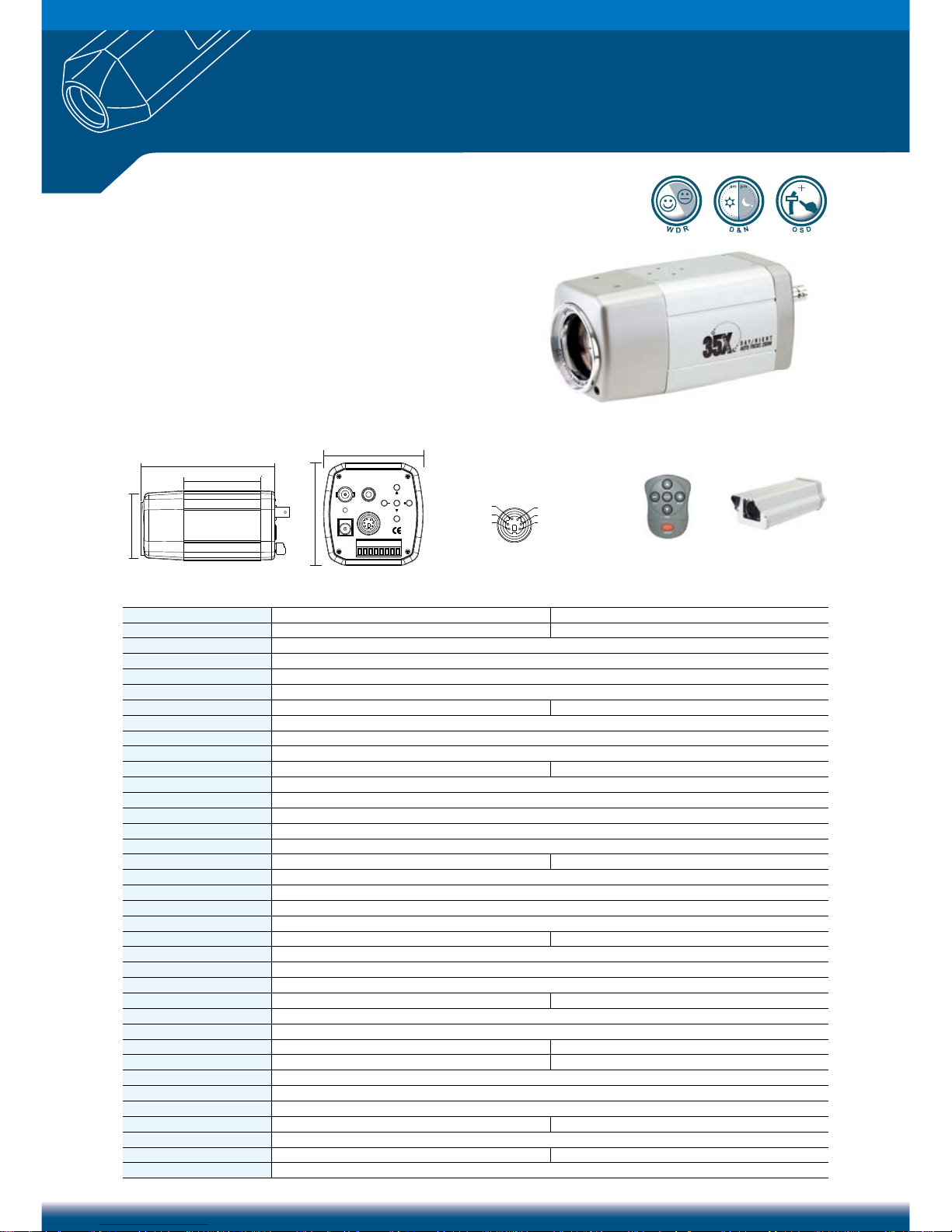

35x (ICR) Auto Focus Zoom Camera
Features
‧Sony EX-View HAD CCD sensor
‧35x optical zoom, 16x digital zoom
‧Day & Night (IR-Cut lter Removable, ICR)
‧On Screen Display (OSD) set-up menu
‧Built-in 5 keys to control zooming, focusing function
and set-up menu adjustment
‧Support functions: AI, AWB, AGC, BLC, FL, Positive /
Negative, Auto Focus, Audio function
‧Support YOKO / PELCO D&P / LG protocol
DC 1 2V IN
REM OT E
FAR
AUD IO
VID EO
WID E
NEA RMEN U
TEL E
GND DNO
T+
R+ DNI GND
T-
R-
Focu s (+ : Far , - : Near)
CO M
DC12V IN
Zoom (+ : Tele , - : Wide)
GN D
A/ D KEY
RE MO TE
126.1 mm
73 mm
64 mm
65.5 mm
64 mm
■
Option :
RYK-8340
Wire Remote Controller
Model Name RYK-AF301A RYK-AF302A
Image Device 1/4” Color Sony EX-View HAD (Hi-Res.) 1/4" Color Sony EX-View HAD (WDR, Hi-Res.)
Picture Elements NTSC:768x494, PAL:752x582
Resolution 470 TVL
Min. Illumination 0.01 Lux (Night / BW), 0.5 Lux (Day / Color) / F1.6
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/30,000, PAL:1/50~1/30,000 NTSC:1/60~1/50,000, PAL:1/50~1/50,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Iris Control Auto / Manual
Lens Furnished 35x (ICR) Auto Focus Zoom (3.6~126mm / F1.6~4.2), Video AF
Digital Zoom Ratio Basic 16x (Total Zoom Ratio 560x), 2x~16x variable Basic 10x (Total Zoom Ratio 350x), 2x~10x variable
Min. Shutting Distance 0.01m (WIDE), 1.5m (TELE)
Camera Control RS-485 / RS-422 (option: RS-232)
Remote Control 6-pin Circular Connect: Zoom, Focus, A/D key, DC12V IN
Key Control Tele (Up), Wide (Down), Near (+), Far (-), Menu
Protocol YOKO / PELCO D&P / LG
Zoom Speed 8 / 11 / 14 sec mode Slow / Normal / High
Zoom / Focus Preset 128 preset points
Focus Mode Auto / Manual / Push Auto
On Screen Display Set-up menu
Negative / Positive On / Off
Wide Dynamic Range (WDR) －On / Off
Day & Night (ICR) AE / Sensor / Day / Night / External
Day & Night Control Day & Night output / Day & Night External input
Brightness Control Manual
Wide Burst On / Off －
White Balance Auto / Hue / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Motion Detection －On / Off
Privacy Masking －8 free areas (Area size adjustable)
Back Light Comp. On / Auto (Center / Up / Down / Left / Right) / Super / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms －
Power Supply DC12V±10%
Power Consumption 340mA max. 440mA max.
Operating Temp. -10°C ~ 50°C
RYK-8505L
IR Housing

04
35x (ICR) Auto Focus Zoom Module
Features
‧Sony EX-View HAD CCD sensor
‧35x optical zoom, 16x digital zoom
‧Day & Night (IR-Cut lter Removable, ICR)
‧On Screen Display (OSD) set-up menu
‧Camera control via RS-232 (TTL Level)
‧Key control (Zooming function, Focusing function and set-up
menu adjustment) via 6-pin Dry Contact Connector
‧Support functions: AI, AWB, AGC, BLC, FL, Positive /
Negative and Auto Focus
‧Support YOKO / PELCD D&P / LG protocol
Box Camera
CN1: FCC Connector
CN2: Key Control
CN3: Reserved
SW1: RS-232 Setting
CN4
CN4: Day & Night Connector
Output
Input
GND
57.4 mm
51.4 mm
90.3 mm 51.4 mm
Model Name RYK-AF301 RYK-AF302
Image Device 1/4” Color Sony EX-View HAD (Hi-Res.) 1/4" Color Sony EX-View HAD (WDR, Hi-Res.)
Picture Elements NTSC:768x494, PAL:752x582
Resolution 470 TVL
Min. Illumination 0.01 Lux (Night / BW), 0.5 Lux (Day / Color) / F1.6
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/30,000, PAL:1/50~1/30,000 NTSC:1/60~1/50,000, PAL:1/50~1/50,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Iris Control Auto / Manual
Lens Furnished 35x (ICR) Auto Focus Zoom (3.6~126mm / F1.6~4.2), Video AF
Digital Zoom Ratio Basic 16x (Total Zoom Ratio 560x), 2x~16x variable Basic 10x (Total Zoom Ratio 350x), 2x~10x variable
Min. Shutting Distance 0.01m (WIDE), 1.5m (TELE)
Camera Control RS-232 (TTL Level)
Remote Control 6-pin Dry Contact Connector: Tele, Wide, Near, Far, Menu, GND
Protocol YOKO / PELCO D&P / LG
Zoom Speed 8 / 11 / 14 sec mode Slow / Normal / High
Zoom / Focus Preset 128 preset points
Focus Mode Auto / Manual / Push Auto
On Screen Display Set-up menu
Negative / Positive On / Off
Wide Dynamic Range (WDR) －On / Off
Day & Night (ICR) AE / Sensor / Day / Night / External
Day & Night Control Day & Night output / Day & Night External input
Brightness Control Manual
Wide Burst On / Off
White Balance Auto / Hue / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Motion Detection －On / Off
Privacy Masking －8 free areas (Area size adjustable)
Back Light Comp. On / Auto (Center / Up / Down / Left / Right) / Super / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Power Supply DC12V±10%
Power Consumption 340mA max. 440mA max.
Operating Temp. -10°C ~ 50°C
‧Dry Contact is either open under normal status (Normal Open) or close to GND under active status (connected to GND).

05

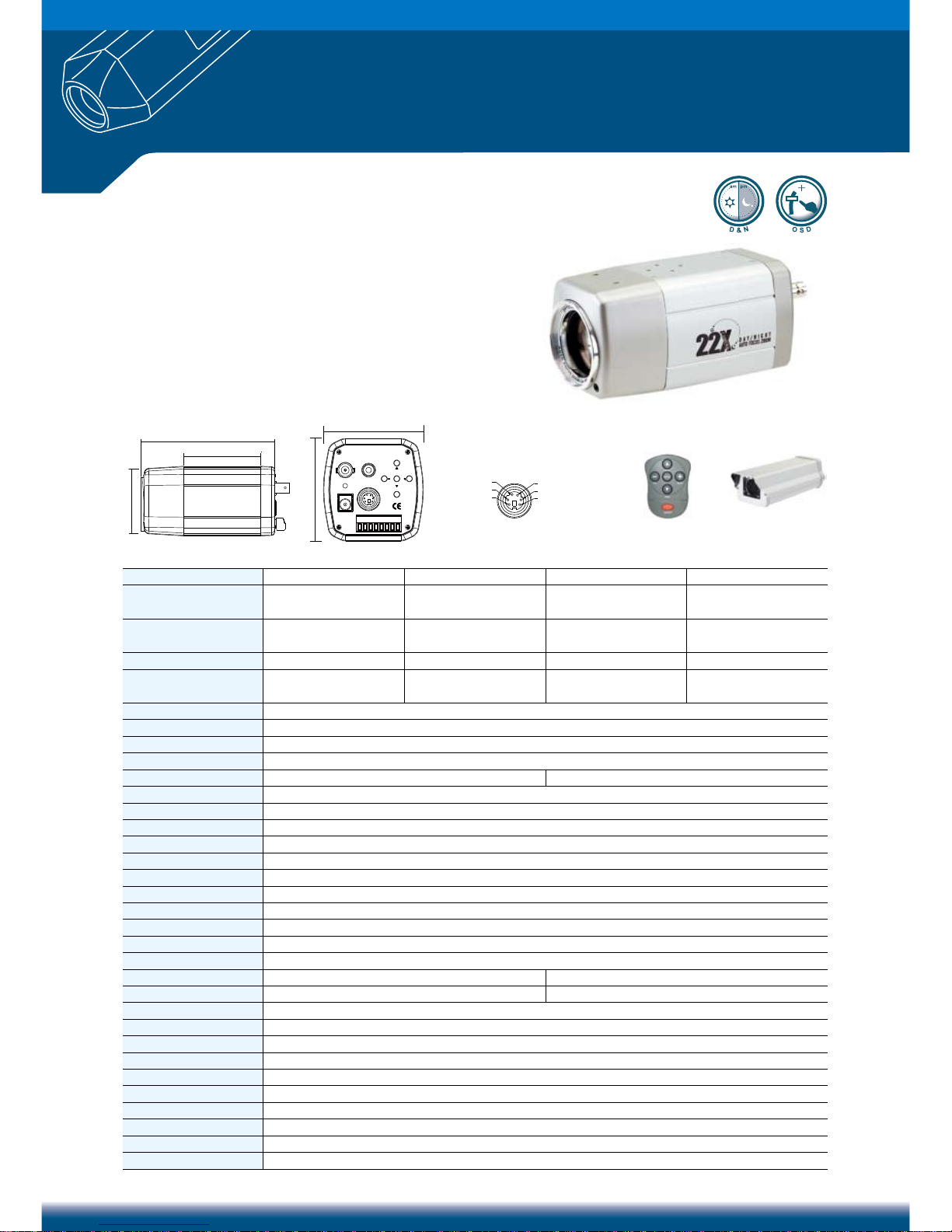

22x (ICR) Auto Focus Zoom Camera
Features
‧22x optical zoom, 16x digital zoom
‧Day & Night (option: IR-Cut lter Removable, ICR)
‧On Screen Display (OSD) set-up menu
‧Camera control via RS-485
‧Support functions: AI, AWB, AGC, BLC, FL,
Positive / Negative
‧Support YOKO / PELCO D&P / LG protocol
Model No. RYK-AF201A RYK-AF202A RYK-AF203A RYK-AF204A
Image Device 1/4” Color Sony
Super HAD
1/4” Color Sony
Super HAD (Hi-Res.)
1/4” Color Sony
Super HAD
1/4” Color Sony
EX-View HAD (Hi-Res.)
Picture Elements NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
Resolution 330 TVL 470 TVL 330 TVL 470 TVL
Min. Illumination 0.3 Lux / F1.6 0.7 Lux / F1.6 0.1 Lux (Night / BW),
0.3 Lux (Day / Color) / F1.6
0.01 Lux (Night / BW),
0.5 Lux (Day / Color) / F1.6
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/30,000 , PAL:1/50~1/30,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Iris Control Auto / Manual
Lens Furnished 22x Auto Focus Zoom (3.9~85.8mm / F1.6~3.7) 22x (ICR) Auto Focus Zoom (3.9~85.8mm / F1.6~3.7)
Digital Zoom Ratio Basic 16x (Total Zoom Ratio 352x), 2x~16x variable
Mini. Shutting Distance 0.01m (WIDE), 1.0m (TELE)
Camera Control RS-485 / RS-422 (option: RS-232)
Remote Control 6-pin Circular Connect: Zoom, Focus, A/D key, DC12V IN
Key Control Tele (Up), Wide (Down), Near (+), Far (-), Menu
Protocol YOKO / PELCO D&P / LG
Zoom Speed 5 / 7 / 9 sec mode
Zoom / Focus Preset 128 preset points
Focus Mode Auto / Manual / Push Auto
On Screen Display Set-up menu
Negative / Positive On / Off
Day& Night (ICR) On / Off AE / Sensor / Day / Night / External
Color Control On / Off －
Brightness Control Manual
Wide Burst On / Off
White Balance Auto / Hue / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Back Light Comp. On / Auto (Center / Up / Down / Left / Right) / Super / Off
Sync. System Internal / External Line Lock
Video Output 1 Vp-p / 75 Ohms
Power Supply DC12V±10%
Power Consumption 340mA max.
Operating Temp. -10°C ~ 50°C
DC 1 2V IN
REM OT E
FAR
AUD IO
VID EO
WID E
NEA RMEN U
TEL E
GND DNO
T+
R+ DNI GND
T-
R-
Focu s (+ : Far , - : Near)
CO M
DC12V IN
Zoom (+ : Tele , - : Wide)
GN D
A/ D KEY
RE MO TE
126.1 mm
73 mm
64 mm
65.5 mm
64 mm
■
Option :
RYK-8340
Wire Remote Controller
RYK-8505L
IR Housing

06
Box Camera
22x (ICR) Auto Focus Zoom Module
Features
‧22x optical zoom, 16x digital zoom
‧Day & Night (option: IR-Cut lter Removable, ICR)
‧On Screen Display (OSD) set-up menu
‧Camera control via RS-232 (TTL Level)
‧Support functions: AI, AWB, AGC, BLC, FL,
Positive / Negative
‧Support LG protocol
57 mm
59.2 mm
47 mm
48.6 mm
82.5 mm
RYK-20AZ/200Z RYK-20AZR/200ZRX
84.5 mm
47 mm 48.6 mm
CN4
1
CN1: FCC Connector
CN2: Key Control
CN3, SW1: Reserved
SW2: RS-232 Setting
CN1: FCC Connector
CN2: Key Control
CN3: Reserved
CN4: Day & Night Connector
Output
Input
GND
‧RYK-20AZR/200ZRX ‧RYK-20AZ/200Z
Model No. RYK-20AZ RYK-200Z RYK-20AZR RYK-200ZRX
Image Device 1/4” Color Sony
Super HAD
1/4” Color Sony
Super HAD (Hi-Res.)
1/4” Color Sony
Super HAD
1/4” Color Sony
EX-View HAD (Hi-Res.)
Picture Elements
NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
Resolution 330 TVL 470 TVL 330 TVL 470 TVL
Min. Illumination 0.3 Lux / F1.6 0.7 Lux / F1.6 0.1 Lux (Night / BW),
0.3 Lux (Day / Color) / F1.6
0.01 Lux (Night / BW),
0.5 Lux (Day / Color) / F1.6
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/30,000 , PAL:1/50~1/30,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Iris Control Auto / Manual
Lens Furnished 22x Auto Focus Zoom (3.9~85.8mm / F1.6~3.7) 22x (ICR) Auto Focus Zoom (3.9~85.8mm / F1.6~3.7)
Digital Zoom Ratio Basic 16x (Total Zoom Ratio 352x), 2x~16x variable
Mini. Shutting Distance 0.01m (WIDE), 1.0m (TELE)
Camera Control RS-232 (TTL Level)
Remote Control 6-pin Dry Contact Connector: Tele, Wide, Near, Far, Menu, GND
Protocol LG
Zoom Speed 5 / 7 / 9 sec mode
Zoom / Focus Preset 128 preset points
Focus Mode Auto / Manual / Push Auto
On Screen Display Set-up menu
Negative / Positive On / Off
Day & Night (ICR) On / Off AE / Sensor / Day / Night / External
Color Control On / Off －
Brightness Control Manual
Wide Burst On / Off
White Balance Auto / Hue / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Back Light Comp. On / Auto (Center / Up / Down / Left / Right) / Super / Off
Sync. System Internal / External Line Lock
Video Output 1 Vp-p / 75 Ohms
Power Supply DC12V±10%
Power Consumption 340mA max.
Operating Temp. -10°C ~ 50°C
‧Dry Contact is either open under normal status (Normal Open) or close to GND under active status (connected to GND).

07
Wide Dynamic Range (WDR) Camera
Model No. RYK-491DR
Image Device 1/3" Color Sony Vertical double-Density WD CCD (Hi-Res.)
Picture Elements NTSC:768x494, PAL:752x582
Resolution 470 TVL
Min. Illumination 0.1 Lux (Night / BW), 0.001 Lux (DSS) / F1.2
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/100,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Iris Control Video / DC Drive
Lens Mount C / CS
Gamma 0.45
White Balance Auto / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Back Light Comp. On / Off (Level & Area adjustable)
Wide Dynamic Range (WDR) On / Off (Level adjustable)
Day & Night (ICR) AE / Sensor / Day / Night
Digital Zoom 3x
Camera ID 000~255
Camera Title Up to 16 characters
Mirror Off / Horizontal / Vertical / Rotate
Privacy Masking 8 free areas (Area size adjustable)
Freeze On / Off
Positive / Negative On / Off
Digital Slow Shutter (DSS) Off, 2~20, 40, 80, 160 FLD
Remote Control RS-485 / RS-422 (option: RS-232)
Protocol YOKO / PELCO D&P / LG
Sync. System Internal / External Line Lock
Video Output 1 Vp-p / 75 Ohms
Power Supply DC12V/AC24V Dual (option: AC110~240V)
Power Consumption Dual: 5.8W max., AC: 7W max.
Operating Temp. -10℃~ 50℃
Features
‧Camera with 1/3" Color Sony Vertical double-Density WD CCD
‧High sensitivity, low smear, high anti-blooming and high S/N ratio
‧ IR-Cut  lter Removable (ICR) provides change from color to B/W
mode automatically or manually for day and night 24-hour
surveillance
‧On Screen Display (OSD) set-up menu
‧Remote control via RS-485/422 (option: RS-232)
‧Special functions: Flickerless, Mirror, Freeze, Line Lock,
Positive / Negative, Camera ID, Camera Title,
Privacy Masking, Digital Zoom, Digital Slow Shutter
■
Controller :
RYK-8330
(RS-485)
130.6 mm
66 mm
52 mm
52 mm

08

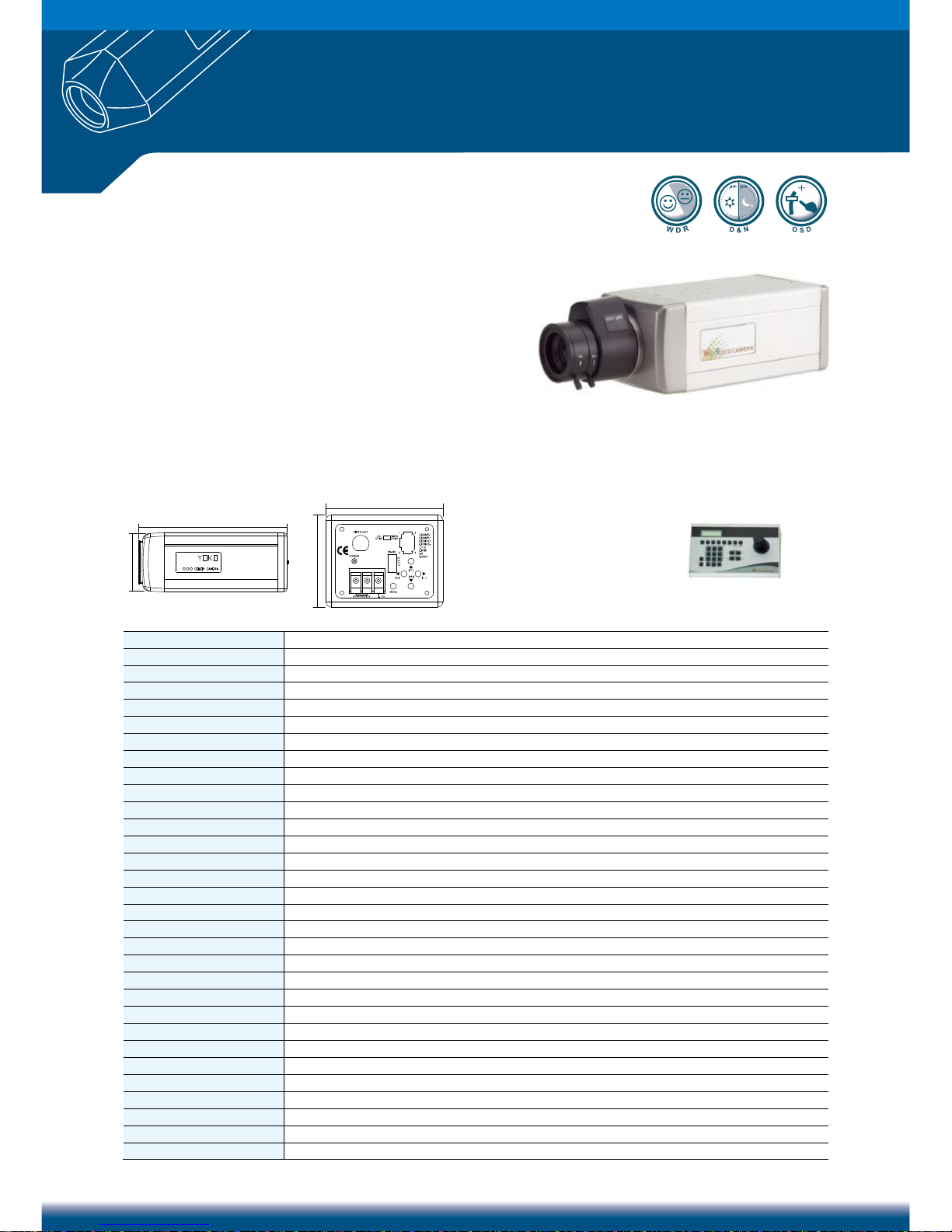

Box Camera
Hi-Res. OSD Camera
Model No. RYK-493DR RYK-493DRX
Image Device 1/3” Color Sony Super HAD (Hi-Res.) 1/3” Color Sony EX-View HAD (Hi-Res.)
Picture Elements NTSC:768x494, PAL:752x582
Resolution 550 TVL
Min. Illumination 0.05 Lux (Night / BW), 0.8 Lux (Day / Color) / F2.0 0.01 Lux (Night / BW), 0.5 Lux (Day / Color) / F2.0
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/100,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Iris Control Video / DC Drive
Lens Mount C / CS
Gamma 0.45
White Balance Auto / Indoor / Outdoor / Manual / Push Auto
Gain Control Auto / Manual
Back Light Comp. On / Off (Level & Area adjustable)
Day & Night (ICR) AE / Sensor / Day / Night
Camera ID 000~255
Camera Title Up to 16 characters
Mirror On / Off
Privacy Masking 8 free areas (Area size adjustable)
Positive / Negative On / Off
Remote Control RS-485 / RS-422 (option: RS-232)
Protocol YOKO / PELCO D&P / LG
Sync. System Internal / External Line Lock
Video Output 1 Vp-p / 75 Ohms
Power Supply DC12V/AC24V Dual (option: AC100~240V)
Power Consumption Dual: 4.1W max., AC: 4.9W max.
Operating Temp. -10℃~ 50℃
Features
‧Camera with 1/3" Color Sony Hi-Res. (550TVL)
EX-View HAD
‧High sensitivity, low smear, high anti-blooming and
high S/N ratio
‧ IR-Cut  lter Removable (ICR) provides change from
color to B/W mode automatically or manually for day
and night 24-hour surveillance
‧On Screen Display (OSD) set-up menu
‧Special functions: Flickerless, Mirror, Line Lock,
Positive / Negative, Camera ID, Camera Title,
Privacy Masking
130.6 mm
66 mm
52 mm
52 mm
■
Controller :
RYK-8330
(RS-485)

09

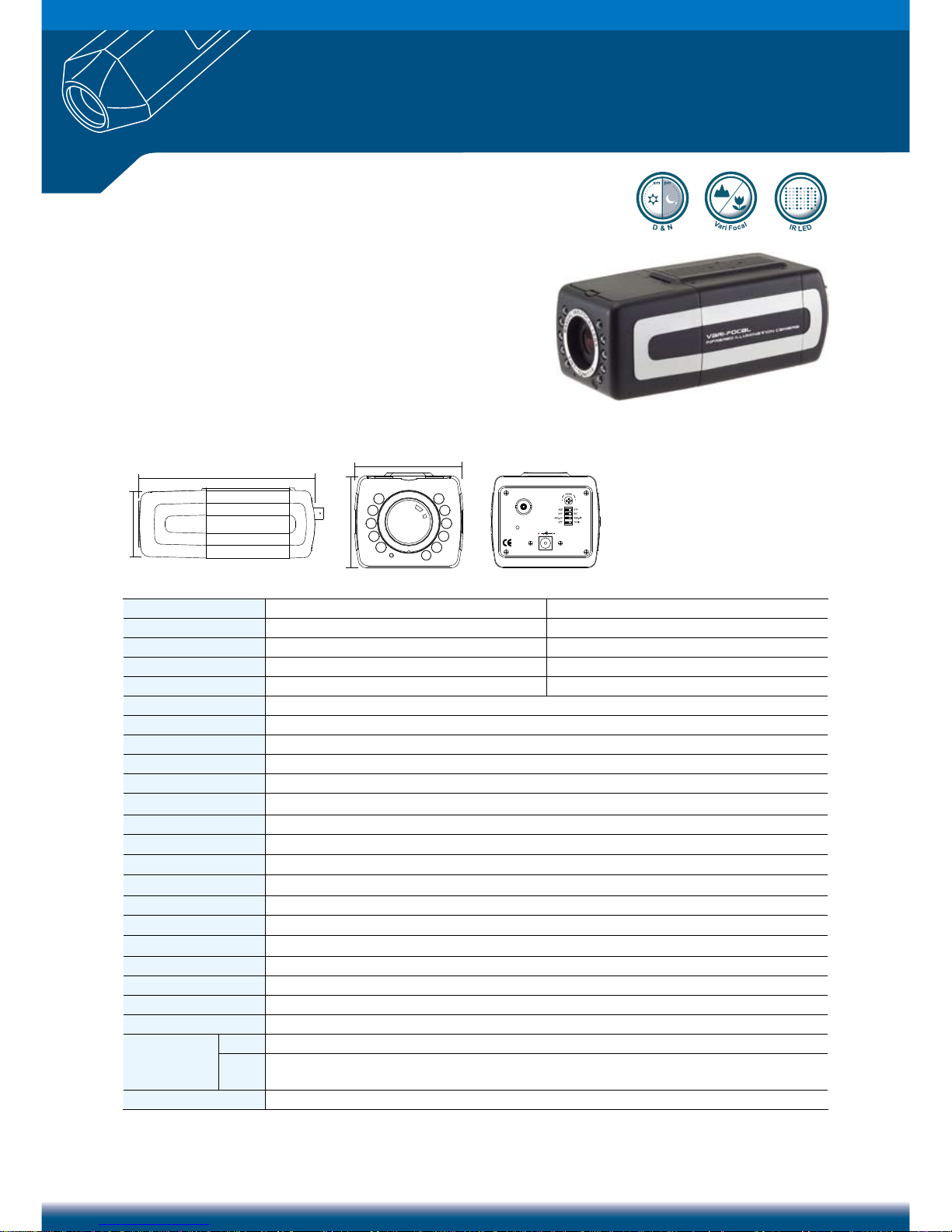

Vari-Focal IR Camera
Features
‧Sony Super HAD CCD sensor
‧Built-in Vari-Focal Lens
‧Day & Night (IR-Cut lter Removable, ICR)
‧DC or DC/AC Dual voltage
‧Option Model:
RYK-232VF3/235VF3 – without IR LED & ICR
RYK-232VF9/235VF9 – without IR LED & ICR,
9~22mm VF Lens
66 mm
146 mm
58 mm
58 mm
VIDEO
DC 12V IN
Model No. RYK-235LVR3 RYK-232LVR3
Image Device 1/3” Color Sony Super HAD 1/3” Color Sony Super HAD (Hi-Res.)
Picture Elements NTSC:510x492, PAL:500x582 NTSC:768x494, PAL:752x582
Resolution 380 TVL 470 TVL
Min. Illumination 0.2 Lux / F2.0 (Day), 0 Lux (IR On) 0.3 Lux / F2.0 (Day), 0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120)
Gamma 0.45
Iris Control DC Drive
Lens Furnished Vari-Focal 3.7~12mm (ICR) / F1.6~3.0, Wide: 71.6°x55.8°, Tele: 23.8°x17.9° (HxV)
White Balance Auto
Gain Control High / Low
Back Light Comp. On / Off
Day & Night (ICR) Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms (option)
Infrared Luminary 10 pieces IR-LED
Wavelength 850 nm
Illuminate Distance 10 M
Power Supply DC12V±10% (option: DC12V/AC24V Dual)
Power
Consumption
DC IR On: 320mA max., IR Off: 160mA max.
DUAL IR On: DC12V/320mA, AC24V/4.0W max.
IR Off: DC12V/180mA, AC24V/3.2W max.
Operating Temp. -10°C ~ 50°C

10
Box Camera
Vari-Focal Camera
Features
‧Sony Super HAD CCD sensor
‧Built-in 3.7~12mm / 9.0~22mm Vari-Focal Lens
‧AC or DC/AC Dual voltage
Color Camera
50 mm
140.5 mm
95 mm
46 mm
46 mm
B/W Camera
Model No.
RYK-475ZM3 RYK-472ZM3 RYK-775ZM3 RYK-777ZM3
RYK-475ZM9 RYK-472ZM9 RYK-775ZM9 RYK-777ZM9
Image Device
1/3” Color Sony
Super HAD
1/3” Color Sony
Super HAD (Hi-Res.)
1/3” B/W Sony
Super HAD
1/3” B/W Sony
Super HAD (Hi-Res.)
Picture Elements
NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
EIA:510X492,
CCIR:500x582
EIA:768x494,
CCIR:752x582
Resolution 380 TVL 470 TVL 420 TVL 600 TVL
Min. Illumination 0.2 Lux / F2.0 0.3 Lux / F2.0 0.1 Lux / F2.0 0.2 Lux / F2.0
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000 EIA:1/60~1/100,000, CCIR:1/50~1/110,000
Flickerless Mode On / Off (NTSC:1/100, PAL:1/120) －
Gamma 0.45
Iris Control DC Drive
Lens Furnished ZM3 model: Vari-Focal 3.7~12mm / F1.6~3.0, Wide: 71.6°x55.8°, Tele: 23.8°x17.9° (HxV)
ZM9 model: Vari-Focal 9.0~22mm / F2.0~360, Wide:29.2°x21.7°, Tele:13.0°x9.7° (HxV)
White Balance Auto －
Gain Control High / Low Auto
Back Light Comp. On / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Power Supply AC100~240V (option: AC24V, AC110V, DC12V/AC24V Dual)
Power Consumption 3.3W max. 4.6W max. 3.1W max. 3.3W max.
Operating Temp. -10℃~ 50℃

11

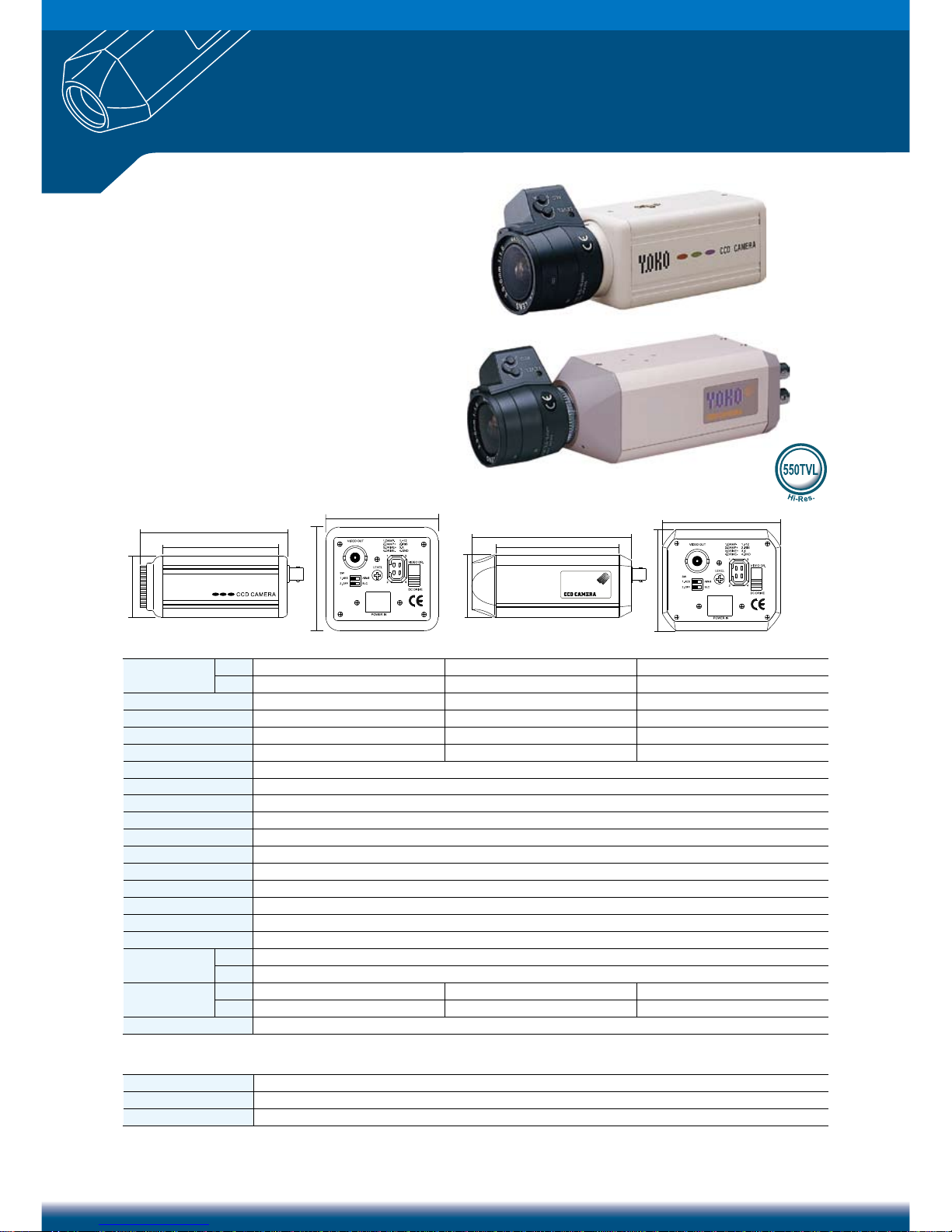

Color CCD Camera
Features
‧Sony Super HAD CCD sensor
‧Hi-Res. 550 TVL
Improvement of color-rolling suppression
(for RYK-213F/413F)
‧Video / DC Drive
‧DC, AC or DC/AC Dual voltage
112.5 mm
50 mm
130 mm
60 mm
100 mm
88 mm
46 mm
46 mm
51 mm
51 mm
RYK-275F/272F/277F RYK-213F
Model No. DC RYK-275F RYK-272F RYK-213F
AC RYK-475F RYK-472F RYK-413F
Image Device 1/3" Color Sony Super HAD 1/3" Color Sony Super HAD (Hi-Res.) 1/3" Color Sony Super HAD (Hi-Res.)
Picture Elements NTSC:510x492, PAL:500x582 NTSC:768x494, PAL:752x582 NTSC:768x494, PAL:752x582
Resolution 380 TVL 470 TVL 550 TVL
Min. Illumination 0.1 Lux / F1.2 0.2 Lux / F1.2 0.2 Lux / F1.2
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma 0.45
Iris Control Video / DC Drive
Lens Mount C / CS
White Balance Auto
Gain Control Auto
Back Light Comp. On / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms (option, for DC type only)
Power Supply DC DC12V±10%
AC AC24V, AC110V, AC100~240V, DC12V/AC24V Dual (option)
Power
Consumption
DC 225mA max. 125mA max. 175mA max.
AC 3.2W max. 2.5W max. 3.2W max.
Operating Temp. -10°C ~ 50°C
■
 Series Model:
Model No. Description
RYK-277F 1/4" Color Sony Super HAD, 330 TVL, 0.2 Lux / F1.2, DC12V (option: Audio function)
RYK-477F 1/4" Color Sony Super HAD, 330 TVL, 0.2 Lux / F1.2, AC or DC12V/AC24V Dual (option)
‧RYK-275F / 272F / 277F
‧RYK-213F

12
Box Camera
B/W CCD Camera
Features
‧Sony Super HAD CCD sensor
‧Employs DSP IC for image control
Provide high resolution, sharpness image quality
(for RYK-572F/772F/573F/773F)
‧Video / DC Drive
‧DC, AC or DC/AC Dual voltage
Model No. DC RYK-575F RYK-577F RYK-572F RYK-573F
AC RYK-775F RYK-777F RYK-772F RYK-773F
Image Device 1/3" B/W Sony
Super HAD
1/3" B/W Sony
Super HAD (Hi-Res.)
1/3" B/W Sony Super HAD
(DSP IC)
1/3" B/W Sony Super HAD
(Hi-Res., DSP IC)
Picture Elements EIA:510x492,
CCIR:500x582
EIA:768x494,
CCIR:752x582
EIA:510x492,
CCIR:500x582
EIA:768x494,
CCIR:752x582
Resolution 420 TVL 600 TVL 510 TVL 710 TVL
Min. Illumination 0.05 Lux / F1.2 0.1 Lux / F1.2 0.05 Lux / F1.2 0.1 Lux / F1.2
S/N Ratio More than 48dB
Electronic Shutter EIA:1/60~1/100,000, CCIR:1/50~1/110,000
Gamma 0.45
Iris Control Video / DC Drive
Lens Mount C / CS
Gain Control Auto
Back Light Comp. On / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms (option, for DC type only)
Power Supply DC DC12V±10%
AC AC24V, AC110V, AC100~240V, DC12V/AC24V Dual (option)
Power
Consumption
DC 110mA max. 138mA max. 109mA max. 115mA max.
AC 2.0W max. 2.5W max. 2.5W max. 2.6W max.
Operating Temp. -10°C ~ 50°C
112.5 mm
50 mm
46 mm
46 mm
88 mm

13
Camera Kit
Features
‧Sony Super HAD CCD sensor
‧Camera kit with mini size
‧Built-in Audio function
‧Furnished with lens and mounting bracket
Model No. RYK-264K RYK-569K
Image Device 1/4" Color Sony Super HAD 1/3" B/W CCD
Picture Elements NTSC:510x492, PAL:500x582 EIA:510x492, CCIR:500x582
Resolution 330 TVL 400 TVL
Min. Illumination 0.5 Lux / F2.0 0.3 Lux / F2.0
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000 EIA:1/60~1/120,000, CCIR:1/50~1/120,000
Gamma 0.45
Lens Furnished Board Lens 3.6mm / F2.0 (option:3.5~8mm / F1.4~C), CS mount
White Balance Auto －
Gain Control Auto
Back Light Comp. －On / Off
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms
Mounting Bracket Metal
Power Supply DC12V±10%
Power Consumption 117mA max. 100mA max.
Operating Temp. -10°C ~ 50°C
50.2 mm
62 mm15.5 mm
43.2 mm
43.2 mm
117.5 mm
99.5 mm
Color Camera B/W Camera

14
IR Camera Selection Guide
IR Camera
Picture Model No. Sensor Illuminate
Distance IR-LED IP TVL Min Illumination Lens Voltage Page
RYK-2F49L5
1/3” CL
50M 84 66
380 0.2 Lux
Board Lens DC, AC 15
RYK-2F85L5 470 0.3 Lux
RYK-3F41L5
1/3” BW
420 0.1 Lux
RYK-3F43L5 600 0.2 Lux
RYK-2V87C
1/3” CL
40M 56 66
380
0.1 Lux Board Lens DC, AC 16
1/3” BW DSP (EX-View) 420
RYK-2V85C
1/3” CL 470
1/3” BW DSP (EX-View) 420
RYK-2R49VF3(VF9)
1/3” CL
20M 24 66
380 0.2 Lux
Vari Focal
DC 17
RYK-2R85VF3(VF9) 470 0.3 Lux
RYK-2R49XVR3 1/3” CL
(EX-View)
380 0.05 Lux Vari Focal
(ICR)
RYK-2R85XVR3 470 0.15 Lux
RYK-2L49
1/3” CL
20M 24 67
380 0.2 Lux
Board Lens DC, AC 18
RYK-2L85 470 0.3 Lux
RYK-3L41
1/3” BW
420 0.1 Lux
RYK-3L43 600 0.2 Lux
RYK-2Q49L2
1/3” CL
20M 24
66
380 0.2 Lux
Board Lens DC, AC 19
RYK-2Q49L3 30M 36
RYK-2Q85L2 20M 24
470 0.3 Lux
RYK-2Q85L3 30M 36
RYK-3Q41L2
1/3” BW
20M 24
420 0.1 Lux
RYK-3Q41L3 30M 36
RYK-3Q43L2 20M 24
600 0.2 Lux
RYK-3Q43L3 30M 36
RYK-2B49
1/3” CL
10M 12 67
380 0.2 Lux
Board Lens DC 20
RYK-2B85 470 0.3 Lux
RYK-3B41
1/3” BW
420 0.1 Lux
RYK-3B43 600 0.2 Lux
RYK-2A47L 1/4” CL 10M 8 －330 0.5 Lux Board Lens DC 21

15
50M IR Camera
Features
‧Built-in 84 pieces IR-LED
‧Effective range up to 50M
‧Weatherproong criterion IP 66
‧AC type (option)
104.7 mm 182.5 mm
113 mm
Model No. RYK-2F49L5 RYK-2F85L5 RYK-3F41L5 RYK-3F43L5
Image Device 1/3" Color Sony
Super HAD
1/3" Color Sony
Super HAD (Hi-Res.)
1/3" B/W Sony
Super HAD
1/3" B/W Sony
Super HAD (Hi-Res.)
Picture Elements NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
EIA:510x492,
CCIR:500x582
EIA:768x494,
CCIR:752x582
Resolution 380 TVL 470 TVL 420 TVL 600 TVL
Min. Illumination 0.2 Lux / F2.0 (Day),
0 Lux (IR On)
0.3 Lux / F2.0 (Day),
0 Lux (IR On)
0.1 Lux / F2.0 (Day),
0 Lux (IR On)
0.2 Lux / F2.0 (Day),
0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000 EIA:1/60~1/100,000, CCIR:1/50~1/110,000
Gamma 0.45
Lens Furnished Board Lens 12mm / F2.0 (option:16mm)
White Balance Auto －
Gain Control Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Infrared Luminary 84 pieces IR-LED
Wavelength 850 nm
Illuminate Distance 50 M
Waterproong Criterion IP 66
Power Supply DC12V±10%, AC24V, AC100~240V (option)
Power Consumption IR On: 1458mA max.
IR Off: 125mA max.
IR On: 1050mA max.
IR Off: 200mA max.
IR On: 1450mA max.
IR Off: 117mA max.
IR On: 1450mA max.
IR Off: 117mA max.
Operating Temp. -10℃~ 50℃
■
Infrared Illuminator Model:
Model No. Description
RYK-8800 30M Infrared Illuminator, Built-in 98 pieces IR-LED, IP 66, DC or AC voltage (option)
RYK-8801 50M Infrared Illuminator, Built-in 98 pieces IR-LED, IP 66, DC or AC voltage (option)
Infrared Illuminator
RYK-8800/8801

16
IR Camera

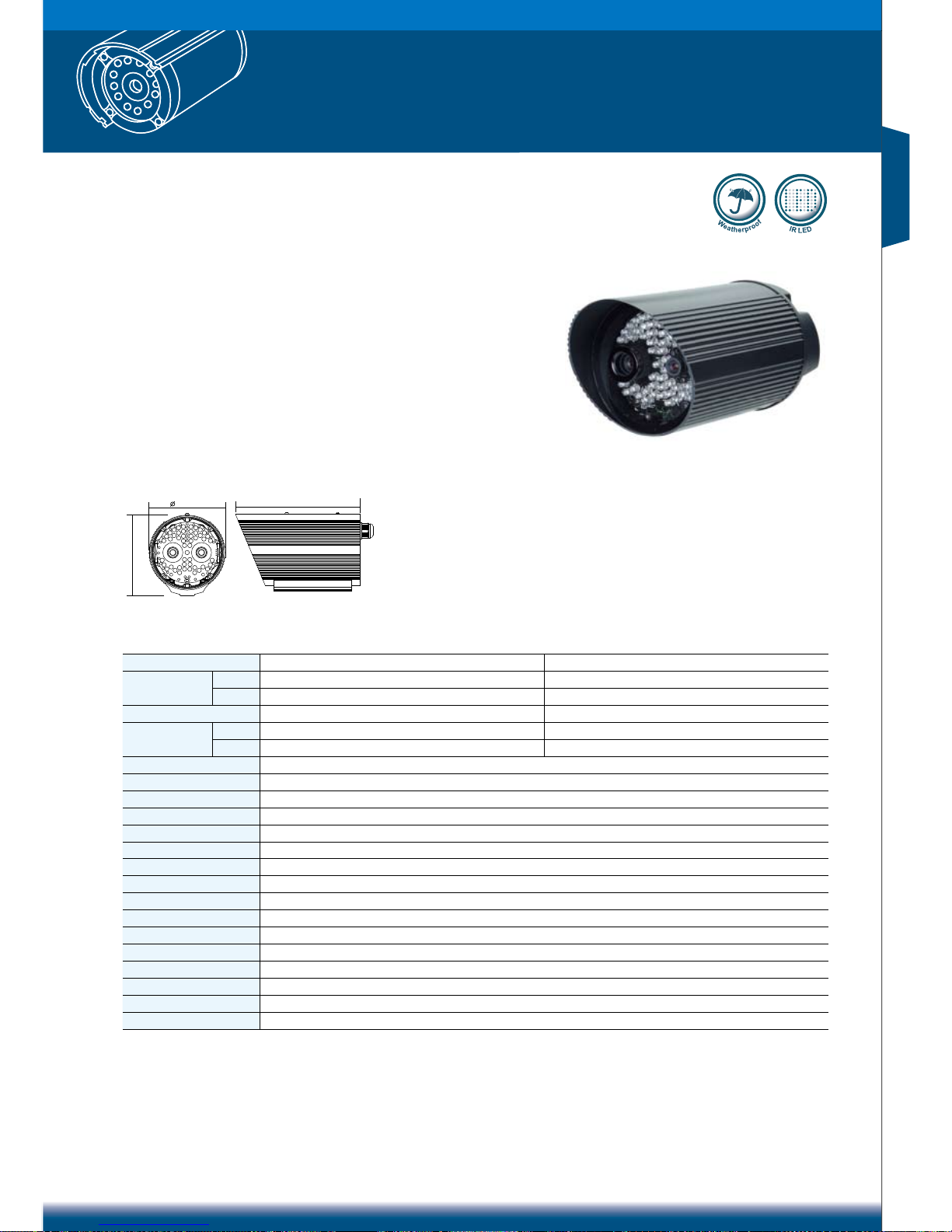

40M IR Camera
Features
‧Dual CCD (Color & B/W) camera are exchanged
automatically in day time and night time
‧Hi-Res.colorcamerafordaytimetoprovidetrue
colorandclearpicture,EX-ViewBWcamerafor
nighttimetoenhancesensitivityoflowlight
‧Built-in 56 pieces IR-LED
‧Effective range up to 40M
‧Weatherproong criterion IP 66
‧AC type (option)
107 mm 183.4 mm
112.7 mm
Model No. RYK-2V87C RYK-2V85C
Image Device Color 1/3” Color Sony Super HAD 1/3” Color Sony Super HAD (Hi-Res.)
B/W 1/3” B/W Sony EX-View HAD 1/3” B/W Sony EX-View HAD
Picture Elements NTSC/EIA:510x492, PAL/CCIR:500x582 NTSC/EIA:768x494, PAL/CCIR:752x582
Resolution Color 380 TVL 470 TVL
B/W 420 TVL 420 TVL
Min. Illumination 0.1 Lux / F 2.0 (Day), 0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC/EIA:1/60~1/30,000, PAL/CCIR:1/50~1/30,000
Gamma 0.45
Lens Furnished Board Lens 8mm / F2.0 (option:12mm)
White Balance Auto
Gain Control Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Infrared Luminary 56 pieces IR-LED
Wavelength 850 nm
Illuminate Distance 40 M
Waterproo ng Criterion IP 66
Power Supply DC12V±10%, AC24V, AC100~240V (option)
Power Consumption IR On: 700mA max. / IR Off: 140mA max.
Operating Temp. -10°C ~ 50°C

17

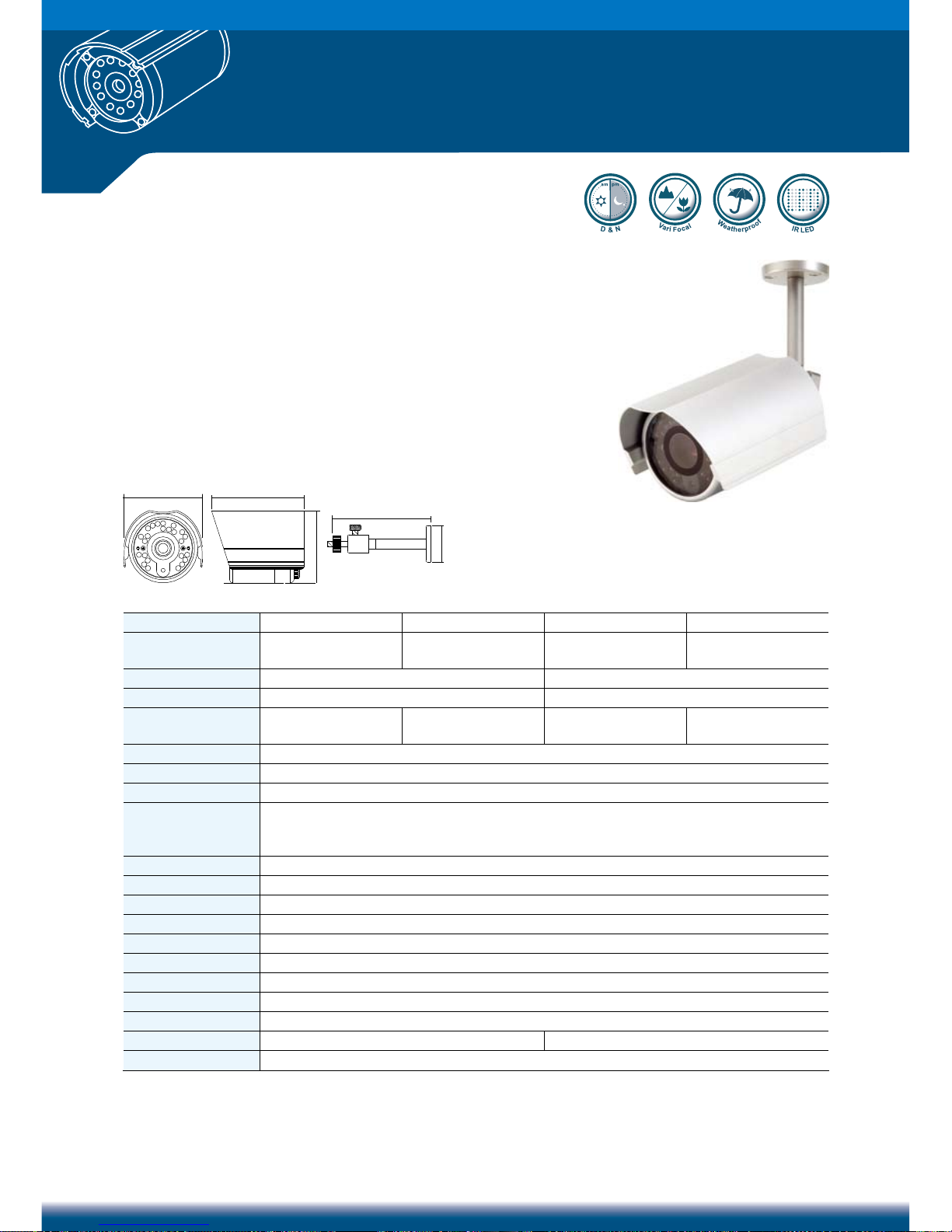

20M Vari-Focal IR Camera
Features
‧Built-in 24 pieces IR-LED
‧Effective range up to 20M
‧Built-in Vari-Focal Lens
‧Day & Night (option: IR-Cut lter Removable, ICR)
‧Weatherproong criterion IP 66
68.8 mm
87.9 mm75 mm
48.5 mm
118.5 / 56.5 mm
Model No. RYK-2R49VF3(VF9) RYK-2R49XVR3 RYK-2R85VF3(VF9) RYK-2R85XVR3
Image Device 1/3” Color Sony
Super HAD
1/3” Color Sony
EX-View HAD
1/3” Color Sony
Super HAD (Hi-Res.)
1/3” Color Sony
EX-View HAD (Hi-Res.)
Picture Elements NTSC:510x492, PAL:500x582 NTSC:768x494, PAL:752x582
Resolution 380 TVL 470 TVL
Min. Illumination 0.2 Lux / F2.0 (Day),
0 Lux (IR On)
0.05 Lux / F2.0 (Day),
0 Lux (IR On)
0.3 Lux / F2.0 (Day),
0 Lux (IR On)
0.15 Lux / F2.0 (Day),
0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma 0.45
Lens Furnished
VF3 model : Vari-Focal 3.7~12mm / F1.6~3.0, Wide:71.6°x55.8°, Tele:23.8°x17.9° (HxV)
VF9 model : Vari-Focal 9.0~22mm / F2.0~360, Wide:29.2°x21.7°, Tele:13.0°x9.7° (HxV)
VR3 model : Vari-Focal 3.7~12mm (ICR) / F1.6~3.0, Wide:71.6°x55.8°, Tele:23.8°x17.9° (HxV)
White Balance Auto
Gain Control Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Infrared Luminary 24 pieces IR-LED
Wavelength 850 nm
Illuminate Distance 20 M
Waterproong Criterion IP 66
Power Supply DC12V±10%
Power Consumption IR On: 430mA max. / IR Off: 210mA max. IR On: 400mA max. / IR Off: 180mA max.
Operating Temp. -10°C ~ 50°C

18
IR Camera

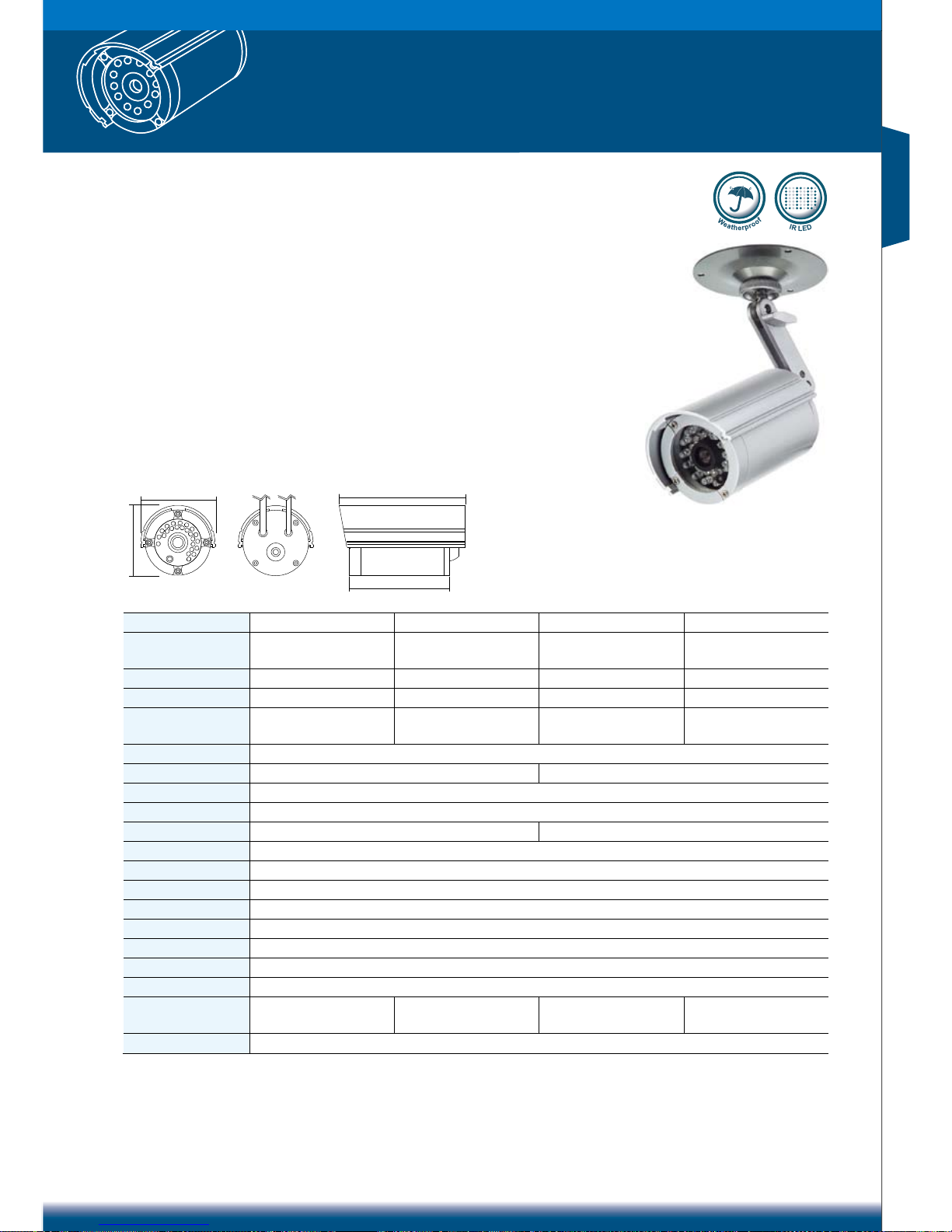

20M IR Camera
Features
‧Built-in 24 pieces IR-LED
‧Effective range up to 20M
‧Weatherproong criterion IP 67
‧AC type (option)
82 mm 154 mm
110 mm
77 mm
Model No. RYK-2L49 RYK-2L85 RYK-3L41 RYK-3L43
Image Device 1/3" Color Sony
Super HAD
1/3" Color Sony
Super HAD (Hi-Res.)
1/3" B/W Sony
Super HAD
1/3" B/W Sony
Super HAD (Hi-Res.)
Picture Elements NTSC:510x492, PAL:500x582 NTSC:768x494, PAL:752x582 EIA:510x492, CCIR:500x582 EIA:768x494, CCIR:752x582
Resolution 380 TVL 470 TVL 420 TVL 600 TVL
Min. Illumination 0.2 Lux / F2.0 (Day),
0 Lux (IR On)
0.3 Lux / F2.0 (Day),
0 Lux (IR On)
0.1 Lux / F2.0 (Day),
0 Lux (IR On)
0.2 Lux / F2.0 (Day),
0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000 EIA:1/60~1/100,000, CCIR:1/50~1/110,000
Gamma 0.45
Lens Furnished Board Lens 3.6mm / F2.0 (option:4.3/6/8/12/16mm)
White Balance Auto －
Gain Control Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Infrared Luminary 24 pieces IR-LED
Wavelength 850 nm
Illuminate Distance 20 M
Waterproong Criterion IP 67
Power Supply DC12V±10% (option: AC24V, AC110~240V)
Power Consumption IR On: 567mA max.
IR Off: 125mA max.
IR On: 420mA max.
IR Off: 200mA max.
IR On: 542mA max.
IR Off: 108mA max.
IR On: 542mA max.
IR Off: 117mA max.
Operating Temp. -10°C ~ 50°C

19
20M / 30M IR Camera
Features
‧Built-in 24 / 36 pieces IR-LED
‧Effective range up to 20M / 30M
‧Weatherproong criterion IP 66
‧AC type (option)
68 mm 123 mm
105 mm
68 mm
118.5 / 56.5 mm
Model No. RYK-2Q49L2 RYK-2Q85L2 RYK-3Q41L2 RYK-3Q43L2
RYK-2Q49L3 RYK-2Q85L3 RYK-3Q41L3 RYK-3Q43L3
Image Device 1/3" Color Sony
Super HAD
1/3" Color Sony
Super HAD (Hi-Res.)
1/3" B/W Sony
Super HAD
1/3" B/W Sony
Super HAD (Hi-Res.)
Picture Elements NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
EIA:510x492,
CCIR:500x582
EIA:768x494,
CCIR:752x582
Resolution 380 TVL 470 TVL 420 TVL 600 TVL
Min. Illumination 0.2 Lux / F2.0 (Day),
0 Lux (IR On)
0.3 Lux / F2.0 (Day),
0 Lux (IR On)
0.1 Lux / F2.0 (Day),
0 Lux (IR On)
0.2 Lux / F2.0 (Day),
0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000 EIA:1/60~1/100,000, CCIR:1/50~1/110,000
Gamma 0.45
Lens Furnished L2 model: Board Lens 3.6mm / F2.0 (option:4.3/6/8/12/16mm)
L3 model: Board Lens 6.0mm / F2.0 (option:8/12/16mm)
White Balance Auto －
Gain Control Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Infrared Luminary L2 model: 24 pieces, L3 model: 36 pieces
Illuminate Distance L2 model: 20M, L3 model: 30M
Wavelength 850 nm
Waterproong Criterion IP 66
Power Supply DC12V±10% (option: AC24V, AC110~240V)
Power
Consumption
L2 IR On: 567mA max.
IR Off: 125mA max.
IR On: 420mA max.
IR Off: 200mA max.
IR On: 542mA max.
IR Off: 108mA max.
IR On: 542mA max.
IR Off: 117mA max.
L3 IR On: 692mA max.
IR Off: 125mA max.
IR On: 540mA max.
IR Off: 200mA max.
IR On: 667mA max.
IR Off: 108mA max.
IR On: 667mA max.
IR Off: 117mA max.
Operating Temp. -10℃~ 50℃

20
IR Camera
10M IR Camera
Features
‧Built-in 12 pieces IR-LED
‧Effective range up to 10M
‧Weatherproong criterion IP 67
(exclude Audio type)
67.6 mm
56.4 mm
70.5 mm
118.5 / 56.5 mm
55 mm
61.5~74.5 mm
37 mm
IR Camera Infrared Illuminator
Model No. RYK-2B49 RYK-2B85 RYK-3B41 RYK-3B43
Image Device 1/3" Color Sony
Super HAD
1/3" Color Sony
Super HAD (Hi-Res.)
1/3" B/W Sony
Super HAD
1/3" B/W Sony
Super HAD (Hi-Res.)
Picture Elements NTSC:510x492,
PAL:500x582
NTSC:768x494,
PAL:752x582
EIA:510x492,
CCIR:500x582
EIA:768x494,
CCIR:752x582
Resolution 380 TVL 470 TVL 420 TVL 600 TVL
Min. Illumination 0.2 Lux / F2.0 (Day),
0 Lux (IR On)
0.3 Lux / F2.0 (Day),
0 Lux (IR On)
0.1 Lux / F2.0 (Day),
0 Lux (IR On)
0.2 Lux / F2.0 (Day),
0 Lux (IR On)
S/N Ratio More than 48dB
Electronic Shutter NTSC:1/60~1/100,000, PAL:1/50~1/110,000 EIA:1/60~1/100,000, CCIR:1/50~1/110,000
Gamma 0.45
Lens Furnished Board Lens 3.6mm / F2.0 (option:4.3/6/8/12/16mm)
White Balance Auto －
Gain Control Auto
Sync. System Internal
Video Output 1 Vp-p / 75 Ohms
Audio Output 2 Vp-p / 50 Ohms (option)
Infrared Luminary 12 pieces IR-LED
Wavelength 850 nm
Illuminate Distance 10 M
Waterproong Criterion IP 67
Power Supply DC12V±10%
Power Consumption IR On: 292mA max.
IR Off: 117mA max.
IR On: 230mA max.
IR Off: 150mA max.
IR On: 283mA max.
IR Off: 117mA max.
Operating Temp. -10°C ~ 50°C
■
Infrared Illuminator Model:
Model No. Description
RYK-9041 10M Infrared Illuminator, Built-in 24 pieces IR-LED, IP 67, DC voltage
Infrared Illuminator
RYK-9041
