Sony Effio-E User manual

1/3" CCD Sony Effio-E
Wide Dynamic Color Camera
2014. V2.0
User Manual

i
Safety Precautions
Before using the product, please ensure that you read the safety
precautions described below. Always ensure that the product is used
correctly.
• Use only recommended power sources.
• Do not attempt to disassemble, alter or apply heat to the product.
• Avoid dropping or subjecting the product to severe impacts.
• To avoid the risk of injury, do not touch the interior of the product if it has been
dropped or otherwise damaged.
• Stop using the product immediately if it emits smoke, a strange smell, or otherwise
behaves abnormally.
• Do not use organic solvents such as alcohol, benzene, or thinner to clean the
product.
• Do not allow liquids or foreign objects to enter the camera.
• Do not place the camera near or in direct flame.
• Do not handle the power cord with wet hands.
• Do not use the equipment in a manner that exceeds the rated capacity of the
electrical outlet or wiring accessories. Do not use if the power cord or plug are
damaged, or not fully plugged into the outlet.
• Do not allow dirt or metal objects (such as pins or keys) to contact the terminals or
plug.

ii
• Index
A. Features........................................................................................................... 1
B. Standard Specifications ................................................................................... 2
C. OSD Function .................................................................................................. 3
( 1 ) MAIN MENU .......................................................................................... 3
( 1.1 ) LENS ..................................................................................................... 6
( 1.2 ) SHUTTER/AGC..................................................................................... 6
( 1.3 ) WHITEBAL ............................................................................................ 8
( 1.4 ) BACKLIGHT ........................................................................................ 12
( 1.5 ) PICT AD JUST..................................................................................... 12
( 1.6 ) ATR ..................................................................................................... 13
( 1.7 ) MOTION DE ........................................................................................ 13
( 1.8 ) PRIVACY............................................................................................. 15
( 1.9 ) DAY/NIGHT ......................................................................................... 16
( 1.10 ) NR ..................................................................................................... 17
( 1.11 ) SYNC................................................................................................. 17
( 1.12 )CAMERA ID........................................................................................ 18
( 1.13 ) LANGUAGE....................................................................................... 19
( 1.14 ) CAMERA RESET .............................................................................. 19
( 1.15 ) SAVE ALL.......................................................................................... 20
Attachment A: UTC Controller Installation.............................................................. 21

A. Features
1/3" Digital Wide Dynamic Color Camera
Color:680TVL, B/W:700TVL
Color:0.03Lux / B/W:0.01Lux
Multi-Language OSD Control
ATR Digital Powerful 128X WDR (52dB)
Anti-Headlight (HLC)
2D Noise Reduction
High Contrast Images
Ideal for Backlight Environments
Mosaic Privacy Mask
Advanced Motion Detection Function
Picture Quality Adjustable (Contrast/Sharpness/Hue/Gain)

2
B. Standard Specifications
Mode NTSC PAL
Pick Up Element 1/3 Inch SONY 960H_ CCD Image Sensor
Image Signal Process Digital Signal Processing System
Sensor ICX672AKA ICX673AKA
Number OF Pixel 1020 (H) × 508 (V) 1020 (H) × 596 (V)
Picture Element Approximately 520K Approximately 610K
Resolution Color : 680TVL, B/W : 700TVL
Power Supply (1)12VDC / 24VAC (2)12VDC (Select one)
Current Consumption 180 mA
Synchronization Internal
Scanning System 2 : 1 Interlace
Minimum Illumination Color:0.03Lux / B/W:0.01Lux
S/N Ration Max 52 dB ( AGC off, Weight on )
Menu Built - In OSD Control
Title Title
Wide Dynamic Range ATR Digital WD
Back Light
Compensation HLC / BLC / OFF
Automatic Gain Control ON / OFF (4 Steps)
Dynamic Noise
Reduction 2D-NR
Day & Night Mode Color / B&W / AUTO
Motion Detection ON / OFF ( 24x16 Zones )
Flicker less ON / OFF
Privacy Mask ON / OFF ( 8 Zones Programmable, Mosaic )
Mechanical Iris
Automatic adj DC Driver
Blemish Compensation Static(64 points) & Dynamic
Auto White Balance ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
( 1800°K to 10500°K )
Language ENGLISH/JAPANESE/GERMAN/FRENCH/RUSSIAN/
PORTUGUESE/SPANISH/SIMPLIFIED CHINESE
Electronic Shutter
Auto:1/60(50)S TO 1/100,000 S / Manual: 1/60(50)S,
FL1/120(100)S,
1/250S, 1/500S, 1/1,000S, 1/2,000S, 1/4,000S, 1/10,000S
Analog Output 1 Vp-p Composite Video Output, 75 Ohms
Operating Temperature - 5°C ~ +40°C

3
C. OSD Function
( 1 ) MAIN MENU
In the main menu, each submenu is selected.
1/2 2/2
↲ To Exit the OSD menu.
UP / Down: Change Sub Menu Selection.
 Left / Right: Selec/Enter the Sub-menu.
Submenu Function explanation
LENS Enter the LENS/ settings menu.
SHUTTER/AGC Enter the SHUTTER/AGC settings menu.
WHITEBAL Enter the WHITEBAL settings menu.
BACKLIGHT Enter to the BACKLIGHT settings menu.
PICT ADJUST Enter the PICTURE ADJUST settings menu.
ATR Enter the ATR detection settings menu.
MOTION DET Enter the MOTION DET detection settings
menu.
PRIVACY Enter the PRIVACY Masking settings menu.
DAY/NIGHT Enter to the DAY/NIGHT settings menu.
NR Enter the NR settings menu.
CAMERA ID Enter the CAMERA ID for other settings menu.
SYNC Enter to the SYNC setting menu.
LANGUAGE Enter to the LANGUAGE setting menu.
CAMERA RESET Enter to the CAMERA RESET setting menu.

4
MENU SUBMENU
LENS 1. MANUAL
2. AUTO
SHUTTER/AGC 1. MANUAL
2. AUTO
WHITEBAL
1. ATW
2. PUSH
3. USER1
4. USER2
5. ANTI CR
6. MANUAL
7. PUSH LOCK
BACKLIGHT 1. BLC
2. HLC
PICT ADJUST
1. MIRROR
2. BRIGHTNESS
3. CONTRAST
4. SHARPNESS
5. HUE
6. GAIN
ATR 1. LUMINANCE
2. CONTRAST
MOTION DET
1. DETECT SENSE
2. BLOCK DISP
3. MONITOR AREA
4. AREA SEL
5. TOP
6. BOTTOM
7. LEFT
8. RIGHT

5
MENU SUBMENU
PRIVACY
1. AREA SEL
2. TOP
3. BOTTOM
4. LEFT
5. RIGHT
6. COLOR
7. TRANSP
8. MOSAIC
DAY/NIGHT
1. AUTO
2. COLOR
3. B/W
NR
1. NR MODE
2. Y LEVEL
3. C LEVEL
CAMERA ID
1. CHR1
2. CHR2
3. A - ) Each User Font
4. ←→↑↓
5. CLR
6. POS
SYNC 1. INT
LANGUAGE
1. ENGLISH
2. 日本語
3. DEUTSCH
4. FRANCAIS
5. РУССКИЙ
6. PORTUGUÊS
7. ESPAÑOL
8. 中文
CAMERA RESET -
SAVE ALL -

6
( 1.1 ) LENS
Sets the mechanical iris of the lens.：MANUAL and AUTO.
Function Option Description
TYPE DC DC AUTO IRIS
VIDEO VIDEO AUTO IRIS
MODE
OPEN The mechanical iris is fixed to open.
CLOSE The mechanical iris is fixed to close.
AUTO The mechanical iris is controlled automatically
SPEED 000 – 255 Sets the convergence speed of the mechanical iris.
( 1.2 ) SHUTTER/AGC
Sets the mechanical SHUTTER/AGC：MANUAL and AUTO.
AUTO

7
Function Option Description
HIGH
LUMINANCE
MODE SHUT+AUTO IRIS
AUTO IRIS
MODE 000~255
LOW
LUMINANCE
MODE OFF
AGC
BRIGHTNESS x0.25,x0.50,x0.75,x1.00

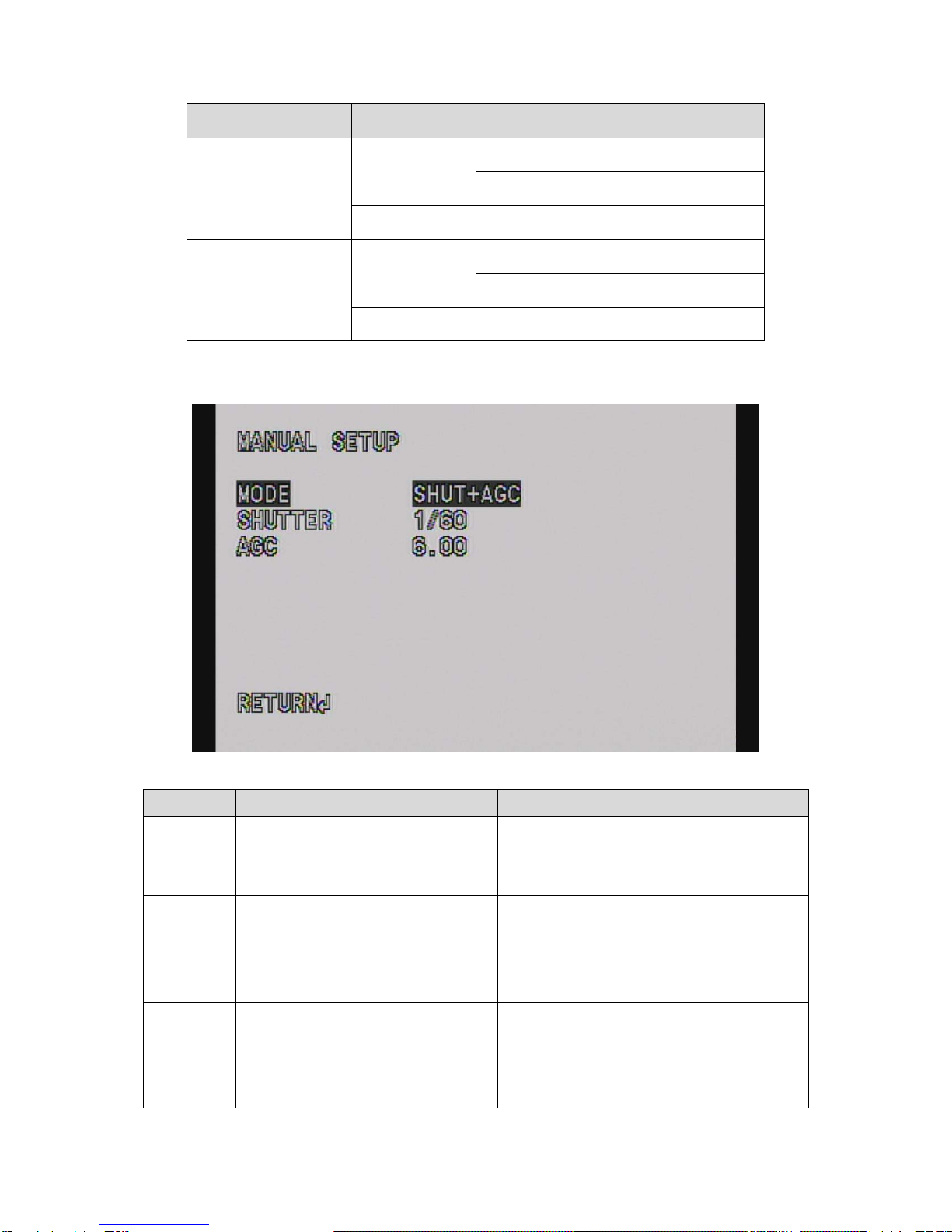

MANUAL
Function Option Description
MODE SHUT+ AGC
"SHUT+AGC" is the only option
available for the ME operation mode.
There are no other options.
SHUTTER
1/60(1/50),1/100(1/120)
1/250,1/500,1/1000,1/2000
1/4000,1/10000
When the ME preset value is changed,
the shutter speed will differ from the
displayed value, so use the default
value for "Preset value settings"
AGC 6.00,12.00,18.00,24.00,30.00
36.00,42.00,44.80
When the ME preset value is changed,
the AGC value will differ from the
displayed value, so use the default
value for "Preset value settings”

8
( 1.3 ) WHITEBAL
WHITEBAL
ATW
The display switches to the "ATW" branch menu
screen when Enter is input from the ATW selection
status.
PUSH FIX
USER1
The display switches to the "USER1 WB" branch
menu screen when Enter is input from the USER1
selection status.
USER2
The display switches to the "USER2 WB" branch
menu screen when Enter is input from the USER2
selection status.
ANTI CR FIX
MANUAL
The display switches to the "MANUAL WB" branch
menu screen when Enter is input from the MANUAL
selection status.
PUSH LOCK FIX
ATW
Function Option Description
SPEED 000-255 Adjusts the pull-in speed of ATW.
DELAY CNT 000-255 Sets the time-based hysteresis of ATW.
ATW FRAME x0.50,x1.00
x1.50,x2.00 Sets the pull-in frame magnification.
ENVIROMENT INDOOR
OUTDOOR
Sets the pull-in frame (indoor/outdoor) of
ATW.

9

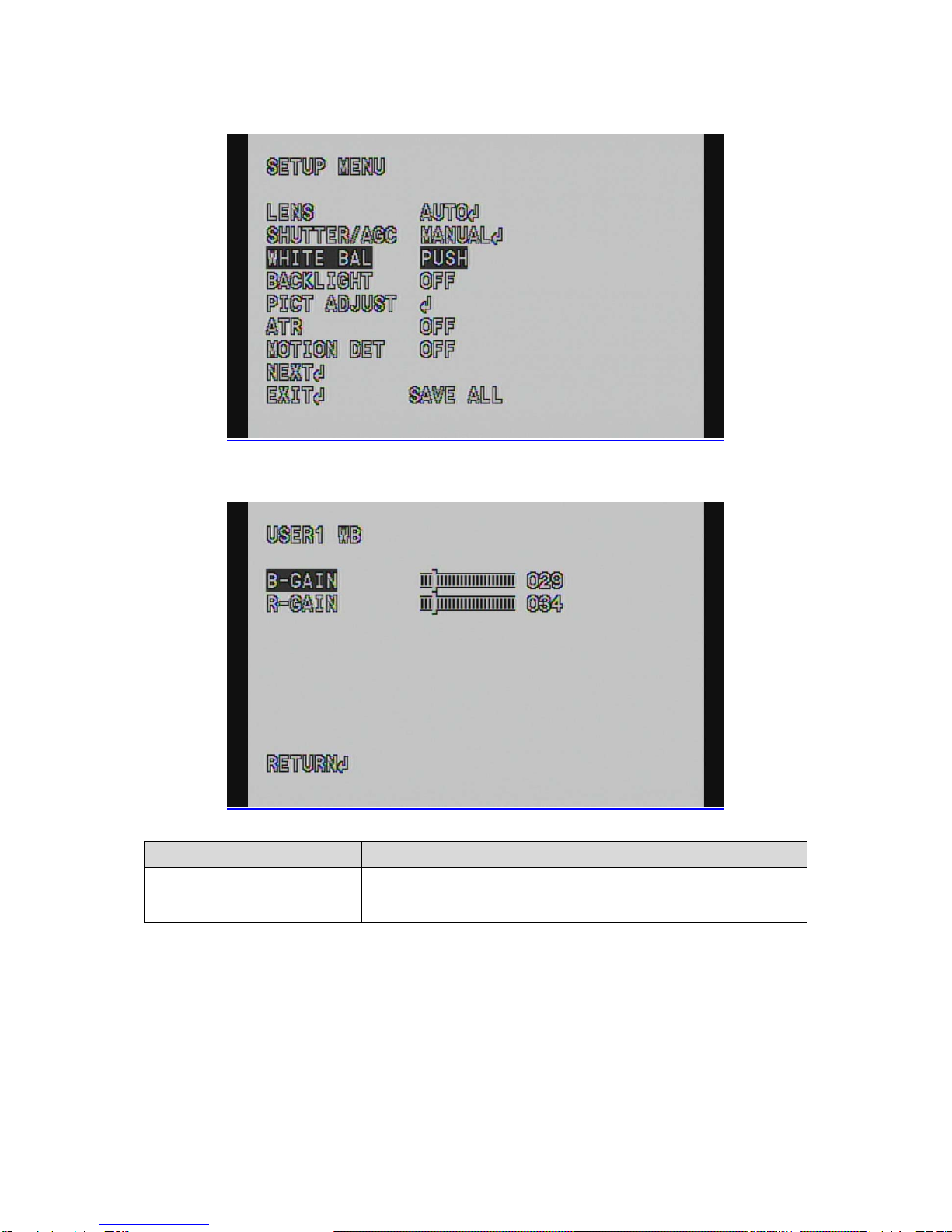

PUSH
USER1
Function Option Description
B-GAIN 000-255 Used for operating the B gain in the WB fixed gain mode.
R-GAIN 000-255 Used for operating the R gain in the WB fixed gain mode.

10
USER2
Function Option Description
B-GAIN 000-255 Used for operating the B gain in the WB fixed gain mode.
R-GAIN 000-255 Used for operating the R gain in the WB fixed gain mode.
ANTI CR

11
MANUAL
Function Option Description
LEVEL 000-255
Sets the B and R gain values for manual WB.
By incrementing or decrementing the B gain value, the R gain
value is also adjusted in tandem.
PUSH LOCK

12

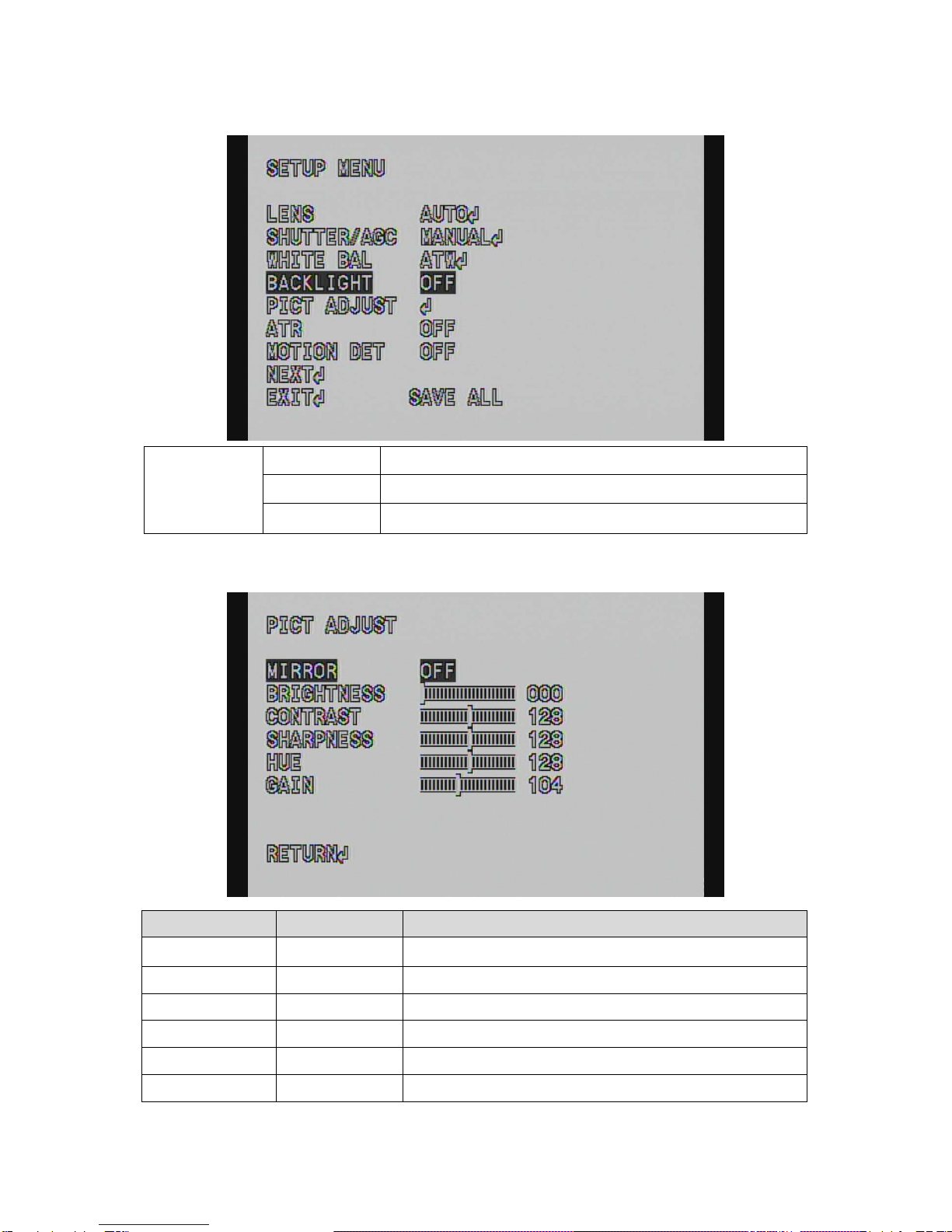

( 1.4 ) BACKLIGHT
BACKLIGHT
OFF Backlight compensation OFF
BLC Backlight compensation ON
HLC HLC function ON
( 1.5 ) PICT AD JUST
Function Option Description
MIRROR OFF/ON Sets the horizontal flip for the display output.
BRIGHTNESS 000-255 Sets the screen brightness.
CONTRAST 000-255 Sets the screen contrast.
SHARPNESS 000-255 Sets the screen sharpness.
HUE 000-255 Adjusts the hue.
GAIN 000-255 Adjusts the gain.

13
( 1.6 ) ATR
Function Option Description
LUMINANCE LOW / MID / HIGH Sets the extent of the luminance compression.
CONTRAST
LOW / MIDLOW /
MID / MIDHIGH /
HIGH
Sets the extent of the contrast enhancement.
( 1.7 ) MOTION DE

14
Function Option Description
DETECT SENSE 000-127 Sets the motion detection sensitivity.
BLOCK DISP
OFF Controls the ON/OFF status of the motion detection
block display
ON
EBABLE
The display switches to the "dead band setting"
screen when the Enter operation input is performed
from the ENABLE selected status.
MONITOR AREA ON Sets whether to use the monitoring frames. OFF: The monitoring frames are not used.
ON: The monitoring frames are used
OFF
AREA SEL 1/4,2/4
3/4,4/4 Selects the monitoring frame to be set.
TOP 000-244
Sets the TOP/BOTTOM/LEFT/RIGHT side of the
monitoring frame selected by the AREA SEL
parameter.
BOTTOM 000-244
LEFT 000-244
RIGHT 000-244

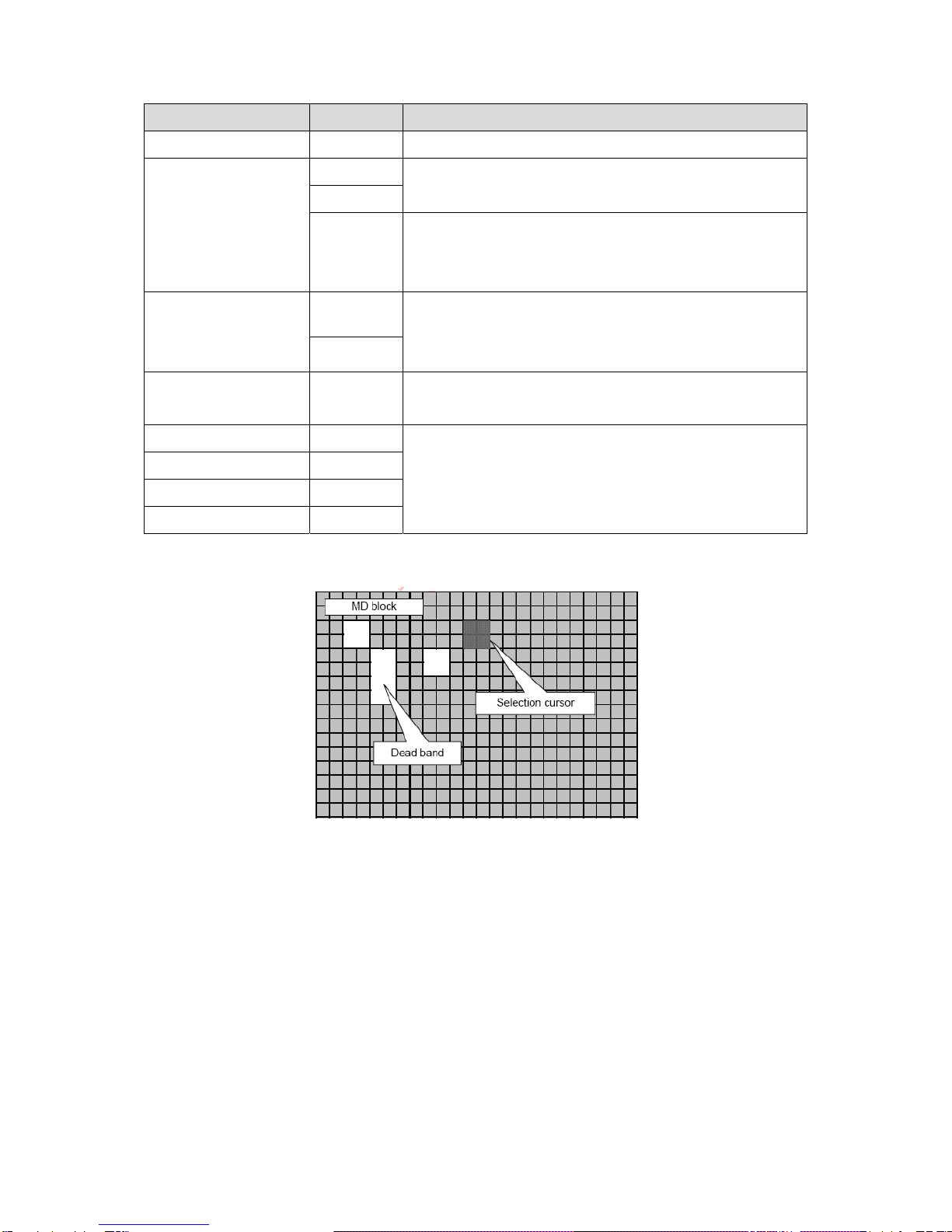

Dead band setting
The dead band setting function enables the on-screen cursor to be moved
in response to the input of operating Left, Right, Up and Down and
whether to set the sensing band or dead band for the specified blocks to
be selected by the Enter operation input.

15

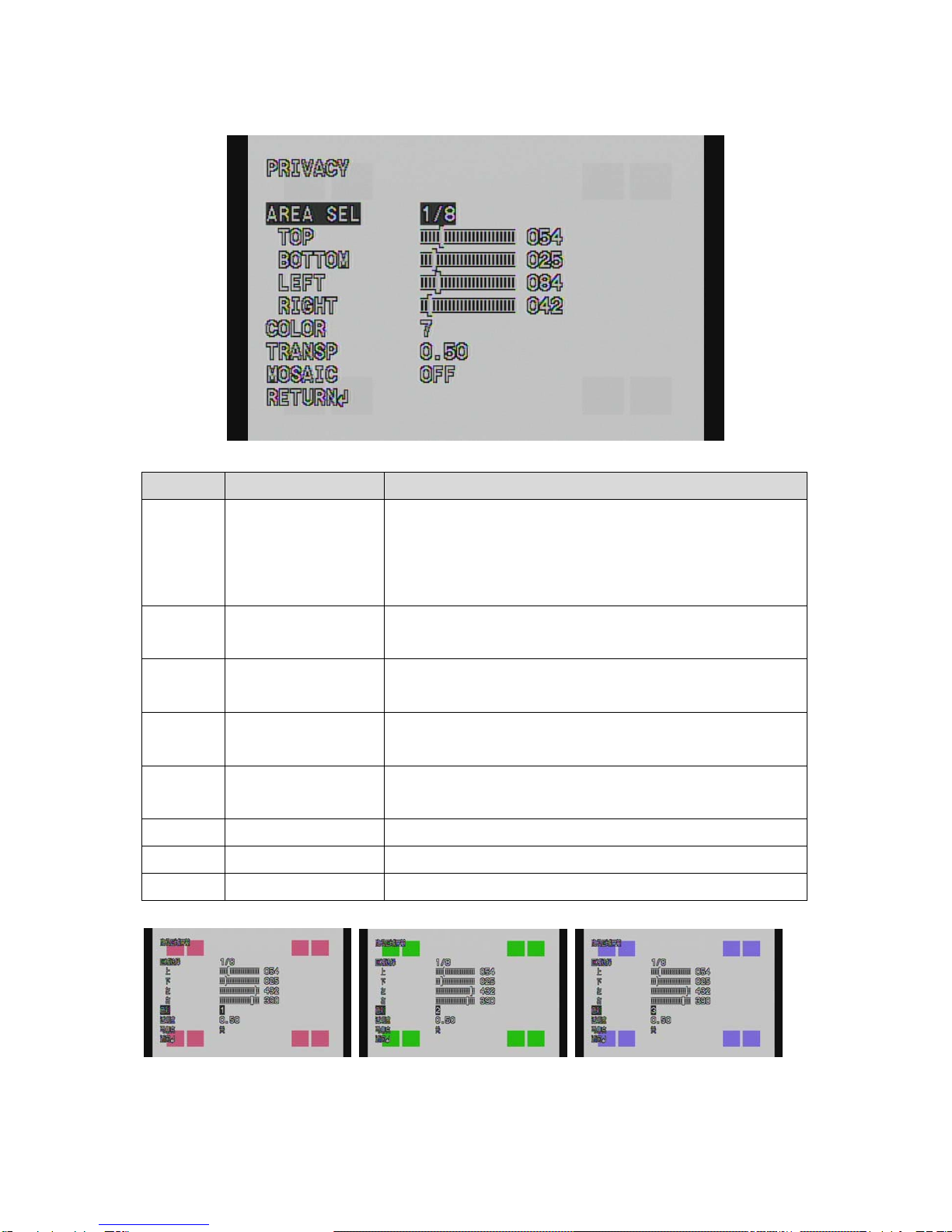

( 1.8 ) PRIVACY
Function Option Description
AREA
SEL
1/8,2/8,3/8,4/8
5/8,6/8,7/8,8/8
Selects the mask frame to be adjusted.
*When MONITOR AREA has been set to ON by the
MOTION DET setting, four frames--1/4, 2/4, 3/4 and
4/4--are selected.
TOP 000-244(NTSC)
000-288(PAL)
Sets the top side of the mask frame selected by the
AREA SEL parameter.
BOTTOM 000-244(NTSC)
000-288(PAL)
Sets the bottom side of the mask frame selected by
the AREA SEL parameter.
LEFT 000-251(NTSC)
000-246(PAL)
Sets the left side of the mask frame selected by the
AREA SEL parameter.
RIGHT 000-251(NTSC)
000-246(PAL)
Sets the right side of the mask frame selected by the
AREA SEL parameter.
COLOR 1/8 Sets the colors of the mask frames
TRANSP 0.00,0.50,0.75,1.00 Sets the transparency ratio of the mask frames.
MOSAIC OFF/ON Sets the mask frame mosaic function to ON or OFF.

16
( 1.9 ) DAY/NIGHT
Function Option Description
DAY/NIGHT
AUTO
AUTO: Day or Night is automatically identified and
controlled accordingly.
The display switches to the "DAY/NIGHT" branch menu
screen when the Enter operation input is performed from
the AUTO selected status.
COLOR COLOR: The Day/Night function is set to OFF.
B/W
B/W: The NIGHT mode is established forcibly, and chroma
is set to OFF.
The display switches to the "B/W" branch menu screen
when the Enter operation input is performed from the B/W
selected status.

17

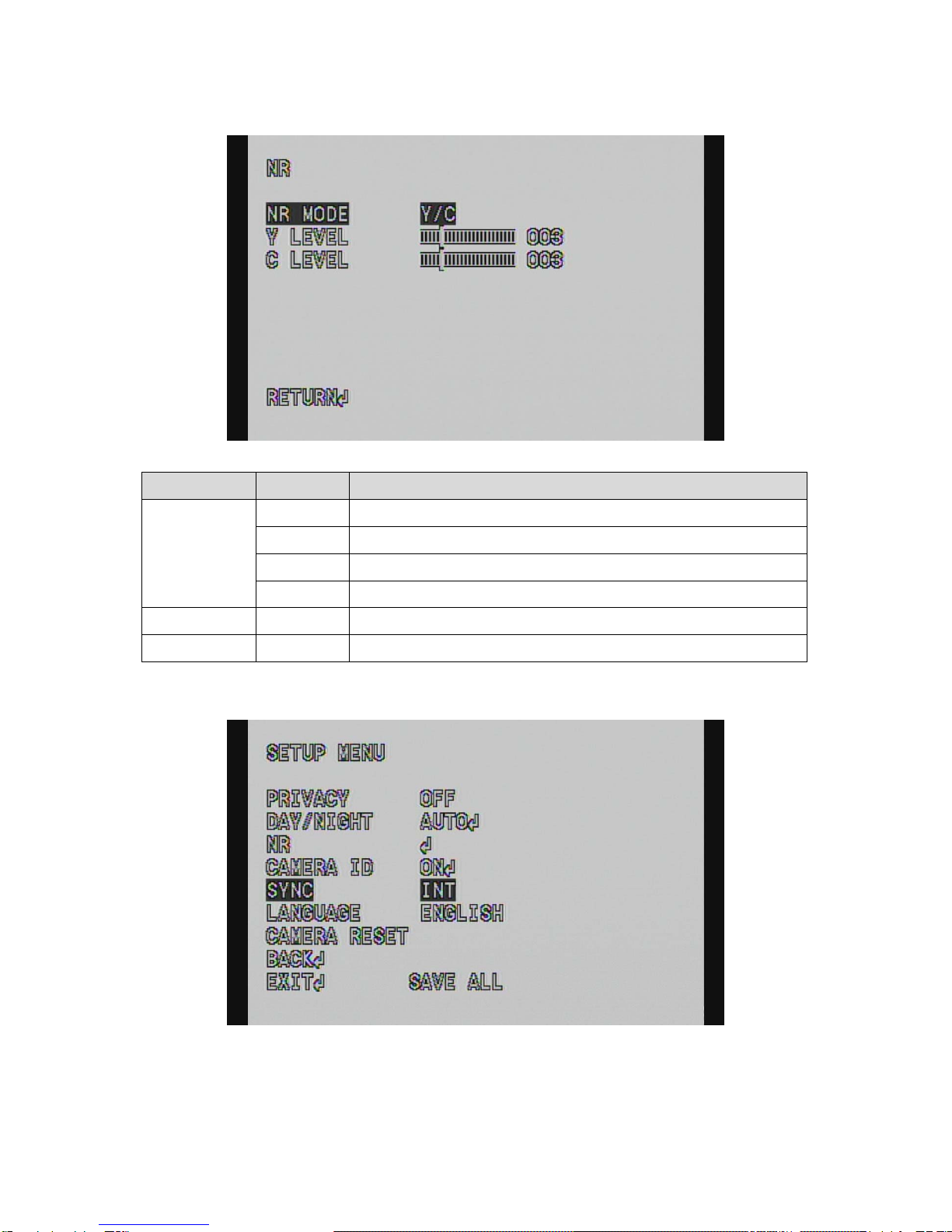

( 1.10 ) NR
Function Option Description
NR MODE
OFF OFF: Y and C filters OFF
Y Y: Y filter ON
C C: C filter ON
Y/C Y/C: Y and C filters ON
Y LEVEL 000-015 Sets the Y filter strength.
C LEVEL 000-015 Sets the C filter strength.
( 1.11 ) SYNC
