KEY FEATURES
SSC-N21/N21A
Analog Color Mini-Dome Cameras
650 TV Line Security Camera
with High Sensitivity
Horizontal resolution 650 TV lines
High sensitivity 0.15 lx (F1.2, 50 IRE, Color)
x3.7 Variable focal lens
Compact design
• High resolution (650 horizontal TV lines) and high
sensitivity (0.15 lx, F1.2, 50IRE) achieved by a 1/3-type
EXview HAD CCD II™ sensor and Sony’s new digital
signal processor, Effio-E™.
• 3.7x variable focal length lens with a focal length of
2.8 mm to 10.5 mm and a horizontal angle of view of
99.5˚ to 27.4˚.
• Easy and flexible camera angle adjustment achieved
by a new three-hinge structure.
• Electrical Day/Night function to switch to Day or Night
mode depending on the light level.
• Low power consumption: 1.5 W (Max.).
• ATR-Lite (Adaptive Tone Reproduction
Lite) to compensate for gradation of
subjects to an optimum level.
• iBLC to compensate for exposure levels in
dark scenes to improve subject visibility.
• ATW (Automatic Tracing White) balance
which automatically adjusts the camera’s
white balance to adapt to sudden
changes in lighting conditions.
• Internal lock, and line lock selectable.
• 2D noise reduction employed.
• AC 24 V/DC 12 V operation (±10%).
• Custom template supplied.
a
ac
c
b
b
Pan adjuster
Panning
Tilting
Rotating

SSC-N21 SSC-N21A
Camera
Image device 1/3-type EXview HAD CCD II
Number of effective pixels
(H x V)
approx. 570,000 pixels
(976 x 582)
approx. 480,000 pixels
(976 x 494)
Signal system PAL standard NTSC standard
Horizontal resolution 650 TV lines
S/N ratio More than 55 dB(AGC Off)
Minimum illumination Color: 0.15 lx, B/W: 0.1 lx (F1.2, 50IRE);
Color: 0.08 lx, B/W: 0.03 lx (F1.2, 30IRE)
Video output VBS:1.0Vp-p
Synchronization Internal/AC line lock selectable
Gain control Auto (on/off)
White balance ATW (2000K to10000K), ATW-PRO (2500K to 6000K)
Lens type Built-in variable focal lens
Zoom ratio Optical 3.7X
Horizontal viewing angle 99.5 degree to 27.4 degree
Focal length f=2.8 to 10.5 mm
F Number F1.2 (Wide end), F2.6 (Tele end)
Minimum object distance 300 mm
Iris Auto
Panning range 355 degree
Tilting range ±77 degree
Swivel rotation 350 degree
Camera Features
Day/Night Yes (Electrical D/N)
Noise reduction Yes (2D NR)
Back light compensation Yes (iBLC)
Automatic tone reproduction Yes (ATR-Lite)
General
Weight 11.3 oz (320 g)
Dimensions ø4 7/8 x 3 1/2 inches (ø121.6 mm x 86.5 mm)
Power requirement AC24 V ±10%, DC12 V ±10%
Power consumption Max. 1.5 W
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Operating humidity 20 % to 80 %
Storage humidity 20 % to 95 %

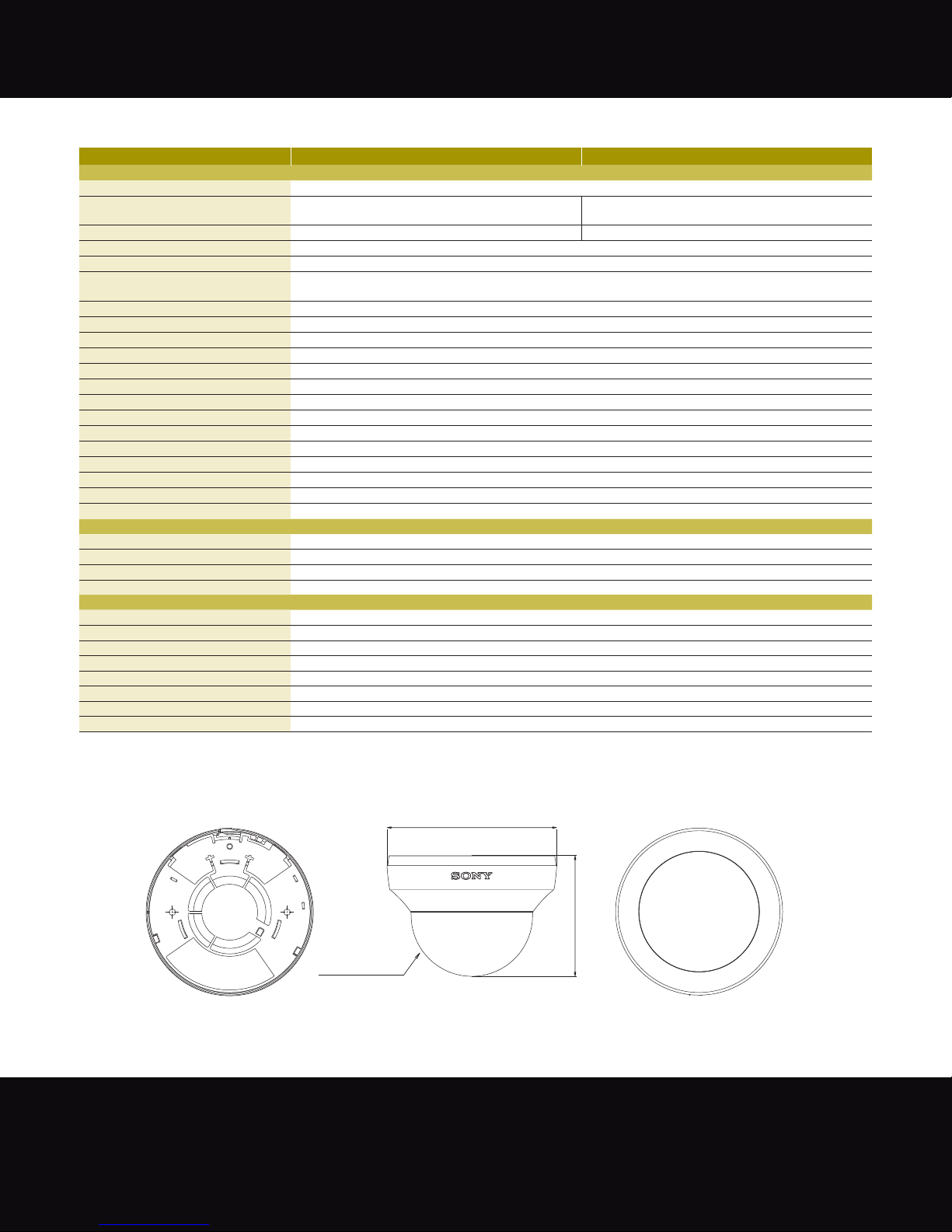

SPECIFICATIONS
DIMENSIONS Unit: inches (mm)
ø 4 7/8 (121.6)
R 1 3/4 (43.5)
3 1/2 (86.5)
