Sony DAVHDX576WF - DAV Home Theater System User manual

DAV-HDX576WF
DAV front tall wireless rear SS S Air
Key Features
S - AIR Technology (integrated) - Multi - room listening
made easy. Free your music.From room. To room.
To room. AirStation automatically syncs to allow
multi - room listening through simple, wireless plug -
and - play technology while letting you control what
you listen to.
Multi - room "S - AIR" Technology integrated
Multi - room S - AIR receiver/speaker system included
S - AIR Wireless Rear Speaker system included
iPod Cradle (TDM - iP10) for DIGITAL MEDIA PORT
included
1080p Upscaling via HDMI
BRAVIA Sync
1000W, 5 - Disc DVD/CD Player
DIGITAL MEDIA PORT
Key Technologies
S - AIR Technology Multi - room listening made easy. Free your music.From room. To room. To room. AirStation
automatically syncs to allow multi - room listening through simple, wireless plug - and - play technology while letting you
control what you listen to.
BRAVIA ® Sync As a leader in products with HDMI connectivity, Sony has created BRAVIA ® Theatre Sync to go
beyond simple audio and video transmission. When combined with a BRAVIA ® Theatre Sync - ready BRAVIA ®
Televisions and other Sony audio and video products, in addition to audio and video transmission, control functions will
be transmitted via the HDMI cable. With “ One Touch Play, ” operations that took several steps have been reduced to
one. Press the PLAY button on the remote, watch the audio and/or the video component(s) turn on then the BRAVIA ®
television turn on and switch to the correct video input—Simple— Easy —BRAVIA ® Theatre Sync.
DIGITAL MEDIA PORT As the demand for digital content continues to be strong, here's the challenge: how do you
access digital music in various devices from a home theater system— The answer: Sony ’ s DIGITAL MEDIA PORT (DMP).
This proprietary interface adds networking and connectivity to the options of home theater systems and components,
connects with various devices today and in the future, provides the ability to control and power devices while making
set up easy and operation simple to use. The DMP will be compatible with various accessories which will include a PC
Client device, Bluetooth receiver and Audio Docking Stations compatible with Network Walkman and iPod ® products.
So regardless of how you store your music, Sony ’ s DIGITAL MEDIA PORT grants access, provides control and integrates
your portable music into a traditional home theater system.
HDMI™Output with 720P/1080p upscaling of DVD Media Reads the data on a standard DVD at 480P and
maximizes the video resolution to best fit your HDMI compatible TV. This allows for you to enjoy the best in video
performance while delivering digital Video and Audio over one simple cable.
3
Digital Cinema Auto Calibration Now the optimal speaker for your living room is only a press of button away.
Simply place the included microphone in your listening position and allow the strength of Sony ’ s Digital Signal
Processing to take over. Speaker placement, distance, and delays are all adjusted automatically to ensure a worry free
listening experience.
Portable Audio Enhancer Simplified front audio and video connections are part of what makes the DAV - HDX567WF
ideal for today ’ s portables. Beyond the simplified connection a powerful Digital Signal Processor is used to expand the
quality from any device that is connected.
Multi Speaker Formation Select from the on screen display to configure the system for different speaker layout.
Music/Movie Mode System automatically adjusts sound characteristics to match the source (movie vs. music).

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 07/02/2008

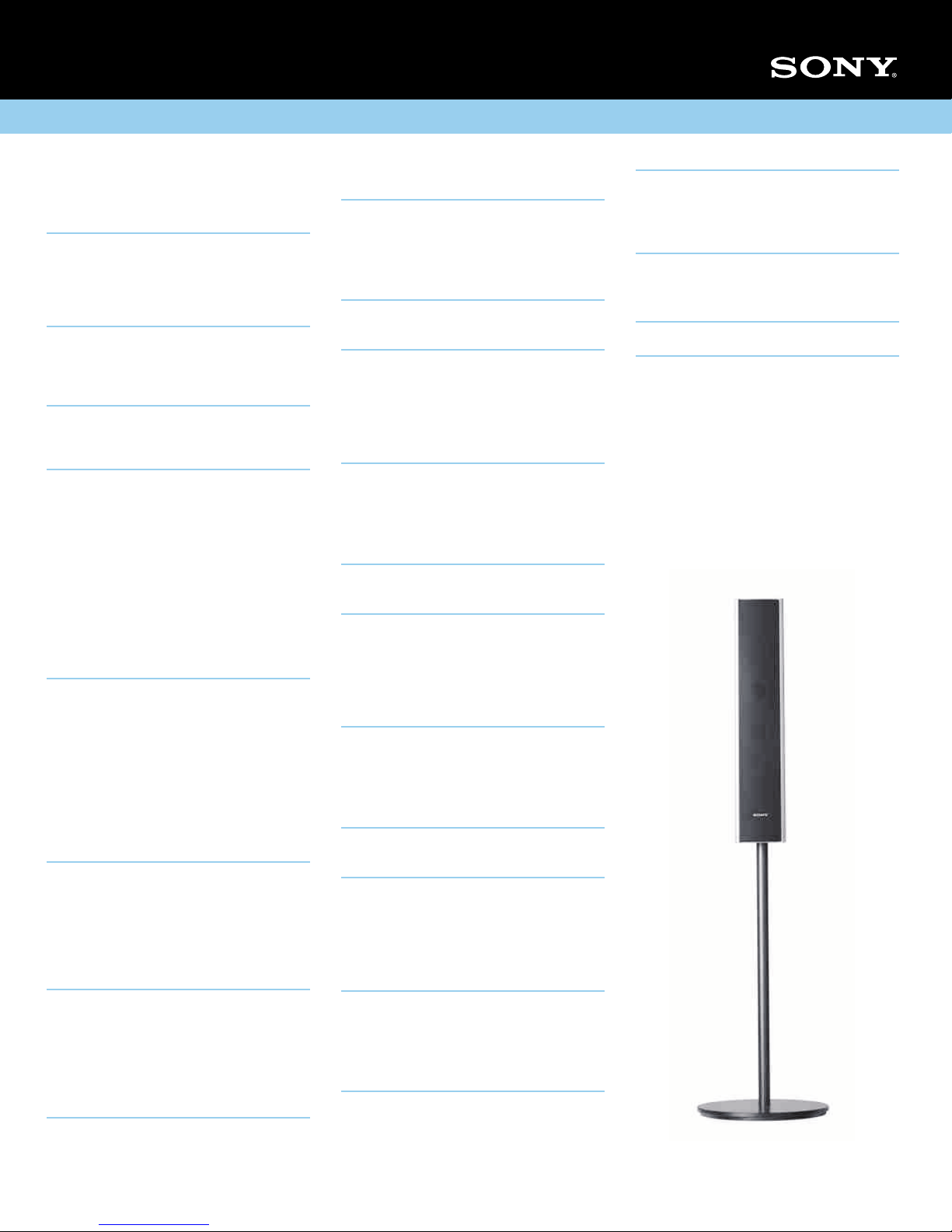

DAV-HDX576WF
DAV front tall wireless rear SS S Air
Please visit the Dealer Network for current
information at www.sony.com/dn
Specifications
General
Inputs and Outputs
HDMI™ConnectionOutput(s): Yes
(1080p)
DVD, VCD, CD Player
Video
Digital - to - AnalogConverter: 108MHz/12bit
Amplifier
General
Function: Tuner (FM, AM), DVD, Audio,
DIGITAL MEDIA PORT, SAT/CABLE, TV
Audio
DigitalAmplifier: Yes (24 bit S - Master ®
Digital Amplifier)
Equalizer: Bass Boost function (Dynamic
Bass on RM); Portable Audio Enhancer:
Normal; Night Mode: Normal
Audio Power Output: Amplifier: 1000W
(RMS) / 512W(FTC), Center Speaker: 84W
(FTC 0.7%THD), Center Speaker: 143W
(RMS), Front Speaker: 84W x 2 ((FTC 0.7%
THD), Front Speaker: 143W x 2 (RMS 10%
THD), Subwoofer Speaker: 160W (FTC 0.7%
THD), Subwoofer Speaker: 285W (RMS)
Inputs and Outputs
Analog Audio Input(s): 2 (Rear)
Coaxial Audio Digital Input(s): 1 (Rear)
Component Video (Y/Pb/Pr ) Input(s): 1
(Rear)
Composite Video Input(s): 1 (Rear)
HeadphoneInput(s): 1 (Rear) 3.5mm
HDMI™ConnectionOutput(s): 1
Optical Audio Input(s): 1 (Rear)
Digital Media Port (Input): Yes
Power
PowerRequirements: 120V AC, 60Hz
Power Consumption (in Standby): less
than 0.3 W
PowerConsumption: 125W
Tuner
Audio
StationPreset(s): 10 AM, 20 FM
TunerType: AM/FM
Tuning: FM: 87.5 MHz - 108.0 MHz (100
kHzstep); AM: 530 - 1710 kHz (10k step)
531 - 1710 kHz (9k step)
Impedance: 75ohm
Inputs and Outputs
Antenna Terminal (FM 75 Ohm): Yes
Front Speaker
Speaker
SpeakerType: Bass Reflex (Ported)
SpeakerSystem: 1 way (Full Range)
Speaker Terminal Type: DAV Connector
WooferSize(s): 65mm
Audio
Impedance: 3 ohm
Weights and Measurements
Cord Length (Approx.): 4.5m x 2
Dimensions(Approx.): 103x225x82mm
Weight(Approx.): 1.5 lbs. (0.7 kg)
Center Speaker
Speaker
SpeakerType: Bass Reflex (Ported)
SpeakerUnit: 65mm
SpeakerSystem: 1 way (Full Range)
Speaker Terminal Type: DAV Connector
Audio
Impedance: 3 ohm
Weights and Measurements
Cord Length (Approx.): 3m x 1
Dimensions(Approx.): 265x93x71mm
Weight(Approx.): 1.5 lbs. (0.7 kg)
Surround Speaker
Speaker
SpeakerType: Bass Reflex (Ported)
SpeakerUnit: 65mm
SpeakerSystem: 1 way (Full Range)
Speaker Terminal Type: DAV Connector
Audio
Impedance: 3 ohm
Weights and Measurements
Cord Length (Approx.): 5m x 2
Dimensions(Approx.): 103x164x82mm
Weight(Approx.): 1.3 lbs. (0.6 kg)
Subwoofer Speaker
Speaker
SpeakerUnit: 160mm
SpeakerType: Bass Reflex (Ported)
SpeakerSystem: Bass Reflex (Ported)
Speaker Terminal Type: DAV Connector
Audio
Impedance: 1.5 ohm
Weights and Measurements
Dimensions(Approx.): 225x395x325mm
Weight(Approx.): 6.1kg
Cord Length (Approx.): 3.5m x 1
Supplied Accessories
iPod Cradle (TDM - iP1)
Wirelees Rear Speaker Kit (WAHT - SA1)
Air Station (AIRSA10)
UPC Code: 027242728943
1.XMConnectandPlay ™ requiresubscriptionandantennawhichare
soldseparately. Antenna placement restrictions apply.
2.Playback depends on recording conditions.
3.RequiresHDTVwith HDMI connector and equivalent display capability.
Imagequalitywillvary.
4.TDM - iP1iscompatible with iPod nano(2G/1G), iPod (5G/4G) and iPod
mini.Pleasecheck compatibility.
©2008SonyElectronics Inc. All Rights Reserved.
Sony,S - Masterand DVD Dreamare trademarks ofSony.Dolby, Dolby
Digital,andProLogic are registered trademarks of DolbyLaboratories.dts
isa trademark ofDigitalTheater Systems, L.P.HDMIis a trademarkof
HDMILicensing LLC. Allothertrademarks arepropertyof their respective
owners.
Featuresandspecificationsare subject to change without notice. All
Weights and measures are approximate.
