Getting Started
A Accessories
Confirm you have the supplied accessories shown below.
• WAM7500/WAM7501
Quick Setup Guide
• WAM6500/WAM6501
Power Adapter Quick Setup Guide
A Standby Mode
`In Wi-Fi / Bluetooth / TV SoundConnect mode
- The product switches to Standby mode if there is no operation (music playing, button
operation, app use) for 15 minutes.
NOTES
9While playing music in the Wi-Fi, Bluetooth, or TV SoundConnect connection modes, the product will
not switch to Standby mode.
9The WAM6500 and WAM6501 models use battery power if the power adapter is disconnected and
the Standby mode is activated.
(You can minimize battery consumption by pressing the
DC24V SERVICEPOWER DC24V SERVICEPOWER
DC24V SERVICEPOWER DC24V SERVICEPOWER
POWER button on the rear of the product
and turning the product off.)
4
4

A Front Panel
1
Source button Touch this button to switch to TV SoundConnect or Bluetooth.
Touch and hold this button for more than 5 seconds to re-search TV SoundConnect.
2
Standby button
Touch this button to switch the product to Standby mode.
- Standby mode: This mode turns off the product’s basic functions and maintains
Wi-Fi connections only.
If you touch and hold this button for 3 seconds, the speaker turns off.
(WAM7500, WAM7501 only)
3
Play/Pause button Touch this button to play or pause playback.
Pause does not work when the speaker is set to TV SoundConnect.
4
Volume Control
button
Controls the volume level.
Press the + key to increase the volume level and press the - key to decrease the
volume level.
Press and hold both the + and - buttons simultaneously for 5 seconds to reset the
product.
5
4
< WAM7500/WAM7501 > < WAM6500/WAM6501 >
qw
e tr
Be careful not to insert your hand
or finger into the tweeter opening
on top of the product.

1
POWER To turn the product on or off, press and hold this button for more than 2 seconds.
2
DC 24V
The connection for the product's power adapter.
Charging stops if the volume level reaches 25 or more.
(The maximum volume level of this product is 30.)
3
SERVICE For service only. Lets service technicians update the firmware of the product.
5
Battery Status
(WAM6500, WAM6501
Only)
You can check product's battery status.
Battery LED indicator when power
adapter is connected
Battery LED indicator when power
adapter is not connected
• Red LED : Charging
• LED OFF : Fully charged
• Rapid red blinking : Not charging
• Green LED : 100% to 10% of charge
remaining
• Slow red blinking : 10~0% remaining
- Slow red blinking indicates that the
battery requires charging. Connect the
power adapter.
- The sound volume may decrease and
the speaker may turn off automatically
when the battery is low.
NOTES
9+ Add Speaker : Press and hold both buttons simultaneously for 5 seconds to use the Add
Speaker function.
9+ Wi-Fi Setup : Press and hold both buttons simultaneously for 5 seconds when connecting this
product to your network using the Wi-Fi Setup method.
- For more details, follow the instructions in the app on your smart device.
A Rear Panel - WAM6500/WAM6501
6
4
DC24V SERVICEPOWER DC24V SERVICEPOWER
DC24V SERVICEPOWER DC24V SERVICEPOWER
< WAM6500/WAM6501 >
q w e

A Preparing connection
1 Requirements: Wireless Router, Smart Device
2 The wireless router should be connected to the Internet.
3 The smart device should be connected to the router via a Wi-Fi connection.
❚Installing the Samsung Multiroom App
To use the product, you must download and then install the Samsung Multiroom App by
accessing the app through Google play or App Store.
With the Samsung Multiroom App installed, you can play music stored in your smart device,
from connected devices and other content providers, and from Internet radio stations through
the product.
Android iOS
Market search : Samsung Multiroom
ANDROID APP ON
Market search : Samsung Multiroom
ANDROID APP ON
❚Accessing the Samsung Multiroom App
To access the Samsung Multiroom app, press the Multiroom app icon on your smart device.
NOTE
9Please terminate the Samsung Multiroom App when audio products are not used because the battery of
your smart device can be consumed quickly if the app is working.
Connections
Wireless Router Samsung LinkInternet
7
4
Samsung
Multiroom

A Connecting wirelessly
❚Connecting to your wireless network automatically (Android/iOS)
1 Plug the product into an electrical outlet.
2 On your Smart device, select the Samsung Multiroom app.
3 Run the Tutorial if you want, and then press Done.
4 Press Connect Now.
• It searches for the device available for pairing.
Wireless Router
8
4

5 Once an available device is found, it attempts to connect to the wireless network.
In case of secure network, the password prompt appears on the smart device screen.
Use the onscreen keyboard to enter the password.
• Depending on the network environments, the product(s) may not be automatically
connected. In such cases, select the Manual, and then proceed the next steps by
referring to pages 10~15.
Click here.
6 Press the Connect.
• Network connection is completed.
NOTES
9To connect to your wireless network safely, you must enter the valid password.
- For connecting to the home or work wireless network, consult your service provider or the network
administrator.
9If the product fails to connect to a network or the network connection does not work normally, move the
product closer to the hub or router, and then try again.
9The distance between devices or obstruction and interference from other wireless devices may
influence communication between the product and network.
9This product may be found by some other Wi-Fi devices. However, they are not allowed to connect to
this product.
9Once the Wi-Fi connection is established initially, it is maintained unless the wireless router is replaced
or its network settings are changed.
9
4

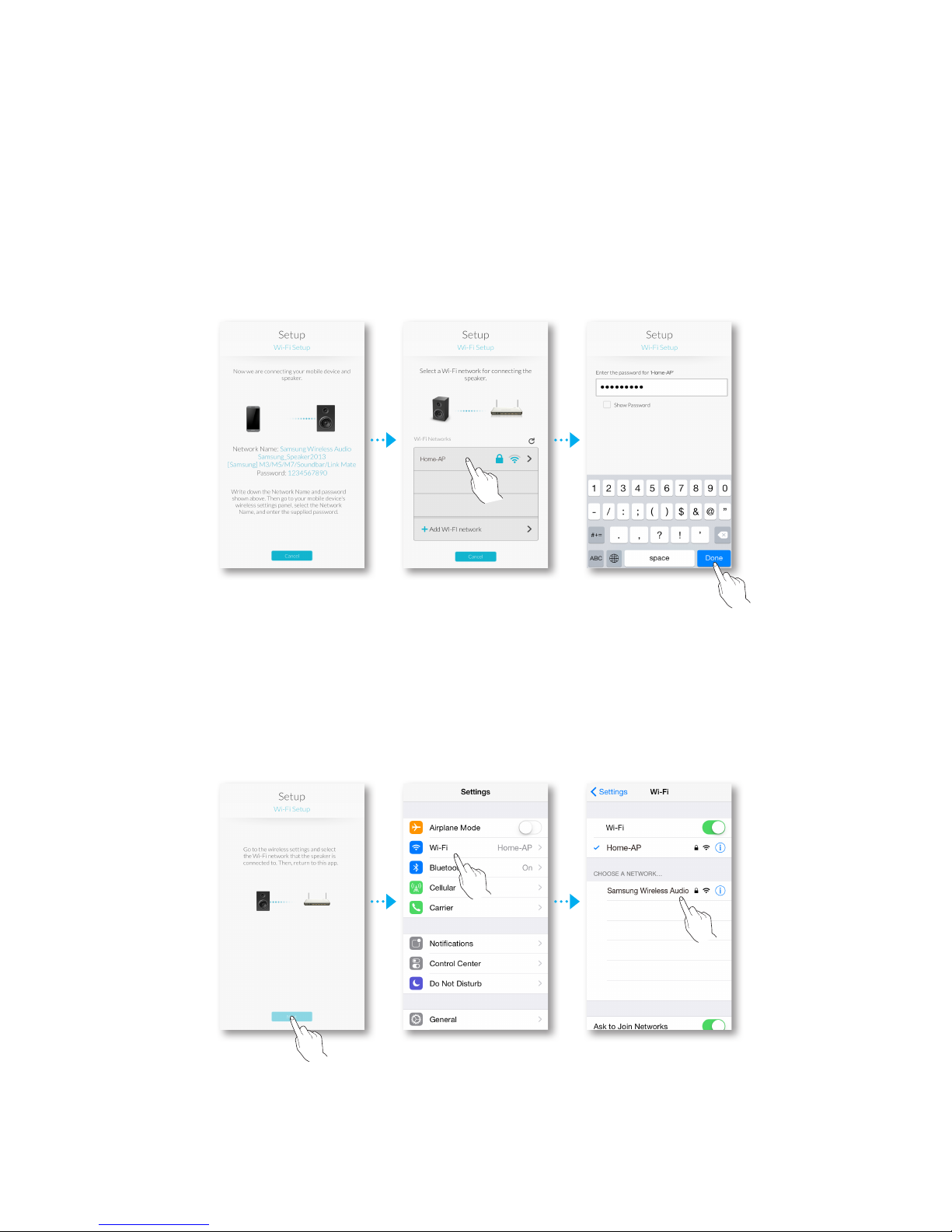

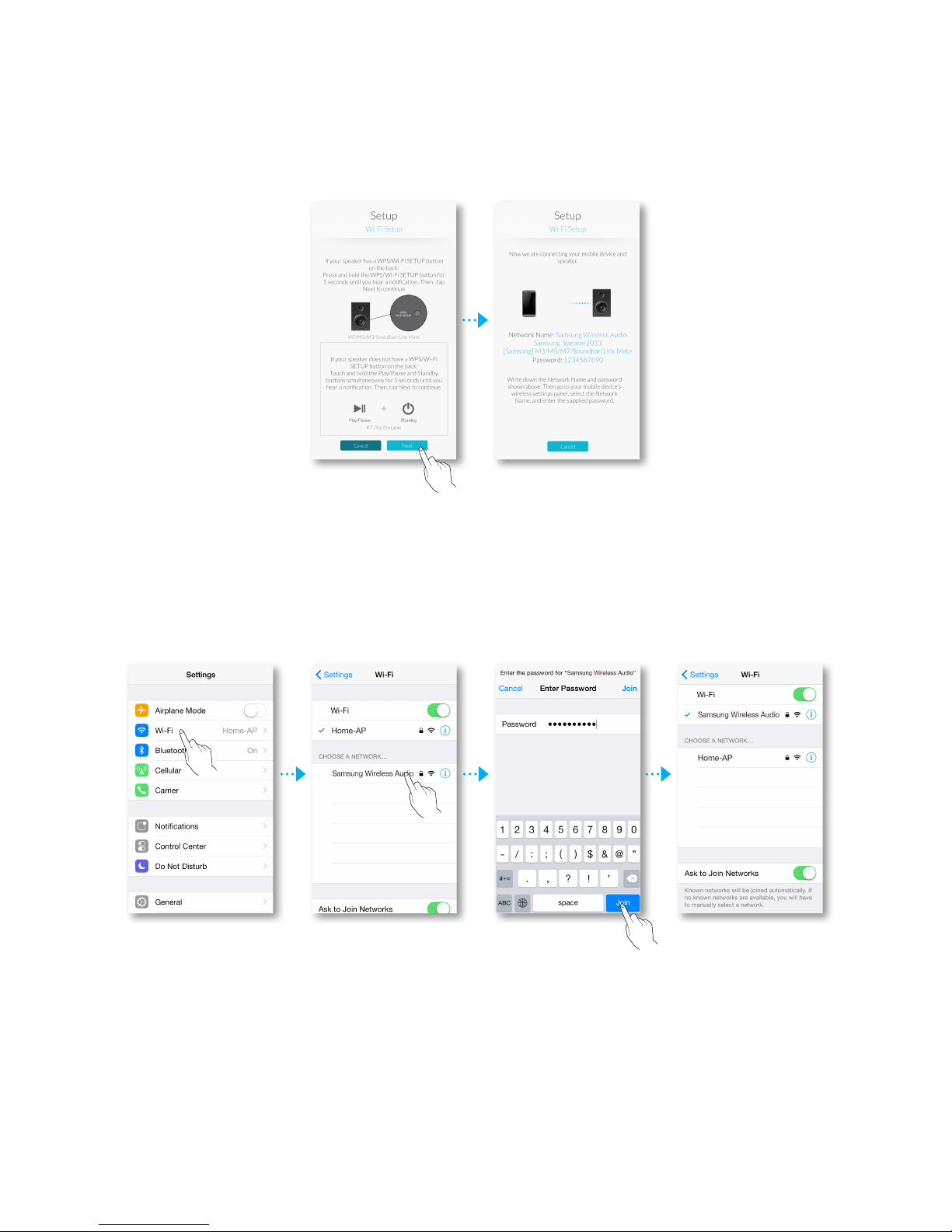

❚Connecting to the wireless network manually (Android)
Depending on the network environments, the product(s) may not be automatically connected. In
that case, you can set up the product manually to connect to the network.
1 If the automatic setup fails, select the Manual.

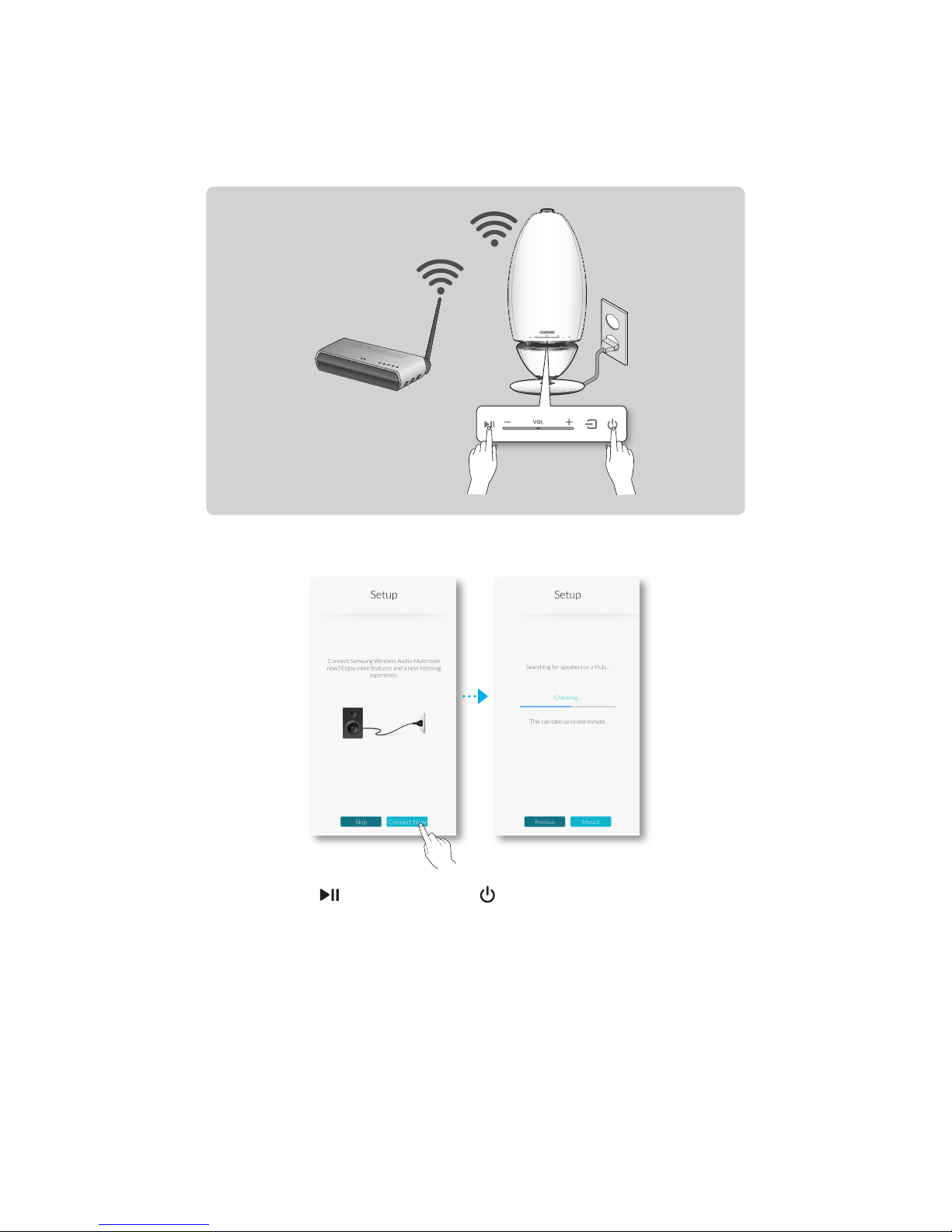

2 Press and hold both Play/Pause and Standby buttons simultaneously for more
than 5 seconds to configure the Wi-Fi Setup.
• The product can wait for 2 minutes in its standby mode until the Wi-Fi connection is
established.
Wireless Router
10
