CMT-DH70SWR/DH50R.GB.4-143-190-12(1)CMT-DH70SWR/DH50R.GB.4-143-190-12(1)

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
2GB
WARNING
To reduce the risk of re, do not cover the
ventilation opening of the apparatus with
newspapers, tablecloths, curtains, etc. Do
not place the naked ame sources such as
lighted candles on the apparatus.
To reduce the risk of re or electric shock,
do not expose this apparatus to dripping
or splashing, and do not place objects
lled with liquids, such as vases, on the
apparatus.
As the main plug is used to disconnect
the unit from the mains, connect the unit
to an easily accessible AC outlet. Should
you notice an abnormality in the unit,
disconnect the main plug from the AC
outlet immediately.
Do not install the appliance in a conned
space, such as a bookcase or built-in
cabinet.
Do not expose batteries or apparatus with
battery-installed to excessive heat such as
sunshine, re or the like.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
CAUTION
e use of optical instruments with this
product will increase eye hazard.
Except for customers in the U.S.A.
and Canada
is appliance is classied as a CLASS 1
LASER product. is marking is located
on the rear exterior.
Notice for customers: the following
information is only applicable
to equipment sold in countries
applying EU directives.
e manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku,
Tokyo, 108-0075 Japan.
e Authorized Representative for EMC
and product safety is Sony Deutschland
GmbH, Hedelnger Strasse 61, 70327
Stuttgart, Germany.
For any service or guarantee matters,
please refer to the addresses given in
separate service or guarantee documents.

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
3GB
Disposal of Old
Electrical & Electronic
Equipment
(Applicable in the
European Union
and other European
countries with
separate collection
systems)
is symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. e recycling of materials
will help to conserve natural resources.
For more detailed information about
recycling of this product, please contact
your local Civic Oce, your household
waste disposal service or the shop where
you purchased the product.
Applicable accessories: Remote
commander
Disposal of waste
batteries (applicable
in the European Union
and other European
countries with
separate collection
systems)
is symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not be
treated as household waste. On certain
batteries this symbol might be used in
combination with a chemical symbol.
e chemical symbols for mercury (Hg)
or lead (Pb) are added if the battery
contains more than 0.0005% mercury or
0.004% lead. By ensuring these batteries
are disposed of correctly, you will help
prevent potentially negative consequences
for the environment and human health
which could otherwise be caused by
inappropriate waste handling of the
battery. e recycling of the materials will
help to conserve natural resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery should
be replaced by qualied service sta only.
To ensure that the battery will be treated
properly, hand over the product at end-of-
life to the applicable collection point for
the recycling of electrical and electronic
equipment.
For all other batteries, please view the
section on how to remove the battery from
the product safely. Hand the battery over
to the applicable collection point for the
recycling of waste batteries.
For more detailed information about
recycling of this product or battery, please
contact your local Civic Oce, your
household waste disposal service or the
shop where you purchased the product.

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
4GB
Icons, such as , listed at the top
of each explanation indicate what kind
of media can be used with the function
being explained.
e Control Menu items may be
dierent depending on the disc.
e Control Menu items may vary
depending on the area.
e Setup Menu items may be dierent
depending on the area.
e order of the displayed items may
be dierent from the actual display.
About this manual
e instructions in this manual are
for models CMT-DH70SWR and
CMT-DH50R. Each model consists of
the following components.
CMT‑DH70SWR
Main Unit:
HCD-DH70SWR
Speaker system:
SS-CDH70SWR (Front speakers)
SA-WDH70SWR (Subwoofer)
CMT‑DH50R
Main Unit:
HCD-DH50R
Speaker system
European and Russian models:
SS-CDH50R2 (Front speakers)
Asian models:
SS-CDH50R (Front speakers)
In this manual, the CMT-DH70SWR
is used for illustration purposes unless
stated otherwise.

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
5GB

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
6GB
Table of Contents
Tuner
Listening to the radio .......................67
USB Device
Before using the USB device with
this system............................................69
Transferring music from a disc to a
USB device............................................70
Recording analog audio to a USB
device.....................................................75
Playing a le of the USB device.....77
Sound Adjustment
Generating a more dynamic sound
(DSGX—Dynamic Sound Generator
X-tra) .......................................................84
Adjusting the bass and treble
levels.......................................................84
Singing along: Karaoke (except for
European models) .............................85
About this manual............................... 4
Playable discs ........................................ 8
Guide to parts and controls ...........11
Getting Started
Hooking up the system
securely..................................................22
Hooking up the TV.............................25
Setting the clock ................................32
Performing “QUICK” setup ..............33
Disc
Playing a disc.......................................35
Using the “BRAVIA Sync”
features..................................................44
Using play mode ................................46
Restricting playback of the disc
(PARENTAL CONTROL)......................57
Using the Setup Menu .....................59

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
7GB
Other Operations
Using the timers .................................90
Turning o the beep sound ...........92
Changing the display .......................92
Hooking up optional
components.........................................97
Additional Information
Troubleshooting.............................. 100
Precautions........................................ 117
Specications ................................... 120
Guide to the Control Menu
display................................................. 124
Playback priority of le types ..... 128
Language code list ......................... 129
Glossary .............................................. 131
Index.................................................... 136
License and Trademark notice ... 138

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
8GB
Playable discs
Type Disc logo Characteristics Icon
DVD VIDEO DVD VIDEO
DVD-R/DVD-RW in DVD
VIDEO format or video mode
DVD+R/DVD+RW in DVD
VIDEO format
VR (Video
Recording)
mode
DVD-R/DVD-RW in VR
(Video Recording) mode
(except for DVD-R DL)
VIDEO CD VIDEO CD (Ver. 1.1 and 2.0
discs)
Super VCD
CD-R/CD-RW/CD-ROM in
video CD format or Super VCD
format
CD Audio CD
CD-R/CD-RW in audio CD
format

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
9GB
Type Disc logo Characteristics Icon
DATA CD CD-R/CD-RW/CD-ROM in
DATA CD format, containing
MP3 les, JPEG image les,
DivX video les and MPEG4
video les, and conforming to
ISO 9660 Level 1/Level 2, or
Joliet (extended format)
DATA DVD DVD-ROM/DVD-R/DVD-
RW/DVD+R/DVD+RW in
DATA DVD format, containing
MP3 les, JPEG image les,
DivX video les and MPEG4
video les, and conforming to
UDF (Universal Disk Format)
MP3 les: MP3 (MPEG1 Audio Layer 3) is a standard format dened by ISO/MPEG which
compresses audio data. MP3 les must be in MPEG1 Audio Layer 3 format.
JPEG image les: JPEG image les must conform to the DCF image le format (DCF “Design rule
for Camera File System”: Image standards for digital cameras regulated by “Japan Electronics and
Information Technology Industries Association” (JEITA)).
DivX video les: DivX video les must be recorded in DivX format with the extension “.avi” or
“.divx”.
MPEG4 video les: MPEG4 video les must be recorded in MP4 le format with the extension
“.mp4” or “.m4v.”
ISO 9660: A logical format of les and folders on CD-ROMs, dened by ISO (International
Organization for Standardization).
Continued


CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
10GB
Discs that cannot be played
CD-ROMs recorded in PHOTO CD
format
DATA CDs recorded in MP3 PRO
format
Data part of CD-Extras1)
Data part of Mixed CDs2)
Super Audio CDs
DVD Audio discs
DVD-RAMs
CPRM compatible DVD-R/RW
recorded in Copy-once programs3)
Discs of non-standard shape (for
example, heart, square, star)
Discs that have adhesive tape, paper, or
sticker attached to them
Rental or used discs with attached seals
where the glue extends beyond the seal
Discs that have labels printed using ink
that feels tacky when touched
1) CD-Extra: is format records audio
(AUDIO CD data) on the tracks in session 1
and data on the tracks in session 2.
2) Mixed CD: is format records data on the
rst track and audio (AUDIO CD data)
on the second and subsequent tracks of a
session.
3) CPRM: “Content Protection for Recordable
Media” is a coding technology that protects
copyright for Copy-Once programs.
See “Region code of DVD VIDEOs you
can play back on this system” and “Notes
on discs” (page 117) regarding the region
code and notes on discs.

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
11GB

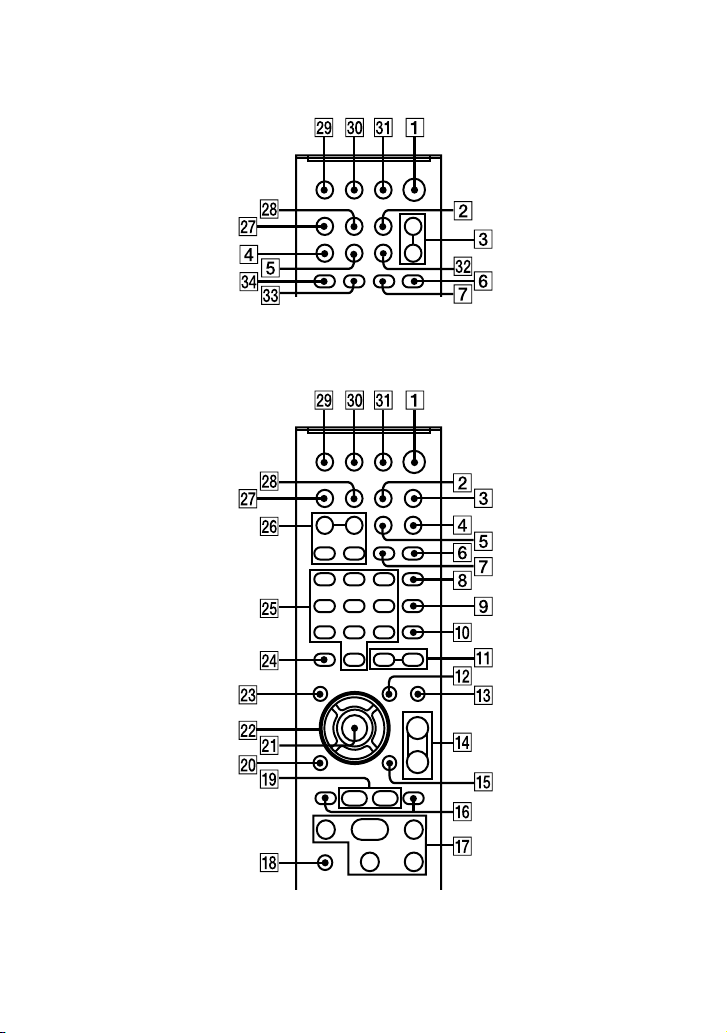

Guide to parts and controls
Guide to parts and controls
is manual mainly explains operations using the remote, but the same operations can
also be performed using the buttons on the unit having the same or similar names.
Main Unit

 (power) button (page 23, 71,
113)
Press to turn on or o the system.

STANDBY indicator (page 100)
Lights up when the system is turned o.

Disc slot
Continued


CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
12GB

/(go backward/
forward) buttons (page 34, 36, 40,
52, 80)
Press to select a track, chapter or video
le.
PRESET +/buttons (page 68,
84)
Press to select the preset station.

(play) button (page 25, 35, 36,
71, 76, 79)
Press to start playback.

(pause) button (page 36)
Press to pause playback.

(stop) button (page 24, 36, 37,
38, 40, 67, 70, 71)
Press to stop playback.

FUNCTION +/buttons (page 25,
67, 74, 75, 85, 113)
Press to select the function.

+/buttons (page 36, 74,
113)
Press to select a folder.

VOLUME +/buttons (page 17,
35)
Turn to adjust the volume.

REC TO USB button (page 71, 76,
77)
Press to transfer music from a disc or
record the sound from an analog audio
source to the connected optional USB
device.
Press to mark track numbers during
recording.

(eject) button (page 24, 35)
Press to eject a disc.

Display (page 21)

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
13GB
Guide to parts and controls

(USB) port (page 70, 75, 77)
Connect an optional USB device.

(Except for European models)
MIC jack (page 85)
Connect a microphone.
MIC LEVEL +/control (page 85)
Press the le or right side of the control
to adjust the microphone volume.
ECHO LEVEL +/control (page
85)
Press the le or right side of the control
to adjust the echo level.

AUDIO IN jack (page 75, 98)
Connect an optional component such as
a portable audio player.

PHONES jack
Connect the headphones.

Remote sensor
Continued


CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
14GB
Remote
(European models only)
(Except for European models)

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
15GB
Guide to parts and controls

 (power) button (page 23, 71)
Press to turn on or o the system.

TIMER MENU button (page 32,
90, 91)
Press to set the clock and the timers.

FUNCTION button (page 25, 67,
74, 75, 85, 113)
Press to select the function.
FUNCTION +/buttons (page 25,
67, 74, 75, 85, 113)
Press to select the function.

DISPLAY button (page 25, 93,
113)
Press to change (to) the clock display.

DIMMER button (page 92)
Press to choose the brightness option for
the display.

PICTURE NAVI button (page 51,
79)
Press to display the thumbnail pictures.

(European models only)
REPEAT button (page 51, 83)
Press to listen to a disc, a USB device, a
single track or le repeatedly.
(Except for European models)
REPEAT/FM MODE button (page
50, 68, 83, 112)
Press to listen to a disc, a USB device, a
single track or le repeatedly.
Press to select FM reception mode
(monaural or stereo).

AUDIO button (page 38, 85, 96,
98)
Press to select the desired audio signal on
the TV screen.

SUBTITLE button (page 37)
Press to switch the language of the
subtitle (DVD VIDEO only).
Continued


CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
16GB

ANGLE button (page 37)
Press to change the angle (DVD VIDEO
with multi-angles only).
MEMORY SELECT button (page
71)
Connect a Sony Ericsson mobile phone
to the unit.
Press to choose the internal memory
or a Memory Stick on the Sony
Ericsson mobile phone, for playback or
transferring music.

+/buttons (page 36, 74)
Press to select a folder.

(European models only)
DVD/USB MENU button (page 38,
51, 54, 78, 99)
Press to turn on or o the menu items on
the TV screen.
(Except for European models)
DVD/USB/TUNER MENU button
(page 38, 51, 54, 67, 78, 99)
Press to turn on or o the menu items on
the TV screen.
Press to preset the radio station.

(European models only)
EQ button (page 84)
Press to choose “BASS” or “TREBLE” for
adjustment.
(Except for European models)
EQ/DSGX button (page 84)
Press to choose “BASS” or “TREBLE” for
adjustment, or “DSGX” to turn it on/o.

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
17GB
Guide to parts and controls

VOLUME +/2) buttons (page 35)
Press to adjust the volume.
TV VOL +/1)2) buttons (page 32)
Press to adjust the TV volume.

DISPLAY button (page 27, 34,
47, 72, 97, 124)
Press to turn on or o the Control Menu
on the TV screen.
e Control Menu is displayed only
when the “DVD” function or “USB”
function is selected.

PRESET +/buttons (page 68,
84)
Press to select the preset station.
/(go backward/
forward) buttons (page 34, 36, 40,
52, 80)
Press to select a track, chapter or video
le.
TV CH +/1) buttons (page 32)
Press to change the TV channels.

2) (play) button (page 35, 36,
71, 76, 79)
Press to start playback.
(pause) button (page 12, 36)
Press to pause playback.
(stop) button (page 36, 37, 38,
40, 67, 70, 71)
Press to stop playback.
/(rewind/fast forward)
buttons (page 36)
Press to nd a point in a track, le,
chapter or video le.
SLOW/SLOW buttons (page
36)
Press to watch the slow-motion play.
TUNING +/buttons (page 67)
Press to tune in the desired station.

TV1) button (page 32)
Press to operate the TV functions.
Continued


CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
18GB

STEP buttons (page 36)
Press to play one frame at a time when
playback is paused.
ADVANCE button (page 36)
Press to advance the current scene during
playback.
REPLAY button (page 36)
Press to replay the previous scene during
playback.

RETURN button (page 40, 52,
74, 80)
Press to return to the previous menu on
the TV screen.

ENTER button (page 27, 32, 67,
72, 82, 87, 90, 114)
Press to enter the settings.

///buttons (page 27, 31,
32, 36, 57, 67, 72, 73, 82, 84, 87,
90, 114)
Press to select the menu items.

DVD TOP MENU button (page 36)
Press to display the DVD title on the TV
screen.

CLEAR button (page 33, 42, 47,
48, 52, 74, 80, 82)
Press to delete a pre-programmed track
or le.
Press to delete les or folders from the
connected optional USB device.
-/--1) button (page 32)
Press to enter a single digit or double
digit number.

Numeric buttons2) (page 32, 36,
42, 57, 68)
Press to select a track, chapter or video
le.
Press to enter a password.
10/01) button
Press to enter a double digit number.

CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
19GB
Guide to parts and controls

(Except for European models)
KEY CONTROL  buttons (page
86)
Press to change the key to suit your vocal
range.
SCORE button (page 89)
Press to start or stop calculating your
vocal score.
KARAOKE PON button (page 86)
Press to activate the “Karaoke Pon”
function.

SLEEP button (page 90)
Press to set the Sleep Timer.
TV/VIDEO button1) (page 32)
Press to switch the TV’s input source
between the TV and other input sources.

TIME/TEXT button (page 93, 95)
Press to change the information
appearing in the front panel display or
on-screen display.

THEATRE button (page 44)
Press to operate the “eater Mode”
function (one of the convenient BRAVIA
Sync features).

ONE-TOUCH PLAY button (page
44)
Press to operate the “One-Touch Play”
function (one of the convenient BRAVIA
Sync features).

TV  (power)1) button (page
32)
Press to turn on or o the TV.

DSGX button (page 84)
Press to enter DSGX (Dynamic Sound
Generator X-tra) mode.
Continued


CMT-DH70SWR/DH50R.GB.4-143-190-11(1)
20GB

(European models only)
FM MODE button (page 68, 112)
Press to select FM reception mode
(monaural or stereo).

(European models only)
TUNER MEMORY button (page
67)
Press to preset the radio station.
1) is button is used to operate a Sony TV. For
details, see “Operating a Sony TV” (page 32).
2) e numeric button 5, TV VOL +,
VOLUME + and buttons on the remote
have a tactile dot. Use the tactile dot as a
reference when operating the system.
