SERVICE MANUAL
Sony Corporation
Personal Audio Division
Published by SonyTechno Create Corporation
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
DVD DECK RECEIVER
9-879-536-05
2006K16-1
© 2006.11
Ver. 1.4 2006.11
SPECIFICATIONS
HCD-DV2D
HCD-DV2D is the Amplifier, DVD player, Tape
Deck and Tuner section in CMT-DV2D.
DVD Model Name Using Similar Mechanism HCD-GP8D
Section DVD Mechanism Type KDA898ST
Traverse Mechanism Name 1ADOMEZ0412
TAPE Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type CMAL5Z220C
— Continued on next page —
This system incorporates Dolby1) Digital and DTS2) Digital
Surround System.
1) Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks
of Dolby Laboratories.
2) Manufactured under license from Digital Theater Systems,
Inc. “DTS” and “DTS 2.0 + Digital Out” are trademarks of
Digital Theater Systems, Inc.
Amplifier section
AUDIO POWER SPECIFICATIONS
(USA model only)
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, both channels driven, from
120 – 10,000 Hz: rated 50 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milliwatts to
rated output.
North American model:
Front speaker
Continuous RMS power output (reference):
50 + 50 watts (6 ohms at
1kHz, 10% THD)
Total harmonic distortion less than 0.07% (6 ohms at
1kHz,25 W)
European and Russian models:
DIN power output (rated): 40 + 40 watts (6 ohms at
1kHz, DIN)
Continuous RMS power output (reference):
50 + 50 watts (6 ohms at
1kHz, 10% THD)
Music power output (reference):
100 + 100 watts (6 ohms at
1kHz, 10% THD)
Korean model:
The following measured at AC 220 V, 60 Hz
DIN power output (rated) 35 + 35 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
45 + 45 watts
(6 ohms at 1 kHz, 10%
THD)
Other models:
The following measured at AC 120 V, 240 V, 50/60 Hz
DIN power output (rated) 40 + 40 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
50 + 50 watts
(6 ohms at 1 kHz, 10%
THD)
Inputs
TV IN (phono jacks): voltage 1 V,
impedance 47 kilohmsOutputs
VIDEO OUT (phono jack) (except for European and
Russian models): max. output level
1 Vp-p, unbalanced, Sync
negative, load impedance
75 ohms
LINE-TV (European and Russian models only):
max. output level 1 Vp-p,
unbalanced, Sync
negative, load impedance
75 ohms
DIGITALOUT(OPTICAL)(Squareopticalconnector
jack, rear panel)
Wavelength 660 nm
PHONES (stereo mini jack):
accepts headphones of
8ohmsormore
SPEAKER: accepts impedance of
6ohms
Disc player section
System Compact disc and digital
audio and video system
Laser Semiconductor laser
(DVD: λ=650 nm,
CD: λ=780 nm)
Emission duration:
continuous
Frequency response DVD (PCM 48 kHz):
2 Hz – 22 kHz (±1 dB)
CD: 2 Hz – 20 kHz (±1 dB)
Video color system format Pan-American models:
NTSC
European and Russian
models: PAL
Other models: NTSC, PAL

2
HCD-DV2D
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Checktheantennaterminals, metal trim,“metallized”knobs,screws,
and all other exposed metal parts forAC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operatedAC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operatedAC voltmeter.The “limit” indication
is 0.75V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2VAC range are suitable. (See
Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µFAC
voltmete
r
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
Tape deck section
Recording system 4-track 2-channel stereo
Frequency response 40 – 13,000 Hz,
using Sony TYPE I
cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
(50 kHz step)
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan-American models: 530 – 1,710 kHz
(with the tuning interval
set at 10 kHz)
531 – 1,710 kHz
(with the tuning interval
set at 9 kHz)
European and Russian models:
531 – 1,602 kHz
(with the interval set at
9kHz)
Other models: 530 – 1,710 kHz
(with the interval set at
10 kHz)
531 – 1,602 kHz
(with the interval set at
9kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
North American model: 120 V AC, 60 Hz
European and Russian models:
230 V AC, 50/60 Hz
Australian model: 230 – 240 V AC, 50/60 Hz
Taiwan model: 120 V AC, 50/60 Hz
Korean model: 220 V AC, 60 Hz
Other models: 110 – 120 V, 220 – 240 V
AC, 50/60 Hz
Adjustable with voltage
selector
Power consumption
USA model: 110 watts
Canadian model: 110 watts
European and Russian models:
110 watts
0.3 watts (in Power Saving
mode)
Other models: 120 watts
Dimensions (w/h/d) (excl. speakers)
Approx. 191 ×255 ×
310 mm
Mass (excl. speakers) Approx. 6.5 kg
Design and specifications are subject to change
without notice.
Ver 1.2

3
HCD-DV2D
CAUTION
Use of controls or adjustments or performance of procedures
otherthanthosespecifiedhereinmay result inhazardousradiation
exposure.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
TABLE OF CONTENTS
1. SERVICING NOTES ................................................ 4
2. GENERAL ................................................................... 5
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 8
3-2. Cover Top, DC Fan.......................................................... 9
3-3. AMP Board, AV Board, Tuner (FM/AM) ....................... 9
3-4. MPEG Board ................................................................... 10
3-5. DVD Mech Cover A/B .................................................... 10
3-6. Panel (DVD) .................................................................... 11
3-7. DVD Loader (KDA898ST) ............................................. 11
3-8. Front Panel Section ......................................................... 12
3-9. MAIN Board.................................................................... 12
3-10. Cassette Deck Mechanism (CMAL5Z220C) .................. 13
3-11. KEY Board ...................................................................... 13
3-12. Traverse Mech (1ADOMEZ0412) .................................. 14
3-13. Lid TC ............................................................................. 14
4. TEST MODE ............................................................... 15
5. MECHANICAL ADJUSTMENTS......................... 19
6. ELECTRICAL ADJUSTMENTS .......................... 19
7. DIAGRAMS
7-1. Block Diagrams — MPEG-1 Section — ....................... 22
— MPEG-2 Section —.................................................... 23
— AUDIO Section —...................................................... 24
— PANEL/POWER Section — ...................................... 25
7-2. Printed Wiring Board — MAIN Section-1 —................ 26
7-3. Printed Wiring Board — MAIN Section-2 —................ 27
7-4. Schematic Diagram — MAIN Section —...................... 28
7-5. Printed Wiring Board — MPEG Section-1 — ............... 29
7-6. Printed Wiring Board — MPEG Section-2 — ............... 30
7-7. Schematic Diagram — MPEG Section — ..................... 31
7-8. Printed Wiring Board — KEY Section — ..................... 32
7-9. Schematic Diagram — KEY Section — ........................ 33
7-10. Printed Wiring Board — AV Section —......................... 34
7-11. Schematic Diagram — AV Section — ........................... 35
7-12. Printed Wiring Board — AMP,
POWER(EXCEPT AEP, UK, RU, KR, AUS) Section — 36
7-13. Schematic Diagram — AMP Section — ........................ 37
7-14. Schematic Diagram — POWER Section
(E2, E3, E51, SP, TW Model) — .................................... 38
7-15. Schematic Diagram — POWER Section
(US, CND Model) — ...................................................... 39
8. EXPLODEDVIEWS
8-1. Overall Section ................................................................ 54
8-2. Front Panel Section ......................................................... 55
8-3. Chassis Section................................................................ 56
8-4. DVD Mechanism Deck Section ...................................... 57
9. ELECTRICAL PARTS LIST .................................. 58
•Abbreviation
AUS:Australian model.
CND: Canadian model.
E2 : 120 V AC area in E model.
E3 : 240 V AC area in E model.
E51 : Chilean and Peruvian model.
KR : Korea model.
RU : Russian model.
SP : Singapore model.
TW : Taiwan model.
Ver. 1.2

4
HCD-DV2D SECTION 1
SERVICING NOTES
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carryoutthe“Scurve check” in “CD section adjustment”andcheck
that the S curve waveforms is output three times.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT MODEL IDENTIFICATION
– Back Panel –
Power requirement
indication
•Abbreviation
AUS:Australian model.
CND : Canadian model.
E2 : 120 V AC area in E model.
E3 : 240 V AC area in E model.
E51 :Chilean and Peruvian model.
KR : Korea model.
RU : Russian model.
SP : Singapore model.
TW :Taiwan model.
• SERVICE POSITION OFTHETAPE CASSETTE MECHANISM DECK
DISCTRAY LOCK
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Procedure :
1. Press the ?/1 button to turn the set ON.
2. Press the DVD u button to select “DVD”
3. Set disc on the tray, press the x button and the Z button
simultaneously for five seconds.
4. The message “LOCKED” is displayed the tray is locked.
5. To release from this mode, press the x button and the Z
button simultaneously for five seconds again.
6. The message “UNLOCKED” is displayed and the tray is
unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by
turning power on/off with the ?/1 button.
Tape Cassette Mechanism Deck
(CMAL5Z220C)
MAIN board
Front Panel
Ver. 1.2
Model Power Voltage Indication
US, CND models 120 V AC, 60 Hz
AEP, UK, RU models 230 V AC, 50/60 Hz
SP, E2, E3, E51 models 110 – 120 V/220 – 240V AC, 50/60 Hz
TW model 120 V AC, 50/60 Hz
KR model 220 V AC, 60 Hz
AUS model 230 – 240 V AC, 50/60 Hz

5
HCD-DV2D
SECTION 2
GENERAL This section is extracted
from instruction manual.
Main unit
Cassette compartment qh (28)
CD SYNC qk (28)
Disc tray 3(12)
DISPLAY 5(27, 34, 35, 36)
Display window 2
PHONES jack qf
PLAY MODE qj (13, 16, 44)
PRESET EQ qd (30)
Remote sensor 4
REPEAT qa (15)
TUNER/BAND ws (25, 26, 29)
TUNING +/– w; (25, 27)
TV wa (29, 38)
VOLUME +/– 0(13, 27, 28)
?/1 (power) 1(10, 44)
Z(open/close) 6(12)
DVD NX (play/pause) 7(10,
12, 23, 28, 39, 44)
TAPE N(play) 8(28)
x(stop) 9(10, 12, 26, 28, 31,
39, 44)
ZPUSH OPEN (eject) qs (28)
zREC PAUSE/START (record)
ql (28, 31)
m/M (rewind/fast forward)
w; (13, 28)
./> (go back/forward) w;
(12, 28)
List of button locations and reference pages
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.
Illustration number
r
TUNER/BAND ws (25, 26, 29)
RR
Name of button/part Reference page
ALPHABETICAL ORDER
A – O P – Z
BUTTON DESCRIPTIONS
123546
7
8
9
0
qa
qs
qd
qf
qh
qj
qk
w;
ql
wa
ws

6
HCD-DV2D
Remote control
ANGLE qa (20)
AUDIO qa (19, 31)
CLEAR ql (16, 17, 23)
CLOCK/TIMER SELECT 0
(33, 34)
CLOCK/TIMER SET 0(11, 32,
33)
DIMMER 6(34)
DISPLAY 8(34, 35, 36)
DVD MENU 8(14, 15)
DVD SETUP 8(11, 20, 21, 22,
24, 38, 44)
DVD TOP MENU 8(14)
ENTER 8qs(11, 14, 15, 17, 20,
21, 22, 25, 32, 33, 38, 44)
FM MODE qh (27)
KARAOKE PON qg (30)
MUTING 9(13, 27, 28)
Number buttons* w; (14, 15, 16,
17, 22)
PLAY MODE 7(13, 16)
PRESET +/– qk (25, 26)
PRESET EQ qf (30)
REPEAT qj (15)
SLEEP wa (32)
SUBTITLE qa (20)
TIME SEARCH 2(17)
TUNER BAND qk (25, 26)
TUNER MEMORY 5(25)
TUNING +/– qk (25, 27)
TV qd
VOLUME +/– 4(13, 27, 28, 32)
?/1 (power) 1(10, 32, 44)
ORETURN 3(15)
M/m/</,8(11, 13, 20, 38,
44)
TAPE N(play) qk (28)
DVD N(play) qk (10, 12, 23,
39)
./> (go back/forward) qk
(11, 12, 32)
x(stop) qk (10, 12, 28, 39)
m/M (rewind/fast forward)
qk (13, 28)
DVD X(pause) qk (12)
SLOW yqk (13)
*Thenumber 5 button has a
tactile dot. Use the tactile dot as
a reference when operating the
system.
ALPHABETICAL ORDER
A – J K – Z
BUTTON DESCRIPTIONS
1
2
3
4
qa
5
6
7
9
8
0
qs
qd
qf
qgqh
qj
qk
w;
ql
wa

7
HCD-DV2D
Use buttons on the remote for the operation.
1Press ?/1 to turn on the system.
2Press CLOCK/TIMER SET.
3Press .or >repeatedly to set the
hour.
4Press ENTER.
5Press .or >repeatedly to set the
minute.
6Press ENTER.
The clock starts working.
To adjust the clock
1Press CLOCK/TIMER SET.
2Press .or >to select “CLOCK SET”,
then press ENTER.
3Do the same procedures as step 3 to 6
above.
Notes
The clock settings are canceled when you disconnect
the power cord or if a power failure occurs.
You cannot set the clock in Power Saving Mode
(page 34).
Setting the clock

8
HCD-DV2D SECTION 3
DISASSEMBLY
3-1. DISASSEMBLY FLOW
•This set can be disassembled in the order shown below.
3-2. COVER TOP, DC FAN
(Page 9)
SET
3-3. AMP BOARD, AV BOARD,
TUNER (FM/AM)
(Page 9)
3-5. DVD MECH COVER A/B
(Page 10)
3-4. MPEG BOARD
(Page 10)
3-6. PANEL (DVD)
(Page 11)
3-8. FRONT PANEL SECTION
(Page 12) 3-9. MAIN BOARD (Page 12)
3-12.TRAVERSE MECH
(1ADOMEZ0412)
(Page 14)
3-13. LID TC
(Page 14)
3-7. DVD LOADER (KDA898ST)
(Page 11)
3-11. KEY BOARD
(Page 13)
3-10. CASSETTE DECK MECHANISM
(CMAL5Z220C)
(Page 13)
Ver. 1.2

9
HCD-DV2D
Note: Follow the disassembly procedure in the numerical order given.
3-2. COVERTOP, DC FAN
2 two s crews
(+BTP 3 × 8)
7 s crew
(+BVTP 3 × 8)
9 four s crews
(+BVTP 3 × 8)
6 two s crews
(+BVTP 3 × 8
)
8 connector
(3P)(CN350)
4
q; DC fan
qa cover HT-SINK
b
5 cover top
1 two s crews
(+BTP 3 × 8)
3 five s crews
(+BTP 3 × 8)
a
a
b
1 two s crews
(+BVTP 3 × 10)
qh two s crews
(+BVTP 3
× 10)
q; s crew
(+BTP 3 × 8)
9 three s crews
(+BVTP 3 × 10)
8 two s crews
(+BVTP 3 × 8)
qd two s crews
(+BVTP 3 × 8)
2 two s crews
(+BVTP 3 × 10)
7 AMP board
3 connector
(10P) (CN108)
4 connector
(7P) (CN102)
5 connector
(3P) (CN106)
6 connector
(5P) (CN101)
qs wire (flat type)
(5core) (CN851)
qf wire (flat type)
(11core)
qa earth wire
qj AV board
qg tuner
ql panel back
qk two claws
3-3. AMP BOARD, AV BOARD,TUNER (FM/AM)

10
HCD-DV2D
3-5. DVD MECH COVER A/B
3-4. MPEG BOARD
1 three s crews
(+BTP 3
× 8)
8 MPEG board
3 wire (flat type)
(6core) (J706)
2 connector
(5P) (J707
)
5 wire (flat type)
(9core) (J701)
7 wire (flat type)
(5core) (J703)
4 wire (flat type)
(24core) (J705)
6 connector
(9P) (J702)
3 two s crews
(+BTP 3
× 8)
5 DVD mech cover A
7 DVD mech cover B
4 two hooks
1 s crew
(+BTP 3
× 8)
2 earth wire
6 two s crews
(+BVTP 3
× 8)
Ver. 1.1

11
HCD-DV2D
3-6. PANEL (DVD)
4 panel (DVD)
screwdriver
1
2
3
two claws

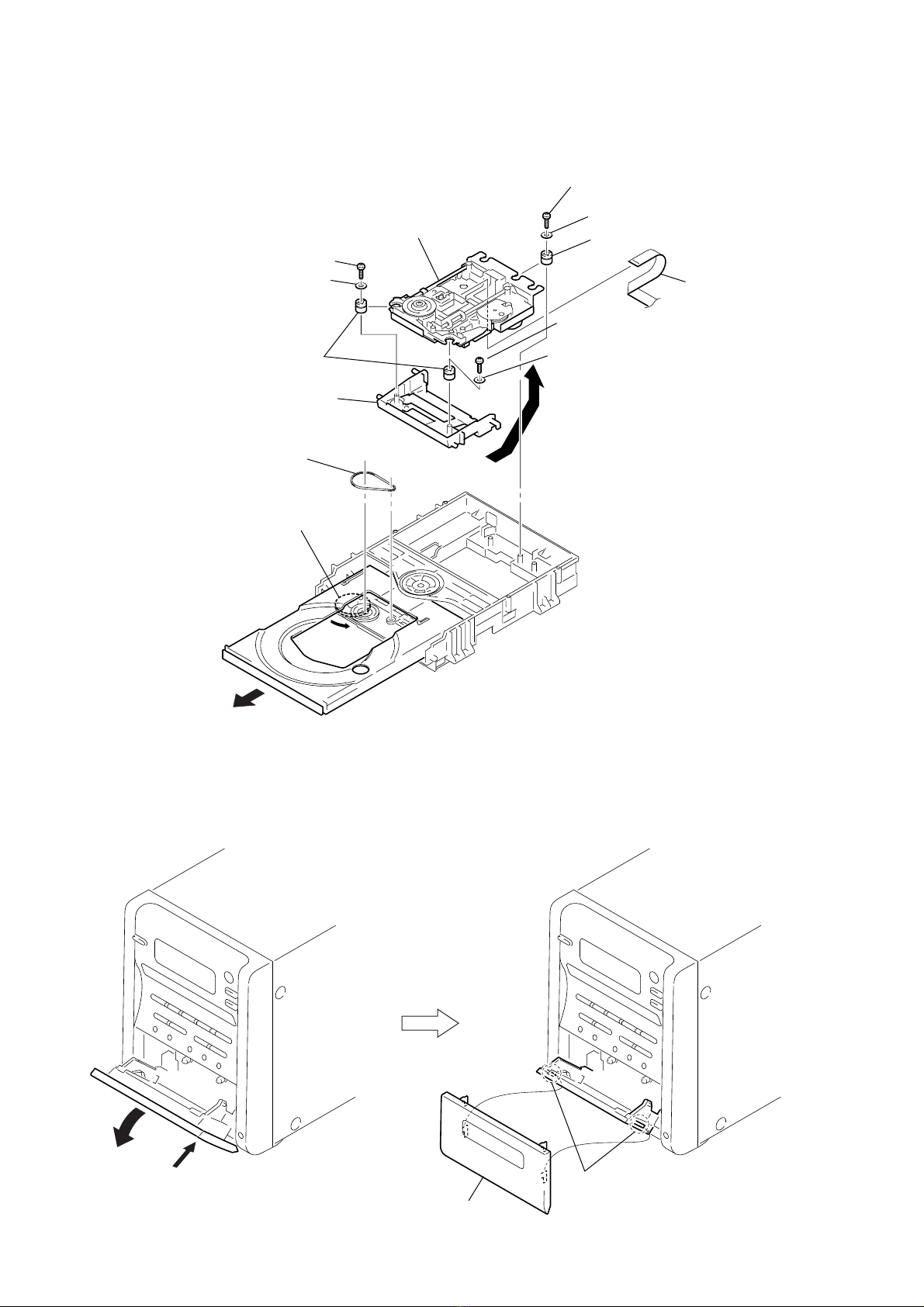

3-7. DVD LOADER (KDA898ST)
3 DVD loader (KDA898ST)
2 two s crews
(+BVTP 3
× 10 )
5 two s crews
(+BVTP 3
× 10)
4 two s crews
(+BVTP 3
× 10 )
7 holder mecha
6 s crew
(+BVTP 3
× 10)
1 two s crews
(+BVTP 3
× 10 )

12
HCD-DV2D
3-9. MAIN BOARD
3-8. FRONT PANEL SECTION
8 claw
9 claw
q; front panel section
1 two screws
(+BVTP 3
× 10)
2 screw
(+KTP 3
× 8)
4 screw
(+KTP 3
× 8)
3 screw
(+KTP 3
× 8)
5 earth wire
7 connector
(8P) (CN201)
6 wire (flat type)
(21core) (CN501)
3 connector
(8P) (CN201)
4 connector
(11P) (FW901)
2 wire (flat type)
(21core) (CN501)
6 wire (flat type)
(11core) (CN203)
5 wire (flat type)
(9core) (CN503)
1 two s crews
(+BVTP 3 × 10)
7 MAIN board

13
HCD-DV2D
3-10. CASSETTE DECK MECHANISM (CMAL5Z220C)
4 cassette deck mechanism
(CMAL5Z220C)
2 four screws
(+BVTP 3
× 10)
3 shield cover
1 wire (flat type)
(7core)
3-11. KEY BOARD
3 eight screws
(+BVTP 3
× 10)
1 three screws
(+BVTP 3
× 10)
5 w ire (flat type)
(21core) (CN601)
4 w ire (flat type)
(7core) (CN602)
6 KEY board
2 bracket
Ver. 1.2

14
HCD-DV2D
3-12. TRAVERSE MECH (1ADOMEZ0412)
2
1
Turn round the gear in the
direction of the arrow.
4 screw
7 screw
9 screw
5 washer
qd dumper (traverse mech)
qf w ire (flat type)
24core
qs two dumpers
(traverse mech)
qg traverse mech
(1ADOMEZ0412)
qa holder(traverse mech)
8 washer
q; washer
6
3 belt (pulley)
3-13. LIDTC
4 lid TC
1
2
3
two claws

15
HCD-DV2D
SECTION 4
TEST MODE
COLD RESET
•The cold reset clears all data including preset data stored in
the RAM to initial conditions. Execute this mode when
returning the set to the customers.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Press three buttons x, [PLAY MODE] and DVD u simul-
taneously.
3. The message “COLD RESET” is displayed and the set is reset.
TUNER STEP CHANGE
(EXCEPT FOR AEP, UK, RUSSIAN models)
•Astep of AM channels can be changed over between 9 kHz
and 10 kHz.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Select the function “TUNER”, and press [TUNER/BAND]
button to select the BAND “AM”.
3. Press the ?/1 button to turn the set OFF.
4. Press the xand [TUNER/BAND] buttons simultaneously,
and thus the channel step is changed over.
SHIP RESET
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Press the DVD u button to select “DVD”
3. Remove the disc.
4. The message “NO DISC” is displayed.
5. Press three buttons x, [PLAY MODE] and TAPE N si-
multaneously.
6. The message “SHIP RESET” is displayed and the set is reset.
The DVD function is activated.
7. To exit from this mode, press the ?/1 button and pull out the
AC plug.
DISCTRAY LOCK
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Procedure :
1. Press the ?/1 button to turn the set ON.
2. Press the DVD u button to select “DVD”
3. Set disc on the tray, press the x button and the Z button
simultaneously for five seconds.
4. The message “LOCKED” is displayed the tray is locked.
5. To release from this mode, press the x button and the Z
button simultaneously for five seconds again.
6. The message “UNLOCKED” is displayed and the tray is
unlocked.
Note: When “LOCKED” is displayed, the slot lock is not released by
turning power on/off with the ?/1 button.
PANELTEST MODE
•This mode is used to check the software version, LCD, LED
and keyboard.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Press the DVD u button to select “DVD”
3. Press three bottons x , [PRESET EQ] and TAPE Nsimul-
taneously.
4. When the panel test mode is activated, all segments are turned
on.
VERSION DISPLAY
•This mode is used check the model, destination, software
version.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Press the DVD u button to select “DVD”
3. Pressthreebuttons x, [PRESET EQ] and [TV] simultaneous-
ly, the model and destination are displayed.
DVD COLOR SYSTEM CHANGE OVER
•The color system can be changed over NTSC or PAL.
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Set the function to “DVD”.
3. Press the ?/1 button to turn the set OFF.
4. Press the xbutton and ?/1 button simultaneously. The set
will power on automatically.
5. The message “COLOR PAL” or “COLOR NTSC” will be
displayed on the fluorescent indicator tube. The color system
is changed over.
CD Repeat 5Times Limit Release Mode
Procedure:
1. Press the ?/1 button to turn the set ON.
2. Set the function to “DVD”.
2. Press three buttons x , Z, and DVD usimultaneously.
3. The repeat all mark blinks and then repeat 5 times limit is
released.
Note 1:Regarding the notification symbol “R”
Because the number of the operating buttons of this product are
limited, some operations require use of the operating buttons of
the remote commander. When a specific operation requires use
of the operating buttons of the remote commander, “R” is added
to the specific operating procedure in this manual. Example
MENU/NO“R” The MENU/NO buttonof remote commander.
Note 2:Incorrect operations may be performed if the test mode is not
entered properly.
In this case, press the ?/1 button to turn the power off, and
retry to enter the test mode.

16
HCD-DV2D
DVD SECTION
[GENERAL DESCRIPTION]
The Test Mode allows you to make diagnosis and adjustment easily
using the remote commander and monitor TV. The instructions,
diagnostic results, etc. are given on the on-screen display (OSD).
[Configuration ofTest Mode]
1. STARTINGTEST MODE
1. Press the ?/1button to turn the power on, and set the function
to DVD.
2. While pressing the xand Zbutton at the same time, rotate
the [VOLUME+] knob clockwise to enter the test mode.
3. The message “SERVICE IN” appears on the fluorescent
indicator tube, and the message Test Mode Menu appears on
the monitor screen as follows.
1. To execute each function, press the m“R” or M“R” button
to select the desired menu.Then press the ENTER “R” button.
2. To exit the Test Mode, select the menu “Reset And Exit” and
press the ENTER “R” button.
2. SYSCON Diagnosis
1. Select the menu “SYSCON Diagnosis” and press the
ENTER “R” button.
2. Press the m“R” or M “R” button to select the desired menu.
3. To exit the Test Mode, press the ORETURN “R” button.
2-1. MPEGTest MENU
1. Select the menu “MPEG Test Menu” and press the
ENTER “R” button.
2. Press the m“R” or M“R” button to select the desired menu.
3. To exit the Test Mode, press the ORETURN “R” button.
[MPEG Test]
[Check DSP]
[Check Flash]
[Check EEPROM]
[Check SDRAM]
[FRONT PANEL Test]
[SERVO Test]
[SYSCON Diagnosis ] [Version Information ]
[ SERVICE MODE TEST SEQUENCE ]
[Panel Key Test]
[VFD Test]
[Remote Key Test]
ENTER "R"
ENTER "R"
ENTER "R" ENTER "R"
ENTER "R"
ENTER "R"
ENTER "R"
ENTER "R"
ENTER "R"
RETURN "R"
RETURN "R"
RETURN "R"
RETURN "R"
RETURN "R"
RETURN "R"
RETURN "R"
ENTER "R"
RETURN "R"
ENTER "R"
RETURN "R"
ENTER "R"
RETURN "R"
RETURN "R" RETURN "R"
"R"
"R"
"R"
"R"
"R"
"R"
"R"
"R"
SERVICE MODE TEST SEQUENCE
DVD Service Mode
SYSCON Diagnosis
Version Information
Reset And Exit
SYSCON Diagnosis
MPEG T
FRONT PANEL
est
SERVO Test Test
MPEG Test Menu
Check DSP
Check Flash
Check SDRAM
Check EEPROM

17
HCD-DV2D
Check DSP
MCU comm access
Register access
... ok
... ok
2-1-1. Check DSP
1. Select the menu “Check DSP” and press the ENTER “R”
button, then execute this mode.
2. When the check is completed with success, “OK” appears.
When the check finds any failure, “fail” appear.
3. To exit the Test Mode, press the ORETURN “R” button.
2-1-2. Check Flash
1. Select the menu “Check Flash” and press the ENTER “R”
button, then execute this mode.
2. When the check is completed with success, “OK” appears.
When the check finds any failure, “fail” appears.
3. To exit the Test Mode, press the ORETURN “R” button.
2-1-3. Check SDRAM
1. Select the menu “Check SDRAM” and press the ENTER “R”
button, then execute this mode.
2. Iferrorisdetected,the “Address”andthe “Error” count appear.
3. To exit the Test Mode, press the ORETURN “R” button.
2-1-4. Check EEPROM
1. Select the menu “Check EEPROM” and press the
ENTER “R” button, then execute this mode.
2. Iferrorisdetected,the “Address”andthe “Error” count appear.
3. To exit the Test Mode, press the ORETURN “R” button.
2-2. SERVOTest MENU
1. Select the menu “SERVO Test Menu” and press the
ENTER “R” button, then execute this mode.
2. When the check is completed with success, “OK” appears.
When the check finds any failure, “fail” appears.
3. To exit the Test Mode, press the ORETURN “R” button.
2-3. FRONT PANELTest MENU
1. Select the menu “FRONT PANEL Test Menu” and press the
ENTER “R” button, then execute this mode.
2. Press the m“R” or M“R” button to select the desired menu.
3. To exit the Test Mode, press the ORETURN “R” button.
2-3-1. Panel Key Test
1. Select the menu “PANEL KEY Test” and press the
ENTER “R” button, then execute this mode.
2. Press TAPE N, x, M >, .m button on the
Front panel in this order.
3. When the check is completed with success, “OK” appears.
When the check finds any failure, “fail” appears.
4. To exit the Test Mode, press the ORETURN “R” button.
Check Flash
Status ... ok
Check SDRAM
Address X x XXXX
Error X
Check EEPROM
Address X x X X
Error X
SERVO Test Menu
Check Motor Driver ... ok
FRONT PANEL Test Menu
Panel Key Test
VFD Test
Remote Key Test
Panel Key Test
PLAY
Stop
Next
Prev
... ok
... ok
... ok
... ok

18
HCD-DV2D
IR Remote Test
PLAY
Stop
Next
Prev
... ok
... ok
... ok
... ok
Version Information
MPEG Version : XXX.XX.XX.XX.X
2-3-2. VFD Test MENU
1. Select the menu “VDF Test Menu” and press the ENTER “R”
button, then execute this mode.
2. When the check is completed with success, “OK” appears.
When the check finds any failure, “fail” appears..
3. To exit the Test Mode, press the ORETURN “R” button.
2-3-3. IR Remote Test
1. Select the menu “IR Remote Test” and press the ENTER “R”
button, then execute this mode.
2. Press TAPE N, x, >, .button on the remote
commander in this order.
3. When the check is completed with success, “OK” appears.
When the check finds any failure, “FAIL” appears.
4. To exit the Test Mode, press the ORETURN “R” button.
3. Version Information
1. Select the menu “Version Information” and press the
ENTER “R” button, then execute this mode.
2. The “Version” appears.
3. To exit the Test Mode, press the ORETURN “R” button.
VFD Test
Status ... ok

19
HCD-DV2D
SECTION 5
MECHANICAL ADJUSTMENTS
2.94 – 7.84 mN • m
(31 to 71 g • cm)
(0.43 – 0.98 oz • inch)
0.15 – 0.59 mN • m
(2 to 6 g • cm)
(0.02 – 0.08 oz • inch)
2.94 – 7.84 mN • m
(30 to 79 g • cm)
(0.42 – 1.11 oz • inch)
0.15 – 0.59 mN • m
(2 to 6 g • cm)
(0.03 – 0.08 oz • inch)
6.86 – 17.64 mN • m
(71 to 143 g • cm)
(0.98 – 2.49 oz • inch)
9.8 mN • m or more
(100 g • cm or more)
(1.4 oz • inch or more)
9.8 mN • m or more
(100 g • cm or more)
(1.4 oz • inch or more)
CQ-102C
CQ-102C
CQ-102RC
CQ-102RC
CQ-201B
CQ-403A
CQ-403R
Precaution
1. Clean the following parts with a denatured alcohol-moistened
swab:
record/playback heads pinch rollers
erase head rubber belts
capstan idlers
2. Demagnetize the record/playback head with a head demag-
netizer.
3. Do not use a magnetized screwdriver for the adjustments.
4. After the adjustments, apply suitable locking compound to
the parts adjusted.
5. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
Torque Measurement
Mode
FWD
FWD
back tension
REV
REV
back tension
FF/REW
FWD tension
REV tension
Torque meter Meter reading
SECTION 6
ELECTRICAL ADJUSTMENTS
[Record/Playback Head Azimuth Adjustment]
Procedure:
1. Mode : Playback
2. Turn theadjustmentscrew and check outputpeaks.Ifthepeaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1 dB of peak.
test tape
P-4-A100
(10kHz, –10dB) MAIN board
JK102
speaker terminal
level meter
set +
–
L-CH
peak
R-CH
peak
screw
position
output
level within
1 dB
L-CH
peak R-CH peak
screw
position
within 1dB
DECK SECTION 0 dB=0.775V
1. Demagnetize the record/playback head with a head
demagnetizer.
2. Do not use a magnetized screwdriver for the adjustments.
3. After the adjustments, apply suitable locking compound to
the parts adjusted.
4. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
5. The adjustments should be performed in the order given in
this service manual. (As a general rule, playback circuit
adjustment should be completed before performing recording
circuit adjustment.)
6. The adjustments should be performed for both L-CH and R-
CH.
7. Switchesandcontrolsshould be set asfollows unless otherwise
specified.
Signal Used forTape
P-4-A100
WS-48B
10 kHz, –10 dB
3 kHz, 0 dB
Azimuth Adjustment
Tape Speed Adjustment

20
HCD-DV2D
4. After the adjustments, apply suitable locking compound to
the parts adjusted.
Adjustment Location: Record/Playback/Erase Head
3. Mode: Playback
test tape
P-4-A100
(10kHz, –10dB) oscilloscope
set
Waveform of oscilloscope
in phase 45
°
90 °
135 °
180 °
good wrong
MAIN board
JK102
speaker terminal
L
R
DVD SECTION
[RF Level Check]
Check the RF level when optical pick-up block (TRAVERSE
MECH) is replaced.
Connection:
Procedure:
1. ConnectanoscilloscopetoTP (RF)andTP (VC)ontheMPEG
board.
2. Turn the power on.
3. Set the test disc on the tray and press DVDubutton to
playback.
4. Observe the waveform of the oscilloscope, and check that the
RF level is satisfied to specified value.
[Test Disc List and SpecifiedValue]
Use the following test disc on adjustment.
Note: Do not use existing test disc for DVD.
Checking Location: MPEG board
TEST DISC Specified Value Deviation
CD (YEDS-18) 310 mV +30 mV/–50 mV
PART No. :3-702-101-01
DVD Single Layer (HLX-504) 290 mV +25 mV/–40 mV
PART No. :J-6090-088-A
DVD Dual Layer (HLX-505) 120 mV +20 mV/–30 mV
PART No. :J-6090-089-A
+
–
MPEG board
oscilloscope
TP (RF)
TP (VC)
U709
TP (RF) TP (VC)
[MPEG BOARD]
[Tape Speed Check]
Procedure:
1. Turn the power on.
2. Insert the WS-48B into deck.
3. Press the TAPE Nbutton of deck.
4. Check the reading of frequency counter becomes 3000 ±90
Hz.
SampleValue of Wow and flutter
W.RMS (JIS) less than 0.3%
(test tape: WS-48B)
Note: Refer to “ 3-13. LID TC ” (see page 14)
adjustment screw
