SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
Audio&Video Business Group
WHG-SLK1i/SLK2i
AUDIO SYSTEM COMPONENT
9-889-895-01
2010F05-1
© 2010.06
US Model
Canadian Model
AEP Model
Chinese Model
Saudi Arabia Model
Singapore Model
Korean Model
Thai Model
WHG-SLK1i
Mexican Model
Brazilian model
Argentina model
WHG-SLK2i
E Model
WHG-SLK1i/SLK2i
Ver. 1.0 2010.06
• WHG-SLK1i/SLK2i are composed of following models.
As service manuals are issued for each component model, please
refer to them.
SPECIFICATIONS
COMPONENT MODEL NAME
WHG-SLK1i WHG-SLK2i
DVD Receiver HCD-SLK1i HCD-SLK2i
Speaker System SS-SLK1i SS-SLK2i
General
Power requirements
North American model:
AC 120 V, 60 Hz
Mexican model:
AC 127 V, 60 Hz
Brazilian model:
AC 127 V 240 V, 60 Hz
European, Korean, Argentine and
Thai models:
AC 220 V 240 V, 50/60 Hz
Other models:
AC 120 V 240 V, 50/60 Hz
Power consumption
WHG-SLK2i:
80 W
WHG-SLK1i:
60 W
Dimensions (W/H/D) (excl. speakers)
WHG-SLK2i:
Approx. 330 mm × 203 mm ×
141 mm
WHG-SLK1i:
Approx. 330 mm × 203 mm ×
138 mm
Mass (excl. speakers)
WHG-SLK2i:
Approx. 3.7 kg
WHG-SLK1i:
Approx. 3.6 kg
Supplied accessories:
Remote Commander (1)
AM loop antenna (1)
FM lead antenna (1)
Video cord (1) (WHG-SLK2i only)
R6 (Size AA) batteries (2)
Wall-mount bracket (3) (WHG-SLK2i
only)
Bracket lock levers (3) and screws (3)
(WHG-SLK2i only)
Leaet “Installing the system on the
wall” (1) (WHG-SLK2i only)
Design and specications are subject to change without notice.
Standby power consumption: 0.5 W
Halogenated ame retardants are not used in the certain printed wiring boards.
iPod models
You can use the following iPod models on this system. Update your iPod with the latest
soware before using it.
iPod nano
5th generation
(video camera)
iPod touch
2nd generation
iPod classic
120 GB
160 GB (2009)
iPod nano
4th generation
(video)
iPod classic
160 GB (2007)
iPod touch
1st generation
iPod nano
3rd generation
(video)
iPod classic
80 GB
iPod nano
2nd generation
(aluminum)
iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
“Made for iPod” means that an electronic
accessory has been designed to connect
specically to iPod and has been certied by
the developer to meet Apple performance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
– Refer to next page for accessories list –

WHG-SLK1i/SLK2i
2
• Abbreviation
AR : Argentina model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
E2 : 120 V AC area in E model
E3 : 240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
SP : Singapore model
TH : Thai model
ACCESSORIES
1-487-836-11 REMOTE COMMANDER (RM-AMU086)
1-754-102-41 ANTENNA, LOOP (LW.MW) (AM loop antenna)
1-793-184-41 CONNECTOR (F TYPE ADAPTOR)
(FM lead antenna)
1-838-116-11 CORD, CONNECTION (Video cord) (SLK2i)
4-187-068-13 MANUAL, INSTRUCTION (ENGLISH)
(US, CND, AEP, E2, E3, E51, EA, SP)
4-187-068-23 MANUAL, INSTRUCTION (FRENCH)
(CND, AEP, E2, E3, EA)
4-187-068-33 MANUAL, INSTRUCTION (SPANISH)
(US, AEP, E2, E51, AR)
4-187-068-43 MANUAL, INSTRUCTION (GERMAN, DUTCH)
(AEP)
4-187-068-53 MANUAL, INSTRUCTION (ITALIAN, SWEDISH)
(AEP)
4-187-068-63 MANUAL, INSTRUCTION (POLISH) (AEP)
4-187-068-73 MANUAL, INSTRUCTION (PORTUGUESE) (BR)
4-187-068-82 MANUAL, INSTRUCTION (SPANISH) (MX)
4-187-069-13 MANUAL, INSTRUCTION (ARABIC) (E3, EA)
4-187-069-33 MANUAL, INSTRUCTION (TRADITIONAL CHINSE)
(SP)
4-187-069-43 MANUAL, INSTRUCTION (THAI) (TH)
4-187-069-53 MANUAL, INSTRUCTION (KOREAN) (KR)
4-187-069-61 MANUAL, INSTRUCTION
(ENGLISH, SIMPLIFIED CHINESE) (CH)
4-187-070-12 INSTRUCTION (Installing the system on the wall)
(ENGLISH, FRENCH, SPANISH, PORTUGUESE)
(SLK2i)
501 4-168-707-01 BRACKET (WH) (Wall-mount bracket) (1 piece)
(SLK2i)
502 4-195-473-01 CUSHION (WH) (SLK2i)
503 4-182-889-01 SCREW (HOOK) (for Wall-mount bracket of
speaker) (1 piece) (SLK2i)
504 4-193-085-01 LOCK (WH) (Bracket lock lever) (1 piece) (SLK2i)
505 4-198-670-01 SCREW, FLAT HEAD (TP) (for Bracket lock lever)
(1 piece) (SLK2i)
Ref. No. Part No. Description Remark

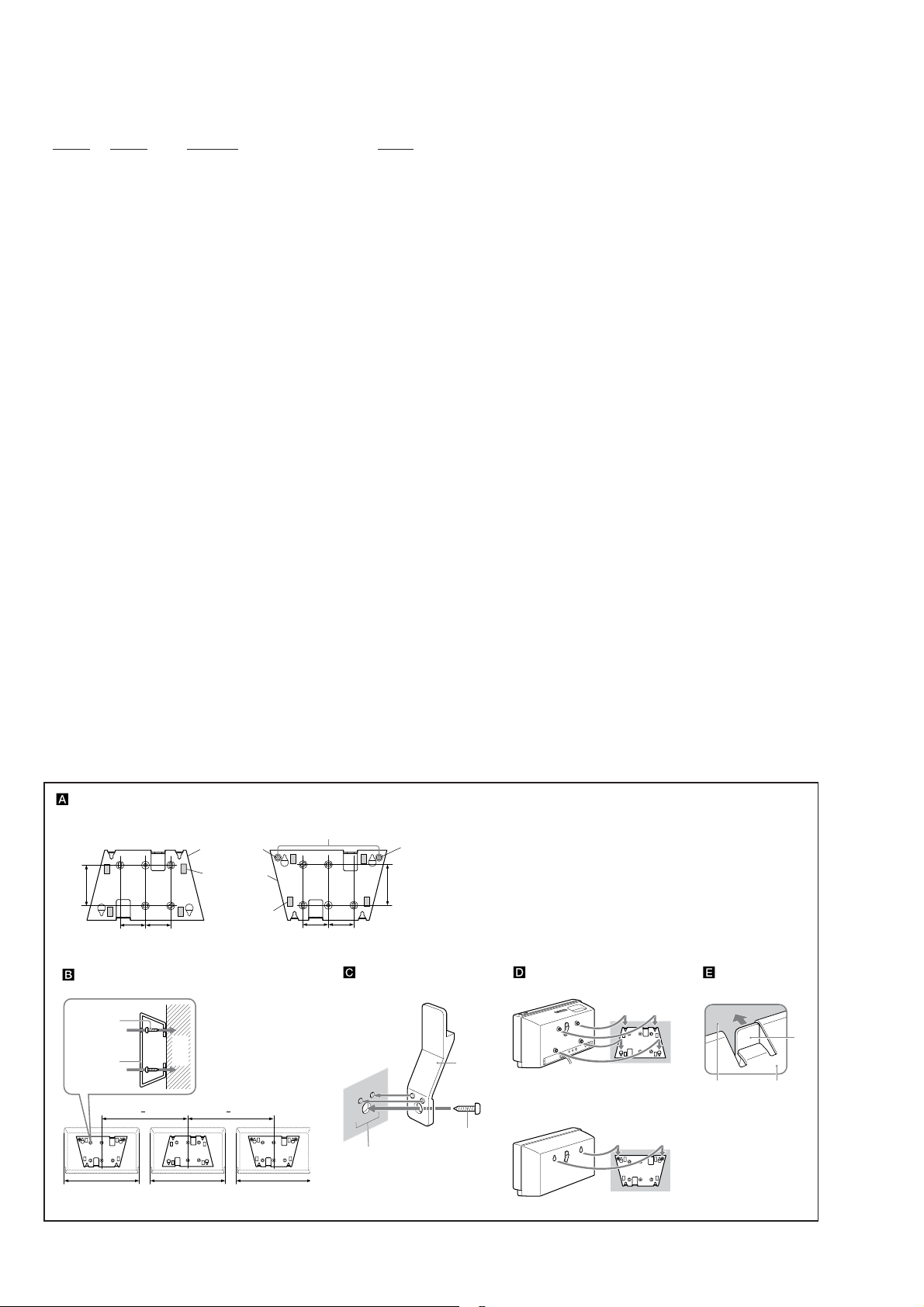

For main unit: For front speakers (2):
(Unit: mm)
61.5
37.5 37.5
Do not remove fastened screws.
61.5
37.5 37.5
Main unit
Speaker
Left speaker Right speaker
Main unit
(Unit: mm)
Holes on main unit/speaker
Push to unlock.
Main unit/Speaker Bracket
Lever
Screw
Bracket hole
Wall
330 330 330
350 1300350 1300
501
502
× 4
501
504
505
502
× 4
Lever
Screw
503
503
For WHG-SLK2i

WHG-SLK1i/SLK2i
3
MEMO

WHG-SLK1i/SLK2i
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2010.06 New
