This unit is the Memory Stick Reader/Writer. This reader/writer has an optical
mouse function.
You can connect this unit to a personal computer so that data in a “Memory
Stick” can be transferred to the personal computer at high speed. You can also
use a “Memory Stick” as a removable disk.
What Is The “Optical Mouse?”
The optical mouse does not use a track ball; it uses an optical sensor. It does not
need a special mouse pad, and can be used even on your lap or clothes.
Maintenance is easy. Just wipe the lens. The screen scroll lever on the optical
mouse allows you scroll or zoom screens with ease.*
This manual describes how to connect this unit, how to install the driver, how to
use the reader/writer and how to use the mouse.
* The scroll and zoom functions are not supported on the Macintosh.

4-GB
PNotes
• When using a Macintosh, you cannot use the scroll function since the mouse
for the Macintosh does not have left and right buttons.
• When accessing the “Memory Stick” on this unit, your personal computer
cannot access other “Memory Stick” devices at the same time. Remove the
“Memory Stick” from this unit or turn off other “Memory Stick” devices.
• Be sure to connect this unit to the USB port on the personal computer.
Operation is not guaranteed if it is connected to the USB jack on the keyboard
or hub.
• Operation is not guaranteed when two or more USB devices are connected to
a single personal computer and a hub is used.
• Do not subject this unit to strong shock.
• This unit uses an optical sensor. So, avoid using it on transparent glass or
glossy surfaces.
• Identification performance drops when the mouse is used on the following
surfaces:
- Reflective or glossy surfaces such as mirrors or glass, or text/graphic/
photographic/colour patterned surfaces that have extreme changes
- Surfaces that have continuous similar patterns, or highly uneven surfaces
• A bright LED is used in operation of the image identification sensor. So, do
not look directly into the light on the rear.
• Do not use this product in the following locations. Doing so might cause
malfunction.
- Locations subject to splashing water
- Locations subject to direct sunlight
- Near hot locations such as heating apparatus
- Near humid or dusty locations
• Prevent fluids or metal objects from falling inside the body. If the body
becomes dirty, wipe with a soft cloth. Never use benzene, alcohol, paint
thinner or other solvents.
• Sometimes condensation forms on the sensor lens due to sudden changes in
temperature, causing operation trouble. If this happens, wipe the sensor lens
and try using again.
• The contents of data cannot be compensated if recording or playing back is not
made due to malfunctions such as “Memory Stick” error.
• Do not touch the terminals on the “Memory Stick” with your fingers or metal
objects.
• To prevent recording or deletion of data on “Memory Stick”s set the “Memory
Stick” write-protect switch to “Lock.”
• The communications state is sometimes not restored even if your personal
computer is restored from a standby state or sleep state.
• Do not optimize “Memory Stick”s.
• Do not compress the data on “Memory Stick”s.

5-GB
“Memory Stick” and are trademarks of Sony Corporation.
Microsoft® and Windows® are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Macintosh, iMac and Mac OS are trademarks of Apple Computer, Inc.
All other company names and product names mentioned here may be the
trademarks or registered trademarks of their respective companies.
About Formatting “Memory Stick”s
When “Memory Stick”s are shipped from the factory, they are already
formatted to a special standard format. When you format “Memory Stick”s, we
recommend formatting them on the device you are using so that they are
compatible when used on “Memory Stick”-compatible device.
Cautions When Formatting “Memory Stick”s on a Personal Computer
Pay attention to the following points when formatting “Memory Stick”s on the
personal computer, for example, that you are using.
• Operation of “Memory Stick”s formatted on Windows machines is not
guaranteed on “Memory Stick”-compatible device. To use a “Memory Stick”
that has been formatted on a Windows machine, the “Memory Stick” must be
reformatted on “Memory Stick”-compatible device. Note, that, in this case all
data stored on the “Memory Stick” will be lost.
• “Memory Stick” formatted on a Macintosh sometimes cannot be used on
“Memory Stick”-compatible device. Do not format “Memory Stick” on the
Macintosh.

6-GB
Table of Contents
Before You Begin
Checking the accessories ..................................................................................... 7
Parts identification ............................................................................................... 8
Installation
For Windows
Installing the USB driver software ............................................................. 9
Installing the mouse driver software ....................................................... 11
Installing the “Memory Stick” driver software ...................................... 13
For Macintosh
Installing the USB driver software ........................................................... 14
Operation
Using the Reader/Writer
For Windows ............................................................................................... 15
For Macintosh .............................................................................................. 16
For users of SONY digital HandyCam and Cyber-shot ............................... 17
Using the mouse ................................................................................................. 18
Additional Information
Troubleshooting.................................................................................................. 20
Specifications ....................................................................................................... 22
Recommended connections .............................................................................. 23

Before You Begin
7-GB
BBefore You Begin
Checking the accessories
Make sure that you have all the accessories below. If some of the
accessories are missing, contact the store or purchase of a Sony dealer or
local authorized Sony service facility.
•Memory Stick Reader/Writer (1)
•CD-ROM (SPVD-003 USB driver) (1)
(for Windows/Macintosh)
•Manual (1)
•WARRANTY CARD (1)

8-GB
Parts identification
Insert the connector on this unit into the USB port on the personal
computer (into any USB port on the personal computer if the personal
computer has more than one USB port).
PNotes
• The access lamp lights when you access data on “Memory Stick.”
When the access lamp is lit, never remove the “Memory Stick”, turn off the
power of your personal computer or disconnect the connector. Doing so might
damage the data in “Memory Stick.”
• When disconnecting this unit from the personal computer, do not hold it by its
cable; hold it by its connector.
Access lamp
Connector
Scroll button
USB port

Installation
9-GB
For Windows
Follow the procedure below to install the USB driver software.
Do not disconnect the mouse from the personal computer until the
installation is completed. You need the mouse for the installation.
When you disconnect the mouse from the personal computer, the
operation is carried out on the keyboard.
Refer to the operating instructions for the keyboard.
–For Windows 2000–
You must log in using administrator’s privileges.
Installing the USB driver software
The screens shown in the following procedure are examples. Actual
screens differ according to the OS.
Do not connect this unit to the personal computer at this time.

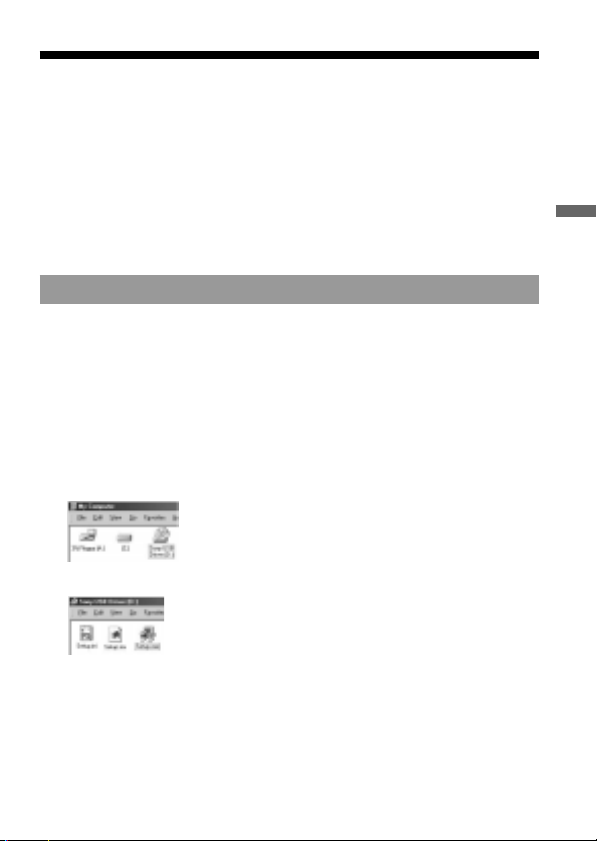

1Turn on your machine to start up Windows, and insert the
USB driver software CD-ROM (supplied) into the CD-ROM
drive.
2Open “My Computer.”
3Open the CD-ROM drive (Sony USB Driver (ex: [D:])).
4Start up Setup.exe.
BInstallation

10-GB
For Windows (continued)
5Click “Next.”
This starts installation of the USB driver.
Follow the on-screen instructions until the end to install the USB
driver software.
6After the USB driver software has been installed, reboot your
personal computer.
Follow the on-screen instructions to reboot your personal computer.
7After your personal computer has rebooted, remove the CD-
ROM.
