Sony SCPH-20401 User manual

SCPH-20401 U / 97266
Hardware installation guide
Thank you for purchasing the internal hard disk drive (for PlayStation®2). Before installing or
using this product, carefully read this guide and retain it for future reference. Refer also to
the instruction manuals for the PlayStation®2 console and the network adaptor (for
PlayStation®2) (sold separately).
This guide provides hardware installation instructions only. For HDD usage instructions,
refer to the instruction manual for the internal hard disk drive (40GB) (for PlayStation®2) and
HDD utility disc (ver 1.10).
Guide d’installation du matériel
Nous vous remercions d’avoir fait l’acquisition du disque dur interne (pour PlayStation®2).
Avant d’installer ou d’utiliser ce produit, lisez attentivement ce guide et conservez-le pour
pouvoir vous y reporter ultérieurement. Reportez-vous aussi aux modes d’emploi de la
console PlayStation®2 et de l’adaptateur réseau (pour PlayStation®2) (vendu séparément).
Ce guide donne seulement les instructions d’installation du matériel.
Pour les instructions d’utilisation du HDD, reportez-vous au mode d’emploi du Disque Dur
Interne (40 Go) (pour PlayStation®2) et Disque d’Utilitaires HDD (version 1.10).
Guía de instalación del hardware
Gracias por adquirir el disco duro interno (para PlayStation®2). Antes de instalar o utilizar
este producto, lea detenidamente esta guía y consérvela para consultarla en el futuro.
Consulte también los manuales de instrucciones de la consola PlayStation®2 y del adaptador
de red (para PlayStation®2) (vendido por separado).
Esta guía solamente proporciona instrucciones de instalación de hardware. Para obtener
instrucciones sobre el uso del HDD, consulte el manual de instrucciones del Disco Duro
Interno (40GB) (para PlayStation®2 ) y Disco de Utilidad HDD (ver. 1.10).
HDD v. 1.0
Internal Hard Disk Drive (40GB)
(for PlayStation®2)
Disque Dur Interne (40 Go)
(pour PlayStation®2)
Disco Duro Interno (40GB)
(para PlayStation®2)
US
English
FR
Français
ES
Español

2
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not disassemble.
Refer servicing to qualified personnel only.
Information
For customers in the USA
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
WARNING
Owner’s record
The model and serial numbers are located on the
top surface of the internal hard disk drive.
Record the serial number in the space provided
below. Refer to these numbers whenever you call
for technical assistance at 1-800-345-7669.
Model No. SCPH-20401
Serial No. _______________________________

3
US
Table of contents
WARNING ........................................................ 2
About this product ........................................... 4
Precautions ...................................................... 4
Part names ....................................................... 6
Installing the HDD in a PlayStation®2
console .......................................................... 7
Positioning a PlayStation®2 console with an HDD
installed ................................................................ 10
Removing the HDD from a PlayStation®2
console ........................................................ 11
Troubleshooting............................................. 14
Specifications ................................................ 15
LIMITED WARRANTY ...................................... 16

4
Precautions
About this product
Compatible models
The internal hard disk drive (40GB) (for PlayStation®2)
(referred to as “HDD”throughout this guide) is
designed exclusively for use with the PlayStation®2
console.
Do not attempt to install the HDD in any other
hardware, as doing so may damage not only the
HDD but also the hardware to which you attempt
installation. Also, do not connect a commercially
available hard disk drive that is not specifically
designed for the PlayStation®2 console to the
network adaptor, as this may damage the console or
the connected device.
A network adaptor (for PlayStation®2) (sold separately)
is required to install the HDD in the PlayStation®2
console. The combination of the HDD and network
adaptor is referred to as “HDD unit”throughout this
guide.
Compatible software
This product is compatible with PlayStation®2 format
software marked as compatible with the internal hard
disk drive (for PlayStation®2).
Usage of the HDD may vary depending on the software
in use. For details, refer to the appropriate software
manual.
Once the HDD is installed, you may not be able to reset
software by pressing the 1(standby)/reset button on
the PlayStation®2 console front. To help avoid losing
game progress, try to save before attempting to reset a
game.
Capacity
The storage capacity of the HDD is 40 gigabytes (GB).
Note that available formatted capacity is reduced with
pre-installed software. Also note that due to
manufacturing variances, hard disk capacity may vary
slightly. If you have any questions, call SCEA
Consumer Services at 1-800-345-7669.
The amount of memory required for saving data varies
depending on the software in use. For details, refer to
the appropriate software manual.
Safety
This product has been designed with the highest
concern for safety. However, any electrical device, if
used improperly, has the potential for causing fire,
electrical shock or personal injury. To help ensure
accident-free operation, follow these guidelines:
•Observe all warnings, precautions and instructions.
•Stop use immediately if the device functions in an
abnormal manner, or produces unusual sounds or
smells.
•The HDD has an exposed metal casing. To help avoid
injury, be careful when handling the HDD.
•If the device does not function properly, contact our
technical support line at 1-800-345-7669 for assistance.
Use and handling
The HDD is a sensitive piece of equipment and should
be handled with care at all times. To help prevent
software or data loss or corruption, or damage to the
HDD, carefully follow the precautions listed below.
•Do not drop the HDD or subject it to physical shock
or vibration.
•Do not place the HDD on surfaces that are unstable,
tilted or subject to vibration.
•Do not move or change the position of a console with
an HDD installed while it is turned on.
•Do not turn off a console with an HDD installed
without following the correct shutdown procedure.
Refer to the instruction manual for the internal hard
disk drive (40GB) (for PlayStation®2) and HDD utility
disc (ver 1.10) for the procedure.
•Do not shut down the console while the HDD access
indicator within the front vent of the console is
blinking.
•Do not expose the HDD to high temperatures, high
humidity or direct sunlight (use in an environment
where temperatures range 5˚C –35˚C/41˚F –95˚F).
•Do not place the HDD in locations subject to sudden
temperature change (for example, temperature
changes of 10˚C/18˚F per hour or more).
•Do not use the console with the HDD installed in a
dusty location.
•Do not allow liquid or small particles to get into the
HDD.
•Do not place the HDD close to magnetic fields such as
those produced by magnets or loudspeakers.
•Do not put heavy objects on the HDD.
•When handling the HDD, do not touch the black
protective covering as doing so may damage the
circuit board.

5
US
•Do not touch the metal parts or insert foreign objects
into the connectors of the HDD.
•When you do not intend to use the unit for an
extended period of time, disconnect the power plug
for the console from the electrical outlet. This will
help prevent damage to the HDD from lightning and
power line surges. When disconnecting the power
plug from an electrical outlet, pull it out by grasping
the plug. Never pull the cord itself.
•Do not connect any peripheral to the HDD except the
network adaptor (for PlayStation®2) (sold separately).
•Do not move the console for 30 seconds after
shutdown, as this may damage the HDD.
•It is recommended that you regularly back up game
save data to a memory card (8MB) (for PlayStation®2)
or memory card.
If for any reason software or data loss or corruption
occurs on the HDD, it is usually not possible to
recover the software or data.
Sony Computer Entertainment Inc. and its
subsidiaries and affiliates will not be held liable for
any damages or injury in the case of software or
data loss or corruption.
Moisture condensation
If brought directly from a cold location to a warm one,
moisture may condense on the outside or inside of the
HDD. Should this occur, the HDD may not operate
properly. In this case, turn off the PlayStation®2 console
by pressing the main power switch on the console rear
and remove the power plug from the electrical socket.
Do not turn on the console until the moisture
evaporates (this could take several hours). If the console
or HDD still does not operate properly, contact our
technical support line at 1-800-345-7669 for assistance.
Cleaning
Never attempt to clean the HDD, as touching the circuit
board or subjecting the HDD to physical shock or
vibration, could damage the HDD.
For instructions on cleaning the PlayStation®2 console
or network adaptor (for PlayStation®2) (sold
separately), refer to the appropriate instruction manual.
Never disassemble the HDD
Use the HDD according to the instructions in this
guide. No authorization for the analysis or
modification of the HDD, or the analysis and use
of its circuit configurations is provided herein.

6

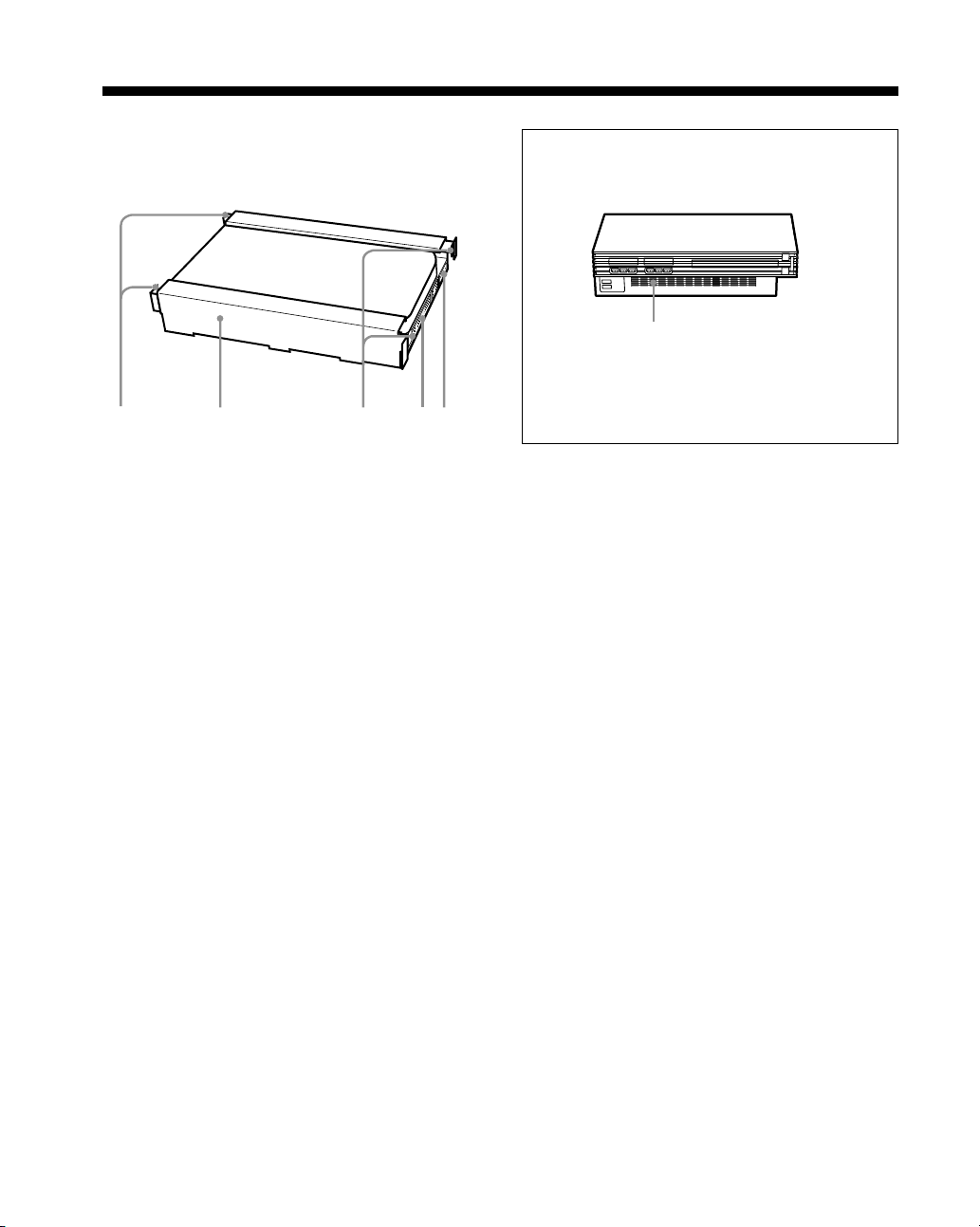

Part names
PlayStation®2 console
Front
1HDD access indicator
The HDD access indicator inside the front vent
of the PlayStation®2 console blinks while
saving or loading data to the HDD.
1LOCK tabs
Used to secure the HDD to the PlayStation®2
console.
2HDD rails
3UNLOCK tabs
Used to release the HDD from the PlayStation®2
console.
4HDD data connector
Connects to the HDD data connector of the
network adaptor (sold separately).
5HDD power connector
Connects to the HDD power connector of the
network adaptor.
1
14523
Internal hard disk drive (40GB)
(for PlayStation®2)

7
US

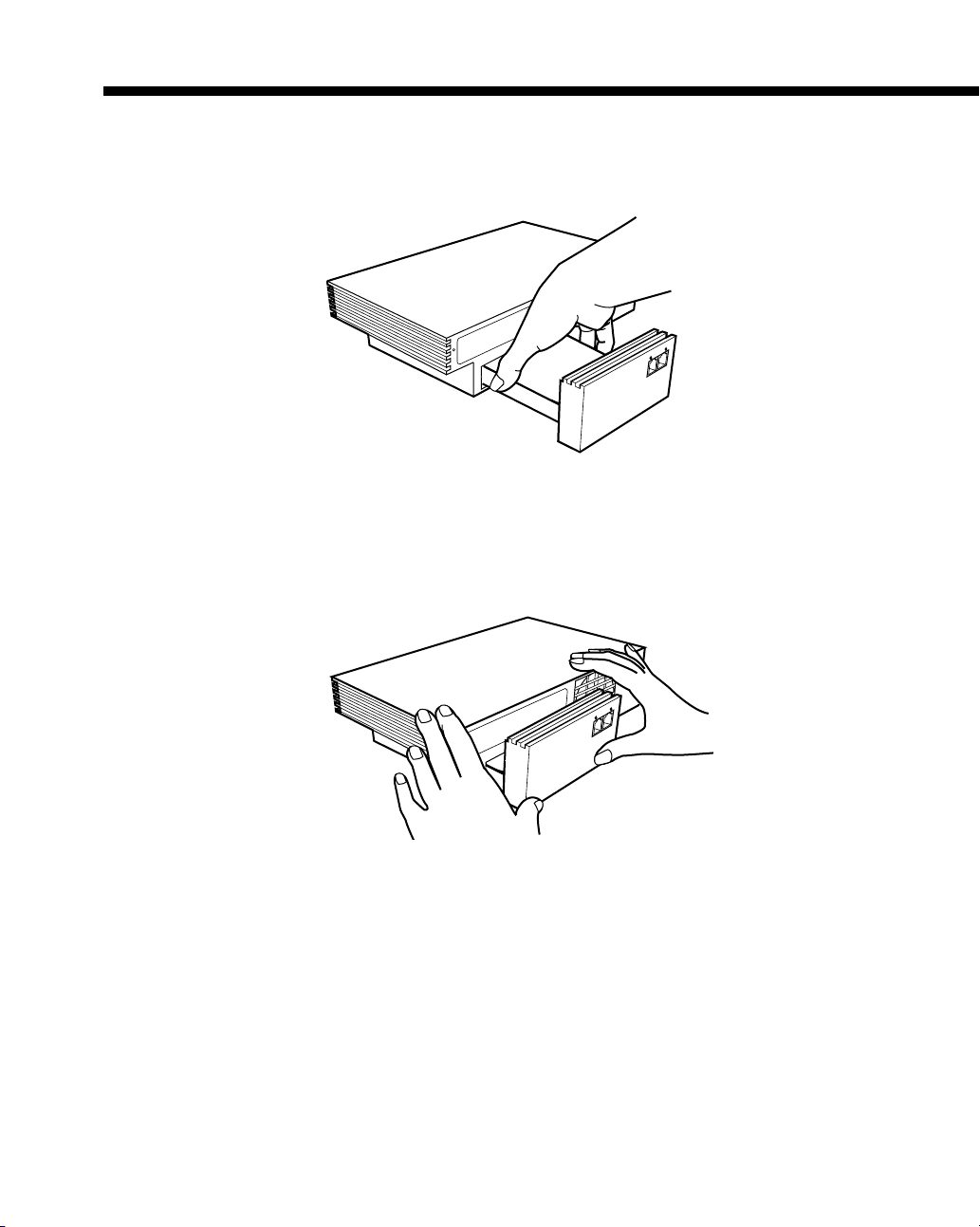

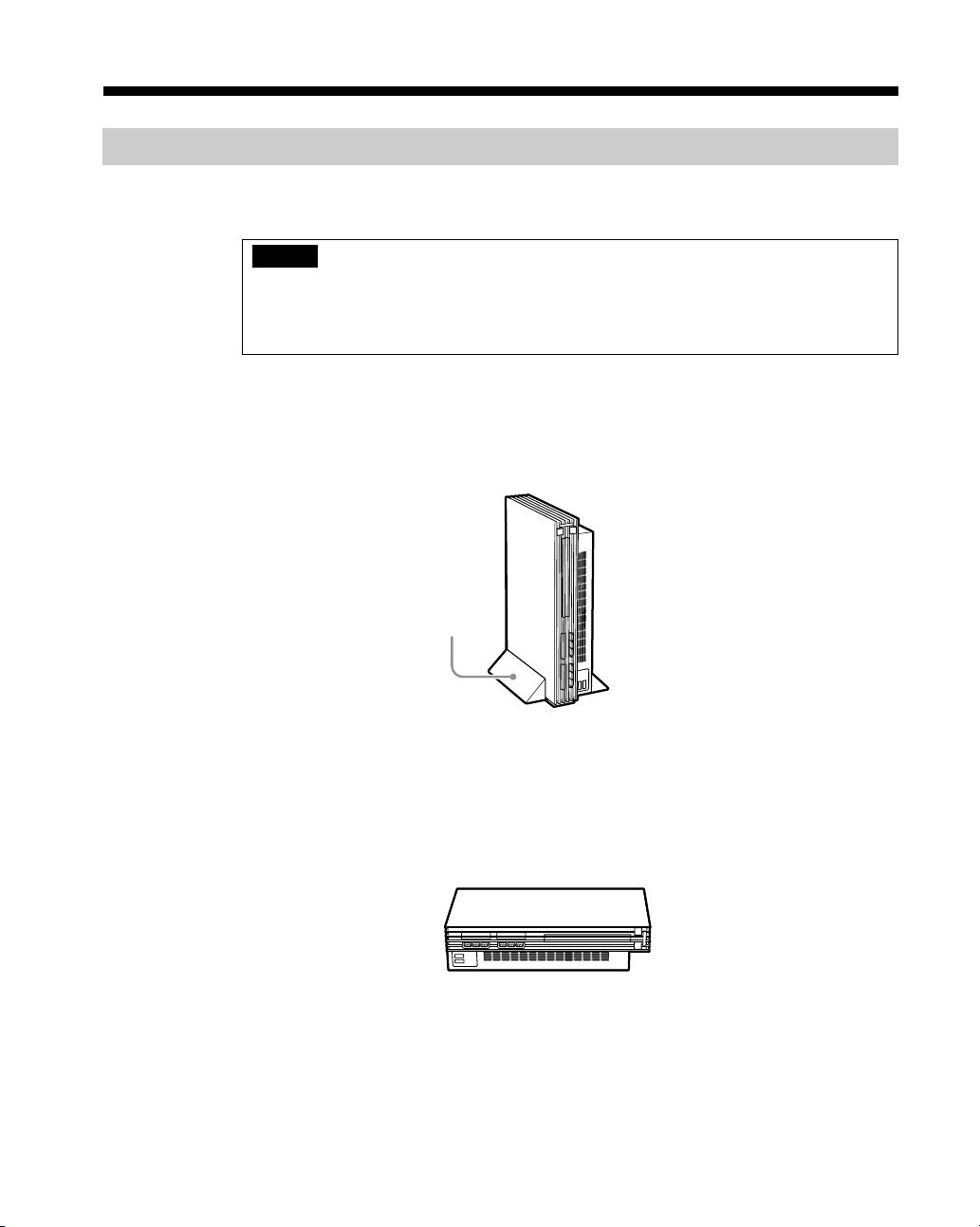

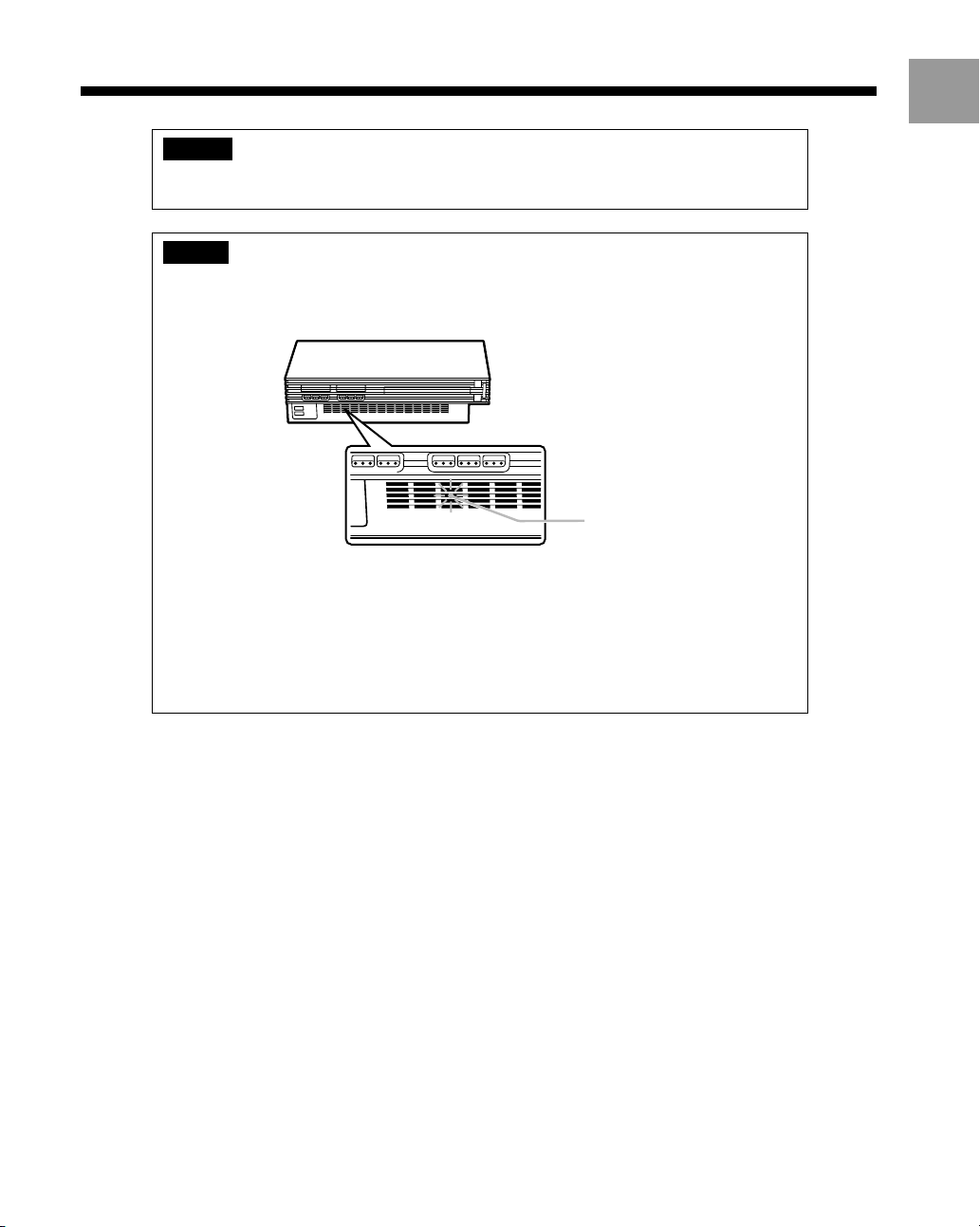

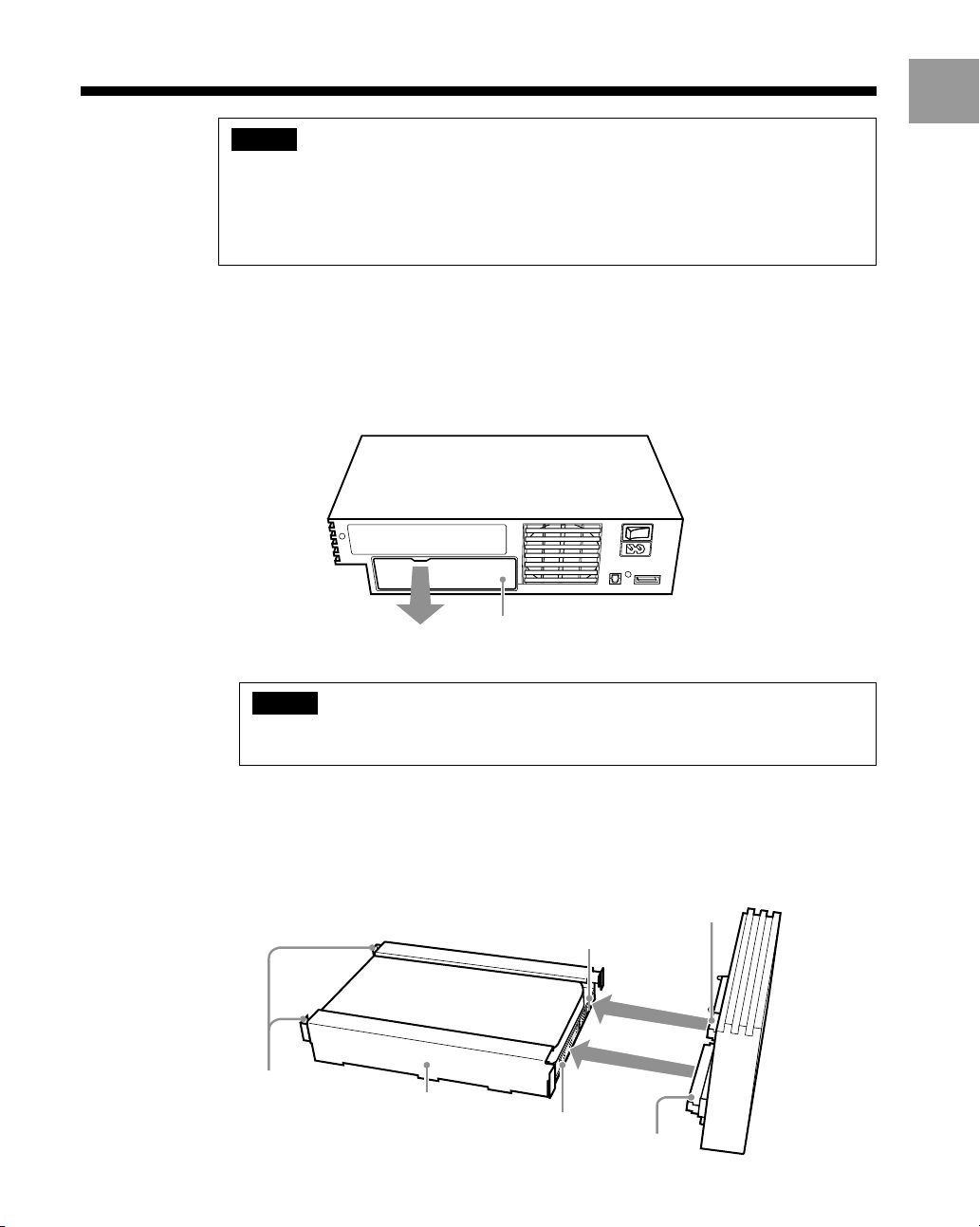

Installing the HDD in a PlayStation®2 console
Caution
•For safety reasons, do not connect the power plug for the PlayStation®2 console to an
electrical outlet until installation is completed.
•The HDD has an exposed metal casing. To help avoid injury, be careful when handling the
HDD.
•Do not hold the HDD unit by the network adaptor alone. Always grasp the HDD by the
rails, taking care not to touch the black protective covering, or the circuit board beneath.
1Remove the EXPANSION BAY cover or network adaptor (for PlayStation®2) (if
installed) from the PlayStation®2 console rear.
To remove the expansion bay cover, use the indentation at the top of the cover as a
finger grip to help pull it free from the console. Keep the cover in a safe place for
future use.
To remove the network adaptor, refer to the instruction manual for the network
adaptor.
2 Connect the network adaptor to the HDD.
Caution
Do not touch the black protective covering or the metal parts of the connectors, as
doing so may damage the HDD.
1Press in the two LOCK tabs of the HDD (see figure below).
2Hold the HDD with the black surface facing down and the network adaptor
with the HDD power and data connectors at the bottom and facing the HDD.
3Fully insert the connectors of the network adaptor into the matching connectors
of the HDD. Insert the connectors straight into each other to avoid bending the
pins.
EXPANSION BAY cover
PlayStation®2 console rear
LOCK tabs
HDD power connector
HDD power connector
HDD data connector
HDD data connector
Internal hard disk drive Network adaptor
HDD rail

8
2Press lightly on the front of the network adaptor until the HDD is fully inserted
in the expansion bay.
3Insert the HDD unit straight into the expansion bay on the console rear.
1Hold the HDD as shown, and insert it into the console.
Installing the HDD in a PlayStation®2 console (continued)

9
US
4Fasten the HDD unit to the console.

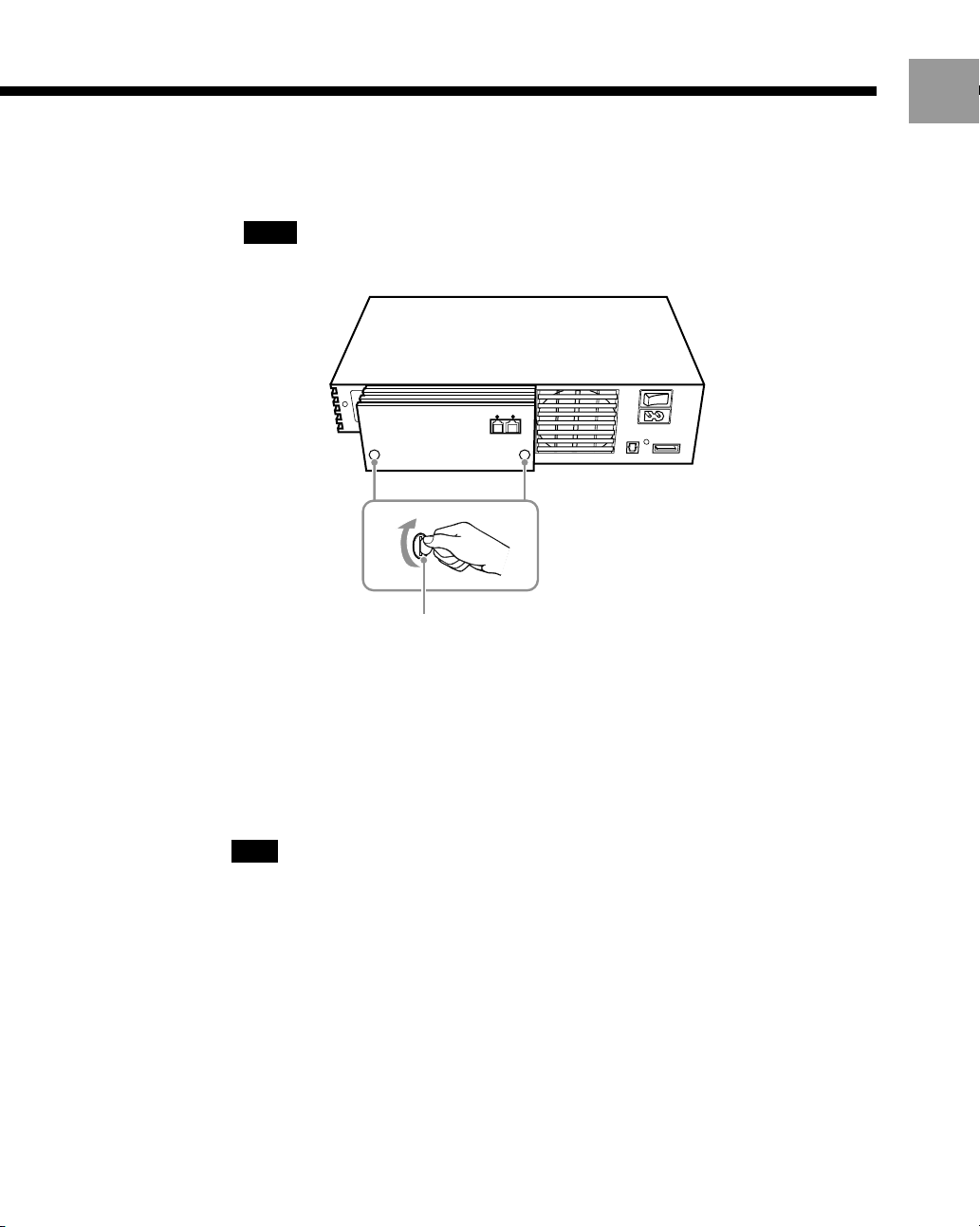

Using a coin, turn the mounting screws of the network adaptor in a clockwise
direction. Do not overtighten.
Notes
•Do not use a screwdriver to tighten the mounting screws.
•Do not fasten the mounting screws too tightly, as this may damage the screws or console.
5Insert the power plug for the console into an electrical outlet.
6Turn on the console using the main power switch on the console rear.
7Press the 1(standby)/reset button on the console front, and wait for the
main menu to appear.
The 1indicator turns green.
Mounting screw
PlayStation®2 console rear
Note
For detailed usage instructions for the HDD, refer to the instruction manual for the internal
hard disk drive (40GB) (for PlayStation®2) and HDD utility disc (ver 1.10).

10
Installing the HDD in a PlayStation®2 console (continued)
Positioning a PlayStation®2 console with an HDD installed
After installing the HDD in the PlayStation®2 console, you can set the console in
either the vertical or horizontal position.
Caution
•Do not change the position of the console while it is in operation. Doing so may damage the
HDD or cause the console to malfunction.
•Never move a console in such a way that the installed HDD will be exposed to physical
shock or vibration. Doing so may damage the HDD.
When placing a PlayStation®2 console with an HDD unit installed in the vertical
position, use the SCPH-10040 Uvertical stand (for PlayStation®2) (sold separately).
For details, refer to the instructions supplied with the vertical stand.
PlayStation®2 console
PlayStation®2 console
Vertical stand (for PlayStation®2)
Vertical position
Horizontal position
If a vertical stand (for PlayStation®2) is not available, set the console in the horizontal
position as shown below. When positioning the console horizontally, you can use the
SCPH-10110 Uhorizontal stand (for PlayStation®2) (sold separately).

11
US
Removing the HDD from a PlayStation ® 2 console
PlayStation®2 console front
Warning
For safety reasons, disconnect the power plug for the PlayStation®2 console from the electrical
outlet before attempting to remove the HDD from the console.
Caution
To help avoid software or data loss or corruption, or damage to the HDD:
•Never turn off or unplug the PlayStation®2 console when the HDD access indicator is
blinking.
•Always follow the correct shutdown procedure. For details, refer to the instruction manual
for the internal hard disk drive (40GB) (for PlayStation®2) and HDD utility disc (ver 1.10).
•Do not move the PlayStation®2 console or the HDD for 30 seconds after shutdown.
•Do not touch the black protective covering or the metal parts of the connectors, as doing so
may damage the HDD.
The HDD or network adaptor may become hot to the touch during use. Use caution in
handling these items during the HDD removal process.
HDD access indicator

12
1Check that the 1(standby) indicator on the PlayStation®2 console front is lit
up in red. Then, turn off the console using the main power switch on the
console rear.
2Disconnect the power plug for the console from the electrical outlet.

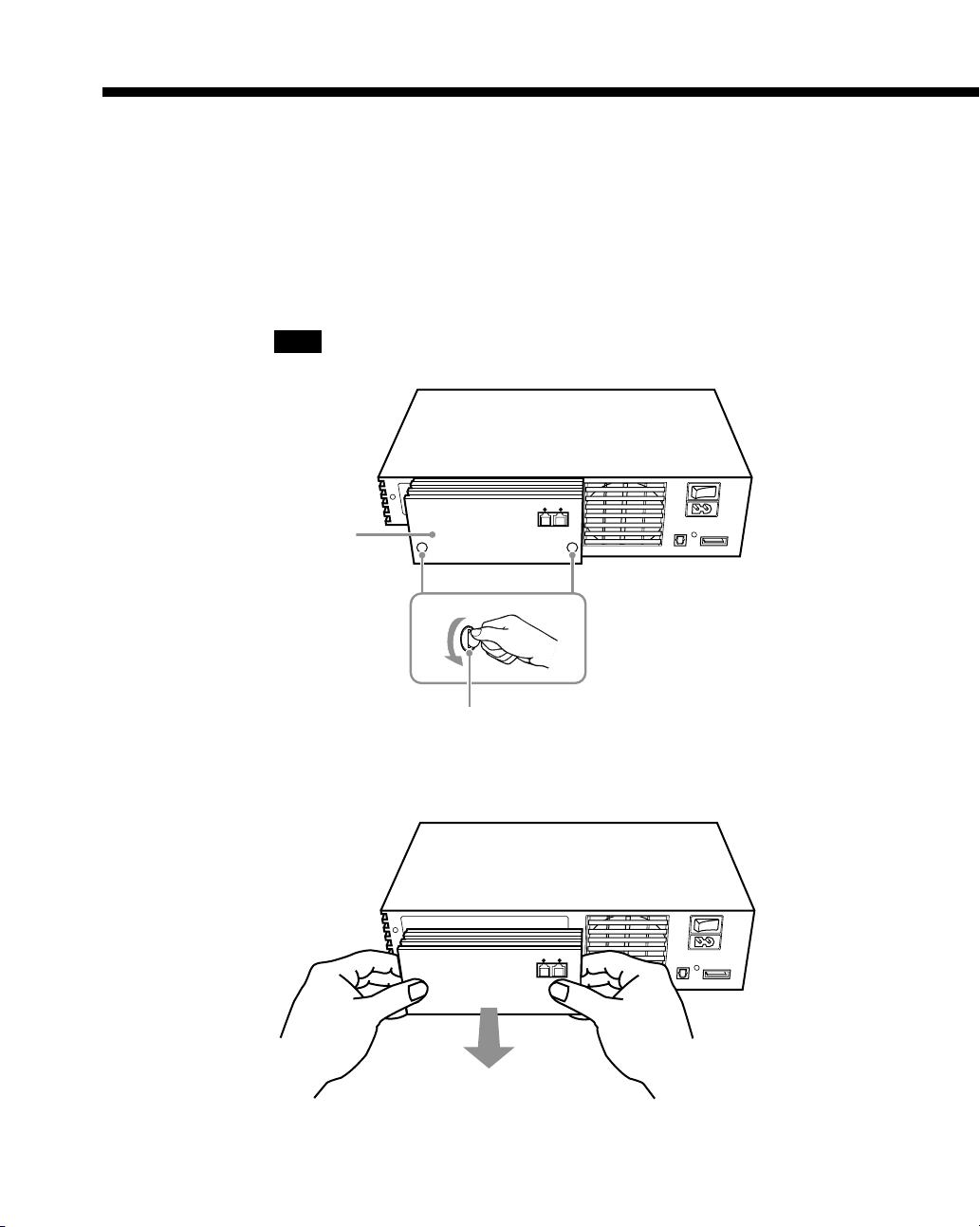

3Loosen the mounting screws of the network adaptor.
Using a coin, turn the mounting screws in a counterclockwise direction.
Note
Do not use a screwdriver to loosen the mounting screws.
4Remove the network adaptor from the console and HDD.
Remove the network adaptor by pulling it away from the console. Note that the
HDD remains in the console.
Mounting screw
PlayStation®2
console rear
Network adaptor
Removing the HDD from a PlayStation®2 console (continued)

13
US
5Remove the HDD from the console.
Notes
•To remove the HDD you will need to temporarily reattach the network adaptor.
•Do not hold the HDD unit by the network adaptor alone. Always grasp the HDD by the
rails.

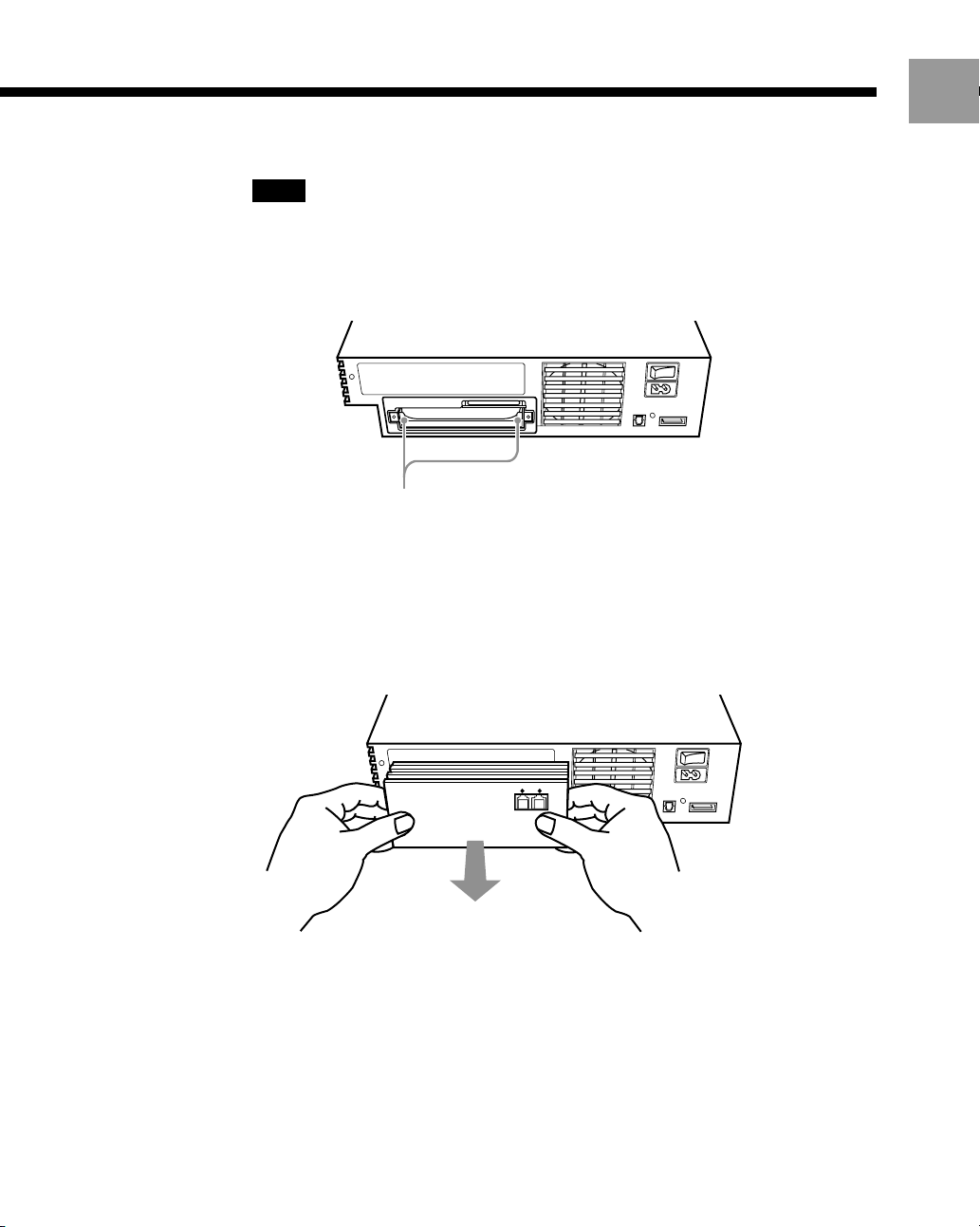

1Press in the two UNLOCK tabs of the HDD to release it from the console.
2Fully insert the HDD power and data connectors of the network adaptor into
the matching connectors of the HDD. Insert the connectors straight into each
other to avoid bending the pins.
3Remove the network adaptor along with the connected HDD by pulling it out
of the expansion bay.
UNLOCK tabs
6Cover the expansion bay.
After removing the HDD, reattach the expansion bay cover or the network
adaptor to help protect the expansion bus connector located within the expansion
bay.

14
Please go through this section if you experience difficulty in
operating the HDD.
If you experience any of the following difficulties, use this troubleshooting guide to
help remedy the problem before requesting repair. Refer also to the troubleshooting
section of the PlayStation®2 console instruction manual.
Should any problem persist, contact our technical support line at 1-800-345-7669 for
assistance.
Data cannot be saved or loaded on the HDD.
–Check that the HDD is installed properly in the expansion bay on the
PlayStation®2 console rear. (See page 7.)
–Check that the HDD is connected properly to the network adaptor (for
PlayStation®2). (See page 7.)
–Check that the power plug for the PlayStation®2 console is inserted properly into
the electrical outlet.
The HDD unit does not fit properly into the PlayStation®2 console.
–Check that the two LOCK tabs of the HDD are pressed in properly.
Remove the HDD unit from the PlayStation®2 console, and make sure that both
LOCK tabs are pressed in properly. (For removal instructions, see page 11.) After
checking the LOCK tabs, try installing the HDD unit again. (See page 7.)
Trouble with items other than the HDD
The instructions provided in this guide are for the installation of the HDD hardware
only. If you experience difficulty with peripheral items or software included with
this product or sold separately, refer to the appropriate instruction manual or contact
our technical support line at 1-800-345-7669 for assistance.
Troubleshooting

15
US
Specifications
Dimensions (approx.)
122 ×27 ×154 mm (w/h/d)
(4 3/4 ×1 ×6 in)
Weight (approx.)
0.7 kg (1 lb 9 oz)
Operating temperature
5°C –35°C (41°F –95°F)
Maximum data transfer speed
66 MB/sec
Capacity
40 GB unformatted (available capacity reduced with pre-installed software)
Inputs/Outputs
HDD data connector (1)
HDD power connector (1)
Design and specifications are subject to change without notice.

16
LIMITED WARRANTY
Sony Computer Entertainment America (SCEA)
warrants to the original purchaser that this product
(internal hard disk drive (40GB) (for PlayStation®2) and
HDD utility disc) shall be free from defects in material
and workmanship for a period of ninety (90) days from
the date of purchase (the “Warranty Period”). If this
product is determined to be defective during the
Warranty Period, SCEA agrees to either repair or
replace, at its option, the SCEA product. You must call
1-800-345-7669 to receive instructions to obtain repair/
replacement services.
THIS WARRANTY SHALL NOT APPLY IF THIS
PRODUCT: (a) IS USED WITH PRODUCTS NOT
SOLD OR LICENSED BY SCEA (INCLUDING, BUT
NOT LIMITED TO, NON-LICENSED GAME
ENHANCEMENT DEVICES, CONTROLLERS,
ADAPTORS AND POWER SUPPLY DEVICES) OR
OTHERWISE NOT COMPATIBLE WITH THIS
PRODUCT; (b) IS USED FOR COMMERCIAL
PURPOSES (INCLUDING RENTAL) OR IS MODIFIED
OR TAMPERED WITH; (c) IS DAMAGED BY ACTS OF
GOD, MISUSE, ABUSE, NEGLIGENCE, ACCIDENT,
WEAR AND TEAR, UNREASONABLE USE, OR BY
OTHER CAUSES UNRELATED TO DEFECTIVE
MATERIALS OR WORKMANSHIP; (d) HAS HAD
THE SERIAL NUMBER ALTERED, DEFACED OR
REMOVED; OR (e) HAS HAD THE WARRANTY
SEAL ON THE CONSOLE REMOVED. THIS
WARRANTY DOES NOT COVER PRODUCTS SOLD
AS IS OR WITH ALL FAULTS, OR CONSUMABLES
(SUCH AS BATTERIES).
PROOF OF PURCHASE IN THE FORM OF A BILL OF
SALE OR RECEIPTED INVOICE WHICH IS
EVIDENCE THAT THE UNIT IS WITHIN THE
WARRANTY PERIOD MUST BE PRESENTED TO
OBTAIN WARRANTY SERVICE.
REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER. ANY APPLICABLE IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE DURATION OF THIS
WARRANTY. IN NO EVENT SHALL SCEA BE
LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT. SOME
STATES OR PROVINCES DO NOT ALLOW
LIMITATION ON HOW LONG AN IMPLIED
WARRANTY LASTS AND SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATIONS OF
CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO
THE ABOVE LIMITATIONS OR EXCLUSION MAY
NOT APPLY TO YOU.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state or province to province. This warranty is valid
only in the United States and Canada.

17
US

2
AVERTISSEMENT
Afin d’éviter tout risque d’incendie et
d’électrocution, ne pas exposer l’unité à la pluie
ou à l’humidité.
Pour éviter tout risque d’électrocution, ne pas
démonter l’unité. Confiez l’entretien uniquement
à un personnel qualifié.
Notice réservée aux utilisateurs résidant
aux États-Unis
Cette unitéa ététestée et il a étédéterminéqu’elle se
conforme aux normes stipulées par l’article 15 des
règlements de la FCC pour un appareil numérique de
catégorie B. Ces normes sont établies afin d’offrir une
protection raisonnable contre toute possibilitéde
brouillage préjudiciable dans une installation
résidentielle. Cette unitéproduit, utilise et peut émettre
une énergie radiofréquence, et si elle n’est pas installée
et utilisée conformément aux instructions, pourrait
causer un brouillage préjudiciable àla
radiocommunication. Il est toutefois impossible de
garantir qu’il n’y aura pas de brouillage préjudiciable
dans une installation donnée. Si cette unitécause un
brouillage préjudiciable àla réception radio ou
télévisuelle, ce qui peut être déterminéen activant ou
désactivant l’appareil, l’utilisateur est encouragéà
tenter de corriger le brouillage en prenant l’une ou
plusieurs des mesures proposées suivantes :
–Réorienter ou déplacer l’antenne de réception.
–Éloigner l’unitédu récepteur.
–Connecter l’appareil àune prise sur un autre circuit
que celui auquel le récepteur est connecté.
–Demander de l’aide au détaillant ou àun technicien
radio/télévision spécialisé.
Tout changement ou modification apportéàl’appareil
non approuvéexpressément dans ce mode d’emploi
pourrait annuler le droit d’opérer cet équipement.
Références utilisateur
Le numéro du modèle et le numéro de série figurent sur
la surface supérieure du disque dur interne.
Inscrivez le numéro de série dans l’espace prévu àcet
effet ci-dessous. Signalez ces numéros de référence
chaque fois que vous sollicitez une assistance technique
au 1-800-345-7669.
Modèle N°SCPH-20401
N°______________________________

3
FR
Table des matières
AVERTISSEMENT .............................................. 2
Àpropos de ce produit .................................... 4
Précautions ...................................................... 4
Noms des composants ..................................... 6
Installation du HDD dans une console
PlayStation®2 ................................................ 7
Positionnement d’une console PlayStation®2
avec un HDD installé............................................ 10
Retrait du HDD d’une console
PlayStation®2 .............................................. 11
Guide de dépannage ...................................... 14
Spécifications ................................................ 15
GARANTIE LIMITÉE......................................... 16

4
Précautions Àpropos de ce produit
Modèles compatibles
Le disque dur interne (40 Go) (pour PlayStation®2)
(désignépar l’abréviation anglaise HDD “hard disk
drive”dans le reste de ce guide) est conçu pour être
utiliséexclusivement avec le système de loisir interactif
PlayStation®2.
N’essayez pas d’installer le HDD sur un autre
matériel car vous risqueriez d’endommager non
seulement le HDD, mais également le matériel sur
lequel vous essayez de l’installer. Ne connectez pas
non plus de disque dur disponible dans le
commerce qui n’est pas spécifiquement conçu pour
la console PlayStation®2 àl’adaptateur réseau, car
ceci pourrait endommager la console ou le
périphérique connecté.
Un adaptateur réseau (pour PlayStation®2) (vendu
séparément) est requis pour installer le HDD dans la
console PlayStation®2. Dans ce guide, la combinaison
du HDD et de l’adaptateur réseau est désignépar le
terme “unitéHDD”.
Logiciels compatibles
Ce produit est compatible avec les logiciels au format
PlayStation®2 indiqués comme étant compatibles avec
le disque dur interne (pour PlayStation®2).
L’utilisation du HDD peut varier selon le logiciel
utilisé. Pour plus détails, reportez-vous au mode
d’emploi du logiciel correspondant.
Une fois que le HDD est installé, vous ne pouvez pas
réinitialiser des logiciels en appuyant sur le bouton
1(veille)/RESET situéàl’avant de la console
PlayStation®2. Afin d’éviter la perte du jeu en cours,
essayez de sauvegarder avant de réinitialiser un jeu.
Capacité
La capacitéde stockage du HDD est de 40 gigaoctets
(Go). Remarquez que la capacitéformatée disponible
est réduite avec le logiciel pré-installé. Veuillez noter
aussi qu’à cause de variations de fabrication, la capacité
du disque dur peut aussi varier un peu. Si vous avez
des questions, contactez le Service Clientèle de SCEA
au 1-800-345-7669.
La quantitéde mémoire requise pour sauvegarder les
données varie selon le logiciel utilisé. Pour plus détails,
reportez-vous au mode d’emploi du logiciel
correspondant.
Sécurité
Ce produit a étéconçu dans le souci d’offrir les
meilleures garanties de sécuritépossibles. Cependant,
tout dispositif électrique utiliséde façon incorrecte
risque de provoquer incendie, électrocution ou
blessures. Pour aider àassurer un fonctionnement en
toute sécurité, veillez àrespecter les points suivants.
•Observez tous les avertissements, précautions et
instructions.
•Arrêtez immédiatement d’utiliser l’appareil s’il
fonctionne de manière anormale ou s’il produit des
sons ou des odeurs anormales.
•Le HDD a un boîtier métallique exposé. Pour éviter
les blessures, soyez prudent en manipulant le HDD.
•Si l’appareil ne fonctionne pas correctement contactez
notre ligne d’assistance technique au 1-800-345-7669.
Utilisation et manipulation
Le HDD est une pièce d’équipement fragile et devrait
être manipuléavec soin en tout temps. Afin de prévenir
la perte ou l’altération de données ou de logiciels ainsi
que des dommages au HDD, veuillez suivre
attentivement les précautions énumérées ci-dessous.
•Ne laissez jamais tomber le HDD et ne le soumettez
jamais àdes chocs physiques ou àdes vibrations.
•Ne placez jamais le HDD sur des surfaces instables,
inclinées ou soumises àdes vibrations.
•Ne déplacez ou ne changez jamais la position de la
console sous tension alors que le HDD est installé.
•Ne mettez pas une console hors tension lorsqu’un
HDD est installésans suivre la bonne procédure pour
l’éteindre. Pour la procédure, reportez-vous au mode
d’emploi du Disque Dur Interne (40 Go) (pour
PlayStation®2) et Disque d’Utilitaires HDD (version
1.10).
•Lorsque l’indicateur d’accès au HDD àl’intérieur de
la grille d’aération avant de la console clignote, ne
mettez pas la console hors tension.
•N’exposez pas le HDD àdes températures élevées, à
une humiditéexcessive ou au rayonnement direct du
soleil (utilisez-le dans un endroit oùles températures
sont comprises entre 5 °C et 35 °C/41 °F et 95 °F).
•Ne placez pas le HDD dans des endroits sujets àde
brusques changements de températures (par exemple,
des changements de 10 °C/18 °F par heure ou plus).
•N’utilisez pas la console avec le HDD installédans un
endroit poussiéreux.
•Ne laissez pas de liquide ou de petits objets
s’introduire dans le HDD.
•Ne placez pas le HDD àproximitéde champs
magnétiques comme ceux produits par des aimants
ou des haut-parleurs.
