SA-W2500/W3000/W3800
SERVICE MANUAL
SPECIFICATIONS
US Model
Canadian Model
SA-W2500/W3000/W3800
AEP Model
SA-W2500/W3800
UK Model
SA-W2500
E Model
Australian Model
SA-W2500/W3000/W3800
ACTIVE SUBWOOFER
Ver. 1.1 2007.07
Sony Corporation
Home Audio Division
Published by SonyTechno Create Corporation
9-887-592-02
2007G02-1
© 2007.07
photo: SA-W3800
SA-W3800
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUTAND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 20 – 200 Hz; rated 120 W, minimum RMS
power, with no more than 1 % total harmonic distortion from 250
milliwatts to rated output.
System
Type
Active Subwoofer, (magnetically shielded design)
Speaker unit Woofer : 38 cm dia. (15 in.), cone type
Continuous RMS output South American models
180 W (6 ohms, 80 Hz, 10% THD)
Other models
200 W (6 ohms, 80 Hz, 10% THD)
Reproduction frequency range 20 Hz – 200 Hz
High frequency cut-off frequency 50 Hz – 200 Hz
Phase selector NORMAL, REVERSE
Inputs
Input jacks LINE IN: input pin jack
SPEAKER IN: input terminals
Output jacks LINE OUT: output pin jack
SPEAKER OUT: output terminals
General
Power requirements North American models : 120 VAC, 60 Hz
S outh American models: 120/220/240 VAC,
50/60 Hz
European models : 230 VAC, 50/60 Hz
Australian models : 240 VAC, 50 Hz
Other models: 230 – 240 VAC, 50/60 Hz
Power consumption 100 W
Dimensions Approx. 440 ×495 ×512 mm
(17 3/8×19 1/2×20 1/8in.) (w/h/d)
Mass Approx. 23 kg (50 lb 12 oz)
Supplied accessories Foot pads (4)
Audio connecting cord
(1 phono – 1 phono), 2 m (6 ft 6 1/2in.) (1)
SA-W3000
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUTAND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 20 – 200 Hz; rated 100 W, minimum RMS
power, with no more than 1 % total harmonic distortion from 250
milliwatts to rated output.
System
Type
Active Subwoofer, (magnetically shielded design)
Speaker unit Woofer : 30 cm dia. (11 7/8in.), cone type
Continuous RMS output South American models
160 W (6 ohms, 80 Hz, 10% THD)
Other models
180 W (6 ohms, 80 Hz, 10% THD)
Reproduction frequency range 20 Hz – 200 Hz
High frequency cut-off frequency 50 Hz – 200 Hz
Phase selector NORMAL, REVERSE
Inputs
Input jacks LINE IN: input pin jack
SPEAKER IN: input terminals
Output jacks LINE OUT: output pin jack
SPEAKER OUT: output terminals
General
Power requirements North American models : 120 VAC, 60 Hz
South American models: 120/220/240 VAC,
50/60 Hz
Australian models : 240 VAC, 50 Hz
Korean models: 220 – 230 VAC, 50/60 Hz
Other models: 230 – 240 VAC, 50/60 Hz
Power consumption 100 W
Dimensions Approx. 360 ×425 ×421 mm
(14 1/8×16 3/4×16 1/2in.) (w/h/d)
Mass Approx. 16 kg (35 lb 5 oz)
Supplied accessories Foot pads (4)
Audio connecting cord
(1 phono – 1 phono), 2 m (6 ft 6 1/2 in.) (1)
– Continued on next page –

2
SA-W2500/W3000/W3800
SAFETY CHECK-OUT
(US model)
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
LEAKAGE
The AC leakage from any exposed metal part to earth Ground
and from all exposed metal parts to any exposed metal part
having a return to chassis, must not exceed 0.5 mA (500
microampers). Leakage current can be measured by any one of
three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WT-540A. Follow the manufacturers’instructions to
use these instruments.
2. A battery-operated AC milliammeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit”
indication is 0.75 V, so analog meters must have an accurate
low-voltage scale. The Simpson 250 and Sanwa SH-63Trd
are examples of a passive VOM that is suitable. Nearly all
battery operated digital multimeters that have a 2VAC range
are suitable. (See Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
0.15µF
To Exposed Metal
Parts on Set
1.5kΩAC
voltmeter
(0.75V)
Earth Ground
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED
LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
SA-W2500
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUTAND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 28 – 200 Hz; rated 60 W, minimum RMS power,
with no more than 1 % total harmonic distortion from 250 milliwatts to
rated output.
System
Type
Active Subwoofer, (magnetically shielded design)
Speaker unit Woofer : 25 cm dia. (9 7/8in.), cone type
Continuous RMS output South American models
90 W (6 ohms, 80 Hz, 10% THD)
Other models
100 W (6 ohms, 80 Hz, 10% THD)
Reproduction frequency range 28 Hz – 200 Hz
High frequency cut-off frequency 50 Hz – 200 Hz
Phase selector NORMAL, REVERSE
Inputs
Input jacks LINE IN: input pin jack
SPEAKER IN: input terminals
Output jacks SPEAKER OUT: output terminals
General
Power requirements North American models: 120 VAC, 60 Hz
South American models: 120/220/240 V AC,
50/60 Hz
European models: 230 VAC, 50/60 Hz
Australian models: 240 VAC, 50 Hz
Korean models: 220 – 230 VAC, 50/60 Hz
Taiwan models: 110 VAC, 60Hz
Other models: 230 – 240 VAC, 50/60 Hz
Power consumption 70 W
Dimensions Approx. 290 ×350 ×391 mm
(11 3/8×13 3/4×15 3/8in.) (w/h/d)
Mass Approx. 10 kg (22 lb 1 oz)
Supplied accessories Foot pads (4)
Audio connecting cord
(1 phono – 1 phono), 2 m (6 ft 6 1/2in.) (1)
Design and specifications are subject to change without notice.
Ver. 1.1

3
SA-W2500/W3000/W3800
Specifications ............................................................................ 1
1. DIAGRAMS
1-1. Printed Wiring Boards
- INPUT CONTROL, LED And SWITCH boards - ..... 5
1-2. Schematic Diagram
- INPUT CONTROL, LED And SWITCH boards - ..... 6
1-3. Printed Wiring Boards - MAIN board -...................... 7
1-4. Schematic Diagram - MAIN board - .......................... 8
2. EXPLODEDVIEWS
2-1. Cabinet Section (W2500) ............................................ 9
2-2. Cabinet Section (W3000) .......................................... 10
2-3. Cabinet Section (W3800) .......................................... 11
2-4. Amp Section (W2500) ............................................... 12
2-5. Amp Section (W3000/W3800) .................................. 13
3. ELECTRICAL PARTS LIST.................................... 14
TABLE OF CONTENTS
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

4
SA-W2500/W3000/W3800
For PrintedWiring Boards.
Note :
•X: parts extracted from the component side.
•x: parts extracted from the conductor side.
•: Pattern from the side which enables seeing.
•Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
AUS : Australian model
E51 : Chilean and Peruvian model
KR : Korean model
TH : Thai model
TW : Taiwan model
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
(In addition to this, the necessary note is printed in each block.)
For Schematic Diagrams.
Note:
•All capacitors are in µF unless otherwise noted. pF: µµF 50 WV
or less are not indicated except for electrolytics and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise specified.
•C: panel designation.
•A: B+ Line.
•B: B– Line.
•Voltages are dc with respect to ground under no-signal conditions.
•no mark : Power on
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production toler-
ances.
•Signal path.
F: AUDIO
J: MFB (Motional Feed Back)
Note:
The components identi-
fied by mark 0or dotted
linewith mark0arecriti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiéspar
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
SECTION 1
DIAGRAMS
Ver. 1.1

55
SA-W2500/W3000/W3800
SA-W2500/W3000/W3800
1-1. PRINTEDWIRING BOARDS
Ref. No. Location
zSemiconductor
Location
D101 B-4
D102 B-4
D103 B-4
D104 B-4
D202 D-4
D301 C-8
D302 C-9
D401 C-6
D402 C-7
D403 C-7
D404 C-7
D405 C-7
D406 C-10
D901 C-5
IC101 B-5
IC102 B-6
IC103 B-7
IC104 B-7
IC201 C-8
IC202 B-9
IC401 C-6
IC402 C-6
Q301 C-8
Q302 C-9
Q401 C-6
Q402 C-7
Q403 C-7
Q404 C-7
Q405 C-7
Q406 C-8
Q408 C-8
Q430 C-10
– INPUT CONTROL, LED AND SWITCH BOARDS – :Uses unleaded solder.
L
R
+ – + –
AC IN
R104
E51
EXCEPT
E51
E51
R102
R101
R114 R115
R110
R105
R109
R108
R103
R113
R116
R118
R120
R117
R401
R402
R404
R403
R405
R406
R407
R411
R413 R414
R420
R415
R135
R134
R136
R133
R125 R126
R127
R128
R123 R124
R111
R112
R122
R409
R203
R130
R131
R132
R204
R202
R213
R201
R207
R206
R208R211
R210
R209
R205
R129
R430
R424
R431
R416
R423
C108
C107
C400
C103
C115
C116
C403
C404
C202
C304
C305
C207
C406 R408
R410
D406
D401
D402
D403
D404
D101
D102 D104 D103
C204
IC104
IC102
IC401
IC103
IC101
D901
IC402
IC201
IC202
D302
D301
R302
R301
R418
R422
R212
C303
C306
C413
C414
R121
R137
R138
R214
C408
R119
D405
R106
R107
C104
C109
C101
C102
C106
C105
C401
C402
Q401
Q402
Q403
C405
C407
Q404
Q406
Q408
CNP905
CNP904
FH954
FH904
Q301
Q302
C307
CNP103
C301
C302
C308
C201
RV101
LEVEL
C114
Q430
C430
CNP402
C117
C206
C205
C203
FH901
RY901
F901
F903
FH951
JW902
JW907
CNP903
JW909
JW904
C605
R421
Q405
JW911
JW100
JW101
JW102
JW104
JW105
JW108
JW111
JW113
JW114
JW117
JW119
JW121
JW122
JW123
JW125 JW126
JW127
JW128
JW129
JW130
JW131
JW134
JW135
JW136
JW905
C111
C110
C112 C113
JW107
JW116
JW118
JW120
R901
JW133
JW137
JW115
C412
JW103
JW109
JW912
JW106
JW112
CN906
JW132
JW913
JW110
RV102
CUT OFF
FREQ
INPUT CONTROL BOARD
S102
PHASE
S101
POWER SAVE
J101
LINE
TM101
SPEAKER
REVERSET NORMAL
OFF T AUTO
IN
IN
OUT
OUT
W3000/
W3800
S902
VOLTAGE SELECTOR
120V t 220V t 240V
C410
D202
POWER
C409
R419
CN401
LED BOARD
S901
POWER
CNP902
CN901
SWITCH BOARD
1
1
1
2
1
2
35
3
1
45
8
1
45
8
1
45
8
1
45
8
1
45
81
45
8
1
45
81
45
8
E
E
E
EE
E
E
E
E
E
W2500
W2500
1
1
11
311
1-872-463- (11)
11
1-872-464- (11)
11
1-872-465- (11)
11
12
2
4
23 4 5 6 7 8 9 10
A
1
B
C
D
E
F
MAIN POWER TRANSFORMER
T1
1
1
1
1
2
3
4
5
6
2
2
2
3
E51
EXCEPT E51
MAIN BOARD
(Page 7)
C
MAIN BOARD
(Page 7)
A
MAIN BOARD
(Page 7)
B

66
SA-W2500/W3000/W3800
SA-W2500/W3000/W3800
1-2. SCHEMATIC DIAGRAM – INPUT CONTROL, LED AND SWITCH BOARDS –
IN
SPEAKER
LINE
OUT
IN OUT
LINE AMP
MIX AMP
BPF
LPF
CUT OFF
FREQ
LINE AMP HPF
LEVEL
BUFFER
REVERSE
PHASE
PHASE
LED DRIVE
(RED)
LED DRIVE
(GREEN)
LED
SWITCH
REG
AUTO
OFF
CURRENT
SOURCE
SWITCH
DRIVE
AUDIO
LEVEL
DETECT
AUDIO
LEVEL
DETECT
POWER SAVE
SWITCH
POWER SAVE
LEVEL
COMPARATOR
NORMAL
GREEN
LED
RED
LED
POWER
BUFFER
BUFFER MFB
MFB
AC DET
+14V REG –14V REG
POWER
L
NAC IN
MAIN POWER TRANSFORMER
T1
1
1
1
1
2
3
4
5
6
2
2
2
3
INPUT CONTROL BOARD
W2500
W3000
W3800
W2500
W3000
W3800
W2500
W3000/
W3800
W2500(E51)
W3000/W3800(E51)
W3000/W3800
E51
EXCEPT
E51
E51
E51
EXCEPT E51
CN906
CN904
2P
3P:E51
2P:EXCEPT E51
1
2
D202
JW904
C902
FH954
FH904
FH
F901
*13
F903
*14
S902 120V
220V
240V
VOLTAGE SELECTOR
901
FH951
C114C117
C401
C402
Q401
Q402
Q403
C405
Q404
Q405
Q406Q408
C206
CNP902
C201
C203
R106
C104
C109
RY901S901
RV102
CN401
R201R202
R203
R209
R420
R424
R413
R108
R109
R117
R120
R135
R133
R134
R136
R405
R408
R409
R114
R122
R210
R402
R102
R116
R416
R422
R407R410
R414R423
R206
R207
R211
R212
R404
R403
R208
C103
C107
C108
C115
C116
C204
C207
C105
C106
R901
R401
R406
IC101(1/2)
IC102(1/2)
IC102(2/2)
IC103(1/2)
IC103(2/2)
IC104(1/2)
IC104(2/2)
IC201(1/2)
IC201(2/2)
IC202(1/2)
IC202(2/2)
C403
C404
CNP903
IC101(2/2)
IC401(1/2)
IC401(2/2)
R123
R137
R125
R127
R128
R205
R213
R214
C406
R124
C110
C111
C113
J101
IC402(1/2)
IC402(2/2)
CN901
CNP905
R126
R121
R113
C409
C410
R419
CNP103
C303C306
C304C305
Q302
Q301
R301R302
D406
C4
100
30
R431
Q430
CNP402
JW907
JW905
JW902
JW909
R129R130
R131
RV101
C112
R418
R415
C407R411
C408
S101
S102
D405
D401
D402
D403
D404
C102
R103
R110
R105
R104
R107
R111
R115
R119R118
R112
TM101
D102
D104D103
D101
R421
D301D302
R204
R430
C301C302
D901
C307C308
C205
R101
C202
C412
SML7240CTHBE
0.0047
10
50V
10
50V
10
50V
10
50V
DTA124ES
DTC124ES
2SA1175
330
16V
2SC2785
2SC2785
2SA11152SA1115
100
16V
2P
1
50V
1
50V
4.7k
1/2W
10
50V
10
50V
20k
4P
470470
1k
1k
1k
1k
2.2k
4.7k
4.7k
4.7k
4.7k
4.7k
10k
10k
10k
10k
10k
10k
15k
22k
22k
22k
33k
33k
47k
47k
100k100k
100k100k
220k
220k
220k
220k
470k
470k
47k
220p
0.1
0.1
0.1
0.1
0.1
0.1
0.01
0.01
47
22k
220k
NJM4565D
NJM4565D
NJM4565DNJM4565D
NJM4565D
NJM4565D
NJM4565D
NJM4565D
NJM4565D
NJM4565D
NJM4565D
0.001
0.001
3P
NJM4565D
NJM2904M
NJM2904M
12k
1k
12k
0.1
NJM2904M
NJM2904M
2P
2P
47k
0.1
0.1
10k
11P
220p220p
0.1 0.1
2SB733
2SD773
2.2k2.2k
1SS133T
10V
47k
2SC2785
3P
47k1k
0
10k
470
47k
22016V47k
0.1
UDZSTE-174.7B
MA111-TX
MA111-TX
MA111-TX
MA111-TX
220p
33k
4.7k
33k
33k
4.7k
1/2W
1k
22k
10k10k
1k
SPEAKERTERMINAL
MA111-TX
MA111-TXMA111-TX
MA111-TX
1.8k
UDZS-TE17-15BUDZS-TE17-15B
4.7k
10016V10016V
1SS133T
1050V1050V
150V
4.7k
0.22
10006.3V
+VR1
+14
-14
-14
+14
PREAMPO/P
*1 *2 *3 *4
C110 C111 C112 C113
0.68 0.022 0.22 0.22
0.22 0.056 0.1 0.1
0.68 0.018 0.1 0.1
*5 *6 *7 *8 *9 *10 *11 *12 *13
R123 R124 R125 R126 R127 R128 R137 R204 R121
8.2k 100k 5.6k 100k 47k 22k 8.2k 220 10k
10k 8.2k 0 330k 10k 470 6.8k
10k 8.2k 0 330k 10k 560 4.7k
US, CND AEP, UK, SP, MY, AUS E51
2.5A/125V T1AL/250V T1.6AL/250V
4A/125V T2AL/250V T3.15AL/250V
*13 0F901
T1AL/250V
T2AL/250V
*14 0F903
IC102
IC101
IC401 IC402
IC201
IC202
IC103
IC104
3
1
2
1
5
1
1
2
3
5
67
8
424
3
6
1
1
7
6
5
5
5
6
6
7
71
24
35
5
6
6
7
7
8
8
1
2
3
4
8
8
8
1
1
24
3
2
3
4
2
3
42
3
4
7
8
5
67
8
*12
*11
*13 *1
*6*2
*5*3*4
*7*8
*9
*10
MAIN BOARD
(Page 8)
A
MAIN BOARD
(Page 8)
C
MAIN BOARD
(Page 8)
B

77
SA-W2500/W3000/W3800
SA-W2500/W3000/W3800
1-3. PRINTEDWIRING BOARDS – MAIN BOARD – :Uses unleaded solder.
E
E
E
E
EE
EE
E
E
EC
MAIN POWER
TRANSFORMER
T1
(Page 5)
B
INPUT CONTROL
BOARD
(Page 5)
A
INPUT CONTROL
BOARD
(Page 5)
SP101
D805
D804 D802
D803
R724
R723
R717
R718
R719
R510 EB
CEB
C
R512
R507
D502
R515
R514
R509
R516
R705
R706
C705
R704
R702
R725
R726
R703
R701
R708
R707
D703
D704
D705
D706
D701
D702
D503
D505
D504
C513
C708
C706
C707
C714
R500
C701
C504
C700
C601
C806
C805
C803
R722
C804
CNP906
T202
SUB TRANSFORMER
C602
R801
R802
CNP401
D801
C801
C802
Q708 Q709
C711 C712
Q711
Q710
C710
RY501
C702
C703
Q701 Q702
Q703
Q704
Q705
Q706
Q707
C704
C709
EP1
IC500
Q731
C508
R506
1
14 85
C506
C507
CNP501
C505
C509
C510
Q505
C713
C511
R519
JW700
JW703
JW706
JW708
JW709
JW710
JW712
JW713
JW714
JW715
JW716
JW717
JW718
JW721
JW722
JW723
JW725
JW726
JW727
D601
D604
D603
D602
JW728
JW729
JW730 JW731
JW737
JW724
JW704
R508
JW711
JW702
JW738
JW739
JW741
JW746
C807
C808
JW736
R714
R713
R715
R710
R709
R712
R716
R711
R511
R513
R721
JW910
JW734
JW735
JW707
JW733
JW742
JW705
JW701
JW744
CN601
JW745
R720
11
(11)
1-872-462-
MAIN BOARD
EXCEPT
E51
E51
1
1
1
6
5
12
23 4 5 6 7 8
A
1
B
C
D
E
Ref. No. Location
zSemiconductor
Location
D502 A-2
D503 B-3
D504 B-5
D505 B-3
D601 D-6
D602 D-6
D603 D-6
D604 D-6
D701 D-2
D702 D-2
D703 C-1
D704 C-1
D705 D-2
D706 D-2
D801 B-6
D802 C-5
D803 D-6
D804 C-5
D805 C-5
IC500 A-3
Q505 A-2
Q701 C-2
Q702 D-2
Q703 C-2
Q704 B-1
Q705 C-1
Q706 C-2
Q707 C-1
Q708 A-4
Q709 A-6
Q710 A-5
Q711 A-5
Q731 B-5

88
SA-W2500/W3000/W3800
SA-W2500/W3000/W3800
1-4. SCHEMATIC DIAGRAM – MAIN BOARD –
IC500
PROTECTOR
W3000/W3800
W2500 W3000/W3800
W2500
W2500
W3000/W3800
W2500
W3000/W3800
EXCEPT
E51
E51
T202
Q505
Q710
Q701
Q702
Q703
Q705
Q704
Q711
RY501
C505
C709
C710
CNP501
Q706
Q731
Q707
Q708
Q709
C510
C703
C506C508
C509
C702
R507
R722
CNP401
C712
CNP906
R519
C711
R513
R709
C713
R706
R705
R707
R717
R701
R719
R514
R515
R516
R708
R509
R703
R718
R512
C701
C707
C714
C706
C507
C513
C601
C504
C708
R508
R711
R716
R71Q701-707
A - CLASS
POWER DRIVE
Q708-711
POWER AMP
OVER CURRENT
DETECT
5
R721
R720
R710
R713R714
D703
D704
D801
D701
D702
D705
D706
C705
R506
R510
R712
C602
C704
R500
R723
C807
C808
R511
R704
JW910
C803C803
C804
,804
CN601
C511
C801
C802
R724
R801
R802
R726
R725
R702
R702
D505
D503
D504
D502
SP101
D805
D804
D802
D803
C806C805
D601
D603
D604
D602
SUBTRANSFORMER
2SA1175
2SA1175
2SA988
2SA988
2SA988
2SC2785
2SA1145
2SC3623
12V
SPKRLY
22
50V
22100V
47
50V
2P
2SC2785
2SC1841
2SC2705
MP1620
MN2488
4750V
220
10V
100
10V10
50V
4750V
10
100V
220
1/2W
0.22
6P
100p
3P
VH
0.22
100p
22k
22k
47p
180
330
330
560
1k
2.2k
10k
10k
10k
10k
22k
47k
47k
100k
220p
220p
220p
10p
0.022
0.022
0.1
220p
50V
100p
10
10
10
47
100
100
150
180180
MAIII-TX
MAIII-TX
MAIII-TX
MAIII-TX
MAIII-TX
MAIII-TX
D6SBA20
0.0022
150k
1/10W
150k
47k
2200
16V
22
100V
10k
4.7k
1000
25V
1000
25V
10
OTHERS
470063V
680071V
12P
0.1
0.1
100V
0.1
100V
2.2k
2.2k
47
470
MA111-TX
MA111-TX
MA111-TX
MA111-TX
SPEAKER
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
0.1 0.1
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
1SR154-400TE-25
ACSUPPLY
+B
OUTPUT SGL
+IN
-IN
+B
-B
-B
OVERCURRENT
*1
*1
R704
1k
1.2k
12k
22k
*2
*3
R724
*3
*4
1 1/2W
1 1/2W
*4
*4
*2
µPC1237C-A
IC500
5W
INPUT CONTROL
BOARD
(Page 6)
INPUT CONTROL
BOARD
(Page 6)
MAIN POWER
TRANSFORMER
T1
(Page 6)
A
B
C
1 2 3 4
7
8
OVER
LOAD DET
F/F
OFFSET DET LATCH
AUTORESET
VCC ON
MUTE
AC OFF
DET
VCC
OVER
LOAD
DC
DETECT
RESET AC OFF
RELAY
DRIVER
VCC ON
MUTE GND
5
6
IC500 uPC1237C-A
•IC Block Diagrams

SA-W2500/W3000/W3800
9
SECTION 2
EXPLODEDVIEWS
NOTE :
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) … (RED)
↑↑
Parts color Cabinet's color
•Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
•The mechanical parts with no reference number in the
exploded views are not supplied.
•Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
AUS : Australian model
E51 : Chilean and Peruvian model
KR : Korean model
TH : Thai model
TW : Taiwan model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
2-1. CABINET SECTION (W2500)
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
12-897-815-01 GRILLE FRAME(WITH CLOTH)...(BLACK)
(W2500: US, CND, SP, MY, AUS)
12-897-815-11 GRILLE FRAME(WITH CLOTH)...(WOOD)
(W2500: AEP, UK, E51, SP, MY, KR, TH, TW)
24-229-774-01 SCREW, TAPPING, HEXAGON SOCKET
34-210-176-31 EMBLEM (NO.6), SONY
4A-1224-561-A PANEL INDICATOR ASSY
54-874-614-52 SCREW (1) (3.5X20), TAPPING
SP101 1-826-571-11 LOUDSPEAKER (25cm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
1
2
3
4
5
5
55
5
2
not supplied
not supplied
not supplied
AMP section
#1
not supplied
SP101
Ver. 1.1

10
SA-W2500/W3000/W3800
2-2. CABINET SECTION (W3000)
51
52
53
53
54
55 56
56
56 56
56
52
not supplied
not supplied
not supplied
AMP section
#1
not supplied
SP101
51 A-1252-419-A GRILLE FRAME ASSY...(BLACK)
(W3000: US, CND, SP, MY, AUS)
51 A-1252-420-A GRILLE FRAME ASSY...(WOOD)
(W3000: E51, SP, MY, KR, TH)
52 4-229-774-01 SCREW, TAPPING, HEXAGON SOCKET
53 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
54 4-210-176-31 EMBLEM (NO.6), SONY
55 A-1224-561-A PANEL INDICATOR ASSY
56 4-874-614-52 SCREW (1) (3.5X20), TAPPING
SP101 1-826-572-11 LOUDSPEAKER (30cm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1

SA-W2500/W3000/W3800
11

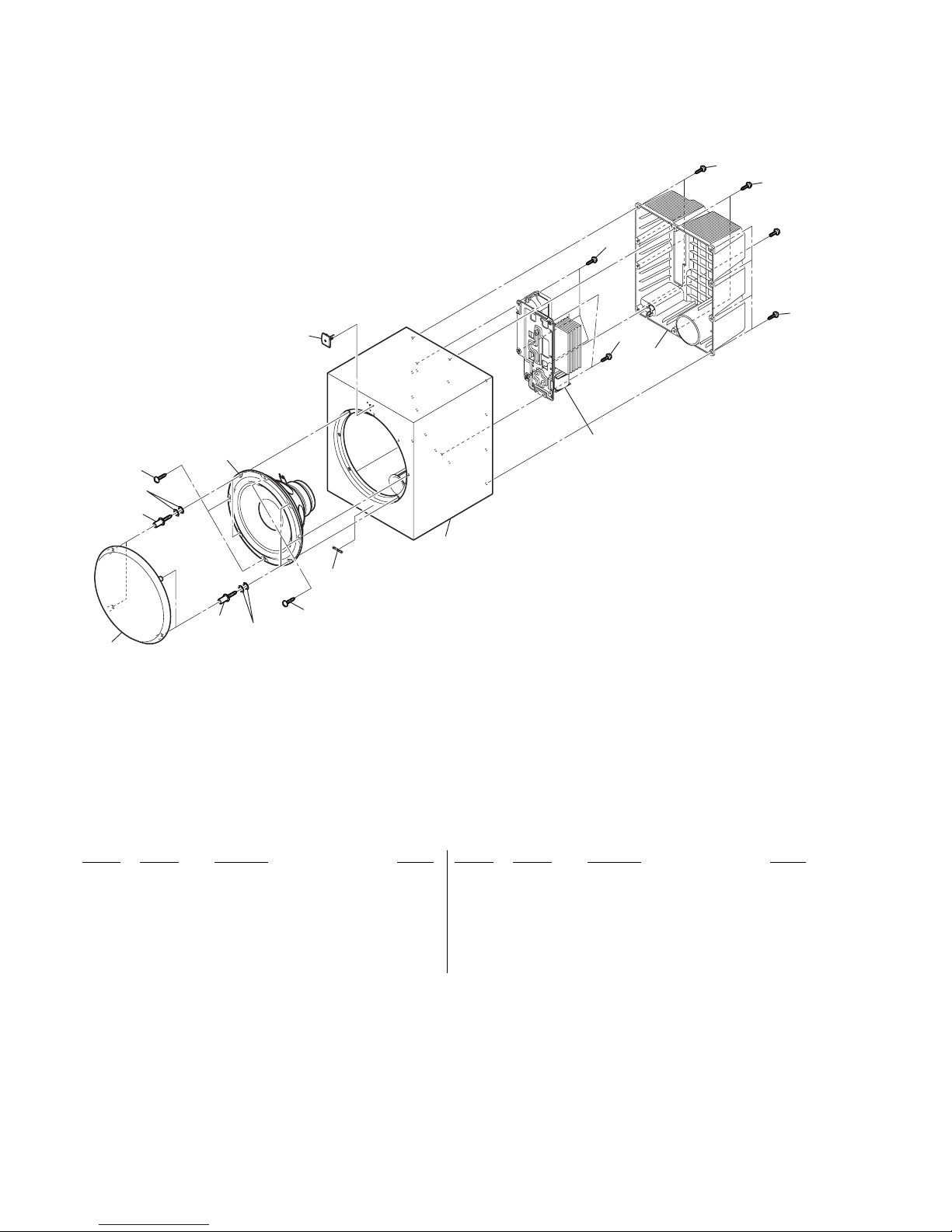

2-3. CABINET SECTION (W3800)
101
102
103
103
104
105
107
107
107 107
107
106
102
not supplied
not supplied
AMP section
#1
not supplied
SP101
101 A-1252-421-A GRILLE FRAME ASSY...(BLACK)
(W3800: US, CND, SP, MY, AUS)
101 A-1252-422-A GRILLE FRAME ASSY...(WOOD)
(W3800: AEP, E51, SP, MY)
102 4-229-774-01 SCREW, TAPPING, HEXAGON SOCKET
103 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP (W3800)
104 4-210-176-31 EMBLEM (NO.6), SONY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
105 A-1223-508-A SPEAKER CABINET ASSY (BLACK)
(W3800: US, CND, SP, MY, AUS)
105 A-1223-514-A SPEAKER CABINET ASSY (WOOD)
(W3800: AEP, E51, SP, MY)
106 A-1224-561-A PANEL INDICATOR ASSY
107 4-874-614-52 SCREW (1) (3.5X20), TAPPING
SP101 1-826-573-11 LOUNDSPEAKER (38cm) (W3800)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S

12
SA-W2500/W3000/W3800

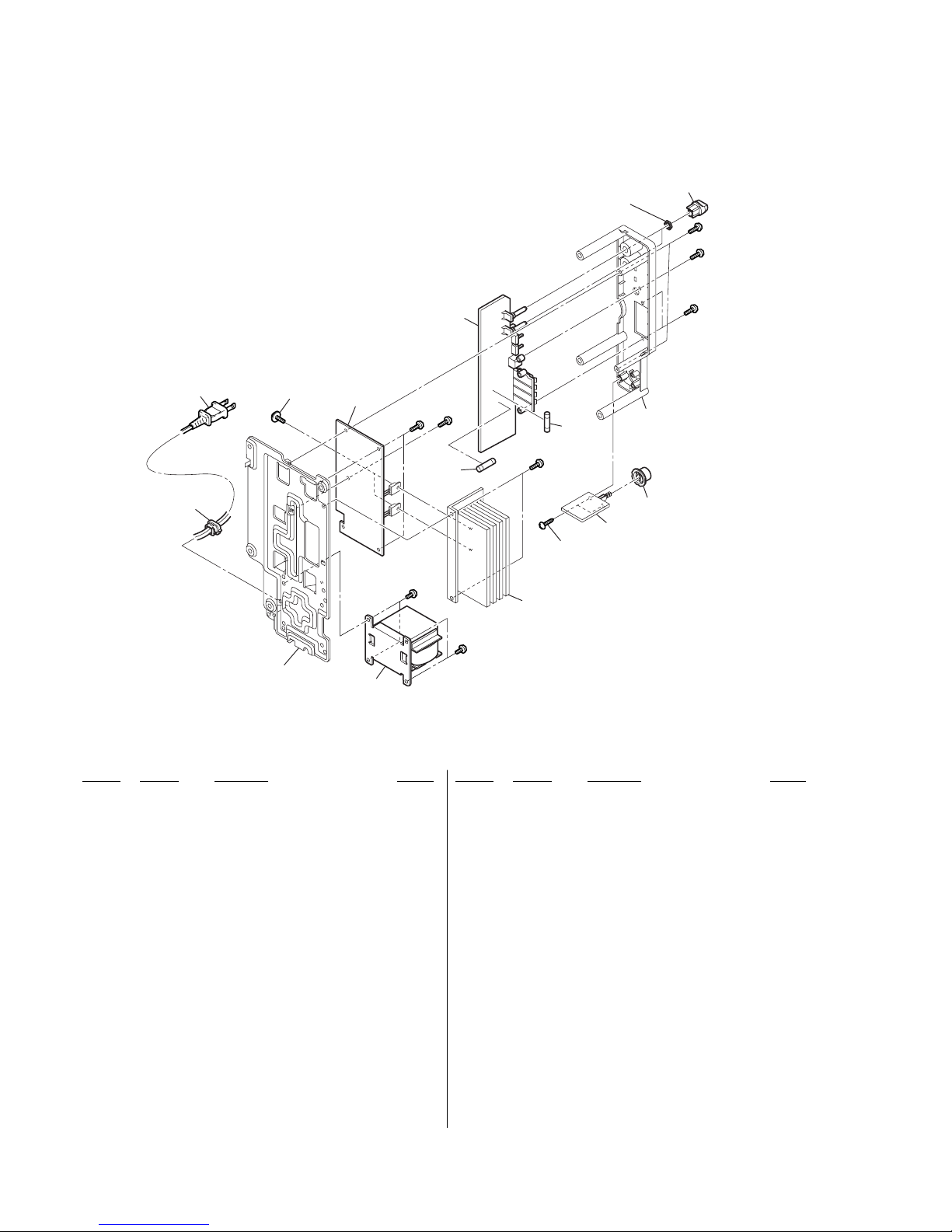

2-4. AMP SECTION (W2500)
151 153 154
155
156
158
157
152
not supplied
not supplied
not supplied
supplied with RV101,RV102
#3
#3
#3
#2 #2
#2
#1
#1
not supplied T1
F903
F901
0151 1-769-079-61 CORD, POWER (KR)
0151 1-777-071-23 CORD, POWER (AEP, UK, E51, SP, MY)
0151 1-783-820-11 CORD, POWER (US, CND)
0151 1-696-848-81 CORD, POWER (AUS)
0151 1-827-597-41 CORD, POWER (TW)
0151 1-834-288-11 CORD, POWER (TH)
*152 3-703-244-00 BUSHING (2104), CORD (EXCEPT TH)
152 4-916-783-01 BUSHING, CORD (TH)
153 3-905-609-31 SCREW (TRANSISTOR)
154 A-1223-620-A MAIN BOARD, COMPLETE (W2500: US, CND)
154 A-1223-662-A MAIN BOARD, COMPLETE
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
154 A-1223-701-A MAIN BOARD, COMPLETE (W2500: E51)
154 A-1315-713-A MAIN BOARD, COMPLETE (TW)
155 A-1223-622-A INPUT CONTROL BOARD, COMPLETE
(W2500: US, CND, TW)
155 A-1223-664-A INPUT CONTROL BOARD, COMPLETE
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
155 A-1223-703-A INPUT CONTROL BOARD, COMPLETE
(W2500: E51)
156 4-986-971-02 SCREW (3.5X10)
157 4-999-482-91 KNOB (VOL)
158 4-244-832-51 KNOB, POWER
0F901 1-532-463-33 FUSE (T1AL/250V)
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
0F901 1-532-503-33 FUSE (T1.6AL/250V) (W2500: E51)
0F901 1-533-418-12 FUSE, GLASS CYLINDRICAL (DIA.5) (2.5A/125V)
(W2500: US, CND, TW)
0F903 1-532-463-33 FUSE (T1AL/250V) (W2500: E51)
0T1 1-445-129-11 POWER TRANSFORMER (W2500: E51)
0T1 1-445-133-11 POWER TRANSFORMER (W2500: US, CND,)
0T1 1-445-167-11 POWER TRANSFORMER
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
0T1 1-445-286-11 POWER TRANSFORMER (W2500: TW)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1

SA-W2500/W3000/W3800
13
2-5. AMP SECTION (W3000/W3800)
201 203 204
205
206
208
207
202
not supplied
not supplied
not supplied
supplied with RV101,RV102
#3
#3
#3
#2 #2
#2
#1
#1
not supplied T1
F903
F901
0201 1-769-079-61 CORD, POWER (KR)
0201 1-777-071-23 CORD, POWER (AEP, E51, SP, MY)
0201 1-783-820-11 CORD, POWER (US, CND)
0201 1-696-848-81 CORD, POWER (AUS)
0201 1-834-288-11 CORD, POWER (TH)
*202 3-703-244-00 BUSHING (2104), CORD (EXCEPT TH)
202 4-916-783-01 BUSHING, CORD (TH)
203 3-905-609-31 SCREW (TRANSISTOR)
204 A-1223-643-A MAIN BOARD, COMPLETE (W3000: US, CND)
204 A-1223-652-A MAIN BOARD, COMPLETE (W3800: US, CND)
204 A-1223-683-A MAIN BOARD, COMPLETE
(W3000: SP, MY, AUS, KR, TH)
204 A-1223-693-A MAIN BOARD, COMPLETE
(W3800: AEP, SP, MY, AUS)
204 A-1223-707-A MAIN BOARD, COMPLETE (W3000: E51)
204 A-1223-713-A MAIN BOARD, COMPLETE (W3800: E51)
205 A-1223-645-A INPUT CONTROL BOARD, COMPLETE
(W3000: US, CND)
205 A-1223-654-A INPUT CONTROL BOARD, COMPLETE
(W3800: US, CND)
205 A-1223-685-A INPUT CONTROL BOARD, COMPLETE
(W3000: SP, MY, AUS, KR, TH)
205 A-1223-695-A INPUT CONTROL BOARD, COMPLETE
(W3800: AEP, SP, MY, AUS)
205 A-1223-709-A INPUT CONTROL BOARD, COMPLETE
(W3000: E51)
205 A-1223-715-A INPUT CONTROL BOARD, COMPLETE
(W3800: E51)
206 4-986-971-02 SCREW (3.5X10)
207 4-999-482-91 KNOB (VOL)
208 4-244-832-51 KNOB, POWER
0F901 1-532-388-33 FUSE (T2AL/250V)
(W3000: SP, MY, AUS, KR, TH/W3800: AEP, SP, MY, AUS)
0F901 1-532-465-33 FUSE (T3.15AL/250V) (W3000,W3800:E51)
0F901 1-532-746-11 FUSE, GLASS TUBE (4A/125V)
(W3000,W3800: US, CND)
0F903 1-532-388-33 FUSE (T2AL/250V) (W3000,W3800: E51)
0T1 1-445-128-11 POWER TRANSFORMER
(W3000, W3800: US, CND)
0T1 1-445-164-11 POWER TRANSFORMER
(W3000: SP, MY, AUS, KR, TH/W3800: AEP, SP, MY, AUS)
0T1 1-445-165-11 POWER TRANSFORMER (W3000, W3800: E51)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1

14
SA-W2500/W3000/W3800 SECTION 3
ELECTRICAL PARTS LIST
NOTE :
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE :Metal oxide-film resistor
F : nonflammable
•Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
•SEMICONDUCTORS
In each case, u : µ, for example :
uA.... : µA.... , uPA.... : µPA....
uPB.... : µPB.... , uPC.... : µPC....
uPD.... : µPD....
•CAPACITORS
uF : µF
•COILS
uH : µH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
AUS : Australian model
A-1223-622-A INPUT CONTROL BOARD, COMPLETE
(W2500: US, CND, TW)
A-1223-645-A INPUT CONTROL BOARD, COMPLETE
(W3000: US, CND)
A-1223-654-A INPUT CONTROL BOARD, COMPLETE
(W3800: US, CND)
A-1223-664-A INPUT CONTROL BOARD, COMPLETE
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
A-1223-685-A INPUT CONTROL BOARD, COMPLETE
(W3000: SP, MY, AUS, KR, TH)
A-1223-695-A INPUT CONTROL BOARD, COMPLETE
(W3800: AEP, SP, MY, AUS)
A-1223-703-A INPUT CONTROL BOARD, COMPLETE
(W2500: E51)
A-1223-709-A INPUT CONTROL BOARD, COMPLETE
(W3000: E51)
A-1223-715-A INPUT CONTROL BOARD, COMPLETE
(W3800: E51)
*****************************
< CAPACITOR >
C102 1-102-978-00 CERAMIC 220PF 5% 50V
C103 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C104 1-126-964-11 ELECT 10uF 20% 50V
C105 1-130-483-00 MYLAR 0.01uF 5% 50V
C106 1-130-483-00 MYLAR 0.01uF 5% 50V
C107 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C108 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C109 1-126-964-11 ELECT 10uF 20% 50V
C110 1-136-175-00 MYLAR 0.68uF 5% 50V
(W2500)
C110 1-137-190-91 FILM 0.22uF 5% 50V
(W3000)
C110 1-136-175-00 FILM 0.68uF 5% 50V
(W3800)
C111 1-136-156-00 FILM 0.018uF 5% 50V
(W3800)
C111 1-136-157-00 FILM 0.022uF 5% 50V
(W2500)
C111 1-136-162-00 FILM 0.056uF 5% 50V
(W3000)
C112 1-130-495-00 FILM 0.1uF 5% 50V
(W3800)
C112 1-136-497-81 FILM 0.1uF 5% 50V
(W3000)
C112 1-137-190-91 FILM 0.22uF 5% 50V
(W2500)
C113 1-130-495-00 FILM 0.1uF 5% 50V
(W3800)
C113 1-136-497-81 FILM 0.1uF 5% 50V
(W3000)
C113 1-137-190-91 FILM 0.22uF 5% 50V
(W2500)
C114 1-126-964-11 ELECT 10uF 20% 50V
C115 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C116 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C117 1-126-964-11 ELECT 10uF 20% 50V
C201 1-126-160-11 ELECT 1uF 20% 50V
C202 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C203 1-126-160-11 ELECT 1uF 20% 50V
C204 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C205 1-126-160-11 ELECT 1uF 20% 50V
C206 1-126-933-11 ELECT 100uF 20% 16V
C207 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C301 1-126-933-11 ELECT 100uF 20% 16V
C302 1-126-933-11 ELECT 100uF 20% 16V
C303 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C304 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C305 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C306 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C307 1-126-964-11 ELECT 10uF 20% 50V
C308 1-126-964-11 ELECT 10uF 20% 50V
C401 1-126-964-11 ELECT 10uF 20% 50V
C402 1-126-964-11 ELECT 10uF 20% 50V
C403 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C404 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C405 1-104-661-91 ELECT 330uF 20% 16V
C406 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C407 1-126-934-11 ELECT 220uF 20% 16V
C408 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C412 1-126-916-11 ELECT 1000uF 20% 6.3V
C430 1-104-658-91 ELECT 100uF 20% 10V
C902 1-117-703-11 CERAMIC 0.0047uF 250V
< CONNECTOR >
CNP402 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
*CNP903 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P (E51)
*CNP904 1-564-321-21 PIN, CONNECTOR (3.96mm PITCH) 2P
CNP905 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D101 8-719-404-50 DIODE MA111-TX
D102 8-719-404-50 DIODE MA111-TX
D103 8-719-404-50 DIODE MA111-TX
D104 8-719-404-50 DIODE MA111-TX
D301 8-719-083-83 DIODE UDZS-TE17-15B
D302 8-719-083-83 DIODE UDZS-TE17-15B
D401 8-719-404-50 DIODE MA111-TX
D402 8-719-404-50 DIODE MA111-TX
D403 8-719-404-50 DIODE MA111-TX
D404 8-719-404-50 DIODE MA111-TX
Ver. 1.1
INPUT CONTROL
When indicating parts by reference number,
please include the board.
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.
Lescomposants identifiés parune marque 0sont
critiques pour la sécurité.
Ne les remplacer que par une piéce portant le
numéro spécifié.
E51 : Chilean and Peruvian model
KR : Korean model
TH : Thai model
TW : Taiwan model

15
SA-W2500/W3000/W3800
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D405 8-719-083-60 DIODE UDZSTE-174.7B
D406 8-719-404-50 DIODE MA111-TX
D901 8-719-404-50 DIODE MA111-TX
< FUSE HOLDER >
FH901 1-533-293-11 FUSE HOLDER 0A 0V
FH904 1-533-293-11 FUSE HOLDER 0A 0V (E51)
FH951 1-533-293-11 FUSE HOLDER 0A 0V
FH954 1-533-293-11 FUSE HOLDER 0A 0V (E51)
< IC >
IC101 8-759-710-97 IC NJM4565M-D
IC102 8-759-710-97 IC NJM4565M-D
IC103 8-759-710-97 IC NJM4565M-D
IC104 8-759-710-97 IC NJM4565M-D
IC201 8-759-710-97 IC NJM4565M-D
IC202 8-759-710-97 IC NJM4565M-D
IC401 8-759-701-01 IC NJM2904M
IC402 8-759-701-01 IC NJM2904M
< JACK >
J101 1-770-157-21 JACK, PIN 2P (LINE IN/OUT) (W3000/W3800)
J101 1-770-377-21 JACK, PIN 1P (LINE IN) (W2500)
< TRANSISTOR >
Q301 8-729-140-98 TRANSISTOR 2SD773-34
Q302 8-729-140-93 TRANSISTOR 2SB733-34
Q401 8-729-029-40 TRANSISTOR DTA124ESA
Q402 8-729-029-86 TRANSISTOR DTC124ESA
Q403 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q404 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q405 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q406 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q408 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q430 8-729-119-78 TRANSISTOR 2SC2785-HFE
< RESISTOR >
R101 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R102 1-216-839-11 METAL CHIP 33K 5% 1/10W
R103 1-216-839-11 METAL CHIP 33K 5% 1/10W
R104 1-216-839-11 METAL CHIP 33K 5% 1/10W
R105 1-216-839-11 METAL CHIP 33K 5% 1/10W
R106 1-260-107-11 CARBON 4.7K 5% 1/2W
R107 1-260-107-11 CARBON 4.7K 5% 1/2W
R108 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R109 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R110 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R112 1-216-821-11 METAL CHIP 1K 5% 1/10W
R113 1-216-841-11 METAL CHIP 47K 5% 1/10W
R114 1-216-835-11 METAL CHIP 15K 5% 1/10W
R115 1-216-837-11 METAL CHIP 22K 5% 1/10W
R116 1-216-839-11 METAL CHIP 33K 5% 1/10W
R117 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R118 1-216-833-11 METAL CHIP 10K 5% 1/10W
R119 1-216-833-11 METAL CHIP 10K 5% 1/10W
R120 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R121 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
(W3800)
R121 1-216-831-11 METAL CHIP 6.8K 5% 1/10W
(W3000)
R121 1-216-833-11 METAL CHIP 10K 5% 1/10W
(W2500)
R122 1-216-837-11 METAL CHIP 22K 5% 1/10W
R123 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
(W2500)
R123 1-216-833-11 METAL CHIP 10K 5% 1/10W
(W3000/W3800)
R124 1-216-845-11 METAL CHIP 100K 5% 1/10W
(W2500)
R125 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
(W2500)
R125 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
(W3000/W3800)
R126 1-216-845-11 METAL CHIP 100K 5% 1/10W
(W2500)
R127 1-216-841-11 METAL CHIP 47K 5% 1/10W
(W2500)
R127 1-216-864-11 SHORT CHIP 0 (W3000/W3800)
R128 1-216-837-11 METAL CHIP 22K 5% 1/10W
(W2500)
R128 1-216-851-11 METAL CHIP 330K 5% 1/10W
(W3000/W3800)
R129 1-216-841-11 METAL CHIP 47K 5% 1/10W
R130 1-216-821-11 METAL CHIP 1K 5% 1/10W
R131 1-216-864-11 SHORT CHIP 0
R133 1-216-833-11 METAL CHIP 10K 5% 1/10W
R134 1-216-833-11 METAL CHIP 10K 5% 1/10W
R135 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R136 1-216-833-11 METAL CHIP 10K 5% 1/10W
R137 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
(W2500)
R137 1-216-833-11 METAL CHIP 10K 5% 1/10W
(W3000/W3800)
R201 1-216-817-11 METAL CHIP 470 5% 1/10W
R202 1-216-817-11 METAL CHIP 470 5% 1/10W
R203 1-216-821-11 METAL CHIP 1K 5% 1/10W
R204 1-216-813-11 METAL CHIP 220 5% 1/10W
(W2500)
R204 1-216-817-11 METAL CHIP 470 5% 1/10W
(W3000)
R204 1-216-818-11 METAL CHIP 560 5% 1/10W
(W3800)
R205 1-216-834-11 METAL CHIP 12K 5% 1/10W
R206 1-216-849-11 METAL CHIP 220K 5% 1/10W
R207 1-216-849-11 METAL CHIP 220K 5% 1/10W
R208 1-216-841-11 METAL CHIP 47K 5% 1/10W
R209 1-216-821-11 METAL CHIP 1K 5% 1/10W
R210 1-216-837-11 METAL CHIP 22K 5% 1/10W
R211 1-216-849-11 METAL CHIP 220K 5% 1/10W
R212 1-216-849-11 METAL CHIP 220K 5% 1/10W
R213 1-216-821-11 METAL CHIP 1K 5% 1/10W
R214 1-216-834-11 METAL CHIP 12K 5% 1/10W
R301 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R302 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R401 1-216-837-11 METAL CHIP 22K 5% 1/10W
R402 1-216-837-11 METAL CHIP 22K 5% 1/10W
R403 1-216-853-11 METAL CHIP 470K 5% 1/10W
R404 1-216-853-11 METAL CHIP 470K 5% 1/10W
R405 1-216-833-11 METAL CHIP 10K 5% 1/10W
R406 1-216-849-11 METAL CHIP 220K 5% 1/10W
R407 1-216-845-11 METAL CHIP 100K 5% 1/10W
R408 1-216-833-11 METAL CHIP 10K 5% 1/10W
R409 1-216-833-11 METAL CHIP 10K 5% 1/10W
R410 1-216-845-11 METAL CHIP 100K 5% 1/10W
R411 1-216-841-11 METAL CHIP 47K 5% 1/10W
R413 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
INPUT CONTROL

16
SA-W2500/W3000/W3800
R414 1-216-845-11 METAL CHIP 100K 5% 1/10W
R415 1-216-841-11 METAL CHIP 47K 5% 1/10W
R416 1-216-841-11 METAL CHIP 47K 5% 1/10W
R418 1-216-817-11 METAL CHIP 470 5% 1/10W
R420 1-216-821-11 METAL CHIP 1K 5% 1/10W
R421 1-249-420-11 CARBON 1.8K 5% 1/4W
R422 1-216-841-11 METAL CHIP 47K 5% 1/10W
R423 1-216-845-11 METAL CHIP 100K 5% 1/10W
R424 1-216-821-11 METAL CHIP 1K 5% 1/10W
R430 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R431 1-216-841-11 METAL CHIP 47K 5% 1/10W
R901 1-249-401-11 CARBON 47 5% 1/4W
< VARIABLE RESISTOR >
RV101 1-227-573-11 RES, VAR 10K (LEVEL)
RV102 1-227-572-11 RES, VAR 20K (CUT OFF FREQ)
< RELAY >
0RY901 1-755-541-11 RELAY
< SWITCH >
S101 1-786-490-11 SWITCH, SLIDE (POWER SAVE)
S102 1-786-490-11 SWITCH, SLIDE (PHASE)
0S902 1-571-437-21 SWITCH, POWER VOLTAGE CHANGE
(VOLTAGE SELECTOR) (E51)
< TERMINAL >
TM101 1-537-376-11 TERMINAL BOARD (SP) (SPEAKER)
************************************************************
LED BOARD
**********
< CAPACITOR >
C409 1-127-888-11 CERAMIC 0.1uF 10% 50V
C410 1-127-888-11 CERAMIC 0.1uF 10% 50V
< CONNECTOR >
*CN401 1-566-779-11 PIN, CONNECTOR (PC BOARD) 4P
< DIODE >
D202 8-719-064-11 DIODE SPR-325MVW (POWER)
< RESISTOR >
R419 1-249-429-11 CARBON 10K 5% 1/4W
************************************************************
A-1223-620-A MAIN BOARD, COMPLETE (W2500: US, CND)
A-1223-643-A MAIN BOARD, COMPLETE (W3000: US, CND)
A-1223-652-A MAIN BOARD, COMPLETE (W3800: US, CND)
A-1223-662-A MAIN BOARD, COMPLETE
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
A-1223-683-A MAIN BOARD, COMPLETE
(W3000: SP, MY, AUS, KR, TH)
A-1223-693-A MAIN BOARD, COMPLETE
(W3800: AEP, SP, MY, AUS)
A-1223-701-A MAIN BOARD, COMPLETE (W2500: E51)
A-1223-707-A MAIN BOARD, COMPLETE (W3000: E51)
A-1223-713-A MAIN BOARD, COMPLETE (W3800: E51)
A-1315-713-A MAIN BOARD, COMPLETE (TW)
********************
< CAPACITOR >
C504 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C505 1-126-965-91 ELECT 22uF 20% 50V
C506 1-104-658-91 ELECT 100uF 20% 10V
C507 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C508 1-126-964-11 ELECT 10uF 20% 50V
C509 1-126-967-11 ELECT 47uF 20% 50V
C510 1-126-967-11 ELECT 47uF 20% 50V
C511 1-127-888-11 CERAMIC 0.1uF 10% 50V
C513 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C601 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C602 1-126-768-11 ELECT 2200uF 20% 16V
C701 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C702 1-128-582-11 ELECT 10uF 20% 100V
C703 1-126-923-91 ELECT 220uF 20% 10V
C704 1-128-560-11 ELECT 22uF 20% 100V
C705 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C706 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C707 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C708 1-100-152-91 CERAMIC CHIP 100PF 5% 100V
C709 1-128-560-11 ELECT 22uF 20% 100V
C710 1-126-967-11 ELECT 47uF 20% 50V
C711 1-101-810-00 CERAMIC 100PF 5% 500V
C712 1-101-810-00 CERAMIC 100PF 5% 500V
C713 1-101-880-00 CERAMIC 47PF 5% 50V
C714 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C801 1-130-777-00 MYLAR 0.1uF 5% 100V
C802 1-130-777-00 MYLAR 0.1uF 5% 100V
C803 1-104-482-11 ELECT 4700uF 20% 63V
(W2500)
C803 1-165-946-11 ELECT 6800uF 20% 71V
(W3000/W3800)
C804 1-104-482-11 ELECT 4700uF 20% 63V
(W2500)
C804 1-165-946-11 ELECT 6800uF 20% 71V
(W3000/W3800)
C805 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C806 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V
C807 1-126-942-61 ELECT 1000uF 20% 25V
C808 1-126-942-61 ELECT 1000uF 20% 25V
< CONNECTOR >
CN601 1-691-590-11 POST (WITH BASE) (B12B-XH-A) 12P
< CONNECTOR >
CNP401 1-785-104-11 PIN, CONNECTOR (3.96mm PITCH) 6P
CNP501 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
CNP906 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
(EXCEPT E51)
*CNP906 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P (E51)
< DIODE >
D502 8-719-404-50 DIODE MA111-TX
D503 8-719-404-50 DIODE MA111-TX
D504 8-719-404-50 DIODE MA111-TX
D505 8-719-404-50 DIODE MA111-TX
D601 8-719-053-18 DIODE 1SR154-400TE-25
D602 8-719-053-18 DIODE 1SR154-400TE-25
D603 8-719-053-18 DIODE 1SR154-400TE-25
D604 8-719-053-18 DIODE 1SR154-400TE-25
D701 8-719-404-50 DIODE MA111-TX
D702 8-719-404-50 DIODE MA111-TX
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
INPUT CONTROL LED MAIN
Ver. 1.1

17
SA-W2500/W3000/W3800
D703 8-719-404-50 DIODE MA111-TX
D704 8-719-404-50 DIODE MA111-TX
D705 8-719-404-50 DIODE MA111-TX
D706 8-719-404-50 DIODE MA111-TX
D801 6-501-003-21 DIODE D6SBN20-7003
D802 8-719-053-18 DIODE 1SR154-400TE-25
D803 8-719-053-18 DIODE 1SR154-400TE-25
D804 8-719-053-18 DIODE 1SR154-400TE-25
D805 8-719-053-18 DIODE 1SR154-400TE-25
< EARTH TERMINAL >
EP1 1-537-738-21 TERMINAL, GROUND
< IC >
IC500 6-708-609-01 IC uPC1237C-A
< TRANSISTOR >
Q505 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q701 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q702 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q703 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q704 8-729-214-51 TRANSISTOR 2SA1145-O
Q705 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q706 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q707 8-729-270-51 TRANSISTOR 2SC2705-O
Q708 6-702-391-01 IC MP1620-OPY-MK
Q709 6-702-390-01 IC MN2488-OPY-MK
Q710 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q711 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q731 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
< RESISTOR >
R500 1-216-833-11 METAL CHIP 10K 5% 1/10W
R506 1-216-847-11 METAL CHIP 150K 5% 1/10W
0R507 1-260-320-11 CARBON 220 5% 1/2W
R508 1-249-393-11 CARBON 10 5% 1/4W
R509 1-216-837-11 METAL CHIP 22K 5% 1/10W
R510 1-216-847-11 METAL CHIP 150K 5% 1/10W
R511 1-249-393-11 CARBON 10 5% 1/4W
R512 1-216-845-11 METAL CHIP 100K 5% 1/10W
R513 1-249-433-11 CARBON 22K 5% 1/4W
R514 1-216-833-11 METAL CHIP 10K 5% 1/10W
R515 1-216-833-11 METAL CHIP 10K 5% 1/10W
R516 1-216-833-11 METAL CHIP 10K 5% 1/10W
0R519 1-220-894-11 METAL 0.22 10% 5W
R701 1-216-821-11 METAL CHIP 1K 5% 1/10W
R702 1-216-805-11 METAL CHIP 47 5% 1/10W
(W2500)
R702 1-216-817-11 METAL CHIP 470 5% 1/10W
(W3000/W3800)
R703 1-216-841-11 METAL CHIP 47K 5% 1/10W
R704 1-216-821-11 METAL CHIP 1K 5% 1/10W
(W3000/W3800)
R704 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
(W2500)
R705 1-216-815-11 METAL CHIP 330 5% 1/10W
R706 1-216-812-11 METAL CHIP 180 5% 1/10W
R707 1-216-815-11 METAL CHIP 330 5% 1/10W
R708 1-216-833-11 METAL CHIP 10K 5% 1/10W
R709 1-249-433-11 CARBON 22K 5% 1/4W
R710 1-249-407-11 CARBON 150 5% 1/4W
R711 1-249-393-11 CARBON 10 5% 1/4W
R712 1-249-437-11 CARBON 47K 5% 1/4W
R713 1-249-408-11 CARBON 180 5% 1/4W
R714 1-249-408-11 CARBON 180 5% 1/4W
R715 1-249-401-11 CARBON 47 5% 1/4W
R716 1-249-393-11 CARBON 10 5% 1/4W
R717 1-216-818-11 METAL CHIP 560 5% 1/10W
R718 1-216-841-11 METAL CHIP 47K 5% 1/10W
R719 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R720 1-249-405-11 CARBON 100 5% 1/4W
R721 1-249-405-11 CARBON 100 5% 1/4W
0R722 1-234-182-11 ENCAPSULATED COMPONENT 0.22X2
R723 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R724 1-216-834-11 METAL CHIP 12K 5% 1/10W
(W2500)
R724 1-216-837-11 METAL CHIP 22K 5% 1/10W
(W3000/W3800)
R725 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R726 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
0R801 1-219-165-11 FUSIBLE 1 5% 1/2W
0R802 1-219-165-11 FUSIBLE 1 5% 1/2W
< RELAY >
RY501 1-755-170-11 RELAY (12V)
< TRANSFORMER >
0T202 1-443-516-11 POWER TRANSFORMER (US, CND)
0T202 1-443-517-11 POWER TRANSFORMER
(EXCEPT US, CND, E51, TW)
0T202 1-443-519-11 POWER TRANSFORMER (TW)
0T202 1-443-520-11 POWER TRANSFORMER (E51)
************************************************************
SWITCH BOARD
*************
< CONNECTOR >
CNP902 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< SWITCH >
0S901 1-572-267-51 SWITCH, PUSH (AC POWER) (1 KEY)
(POWER)
************************************************************
MISCELLANEOUS
**************
0151 1-769-079-61 CORD, POWER (KR)
0151 1-777-071-23 CORD, POWER (W2500: AEP, UK, R51, SP, MY)
0151 1-783-820-11 CORD, POWER (W2500: US, CND)
0151 1-696-848-81 CORD, POWER (W2500: AUS)
0151 1-827-597-41 CORD, POWER (TW)
0151 1-834-288-11 CORD, POWER (TH)
0201 1-769-079-61 CORD, POWER (KR)
0201 1-834-288-11 CORD, POWER (TH)
0201 1-777-071-23 CORD, POWER
(W3000: E51, SP, MY/W3800: AEP, E51, SP, MY)
0201 1-783-820-11 CORD, POWER (W3000/W3800: US, CND)
0201 1-696-848-81 CORD, POWER (W3000/W3800: AUS)
0F901 1-532-463-33 FUSE (T1AL/250V)
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
0F901 1-532-503-33 FUSE (T1.6AL/250V) (W2500: E51)
0F901 1-533-418-12 FUSE, GLASS CYLINDRICAL (DIA.5) (2.5A/125V)
(W2500: US, CND, TW)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN SWITCH
Ver. 1.1

18
SA-W2500/W3000/W3800
0F901 1-532-388-33 FUSE (T2AL/250V)
(W3000: SP, MY, AUS, KR, TH/W3800: AEP, SP, MY, AUS)
0F901 1-532-465-33 FUSE (T3.15AL/250V) (W3000,W3800:E51)
0F901 1-532-746-11 FUSE, GLASS TUBE (4A/125V)
(W3000,W3800: US, CND)
0F903 1-532-463-33 FUSE (T1AL/250V) (W2500: E51)
0F903 1-532-388-33 FUSE (T2AL/250V) (W3000,W3800: E51)
SP101 1-826-571-11 LOUDSPEAKER (25cm) (W2500)
SP101 1-826-572-11 LOUDSPEAKER (30cm) (W3000)
SP101 1-826-573-11 LOUNDSPEAKER (38cm) (W3800)
0T1 1-445-129-11 POWER TRANSFORMER (W2500: E51)
0T1 1-445-133-11 POWER TRANSFORMER (W2500: US, CND)
0T1 1-445-167-11 POWER TRANSFORMER
(W2500: AEP, UK, SP, MY, AUS, KR, TH)
0T1 1-445-128-11 POWER TRANSFORMER
(W3000,W3800: US, CND)
0T1 1-445-164-11 POWER TRANSFORMER
(W3000: SP, MY, AUS, KR, TH/W3800: AEP, SP, MY, AUS)
0T1 1-445-165-11 POWER TRANSFORMER (W3000,W3800: E51)
0T1 1-445-286-11 POWER TRANSFORMER (W2500: TW)
************************************************************
ACCESSORIES
************
01-569-008-22 ADAPTOR, CONVERSION 2P (E51)
1-769-329-21 CORD, CONNECTION (PIN-PIN)
01-770-019-61 ADAPTOR, CONVERSION PLUG (UK)
2-899-140-11 MANUAL, INSTRUCTION (ENGLISH)
(W2500: E51, AUS)
2-899-141-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
(W2500: US, CND, AEP, UK, SP, MY, E51, TH, TW/W3000/W3800)
2-899-141-21 MANUAL, INSTRUCTION (SPANISH,
TRADITIONAL CHINESE)
(AEP, E51, SP, MY, TH, TW)
2-899-141-31 MANUAL, INSTRUCTION (GERMAN, DUTCH)
(AEP)
2-899-141-41 MANUAL, INSTRUCTION (DANISH, FINNISH)
(AEP)
2-899-141-61 MANUAL, INSTRUCTION (PORTUGUESE) (AEP)
2-899-141-71 MANUAL, INSTRUCTION (ITALIAN, SWEDISH)
(AEP)
2-899-141-81 MANUAL, INSTRUCTION (RUSSIAN, POLISH)
(AEP)
2-899-141-91 MANUAL, INSTRUCTION (KOREAN) (KR)
4-235-237-01 FOOT (Dia. 25mm, 4pcs)
Ref. No. Part No. Description Remark
Ver. 1.1

19
SA-W2500/W3000/W3800
MEMO

SA-W2500/W3000/W3800
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2007.02 New
1.1 2007.07 Addition of Korean, Thai and Taiwan model for SA-W2500.
Addition of Korean and Thai model for SA-W3000.
