Sony BRAVIA KDL-26S2000 User manual

Printed in Slovak Republic © 2006 Sony Corporation
KDL-26S2000
KDL-26S2010
KDL-26S2020
KDL-32S2000
KDL-32S2010
KDL-32S2020
KDL-32V2000
2-684-954-11(1)
.
*1 Installation dimensions may differ according to how the TV is installed.
*2 The wall must be strong enough to support at least four times the weight of the TV that you are installing.
TV Model TV Dimensions Unit: mm Length for each mounting angle Unit: mm Weight (× 4)*2
ABCDEMounting angle (α°) F G H
KDL-26S2000
KDL-26S2010
KDL-26S2020
658 470 94 22 265
0° 150 183 287 11 kg
(44 kg)
20° 257 140 316
KDL-32S2000
KDL-32S2010
KDL-32S2020
792 546 99 19 304
0° 155 262 284 15 kg
(60 kg)
20° 288 213 316
KDL-32V2000 792 546 99 19 304 0° 155 262 284 15 kg
(60 kg)
20° 291 213 310
Installation dimensions table*1
KDL-26S2000
KDL-26S2010
KDL-26S2020
KDL-32S2000
KDL-32S2010
KDL-32S2020
KDL-32V2000
Center line of the screen when installed on the wall
Hole to secure the bracket screw temporarily
Installing the Wall-Mount Bracket
To Customers:
For product protection and safety reasons, Sony strongly recommends that wall-mounting
of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install
it yourself.
Your KDL-26S2000/KDL-26S2010/KDL-26S2020/KDL-32S2000/KDL-32S2010/
KDL-32S2020/KDL-32V2000 can be wall-mounted using SU-WL31 Wall-Mount
Bracket (sold separately). Please provide your licensed contractor with this installation
supplement as well as the Instructions (supplied with the SU-WL31 Wall-Mount
Bracket). Read these documents carefully for safety and proper installation.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and
examination of this product.
– 4 –

Installing the TV
on a wall
The TV can be installed on a wall by attaching a Wall-
Mount Bracket (sold separately).
Verify your TV’s model number and be sure to use the
bracket specified for your model only. Refer to the
Steps on this manual along with the Instructions
supplied with the SU-WL31 Wall-Mount Bracket, to
properly carry out the installation.
Open the Wall-Mount Bracket package and check the
contents for all required parts along with the
Instructions.
Refer to the Instructions for the SU-WL31.
Decide where you want to install your TV. Turn to the
back cover of this manual for the TV installation
dimensions and determine the location.
Refer to the Instructions for the SU-WL31.
Refer to the Instructions for the SU-WL31.
Sufficient expertise is required for installing this
product, especially to determine the strength of the
wall for withstanding the TV’s weight. Be sure to
entrust the attachment of this product to the wall to
Sony dealers or licensed contractors and pay
adequate attention to safety during the installation.
Sony is not liable for any damage or injury caused
by mishandling or improper installation.
Step 1: Checking the parts
required for the
installation
Step 2: Changing the position
of the arm bases
Step 3: Deciding on the
installation location
Step 4: Installing the Plate
Unit on the wall

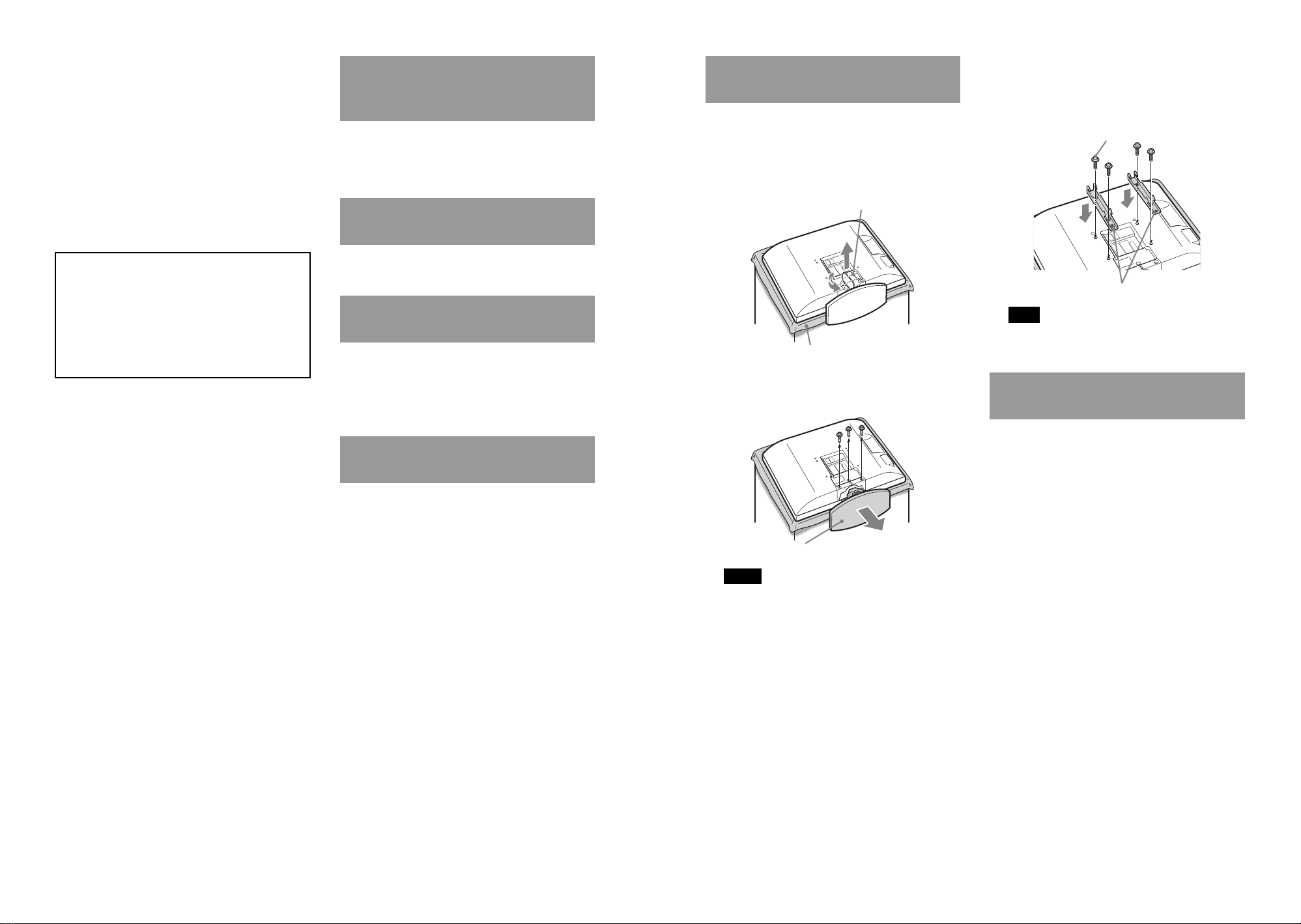

Before detaching the Table-Top Stand, disconnect all
the cables from the TV.
1Rotate the cable holder by 90 degrees, and
pull it out.
2Remove the screws and detach the Table-
Top Stand from the TV.
Notes
•Lay the display face down on a stable and level surface
with the Table-Top Stand hanging over the edge of the
surface. Having the display face and the base of the
Stand on the same level surface will create an unstable
working condition and can damage the TV.
•To prevent damaging the surface of the LCD display,
place the TV on a soft cloth.
3Align the holes on the Mounting Hook Units
with the corresponding holes on the rear of
the TV. Then secure them to the TV using
four screws (supplied with SU-WL31).
Note
When using an electric screwdriver to tighten the screws,
the torque must be approx. 2 N•m (20 kgf•cm).
Refer to the Instructions for the SU-WL31.
1Connect the mains lead and cables to the
corresponding sockets on the rear of the
TV. For details on the cable connection,
refer to the Operating Instructions for your
TV.
2Install the TV onto the Plate Unit.
Step 5: Preparing for the
installation of the TV
Cable holder
Soft cloth
Table-Top Stand
Step 6: Installing the TV on
the Plate Unit
Mounting Hook Units
The supplied screws (+PSW5 × L16)
– 2 – – 3 –
