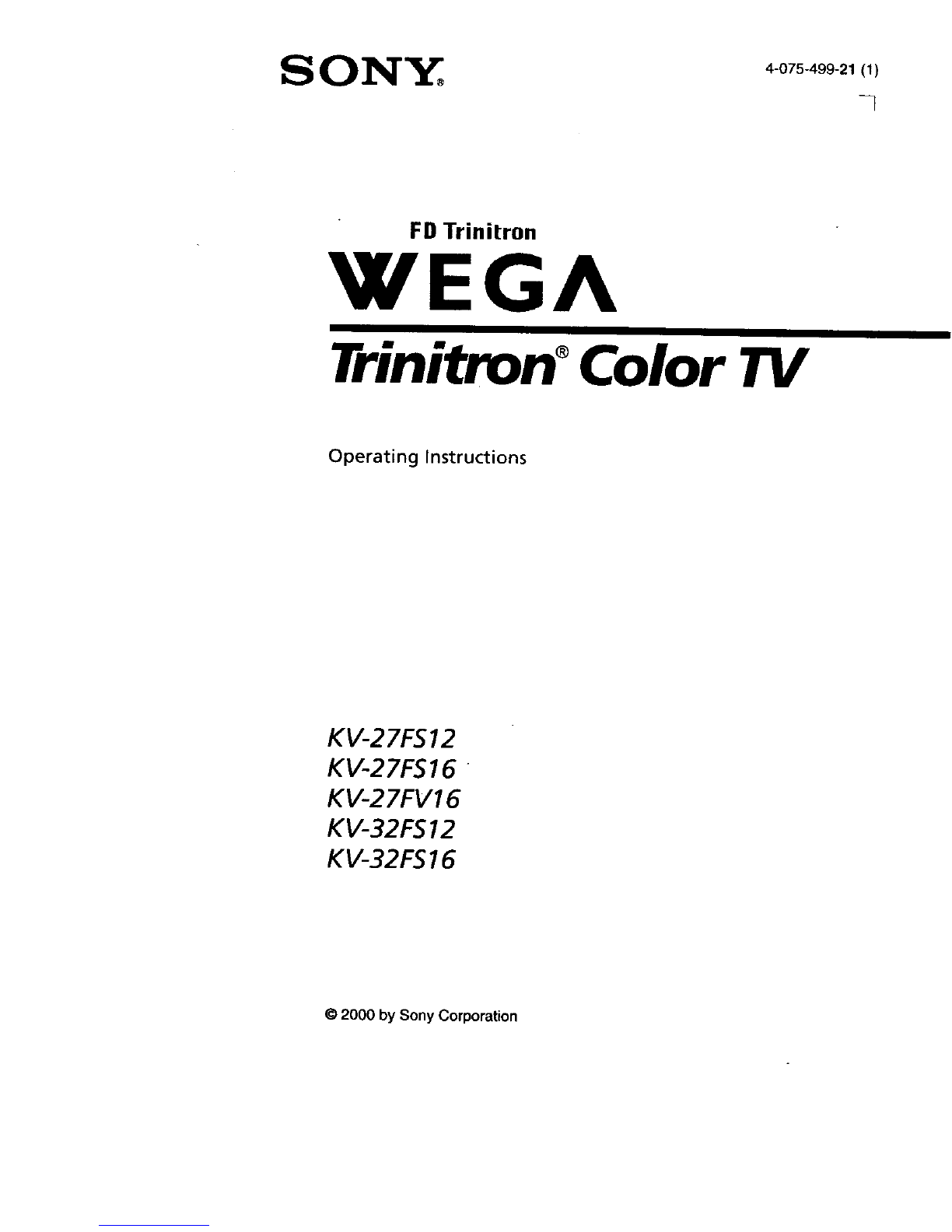

Sony KV-27FS16 - 27" Trinitron Wega User manual

SONY ,-o,,-..,(,)
FD Trinitron
WEGA
Trinitron _Color TV
Operating Instructions
KV-27FS12
KV-27FS 16 "
KV-27FV16
KV-32FS12
KV-32FS 16
© 2000 by Sony Corporation

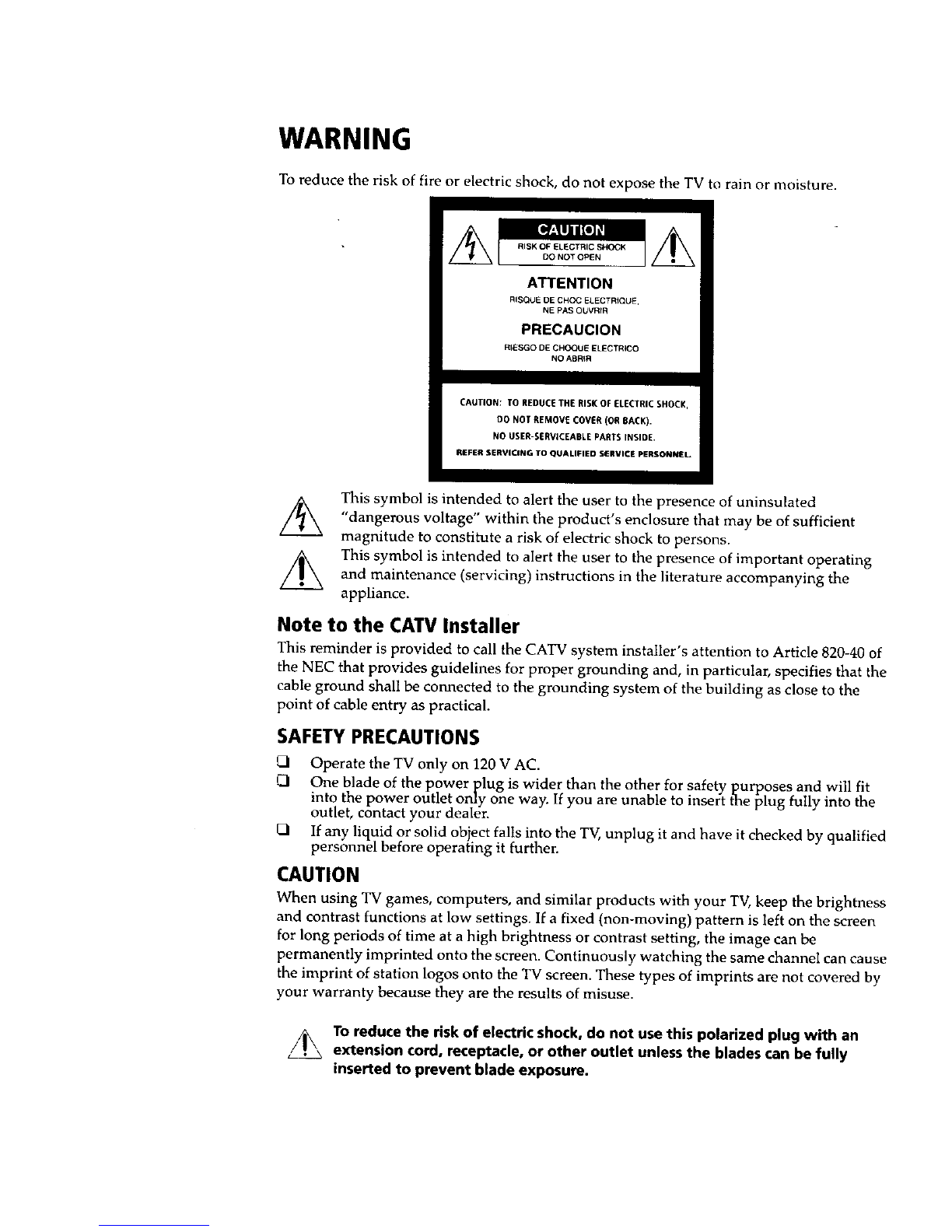

WARNING
To reduce the risk of fire or electric shock, do not expose the TV to rain or moisture.
z_ This symbol is intended to alert the user to the presence of uninsulated"dangerous voltage" within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
z_ This symbol is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the
appliance.
Note to the CATV Installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to the
point of cable entry as practical.
SAFETY PRECAUTIONS
Operate the TV only on 120 V AC.
One blade of the power plug is wider than the other for safety purposes and will fit
into the power outlet only one way. If you are unable to insert the plug fully into the
outlet, contact your dealer.
1_ If any liquid or solid object falls into the TV, unplug it and have it checked by qualified
personnel before operating it further.
CAUTION
When using TV games, computers, and similar products with your TV, keep the brightness
and contrast functions at low settings. If a fixed (non-moving) pattern is left on the screen
for long periods of time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching the same channel can cause
the imprint of station logos onto the TV screen. These types of imprints are not covered by
your warranty because they are the results of misuse.
LTo reduce the risk of electric shock, do not use this polarized plug with an
extension cord, receptacle, or other outlet unless the blades can be fully
inserted to prevent blade exposure.

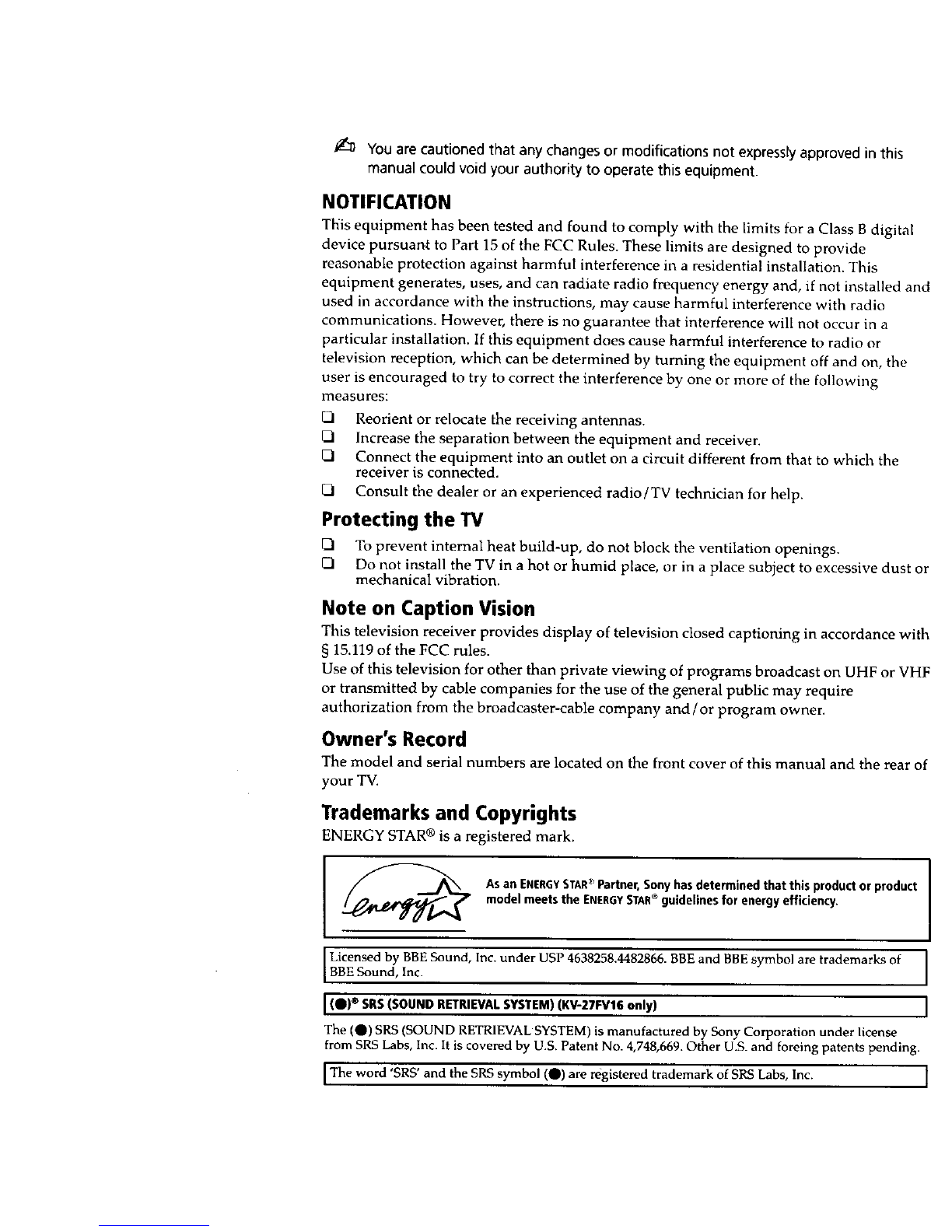

You are cautioned that any changes or modifications not expresslyapproved in this
manual could void your authority to operate this equipment.
NOTIFICATION
THis equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference with radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of tile following
measures:
[:1 Reorient or relocate the receiving antennas.
GI Increase the separation between the equipment and receiver.
_1 Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Protecting the W
?J To prevent internal heat build-up, do not block the ventilation openings.
Do not install the TV in a hot or humid place, or in a place subject to excessive dust or
mechanical vibration.
Note on Caption Vision
This television receiver provides display of television closed captioning in accordance with
§ 15.119 of the FCC rules.
Use of this television for other than private viewing of programs broadcast on UHF or VHF
or transmitted by cable companies for the use of the general public may require
authorization from the broadcaster-cable company and/or program owner.
Owner's Record
The model and serial numbers are located on the front cover of this manual and the rear of
your TV.
Trademarks and Copyrights
ENERGY STAR ® is a registered mark.
Asan ENERGYSTAR_ Partner, Sony has determined that this product or product
model meets the ENERGYSTAR®guidelines for energy efficiency.
Licensed by BBESound, Inc. under USP 4638258.4482866. BBE and BBE symbol are trademarks of
BBESound, Inc.
(@)® SRS(SOUNDRETRIEVALSYSTEM)(KV-27FV16only)
The (0) SRS (SOUND RETRIEVAL SYSTEM) is manufactured by Sony Corporation under license
from SRS Labs, Inc. It is covered by U.S. Patent No. 4,748,669. Other U.S. and foreing patents pending.
The symbol (O) are registered trademark of SRS Labs, Inc.
word ISRSF and the SRS

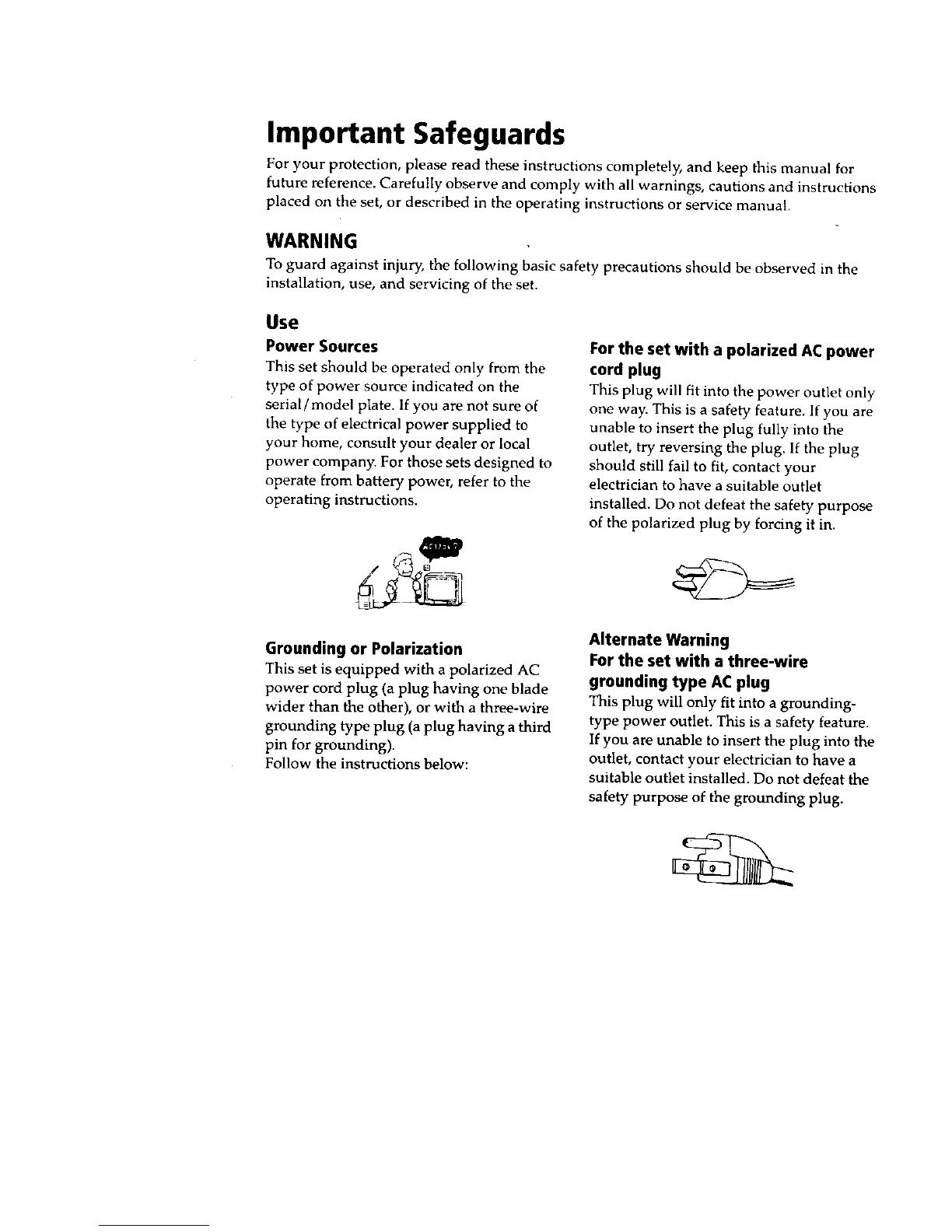

Important Safeguards
For your protection, please read these instructions completely, and keep this manual for
future reference. Carefully observe and comply with all warnings, cautions and instructions
placed on the set, or described in the operating instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions should be observed in the
installation, use, and servicing of the set.
Use
Power Sources
This set should be operated only from the
type of power source indicated on the
serial /model plate. If you are not sure of
the type of electrical power supplied to
your home, consult your dealer or local
power company. For those sets designed to
operate from battery power, refer to the
operating instructions.
Grounding or Polarization
This set is equipped with a polarized A.C
power cord plug (a plug having one blade
wider than the other), or with a three-wire
grounding type plug (a plug having a third
pin for grounding).
Follow the instructions below:
For the set with a polarized AC power
cord plug
This plug will fit into the power outlet only
one way. This is a safety feature. If you are
unable to insert the plug fully into the
outlet, try reversing the plug. If the plug
should still fail to fit, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose
of the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire
grounding type AC plug
This plug wLl| only fit into a grounding-
type power outlet. This is a safety feature.
If you are unable to insert the plug into the
outlet, contact your electrician to have a
suitable outlet installed. Do not defeat the
safety purpose of the grounding plug.

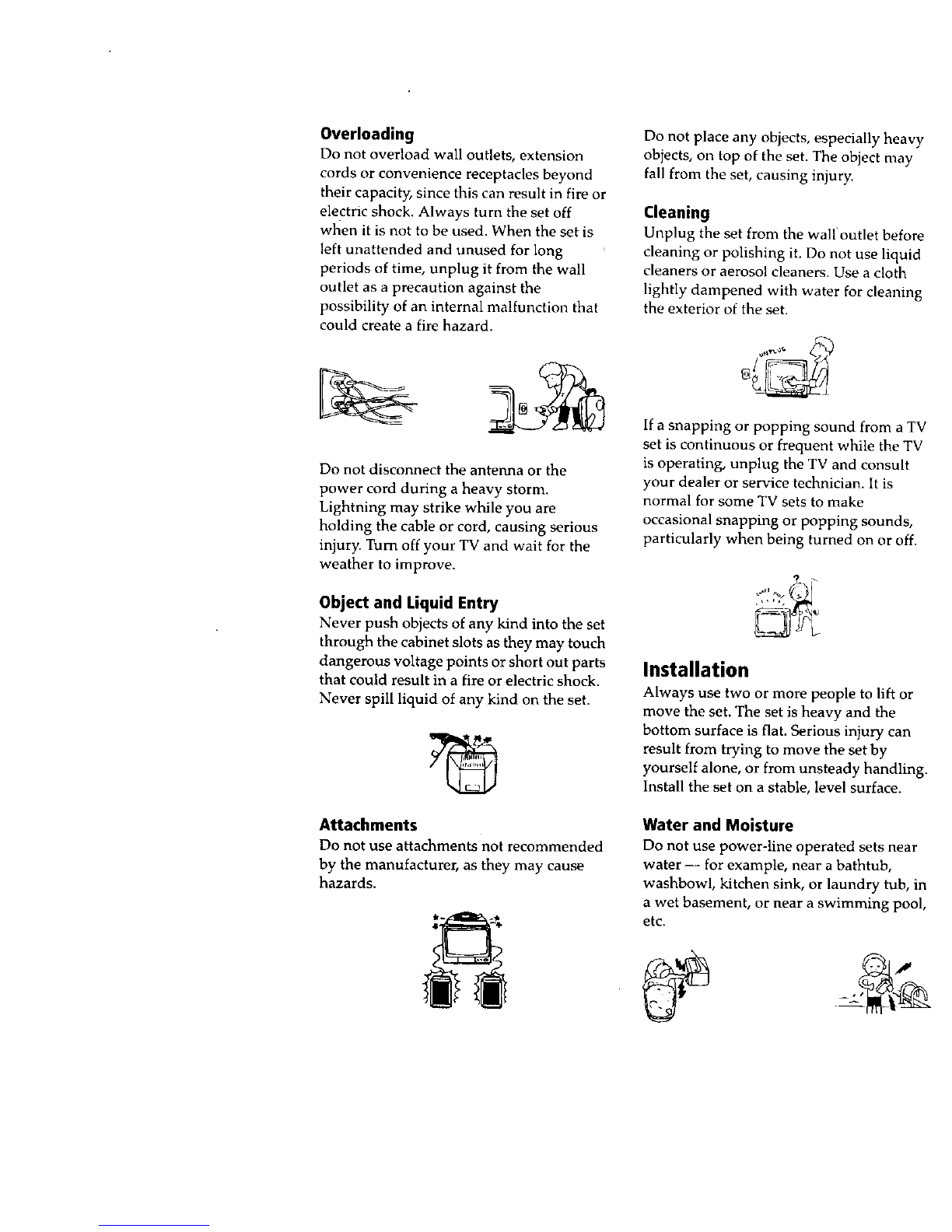

Overloading
Do not overload wall outlets, extension
cords or convenience receptacles beyond
their capacity, since this can result in fire or
electric shock. Always turn the set off
when it is not to be used. When the set is
left unattended and unused for long
periods of time, unplug it from the wall
outlet as a precaution against the
possibility of an internal malfunction that
could create a fire hazard.
Do not disconnect the antenna or the
power cord during a heavy storm.
Lightning may strike while you are
holding the cable or cord, causing serious
injury. Turn off your TV and wait for the
weather to improve.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the set.
Do not place any objects, especially heavy
objects, on top of the set. The object may
fall from the set, causing injury.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning
the exterior of the set.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV
is operating, unplug the TV and consult
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
0.
Installation
Always use two or more people to lift or
move the set. The set is heavy and the
bottom surface is flat. Serious injury can
result from trying to move the set by
yourself alone, or from unsteady handling.
Install the set on a stable, level surface.
Attachments
Do not use attachments not recommended
by the manufacturer, as they may cause
hazards.
Water and Moisture
Do not use power-line operated sets near
water -- for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool,
etc.

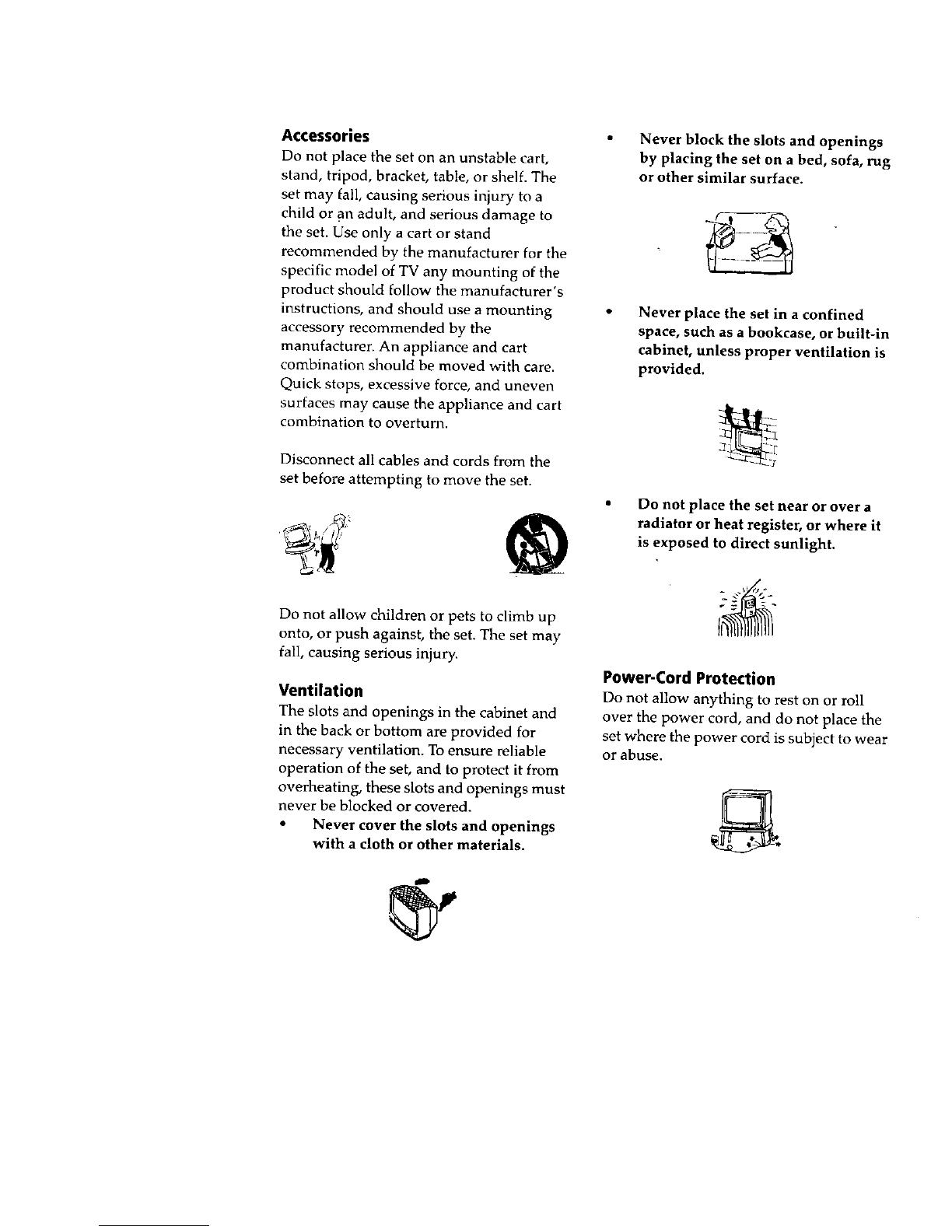

Accessories
Do not place the set on an unstable cart,
stand, tripod, bracket, table, or shelf. The
set may fail, causing serious injury to a
child or on adult, and serious damage to
the set. Use only a cart or stand
recommended by the manufacturer for the
specific model of TV any mounting of the
product should follow the manufacturer's
instructions, and should use a mounting
accessory recommended by the
manufacturer. An appliance and cart
combination should be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
Disconnect all cables and cords from the
set before attempting to move the set.
Do not allow children or pets to climb up
onto, or push against, the set. The set may
fall, causing serious injury.
Ventilation
The slots and openings in the cabinet and
in the back or bottom are provided for
necessary ventilation. To ensure reliable
operation of the set, and to protect it from
overheating, these slots and openings must
never be blocked or covered.
• Never cover the slots and openings
with a cloth or other materials.
Never block the slots and openings
by placing the set on a bed, sofa, rug
or other similar surface.
Never place the set in a confined
space, such as a bookcase, or built-in
cabbaet, unless proper ventilation is
provided.
•Do not place the set near or over a
radiator or heat register, or where it
is exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to wear
or abuse.

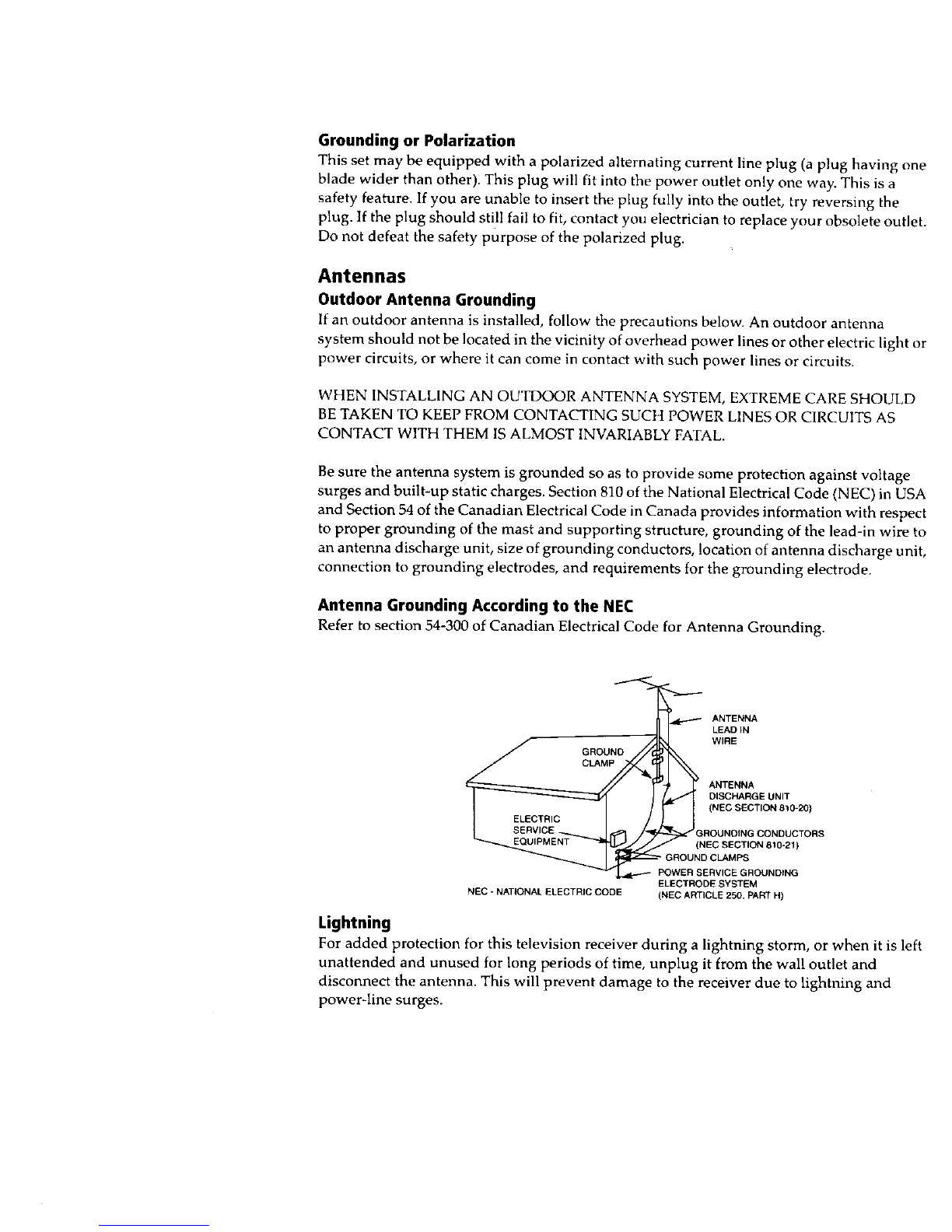

Grounding or Polarization
This set may be equipped with a polarized alternating current line plug (a plug having one
blade wider than other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact you electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An outdoor antenna
system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD
BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage
surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA
and Section 54 of the Canadian Electrical Code in Canada provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for Antenna Grounding.
ANTENNA
LEAD IN
GROUND WIRE
CLAMP
__ _G ANTENNA
DISCHARGE UNIT
(NEC SECTION 8_0-20)
GROUNDING CONDUCTORS
=(NED SECTION 810-21)
CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
NEC -NATIONAL ELECTRIC CODE (NED AWRCLE 250, PART H)
Lightning
For added protection for this television receiver during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the receiver due to lightning and
power-line surges.

Service
Damage Requiring Service
Unplug the set from the wall outlet and
refer servicing to qualified service
personnel under the following conditions:
• When the power cord or plug is
damaged or frayed.
If liquid has been spilled into the
set.
If the set has been exposed to rain or
water.
.-//
/
If the set has been subject to
excessive shock by being dropped,
or the cabinet has been damaged.
If the set does not operate normally
when following the operating
instructions. Adjust only those
controls that are specified in the
operating instructions, improper
adiustment of other controls may
result in damage and will often
require extensive work by a
qualified technician to restore the set
to normal operation.
•When the set exhibits a distinct
change in performance -- this
indicates a need for service.
Servicing
Do not attempt to service the set yourself
since opening the cabinet may'expose you
to dangerous voltage or other hazards.
Refer all servicing to qualified service
personnel.
Replacement Parts
When replacement parts are required, be
sure the service technician certifies in
writing that he has used replacement parts
specified by the manufacturer that have the
same characteristics as the original parts.
Unauthorized substitutions may result in
fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.

Contents
Introduction
Trinitron ®Color TV Features ............................ 1
Batteries for the Remote Control ....................... 2
About this Manual .............................................. 2
Connecting Your TV
Basic Connections ................................................ 3
Cable Box Connections ..................................... 4
Connecting Additional Equipment ................. 5
Using the Remote Control and Basic Functions
Using the Remote Control ................................ 14
Setting Up the TV Automatically ................... 16
Using Picture in Picture (PIP) ......................... 17
Quick Start to the Menus .................................. 18
Using the Menus
Using the Video I_ Menu .............................. 22
Using the Audio _ Menu .............................. 23
Using the Channel Setup _ Menu .............. 25
Parental Control. ............................................ 27
Using the Parental Control _ Menu............. 30
Using the Timer _ Menu ......................... 33
Using the Setup _i Menu ................................ 34
Using the Basic _ Menu ................................ 35
Other Information
Programming the Remote Control ............... 36
Troubleshooting ................................................ 39
Specifications. ................................................... 41
Index. .................................................................. 43

Introduction
Congratulations on your purchase of the Sony Trinitron ® Color TV.
Before you begin using this manual, please check the model number
located on the rear of your TV or on the front cover of this manual.
Trinitron ®Color TV Features
Some of the features you will enjoy include:
rl
FLATCRT -- New technologically advanced screen for optimal
picture quality.
Parental Control -- A tool for parents to help monitor what their
children watch on TV by establishing rating limits.
Favorite Channel -- Instant access to your favorite channels with the
touch of a button.
DPicture in Picture (PIP) -- Allows you to view two channels
simultaneously (KV-27FV16, KV-27ES16, KV-32FS16 only).
Universal Remote Control -- Program your remote control to operate
your connected cable box, VCR, digital satellite receiver, or DVD
player.
QEnergy Star ®-- A recognized symbol of energy efficiency.
S VIDEO -- A video input that offers enhanced picture quality.
ODirect MTS -- Allows direct access to changing your Multi-Channel
TV Sound: Stereo, Mono, or Auto-SAP (Second Audio Program),
with the touch of a button.
Trilingual Menus -- Choose between English, French, or Spanish
menus.
Front Panel Controls -- Allows for access to the on-screen menus
without the use of a remote control.
Front A/V inputs -- A quick connection for video games, camcorders,
or stereo /mono equipment.
1

Batteries for the Remote Control
Insert two AA (R6) batteries (supplied) into the remote control using th_
following illustration as a guide.
_:_ Under normal conditions, batteries will last up to six months. If the remote
control does not operate properly, the batteries might be worn out.
_:D tf you will not be using the remote control for an extended period of time,
remove the batteries to avoid possible damage from battery Leakage.
Your remote control can be programmed to operate most video equipment,
(see page 36).
About this Manual
This manual provides instructions to help you enjoy your new TV. It
shows you how to connect to an antenna or cable, cable box, VCR, DVD
satellite receiver, stereo system or camcorder. Once you are connected,
follow the instructions and use the remote control to access the on-scree_
menus.
The TV front and rear panels illustrated in this manual are for KV-27FS12,
KV-27FS16, KV-32FS12, and KV-32FS16. The rear panel shown on pages 7
and 13 is for KV-27FV16. Your front and rear panels may not look exactly lik_
those illustrated.
2

Connecting Your TV
Read this chapter before setting up your TV for the first time. This section
covers basic connections in addition to any optional equipment you may
be connecting.
BasicConnections
TV with indoor or outdoor antenna, or CATV cable
Depending on the cable available in your home, choose one of the
connections below:
AVHF only 75-ohm (Rear of TV)
or coaxial cable VHF/UHF
VHF/UHF _ ""_"_
or
Cable
BVHFonly 300-ohm twin (Rear of TV)
or lead cable VHF/UHF
UHFonlyor _"__
VHF/UHF Antenna connector
CVHF
and
UHF
75-ohm
coaxial cable
(Rear of W)
EAC-66 U/V mixer
.xe -.----I (not supplied)
300-ohm twin
lead cable
_:_ If you are connecting to an indoor or outdoor antenna, you may need to
adjust the orientation of the antenna for best reception,
3

Cable Box Connections
Some pay cable TV systems to use scrambled or encoded signals that
require a cable box to view all channels.
Cable Box Cable
Cable Box
1Connect the coaxial cable from your cable service to the IN jack on
your cable box.
2Connect a coaxial cable (not supplied) from the OUT jack on yol
cable box to the VHF/UHF jack on your TV.
If you will be controlling all channel selection through your cable box, you
should consider using the Channel Fix feature, (see page 26).
Cable Box and Cable
For this set up, you can switch between scramble channels (through you
cable box), and normal (CATV) channels by using the _:_ button.
Cable Box (Rear of TV)
IN (:_D=_(D --_
OUT TO CONVERTER
7B-ohm coaxial cable (not supplied) I(Signal)
VHF/UHF
CAW cable (unscrambled channels)
If you are connecting a cable box through the AUX input and would like to
switch between the AUX and normal (CAW) input, you should consider usinc_
the Channel Fix feature, (see page 26).
Your Sony remote control can be programmed to operate your cable box,
(see page 36).
When using PIP,you cannot view the AUX input in the window picture.
4

Connecting Additional Equipment
TV and VCR Rear of TV
2
VCR
,_ N LINE
From _
cable/
antenna
¥ I _t/D_O U.
3 (Optional connection)
1
2
Connect the coaxial cable from your TV antenna or cable service to
the IN jack on your VCR.
Connect a coaxial cable (not supplied) from the OUT jack on your
VCR to the VHF/UHF jack on the TV.
_hJ To watch video programs from your VCR, tune your TV to channel 3 or 4 (as
seton the rear of your VCR).
(Optional connection)
3If your VCR is equipped with video outputs, you can get better
picture quality by connecting A/V cables (not supplied) from
AUDIO and VIDEO OUT on your VCR to AUDIO/VIDEO IN on
your TV.
_:_ For optimum picture quality, use S VIDEO instead of the yellow AN cable.
S VIDEO does not provide sound, the audio cables must still be connected.
-_ You can use the wc_° button to switch between the VHF/UHF and VIDEO
inputs.
5

TV and Cable Box
Cable Box
From _
cable Y
Rear of TV
_ _VIDEO
@i_J.@l _ •:
J
1Connect the coaxial cable from your cable service to the IN jack on
your cable box.
2Connect a coaxial cable (not supplied) from the OUT jack on your
cable box to the VHF /UHF jack on the TV.
To view channels from your cable box, tune your IV to channel 3 or 4 (as set
on the rear panel of your cable box) and use the cable box's remote control tc
change channels.
If you will be controlling all channel selection through your cable box, you
should Consider using the Channel Fix feature, (see page 26).
6

TV, Cable box, and Cable
KV-27FS16, KV-27FV160 KV-32FS16 only
For this set up, you can switch between scrambled channels (throtigh
yotir cable box) and normal (CATV) channels by pressing _::_.
Rear of TV (KV-27FV16 only)
Cable Box
From
Cable
When using PIP,the AUX input cannot be viewed in the window picture.
7

TV, VCR, and Cable box
Rear of TV
3
VCR
Cable bo_x2
Cable
I_IIi_ :sv°E° i
I TO _-_ _ V_O I_ _
Ic_v_ ER I y AUD _ OUT
_ I _r _ _1 i _VA_FJ×_
t
4 (Optional connection
1
2
3
Connect the coaxial cable from your cable service to the IN jack on
your cable box.
Connect a coaxial cable (not supplied) from the OUT jack on your
cable box to the IN jack on your VCR.
Connect a coaxial cable (not supplied) from the OUT jack on your
VCR to the VHF/UHF jack on the TV.
If you will be controlling all channel selection through your cable box, you
should consider using the Channel Fix feature, (see page 26).
(Optional connection)
4If your VCR is equipped with video outputs, you can get better
picture quality by connecting A/V cables (not supplied) from
AUDIO and VIDEO OUT on your VCR to AUDIO/VIDEO IN on
your TV.
For optimum picture quality, use S VIDEO instead of the yellow A/V cable.
S VIDEO does not provide sound, the audio cables must still be connected.
You can use the w_=_o button to switch between the VHF/UHF and VIDEO
inputs.
8

TV and Satellite Receiver
Rear of TV
From _
I cable/ I_l_ ......[L
I antennaI_'1 _i_ _ J'_°_
/i.....
Satellite receiver _ i , ' _ _o,_
_'--,_-_ _o_._OOlO_lO_O....
Satellite (_ (_ (_ _ _
antenna _E°_ _T_ T
cable 3_
1
2
3
Connect the cable from your satellite antenna to SATELLITE IN on
your satellite receiver.
Connect the coaxial cable from your cable or antenna to the
VHF /UHF jack on your TV.
Using A/V cables, connect AUDIO and VIDEO OUT on your
satellite receiver to AUDIO and VIDEO IN on your TV.
J_ For optimum picture quality, use S VIDEO instead of the yellow AN cable.
S VIDEO does not provide sound, the audio cables must still be connected.
You Can use the w_:)o_obutton to switch between the VHF/UHF and satellite
receiver inputs.
9

TV, Satellite Receiver, and VCR
Satellite
antenna
cable From
cable/a
VCR
....: I -J:oL-I:o012
1
Satellite receiver __'_" _"
Rear of TV
VlOEO IN
To _ _IOEO
IWA_FIXl
1
2
3
4
5
Connect the cable from your satellite antenna to SATELLITE IN on
your satellite receiver.
Connect the coaxial cable from your cable or antenna to the
IN jack on your VCR.
Using a coaxial cable, connect the OUT jack on your VCR to the
VHF /UHF jack on your TV.
Using A/V cables, connect AUDIO and VIDEO OUT on your
satellite receiver to AUDIO and VIDEO IN on your VCR.
Using A/V cables, connect AUDIO and VIDEO OUT on your VCR to
AUDIO and VIDEO IN on your TV.
To view from the satellite receiver or VCR, select the video input to which
your satellite receiver or VCR is connected by pressing w(_Eo on the remote
control.
10

Connecting a Camcorder
Using A/V cables, connect AUDIO and VIDEO OUT on your camcorder
to AUDIO and VIDEO IN on your TV. Front A/V Panel
; ....i-i-il
00 oo-
®@
A/V output
-_ If you have an S VIDEO equipped camcorder, you can use an S VIDEO cable
for optimum picture quality.
Connecting a DVD Player
1Using A/V cables, connect AUDIO - R and - L OUT on your DVD
player to AUDIO - R and - L IN on your TV.
2 Using A/V cables, connect VIDEO OUT on your DVD player to
VIDEO IN on your TV. Rear of TV
Rear of DVD player
UNE OUT
L_AUDIO R_dJDiO LVIDEO S_OIVIDEO
I _'u× !
I
le_vE_rr_R I
i®;
VIDEO IN !
@?o;o07 I_
Y_ j AUD OOUT
! (VAR F X)
@@+a, -_
•_ P_ i
@,t_@t@:<-,@
. , _ iAUolo
_:_ For optimum picture quality, use S VIDEO instead of the yellow AN cable.
S VIDEO does not provide sound, the audio cables must still be connected.
11
