Sony KV-PF21L70 User manual

KV-PF21L70 RM-952 ME SCC-U30B-A
KV-PF21M40 RM-952 GE SCC-U12N-A
KV-PF21M70 RM-952 E SCC-U13E-A
KV-PF21M70 RM-952 ME SCC-U30C-A
KV-PF21P10 RM-952 OCE SCC-U24D-A
KV-PF21P40 RM-952 Singapore SCC-U29B-A
KV-PF21P40 RM-952 Malaysia SCC-U21C-A
KV-PF21P41 RM-952 Malaysia SCC-U21E-A
KV-PF21Q70 RM-952 ME SCC-U30A-A
MODEL COMMANDER DEST. CHASSIS NO.
CHASSIS
TRINITRON ® COLOR TV
SERVICE MANUAL BG-3S
Self Diagnosis
Supported model
MODEL COMMANDER DEST. CHASSIS NO.

–2 –
KV-PF21L70/PF21M40/PF21M70/PF21P10
KV-PF21P40/PF21P41/PF21Q70 RM-952 SPECIFICATIONS
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND
THE ANODE CAPTOTHE METAL CHASSIS, CRT SHIELD, OR
CARBON PAINTED ON THE CRT, AFTER REMOVING THE
ANODE.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK !ONTHE
SCHEMATIC DIAGRAMS, EXPLODEDVIEWS AND INTHE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE
CRITICAL TO SAFE OPERATION ARE IDENTIFIED IN THIS
MANUAL.FOLLOW THESEPROCEDURES WHENEVER CRITICAL
COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS
SUSPECTED.
Note
Power requirements 110-240 V AC, 50/60 Hz Except Malaysia and OCE
220-240V AC, 50/60Hz For Malaysia and OCE
Power consumption (W) Indicated on the rear of the TV
Television system B/G, I, D/K, M KV-PF21M40/PF21M70
B/G Except KV-PF21M40/PF21M70
Color system PAL, PAL60, SECAM, NTSC4.43, NTSC3.58 KV-PF21M70 (ME)/
KV-PF21M40/PF21M70(E)
PAL, PAL60, NTSC4.43, NTSC3.58 (AV IN) KV-PF21P10/PF21P40/PF21P41
PAL, PAL60, SECAM, NTSC4.43, NTSC3.58 (AV IN) KV-PF21L70
PAL, PAL60, SECAM, NTSC4.43 PF21Q70
Teletext language English, Arabic, French KV-PF21P41 only
Channel coverage
B/G VHF : E2 to E12/ UHF : E21 to E69/ CATV :
S01 to S03, S1 to S41
VHF : 0 to 12, 5A, 9A
UHF : 28 to 69
CATV : S01 to S03, S1 to S41 Australia only
VHF : 1 to 11
UHF : 21 to 69
CATV : S01 to S03, S1 to S41 New Zealand only
IUHF : B21 to B68/ CATV : S01 to S03, S1 to S41 KV-PF21M40/PF21M70
D/K VHF : C1 to C12, R1 to R12/ UHF : C13 to C57, R21 to R60
CATV: Z1 to Z39, S01 to S03, S1 to S41 KV-PF21M40/PF21M70
MVHF : A2 to A13/ UHF :A14 to A79/
CATV : A-8 to A-2, A to W+4, W+6 to W+84 KV-PF21M40/PF21M70
˘˘
˘˘
˘(Antenna) 75-ohm external terinal
Audio output 3W
Number of terminal
(Video) Input : 2 Output : 1 Phono jacks; 1 Vp-p, 75 ohms
(Audio) Input : 2 Output : 1 Phono jacks; 500 mVrms
(Earphone) Output : 1 Minijack
Picture tube 21 inch
Tube size (cm) 54 Measured diagonally
Screen size (cm) 51 Measured diagonally
Dimension (w/h/d, mm) 490 x 458 x 487
Mass (kg) 25
Design and specifications are subject to change without notice.
Ø

–3 –
KV-PF21L70/PF21M40/PF21M70/PF21P10
KV-PF21P40/PF21P41/PF21Q70 RM-952
TABLE OF CONTENTS
Section Title Page
SELF DIAGNOSIS FUNCTION................................ 4
1. GENERAL .......................................................... 8
2. DISASSEMBLY
2-1. Rear Cover Removal................................................ 23
2-2. Chassis Assy Removal ............................................. 23
2-3. F Bracket Removal .................................................. 23
2-4. Service Position ....................................................... 23
2-5. Replacement of Parts ............................................... 24
2-5-1. Replacement of Control Button ....................... 24
2-5-2. Replacement of Bar Control............................. 24
2-6. Terminal Bracket Removal ...................................... 24
2-7. V1 Board Removal .................................................. 24
2-8. Degauss Coil Removal............................................. 25
2-9. Picture Tube Removal.............................................. 25
3. SET-UP ADJUSTMENTS
3-1. Beam Landing.......................................................... 27
3-2. Convergence............................................................. 28
3-3. Focus Adjustment .................................................... 30
3-4. G2 (Screen) and White Balance Adjustments......... 30
4. CIRCUIT ADJUSTMENTS
4-1. Adjustments with Commander ................................ 31
4-2. Adjustment Method ................................................. 32
4-3. Picture Quality Adjustments.................................... 37
4-4. A Board Adjustment After IC003 (Memory)
Replacement............................................................. 37
4-5. Picture Distortion Adjustment ................................. 38
Section Title Page
5. DIAGRAMS
5-1 Block Diagram ......................................................... 41
5-2 Frame Schematic Diagram ...................................... 44
5-3 Circuit Boards Location .......................................... 46
5-4 Schematic Diagrams and Printed Wiring Boards ... 47
(1) Schematic Diagram of A(1/2) Board....................... 49
(2) Scheamtic Diagram of A(2/2) Board....................... 53
(3) Schematic Diagrams of C3 and F Boards ............... 61
(4) Schematic Diagram of V1 Board ............................ 65
5-5 Semicondutors ......................................................... 68
6. EXPLODEDVIEW
6-1. Chassis ..................................................................... 71
7. ELECTRICAL PARTS LIST................................... 73

–4 –
KV-PF21L70/PF21M40/PF21M70/PF21P10
KV-PF21P40/PF21P41/PF21Q70 RM-952
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically
begin to flash.
The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER
lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot
be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past
problems and how often these problems occur.
1. DIAGNOSTICTEST INDICATORS
When an errors occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the
problem. If there is more than one error, the lamp will identify the first of the problem areas.
Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.
Diagnostic
Item
Description
•Power does not
turn on
•+B overcurrent
(OCP) or
overvoltage
(OVP)
•Vertical deflection
stopped
•Horizontal
deflection
overdrive
•White balance
failure (no
PICTURE)
•Micro reset
No. of times
STANDBY/TIMER
lamp flashes
Does not light
2 times
5 times
—
Self-diagnostic
display/Diagnostic
result
—
002:000 or
002:001~255
003:001~255
004:001~255
at the same time
005:000 or
005:001~225
101:00 or
101:001~225
Probable
Cause
Location
•Power cord is not plugged
in.
•Fuse is burned out F4601
(F Board)
•H.OUT Q511 is shorted.
(A board)
•-13V is not supplied.
(A board)
•IC 503 faulty (A board)
•IC 301 faulty (A board)
•G2 is improperly adjusted.
(Note 2)
•CRT problem.
•IC301 is faulty. (A board)
•No connection A board to
C3 board.
•Discharge CRT
(C3 Board)
•Static discharge
•External noise
Detected
Symptoms
•Power does not come on.
•No power is supplied to the
TV.
•AC power supply is faulty.
•Power does not come on.
•Load on power line is
shorted.
•Has entered standby state
after horizontal raster.
•Vertical deflection pulse is
stopped.
•Power line is shorted or
power supply is stopped.
•No raster is generated.
•CRT cathode current
detection reference pulse
output is small.
•Power is shut down shortly,
after this return back to
normal.
•Detect Micro latch up.
Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.
The symptom that is diagnosed first by the microcontroller is displayed on the screen.
Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.
SELF DIAGNOSTIC FUNCTION

–5 –
KV-PF21L70/PF21M40/PF21M70/PF21P10
KV-PF21P40/PF21P41/PF21Q70 RM-952
2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT
Diagnostic Item Flash Count*
+B overcurrent/overvoltage 2 times
Vertical deflection stopped
White balance failure 5 times
* One flash count is not used for self-diagnostic.
3. STOPPINGTHE STANDBY/TIMER FLASH
Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp
from flashing.
Lamp ON 0.3 sec. Lamp OFF 3 sec.
Lamp OFF 0.3 sec.
2 times
5 times
STANDBY/SLEEP lamp

–6 –
KV-PF21L70/PF21M40/PF21M70/PF21P10
KV-PF21P40/PF21P41/PF21Q70 RM-952
4. SELF-DIAGNOSTIC SCREEN DISPLAY
For errors with symptoms such as “power sometimes shuts off”or “screen sometimes goes out”that cannot be confirmed, it
is possible to bring up past occurances of failure for confirmation on the screen:
[To Bring Up ScreenTest]
In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:
[Screendisplay] /channel [5] /Sound volume [-] /Power ON
˘
Note that this differs from entering the service mode (mode volume [+]).
Self-Diagnosis screen display
002 : 000
003 : 000
004 : 000
005 : 001
101 : 000
SELF DIAGNOSTIC
5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY
Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen
during repairs. When you have completed the repairs, clear the result display to “0”.
Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after
completion of the repairs.
[Clearing the result display]
To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnostic
screen is being displayed.
Channel [8] /0
[Quitting Self-diagnostic screen]
To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.
Numeral "0" means that no fault has been detected.
Numeral "1" means a fault has been detected.

–7 –
KV-PF21L70/PF21M40/PF21M70/PF21P10
KV-PF21P40/PF21P41/PF21Q70 RM-952
6. SELF-DIAGNOSTIC CIRCUIT
[+BovercurrentªOCPº] Occurs when an overcurrent on the +B(135) line is detected by Q604. If Q604 go to ON
and the voltage to pin 18 of IC301 should go down when V.SYNC is more than seven
verticals in a period, the unit will automatically turn off.
[Verticaldeflectionstopped] Occurs when an absence of the vertical deflection pulse is detected by Q509 and IC001
shut down the power supply.
[Verticaldeflectionovercurrent] Occurs when an overcurrent on V drive line is detected by Q507. Power supply will be
shut down when detect this by IC001.
[ hitebalancefailure] If the RGB levels* do not balance or become low level within 5 seconds, this error will be
detected by IC301. TV will stay on, but there will be no picture.
* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)
IC301
Y/CHROMA JUNGLE
FROM
CRT
FROM
[+B] Q604 C3
[V] Q509/507
IC001
SYSTEM IC003 MEMORY
B-DAT
IO-SDAT
IK-IN
MP/
PROTECT
IO-8DAT
O-LED
SDA
54521
18 51
4635

–8 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
SECTION 1
GENERAL

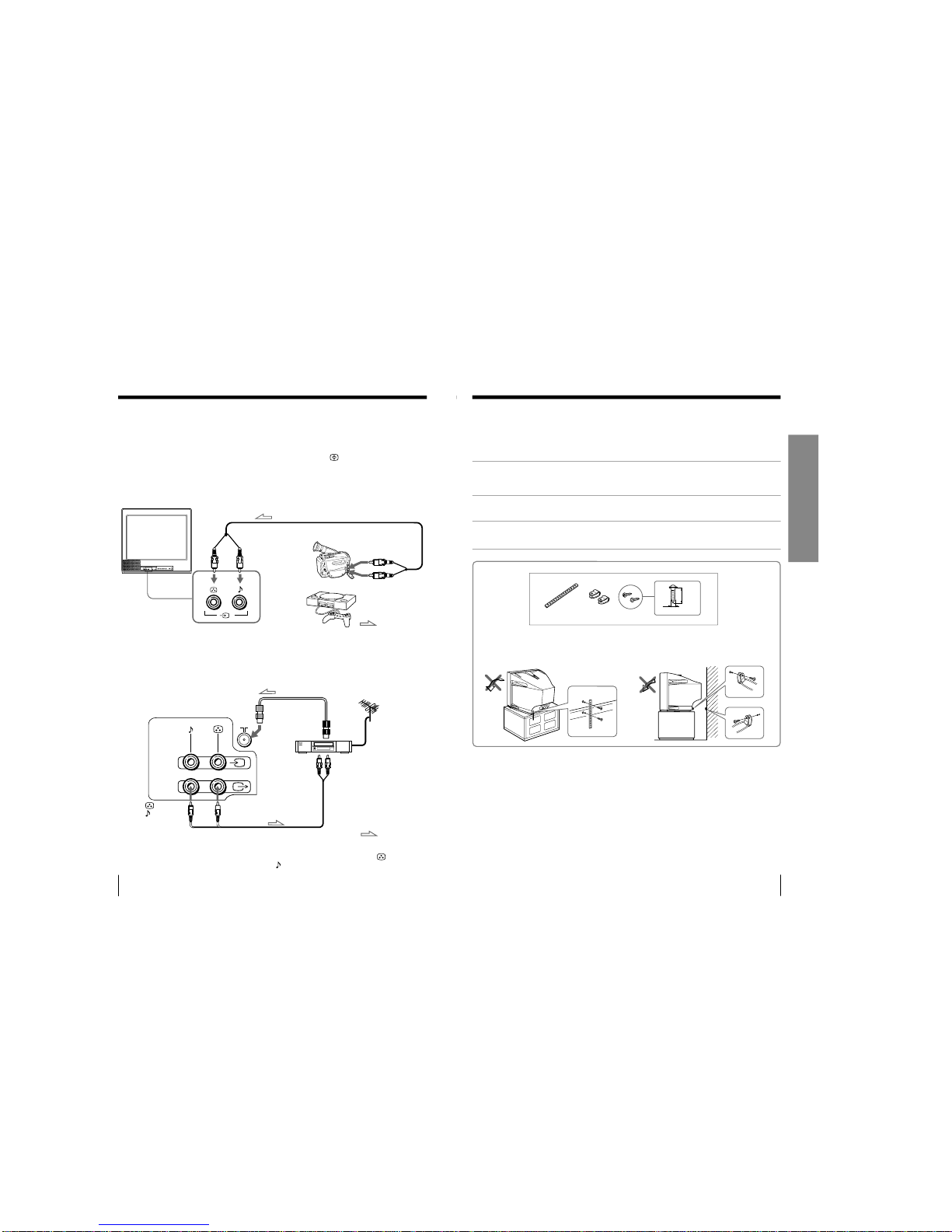

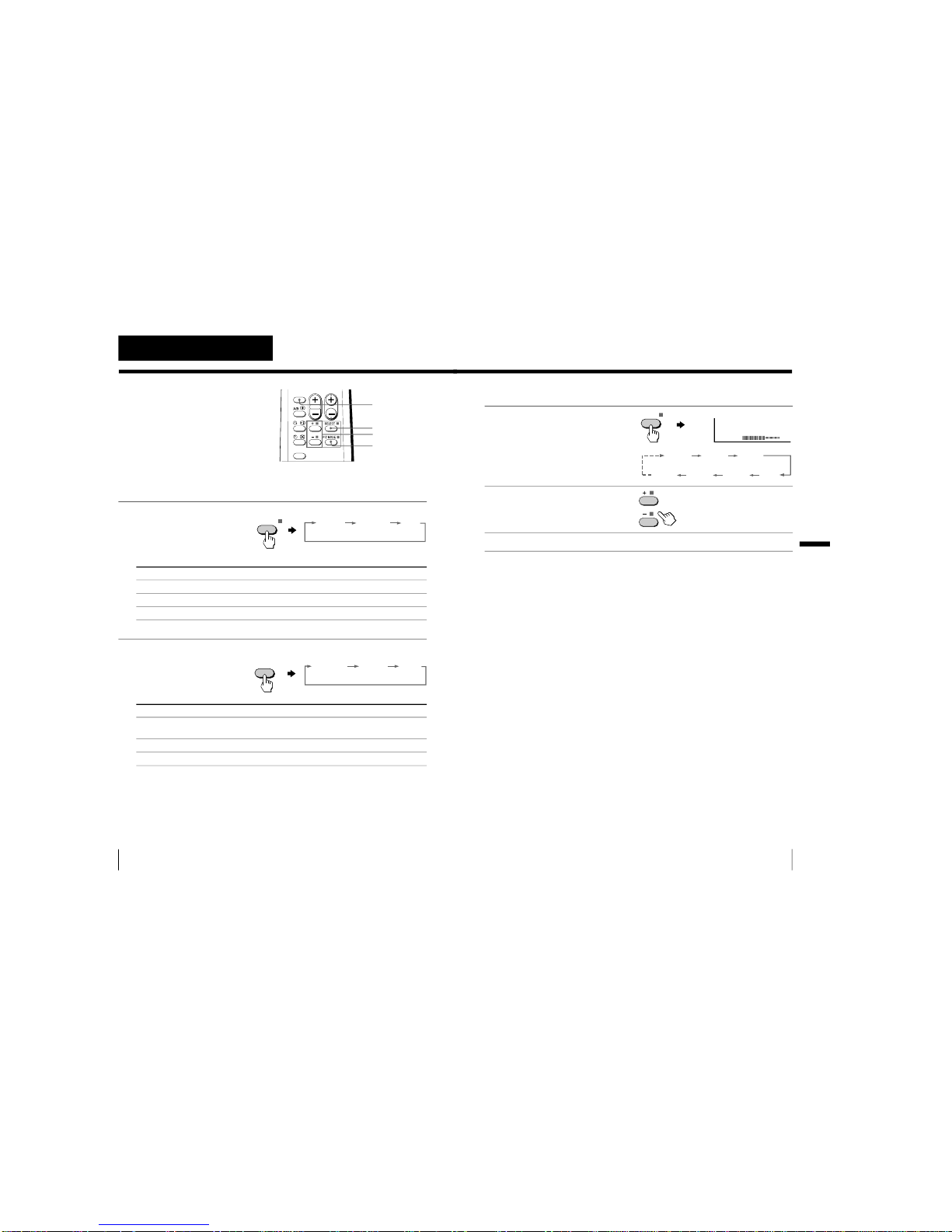

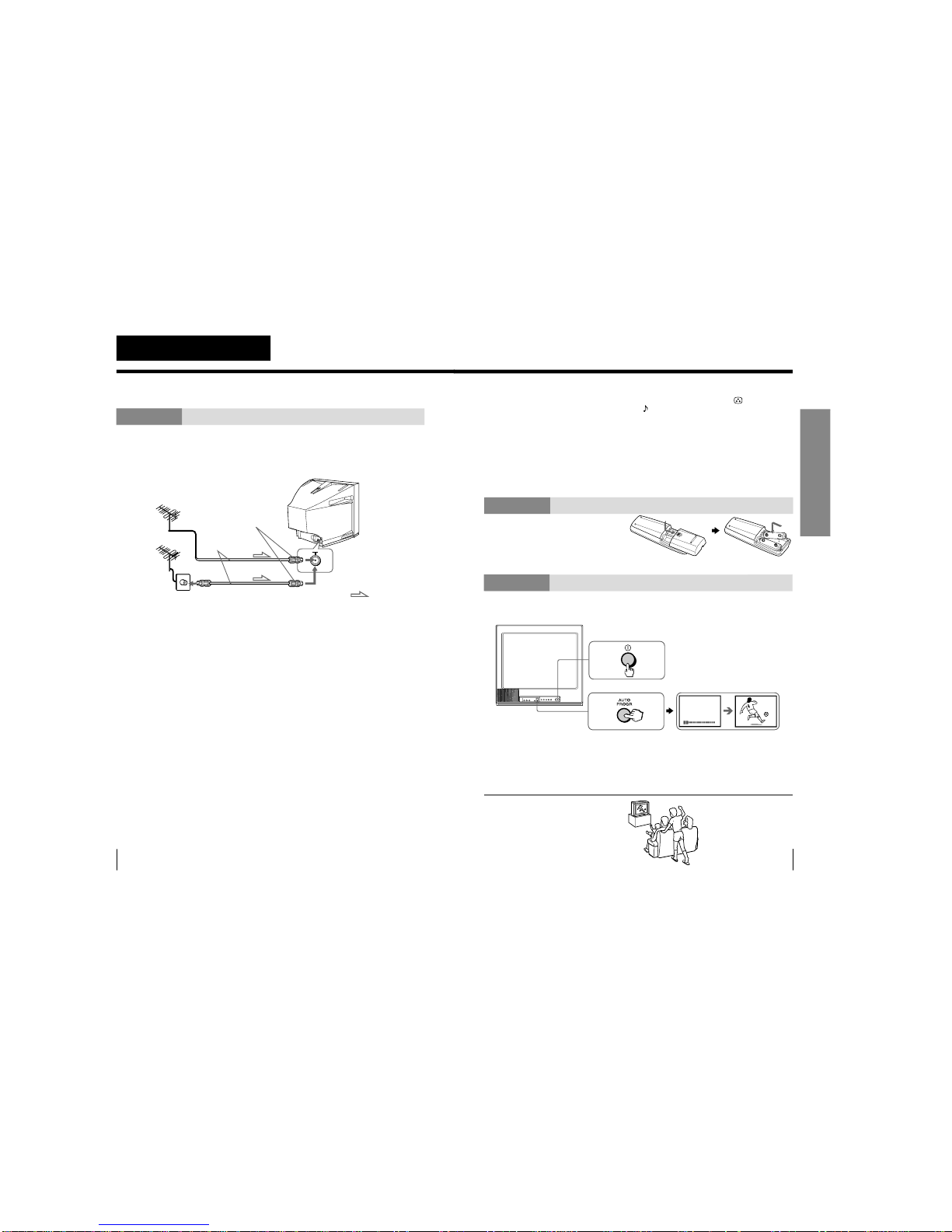

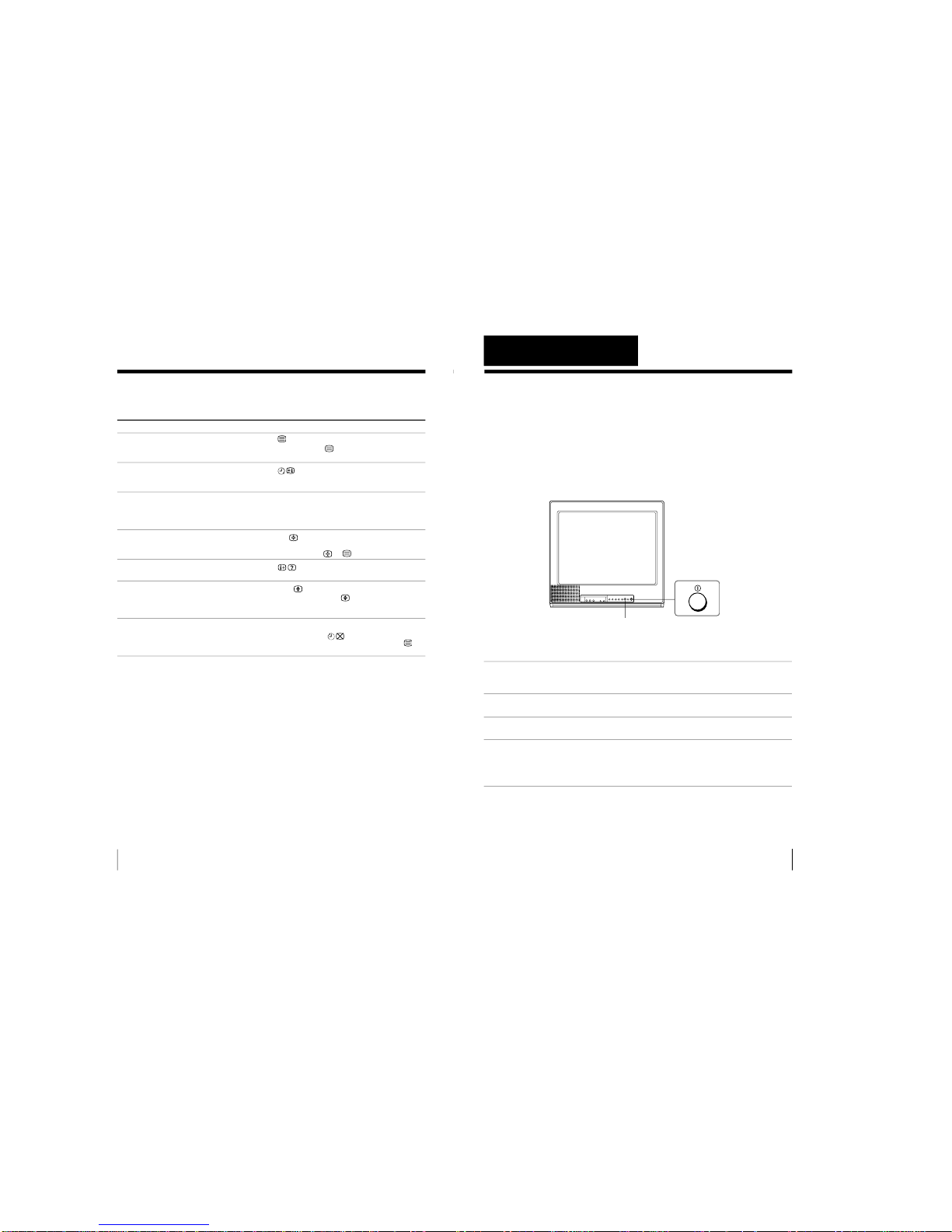

The operating instructions mentioned here are partial abstracts
from the Operating Instruction Manual. The page numbers of
the Operating Instruction Manual remain as in the manual.
2
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 – 240 V AC. (For Malaysia only: 220 – 240 V AC.)
To prevent fire or shock hazard, do not expose
the TV to rain or moisture.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not open the cabinet and the rear cover of the
TV. Refer servicing to qualified personnel.
Do not install the TV in hot, humid or excessively
dusty places.
Do not install the TV in a confined space, such
as a bookcase or built-in cabinet.
Do not block the ventilation openings of the TV.
Do not pull the power cord to disconnect the TV.
Pull it out by the plug.
Disconnect the power cord during lightning
storms or if you are not going to use the TV for
several days.
Install the TV in a stable position. Do not allow
children to climb onto it.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals
to clean the TV. Do not scratch the picture tube.
4
Using Your New TV
Getting Started
Step 1
Connect the antenna (Except KV-PF21P10)
If you wish to connect a VCR, see the “Connecting a VCR”diagram below.
Using Your New TV
IEC connector
(not supplied)
To video and
audio outputs
VCR
(yellow)
(black)
Antenna cable (not supplied)
To …1
(video input)
Audio/Video cable
(not supplied) : Signal flow
To antenna
output
Antenna cable
(not supplied)
Rear of TV
Connecting a VCR
To watch the video, press …(see page 12).
Note
•You are advised to use an outdoor antenna for better reception.
or
: Signal flow
VIDEO
VIDEO IN
VIDEO OUT
AUDIO
1
Rear of TV
Rod antenna and cable
(supplied for KV-PF21P40 only)
or
To ˘
(antenna)

–9 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
4
Using Your New TV
Getting Started
Step 1
Connect the antenna (PF21P10)
If you wish to connect a VCR, see the “Connecting a VCR”diagram below.
Using Your New TV
IEC connector
(not supplied)
Antenna cable
(not supplied)
: Signal flow
Rear of TV
or
5
Using Your New TV
Using Your New TV
Preset the channels automatically
Tips
•If you want to stop automatic channel presetting, press SELECT twice.
•If your TV has preset an unwanted channel or cannot preset a particular
channel, then preset your TV manually (see page 9).
Note (KV-PF21M40/PF21M70 only)
•During automatic channel presetting, your TV screen will indicate “B/G”,
“I”, “D/K”or “M”for the TV system.
Now You Are Ready. . .
To watch your TV, see page 11.
Notes
•If you connect a stereo VCR, connect the yellow plug to (the yellow
jack) and the white plug to (the black jack).
•If you connect a VCR to the ˘(antenna) terminal, preset the signal
output from the VCR to the program number 0 on the TV.
•When no signal is input to the connected video equipment, the TV screen
becomes blue.
Step 2
Note
•Do not use old batteries nor use different types of batteries together.
Step 3
CAUTION
Do not connect the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
Insert the batteries
into the remote
Front of TV
1
1
1
2
VHF LOW B/G

–10 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
7
Using Your New TV
Using Your New TV
Securing the TV
To prevent the TV from falling, secure the TV using one of the following methods:
A
With the supplied screws, attach the band to the TV stand and to the rear of
the TV using the provided hole.
or
B
Put the cord or chain through the clamps to secure the TV against a wall or
pillar.
Note
•Use only the supplied screws. Use of other screws may damage the TV.
20
mm
AB
3.8mm
or
6
Using Your New TV
Connecting optional components
You can connect optional video components, such as a VCR, multi disc player,
camcorder or video game.
To watch the picture of the connected equipment, press …(see page 12).
Connecting a camcorder/video game equipment
using the …(video input) jacks
Note
•You can also connect video equipment to the …1 (video input) jacks at
the rear of your TV.
Connecting video equipment using the Ú
(monitor output) jacks
Note
•When connecting a stereo VCR, connect the yellow plug to (the yellow
jack) and the white plug to (the black jack).
Front of TV
Camcorder
Video game
equipment
To video and
audio outputs
(yellow)
(black)
Rear of TV
To
antenna
outputVCR
: Signal flow
To…2
(video input)
To Ú
(monitor
output)
or
Audio/Video cable (not supplied)
Antenna cable (not supplied)
2
1
Audio/Video cable (not supplied) : Signal flow
To video
and audio
inputs

–11 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
8
Using Your New TV
Presetting
channels
You can preset up to 100 TV channels in
numerical sequence from program
number 1 using the remote and the
buttons on your TV as well.
Presetting channels automatically
1
Press Uto turn on the TV.
2
Press AUTO PROGR.
Note (KV-PF21M40/PF21M70 only)
•During automatic channel presetting, your TV screen will indicate “B/G”,
“I”, “D/K”or “M”for the TV system.
To preset channels automatically from a specified program number
(1) Press SELECT until “AUTO PROGRAM”appears.
(2) Press + or –.
The on-screen display will start flashing.
(3) Press PROGR +/–or the number buttons until the desired program number
appears.
(4) Press + or –.
u
Number buttons
SELECT
.+/–
PROGR +/–
+ or –
PIC MODE
TV
123
46
789
÷0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
Á
VHF LOW B/G
9
Using Your New TV
Using Your New TV
Presetting channels manually
1
Press SELECT until
“MANUAL PROGRAM”
appears.
2
Press + or –.
3
Press PROGR +/– or the
number buttons until the
desired program number
appears.
4
Press + or – until the
desired channel picture
appears.
5
Press SELECT.
To change the color system setting
(KV-PF21P10/PF21P40/PF21P41)
If the color is abnormal when receiving programs through the
˘
(antenna) terminal
or the
…
(video input) jack
(1) Press SELECT until “COL SYS”appears.
(2) Press + or –to select the appropriate color
system until the color is optimal.
Tip
•Normally set “COL SYS”to “AUTO”.
continued
MANUAL PROGRAM
SELECT
VHF LOW B/G
or
123
456
78
0
-/--
9
PROGR
1
SELECT
COL SYS: AUTO
AUTO PAL
NTSC 3.58
NTSC 4.43

–12 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
10
Using Your New TV
To change the TV system setting (KV-PF21M40/PF21M70 only)
If the picture or sound is abnormal when receiving programs through the
˘
(antenna)
terminal
(1) Press SELECT until “TV SYS”appears.
(2) Press + or –to select the appropriate
TV system until the picture or sound
quality is optimal.
Note
•The TV system “I”and “M”are available for KV-PF21M70 only.
Skipping program numbers
1
Press PROGR +/–or the number buttons until the unused or unwanted
program number appears.
2
Press SELECT until “MANUAL PROGRAM”appears.
3
Press + or –.
4
Press PIC MODE.
5
Press SELECT.
To preset the skipped program number again
Preset the channel automatically or manually.
Tip
•You can also use SELECT and
¸
+/–on the TV to preset channels and
skip program numbers.
To use the fine tuning (FINE) function
The fine tuning (FINE) function may help to reduce the following problems: double
images and lines moving across the TV screen.
You can use the fine tuning function as below:
(1) Select the program number you want to adjust.
(2) Press SELECT until “MANUAL PROGRAM”appears on the screen.
(3) Press + or –on the remote control once.
(4) Press to display “FINE”on the screen.
(5) Press + or –continuously until the above problems are minimized.
The + or –icon on the screen flashes while tuning.
(6) Press SELECT to return to normal screen.
Presetting channels (continued)
TV SYS: B/G
B/G ID/K M
9
Using Your New TV
Using Your New TV
To change the color system setting
(KV-PF21L70/PF21M40/PF21M70/PF21Q70)
If the color is abnormal when receiving programs through the
˘
(antenna) terminal
or the
…
(video input) jack
(1) Press SELECT until “COL SYS”appears.
(2) Press + or –to select the appropriate color
system until the color is optimal.
Tip
•Normally set “COL SYS”to “AUTO”.
Note
•The color system “NTSC3.58”is not available for KV-PF21Q70.
continued
COL SYS: AUTO
AUTO PAL SECAM
NTSC 3.58
NTSC 4.43

–13 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
11
Using Your New TV
Using Your New TV
Watching the TV
This section explains functions used
while watching the TV. Most operations
can be done using the remote.
1
Press Uto turn on the TV.
When the TV is in the
standby mode (the u
indicator on the TV is lit
red), press uon the remote
or PROGR +/–on the TV.
2
Press PROGR +/–or the
number buttons to select
the TV program.
For double digit numbers,
press ÷, then the number
(e.g., for 25, press ÷, then
2 and 5).
3
Press
.+/–to adjust the
volume.
¤
u
…
;
Number buttons
SELECT
.+/–
PROGR +/–
+ or –
JUMP
or
continued
TV
123
46
789
÷0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
SELECT p
PIC MODE p
Á
123
456
78
0
-/--
9
PROGR
12
Using Your New TV
To
Turn off temporarily
Turn off completely
Mute the sound
Watch the video input
(VCR, camcorder, etc.)
Jump back to the previous channel
Display the on-screen information*
Adjust the volume of each TV
program automatically
Do this
Press u. The uindicator on the TV lights up red.
Press Uon the TV.
Press ¤.
Press …to select “VIDEO 1”or “VIDEO 2”.
To return to the TV program, press ;.
Press JUMP.
Press .
Press SELECT repeatedly until “INTELLIGENT VOL”
appears, then press + or –to select “ON”.
To cancel, select “OFF”.
* The picture, sound, and either the program number or video mode are
displayed. The on-screen display for the picture and sound information
disappears after about 3 seconds.
Changing the on-screen display language
(Except KV-PF21L70/PF21M70(ME)/PF21Q70)
1
Press SELECT until
“LANGUAGE / :
ENGLISH”appears on the
screen.
2
Press + or –to select
““.
Tip
•You can also use SELECT and .+/–on the TV to select the on-screen
display language.
Additional tasks
Watching the TV (continued)
SELECT
LANGUAGE / : ENGLISH
/ LANGUAGE :

–14 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
13
Using Your New TV
Using Your New TV
Setting the Wake Up timer
1
Press until the
desired period of time
appears.
2
Select the TV program or video mode you want to display when you wake
up.
3
Press uor set the Sleep timer if you want the TV to turn off automatically.
The indicator on the TV lights up orange.
To cancel the Wake Up timer
Press until “WAKE UP TIMER: OFF”appears or turn off the
TV’s main power.
Notes
•The Wake Up timer starts immediately after the on-screen display
disappears.
•If no buttons or controls are pressed for more than two hours after the
TV is turned on using the Wake Up timer, the TV automatically goes into
the standby mode. To continue watching the TV, press any button or
control on the TV or the remote.
Setting the Sleep timer
Press until the
desired period of time
appears.
To cancel the Sleep timer
Press until “SLEEP TIMER: OFF”appears or turn the TV off.
WAKE UP TIMER:10M
WAKE UP TIMER:OFF WAKE UP TIMER:12H00M
After 10 minutes
No Wake Up timer After 12 hours
SLEEP TIMER:30M SLEEP TIMER:60M
SLEEP TIMER:OFF SLEEP TIMER:90M
After 30 minutes
No Sleep Timer
After 60 minutes
After 90 minutes
12
Using Your New TV
Changing the on-screen display language
(KV-PF21L70/PF21M70(ME)/PF21Q70)
1
Press SELECT until
“LANGUAGE / :
ENGLISH”appears on the
screen.
2
Press + or –to select
““.
Tip
•You can also use SELECT and .+/–on the TV to select the on-screen
display language.
Watching the TV (continued)
LANGUAGE / : ENGLISH
SELECT
LANGUAGE / :

–15 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
14
Advanced Operations
Advanced Operations
SOUND MODE
Customizing the
picture and sound
You can customize the picture and
sound by selecting the picture and
sound modes or by adjusting its
settings.
Selecting the picture and sound modes
To select the picture mode
Press PIC MODE
repeatedly until you get
the desired picture mode.
Select To
DYNAMIC receive high contrast pictures.
STANDARD receive normal contrast pictures.
SOFT receive mild pictures.
To select the sound mode
Press SOUND MODE
repeatedly until you get
the desired sound mode.
Select To
DYNAMIC listen to dynamic and clear sound that emphasizes the low and
high sound.
DRAMA listen to sound that emphasizes vocals and background music.
SOFT receive soft sound.
PIC MODE
SELECT
+ or –
SOUND
MODE
FAVORITE
PROGR
Á
STANDARDDYNAMIC SOFT
PIC MODE
≥DYNAMIC ≥DRAMA ≥SOFT
SOUND
MODE
15
Advanced Operations
Adjusting the picture and sound settings
1
Press SELECT until the
desired setting appears.
Each time you press
SELECT, the setting
item will change as follows:
2
Press + or –to adjust the
item.
3
To adjust other items, repeat steps 1 to 2.
* “HUE”can be adjusted for the NTSC system only.
Notes
•When you select a picture or sound mode, the adjusted settings will be
reset according to the selected mode.
•You can also use SELECT and
¸
+/–on the TV to adjust the picture and
sound settings.
SELECT
60
PICTURE COLOR BRIGHT
HUE*
TREBLE BASS SHARP
Advanced Operations

–16 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
16
Advanced Operations
Blocking the
channels
(CHILD LOCK)
You can prevent a child from watching
certain programs by using the buttons
on the remote control.
1
Select the TV program you want to lock.
2
Press SELECT until “CHILD
LOCK”appears on the
screen.
3
Press + or –to select
“ON”.
The symbol appears on
the screen.
To unlock the channel,
press + or –to select
“OFF”. The symbol
disappears from the screen.
Note
•If you preset a locked channel, that particular channel will be unlocked
automatically.
SELECT
+ or –
TV
123
46
789
÷0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
Á
CHILD LOCK: OFF
SELECT
CHILD LOCK: ON
1
17
Advanced Operations
Viewing Teletext
(KV-PF21P41 only)
TV stations broadcast an information
service called Teletext via some TV
channels. Teletext allows you to receive
various information, such as shares
market or news.
Displaying Teletext
1
Select a TV channel that
carries the Teletext
broadcast you want to
watch.
2
Press to display the
text.
A Teletext page (normally
the index page) is
displayed. If there is no
Teletext broadcast, “100”is
displayed at the top left
corner of the screen.
To turn off Teletext
Press ;.
;
A/B
FASTEXT
…
V
TV
123
46
789
÷0
5
JUMP
SOUND
MODE
FAVORITE
PROGR
Á
P166 SECTEXT 166 FR1 MAR 03:59:09
Fom Singapore
ToPARIS
ToOSAKA
ToROMA
ToSYDNEY
Day Dep/Arr Flight Alrcraft
1.6 220/0588 SQ28 747
2 2130/1225 PA115 L15
3 2115/1330 SQ26 747
2.7 2130/0745 SQ24
747
4 2300/0915 AZ487 747
2.5 1000/1715 SQ6 747
4.6 0930/2015 CX522 L10
1 2210/0610 SQ21A 747
2 2100/0835 SQ21A 747
continued

–17 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
18
Advanced Operations
Additional Teletext tasks
To
display a Teletext page on the TV
check the contents of a Teletext service
select a Teletext page
hold a Teletext page
(stop the page from scrolling)
reveal concealed information
(e.g., an answer to a quiz)
enlarge the Teletext display
wait for a Teletext page while watching
a TV program
* You can also select a Teletext page of any page number that appears in the
colored column at the bottom of the screen using the corresponding color-
coded button on the remote.
Using FASTEXT
This feature allows you to quickly access a Teletext page that uses
FASTEXT. When a FASTEXT program is broadcasted, the colored
menus appear at the bottom of the screen. The colors of the menus
correspond to the red, green, yellow, and blue color-coded buttons
on the remote.
To access a FASTEXT menu
Press the color-coded button on the remote corresponding to the
menu you want. The menu page appears on the screen after several
seconds.
Do this
Press .
Each time you press , the screen changes as
follows: Teletext nTeletext and TV nTV.
Press
.
An overview of the Teletext contents and page
numbers appear on the screen.
Press the number buttons to enter the three-digit
page number of the desired Teletext page.* If you
make a mistake, reenter the correct page number. To
access the next or previous page, press PROGR +/–.
Press …
to display the symbol “j”at the top
left corner of the screen. To resume normal Teletext
operation, press …
or .
Press
.
To conceal the information, press the button again.
Press A/B .
Each time you press A/B , the Teletext display
changes as follows: Enlarge upper half nEnlarge
lower half nNormal size.
1 Enter the Teletext page number that you want to
refer to, then press
.
2 When the page number is displayed, press to
show the text.
Viewing Teletext (continued)
19
Additional Information
Self-diagnosis
function
Your TV is equipped with a self-diagnosis function. If there is a
problem with your TV, the uindicator flashes red. The number of
times the uindicator flashes indicates the possible causes.
1
Check that the uindicator flashes red a number of times between 3-second
intervals.
2
Count the number of times the uindicator flashes.
3
Press U(main power) to turn off your TV.
4
Inform your nearest Sony service center about the number of times the
uindicator flashes.
Be sure to note the model name and serial number located on the rear of
your TV.
Front of TV
uindicator
Additional Information

–18 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
20
Additional Information
C
•Snowy •Distorted •Noisy/
picture picture distorted
sound
Wall antenna
terminal
UHF
VHF
Booster VCR
Check the antenna direction.
Incorrect antenna direction may cause:
Check the antenna
type.
Wrong type of antenna
may cause:
•No picture
•Snowy picture
Check connection
on the wall
antenna terminal.
Loose connection may
cause:
•
Snowy picture
•Distorted sound
Check if you need
booster to increase
signal level.
Too strong signal level
may cause:
•
Distorted picture
•Noisy sound
Troubleshooting Shortcuts
For better viewing, please check the following connections.
Antenna connection
21
Additional Information
P166SECTEXT 166 FR1 MAR 03:59:09
FomSingapore
ToPARIS
ToOSAKA
ToROMA
ToSYDNEY
Day Dep/Arr Flight Alrcraft
1.6 220/0588 SQ28 747
2 2130/1225 PA115 L15
3 2115/1330 SQ26 747
2.7 2130/0745 SQ24
747
4 2300/0915 AZ487 747
2.5 1000/1715 SQ6 747
4.6 0930/2015 CX522 L10
1 2210/0610 SQ21A 747
2 2100/0835 SQ21A 747
Check connection
on the VCR and on
the TV.
Loose connection may
cause:
•Snowy picture
•Distorted sound
•No picture
For more information, please see
“Troubleshooting”on page 22, 23 and
24. Or consult your dealer for
guidance.
Additional Information
Check connection on
the AC socket.
Loose connection may cause:
•no power
•no picture with no sound
AC Connection
Connection
to TV
•Double image •Missing
picture Teletext
characters
(KV-PF21P41 only)

–19 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
18
Additional Information
Snowy picture
Noisy sound
Distorted picture
Noisy sound
Good picture
Noisy sound
No picture
No sound

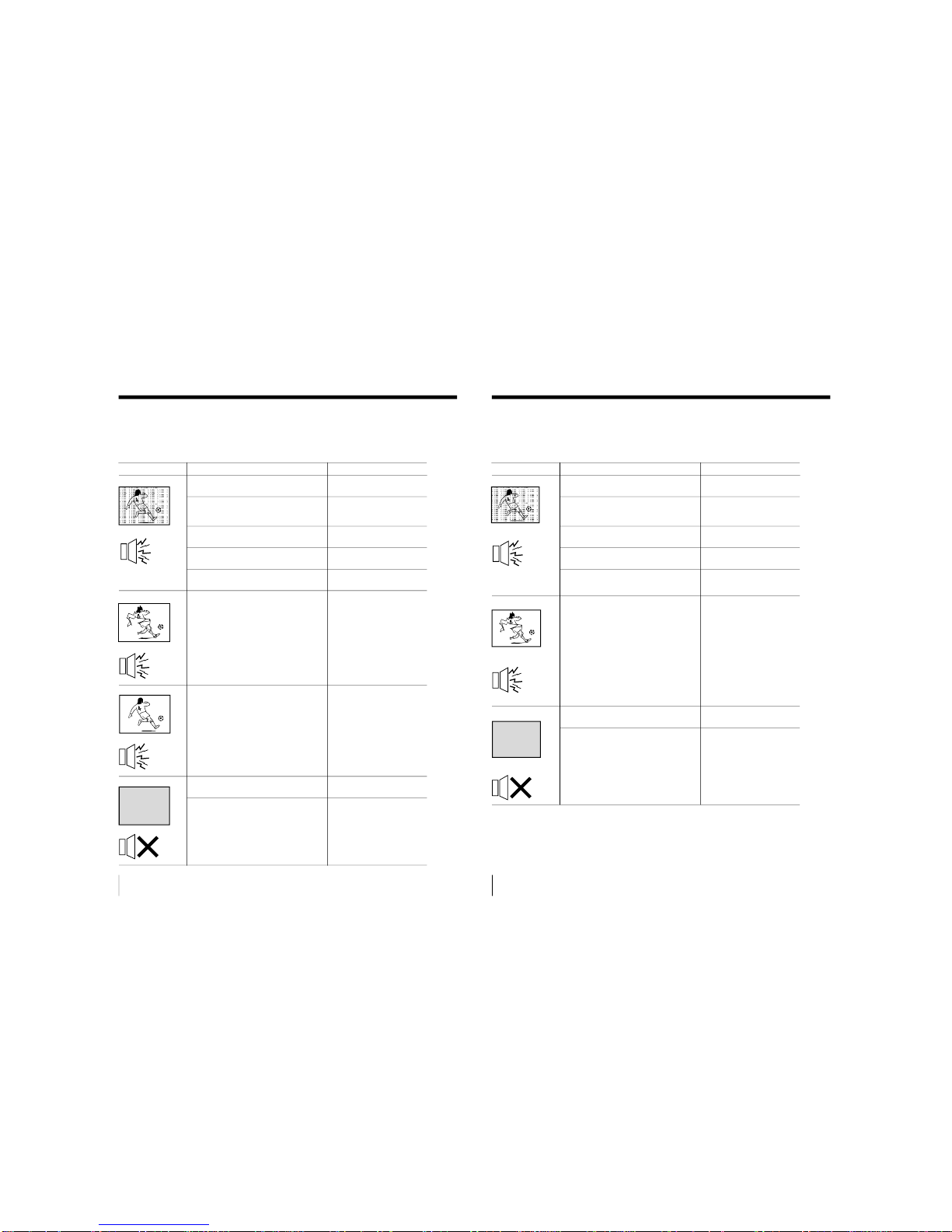

Troubleshooting
(KV-PF21L70/PF21M70(ME)/PF21Q70)
If you find any problem while viewing your TV, please check the following guide. If
any problem persists, contact your Sony dealer .
Possible causeSymptom Solutions
•
Check the antenna cable and connection
on the TV, VCR and on the wall. (page 4)
•Press SELECT until “MANUAL
PROGRAM”appears on the screen then
preset the channel again. (page 9)
•Check the antenna type (VHF/UHF).
Contact a Sony dealer for advice.
•Adjust the antenna direction. Contact a
Sony dealer for advice.
•Try using a booster.
•Turn off or disconnect the booster if it is
in use.
•If the sound of some channels are noisy,
select the channel, then select the
appropriate TV system (TV SYS).
(page 10)
•Check the power cord, antenna and the
VCR connections.
•Press u(power).
•Press U(main power) on the TV to turn
off the TV for about five seconds, then
turn it on again.
•Connection is loose or the
cable is damaged.
•Channel presetting is
inappropriate or
incomplete.
•The antenna type is
inappropriate.
•The antenna direction is
inappropriate.
•Signal transmission is low.
•Broadcast signals are too
strong.
•The TV system setting is
inappropriate.
•The power cord, antenna
or VCR is not connected.
•The TV is not turned on.
18
Additional Information
Snowy picture
Noisy sound
Distorted picture
Noisy sound
Good picture
Noisy sound
No picture
No sound
Troubleshooting
(KV-PF21M40/PF21M70(E))
If you find any problem while viewing your TV, please check the following guide. If
any problem persists, contact your Sony dealer .
Possible causeSymptom Solutions
•
Check the antenna cable and connection
on the TV, VCR and on the wall. (page 4)
•Press SELECT until “MANUAL
PROGRAM”appears on the screen then
preset the channel again. (page 9)
•Check the antenna type (VHF/UHF).
Contact a Sony dealer for advice.
•Adjust the antenna direction. Contact a
Sony dealer for advice.
•Try using a booster.
•Turn off or disconnect the booster if it is
in use.
•If the sound of all the channels are
noisy, check the TV system (TV SYS)
setting (page 10), then press AUTO
PROGR to preset the channels again
(page 8).
•If the sound of some channels are noisy,
select the channel, then select the
appropriate TV system (TV SYS).
(page 10)
•Check the power cord, antenna and the
VCR connections.
•Press u(power).
•Press U(main power) on the TV to turn
off the TV for about five seconds, then
turn it on again.
•Connection is loose or the
cable is damaged.
•Channel presetting is
inappropriate or
incomplete.
•The antenna type is
inappropriate.
•The antenna direction is
inappropriate.
•Signal transmission is low.
•Broadcast signals are too
strong.
•The TV system setting or
channel presetting is
inappropriate or
incomplete.
•The power cord, antenna
or VCR is not connected.
•The TV is not turned on.

–20 –
KV-PF21L70/PF21M40/PF21M70/PF21P10 KV-PF21P40/PF21P41/PF21Q70 RM-952
18
Additional Information
Troubleshooting
(KV-PF21P10)
If you find any problem while viewing your TV, please check the following guide. If
any problem persists, contact your Sony dealer .
Snowy picture
Noisy sound
Distorted picture
Noisy sound
Good picture
Noisy sound
No picture
No sound
Possible causeSymptom Solutions
• Check the antenna cable and connection
on the TV, VCR and on the wall. (page 4)
•Press SELECT until “MANUAL
PROGRAM”appears on the screen then
preset the channel again. (page 9)
•Check the antenna type (VHF/UHF).
Contact a Sony dealer for advice.
•Adjust the antenna direction. Contact a
Sony dealer for advice.
•Try using a booster.
•Turn off or disconnect the booster if it is
in use.
•If the sound of all the channels are
noisy, press AUTO PROGR to preset the
channels again (page 8).
•Check the power cord, antenna and the
VCR connections.
•Press u(power).
•Press U(main power) on the TV to turn
off the TV for about five seconds, then
turn it on again.
•Connection is loose or the
cable is damaged.
•Channel presetting is
inappropriate or
incomplete.
•The antenna type is
inappropriate.
•The antenna direction is
inappropriate.
•Signal transmission is low.
•Broadcast signals are too
strong.
•Channel presetting is
inappropriate or
incomplete.
•The power cord, antenna
or VCR is not connected.
•The TV is not turned on.
22
Additional Information
Snowy picture
Noisy sound
Distorted picture
Noisy sound
No picture
No sound
Troubleshooting
(KV-PF21P40/PF21P41)
If you find any problem while viewing your TV, please check the following guide. If
any problem persists, contact your Sony dealer .
Possible cause
Symptom Solutions
•
Check the antenna cable and connection
on the TV, VCR and on the wall. (page 4)
•Press SELECT until “MANUAL
PROGRAM”appears on the screen then
preset the channel again. (page 9)
•Check the antenna type (VHF/UHF).
Contact a Sony dealer for advice.
•Adjust the antenna direction. Contact a
Sony dealer for advice.
•Try using a booster.
•Turn off or disconnect the booster if it is
in use.
•Check the power cord, antenna and the
VCR connections.
•Press u(power).
•Press U(main power) on the TV to turn
off the TV for about five seconds, then
turn it on again.
•Connection is loose or the
cable is damaged.
•Channel presetting is
inappropriate or
incomplete.
•The antenna type is
inappropriate.
•The antenna direction is
inappropriate.
•Signal transmission is low.
•Broadcast signals are too
strong.
•The power cord, antenna
or VCR is not connected.
•The TV is not turned on.
