Sony WEGA kv-da29 User manual

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
Tr initron Color TV
© 2004 Sony Corporation
KV-DA34
KV-DA29
2-318-485-E1 (2)
M80
X80
•Before operating the unit, please read this manual thoroughly and retain
it for future reference.
Operating Instructions

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
2

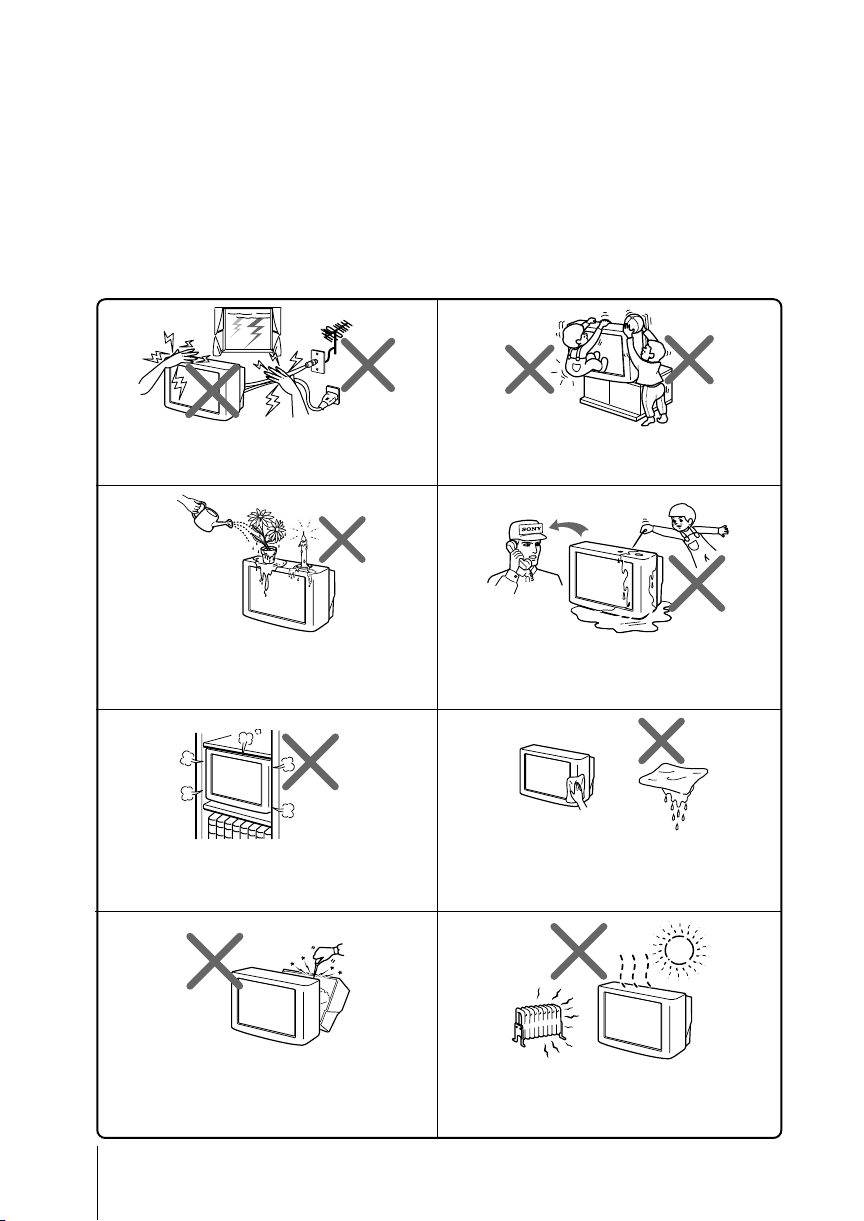

Do not place any objects on the TV. The apparatus
shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 220 V AC.
•Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
•To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may be
subject to excessive dust, heat, moisture or
vibrations.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto it.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals to
clean the TV. Do not attach anything (e.g., adhesive
tape, cellophane tape, glue) on the painted cabinet of
the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.

Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
3

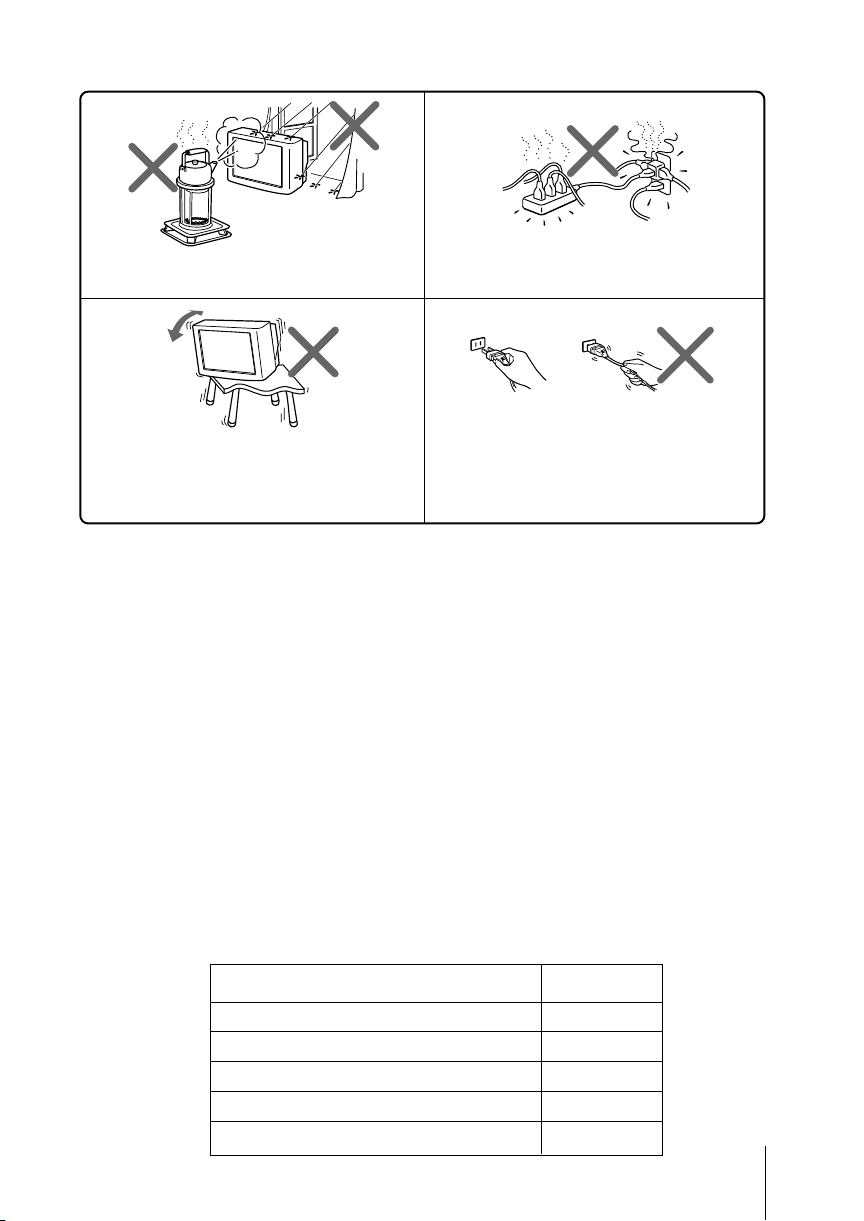

Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.
Accessories
•FD Trinitron CRT
•DRC-MF (Digital Reality Creation-Multi Function)
DRC1250
DRC100
Progressive
•New Intelligent Picture
•Intelligent Signal Booster
•Wide Mode
•WEGA Theatre Mode
•DVD signal terminal (with HD signal)
•5-Band Graphic Equalizer
Accessory Quantity
Remote Commander (RM-W105) 1
Batteries (size 5) 2
Stabilizing band 1
Stabilizing clamp 2
Screw (Dia.3.8 ×20) 3
Product Overview

4
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
(1)
(2)
(3)
xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
(1) Screw the band to the TV stand and to
the provided hole at the rear of your
TV.
(2) Screw the band to the TV stand.
(3) Put a cord or chain through bothclamps
and screw the other clamp to a wall or
pillar.
(1) Attach each end of a cord or chain to
the provided holders at the rear of
your TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
(1)
(2)
1
2

5
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

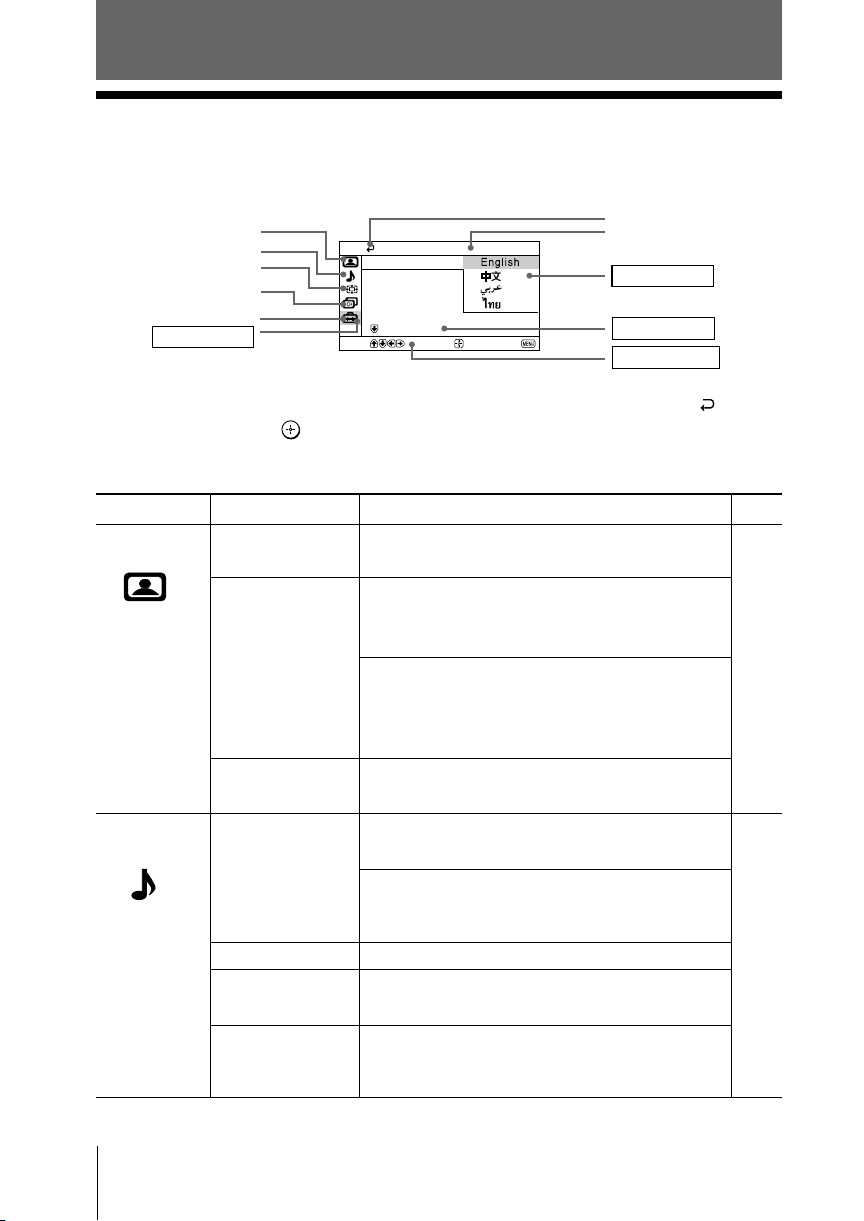

Menu Adjustment
Introducing the menu system .......... 16
Changing the “Picture” setting ........ 18
Changing the “Sound” setting ......... 20
Changing the “Wide Screen” setting ... 22
Changing the “Channel Setup”
setting .................................................. 23
Changing the “Setup” setting .......... 25
Additional Information
Connecting optional components ... 27
Troubleshooting ................................. 30
Specifications ...................... Back cover
GB
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“Initial Setup”) .................................... 7
Overview of Controls
TV front and rear panels ..................... 9
Using the remote control and
basic functions .................................... 10
Advanced Operations
Selecting the picture and
sound modes ...................................... 12
Viewing higher quality pictures
with DRC-MF ..................................... 13
Enjoying WEGA Theatre Mode
with center speaker ........................... 14
Operating optional components ...... 15

6Installation
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
Installation

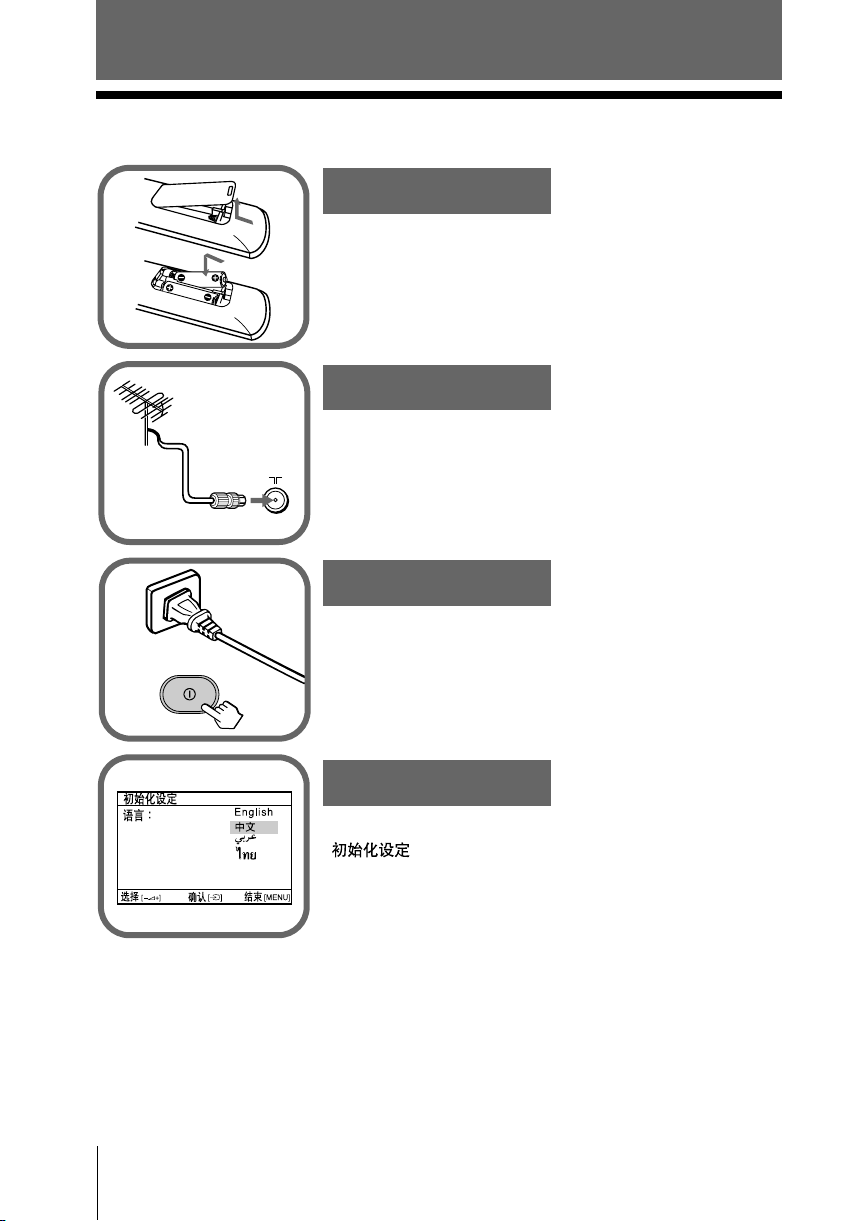

xGetting Started
“ 'l⁄˘‡]'w ¿
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
Note
•Do not use old or different types of batteries together.
Step 2
Step 3
Step 4
Set up the TV by following the instructions of the
“” (“Initial Setup”) menu (see page 7).
Plug in the power cord, then press !on the TV to
turn it on.
Note
• The 1(standby) indicator flashes green for a few seconds
when turning on the TV. This does not indicate a
malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
•You can also connect your TV to other optional components
(see page 27).

7
Installation
Installation
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
x Setting up your TV
(“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup” menu will appear.
You may change the menu language, preset the TV channels automatically, change the
order of TV channels that appear on the screen and adjust the picture position using
the buttons on the TV front panel.
Tip
•For menu operations, the MENU, t and 2+/– buttons on the TV front panel have the same
function with the MENU, and V/v buttons on the remote control.
1Press 2+/– to select the desired menu
language, then press t.
The selected menu language appears.
2Press 2+/– to select “Yes”, then press t
to preset the channels automatically.
The screen will indicate automatic
presetting in progress.
After all available channels have been tuned
and stored, the “Program Sorting” menu
appears automatically on the screen.
To skip automatic channel presetting, select
“No”, then press t.
If the message “No channel found. Please
connect cable/antenna” appears, check your
TV connections, then press t.
3The “Program Sorting” menu enables you
to change the order in which the channels
appear on the screen.
a) If you wish to keep the channels in the
tuned order, press MENU.
b) If you wish to store the channels in a
different order:
1) Press 2 +/– to select the program
number with the channel you wish to
rearrange, then press t.
Program:
TV System: D/K
01
VHF Low
Program Sorting
Program:
01
02
03
04
Select channel
continue

8Installation
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

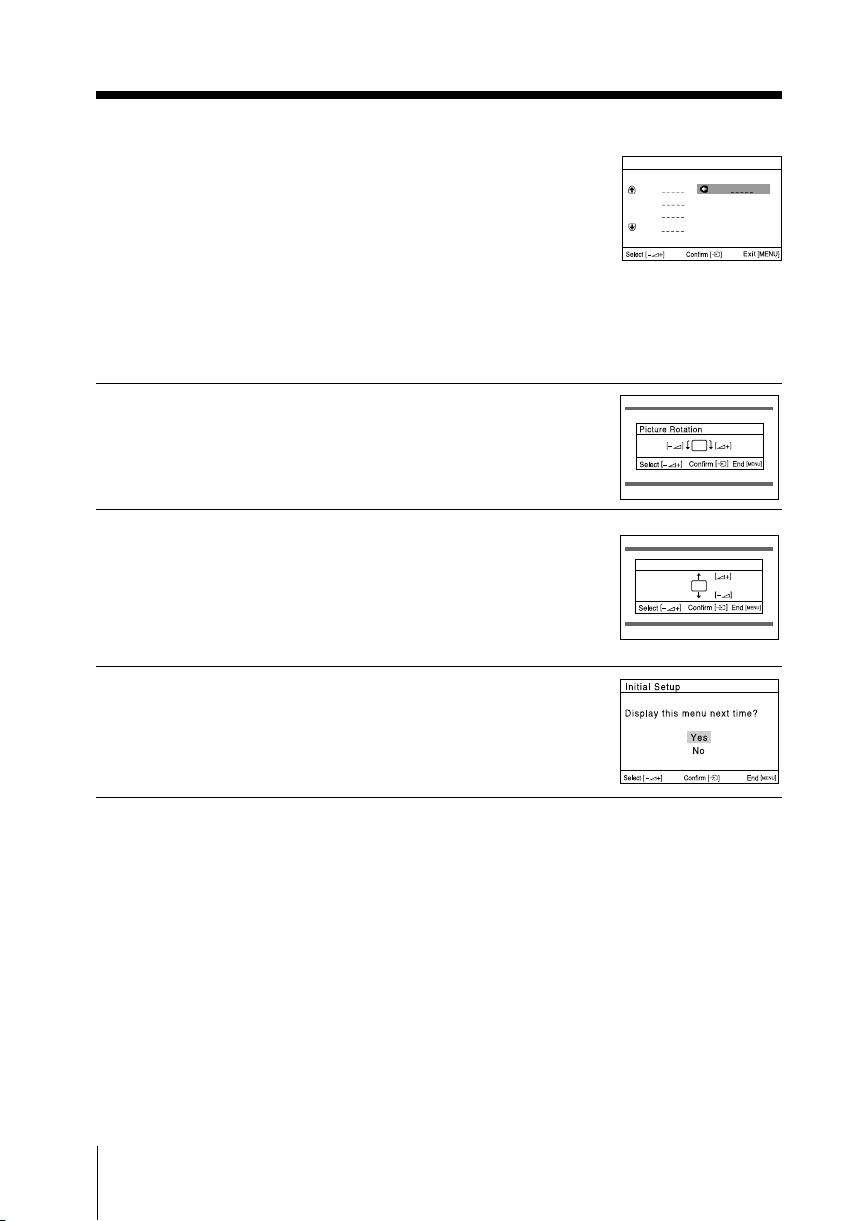

The selected channel will appear on
the screen.
2) Press 2+/– to select the new
program number position for your
selected channel, then press t.
3) Repeat steps b) 1) and 2) if you wish
to change the order of the other
channels.
c) Press MENU to go to the next menu.
4Press 2+/– to adjust the bars on the top
and bottom of the menu if they are
slanted, then press t.
“Picture V-Position” menu appears.
5If the upper and lower bars are not
equally positioned to the top and
bottom of the screen, press 2+/– to
adjust them, then press t.
If no adjustment is necessary, then press t.
6Press 2+/– to select “No”, then press t.
This menu will not appear again the next
time you turn on the TV by pressing !.
To allow this menu to appear again, select
“Yes”, then press t.
Tips
•You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.
•You can also set up your TV by using the menu system (see page 16).
•You can also preset the channels automatically by pressing the MENU (AUTO PROG) button
on the TV front panel for about five seconds.
Notes
•Before adjusting “Picture Rotation” and Picture V-Position”, keep external speakers or other
electrical equipment away from the TV. The magnetic disturbance from these equipments or
the direction of the earth’s magnetic field may affect the TV.
•You cannot adjust “Picture Rotation” and “Picture V-Position” when high-definition (1080i,
720p) signals are input.
01
Program Sorting
Program:
01
02
03
04
Select new position
continued
Picture V-Position

9
Overview of Controls
Overview of Controls
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)
Overview of Controls
qa
1
1
2
23
C R
P R /
C
B
Y
Y
RL P
B /
C
R
P R /
C
B
P B /
RL
qs
qd qg
qf qh qj
RG B
HD
VD
SYNC
09
4
L(MONO) R
PROG
MENU
(AUTO PROG)
SOUND
MODE
4
58 76
AUTO PROG:Press [MENU] for 5sec
1
4
L(MONO) R
PROG
MENU
(AUTOPROG)
SOUND
MODE
AUTOPROG:Press[MENU]for5sec
120W MAX 8
C
32

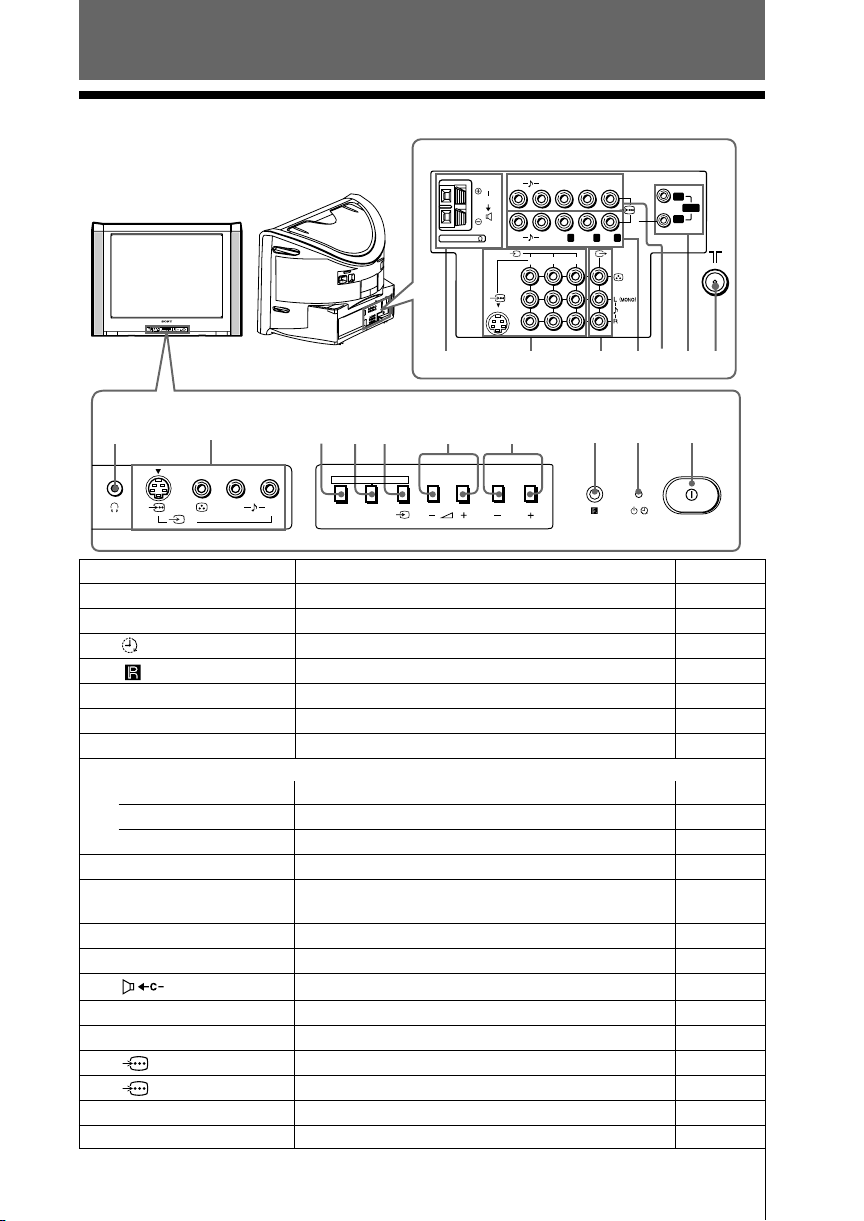

TV front panel
TV rear panel
xTV front and rear panels
Button/Terminal Function Page
1!Turn off or turn on the TV. 6
21Standby indicator. 6
2Wake Up indicator. 10
3Remote control sensor. –
4PROG +/– Select program number. –
52+/– Adjust volume. –
6tSelect TV or video input. 27
Menu operations
52+/– Select and adjust items. –
6tConfirm selected items. –
7MENU Display or cancel the menu. –
7(AUTO PROG) Preset channels automatically. 8
8SOUND MODE Select sound mode options. 12
5-Band Graphic Equalizer display will appear.
9t4Video input terminal 4. 27
0iHeadphone jack. –
qa Center speaker input terminal. 29
qs t1, t2, t3Video input terminal 1, 2, 3. 27
qd TMonitor output terminal. 27
qf 2Component video input terminal 2. 28
qg 1 Component video input terminal 1. 28
qh SYNC HD/VD HD/VD input terminal. 28
qj 8Antenna input terminal. 27

10 Overview of Controls
Sony KV-DA34M80 Group E2 (GB Dummy)_2-318-485-E1 (2)

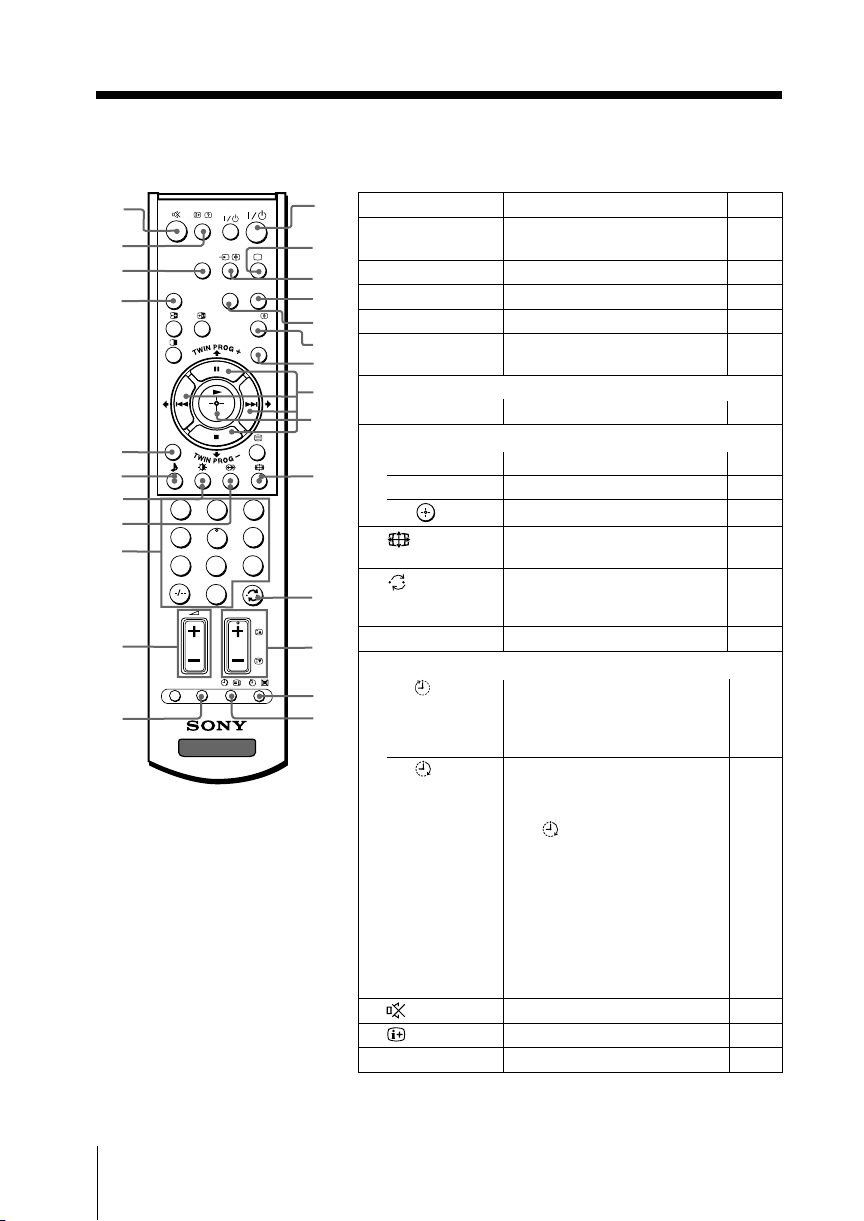

xUsing the remote control and basic
functions
123
46
789
0
5
HD/DVD
VIDEO
DRC-MF
PROG
INDEX
CENTER
SP
WEGA
THEATRE
A/B
MENU
OPTION RESET
TV
PROG
1
3
4
2
0
9
8
6
7
5
qg
qh
qj
qk
ws
w;
wg
wf
wd
wa
qf
qd
qs
qa
ql
Button Description Page
1?/1Turn off temporarily or –
turn on the TV.
2aDisplay the TV program. –
3tSelect video input. 27
4 WEGA THEATRE Select WEGA Theatre Mode. 14
5CENTER SP Select TV’s center speaker 14
mode.
Stereo/bilingual operations
6A/B Not function for your TV. –

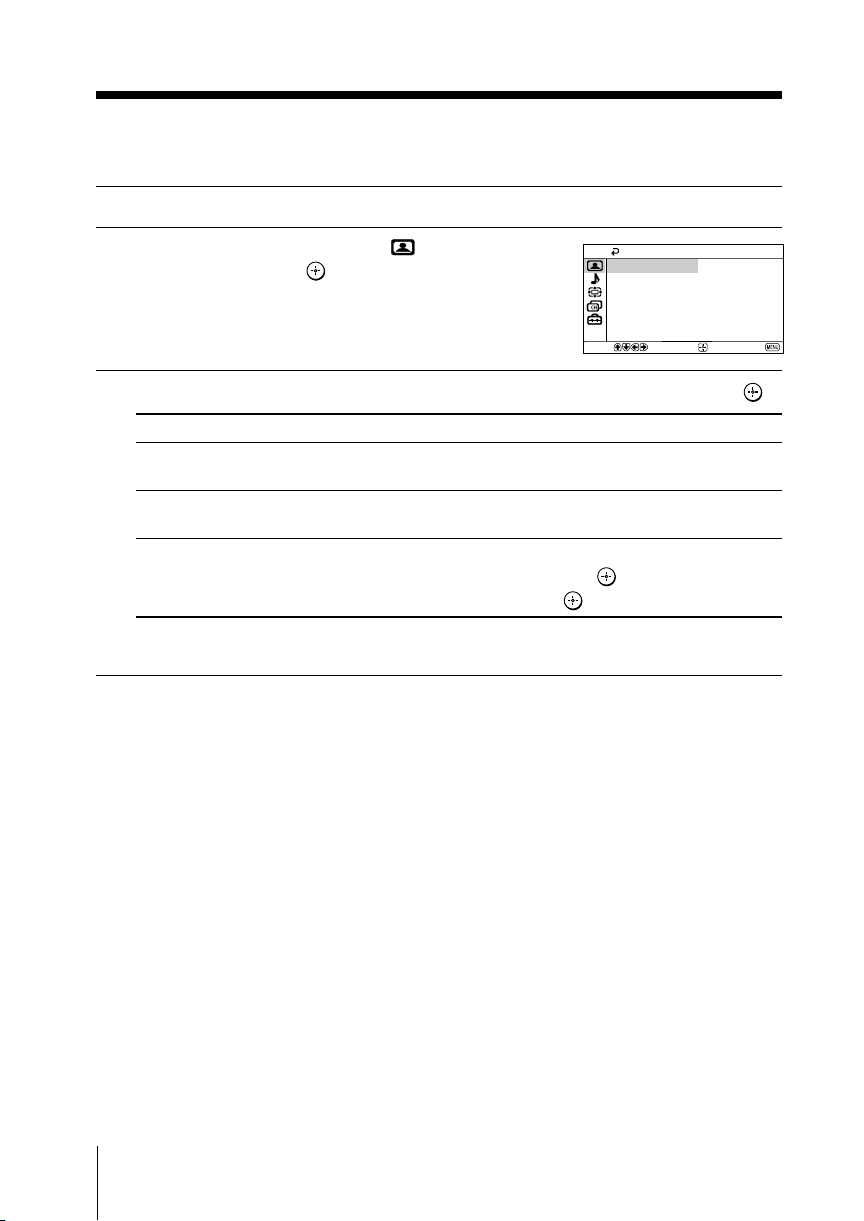

Menu operations
7MENU Display or cancel the menu. –
8V, v,B,b Select and adjust items. –
9Confirm selected items. –
0 Change the picture size: –
“4:3”, “16:9”(16:9 wide-mode).
qa Jump to last program number
that has been watched for at –
least five seconds.
qs PROG +/– Select program number. –
Timer operations
qd Set TV to turn off automatically
(Sleep Timer) according to the desired period –
of time (max. of one hour and
30 min.).
qf Set TV to turn on automatically
(Wake Up Timer) according to the desired period
of time (max. of 12 hours). –
The indicator on TV lights
up amber once you set
the wake up timer.
If no buttons or controls are
pressed for more than one
hour after the TV is turned on
using the wake up timer, the
TV automatically goes into
standby mode.
qg Mute the sound. –
qh Display on-screen information. –
qj HD/DVD Select component video input. 28
