Sound Sation OMEGA-300 RGB User manual

Please read this manual carefully and proper take care of this manual.
USER MANUAL
OMEGA-300 RGB
Compact Graphic Laser System

TABLE OF CONTENTS
1. 1. INTRODUCTION ....................................................................................................7
2. OVERVIEW..................................................................................................................8
3. MAIN FEATURES........................................................................................................8
4. OVERHEAD RIGGING ................................................................................................8
5. MAINS CONNECTIONS .............................................................................................9
6. DMX CONNECTION.................................................................................................10
7. CENTERING ADJUSTMENT.....................................................................................11
8. FRONT/REAR PANELS .............................................................................................12
9. MENU OPERATING INSTRUCTION ........................................................................13
10. REMOTE CONTROLLER............................................................................................15
11. DMX Channel Chart ................................................................................................16
12. BUILT-IN PATTERN LIBRARY..................................................................................17
13. SPECIFICATIONS ......................................................................................................18
14. WARRANTY AND SERVICE .....................................................................................19
15. WARNING.................................................................................................................19
Dear customer,
First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy
all possible needs of musical instrument, professional audio and lighting users offering
a wide range of products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are
looking for a feedback from you about the operation of the product and possible im-
provements to introduce in the next future. Go to our website www.soundsationmusic.
com and send an e-mail with your opinion, this will help us to build instruments ever
closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation
can cause damages to you and to the unit. Take care!
The SOUNDSATION Team

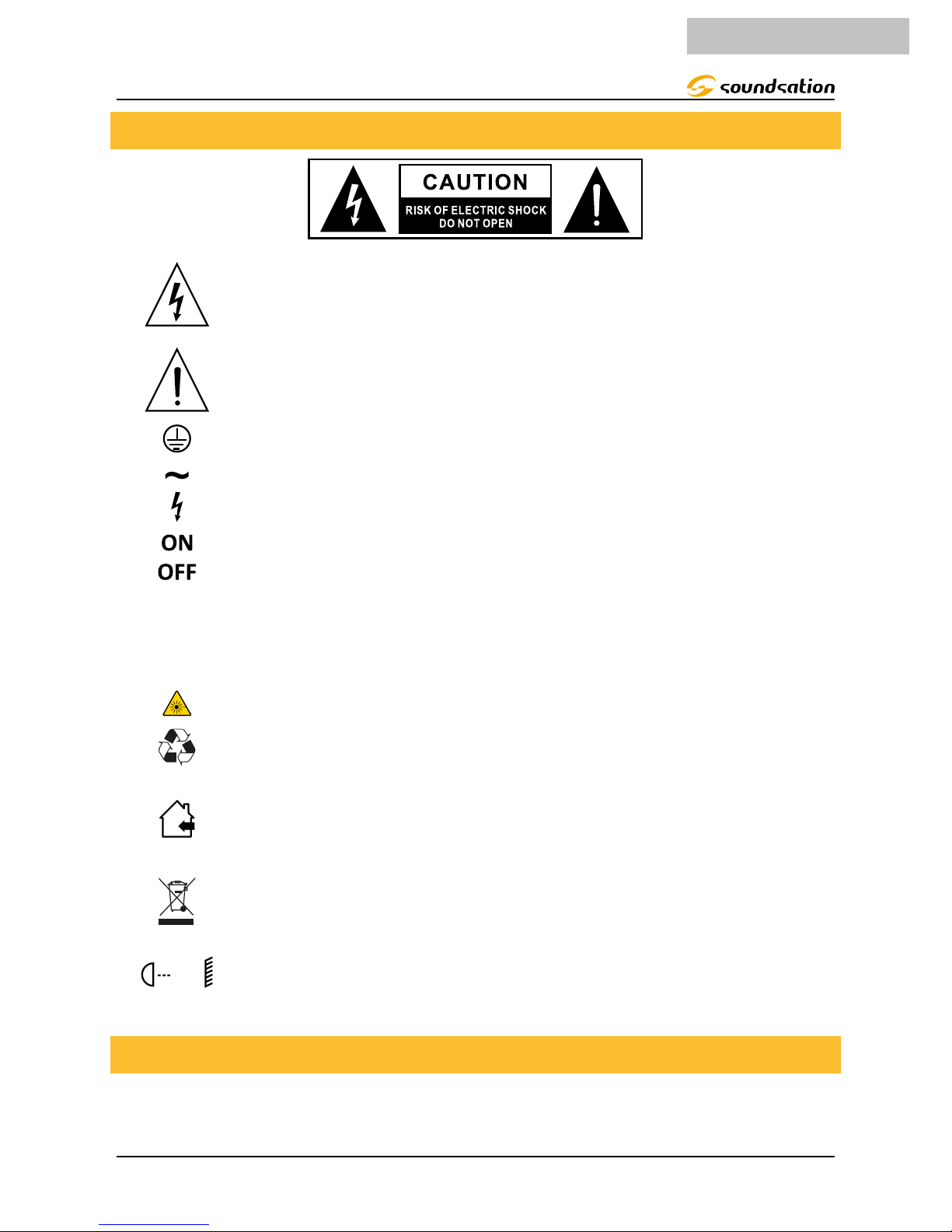

IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating con-
ditions, which may be sufcient to constitute the risk of electric shock
or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
Laser safety warning labels
To protect the environment, please try to recycle the packing material
as much as possible
The projector is for indoor use only, IP20. Use only in dry locations.
Keep this device away from rain and moisture, excessive heat, humid-
ity and dust. Do not allow contact with water or any other uids, or
metallic objects.
Don’t throw this product away just as general trash, please deal with
the product follow the abandon electronic product regulation in your
country.
0.5m
Locate the xture in a well ventilated spot, away from any ammable
materials and/or liquids. The xture must be xed at least 50cm from
surrounding walls
LASER SAFETY WARNINGS
According to the EN 60825-1:2007 regulation, this product belongs to Class 3B. Direct
eye contact may cause injury.
3
ENGLISH
OMEGA-300 RGB User manual

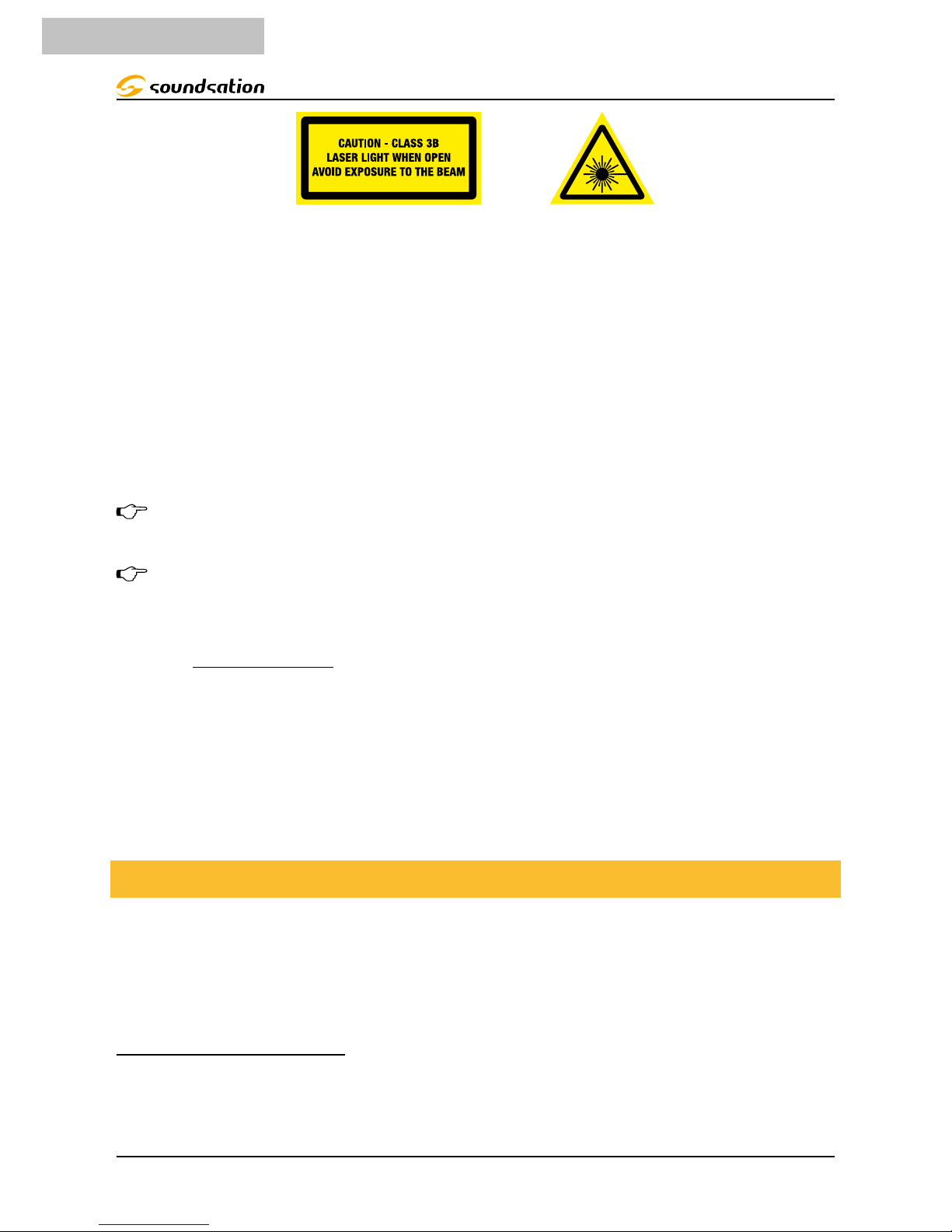

fThis product is for laser show only. The class 3B laser light should be operated by
professional operator only.
fThis is so-called show laser, emitting radiation with a wavelength spectrum between
400 and 700nm and producing lighting effects for shows.
fInternational laser safety regulations require that the vertical height from installment
to ground is more than 3 meters, horizontal distance is 2.5 meters from audience.
fNever direct the laser beam to people or animals and never leave this device running
unattended.
fThe legal requirements for using laser entertainment products vary from country to
country. The user is responsible for the legal requirements at the location/country
of use.
Warning! Avoid direct eye contact with laser beams during operation, espe-
cially when the laser beams stay still, or injury to eyes may occur.
Caution! Laser security measures are designed according to the specic terms
of the relevant international laser safety standards and has the following
laser safety protection means:
• Laser key switch: laser is available only when the key is turned on.
• Laser Emergency switch: remote connecting switch, it will cut off the laser
light path emergently once the device in potential hazard.
• Laser indication : laser indication on the front panel of the laser light for
indicating “laser-ready”.
• Laser safety label: The labels of according with European standard are sticked
on the device body.
TAKING CARE OF YOUR PRODUCT
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
Water / Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
4
ENGLISH
OMEGA-300 RGB User manual

Condensation
To avoid condensation to be formed inside, allow this unit to adapt to the surrounding
temperatures when bringing it into a warm room after transport. Condense sometimes
prevents the unit from working at full performance or may even cause damages.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Don not use it when maximum ambient tempera-
ture is higher than 40°C.
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus. Do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug has two poles; a
grounding-type plug has two poles and a third grounding terminal. The third prong is
provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement. Unplug the unit when it is not used for a longer time.
Power Supply
In case of external power supply, the apparatus should be connected to the power sup-
ply only of the type as marked on the apparatus or described in the manual. Failure to
do could result in damage to the product and possibly the user. Unplug this apparatus
during lightning storms or when unused for long periods of time.
Electrical Connection
Always disconnect from the power source before servicing or replacing fuse and be
sure to replace with same fuse size and type. Cut off power before moving, repairing
and cleaning the unit. Improper electrical wiring may invalidate the product warranty.
To avoid electric shock, all xtures must be connected to circuits with a suitable ground.
Do not power on and power off the xture in a short time.
DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source).
5
ENGLISH
OMEGA-300 RGB User manual

Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
1. 1. INTRODUCTION
Thank you for purchasing our OMEGA-300 RGB graphic laser. Enjoy your new equip-
ment and make sure to read this manual carefully before operation!
This user manual is made to provide both an overview of controls, as well as informa-
tion on how to use them. In order to help you to understand the connections between
the various controls, we have gathered in groups according to their functions.
1.1. UNPACKING
Your OMEGA-300 RGB was carefully packed to ensure safe transport. Despite this, we
recommend you to carefully examine the package and its contents for any signs of
physical damage, which can occur during transport. It is composed by following parts:
fLaser light
fKEYs (for Key switch)
fPower Cord
fInterlock Connector
fUser manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. ACCESSORIES
SOUNDSATION can supply a wide range of quality accessories that you can use with
your OMEGA-300 RGB laser, like Cables, Splitters, DMX controllers, and a wide range of
xtures.
All products in our catalogue has been long tested with this device, so we recommend
you to use Genuine SOUNDSATION Accessories and Parts.
Ask your SOUNDSATION dealer or check out our website www.soundsationmusic.com
for any accessories you could need to ensure best performance of the product.
6
ENGLISH
OMEGA-300 RGB User manual

2. OVERVIEW
SOUNDSATION OMEGA-300 RGB is a new Class 3B professional graphic laser projector
based on state-of-the-art technology. It features high-quality LED RGB laser emitters
that produce bright laser beams and smooth patterns. LED panel menu, and the handy
remote control make this xture extremely easy to program and convenient to use. It
is the right choice for all those musicians, DJs and small rental companies who need a
reliable and versatile instrument for graphic laser effects.
3. MAIN FEATURES
f300mW RGB graphic laser (150mW R, 50mW G, 100mW B) for complete color palette
effects
f32 Patterns
f7 Auto Programs
f7 Sound Programs with internal Microphone and sensitivity adjustment
fOperation Modes: Auto, Sound, DMX, Master/Slave
fDMX: 10CH mode
fIR Remote Controller for quick control
fKey switch and safety eye for maximum safety of use and installation

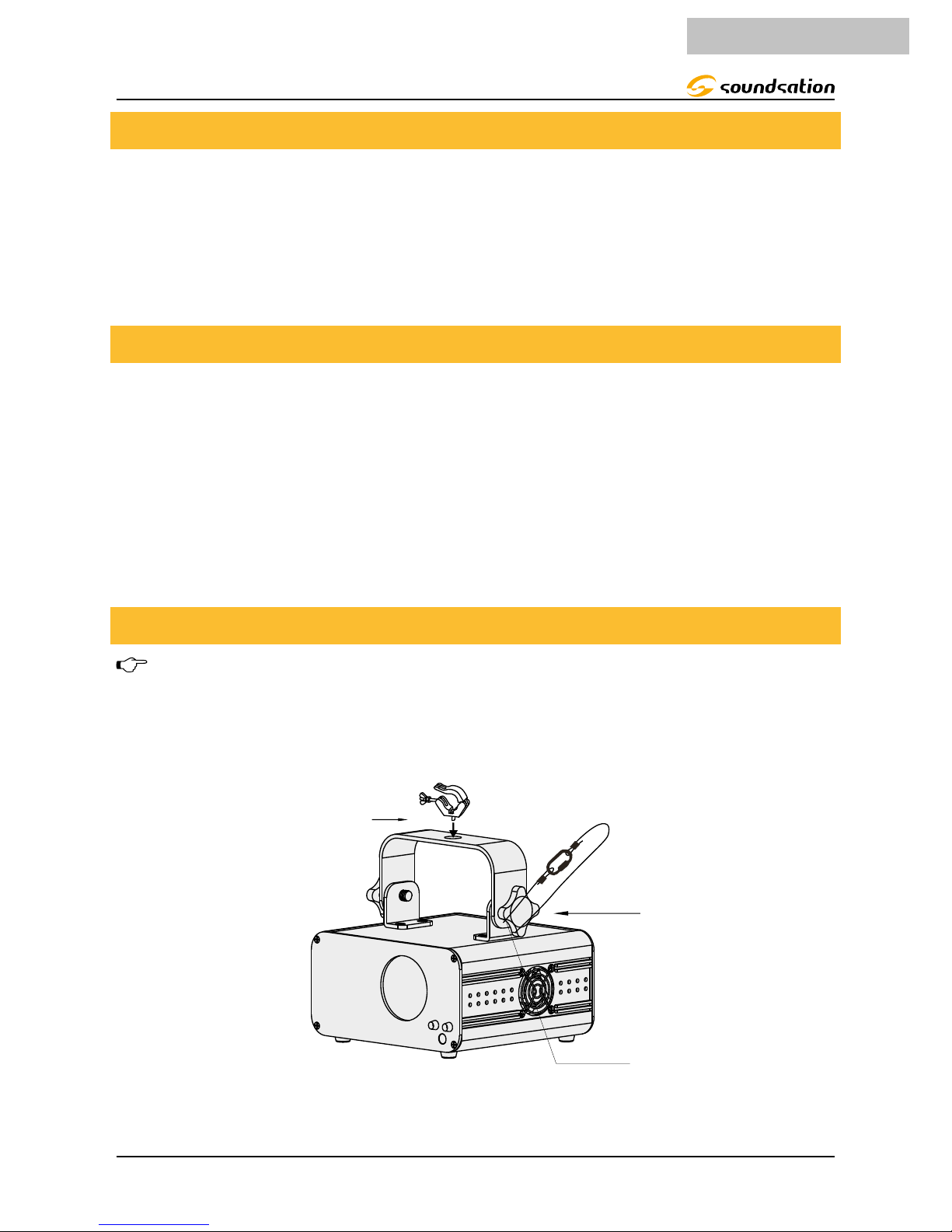

4. OVERHEAD RIGGING
WARNING: The installation must be carried out by qualied service personal
only. Improper installation can result in serious injuries and /or damage to
property. Overhead rigging required extensive experience! Working load
limits should be respected, Certied installation materials should be used,
the installed device should be inspected regularly for safety.
Clamp
Safety-rope
Adjust Angle
• Make sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
7
ENGLISH
OMEGA-300 RGB User manual

• Locate the xture in a well ventilated spot, far away from any ammable materials
and/or liquids. The xture must be xed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where
persons may walk by or be seated.
• Before rigging, make sure that the installation area can hold minimum point load
of 10 times the device”s weight. The device should be well xed; a free swinging
mounting is dangerous and may not be considered!
• Do not cover any ventilation opening as this may result in overheating
• Before the rst time use, it must be inspected by professional staff to make sure
safety, inspection regularly every year.

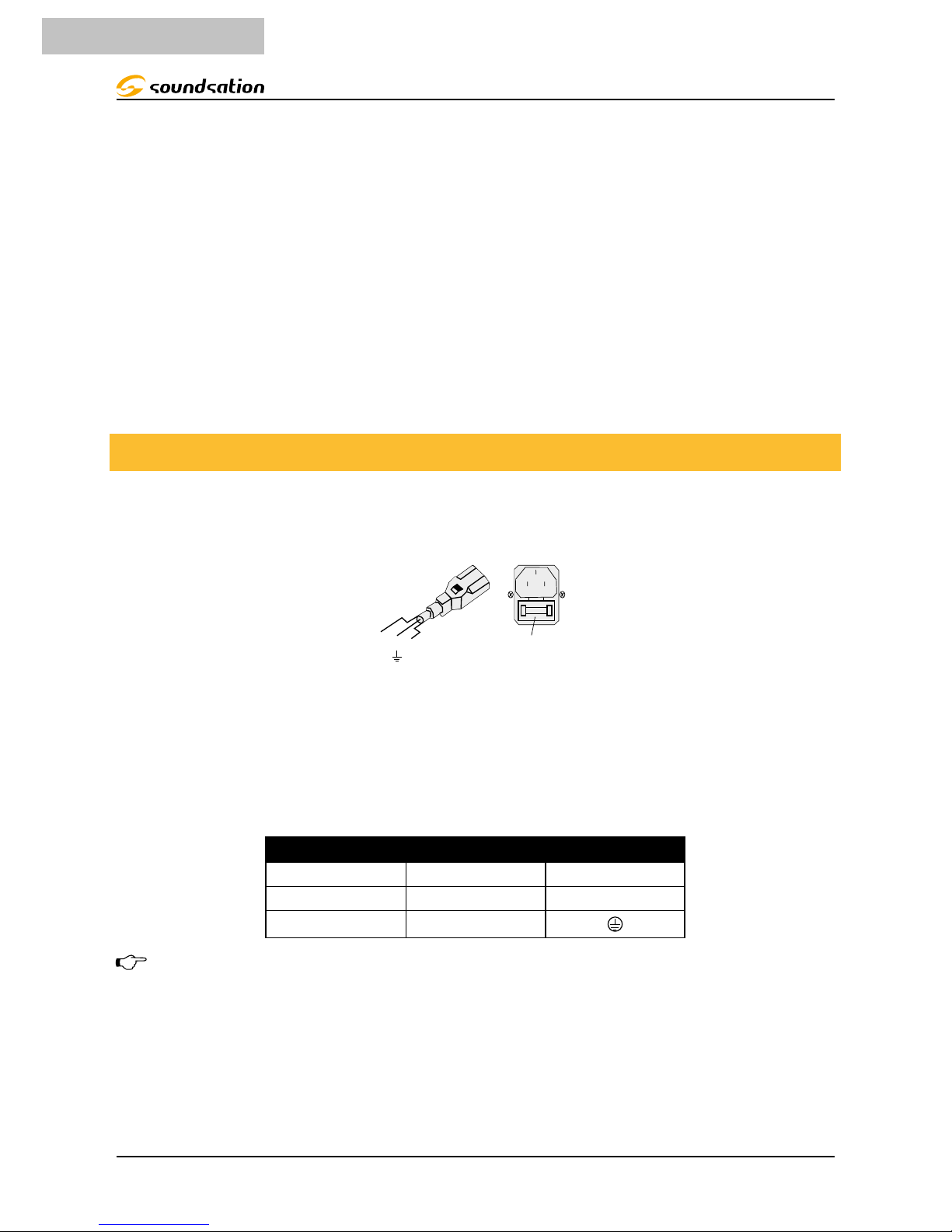

5. MAINS CONNECTIONS
Connect the device to the mains with the supplied power cable. Please note that power
voltage and frequency are the same as the marked voltage and frequency of device
when connecting power.
L
E N
FUSE: 5×20mm
250V 1.0A slow
Every device’s power should be connected separately, so that device can be controlled
individually. To prevent the risk of re and damaging the unit, please use only of the
recommended fuse type as described above. Before replacing the fuse, make sure the
unit turned off and disconnected from the AC outlet.
Wire correspondence is as follow:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking
into operation for the rst time, the installation has to be approved by an
expert.
8
ENGLISH
OMEGA-300 RGB User manual

6. DMX CONNECTION
DMX xtures are designed to receive data through a serial Daisy Chain. A Daisy Chain
connection is where the DATA OUT of one xture connects to the DATA IN of the next
xture. The order in which the xtures are connected is not important and has no effect
on how a controller communicates to each xture. Use an order that provides for the
easiest and most direct cabling.
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect xtures using shielded 2-conductor twisted pair cable with 3-pin XLR male to
female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-), and
pin 3 is Data positive (S+).
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
CAUTION: Wires must not come into contact with each other; otherwise the
xtures will not work at all, or will not work properly.
6.1. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last xture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
9
ENGLISH
OMEGA-300 RGB User manual

120ohm, 1/4W
resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
6.2.3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and xtures manufacturers are not stan-
dardized around the world. However, two are the most common standards: 5-Pin XLR
and 3-Pin XLR system. If you wish to connect SCENESPLIT 8 RACK to a 5-Pin XLR input
xture, you need to use an adapter-cable or make it by yourself.
Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan-
dards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
7. CENTERING ADJUSTMENT
Laser image may deviate from the center of lens due to transportation, DMX mistakes,
etc. You can use control panel to adjust motor and ensure laser beam to be perfectly
centered. Easy operation and practical function.
• To enter the unit in digital centering, press the 4 buttons at the same time, then
turn on the device.
FUNC UP DOWN ENTER
O N
O F F
Pressing at
same time
• Press FUNC button to toggle between SHE (to set X axis) and SHY (to set Y axis).
• Press UP and DOWN to set deviation size.
10
ENGLISH
OMEGA-300 RGB User manual

• Observe the place of image and light lens, then press ENTER to conrm and save.
8. FRONT/REAR PANELS
412 3
1. POWER: Main power indicating LED. Red is ON.
2. MUSIC: Synchronize to detected music signal.
3. IR: Infrared Remote Receiver.
4. Laser output: Laser output aperture.
OUT IN
DMXPOWER
OFF
ON
LOCK
REMOTE
SAFETY EYE
Attach Safety
Cable Here
Menu Up Down Enter
MIC
SERIAL N.
CONTROL
POWER: AC 100-240V / 50-60Hz
FUSE: T1.0A/250V Slow
MADE IN CHINA
9
567
810
11 1 2
5. Switch: Switches on and off power.
6. Fuse Holder: Contains the fuse inside.
7. Mains input with socket and integrated fuse holder.
8. DMX output and DMX input: 3PIN Female XLR and DMX 3PIN Male XLR connec-
tors.
9. Key switch: Make sure the professional person use.
10. Safety eye: Connecting wire rope to prevent illegal operation and fall.
11
ENGLISH
OMEGA-300 RGB User manual

11. LED control interface: Various mode setting operation for machine
12. Mic: Turn the knob to adjust the sound activated sensitivity.
9. MENU OPERATING INSTRUCTION
Once after every power on laser, VERSION and MANUFACTURE INFORMATION will be
shown in LED display of rear panel. Once laser is powered on, the display monitors cur-
rent operating standalone mode or DMX address of DMX mode. With this LED display,
it is very easy to set and change operating mode of laser. After every resetting and sav-
ing, the new mode information will be shown on the display monitor at next power on.
Mode Option, to choose the operating mode of laser.
Confirmation, to confirm the laser to show the present mode at the
next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
E N T E R E N T E R
E N T E R E N T E R
F U N C
F U N C F U N C F U N C
E N T E R
F U N C F U N C
E N T E R
12
ENGLISH
OMEGA-300 RGB User manual

LED Display Function LED Display Function
Aut Auto Sou Sound
Au1 Aut 1 So1 Sound 1
Au2 Aut 2 So2 Sound 2
Au3 Aut 3 So3 Sound 3
Au4 Aut4 So4 Sound4
Au5 Aut5 So5 Sound5
Au6 Aut6 So6 Sound6
Au7 Aut7 So7 Sound7
Attention : In preprogrammed standalone SOUND mode, the laser beam will
be blank-out in 3 seconds without AUDIO/MIC activated signal.
9.1. Initial Setting
Built-in
Programs
AUT - 5 shows Auto A3D 3D shows Auto
AUb - light beam show Auto
AUL - Lumia show Auto
AUN - AUTO show double bursting grating
AUO - Universe nebula show Auto
SXX - Above show with sound control
Press UP/DOWN to choose
different effects, then press
ENTER to conrm.
Sound
Sensitivity
LED displayer will play S0-S9. S0 means no
sound; from S1 to S9 , the sensitivity is stron-
ger and stronger.
Press UP/DOWN to choose
the sensitivity andpress ENTER
to conrm.
DMX Mode DMX ADD 001 To DMX ADD 503.
If the words strobe is always
on the LED displayer, that
means DMX or slave signal
are not connected well; please
check cables and controller
device.
Slave Mode
Conrm laser in SLAVE MODE. Connect
MASTER laser with several SLAVE lasers with
DMX cable, SLAVE lasers are doing exactly the
same laser show as MASTER one.
Note: The slaves can’t receive the remote
signal.
REM Mode
In any standalone mode excepted SLA, press-
ing ON/OFF for 2 seconds to activate remote
function, and will be return the original mode
pressing ON/OFF for 2S again.
Choose UP/DOWN; press
ENTER to conrm.
13
ENGLISH
OMEGA-300 RGB User manual

10. REMOTE CONTROLLER
AUTO Shows
MUISC Shows
Laser NO/OFF
Color Changing
Effect Pause
Mirror Func
SOUND Sensitevity
Fixed Pattern(32)
Repeat playing
Button Function Description
ON/OFF
All modes other than the “slave” mode, continue to
press”ON/OFF” in the remote control button for 2 seconds,
you can enter or exit the remote mode.
AUTO AUTO Shows
MUSIC Music control mode, in this mode, if it receives sound signal,
the blue LED will twinkling
Sound Sensitivity
1 9
In the sound mode, press the “B” key in the remote control,
then the panel below “1-9” corresponds to the voice sensi-
tivity setting, “9” is the most sensitive
Color
change
For multi-color products, each time you press the key, will
change color.
change Show pictures or change pictures
Fixed
pictures Choose your favor pictures from 1 to 32
Repeat
playing Repeat switching the current pattern and the last pattern
Note: In remote mode, all controls and settings are automatically saved until
reboot. After the reboot, the rst time into the remote control mode, the
system will run AUTO state.
14
ENGLISH
OMEGA-300 RGB User manual

11. DMX Channel Chart
Channel Value Function
CH1 Mode
000-014 AUT
015-029 AUT 1
030-044 AUT 2
045-059 AUT 3
060-074 AUT 4
075-089 AUT 5
090-104 AUT 6
105-119 AUT 7
120-134 SOU
135-149 SOU 1
150-164 SOU 2
165-179 SOU 3
180-194 SOU 4
195-209 SOU 5
210-224 SOU 6
225-239 SOU 7
240-255 DMX Mode
CH2 Pattern 000-255 32 Laser Patterns
CH3 Color
000-014 Laser OFF
015-029 Original preprogrammed color
030-044 Color effects 1
045-059 Color effects 2
060-074 Color effects 3
075-089 Color effects 4
090-104 Color effects 5
105-119 Color effects 6
120-134 Color effects 7
135-149 Color effects 1 To Color effects 2
150-174 Color effects 2 To Color effects 3
175-199 Color effects 1 To Color effects 3
200-224 Color effects 1 To Color effects 2 To Color effects 3
225-255 Color Rolling
CH4 Color Roll
Speed
000-004 NO rolling
005-255 Fast to slow
CH5 Zooming
0-127 100%-5% xed pattern zoomed
128-169 Zooming IN
170-209 Zooming OUT
210-255 Alternately Zooming
15
ENGLISH
OMEGA-300 RGB User manual

CH6 Y axis rolling
000-127 0 -359 degree xed Y axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
CH7 X axis
rolling
000-127 0 -359 degree xed X axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
CH8 Z axis
rolling
000-127 0 -359 degree xed Z axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
CH9 X axis
mobile
000-127 128 different xed position on X axis
128-191 Clockwise moving
192-255 Anticlockwise moving
CH10 Y axis
mobile
000-127 128 different xed position on Y axis
128-191 Clockwise moving
192-255 Anticlockwise moving
12. BUILT-IN PATTERN LIBRARY
DMX Pattern DMX Pattern DMX Pattern DMX Pattern
000-007 064-071 128-135 128-135
008-015 072-079 138-143 198-205
016-023 080-087 144-151 206-213
024-031 088-087 152-159 214-221
032-039 096-103 160-167 222-229
040-047 104-111 168-175 230-237
048-055 112-119 176-181 238-245
056-063 120-127 182-189 246-255
16
ENGLISH
OMEGA-300 RGB User manual

13.SPECIFICATIONS
General Professional RGB Graphic Laser
Laser Class Class-3B
Red Laser LD 650nm, 150mw
Green Laser DPSS 532nm, 50mw
Blue Laser LD 450nm, 100mw
Laser level Class 3B Laser
AUTO Four show AUTO
SOUND Four show SOUND
DMX Channel Range 1-10
Mains 100-240V - 50/60Hz
Fuse 250V 1 A Slow Blow (20mm Glass)
Consumption 20W
Fixture Size (WxHxD) 200 x 80 x 145.5 mm
Fixture Weight 1.5 kg
Carton Size (WxHxD) 247 x 152 x 213 mm
Carton Weight 1.6 kg
17
ENGLISH

14.WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specic
to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing
faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual
parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of SOUNDSATION.
While under warranty period, defective products may be returned to your local SOUNDSATION
dealer together with original proof of purchase. To avoid any damages in transit, please use the
original packaging if available. Alternatively you can send the product to SOUNDSATION SERVICE
CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product to service
center you need an RMA number. Shipping charges have to be covered by the owner of the prod-
uct.
For further information please visit www.soundsationmusic.com
15.WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste, ac-
cording to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environment
and human health due to potentially hazardous substances that are generally associated with EEE.
At the same time, your cooperation in the correct disposal of this product will contribute to the
effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, waste authority, approved WEEE scheme or your household waste
disposal service.
18
ENGLISH

This product is imported in EU by
Questo prodotto viene importato nella UE da
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy
www.soundsationmusic.com
Soundsation® is a registered trademark of FRENEXPORT SPA - Italy
Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy

www.soundsationmusic.com
Ver 1.0 - July 2017
