Sound Sation CEL-5318-RG User manual

CEL-5318-RG
COMBINED EFFECT LIGHT 5x3W RGBWA LED EFFECT
+ 8x1W WH STROBO + 200mW RG LASER
Please read this manual carefully and proper take care of this manual
USER MANUAL

2
ENGLISH
Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible
needs of musical instrument and professional audio and lighting users offering a wide range of
products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are looking for a
feedback from you about the operation of the product and possible improvements to introduce in
the next future. Go to our website www.soundsationmusic.com and send an e-mail with your
opinion, this will help us to build instruments ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation can cause
damages to you and to the unit. Take care!
The SOUNDSATION Team
IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals
are involved within this apparatus, even under the normal operating
conditions, which may be sufcient to constitute the risk of electric
shock or death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off

3
ENGLISH
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
Water and Moisture
The apparatus should be protected from moisture and rain and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat.
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer's instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus. Do not defeat the
safety purpose of the polarized or grounding-type plug. A polarized plug has two poles;
a grounding-type plug has two poles and a third grounding terminal. The third prong
is provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement.
Power Supply
The apparatus should be connected to the power supply only of the type as marked on
the apparatus or described in the manual. Failure to do could result in damage to the
product and possibly the user. Unplug this apparatus during lightning storms or when
unused for long periods of time.

4
ENGLISH
SC-80W-1-W User manual
TABLE OF CONTENTS
1. PRODUCT SPECIFICATION....................................................................................5
2. LED DISPLAY ..........................................................................................................5
2.1. LED display function..............................................................................................................6
3. Display program instruction..................................................................................7
4. HOW TO OPERATE.................................................................................................8
4.1. Master/Slave build-in function ...............................................................................................8
4.2. Two light show.......................................................................................................................9
4.3. DMX Controller......................................................................................................................9
5. CHANNEL MODES ..................................................................................................9
5.1. 1CH Mode .............................................................................................................................9
5.2. 21CH Mode ...........................................................................................................................9
6. WARRANTY AND SERVICE..................................................................................10
7. WARNING ..............................................................................................................11
Fuse
To prevent the risk of re and damaging the unit, please use only of the recommended
fuse type as described in the manual. Before replacing the fuse, make sure the unit
turned off and disconnected from the AC outlet.
Electrical Connection
Improper electrical wiring may invalidate the product warranty.
Cleaning
Clean only with a dry cloth. Do not use any solvents such as benzol or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual. Refer
all servicing to qualied service personnel only. Only use accessories/attachments or
parts recommended by the manufacturer.
WARNING: Please remember the high sound pressure do not only temporar-
ily damage your sense of hearing, but can also cause permanent damage.
Be careful to select a suitable volume.

5
ENGLISH
SC-80W-1-W User manual
1. PRODUCT SPECIFICATION
fEffects: Derby effect with 5x 3W RGBWA 5IN1 LED; Strobo Effect with 8x 1W White
LED; 2-Color Laser Effects with 150mW Red Laser and 50mW Green Laser
fFour control modes: Sound active, LED auto run, DMX and master/slave
fBuilt-in master/slave and sound active modes, super show mode
fDMX Channel Modes: 1CH and 21CH
fLED display, easy to control
fIdeal for disco dance hall, club, bar, party, mobile DJ and so on
fVoltage: AC100-240V 50/60Hz
fConsumption Power: 30W
fLight size: 29.5 x 22.5 x 28.5 cm
fWeight: 3.2 kg
2. LED DISPLAY
Item N. Display Function
Button:
(1) MENU Enter the menu
(2) DOWN Next the menu
(3) UP Previous menu
(4) ENTER Enter the select function
Led:
(5) DMX DMX mode,If received the DMX signal,
the indicator light ashing
(6) SLAVE Slave mode,if received slave signal, the
indicator light ashing
(7) MASTER
Master mode, one machine or many in
test, There is a setting for master, the
indicator light
(8) SOUND In the sound active, if have sound signal,
the indicator light ashing

6
ENGLISH
SC-80W-1-W User manual
2.1. LED display function
To choose a function, press MENU button, then press UP/DOWN button and press
ENTER button to conrm and edit specic parameters. To exit and go back to main
mode, wait for 10 seconds or press the MENU long time. A complete list of all menus
and sud-menus is as follows:

7
ENGLISH
SC-80W-1-W User manual
3. Display program instruction
1. - DMX512 Address Setting
Choose , press ENTER button to conrm. Press UP/DOWN button to nd initial
address, then press ENTER button to save it. Wait 10seconds or press MENU for long
time to return to main menu.
2. - Channel mode
Choose , press ENTER button to conrm. Press UP/DOWN button to select the
channel, like (1CH) or (21CH) mode, etc. Press ENTER button to save
it. Wait 10seconds or press MENU for long time to return to main menu.
3. - Slave mode
Choose , press ENTER button to enter, (Master) or (Slave 1)
or (Slave 2) mode, press ENTER button to save it. After 10seconds or press
MENU for long time to return to main menu.
4. - Show mode
Choose , press ENTER button to conrm, enter (Random show) or
(show 1) or (show 2) or … or (show 8), then press ENTER but-
ton to save it. Wait 10seconds or press MENU for long time to return to main menu.
Choose , press ENTER button to conrm, press UP button to enter , then
press ENTER to enter , use UP button to increase conversion speed, the maxi-
mums speed is
5. - Sound Control
Choose , press ENTER button to conrm. Use UP/DOWN button to select
(Sound control on) or (Sound control off), then press ENTER button to save it.
After 10seconds or press MENU for long time to return to main menu.
6. - Sound Sensitivity
Choose , press ENTER button to conrm. Use UP/DOWN button to adjust the
sensitivity value from no sound control to the max , after selection, then
press ENTER button to save it. Wait 10seconds or press MENU for long time to return
to main menu.

8
ENGLISH
SC-80W-1-W User manual

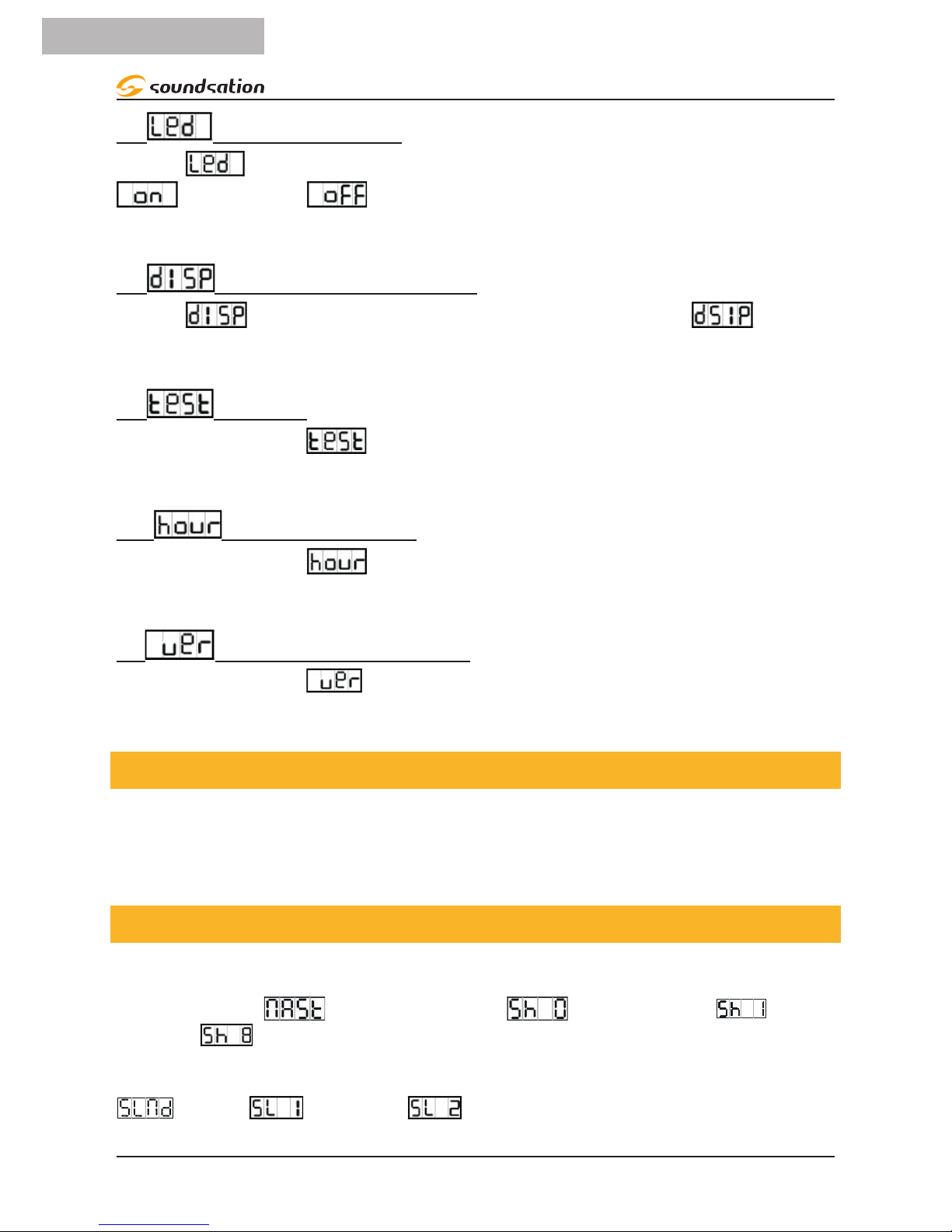

7. - LED display
Choose , press ENTER button to conrm. Use UP/DOWN button to select
(display on) or (display off) mode, after selection, then press ENTER
button to save it. Wait 10seconds or press MENU for long time to return to main menu.
8. - Display inversion
Choose (Normal), press ENTER button to conrm, then enter (Inver-
sion). After selection, press MENU button to enter the mode that has been selected.
Wait 10seconds or press MENU for long time to return to main menu.
9. - Test
Press MENU button to , press ENTER button, the led display will strobe, the
light will run built-in program to test, press MENU to back to main menu.
10. - Working time
Press MENU button to , press ENTER button, it will show the working time on
the display. Press MENU to back to main menu.
11. - Program version
Press MENU button to , press ENTER button, it will show the Program version
on the display. Press MENU to back to main menu.
4. HOW TO OPERATE
Here are 2 ways to operate:
fMaster/slave build-in program to control
fDMX controller
4.1. Master/Slave build-in function
Connect the lights in series, the rst light control the other light to auto show, sound
control show and so on. It’s very good for the instant show mode. Must set the rst light
to be master light same time to choose (Random show), (show
1) or …or (show 8).
If there are no DMX signals, the master mode LED will light up, the sound control LED
will strobe according to the music, the other lights will not work in slave mode.
Choose (Normal) or (two light show) mode, when connect the
DMX cable, the slave LED will light up.

9
ENGLISH
SC-80W-1-W User manual
4.2. Two light show
For the slave light, slave 1 ( ) running same as the master light, slave 2 ( )
running against the master light. If there are just two light, could set the second light as
slave light ( ) for better show.
4.3. DMX Controller
If controlled by DMX controller, you need to set the DMX address code to control the
light, the address code value is between 1-512, then the light will receive the signal
accordingly.
Press MENU button, choose , press ENTER button, address code will strobe.
Use UP /DOWN to select DMX512 address code. After address code settled, press
ENTER button until the address code stops strobing, it will automatically return to the
menu after 8 seconds. If you want to go back to the previous status and without any
changes, you could press MENU button.
5. CHANNEL MODES
5.1. 1CH Mode
Channel Value Function
CH1
(008-255 all under
sound control)
000-007 No function
008-037 Show mode 1
038-067 Show mode 2
068-097 Show mode 3
098-127 Show mode 4
128-157 Show mode 5
158-187 Show mode 6
188-217 Show mode 7
218-247 Show mode 8
248-255 Random show 1-8
5.2. 21CH Mode
Channel Value Function
CH1 000-255 Full dimmer 1,0-100%
CH2 000-255 Strobe 1, slow to fast
CH3 000-255 R dimmer,0-100%
CH4 000-255 G dimmer,0-100%
CH5 000-255 B dimmer,0-100%
CH6 000-255 W dimmer,0-100%

10
ENGLISH
SC-80W-1-W User manual
CH7 000-255 A dimmer,0-100%
CH8 000-255 Driver run
CH9 000-255 Full dimmer 2,0-100%
CH10 000-255 Strobe 2, slow to fast
CH11 000-255 W1 dimmer,0-100%
CH12 000-255 W2 dimmer,0-100%
CH13 000-255 W3 dimmer,0-100%
CH14 000-255 W4 dimmer,0-100%
CH15 000-255 W5 dimmer,0-100%
CH16 000-255 W6 dimmer,0-100%
CH17 000-255 W7 dimmer,0-100%
CH18 000-255 W8 dimmer,0-100%
CH19 000-255 Red laser light up
CH20 000-255 Green laser light up
CH21 000-255 Laser rotate
6. WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specif-
ic to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product effected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing
faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual
parts or the entire appliance. Any defective parts removed from a product during the course of a
warranty claim shall become the property of SOUNDSATION.
While under warranty period, defective products may be returned to your local SOUNDSATION
dealer together with original proof of purchase. To avoid any damages in transit, please use the
original packaging if available. Alternatively you can send the product to SOUNDSATION SER-
VICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati - Italy . In order to send a product
to service center you need an RMA number. Shipping charges have to be covered by the owner of
the product.
For further information please visit www.soundsationmusic.com

11
ENGLISH
SC-80W-1-W User manual
7. WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste, accord-
ing to the WEEE Directive (2202/96/EC) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized one-
for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environment
and human health due to potentially hazardous substances that are generally associated with
EEE. At the same time, your cooperation in the correct disposal of this product will contribute to
the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, waste authority, approved WEEE scheme or your household waste
disposal service.
This product is imported in EU by
Questo prodotto viene importato nella UE da
FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy
www.soundsationmusic.com
Soundsation® is a registered trademark of FRENEXPORT SPA - Italy
Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy

www.soundsationmusic.com
Ver 1.0 - Sept. 2016
