Soundcore Frames User manual

Soundcore Frames
USER MANUAL

01 EN
What's Included
• Carefully unpack the box and check if the following parts are included.
• If any part is damaged, do not use it, contact Soundcore retailer or customer
service.
• Soundcore Frames (Audio Temples)
• Tour Frame
• Carry Case
• Magnetic Charging cable
• Cleaning Cloth
Assembling
• Push the audio temples into position on the hinges so they are securely
attached.
• If you want to change the tour frame (sold separately), hold the quick release
hinges and pull the audio temples slightly to disassemble.

EN 02
Setting Up
• Set up when you use it for the first time.
1. When you connect both audio temples to the charging cable, the LED indicator
on the charging cable will turn green.
2. Wait for 1 minute, then wear your Soundcore Frames. They will automatically
power on and enter Bluetooth pairing mode. When you hear the prompt voice,
select "Soundcore Frames" on your device's Bluetooth list to connect.
Soundcore Frames

03 EN
Charging
• Use the provided magnetic charging cable to prevent any damage.
• Fully charge your Soundcore Frames before the first use.
1. Align the charging pins on the magnetic charging cable with the charging port
on the audio temples.
• If correctly connected, the LED indicator on the charging cable will turn green.
2. Connect the end end of the charging cable into a USB charger.
Steady green Being charged
Light off Fully charged
• Soundcore Frames do not play audio while charging.
• Avoid wearing your Soundcore Frames while charging.
Powering On/Off
• Soundcore Frames will automatically power on when you wear them.
• After removing them they will power off after 2 minutes.
2 Mins
OFFON

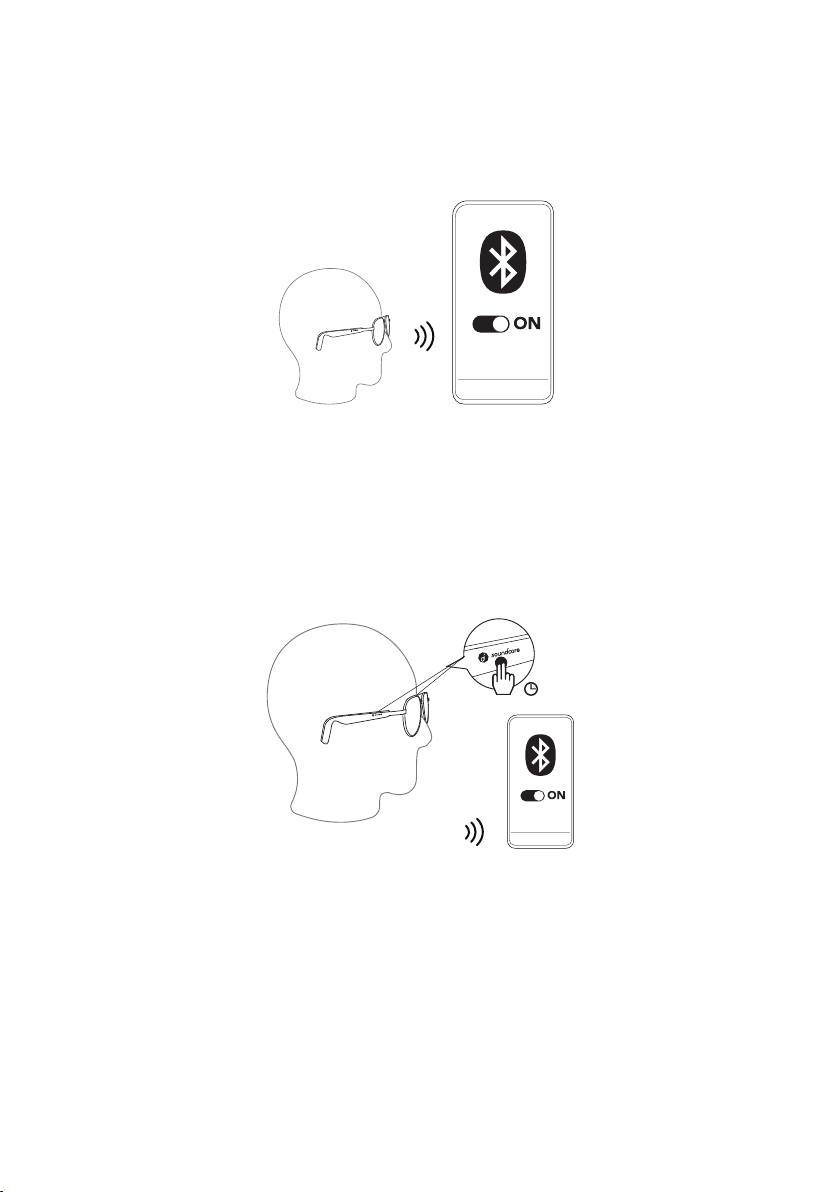

Bluetooth Pairing
Automatic Pairing
1. Soundcore Frames will automatically enter Bluetooth pairing mode when you
wear them.
2. Select "Soundcore Frames" on your device's Bluetooth device list to connect.

EN 04
Soundcore
Frames
• Each time you power on your Soundcore Frames, they will automatically
connect to your last successfully connected device if available within the
Bluetooth range.
Manual Pairing
• To pair with another device, wear them and press and hold the logo area on
both audio temples for 3 seconds until you will hear the voice prompt.
Soundcore
Frames
3s
Controls
• The touch button for all functions is located in the logo area on the audio
temples.
• Touchpad controls can be customized in the Soundcore app.
• Adjust the volume by using the volume controls on your mobile device.

05 EN
Play/Pause Tap twice
Next track Slide backward (logo area)
Previous track Slide forward (logo area)
Answer/End a call Tap twice
Voice Control
• You can enable voice control and choose your language in the Soundcore
app (Currently, only English and Chinese are available.)
• Easily control with no wake up word.
Stop Playing,
Resume Playing,
Next Song,
Previous Song,
Volume Up,
Volume Down,
Answer the Call,
Reject the Call
• Only the 8 voice commands above are supported.
Wearing Detection
• The playback will auto-pause when taking Soundcore Frames off, and it will
resume when you wear them.

EN 06
Soundcore App
• Download the Soundcore app to enhance your experience.
• User interface customization: Touch controls (control playback, activate
Siri) can be customized in the app.
• EQ settings: There are various EQ settings you can choose from in the app
to optimize your experience while enjoying different music genres.
• Voice control: Access voice control and select your language in the app.
• Firmware upgrade: You will be informed once the new version of
firmware is detected when you connect your Soundcore Frames with the
app. Ensure to keep the firmware up to date before each use.
Reset
• Reset your Soundcore Frames if you encounter any connection or function
problem.
• Press and hold the logo area on both audio temples for 10 seconds until you
hear the voice prompt.
10s

07 EN
Storage
• Make sure to fully charge the built-in battery before storing them for a long
period of time.
• Do not intentionally immerse the device in water or expose it to seawater, salt
water, chlorinated water, or other liquids (such as beverages).
• Do not expose the device to pressurized water, high velocity water, soapy
water, or extremely humid conditions (such as a steam room).
• Do not spill any food, oil, lotion, or other abrasive substances on the device.
• Clean this device with a soft, dry cloth. Do not use water, chemicals, or abrasive
materials to clean the frames. To clean the lenses, use an alcohol free lens
cleaner and a soft cloth.
• Please keep the glasses in a dry environment. Try to use a hair dryer with cold
wind to dry the product if it was drowned in water.
Specifications
Specifications are subject to change without notice.
Input 5V 400mA
Rated output power 473 mW
Battery capacity 110 mAh
Charging time Around 1 hour
Playtime (varies by volume level and
content) Up to 5.5 hours
Speaker (each side) 25 x 8mm speaker + φ8mm speaker
Frequency response 20 kHz - 40 kHz
Impedance 22 Ω, 30 Ω
Waterproof level IPX4
Bluetooth version 5.2
Bluetooth range 10 m / 33 ft

183 TC
Soundcore 應用程式
• 下載Soundcore應用程式，享受更佳的體驗。
• 使用者介面自訂：可以在應用程式中自訂觸控功能( 控制播放、啟動Siri)。
• EQ 設定：應用程式有好幾個EQ設定可供選擇，讓您最佳化聆聽體驗，享受
不同類別的音樂。
• 語音控制：在應用程式中，存取語音控制並選擇您的語言。
• 韌體升級：使用此應用程式與SoundcoreFrames連線時，只要偵測到新的
韌體版本，就會通知您。確保每次使用前，韌體都處於最新狀態。
重設
• 如果您遇到任何連線或功能問題，請重設SoundcoreFrames。
• 按住兩支音訊鏡腳上的標誌區域約10秒，直到聽見語音提示。
10s

TC 184
存放
• 長時間存放內建電池之前，務必先將其充飽電。
• 不可故意將裝置浸入水中，或使其接觸到海水、鹽水、加氯水或其他液體( 例如
飲料 )。
• 別讓裝置暴露在加壓水、高速水、肥皂水或極度潮濕環境( 例如蒸汽室 )中。
• 避免任何食物、油品、乳液或其他磨蝕性物質潑濺到裝置上。
• 用柔軟的乾布清潔此裝置。請勿使用水、化學品或磨蝕性材質來清潔鏡架。若要
清潔鏡片，請使用無酒精鏡片清潔劑和軟布。
• 請將眼鏡放在乾燥的環境中。如果產品在水中浸濕了，請嘗試使用吹風機，以冷
風來吹乾產品。
規格
規格可能隨時變更，恕不另行通知。
輸入 5V 400mA
額定輸出功率 473mW
電池容量 110mAh
充電時間 約1小時
播放時間（視音量大小與播放內容而有
所不同） 最多5.5小時
揚聲器( 每側 ) 25x8mm揚聲器+φ8mm揚聲器
頻率響應 20kHz-40kHz
阻抗 22Ω,30Ω
防水等級 IPX4
藍牙版本 5.2
藍牙範圍 10m

185 AR

•
•.Soundcore
•Soundcore Frames
•
•
•
•

•
•


AR 186

•
LED1

Soundcore Frames2
Soundcore FramesBluetooth
Bluetooth
Soundcore Frames

187 AR

•
•Soundcore Frames
1
•LED
.USB2
 
 
•Soundcore Frames
•Soundcore Frames

•Soundcore Frames
•
2 Mins
OFFON

AR 188
Bluetooth

BluetoothSoundcore Frames1
BluetoothSoundcore Frames2
Soundcore
Frames
•Soundcore Frames
.Bluetooth

•3

Soundcore
Frames
3s

•
•.SoundcoreTouchpad
•

189 AR
 
 
 
 

•Soundcore

•
Stop Playing,
Resume Playing,
Next Song,
Previous Song,
Volume Up,
Volume Down,
Answer the Call,
Reject the Call
•

•Soundcore Frames
