SoundGate VIDVWTRG1V4 User manual

Purpose...
The VIDVWTRG1V4 allows you to add up to 2 video
signals (DVD, VCR, rearview camera, game console,
etc.) to the factorynavigation systems in the
Volkswagen Touareg. Note: The VIDVWTRG1V4 also
provides one stereo audio input.
Features...
The VIDVWTRG1V4 utilizes microprocessor control, ultra-reliable surface-mount
construction, and advanced firmware design, to flawlessly match the video signal
from the new sources to the factory system. The VIDVWTRG1V4 is also equipped
with brightness, color, contrast and tint adjustments to allow you to get the best
quality picture possible.
Copyright©2004-2007 SoundGate®.All Rights Reserved.
SoundGate®is a registered trademark of Stillwater Designs, Inc.
All other trademarks are the property of their respective owners. Rev20070827
Be Sure To Ask Your Autosound Specialist About
These Other Exciting SoundGate Products...
•Competition-Grade Interfaces for adding amplifiers
•Remote audio control interfaces that let you control
aftermarket receivers and CD players from your factory rear seat, or steering-wheel-mounted
audio controls.
•And many others!
www.soundgate.com
Why SoundGate Dealers have the edge...
The technologies used in today’s vehicles are as sophisticated as any laptop computer.
At SoundGate we believe these new technologies are full of opportunities for mobile
electronic dealers across the nation. We make it a high priority to not only research
these new systems, but to understand them and their impact on the aftermarket car
audio industry. Armed with this knowledge, we are well equipped to help you integrate
new components into these systems with our innovative, high-performance interfaces
and unparalleled technical support.
VIDVWTRG1V4
The SoundGate VIDVWTRG1V4 works in the following Volkswagen vehicles, when
equipped with factorynavigation:
2003-06 Touareg
If you experience any problems, call SoundGate Technical Support at 800-256-0808
or e-mail us at [email protected]
Liability Disclaimer: SoundGate®,Stillwater Designs, Inc., its subsidiaries, or Officers of the corporation
cannot be held liable for damages or injuries caused by, or resulting from the use of this instruction guide or
product.
REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY OF THE PURCHASER. ANY IMPLIED WARRANTY ON
THIS PRODUCT INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN
DURATION TO THE DURATION OF THE WARRANTY(please see the enclosed Limited Warranty document for
complete Warranty information). SOUNDGATE NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON
TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE AND USE OF THIS PRODUCT.
SOUNDGATE PROHIBITS ANY RETAILER FROM EXTENDING ANY WARRANTY OR WARRANTIES ON BEHALF
OF SOUNDGATE TO ANY PERSON. SOUNDGATE IS NOT RESPONSIBLE FOR ANY INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.
Strictly adhere to all car manufacturer warnings that pertain to the disassembly, maintenance, or servicing of
the vehicle and any of its associated parts or systems.
SoundGate cannot be held responsible for discrepancies, or inconsistencies that may occur due to vehicle
manufacturing changes.
If you feel that you cannot agree with the above limitations, please return this product to the dealer you
purchased it from, or call SoundGate Customer service at 800-256-0808 for a Return Authorization number,
and returnthe product to SoundGate for a credit or refund.
Page 1
Simple-fiTM
Simple-fiTM

Connect black connector to open port on rear of radio
A. You will be connecting the SoundGate VIDVWTRG1V4 at the factory navigation
radio. Gain access to this location.
B. Press the locking tab on the black housing adjacent to the black locking arm,
and rotate the locking arm 90°. Insert connector into port on rear of radio and
rotate locking arm back to lock connector in position.
C. Plug the white 16-pin molex-style connector into the video module.
Preliminary:
A. Please consult a factory service manual for exact location and disassembly
instructions if you are unsure of the procedure. Pay close attention to any
warnings or instructions regarding working in or around airbags.
B. Turn the ignition key to the “Off” position.
C. Make sure the car’s factory radio is turned to the “Off” position.
Step
3
Install the video source unit(s)
Referencing the instructions provided with your video source units,
install the components in the desired locations. Route the video
cables and any required power,ground, and trigger wires to the
factory amplifier location for connection to the VIDVWTRG1V4.
Step
2
Connect audio RCA’s from video source
If applicable, connect the audio RCA’s from your video source to the
RCA’s on the VIDVWTRG1V4 cable.
Step
4
Verify DIP switch settings on VIDVWTRG1V4 module
On the end of the module as shown in the photo at lower left, you will
see a red 5-position DIP switch. Verify that the switches are set as
follows (On = down,Off = up):
2, 3 = on (down) 1, 4 and 5 = off (up)
Step
1
V
VI ID DV VW WT TR RG G1 1V V4 4I IN NS ST TA AL LL LA AT TI IO ON NI IN NS ST TR RU UC CT TI IO ON NS S
Connect remaining wires
Referencing Figure 2 and 3 on page 3, connect the remaining wires on
the VIDVWTRG1V4 harness. One of the options shown will cover most
installations.
Consult the documentation that came with your video component to determine
which of these is appropriate for your installation.
Step
5
Page 2
IMPORTANT WARNING!
It is illegal in all 50 U.S. states, and in most Canadian
provinces, to have real time video (TV broadcast, VHS, DVD
video, etc.) in view of the driver.
IF YOU ARE GOING TO USE THE SOUNDGATE VIDEO INTERFACE
FOR ANYTHING OTHER THAN INTERFACING A REARVIEW
CAMERA SYSTEM, THE BLUE INTERLOCK WIRE ON THE
SOUNDGATE VIDEO MODULE MUST BE PROPERLY CONNECTED
TO PREVENT THE DRIVER VIEWING REAL TIME VIDEO WHILE
THE VEHICLE IS IN MOTION.
We do not want to put our dealers in a position of liability,
nor our customers in danger in the event of an accident due
to driver distraction.
If you do not intend to comply with applicable law, please
return the SoundGate video module to the dealer it was
purchased from, or to SoundGate if it was purchased direct.
Call SoundGate Customer Service at 800-256-0808 for a
Return Authorization.

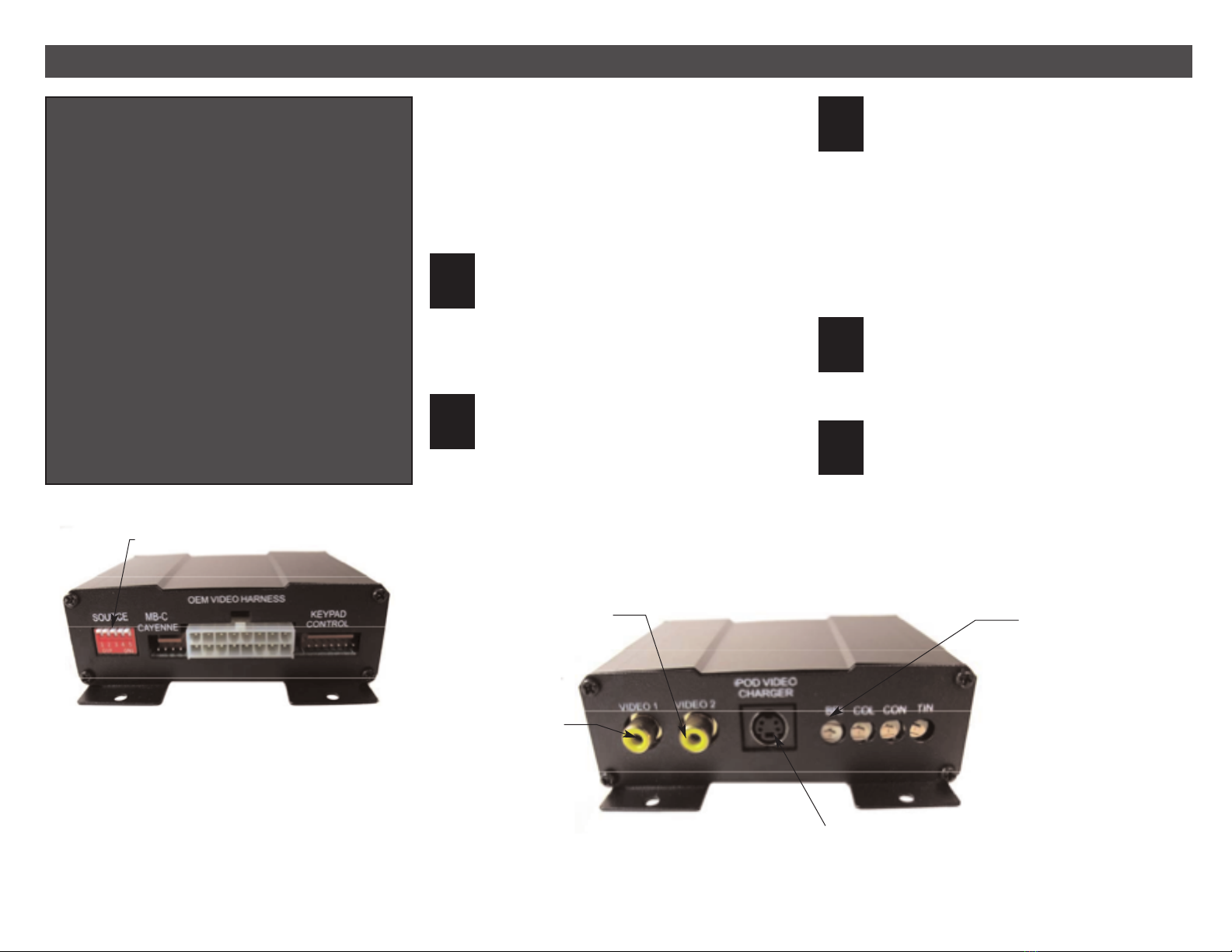

DIP switches
Inputs and Controls
Video Input 2
iPod Input
Video Input 1
Brightness/Color/Contrast
/Tint Adjustments
Inputs and Controls

Rearview camera: If you have installed a rearview camera system, and have
the camera video signal connected to Video 1, with the grey Source 1 trigger
wire fed from the back up light circuit, when you put the vehicle in reverse, the
VIDVWTRG1V4 will automatically switch the screen display to the rearview
camera.
Adjusting picture quality: VIDVWTRG1V4 module is equipped with brightness,
color and contrast adjustments. Note: Adjustments affect both Video 1 and 2
equally (cannot be set individually).
V
VI ID DV VW WT TR RG G1 1V V4 4O OP PE ER RA AT TI IO ON N
30
86 85
87a
87
+12 Volt ACC “trigger”
from Source 2 (if present)
Bosch Relay
(not included)
Ground
Ground
Ground “trigger” from
Source 2 (if present)
Black - trigger wire
to activare Source 2
White 7-pin connector
with single black wire
Manual Latching-type
single pole, single throw
switch (not included)
Chassis ground
30
86 85
87a
87
Ground “trigger” from
Source 1 (if equipped)
Bosch Relay
(not included)
+12 Volt ACC (switched)
Manual Latching-type
single pole, single throw
switch (not included)
+12 Volt from back up
light circuit (hot when
vehicle is in reverse)
OR
+12 Volt “trigger” from
Source 1 (if equipped)
White 16-pin
connector
Red
Black
Blue
+12 Volt ACC (switched)
Chassis Ground
Interlock - ground from
hand brake (video
interlock)
Grey trigger wire
to activate Source 1
+12 Volt ACC (switched)

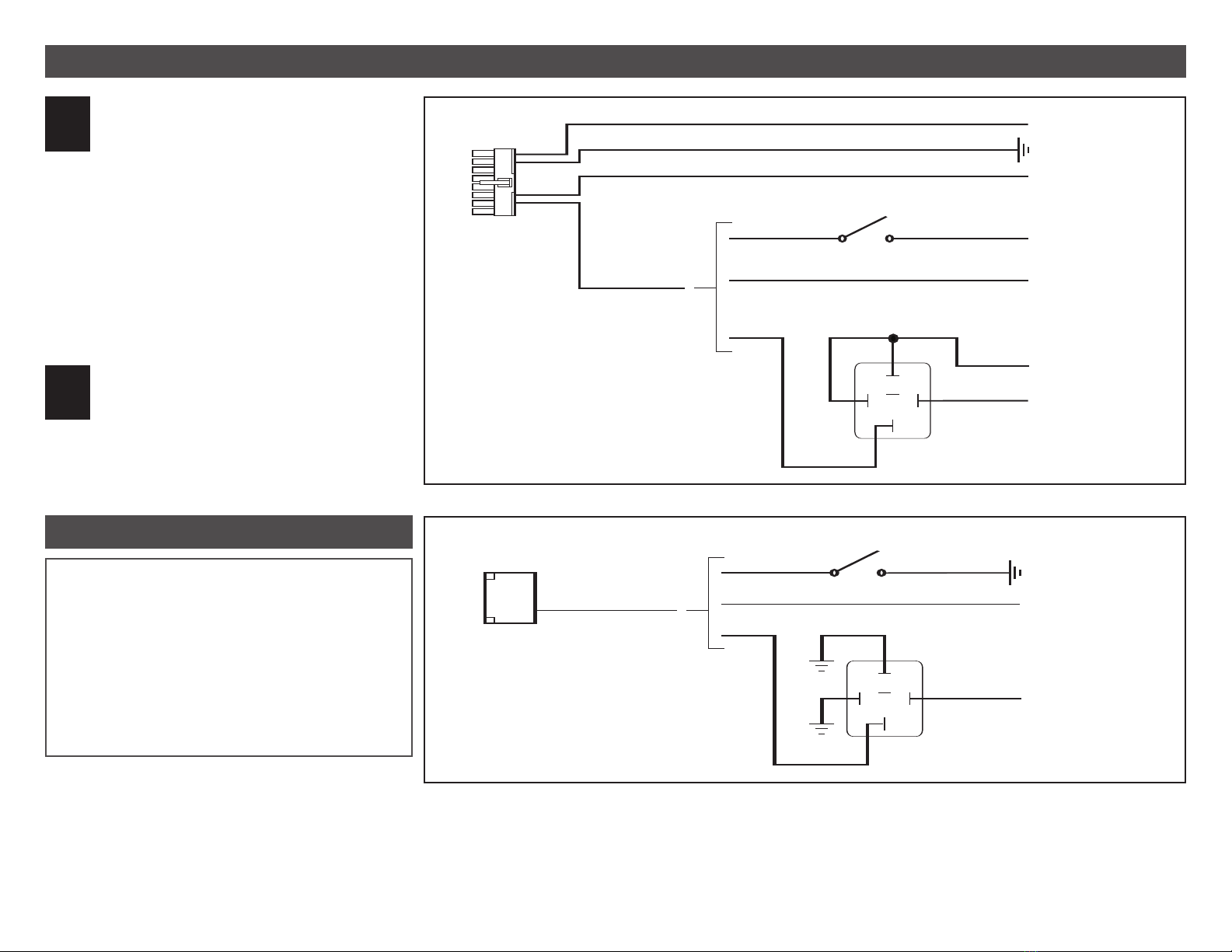

Figure 3 - Source 2 Activation Wiring
Figure 2 - Source 1 Activation, Power, and Ground Wiring
V
VI ID DV VW WT TR RG G1 1V V4 4I IN NS ST TA AL LL LA AT TI IO ON NI IN NS ST TR RU UC CT TI IO ON NS S
Page 3
Finish installation
Once testing is done and the system is functioning properly, reinstall
the all trim panels removed during installation. Installation is
complete!
Step
6
Reinstall radio and test operation
A. If you have installed a rearview camera, start the vehicle, turn on the radio and
navigation system and put the vehicle in reverse. The navigation display should
change to show the view from the camera. Shifting the vehicle out of park
should return you to the navigation display. If necessary, adjust the brightness,
color and contrast with the controls on the VIDVWTRG1V4.
B. If you have installed a video system, with the vehicle in park gear, and the
parking brake on, activate the video source. The navigation display will change
to show the video source.
C. With the video source active and playing, test the video interlock by taking off
the parking brake. The navigation display should return.
Step
5
