Dynojet POWER VISION PV3-16-03 User manual

POWER VISION
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
98200124.09
1 POWER VISION
1 REFLASH HARNESS
1 USB CABLE
2 VELCRO
2 DYNOJET DECAL
PARTS LIST
Installation Guide for:
PV3-16-03, PV3-16-14
Model Coverage:
2019-2022 Honda Talon R
2019-2022 Honda Talon X
2020-2022 Honda Talon X-4

2 HONDA TALON INSTALLATION GUIDE 98200124
INTRODUCTION
INSTALLING THE POWER VISION
1 Secure the Power Vision to the vehicle using the supplied
Velcro
. Make sure the Power Vision will not interfere with
the operation and steering of the vehicle.
Visit www.dynojet.com for an array of mounting solutions
for your Power Vision.
Note: The Power Vision does not need to be mounted
to the vehicle, however, the Power Vision provides
a window into your vehicle. Mount the Power Vision
to your dashboard or handlebars and gain access to
customizable full-color gauge screens, along with data
logging and troubleshooting screens.
2 Attach the diagnostic cable to the diagnostic port on the
Power Vision and to the diagnostic port on the vehicle.
Talon Four Seat Models: located under the driver’s seat.
Talon Two Seat Models: located under the driver’s seat,
under a rubber flap cover.
Note: Leave the 4-pin CAN connector disconnected.
This connector is only used with the Wideband module
for Honda (P/N WB-PV16-1).

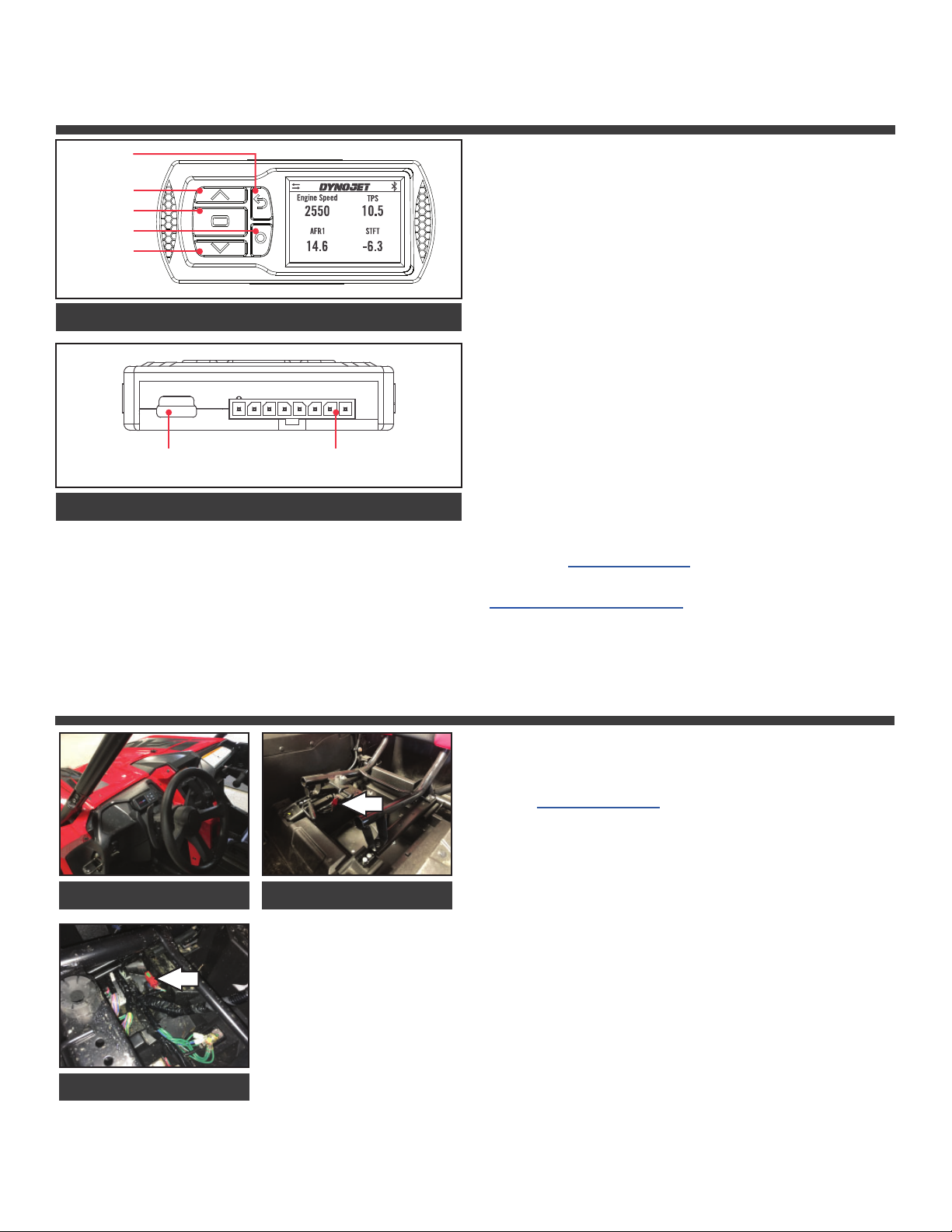

DIAGNOSTIC PORT— TWO SEAT
INSTALL POWER VISION DIAGNOSTIC PORT—FOUR SEAT
POWER VISION OVERVIEW—SIDE VIEW
Thank you for purchasing the Power Vision from Dynojet
Research. At Dynojet, our mission is to make every ride
the ultimate ride. The Power Vision allows you to tune
your stock ECU to achieve optimal performance from
your vehicle.
The Power Vision is the device to interface between
your computer and the vehicle ECU. Use the buttons
to navigate the device menus, make selections, cycle
through the four full-color available gauge screens, and
log data. Connect to the diagnostic port to flash a tune;
use the USB connection to interface between the Power
Vision and your computer.
Make your Power Vision device yours; display the
channels you want to see with four user-customizable
full-color gauge screens. Make the Power Vision your
window into your vehicle; secure the Power Vision to
your dashboard or handlebars to monitor any desired
set of gauges such as Throttle Position, Engine Speed,
and more. Wideband Air:Fuel Ratio can be added as a
channel to the PV3’s monitors by adding the accessory
available at www.dynojet.com.
For state of the art technical support, please visit
www.dynojet.zendesk.com.
SCROLL
USB CABLE PORT
CONNECT TO COMPUTER
DIAGNOSTIC CABLE PORT
CONNECT TO VEHICLE
POWER VISION OVERVIEW—FRONT VIEW
HOME/LOG
SCROLL
ENTER
RETURN

3
GETTING STARTED
Use the Tune File Wizard to prepare your Power Vision
device with the stock (stk) and tune (djt) files needed to
flash your vehicle.
1 Connect the Power Vision to the vehicle.
2 Turn the key on. The Power Vision will scan for files.
There are three possible file states:
File State 1: No compatible tune or stock files.
File State 2: No compatible tune files.
File State 3: All required files found.
3 Gauges are displayed.
Connect the Power Vision to the
vehicle diagnostic port to collect
ECU information. Turn the key on.
File State 3:
All required files found. The Power
Vision is ready to flash a tune to the
connected vehicle.
FLASHING YOUR VEHICLE
The Power Vision must be paired to the connected vehicle ECU
to function properly.
Note: Once paired to the vehicle ECU, the Power Vision will
not work on another vehicle without purchasing a tune
license.
1 From the Main Menu, select Flash Tune.
2 Select the tune file (.djt) and press Enter to view the Tune Info.
The Tune Info screen contains the technical notes showing what
was changed in the tune.
Note: The PV3 filters out files which are not compatible
with the connected vehicle based on year/trim delivered
direct from the factory and result in varied tune Compat and
CheckSum within the ECU. Additional files may be visible
on the device when connected via USB or on the website;
however, the PV3 will only display files which directly fit your
vehicle.
Note: The Dynojet tune file (.djt) is a tune file which is
different (better than stock performance or the necessary file
when bolting on an exhaust, for example); the stock file (.stk)
is the direct duplicate of what the OEM shipped.
3 Press Enter to accept the tune, or restore the ECU to original
stock (.stk) file, and pair the Power Vision to the vehicle.
Note: Pair to vehicle will only happen on the first flash.
4 Press Enter to pair and lock the Power Vision to the ECU and to
begin the flash. Do not turn off the key switch or disconnect the
Power Vision during the flash.
5 After the flash is complete, turn the key off and wait 45 seconds
before turning the key back on to start.
File State 2:
Go to tunes.dynojet.com/ to
download tune files.
File State 1:
Go to tunes.dynojet.com/ to
download stock and tune files.

4 HONDA TALON INSTALLATION GUIDE 98200124
This menu allows you to read and clear diagnostic trouble
codes.
1 To read codes, select Vehicle Tools>Diagnostics>Active
Codes.
2 To clear codes, select Vehicle Tools>Diagnostics>Clear
Codes.
VEHICLE TOOLS
VEHICLE INFORMATION
DIAGNOSTICS
DELETE DATA LOGS
VIEWING THE DIAGNOSTIC CODES
This menu allows you to view the device status (paired/not
paired), VIN #, Model ID, ECU serial number, tune compat, and
checksum compat.
Select Vehicle Tools>Vehicle Information.
VEHICLE TOOLS
VEHICLE INFORMATION
DIAGNOSTICS
DELETE DATA LOGS
VIEWING THE VEHICLE INFORMATION
RESTORING THE ECU
This menu allows you to restore the ECU. Use Restore ECU if
the device does not complete the flash or if your vehicle will
not start.
Select Vehicle Tools>Restore ECU.
VEHICLE TOOLS
DIAGNOSTICS
DELETE DATA LOGS
RESTORE ECU
RESET ADAPTIVES
This menu allows you to clear the trims which the narrowband
sensor has learned throughout prior drive cycles.
Select Vehicle Tools>Reset Adaptives.
RELEARN DCT
Use Relearn DCT when the MT/AT shift lights are illuminated
solid on the dash or if the vehicle’s transmission needs service
or a module was replaced. The DCT relearned sequence does
not show up right away.
1 Verify the vehicle is up to operating temperature.
2 Select Vehicle Tools>Relearn DCT.
SET DYNO MODE
This menu allows you to have the vehicle ignore the front
wheel speed sensor(s) for stationary dyno tuning while
allowing the transmission to shift as normal.
Select Vehicle Tools>Set Dyno Mode.

5
LOGGING DATA
The Power Vision is a powerful logging tool to diagnose running
issues. Use the Power Vision to log all vehicle operating data
and review the data in the Power Core software. Troubleshoot an
issue with excessive knock or a throttle blade closure by keeping
the Power Vision mounted to view and record channels.
1 Press the Log button to begin logging. The Power Vision
screen will illuminate a bright red banner across the top when
logging.
2 Press the Log button again to stop logging.
3 Use the Power Core software to view log files.
Snapshot Log: Press and hold the Log button for two
seconds to record the previous two minutes of operating time.
CONFIGURING GAUGES
14.6
4225
Engine Speed
AFR1
4225
Engine Speed
Make your Power Vision device yours; display the channels
you want to see with four user-customizable full-color gauge
screens. Each gauge screen has one, two, or four configurable
channels. Monitor channels such as Wideband, AFR, and Boost.
Sample gauges shown here; for a complete list of monitors
available, open the tune file in Power Core or scroll through the
gauges on the device when configuring or selecting channels for
the list of options.
1 From the Main Menu, select Device Tools>Configure Gauges.
2 Select a gauge screen and press Enter.
3 Select a channel and press Enter.
4 Select a channel from the list and press Enter.
5 Select the precision or units for that channel and press Enter.
6 Continue setting up the remaining channels as desired.
7 Continue configuring the remaining gauge screens as desired.
DELETING DATA LOGS
This menu allows you to delete data logs.
1 Select Vehicle Tools>Delete Data Log.
2 Select a specific log to delete or select *Delete All Logs*.
VEHICLE TOOLS
DIAGNOSTICS
DELETE DATA LOGS
RESTORE ECU
VIEWING THE DEVICE INFORMATION
This menu allows you to view the device firmware version,
serial number, and stock code.
Select Device Tools>Device Information.
DEVICE INFORMATION
DYNOJET POWER VISION
FW VERSION: 5.16.8297.41698
SERIAL NUMBER: PV00029757
STOCK CODE: 76125082

6 HONDA TALON INSTALLATION GUIDE 98200124
REFORMATTING THE DISK
This menu allows you to reformat the disk and erase all data.
Select Device Tools>Reformat Disk.
CHANGING THE SETTINGS
UPDATING THE DEVICE
UPDATE DEVICE
PV3_5.16.8297.41698.dfu
This menu allows you to rotate the screen allowing you to
change the orientation of the Power Vision device along with
adjusting the screen brightness. Turn the brightness up and
make your screen pop!
Select Device Tools>Settings>Rotate Screen to flip the
screen.
Select Device Tools>Settings>Brightness to change the
screen brightness.
This menu allows you to update the device with the latest firmware.
1 Go to www.dynojet.com.
2 From the top navigation menu, select Support>Downloads.
3 Click Power Vision 3.
4 Click the Firmware drop-down and download the Power Vision 3
Firmware for Honda.
5 Save the file to your device.
6 Select Device Tools>Update Device.
DIAGNOSTIC ENABLE
This menu allows you to create a file containing device
diagnostic information used by Dynojet Tech Support.
1 From the Main Menu, select Device Tools>Diagnostic Enable.
This will turn on diagnostic logging. Logging will continue until
the device is restarted.
2 If requested by Dynojet Tech Support, connect your Power
Vision to a computer and email the diagnostic file to
[e-mail]. Diagnostic log files are placed in the
log files directory.
DEVICE TOOLS
SETTINGS
UPDATE DEVICE
DIAGNOSTIC ENABLE

7
INSTALLING THE POWER CORE SOFTWARE
USING THE POWER VISION UPDATE CLIENT
This stand alone application will launch the Update Client
allowing you to update your Power Vision with the latest
firmware, retrieve additional tunes, or restore the Power Vision to
the original Dynojet factory settings.
1 Connect the Power Vision to your computer using the included
USB cable.
2 Navigate to the POWERVISION drive attached to your computer
and run the Update.exe file.
3 Click Update to load the current firmware. If the Update button is
grayed out, your Power Vision already has the latest firmware.
4 Click Restore to reload all original Dynojet tune and stock files.
5 Click Get Tunes to open the Dynojet Tune Finder. Follow the
instructions to Upload your PV_Info.txt file and retrieve new tunes.
6 Click Manual Firmware Update to navigate to and load a version
of firmware already saved on your computer.
Firmware Version: 5.16.8297.41698 S/N: PV00029757
Help 1.0.3.0
Manual Firmware Update
Restore Get Tunes
Download the Power Core software and take tuning to a
whole new level.
Note: Downloading the Power Core software is optional
and not necessary to use the Power Vision.
1 Go to www.dynojet.com.
2 From the top navigation menu, select Support>Downloads.
3 Click Power Vision 3.
4 Click the Software drop-down and download the Dynojet
Power Core software.
5 Double-click the saved file to begin installation. Follow
the on-screen prompts. Refer to the Power Core Help for
more information.
USB MODE
This menu allows you to connect your Power Vision to your
computer and enables sending and receiving files.
1 Connect the Power Vision to your computer using the included
USB cable. The Power Vision will automatically enter USB Mode.
OR
From the Main Menu, select USB Mode.
2 Transfer the desired files to your computer or to the Power
Vision.
USB MODE
USB FILE TRANSFER ENABLED
PRESS TO EXIT
MAIN MENU
DEVICE TOOLS
HELP
USB MODE
