Soundigital 5000.1 EVO 4.0 User manual

1
OWNERS MANUAL
5000.1

2
TABLE OF CONTENTS
Introduction............................................................................................................................
Package contents.............................................................................................................
Safety instructions.............................................................................................................
Montagem e desmontagemda capa plástica..................................................
Panels description
Audio inputs and controls....................................................................
Power inputs and audio outputs......................................................
Electrical Dimensioning..................................................................................................
Audio input and output...................................................................................................
Installation sequence.......................................................................................................
Wiring diagram...................................................................................................................
Procedure for setting the gain..................................................................................
Crossovers set up..........................................................................................................
Using the Bass Boost..................................................................................................

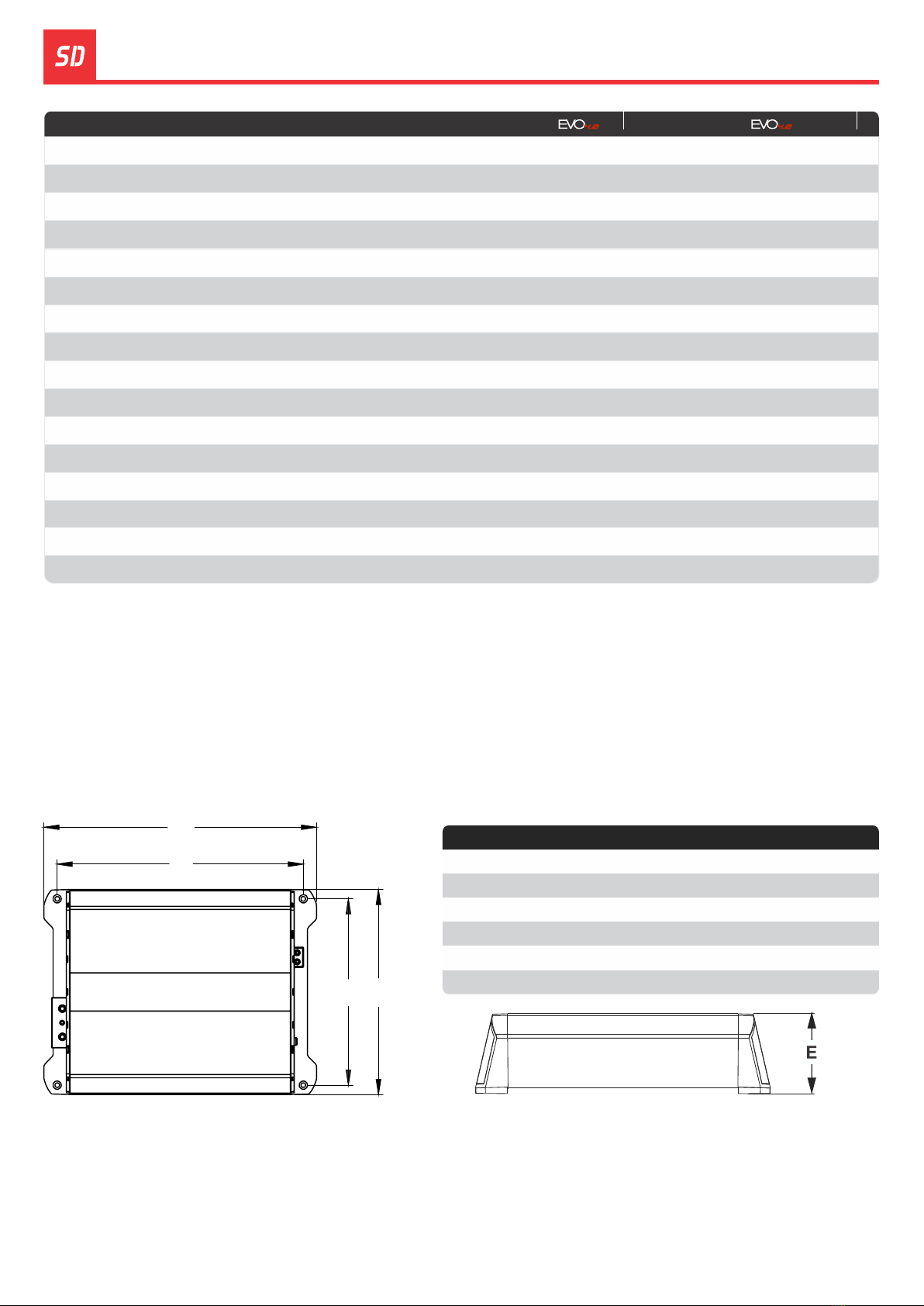

Technical specs
Parameters............................................................................................
Dimensional data................................................................................
3
3
4
5
6
7
8
8
9
10
11
12
14
14
14

3
INTRODUCTION
Dear Customer,
Congratulations on acquiring your Soundigital! You've just purchased a product of
high quality and technology. The Soundigital products are developed to assure
maximum efficiency and reliability to your sound system.
Class D amplifiers:
The main characteristics of Class D amplifiers are audio quality, efficiency,
versatility and compact design. Here are the advantages of these characteristics:
Audio Quality – Class D amplifiers used to have a limited response in the past and
they used to have a worse performance regarding higher frequencies thanClass
AB amps, despite being more efficient. Introducing new technologies, Soundigital
developed a Class D amplifier superior to the Class AB ones in efficiency and
performance.
Efficiency - The Soundigital Class D amplifiers have a total efficiency (power
source + output) higher than 70%, assuring a battery consumption and a heating
lower than the expected.
Versatility of uses –The flat response of all the frequencies of Soundigital
amplifiers allows them to be used in all the kinds of systems: SPL, Sound Quality,
Trio Eletrico and Pancadao, meeting the needs with extreme quality.
Compact design – The high efficiency and technology allow our amplifiers to be
really compact, making it easy to install them in vehicles where you have limited
space.
IMPORTANT INFO
Read this manual and follow its instructions and information carefully. It contains
extremely important information to have your amplifier working properly. If you feel
the need to contact our Tech Support, you can reach o u r t e c h n i c i a n s t h r o u
g h t h e e - m a i l [email protected].
PACKAGE CONTENTS
- 1 EVO4.0 Amplifier
- 1 Installation quick guide with warranty card
- 1 Promotional sticker

4
SAFETY INSTRUCTIONS
THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING
THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE
EQUIPMENT.
Warning!
To prevent injuries to the user or damage to the amplifier, read all safety instructions
written on this manual;
If you are insecure about the installation of this equipment, get in touch with our
tech support or with a professional specialized in car audio installation;
Before proceeding with the installation of any electric equipment on your vehicle,
unplug the negative (-) terminal of the battery to avoid fires, injuries or damages;
Use your sound system safely. The continuous exposure to sound pressures over
85dB may cause irreversible hearing damage;
This equipment is for use in automotive DC voltage batteries between 12.6 and
14.4 volts. Before installing the equipment, check voltage of the batteries;
Do not install the amplifier in places exposed to water, dirt or humidity;
Choose a ventilated place to install the amplifier and avoid blocking the side
ventilation windows;
Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the
vehicle, because it may cause ground looping (noise);
Make sure that the location chosen for the amplifier installation does not effect the
operation of the vehicle;
When passing cables through metallic walls, use rubber O-rings to avoid cable
cutting and short-circuits.
Clean the amplifier periodically with brush or dry cloth to assure the thermal
efficiency of the heatsink.
This product may reach temperatures over 60°C/140°F. Make sure it is cold before
touching it;
Be careful when making holes in the vehicle. Make sure you are not making holes
in the fuel tank, brake lines or electrical cables of the vehicle
Make sure the cables are properly secured throughout the installation;
Wear gloves, safety glasses and and all necessary PPE during the installation of
SounDigital amplifiers.

5
1 2
21
A
B

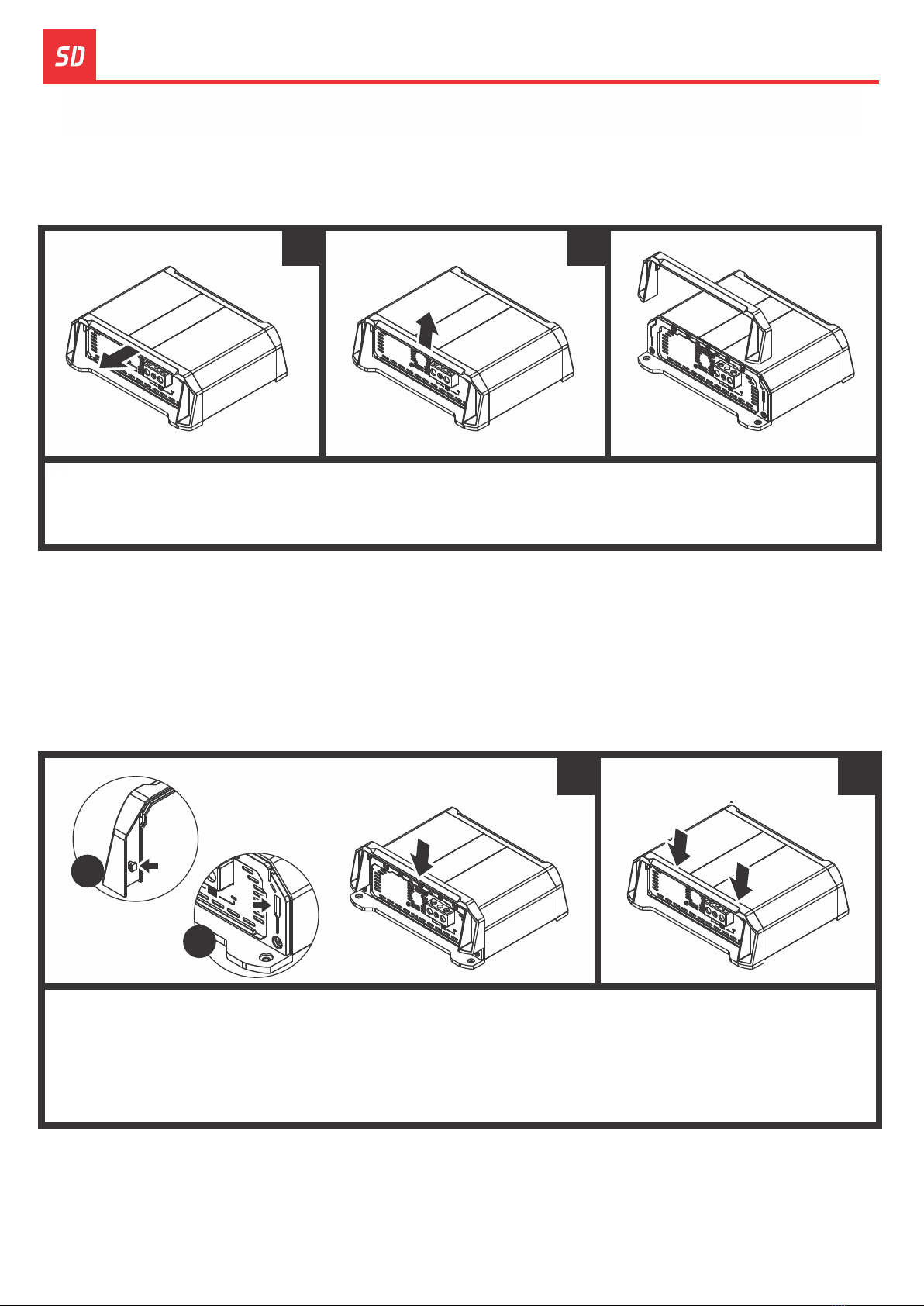

DISASSEMBLING OF THE PLASTIC COVER
ASSEMBLING THE PLASTIC COVER
The plastic covers have the function of finishing and hiding the amplifier fixing
screws. To disassembling and assembling them, follow the instructions below.
1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1.
2. Slide up the plastic cover in a continuous movement to remove it.
1. To fit the plastic cover back, carefully insert the point A of the plastic cover into point B of the
amplifier, slowly sliding it down.
2. Gently press the sides of the top of the plastic cover towards the bottom of the amplifier until
you hear a clicking noise.
EN
ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER

6

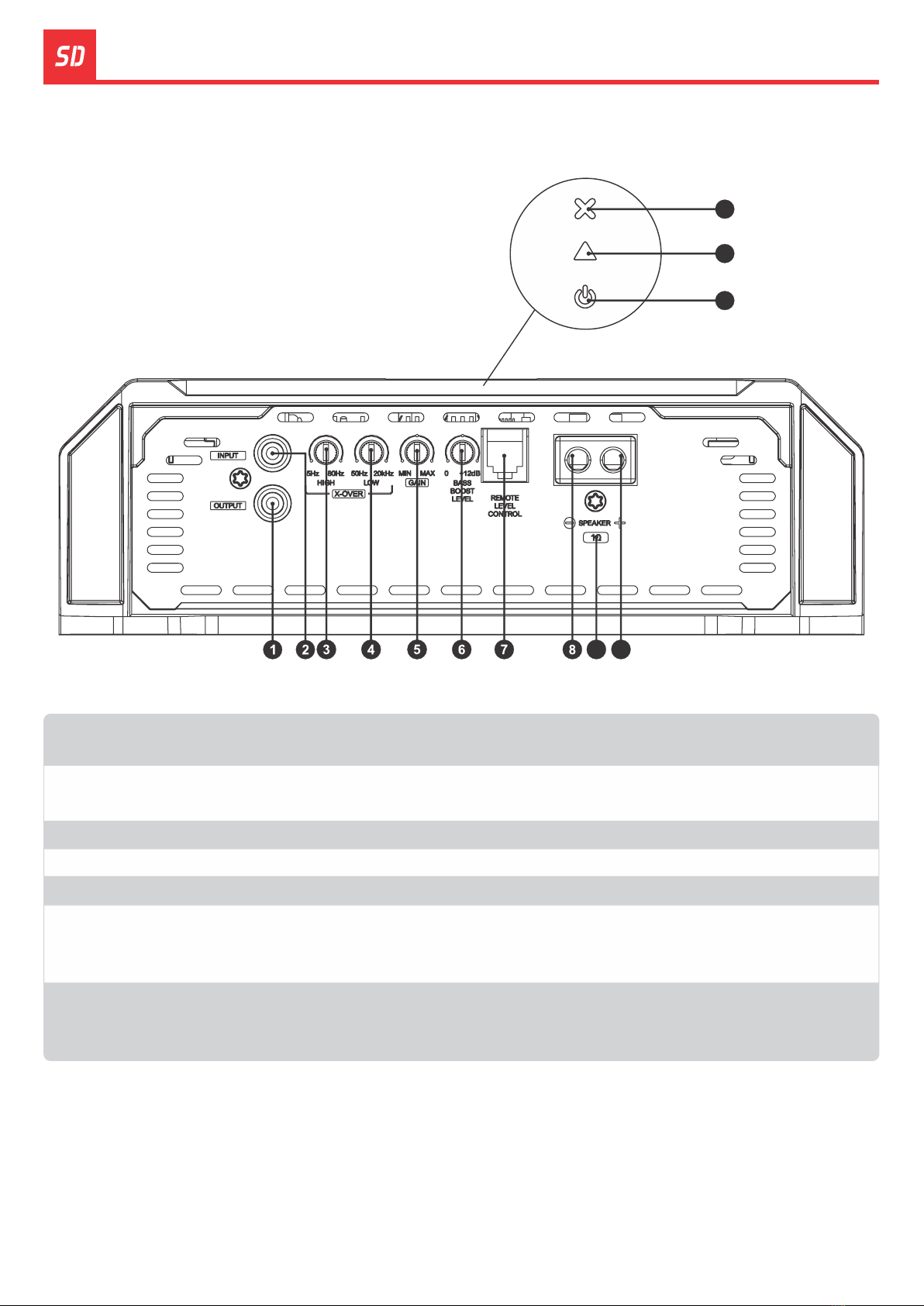

PANELS DESCRIPTION
Variable Low Pass filter control (50Hz ~ 20kHz)
Variable Gain Control
Variable bass boost control (0dB - +12dB/50Hz);
Remote level control connector
“Protection” LED indicator (Red)
2
4
1
3
5
12
9
6
7
11
8
13
10
GAIN
-
-
-
Bass Boost Level
Remote Level Control
Saída de Áudio
INPUT
X-OVER
OUTPUT
11
12
13
9 10
Audio input - RCA connector
Variable High Pass filter control (5Hz ~ 80Hz)
“Clip” LED indicator (Yellow)
“Power On” LED indicator (Blue)
Minimun speaker load allowed (impedance)
Negative speaker connector
Positive audio output connector

7

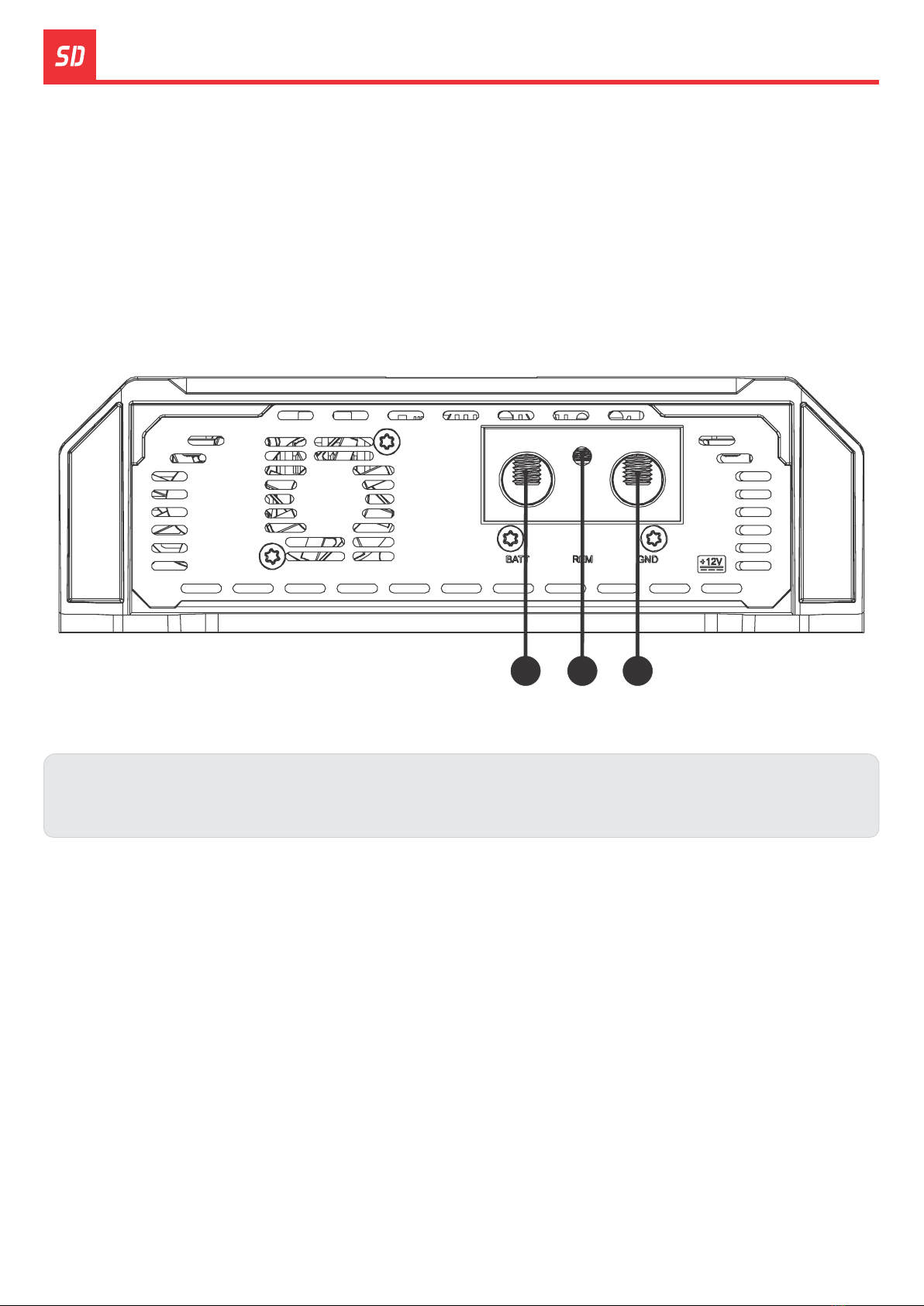

PANELS DESCRIPTION
ALIMENTAÇÃO
15
14
16
Remote power supply connector (REM)
Negative power supply connector (GND)
Positive power supply connector (+12v)
14 15 16

8
We recommend the use of ONLY OFC (Oxygen Free Copper) Cables on the
installation of our products.
5000
WRMS
ELECTRICAL DIMENSIONING AND AUDIO INPUTS
ELECTRICAL DIMENSIONING
For proper operation of your SounDigital amplifier, you need the proper
dimensioning of the electrical system and the cables used.
The table below shows the minimum section of GND cables, +12VDC cables and
speaker output cables according to the power generated by the amplifier.
POWER CABLE
GROUND CABLE
SPEAKER CABLE

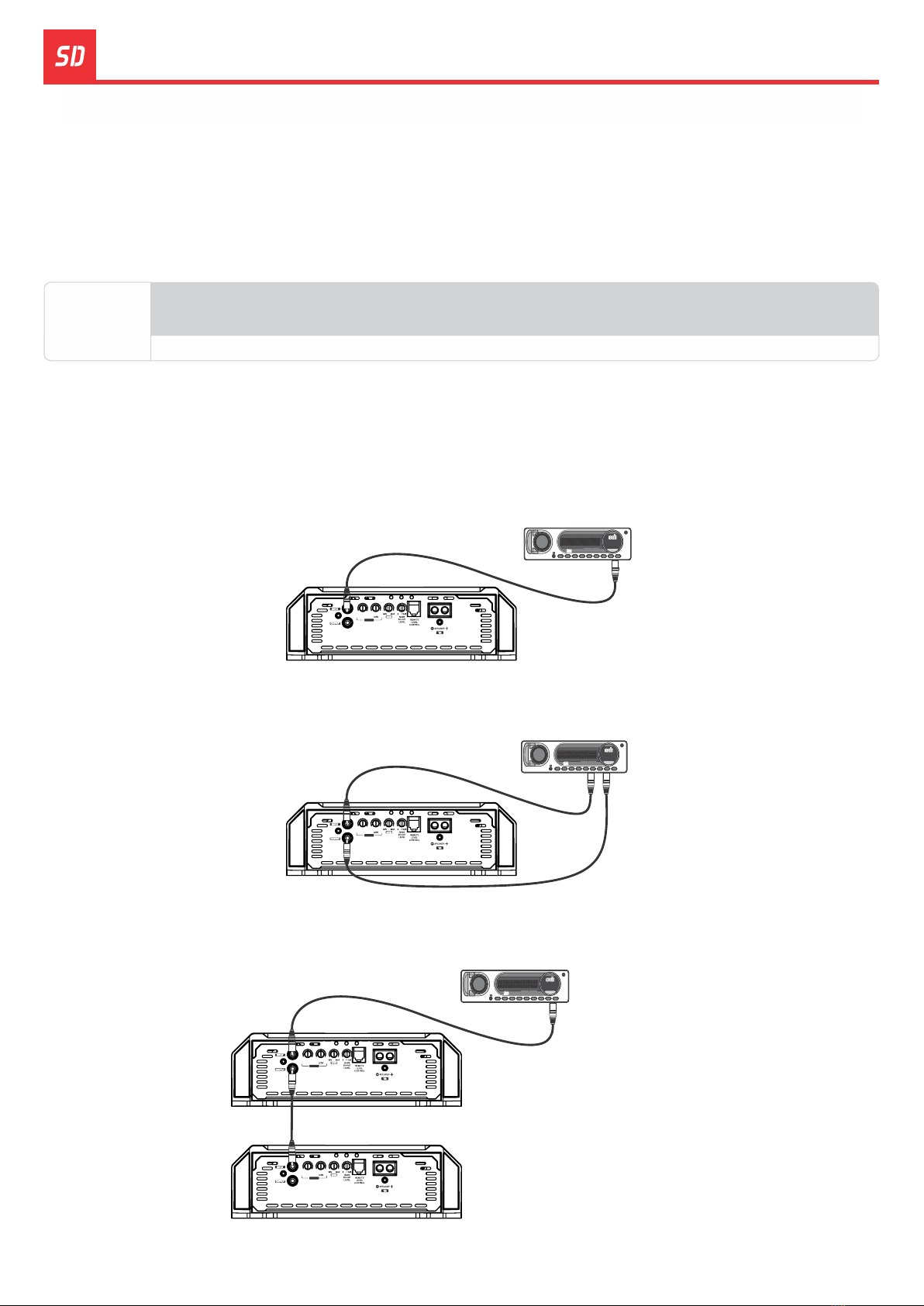

RCA INPUTS
Exemple of one RCA cable connection only
Example of two RCA cables connection (mono input).
Example of one RCA cable connection only and using the RCA output to connect
another amplifier.
X-OVER
500Hz
30Hz 50Hz5Hz
SUBSONIC
X-OVER
500Hz
30Hz 50Hz5Hz
SUBSONIC
X-OVER
500Hz
30Hz 50Hz5Hz
SUBSONIC
X-OVER
500Hz
30Hz 50Hz5Hz
SUBSONIC
50mm² - 0 AWG
2 x 2,5mm² - 13 AWG

9
ØMount the amplifier in such a way you have access to the connectors;
ØInstall the power cables in the vehicle properly, starting from the battery to the fuse
holder or circuit breaker, use the cable with the appropriate size. Make all connections,
install fuse holders or circuit breakers, but without placing the fuses or with the circuit
breakers in the "Off" position.
ØConnect the power cables in to the amplifier, observing the polarity. Connect all the
positive cables from the fuse holder or circuit breaker to the positive conector of the
amplifier and all the negative power cables from the batteries to the negative connector
of the amplifier;
ØThe ground cable must be as short as possible and must be connected to the vehicle
chassis and the battery negative;
ØInstall the signal input cables in a proper way, distant from the power cables;
ØConnect the RCA or the high signal input cables to the head unit and amplifiers;
ØInstall the audio output cables with the appropriate section , distant from the power and
audio input cables;
ØConnect the audio output cables to the amplifier and speakers respecting the positive
(+) and negative (-) polarities;
ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or thicker;
ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's
remote power output (when not using the high level signal inputs);
ØBefore powering the system, verify all the connections and make sure there are no
mistakes or short-circuits on the power and ground cables;
Ø;Reconnect the ground of the batteries
ØCheck if the headunit is turned off and then place the fuses in the fuse holders or switch
the circuit breakers on;
ØTurn on the main unit and the amplifier will turn on the "On" LED indicating that it is in
operation.
INSTALLATION SEQUENCE
Warning!
Warning!
Remove the paint between
the terminal and chassis
9

10
WIRING DIAGRAM
AUDIO INPUT AND OUTPUT CONNECTIONS
POWER SUPPLY CONNECTIONS
REMOTE
+12V
GND
FUSEFUSE
GND
+12V
GND

11
CROSSOVER SET UP
11
How to Adjust the Crossovers
Set in the variable control "HIGH" between 5 Hz and 80 Hz ("A") where you want to
perform the high pass cut filter;
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-15dB
dB
Hz
Set in the variable control "LOW" between 50 Hz and 20 kHz ("B") where you want to
perform the low pass cut filter;
-3dB
0dB
-15dB
Low
Pass
B
c
ƒc*2 ƒ
Low
Pass
dB
Hz
ØThe use of the two associated filters can form a bandpass filter, as in the figure
below, where point "A" is defined in crossover "HIGH" and point "B" is defined in
crossover "LOW".
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-15dB
dB
Hz
Low
Pass
c
ƒc*2 ƒ
Low
Pass
B

12
USING THE BASS BOOST
12
Using Bass Boost
The Amplifier Bass Boost setting enables the user to boost the sound intensity at
low frequencies of the sound system, where boost intensity can be adjusted.
This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with
an intensity boost adjustment from 0 to + 12dB (16 times), and a central frequency
adjustment of the filter in 50Hz, making it versatile for several types of sound
systems.
Bass Boost Chart
12dB
dB
Hz
0dB
3dB
0
9dB
6dB
50Hz
Bass Boost Level
How to Adjust Bass Boost
Reproduce your favorite song and set the boost intensity between 0dB and +12dB
at the variable control level according your preference.

13
GAIN SETING
Necessary equipament:
ØDigital AC voltmeter;
ØMedia with sine wave test tone 60Hz
recorded at 0db;
ØScrewdriver 1/8" ( for gain set)
Set up procedure
Turn the gain control all the way
Ø
down.
ØDisconnect the output cables from
the amplifier outputs;
ØTurn off all processing (bass, treble,
loudness, EQ, etc.);
ØSet the source unit volume to 3/4 of
full volume.
ØSet the source unit's fader control to
center position;
ØSet the variable "LOW" crossover in
500Hz and the "SUBSONIC" in 5Hz;
Ø Use a 60 Hz sine wave
ØIncrease the gain control until the
"CLIP" LED starts blinking;
ØReturn the gain to the limit where
the "CLIP" LED stops blinking and
remains off;
ØOnce you have adjusted the
amplifier to its correct voltage
output, turn off the source unit and
reconnect the speaker(s)
Download the tracks for set up in
https://soundigitalusa.com/tracks-for-
set-up/

14
DIMENSIONAL DATA
TECHNICAL SPECS
Power RMS @ 4Ω*
Power RMS @ 2Ω*
Power RMS @ 1Ω*
Frequency Response (-3dB)
Low Pass filter (LP -12dB/8)
Operating Voltage
SNR
Input Sensitivity
Current Draw (music)
Total Efficiency
Damping Factor (@100Hz nominal impedance)
Minimum Impedance
Fuse (music)
Recommended Battery (minimum)
Current Draw (Max @ 1kHz -12,6V)
High Pass filter (HP -12dB/8)
PARAMETERS
3300W2178W
5000W
3300W
N/A5000W
5Hz ~ 20kHz5Hz ~ 20kHz
8V ~ 16V8V ~ 16V
84dB84dB
0.2 ~ 4V0.2 ~ 4V
254A254A
509A
509A
78%78%
>1000>1000
2Ω
1Ω
250A
250A
250Ah250Ah
50Hz ~20kHz50Hz - 20kHz
5Hz ~80Hz5Hz ~80Hz
5000.1 1 Ω 5000.1 2 Ω
B
A
C
D
DIMENSÕES
A
B
C
D
E
Peso Liquido
299mm
270mm
225mm
204mm
71.5mm
3.3kg
11.8"
10.6"
8.8"
8"
2.8"
7.3lbs

15
