Soundigital EVOX 12000.1 User manual

1
OWNER´S MANUAL

Introduction ............................................................................................................................................................ 3
Package contents .............................................................................................................................................. 3
Safety instructions.............................................................................................................................................. 4
Technologies
®
DTM ................................................................................................................................................. 5
I-Power Supply ........................................................................................................................... 5
Vibration Absorption Device .............................................................................................. 6
Low Bass Correction ............................................................................................................. 6
Assembling and disassembling the plastic cover .......................................................................... 7
Panels description
Audio inputs and controls................................................................................................... 8
Power inputs and audio outputs ..................................................................................... 9
Installation sequence..................................................................................................................................... 10
Electrical dimensioning................................................................................................................................. 11
Audio inputs
RCA inputs................................................................................................................................. 11
SD RLC and Gain Setting ............................................................................................................................ 12
Bass Boost and Crossover set up........................................................................................................ 13
Wiring diagram .................................................................................................................................................. 14
Battery connection diagram...................................................................................................................... 15
Technical specifications
Parameters ............................................................................................................................... 16
Dimensional data .................................................................................................................. 16
Additional Information ................................................................................................................................... 16
Document revision code 1000750023-001/MAR2023:

PACKAGE CONTENTS
▪ 01 12000.1 EVOX Amplifier
▪ 01 Installation quick guide with warranty card
▪ 01 Allen wrench 2.5mm
▪ 01 Allen wrench 4.0mm
▪ 01 Promotional sticker
INTRODUCTION
3
DEAR CUSTOMER,
CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST
QUALITY AND TECHNOLOGY!
You have just purchased a SounDigital product of the highest technology and quality,
so we thank you for your confidence.
Class D Amplifiers:
Class D amplifiers have as main characteristics the audio quality, efficiency,
application versatility and compact design. Following are the advantages of these
features:
Audio Quality – In the past, Class D products had limited response and for higher
frequencies, Class AB products performed better, but their efficiency was very low. The
new technologies introduced by SounDigital resulted in a Class D amplifier with high
efficiency and superior Class AB performance.
Efficiency – SounDigital Class D amplifiers have total efficiency (output + power
source) greater than 70%, which guarantees lower battery consumption and less
heating.
Application Versatility – The flat full-frequency response of SounDigital amplifiers
allows them to be used in all car sound systems. Meeting the demands with extreme
quality.
Compact Design – The high efficiency and high technology applied, allows
SounDigital amplifiers to be very compact, facilitating installation in vehicles where
space is limited.
IMPORTANT INFORMATIONS
On this manual you will learn about the product, its features and characteristics, in
order to obtain the best result and to be able to enjoy your music with SounDigital
quality and power.
To better understand and take advantage of all the functions of the product and use it
safely, read this manual carefully and if you have any questions, consult our support by
email [email protected].

SAFETY INSTRUCTIONS
THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING
THESE INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE
EQUIPMENT.
Warning!
4
To prevent injuries to the user or damage to the amplifier, read all safety instructions
written on this manual;
If you are insecure about the installation of this equipment, get in touch with our
tech support or with a professional specialized in car audio installation;
Before proceeding with the installation of any electric equipment on your vehicle,
unplug the negative (-) terminal of the battery to avoid fires, injuries or damages;
Use your sound system safely. The continuous exposure to sound pressures over
85dB may cause irreversible hearing damage;
This equipment is for use in automotive DC voltage batteries between 12.6 and
14.4 volts. Before installing the equipment, check voltage of the batteries;
Do not install the amplifier in places exposed to water, dirt or humidity;
Choose a ventilated place to install the amplifier and avoid blocking the side
ventilation windows;
Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the
vehicle, because it may cause ground looping (noise);
When passing cables through metallic walls, use rubber O-rings to avoid cable
cutting and short-circuits;
Make sure that the location chosen for the amplifier installation does not effect the
operation of the vehicle;
This product may reach temperatures over 60°C (140°F). Make sure it is cold before
touching it;
Clean the amplifier periodically with brush or dry cloth to assure the thermal
efficiency of the heatsink;
Be careful when making holes in the vehicle. Make sure you are not making holes
in the fuel tank, brake lines or electrical cables of the vehicle;
Make sure the cables are properly secured throughout the installation;
Wear gloves, safety glasses and all necessary PPE during the installation of
SounDigital amplifiers.

5
TECHNOLOGIES
The DTM* is a dynamic thermal recovery system which always maintains a high efficiency
of the amplifier by accelerating the thermal exchange of electronic components with the
heatsink.
*Patent required.
ALUMINIUM
HEATSINK
CONDUCTIVE
COPPER LAYER
ELECTRONIC
COMPONENT
DYNAMIC THERMAL MANAGEMENT - DTM®
An intelligent layout, with great use of the PCB area
and the use of modern components with reduced
structure guarantee SounDigital products a
compact design, at the same time robust and with
excellent thermal efficiency.
ULTRA COMPACT PCB
*Efficiency measured at power supply only.
SounDigital amplifiers are known for their low
consumption of battery, and this feature was
i m p r o v e d o n t h e E V O X L i n e . T h e n e w
I-POWER SUPPLY is even more modern, which
r e p l a c e s t h e o l d t o r o i d a l t r a n s f o r m e r s
by a new generation of "E-E" core transformers
delivers efficiency above 90%*, ensuring more
hours of sound without battery recharge.
I-POWER SUPPLY

6
TECHNOLOGIES
VIBRATION ABSORPTION
®
DEVICE - VAD
REDUCED SIZE
Our Technology reduces all impact
®
VAD
caused by vibration on the electronic circuit
board. This can include road vibration and
even vibration caused by sound waves,
increasing the reliability of our amplifiers.
The technology used in our amplifiers
bring both high performance and power a
compact chassis, providing flexible
installation solutions for vehicles with
limited space.
The design of the EVOX line of amplifiers aims to give users the feeling of the smooth
and deep bass, without compromise! Our Low Bass Correction technology compares
the input signals to the amplifier against the output after the amplification stage, making
real time correction of the signal, delivering a deeper bass with less distortion.
LOW BASS CORRECTION
*Merely illustrative image.
20.8"
8.9"

7
1 2
21
DISASSEMBLING OF THE PLASTIC COVER
ASSEMBLING THE PLASTIC COVER
1. Carefully pull out the top of the plastic cover to release the upside latches, as shown in picture 1.
2. Slide up the plastic cover in a continuous movement to remove it.
1. To fit the plastic cover back, carefully insert the point A of the plastic cover into point B of the
amplifier, slowly sliding it down.
2. Gently press the sides of the top of the plastic cover towards the bottom of the amplifier until
you hear a clicking noise.
EN
ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER
The plastic covers have the function of finishing and hiding the amplifier fixing
screws. To disassembling and assembling them, follow the instructions below.
B
A
*Merely illustrative images.
*Merely illustrative images.

PANELS DESCRIPTION
"CLIP" LED indicator
Variable Bass Boost Control 50Hz (0dB ~ +12dB)
Variable Low Pass filter control (50Hz ~ 500Hz)
Variable Subsonic filter control (5Hz ~ 30Hz)
Variable Gain control
RCA connectors
Remote level control connector
8
2
4
6
13
11
10
1
3
5
7
"POWER ON" LED indicator
"PROTECTION" LED indicator
Audio input
Audio output
Speaker output connector
Minimum speaker load allowed (impedance)
Blue
Yellow
Red
1 2 3 10
8
7 6 5 4 12 139
11
Negative
Positive
12
9
8

PANELS DESCRIPTION
9
Negative power supply connector (GND)
Remote power supply connector (REM)
Positive power supply connector (+12VDC)
-
-
-
15
14
16
1514 16 16 15 14

10
ØMount the amplifier in such a way you have access to the connectors;
ØInstall the power cables in the vehicle properly, starting from the battery to the fuse holder
or circuit breaker, use the cable with the appropriate size. Make all connections, install fuse
holders or circuit breakers, but without placing the fuses or with the circuit breakers in the
"OFF" position;
ØConnect the power cables in to the amplifier, observing the polarity. Connect all the positive
cables from the fuse holder or circuit breaker to the positive conector of the amplifier (+)
and all the negative power cables from the batteries to the negative connector of the
amplifier;
ØThe ground cable must be as short as possible and must be connected to the vehicle
chassis and the battery negative;
ØInstall the signal input cables in a proper way, distant from the power cables;
ØConnect the RCA or the high level signal input cables to the head unit and amplifiers;
ØInstall the audio output cables with the appropriate section, distant from the power and
audio input cables;
ØConnect the audio output cables to the amplifier and speakers respecting the positive (+)
and negative (-) polarities;
ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or thicker;
ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's remote
power output (when not using the high level signal inputs);
ØBefore powering the system, verify all the connections and make sure there are no
mistakes or short-circuits on the power and ground cables;
Ø;Reconnect the ground of the batteries
ØCheck if the head unit is turned off and then place the fuses in the fuse holders or switch the
circuit breakers on;
ØTurn on the main unit and the amplifier will turn on the "POWER ON" LED indicating that it is
in operation.

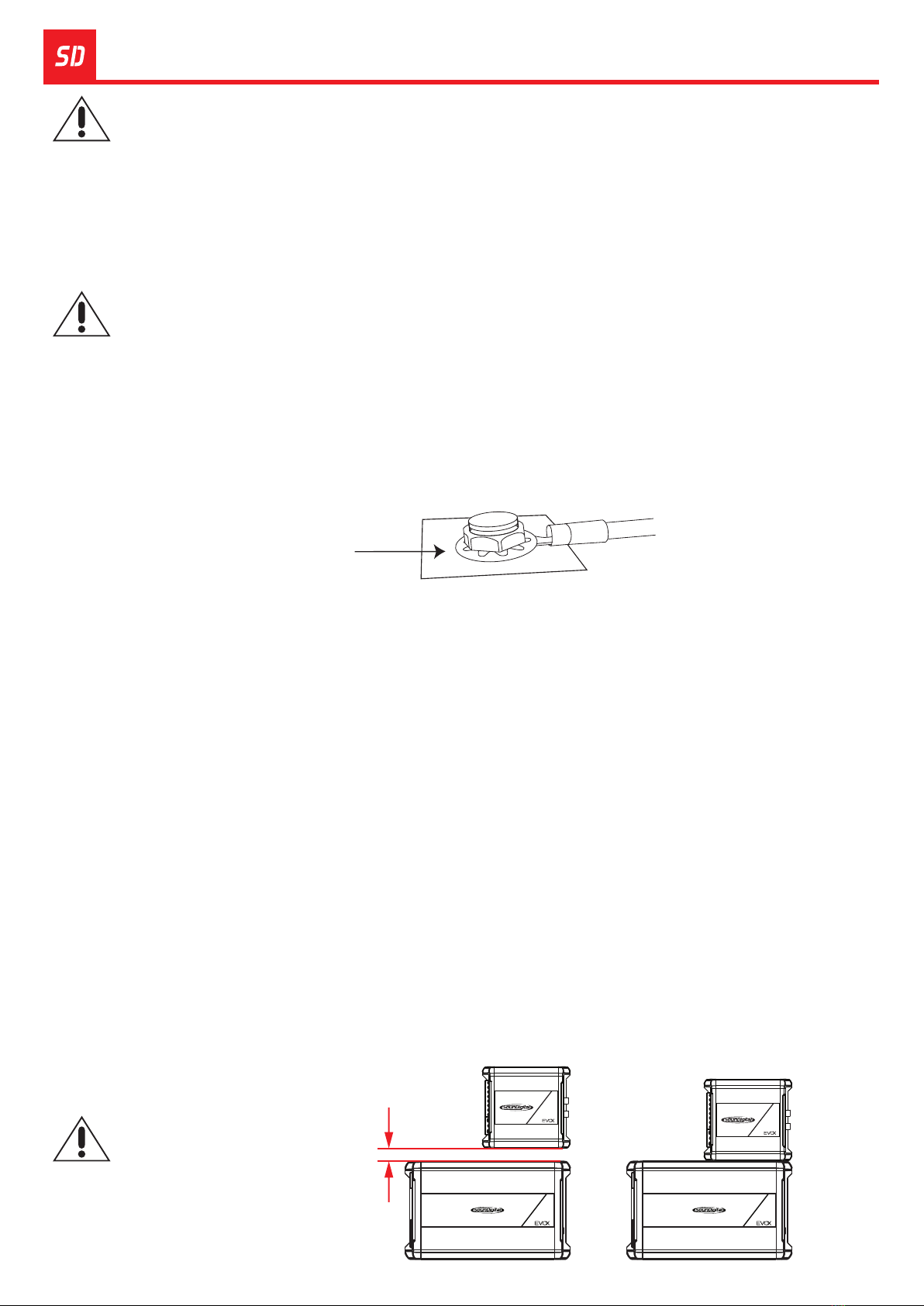

INSTALLATION SEQUENCE
Remove the paint
between the terminal
and chassis
THE MAXIMUM DISTANCE FOR THE INSTALLATION OF THE FUSE/CIRCUIT BREAKER
IS 12 INCHES (30cm) AWAY FROM THE BATTERY.
BEFORE PROCEEDING WITH THE INSTALLATION, UNPLUG THE NEGATIVE TERMINAL
FROM ALL OF THE BATTERIES, TO AVOID FIRE, DAMAGE TO THE AMPLIFIER AND THE
USER HIMSELF.
X XX
Minimum recommended
i n s t a l l a t i o n d i s t a n c e
between amplifiers*.
1.18in (30mm)
*For installations with more than one amplifier, second unit not included. Merely illustrative images.
Warning!
Warning!
Warning!

ELECTRICAL DIMENSIONING AND AUDIO INPUTS
ELECTRICAL DIMENSIONING
For proper operation of your SounDigital amplifier, you need the proper
dimensioning of the electrical system and the cables used.
The table below shows the minimum section of GND cables, +12VDC cables
and speaker output cables according to the power generated by the amplifier.
11
Example of two RCA cables connection (mono input).
Example of one RCA cable connection only
Example of one RCA cable connection only and using the RCA output to
connect another amplifier.
RCA input/output
AUDIO INPUTS
SPEAKER CABLE
12000
WRMS
SPEAKER CABLE
95mm² (0000 AWG)
2 x 16mm² (5 AWG)
2 x 10mm² (7 AWG)
We recommend the use of only OFC (Oxygen Free Copper) cables on the
installation of our products.
Copper-clad aluminum wire (CCAW) must not be used.
POWER CABLE (+12VDC)
GROUND CABLE (GND)

SD RLC / GAIN SETTING
POWER CLIP
LEVEL
SD REMOTE
LEVEL CONTROL*
EXTERNAL LEVEL CONTROL - SD RLC (*Not included)
GAIN SETTING
The SD RLC is an easy-to-install external level
control accessory that allows you to tune the
level of SOUNDIGITAL amplifiers that have
remote level control.
In SD RLC, you can adjust the amplifier level
without having to lean over and adjust the gain
setting on the amplifier and can monitor the
“CLIP” LED which is also available on the
accessory.
12
*Sold separately
Download the tracks for set up in https://soundigitalusa.com/tracks-for-set-up/
Necessary equipament:
ØDigital AC voltmeter;
ØMedia with sine wave test tone 60Hz
recorded at 0db;
ØScrewdriver 1/8" ( for gain setting).
Set up procedure:
Turn the gain control all the way
Ø
down;
ØDisconnect the output cables from
the amplifier outputs;
ØTurn off all processing (bass, treble,
loudness, EQ, etc.);
ØSet the audio player volume to 3/4 of
full volume;
ØSet the audio player fader control to
center position (left and right fader
controls);
ØSet the variable "LOW" crossover in
500Hz and the "SUBSONIC" in 5Hz;
Ø Use a 60 Hz sine wave;
ØIncrease the gain control until the
"CLIP" LED starts blinking;
ØReturn the gain to the limit where the
"CLIP" LED stops blinking and
remains off;
ØO n c e y o u h a v e a d j u s t e d t h e
amplifier to the correct voltage
output, turn off the source unit and
reconnect the speaker(s).

BASS BOOST AND CROSSOVER SET UP
13
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-12dB
dB
Hz
-3dB
0dB
-12dB
Low
Pass
B
c
ƒc*2 ƒ
Low
Pass
dB
Hz
How to adjust Bass Boost
How to adjust the Crossovers
Reproduce your favorite song and set the boost
intensity between 0dB and +12dB at the variable
control level according your preference.
The use of the two associated filters can form a
bandpass filter, as in the figure below, where the point
"A" is defined in the "SUBSONIC" crossover and the
point "B" is defined in the "LOW" crossover.
To set the "SUBSONIC" variable control between 5Hz and 30Hz ("A") where you want
to perform the subsonic cut filter;
Set in the "LOW" variable control between 50Hz and 500Hz ("B") where you want to
perform the low pass cut filter.
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-12dB
dB
Hz
Low
Pass
c
ƒc*2 ƒ
Low
Pass
B
Using Bass Boost
Bass Boost Chart
12dB
dB
Hz
0dB
3dB
0
9dB
6dB
50Hz
Bass Boost Level
The Amplifier Bass Boost setting enables the user to boost the sound intensity at low
frequencies of the sound system, where boost intensity can be adjusted.
This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with an
intensity boost adjustment from 0 to +12dB (16 times), and a central frequency
adjustment of the filter in 50Hz, making it versatile for several types of sound systems.

WIRING DIAGRAM
14
MAIN UNIT REMOTE OUTPUT
POWER CONNECTIONS
AUDIO INPUT AND OUTPUT CONNECTIONS
REMOTE INPUT CONNECTIONS
Unplug the negative (-) terminal of the battery before proceeding
with any eletrical installation in the vehicle to avoid fire starts,
wounds or damage to the amplifier.
FUSES
GND
+12V
+12V
FUSE
POWER CLIP
LEVEL
SD REMOTE
LEVEL CONTROL*
*Sold separately
In case of connections with
more than one battery, see the
installation diagram on .page 15
In case of connections with
more than one battery, see the
installation diagram on 15.page
GND

1
2
BATTERY CONNECTION DIAGRAM
When necessary the association of one or more battery banks to supply the
necessary current to the amplifier, it is recommended to use batteries of the same
brand, model, and if possible the same manufacturing lot so that the system has
the maximum performance.
For an ideal energy performance, we recommend that all batteries be connected to
positive and negative busbars and the busbars connected to the amplifier, as
shown in the diagram below:
2
3
1
Battery connections without the use of a busbar,
as shown in the example below, must be avoided.
This setting decreases the efficiency of supplying
power to the system.
All cables, positive and negative,
connected from the battery to the
busbar must be the same length.
Likewise the cables connected from
the busbar to the amplifier.
15
FUSE
FUSE
FUSE
FUSE
It is mandatory to install the fuse at a
maximum distance of 12 inches from the battery.
It is mandatory to install the fuse at a
maximum distance of 12 inches from the battery.
FUSE
FUSE
BUSBAR
BUSBAR

TECHNICAL SPECS
1 x 12000W
5Hz ~ 500Hz 5Hz ~ 500Hz
5Hz ~ 30Hz
8V ~ 16V
76dB
0.2V ~ 4V
627A
1253A
76%
200
95mm² (0000 AWG)
2 x 16mm² (5 AWG) 2 x 10mm² (7 AWG)
2 x 350A
650Ah
50Hz ~ 500Hz
5Hz ~ 30Hz
8V ~ 16V
76dB
0.2V ~ 4V
627A
1253A
76%
200
95mm² (0000 AWG)
2 x 350A
700Ah
50Hz ~ 500Hz
N/A N/A
1 x 7920W
1 x 7920W1 x 5227W
Power RMS @ 2Ω**
Operating Voltage
SNR
Input Sensitivity (RCA)
Current raw (music)D
Current raw ( ax.) D m
Total Efficiency
Damping Factor (@100Hz nominal impedance)
Power Cable
Speaker Cable
Recommended Fuse* (music)
Recommended Battery (minimum)
Low Pass Filter (12dB/octave)
Frequency Response (-3dB)
Subsonic Filter (12dB/octave)
Input Sensitivity (High Level input)
Power RMS @ 4Ω**
**Power at 14.4V @ 60Hz with a maximum THD of 1%.
*It is mandatory to install the fuse at a maximum distance of 12 inches from the battery.
**POWER RATING ACCORDING TO
CTA-2006 INDUSTRY STANDARDS.
PARAMETERS
DIMENSIONAL DATA
7.0 kg (15.4 lb)
7.3 kg 16.1 ( lb)
Net Weight
Gross Weight
16
ADDITIONAL INFORMATION
The values presented are based on measurements performed in
SounDigital's laboratories. All the equipment used in the assays, tests,
measurements and gauging of the technical parameters of SounDigital
products were calibrated in certified laboratories, thus ensuring the
performance and standard of excellence of the developed products.
The Manufacturing Process may present variations, and the electronic
components may also present changes in values in relation to their
nominal parameters. Thus, causing small differences between
measurements taken. Small variations in the values presented and
divulged by SounDigital are recognized.
The images presented in this document are representative and
merely illustrative; therefore, they do not necessarily correspond to the
actual product/model.
Updates of information made in this document will always be
published and made available for consumer consultation, free of
charge, on the brand's websites. The user is advised to search for
the manual in its latest version when necessary.
529.4mm (20.8")
224.8mm (8.9") 204.3mm (8.0")
499.6mm (19.7")
71.4mm (2.8")
N/A
1 x 12000W
Power RMS @ 1Ω**
1Ω 2Ω

Document revision code: 1000750023-001/MAR2023
