SOUNDMASTER SCD1500 User manual

DEUTSCH
ITALANIO
ENGLISH
NORSK
FRANÇAIS
DANSK
NEDERLANDS
SCD1500
Hersteller
Wörlein GmbH Tel.: [phone]
Gewerbestrasse 12 Fax.: [phone]
D 90556 Cadolzburg Email. [e-mail]
GERMANY Web: www.woerlein.com

Safety, Environmental and Setup Instructions
EN
ENVIRONMENTAL PROTECTION
Do not dispose of this product with the normal household
waste at the end of its life cycle. Return it to a collection
point for the recycling of electrical and electronic devices.
This is indicated by the symbol on the product, user
manual or packaging
The materials are reusable according to their markings. By
reusing, recycling or other forms of utilization of old devices you
make an important contribution to the protection of our
environment.
Please contact your local authorities for details about collection
points.
WARNING
Risk of electric shock
Do not open!
Caution: To reduce the risk of electric shock, do not remove the
cover (or back). There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates the presence of dangerous
voltage inside the enclosure, sufficient enough to
cause electric shock.
This symbol indicates the presence of important
operating and maintenance instructions for the device
Used batteries are hazardous waste and NOT to be
disposed of with the household waste! As a
consumer you are legally obligated to return all
batteries for environmentally responsible recycling –
no matter whether or not the batteries contain harmful
substances*)
Return batteries free of charge to public collection points in your
community or shops selling batteries of the respective kind.
Only return fully discharged batteries
*) marked Cd = cadmium, Hg = mercury, Pb = lead
Only use mercury and cadmium-free batteries.
Used batteries are hazardous waste and NOT to be
disposed of with the household waste!!!
Keep batteries away from children. Children might
swallow batteries.
Contact a physician immediately if a battery was
swallowed.
Check your batteries regularly to avoid battery leakage.
Batteries shall not be exposed to excessive heat such as
sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly
replaced
Replace only with the same or equivalent type
CAUTION - INVISIBLE LASER
RADIATION WHEN OPENING THE
COVER OR PRESSING THE SAFETY
INTERLOCK. AVOID EXPOSURE TO
THE LASER BEAM.
The device is equipped with a “Class 1 Laser”. Avoid
exposure to the laser beam as this could cause eye
injuries.
Use the device in dry indoor environments only.
Protect the device from humidity.
This apparatus is for moderate climates areas
use, not suitable for use in tropical climates
countries.
No objects filled with liquids, such as vases, shall
be placed on the apparatus.
The mains plug or an appliance coupler is used
as the disconnect device, the disconnect devices
shallremain readily operable.
Connect this device to a properly installed and
earthed wall outlet only. Make sure the mains
voltage corresponds with the specifications on
the rating plate.
Make sure the mains cable stays dry during
operation. Do not pinch or damage the mains
cable in any way.
A damaged mains cable or plug must
immediately be replaced by an authorized service
center.
In case of lightning, immediately disconnect the
device from the mains supply.
Children should be supervised by parents when
using the device.
Clean the device with a dry cloth only.
Do NOT use CLEANING AGENTS or ABRASIVE
CLOTHS!
Do not expose the device to direct sunlight or
other heat sources.
Install the device at a location with sufficient
ventilation in order to prevent heat accumulation.
Do not cover the ventilation openings!
Install the device at a safe and vibration-free
location.
Install the device as far away as possible from
computers and microwave units; otherwise radio
reception may be disturbed.
Do not open or repair the enclosure. It is not safe
to do so and will void your warranty. Repairs only
by authorized service/ customer center.
No naked flame sources, such as lighted
candles, should be placed on the unit.
When you are necessary to ship the unit store it
in its original package. Save the package for this
purpose.
In case of malfunction due to electrostatic
discharge or fast transient (burst), remove and
reconnect the power supply.
If the unit is not using for a long period of time,
disconnect it from the power supply by
unplugging the power plug. This is to avoid the
risk of fire.

SCD1500 / English Instruction Manual
1

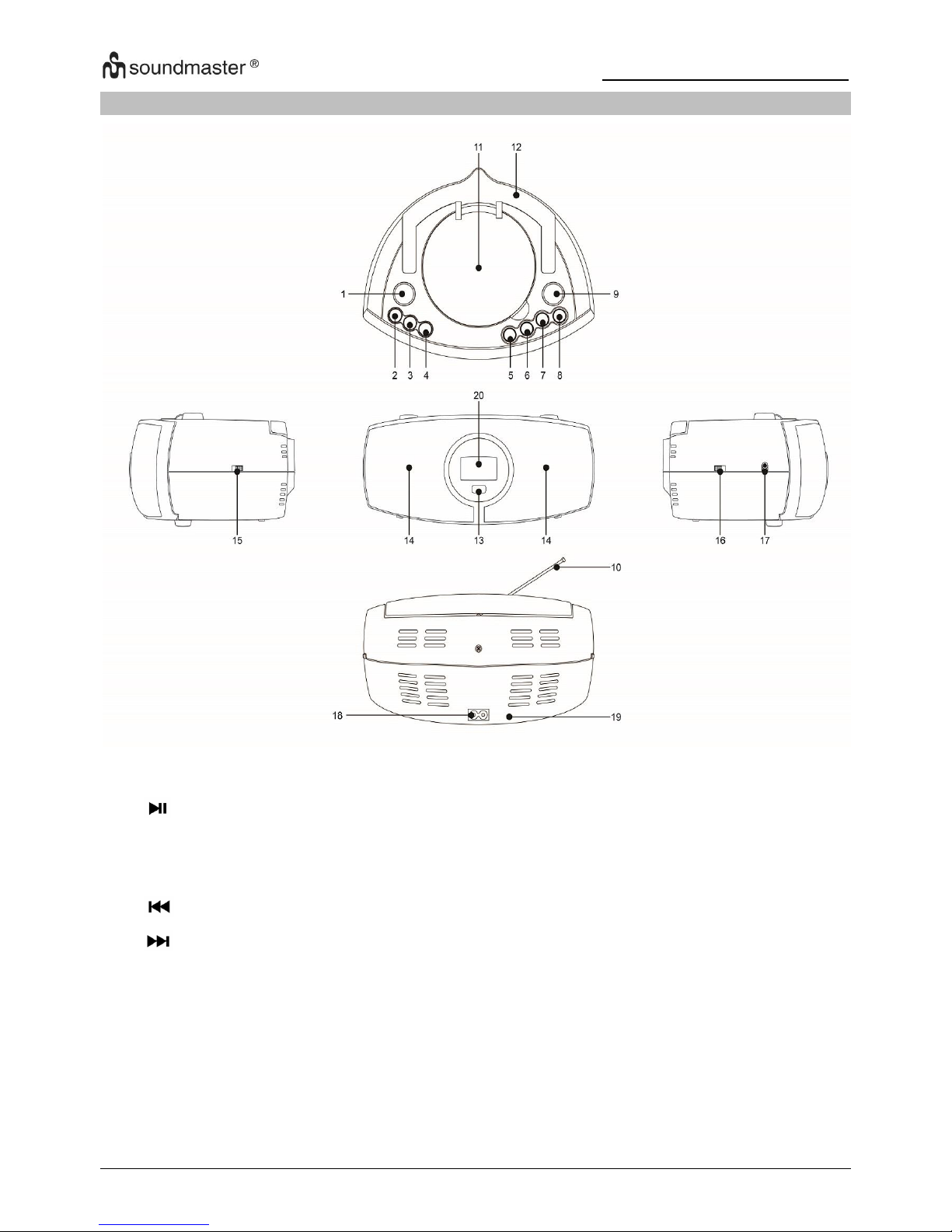

LOCATION OF CONTROLS
1
VOLUME control
11
CD compartment
2
“PLAY/PAUSE/ FULL SCAN”button
12
Carry handle
3
■“STOP/INFO”button
13
USB Slot
4
“REPEAT - CD/USB”button
14
Speaker
5
SKIP DOWN button
15
“BAND”switch
6
SKIP UP button
16
“FUNCTION”switch
7
“PROGRAM/PRESET/10+”button
17
“AUX-IN”jack
8
“MENU/FOLDER +”button
18
AC socket
9
“TUNING / ENTER”control
19
Battery compartment (bottom)
10
Rod Antenna
20
LCD display

SCD1500 / English Instruction Manual
2
QUICK QUIDE
Controls
Mode
DAB+
FM
ʺBAND Switch“
Select DAB+ or FM mode
ʺFULL SCAN“
Press to perform a full scan
Press to forward scan for next
available station
Press and hold 3 seconds to
backwards scan for the next
available station
ʺINFO“
Press to toggle through various station information
ʺMENUʺ
Press to for Menu option
ʺPROGRAM/PRESETʺ
Press and hold to set a preset station
Press to recall a preset
ʺENTERʺ
Press to confirm the option
ʺTUNINGʺ
Rotate clock wise:
Go to the next station/option
Rotate clock wise: Increase
frequency by one step (0.05MHz)
Rotate anti- clock wise:
Go to the previous station/option
Rotate anti- clock wise: Decrease
frequency by one step (0.05MHz)
Press to toggle Mono/Stereo (Auto)
ʺVOLUMEʺ
Rotate clock wise: increase the volume level
Rotate anti- clock wise: decrease the volume level
AC OPERATION
Before operation, please make sure that the VOLTAGE mentioned on the unit is same as the
voltage of your local area. Unravel the AC power cord, insert one end into the AC socket on the
set and the other end into a standard AC outlet..
ATTENTION
1. Do not plug or unplug the power cable while you have wet hands;
2. If you plan not to use the unit for a long time, disconnect the power cable from the wall outlet;
3. When disconnecting the power cord from the wall outlet, do not pull on the cord in order to
avoid shock risks caused by damaged cable.
BATTERY OPERATION
Disconnect the AC Cord Set completely. Open the Battery Compartment door (19) and insert
6 pieces LR14 / UM-2 "C" size batteries into the battery compartment with battery polarity as
shown inside the battery compartment.

SCD1500 / English Instruction Manual
3
DAB RADIO OPERATION
1. Set the “FUNCTION”switch (16) to DAB+/FM position
2. Use the “BAND”switch (15) to select DAB+ mode.
3. Rotate the “VOLUME”(1) control to adjust the desired listening level.
Full Scan
In DAB mode, press the “FULL SCAN”button (2) to perform full scan the available DAB
stations. During the scan, the display will show “Searching…” together with a slide bar that
indicates the progress of the scan and the amount of stations that have been found so far. Once
the scan has completed, to explore and listen to the found stations, rotate “TUNING/ENTER”
button (9), then press “TUNING/ENTER”button (9) once again to confirm.
Manual Tune
You can also manually tune the receiver. This can help when aligning your aerial or when
adding stations that were missed while auto tuning.
1. In DAB mode, press and hold the “TUNING/ENTER”(9) button for 5 seconds and it will
show “MANUAL TUNE”.
2. Rotate “TUNING/ENTER”button (9) to cycle through the DAB channels, which are
numbered from 5A to 13F
3. After your desired channel number is reached, press the “TUNING/ENTER”button (9) to
exit the manual tune.
To Store the DAB Stations in the Memory
1. In DAB mode, select the DAB station
2. Press and hold the “PRESET/PROG/10+”button (7) until the display will show the
current DAB station and P# (where # is the preset station number) will flash.
3. Rotate “TUNING/ENTER”button (9) to select the desired preset station number and then
press TUNING/ENTER button to confirm storing that station in the memory.
To Recall the Stored DAB Station
1. In DAB mode, press the “PROGRAM/PRESET/10+”button, the display will show the
current DAB station and P# (where # is the current preset station number),
2. Rotate “TUNING/ENTER”button (9) to select the preset station number you want to
listen and then press “TUNING/ENTER”button (9) to confirm.

SCD1500 / English Instruction Manual
4
Prune
1. You may remove all unavailable stations from the list.
2. In DAB mode, press and hold “INFO”button (3) until in and the display appear the
software version number ,such as “DAB305 v 1.1”
3. Press “INFO”button (3) once again and the display will appear “PRUNE?””
4. Press “TUNING/ENTER”button (9) to confirm.
DAB station information
Press the “INFO”button (3) to display the information of the current DAB station in the
sequence below
Programme Type This describes the “style” or “genre” of the programme that is being
broadcast.

Ensemble This displays the name of the multiplex that contains the station you are listening
to. A multiplex is a collection of radio stations that are bundled and transmitted on one
frequency. There are national and local multiplexes. Local ones contain stations that are
specific to that area.

Frequency This displays the frequency of the current station.

Audio Bit Rate This displays the digital audio bit rate being received.

Signal Strength This shows a slide bar to indicate the signal strength, the stronger the signal,
the longer the bar will be from left to right.

Date and Time This displays the current date and time.

Scrolling Text This is a scrolling message giving real time information, e.g. song titles, news
headlines, etc.

SCD1500 / English Instruction Manual
5
FM RADIO OPERATION
1. Set the “FUNCTION”switch (16) to DAB+/FM position
2. Set the “BAND”switch (17) to FM mode.
3. Rotate the “VOLUME”control (1) to adjust the desired listening level.
Note : For best reception, fully extent the FM telescopic antenna to receive FM station.
Auto Scan
1. In FM mode, press the “FULL SCAN”button (2) to start searching the forward available
FM station. Press and hold the “FULL SCAN”button (2) for 3 seconds to start searching
the backward available FM station
2. The search operation simply finds stations with strong signals. Stations with weak signal
can only be tuned in manually.
Manual tune
Rotate “TUNING/ENTER”button (9) to unit will skip 0.05 MHz in the direction of skip.
To Store the FM Stations in the Memory
1. In FM mode, select the FM station
2. Press and hold the “PROGRAM/PRESET/10+”button (7) ( for about 3 seconds, the
display will show the current FM station and P# (where # is the preset station number)
will flash
3. Rotate “TUNING/ENTER”button (9) to select the desired preset station number and then
press TUNING/ENTER button (9) to confirm storing that station in the memory.
To Recall the Stored FM Station
1. In FM mode, press the “PROGRAM/PRESET/10+”button (7), the display will show the
current FM station and P# (where # is the current preset station number)
2. Rotate “TUNING/ENTER”button (9) to select the desired preset station number and
then press “TUNING/ENTER”button (9) to confirm storing that station in the memory.
FM MONO/ AUTO Mode
In FM mode, press the “TUNING/ENTER”button (9) to select the MONO mode or AUTO mode.
FM Station Information
Press “INFO”button (3) to display the information of the current FM station in the sequence
below :
Signal Strength This shows a slide bar to indicate the signal strength, the stronger the
signal, the longer the bar will be from left to right.

Date and Time This displays the current date and time.

Frequency This displays the frequency of the current station.

Audio Type This displays if the audio being received is in mono or auto (stereo) mode.

Scrolling Text This is a scrolling message giving real-time information, e.g. song titles, news
headlines,etc.

Programme Type This describes the “style” or “genre” of the programme that is broadcasting.

SCD1500 / English Instruction Manual
6
CD/MP3 DISC OPERATION
1. Set the “FUNCTION”switch (16) to CD/MP3/USB position.
2. If unit is in USB mode, press and hold the “Repeat - CD / USB”button (4) until the unit
enter CD mode.
3. Insert a CD/MP3 disc in the CD compartment and close the CD door, the unit will start
reading the disc.
4. Press the “PLAY/PAUSE”button (2) to start playing the disc.
5. During playing, press the “PLAY/PAUSE”button (2) to temporarily pause playing. To
resume, press the “PLAY/PAUSE”button (2) again.
6. If your MP3 disc has folders, you can use the “FOLDER+”button (7) to select the
desired folder.
USB OPERATION
1. Set the “FUNCTION”switch (16) to CD/MP3/USB position.
2. If unit is in CD mode press and hold the “Repeat - CD / USB”button (4) until the unit the
enter USB mode.
3. Plug your USB device into the USB port on the unit, the unit will start reading the files in
the USB device.
4. Press the “PLAY/PAUSE”button (2) to start playing the disc.
5. During playing, press the “PLAY/PAUSE”button (2) to temporarily pause playing. To
resume, press the “PLAY/PAUSE”button (2) again.
6. If your USB has folders, you can use the “FOLDER+”button (8) to select the desired
folder.
Programming
The programming should be done during STOP mode
1. Press and hold the “PROGRAM/PRESET/10+”button (7) until the display will show
‘PROG01’ .
2. Use the or button (5 or 6) to select the desired track.
3. Press the “PROGRAM/PRESET/10+”button (7) again to store the selected track in the
memory, the LCD display will show ’PROG02’ and flash continuously.
4. Repeat steps 2 to 3 to store more tracks in the memory. You can store up to 20 tracks in
the memory for CD disc. You can store up to 99 tracks in the memory for MP3 files.
5. Press the “PLAY/PAUSE”button (2) to start playing the disc in the programmed order.
6. To stop playing, press the “STOP”button (3).
7. To cancel the programming list, press the “STOP”button (3) and open the CD
compartment door or set the “FUNCTION”switch (16) to other position.
Repeat Play Mode
Press the “REAPEAT –CD/USB”button (4) to select repeat play mode with the following
sequence.
RepA Rep1 Rand Normal
RepA –repeat ALL the tracks in the storage media.
Rep1–repeat the track being played.
Rand –play the tracks in random order selected by the player.
Normal –play the tracks in sequence.

SCD1500 / English Instruction Manual
7
Skip Mode
1. During play mode, press the button (6) to go to the next track.
2. During play mode, press the button (5) to go back to the previous track.
3. During Play mode, press the “PROGRAM/PRESET/10+”button (7) to skip 10 tracks.
Turn Off CD/USB Operation
To turn off the CD/USB operation, set the “FUNCTION”switch (16) to other position.
AUX IN CONNECTION
1. Set the “FUNCTION” switch (16) to AUX position.
2. Insert one side of the audio cable (requires 3.5mm stereo plug, not supplied) into the line-
out jack or phones jack on your audio device and the other side to the aux-in jack on the
unit.
3. Turn on your audio device and follow the playback instruction.
4. To stop this function, set the “FUNCTION” switch (16) to OFF position.
System Reset
There may be times when you need to reset your unit back to the factory settings especially
when you have moved house. If you experience reception problems you may want to reset and
try again. If you move to another part of the country and pick up the local and national DAB
stations in that area, your previously tuned channels may no longer be available.
1. In DAB mode, press and hold “MENU”button(8) until the display shows “Press ENTER
key to Reset”.
2. Press the “ENTER”button (9) to start reset. The display will show “OK”, then it will
automatically enter DAB mode and perform auto scan.
Note : After the system reset, all the previous stored DAB+ or FM stations will be erased from
the memory.
Important Note - Automatic standby switching
To comply with the ERP2 directive, when the unit provide no audios signal for approximate 10
minutes, the unit will automatically switch to STANDBY mode. To switch the unit on again, set
the FUNCTION switch to OFF position then switch to the desired function position.
TECHNICAL SPECIFICATIONS
Frequency Range: DAB+/DAB 174 –240 MHz
FM 87.5 - 108 MHz
Power Supply: AC 230V ~ 50Hz
DC 9V (UM-2 x 6)
Specifications are subject to change without further notice.
IMPORTER
Wörlein GmbH Tel.: [phone]
Gewerbestrasse 12 Fax.: [phone]
D 90556 Cadolzburg Email: [email protected]
Germany Web: www.woerlein.com
Technische Änderungen und Druckfehler vorbehalten
Copyright by Woerlein GmbH, 90556 Cadolzburg, www.woerlein.com
Vervielfältigung nur mit ausdrücklicher Genehmigung der Woerlein GmbH
