SOUNDMASTER Day Break iP 1040 User manual

iP 1040
DEUTSCH NEDERLANDS
ENGLISH ESPAÑOL
FRANÇAIS
Abgebildeter iPod nicht inkl.
iPod not included

1. Minute / button
2. Time set button
3. iPod compartment
4. Play/ Pause button
5. Alarm set button
6. Hour / button
7. Volume knob
8. Alarm On/Off button
9. Function button
10. LCD display
11. Snooze button
12. On/Off button
13. Sleep button
14. Tuning knob
15. FM antenna wire
16. Line in jack
17. Rating label (Bottom of unit)
18. AC Power cord
19. Battery door
20. iPod/Radio/Buzzer alarm switch
21. FM/AM band switch
LOCATION OF CONTROLS
ENGLISH

Mini Insert
Use with iPod
®
Mini
This unit is designed specifically to work with your iPod®. Please read
this instruction book carefully before operating the unit.
POWER CONNECTION
Plug the AC power cord to a household mains outlet source. This unit is
equipped with a battery back up system, it requires a “AAA” size battery X 2
that is not supplied with this product. Insert the battery in the
battery compartment, making certain that the positive and negative (+ and -)
battery terminals are attached to the corresponding terminals on the plate in
the battery compartment. If an AC power failure occurs, the clock
automatically switches to the battery power supply, the clock and timer
memory continue running. When the AC power resumes, the clock switches
back to AC again.
iPod®Inserts
Your unit comes with removable inserts* to ensure your iPod®fits properly
in the dock on the top of the unit.
Inserts for latest iPod®models may not be available at the time of prodcut
launch
To Place an Insert
Select the insert for your iPod®(see chart above). Using the correct insert
ensures the proper fit for your iPod®.
Gently press the iPod®insert into the dock.
Carefully place your iPod®into the dock.
To remove/replace an insert, first remove your iPod®, then grip the insert
and pull gently upwards.
PREPARATION FOR USE
Thick iPod®s Insert
iPod
®
3Gen 30 GB
iPod
®
3Gen 40 GB
iPod
®
4Gen 40 GB
iPod
®
Photo 40 GB
iPod
®
Photo 60 GB
iPod
®
5Gen 60 GB / 80 GB (video)
iPod
®
Classic 160 GB(2008)
Nano Insert
iPod
®
Nano 1Gen 2 GB
iPod
®
Nano 1Gen 4 GB
iPod
®
Nano 2Gen 2 GB
iPod
®
Nano 2Gen 4 GB
iPod
®
Nano 2Gen 8 GB
iPod
®
Nano 3Gen 4 GB
iPod
®
Nano 3Gen 8 GB
iPod
®
Nano 4Gen 8 GB
iPod
®
Nano 4Gen 16 GB
iPod
®
Nano 5Gen 8 GB
iPod
®
Nano 5Gen 16 GB
Thin iPod®s Insert
iPod
®
3Gen 10-15 GB
iPod
®
3Gen 20 GB
iPod
®
4Gen 20 GB
iPod
®
Photo 30 GB
iPod
®
5Gen 30 GB (video)
iPod
®
Classi
Classic 160 GB (2009)
c 80 GB / 120GB(2008)
iPod
®
iPod
®
Touch 1 Gen / 2Gen / 3Gen

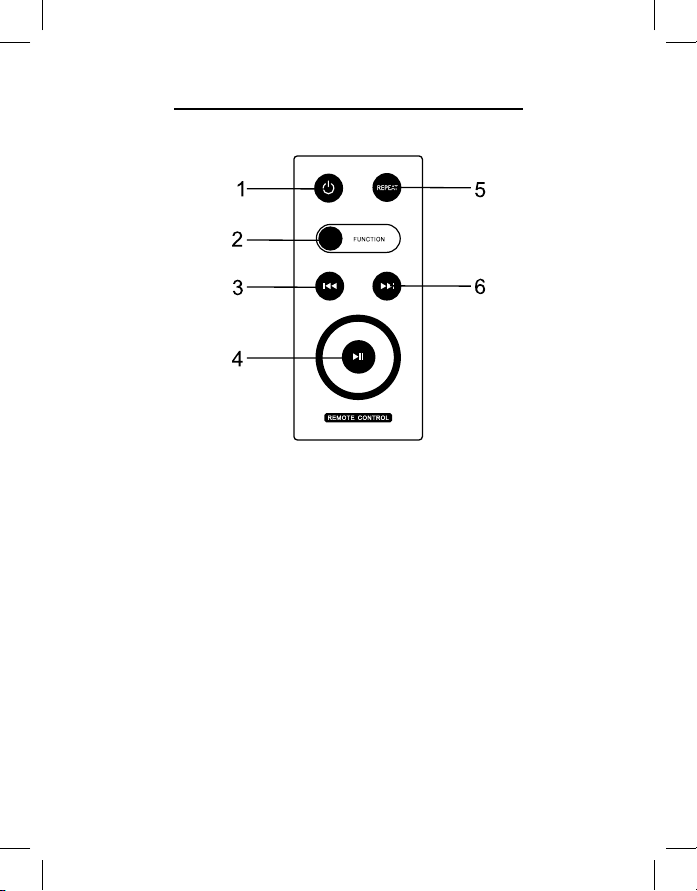

1. On/Off button
2. Function button
3. Skip back button
4. iPod play/pause button
5. Repeat button
6. Skip forward button
Repeat function:
ipod touch - no support
ipod classic - no support
LOCATION OF REMOTE CONTROLS

Setting the correct time
1. With the Radio Off, press and hold the TIME SET button (2).
2. Press the Hour button (6) to advance hour, press MINUTE button (1)
until the correct time is displayed.
3. Release the TIME SET button.
Setting the wake up time
1. Press and hold the ALARM SET button (5).
2. Press the HOUR button (6) to advance hour, press MINUTE button (1)
until the correct time is displayed.
3. Release the ALARM SET button (5).
Wake to buzzer alarm
1. Set the alarm time as shown above.
2. Set the ALARM SWITCH (20) to BUZZER position.
3. Press the ALARM ON/OFF button (8) to ON (Clock icon appears)
Wake to the radio
1. Set the alarm time as shown above.
2. Press the Function button (9) to the radio position.
3. Set the ALARM SWITCH (20) to the iPod/Radio position.
4. Set the Band switch (21) to the desired radio band, and follow the
procedure in LISTENING TO THE RADIO to tune the radio to a station.
5. Turn the VOLUME knob (7) to a level you feel will wake you.
Wake to the iPod
1. Set the alarm time as shown above.
2. Insert your iPod to the docking station.
3. Press the Function button (9) to the iPod position
4. Set the Alarm switch (20) to the iPod/radio position.
5. Turn the Volume knob (7) to a level you feel will wake you.
Alarm Off function
1. Select ALARM OFF with the ALARM ON/OFF button (8) to turn the
alarm off (Clock icon disappears).

Listening to the radio
1. Press the ON/OFF button (12) to turn the radio ON.
2. Press the Function button (9) to the radio position.
3. Set the Band switch (21) to the desired band (FM or AM).
4. Turn the TUNING knob (14) until the desired station is heard.
5. Turn the Volume knob (7) to a comfortable listening level.
Press the ON/OFF button (12) to turn the radio OFF.
Note : The AM band uses a built in directional serial. You may have to
rotate the clock radio for the best reception.
FM wire antenna
Extend the FM wire antenna (15) completely to obtain best reception in
FM band.
Listening to your iPod
1. Plug the iPod adaptor to the docking area
2. Insert iPod to the docking station.
3. Press the on/off button (12) to switch on the unit.
4. Press the Function button (9) repeatedly unit the iPod on the display
then switch on your iPod.
5. Press the Play/Pause button (4) from your iPod to pause or resume
iPod playback.
6. Tune the Volume knob (7) to adjust your desired volume level.
7. Press the button (6) select the next song and search forward.
8. Press the button (1) select the previous song and search back.
9. To remove the iPod from the unit, press and hold the Play/
Pause button of your iPod for three seconds to switch it off and then
gently take it out from the docking station.
Charging your iPod
When you docked your iPod, it will be charged automatically.
Note : iPod Shuffles will NOT be charged.
Snooze function
When the alarm sounds, pressing the Snooze button (11), it will
temporarily stop about 5 minutes then the alarm sounds again. Snooze will
continue until the ALARM ON/OFF button (8) is pressed to OFF.

Sleep function
1. This function enables you to go to sleep listening to the Radio.
2. Set the Radio ON/OFF button (12) to OFF.
3. Press the SLEEP button (13), the clock display will show 90 minutes.
The radio turns on and will turn off automatically after 90 minutes.
4. To select a shorter time press the SLEEP button (13) repeatedly until
the desired sleep time is displayed (90-10 minutes).
5. To turn off the Radio at any time during the Sleep period, press the
Radio ON/OFF button (12) to OFF.
Line in
You can play other music sources (MP3 player or CD player - not included)
through the speaker of this unit by connecting the line in jack to your
MP3 or CD players line out jack or headphone jack.
1. Plug one end of the line in cable in to the line in jack and the other
end of the cable to the headphone jack of your MP3 or CD player.
2. Turn ON MP3 or CD player
3. Turn ON the main unit
- In Ipod mode, the LCD display will show the time.
- In Radio mode, the LCD display will show the radio frecquency.
This Line in jack requires a 3.5 mm audio cable for input signal.
Note : This unit does not provide a recording signal from Line in to the
iPod. It’s purpose is to allow other types of audio devices to play
music through the unit speakers.
Note : The 3.5 mm audio cable is not included

TROUBLESHOOTING
SolutionPossible ProblemSymptom
Connect power cord into a wall
outlet.
Power cord disconnected
No Power
Make sure the dock insert fit
your iPod
®
Using no or wrong iPod
®
insert
iPod
®
does not
dock properly
Remove your iPod
®
from the
dock and check for obstruction
on the connectors in the dock
and on your iPod
®
. Then reseat
it in the dock.
iPod
®
is not installed properly.iPod
®
does not
respond to the
unit
Remove your iPod
®
from the
dock and check for obstruction
on the connectors in the dock
and on your iPod
®
. Then reseat
it in the dock.
iPod
®
is not installed properly.iPod
®
didn’t
charge up
Tune the radio again to the
target channel.
Channel not tuned properly for
AM or FM.
Noise or Sound
Distorted on
radio broadcasts
Increase volume.Volume at minimum.AM or FM, no
sound
Please make sure your iPod
®
is
working properly before docking
into the unit. Please refer to
your iPod
®
manual for details.
iPod
®
is locked up.
Rotate unit until best reception
is obtained.
Unit is not positioned correctly.
Connect Power cord.
Power cord disconnected.
Press the On/off button to turn
the unit on.
Power is Off.
Unit cannot control those iPod
®
s
or other devices.
Using 1st or 2nd generation
iPod
®
, iPod
®
Shuffle or other
devices.

1. No naked flame sources, such as lighted candles, should be placed
on the apparatus.
2. Do not place the product in closed bookcases or racks without proper
ventilation
3. Where the mains plug is used as the disconnect device, the
disconnect device shall remain readily accessible.
4. The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, table-cloths, curtains, etc;
5. It shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
6. Do not connect FM antenna to outside antenna.
7. The unit should not be exposed to direct sunlight, very high or low
temperature, moisture, vibrations or placed in a dusty environment.
8. Do not use abrasive, benzene, thinner or other solvents to clean the
surface of the unit. To clean, wipe it will mild non-abrasive detergent
solution and clean soft cloth.
9. Never attempt to insert wires, pins or other such objects into the vents
or opening of the unit.
10. Disconnect device warning: Main plug is used as the connection; so it
should always remain ready operate.
11. Batteries shall not be exposed to excessive heat such as sunshine, fire
or the like.
12. The normal ventilation of the product shall not be impeded for intended
use.
13. The Max operating ambient temperature is 35ºC.
SEPCIFICATIONS
Frequency range : AM 531 – 1620 kHz
FM 87.5 – 108 MHz
Power Source : AC 230V ~ 50 Hz, 15W
Battery back-up : 3V (2 x 1.5V UM4 AAA battery -not included)
WARNING

CAUTION
Danger of explosion if battery is incorrectly replaced
Replace only with the same or equivatent type
Line in
The Line in jack can be used to playback alternate audio signal sources
on the unit speakers.
This line in jack requires a 3.5mm audio cable for input signal.
Note : The 3.5mm audio cable is not included
If the electric cable is damaged, it must be replaced by the manufacturer,
or by the qualification persons, in order to avoid a danger.
The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, table-cloths, curtains, etc;
No naked flame sources, such as lighted candles, should be placed on
the apparatus;
Attention should be drawn to the environmental aspects of battery
disposal. Don’t throw used batteries in dustbin. Please contact your
retailer in order to protect the environment.
Don’t use the apparatus in tropical climates;
The apparatus shall not be exposed to dripping or splashing and that
no objects filled with liquids, such as vases, shall be placed on the
apparatus.
Where the mains plug is used as the disconnect device, the disconnect
device shall remain readily operable. The main plug shall remain readily
operable.
Keep minimum distances (5cm) around the apparatus for sufficient
ventilation;( Minimum distance around the apparatus for sufficient
ventilation.)
Battery shall not be exposed to excessive heat such as sunshine, fire
or the like.

Excessive sound pressure from earphones and headphones can cause
hearing loss.
The marking information is located at the bottom of apparatus.
Disposal of old electrical appliances
The European directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be
collected separately in order to optimize the recovery and
recycling of the materials they contain, and reduce the impact
on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds
you of your obligation, that when you dispose of the appliance,
it must be separately collected.
Consumers should contact their local authority or retailer for
information concerning the correct disposal of their old
appliance.
