Southwest Windpower SkyStream 3.7 User manual

TM
r e m o t e i n t e r f a c e
w w w . s k y s t r e a m e n e r g y. c o m
escape enter
status
Southwest Windpower, Inc.
1801 West Route 66
Flagstaff, Arizona 86001
Phone: [phone]
Fax: [phone]
www.skystreamenergy.com
INTERFACE & SOFTWARE
GUIDE
October 2007 Southwest Windpower, Inc.
All Rights Reserved. Doc: 3-CMLT-1061 Rev C
Wireless Remote Display
USB Converter
Battery Sensor Setup
DataLogger Software

Skystream 3.7® Interface and Software Guide 3
Table of Contents
1) Using the Wireless Remote Dispaly
1-1 Introduction _______________________________________ 4
1-2 Controls __________________________________________ 4
1-3 Operation _________________________________________ 5-7
1-4 Wireless Remote Display ____________________________ 8
1-4-1 Contrast Adjustment ___________________________ 8
1-4-2 Battery and AC Power__________________________ 8
1-5 USB Converter_____________________________________ 8
2) Using Skystream DataLogger ___________________________ 9
2-1 To Use DataLogger_________________________________ 9
2-2 Basic Data Screen__________________________________ 9
2-3 Selection Tabs _____________________________________ 10

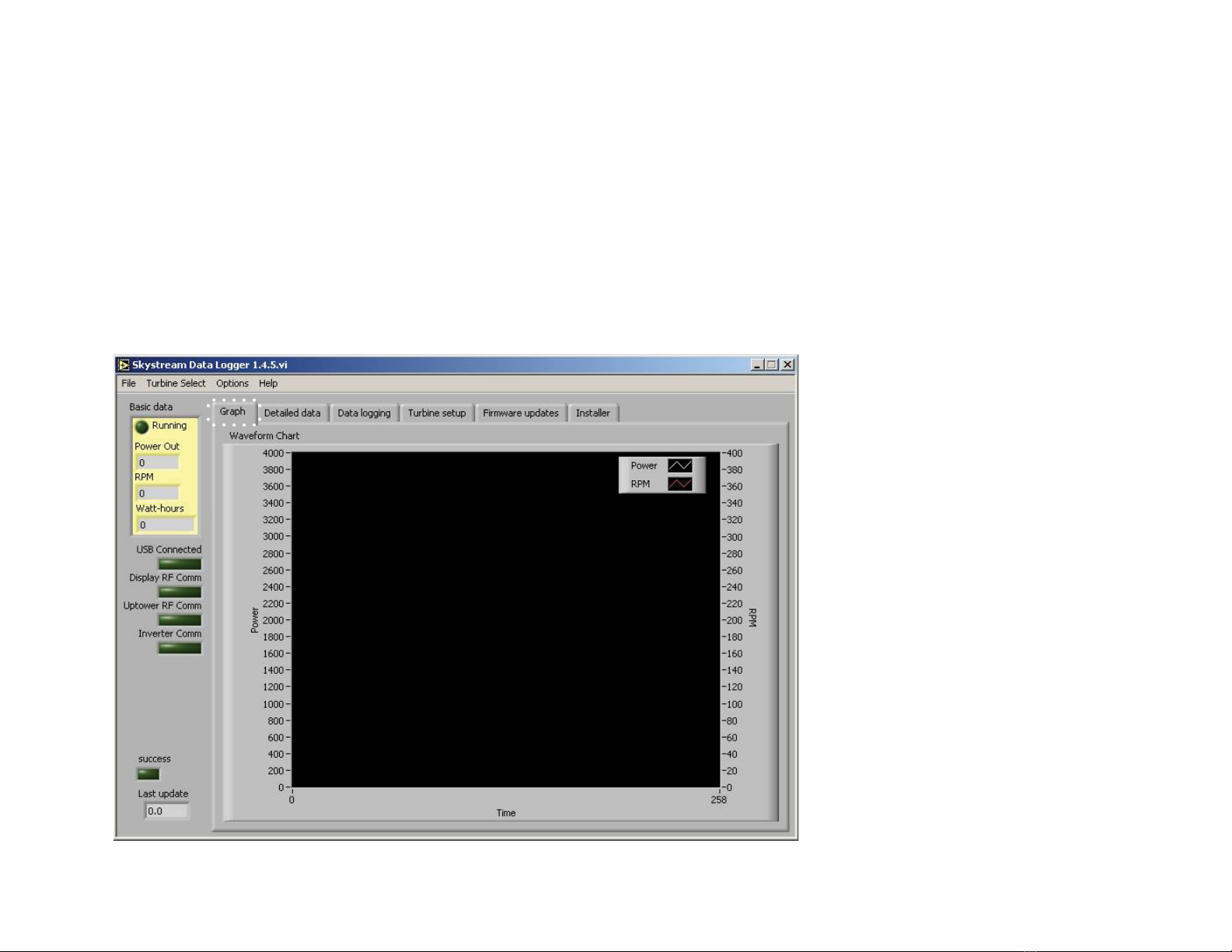

2-3-1 Graph __________________________________________ 10

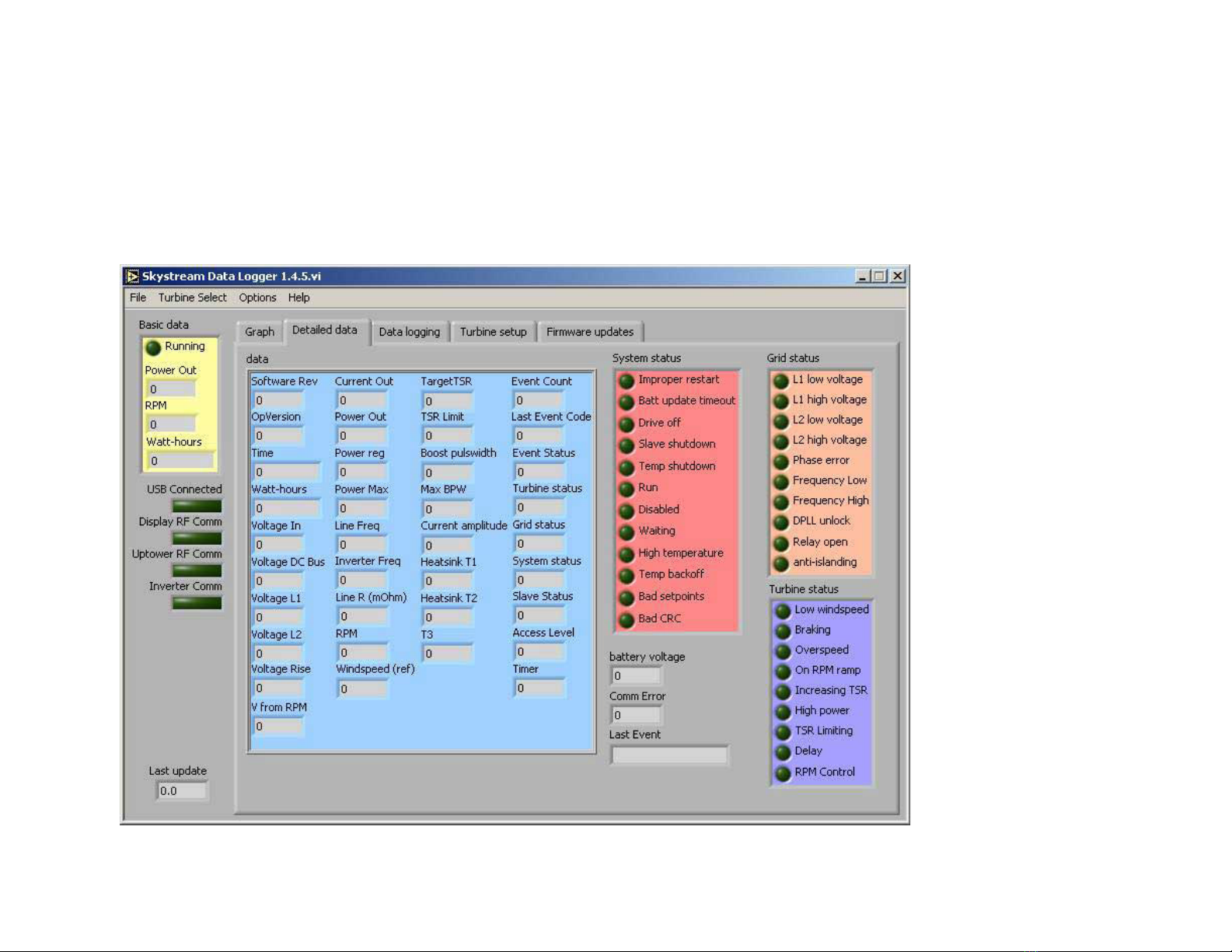

2-3-2 Detailed Data ____________________________________ 11
2-3-3 Data Logging ____________________________________ 12
2-3-4 Turbine Setup____________________________________ 12
2-3-5 Firmware Updates ________________________________ 12
2-3-6 Installer _________________________________________ 13
3) Setting Up For Battery Charging _________________________ 14
3-1 Introduction _______________________________________ 14
3-2 Battery Voltage Sensor Installation ____________________ 14
3-3 Requirements______________________________________ 14
3-4 Entering Serial Numbers ____________________________ 14
3-5 Configuring Battery Sensor __________________________ 16
3-6 Configuring Turbine(s) for Battery Charging_____________ 17
4) DataLogger Installation _________________________________ 18
4-1 Install the USB Drivers ______________________________ 18
4-2 Install Skystream DataLogger ________________________ 19
4-3 Run DataLogger ___________________________________ 20
Skystream 3.7 Interface and Software Guide
Document No. 0341
Revision: C

4 Skystream 3.7® Interface and Software Guide
T M
r e m o t e i n t e r f a c e
w w w . s k y s t r e a m e n e r g y. c o m
escape enter
status
1-1 INTRODUCTION
The Wireless Remote Display provides two-way wireless
communication with the Skystream 3.7®. It can receive
and display information from the wind turbine and can also
upload commands and new operational settings. As such
it is a valuable diagnostic tool enabling monitoring and
trouble shooting of Skystream without the need to remove
the turbine or to run additional communication wires.
1-2 CONTROLS
Operation of the display is easy and intuitive. The LCD
display presents text and numerical information, an LED
indicates operational status, and four push buttons provide
input control with these functions:
Scroll Up 9
Scroll Down 8
Enter 7
Escape 6
The contrast of the LCD display may be adjusted via
the potentiometer indicated in the accompanying image.
Turning the screw to the left increases the contrast to the
right decreases the contrast.
Contrast Adjustment
Status LED
ONE - USING THE WIRELESS REMOTE DISPLAY
The Status LED provides a quick visual indication of the
communication status and Skystream power production.
• Clear (white) illumination indicates communication with Skystream but no
power production.
• Green illumination indicates communication with Skystream and power
production.
• Orange illumination indicates no communication with Skystream

Skystream 3.7® Interface and Software Guide 5
1-3 OPERATION
Upon powering the Wireless Remote Display the LCD will present the
Main Menu as shown below. Up a minute may be required before live data
is displayed.
Main Menu

• “Turb A” indicates displayed information is from Turbine A.
“❉” indicates successful communication between Remote Display and
Skystream. A series of vertical “•” may display in place of the “❉”. A
single dot indicates no communication between the remote display and
Skystream. Three dots indicates stable communication.
• “Waiting” is a turbine status display. The most common prompts include
“Normal”, “Waiting” and “Running”. A complete list of display prompts is
provided at the end of Section 1-3.
• 863 W indicates Skystream is producing 863 Watts at that moment.
• 75° F indicates Skystream is measuring an ambient temperature of
75°F. Temperature may also be displayed in °C.
• 9/8Select – use the Scroll Up 9and Down 8keys to select another
turbine. Additional turbine serial numbers must be entered for the keys
to be effective.
• Tools 7- selecting the Enter 7key causes a “tools” menu to be dis-
played as shown below.
Tools Menu
From the TOOLS MENU use the Scroll Up 9and Scroll Down 8keys to
move the arrow to the desired selection and then press the Enter 7
key to make the selection. The following sections describe each possible
selection.
Note: the periods “...” at the end of “Serial Number” and other prompts
indicate those selects may take a few moments to display after Enter 7
button is depressed.
SETUP:
Selecting “Setup” causes the following Setup Menu to be displayed.
Setup Menu
The following sections describe each available selection from the Setup
Menu. Use the Scroll Up 9and Scroll Down 8keys to move the arrow
“” to the desired selection and then press the Enter 7
• Channel:
With the “” pointing to “Channel” use the Enter 7key to toggle
through the available channels (1-5). Note when selecting the channel
number you are selecting the channel for the turbine indicated by the
MAIN MENU. In this case Turbine A.
• With a single turbine installation the choice of channel number is imma
terial – the turbine will “find” the selected channel. If radio interference is
suspected set the Remote Display to a different channel.
• Units:
With the “” pointing to “Units” use the Enter 7key to toggle between
“Imperial” (feet and °F) or “Metric” (m and °C). Use the 6Escape key to
confirm selection.
• Elev:
With the “” pointing to “Elev”” use the Enter 7. This causes the
Elevation Setup Menu to display as shown on top of page 6:
Skystream : Turb A*
Waiting 863W
300 rpm 75° F
9/8Select Tools 7
Skystream Tools *


Set up
Serial Nums . .
Control
Skystream Tools *
Channel: 4
Units: Imperial
Elev: 2499 ft...

6 Skystream 3.7® Interface and Software Guide
Use the 9/8keys to increase the elevation. The elevation will change by
20 m or 100 ft. each time a key is depressed. When the correct elevation
is displayed use the Enter 7key to enter the elevation or use the Escape
6key to return to the MAIN MENU without changing the elevation.
When new elevation setting is transmitted to Skystream an “Action
Complete” message is displayed and the remote display returns to
the MAIN MENU. If the elevation was not successfully transmitted to
Skystream the menu shown below will be displayed:
Use the appropriate key to Escape, Retry or Skip setting the elevation and
diagnose the cause of the communication error.
When setting the elevation, a momentary change in turbine speed may be
observed. Attempt to set the elevation in the Remote Display within 500 ft
of the actual installed elevation.
SERIAL NUM:
If no Turbine is entered into the display selecting “Serial Num…” causes
the following prompt to display:
Add Turbine *
Depressing the 7Enter key causes the following Serial Number change
screen to be displayed:
Use the 7and 6keys to position the Ibelow a digit of the serial number
and use the 9and 8keys to increment or decrement the value of the
digit. When the serial number on the display matches the Skystream serial
number select “ok” to enter the serial number. After selecting “ok” the fol-
lowing is displayed:
Select 6Escape to return to the MAIN MENU or use the 9/8keys to
Add another turbine or Edit or Delete turbines already entered into the
Remote Display.
If more than one turbine is entered in the Remote Display the other turbine
serial numbers may be selected by aligning the “” with “Select A” and
using the 7Enter key.
CONTROL:
Control Selecting “Control” from the TOOLS MENU causes the following
MENU to display:
Selecting “All stop” causes all turbines listed in the Remote Display to
enter a braked mode and stop operation. Similarly, selecting “All start”
causes all turbines listed in the Remote Display to resume operation.
Skystream Group *
Elevation : 300 m 9/8
6back ok 7
Do : Set Elevation
Turbine A
6Esc 9Retry 7Skip
Edit: Turbine A *
10000000
back Iok
Add Turbine
Select A . . . . . . . 3415
Edit .
Delete .
Skystream Tools
All stop
All start


Skystream 3.7® Interface and Software Guide 7
Kilowatt Hours
It is possible to display accumulated power (Kilowatt- Hours) on the
Remote Display. With communication established with a turbine, from the
MAIN MENU simultaneously depress the 6and 8keys two times. Using
a thumb on each key works well.
After depressing the keys once a series of numerical data is displayed, after
the second time the keys are depressed the following screen is displayed:
In the above screen:
• After “Status” a Status Display Prompt is shown.
• “xxxW” indicates the instantaneous power being generated by
Skystream.
• “x kWh” indicates the accumulated power produced by Skystream.
Status Display Prompts
The following section provides a brief summary of the Status prompts that
may display on the Main Menu.
• Running – Turbine is operating and producing power
• Normal – Indicates normal operation – no fault conditions are detected.
• Waiting – Turbine is waiting for its internal timer to expire before it will
restart – “Waiting” will be displayed for approximately 5 minutes after
powering Skystream
• Disabled – Turbine is turned “OFF” (but still powered). For example set
ting “All Stop” from the control menu will cause “Disabled” to display.
• High Temp – Turbine senses a high temperature – but not so high as to
cause shutdown.
• Temp Shutdown – Turbine is shutdown due to high temperature
• Restart err – Turbine encountered improper restart
Remote Display Recovery Procedure
The Remote Display incorporates a software recovery procedure that
“reloads” the display operational software should a software “lockup” occur.
To perform the recovery procedure perform the following steps:
• Disconnect Remote Display battery
• Unplug AC power supply
• Depress and hold down the 6Escape button while reconnecting the AC
power supply
• Release the 6Escape button
The Remote Display will resume operation at the MAIN MENU.
Skystream: Turb A
Status: Waiting
xxx W x kWh
9/8Select Tools 7

8 Skystream 3.7® Interface and Software Guide
1-4 WIRELESS REMOTE DISPLAY
1-4-1 Contrast Adjustment
Contrast of the Wireless Remote Display may be adjusted via the Contrast Adjustment
(see CONTROLS, page 4). Turn the adjustment clockwise to decrease contrast and
counter clockwise to increase contrast.
1-4-2 Battery and AC Power
The Wireless Remote Display may be powered using either the rechargeable battery
pack or AC power supply. The fully charged battery pack will sustain operation of the
Wireless Remote Display for approximately 6 – 24 hours of continuous operation.
Because there is no On/Off switch on the Wireless Remote Display use of the AC
Power adapter is strongly recommended.
To install batteries remove the battery cover on the back of the Wireless Remote
Display by “unsnapping” the cover. A small screwdriver may be used to gently pry the
slotted side of the cover from the main housing. Refer to the photograph at right and
connect the batteries as indicated.
1-5 USB CONVERTER
The USB converter (shown at left) enables the Wireless Remote
Display to import Skystream performance data to a personal com-
puter for system monitoring, data analysis and diagnostic trouble
shooting.
The USB converter includes the USB converter module and a USB
cable to connect the module to a computer USB port. The user must
purchase a CAT-5 ETHERNET cable to connect USB module to the
Wireless Remote Display.

Skystream 3.7® Interface and Software Guide 9
2-1 TO USE DATALOGGER:
• Power Wireless Remote Display (battery or AC adapter)
• Connect USB converter module to Wireless Remote
Display with Ethernet cable. Also connect module to
PC with USB cable.
• Open Skystream DataLogger program.
The main Datalogger display screen shown below should
be displayed on PC.
Each indicator and selection available on the main display
screen is described below.
2-2 BASIC DATA SCREEN
BASIC DATA – Located in the upper left corner of the
display.
• Running – when illuminated indicates Skystream is
operational
• Power Out – displays instantaneous Skystream power
output in Watts
• RPM – displays instantaneous Skystream blade rota-
tion speed in revolutions per minute
• Grid Voltage – displays the electric utility grid voltage
as measured by Skystream
• Watt-hours – displays accumulated Watt-hours. For
example if Skystream produces 800 watts for an hour
display reads 800 Watt-hours.
TWO - Using Skystream DataLogger
TIP: User must install Skystream DataLogger software
before collecting data via the USB Converter. See page 19.

10 Skystream 3.7® Interface and Software Guide
LAST UPDATE – Text box located in lower left corner of display
• Displays communication time in seconds between Remote Display and Skystream. Short communication time (0.2 – 0.3 seconds) indicates stable
communications.
2-3 SELECTION TABS
There are six selectable tabs entitled Graph, Detailed Data, Data Logging, Turbine Setup, Firmware Updates, and Installer. Each tab is discussed sepa-
rately in the following sections.
2-3-1 GRAPH
The screen below is displayed by selecting the Graph tab. It will display collected Power and RPM data as shown.

Skystream 3.7® Interface and Software Guide 11
2-3-2 DETAILED DATA
The screen below is displayed by selecting the Detailed Data tab. Much of the information presented on the Detailed Data screen may be of little interest
to the casual user. However, it may be helpful in diagnosing or trouble shooting therefore it is provided to assist with service and maintenance.

12 Skystream 3.7® Interface and Software Guide
2-3-3 DATA LOGGING
The Data Logging screen shown on page 13 is presented as a result of selecting the Data Logging tab.
Logging Data
To start logging data:
• Set Wireless Remote Display to “Passive” mode. Mode selection is available from MAIN MENU > Device Settings > Wireless Settings > Mode.
• Select the Data Logging tab from the main display screen.
• Select or create a folder where the data files will be stored by clicking on the folder icon next to the text box titled “Folder for log files” As log files are
created DataLogger will place the files in this folder. It may be most convenient to create folder on computer Desktop.
• Set the sample interval in seconds in the text box labeled “Write to file every _______second.” If “0” is entered in the text box data will be written to the
file as soon as data is available from Skystream. This may be multiple times a second.
• Create the file name and format. The file name and format controls the size of the file and how often a new data file is placed in the Log File Folder
created previously. See “Creating File Names, File Format” below.
• Select “Start auto logging” to start collecting data.
To end logging data:
• Depress oval shaped “Start auto logging” button on data logging screen a second time to stop data logging. Green “light” on switch will turn off.
Creating File Names, File Format
A new file is created and the old file moved to the file Folder specified on the Data Logging page. A new file is created on a time basis using special
characters in the file name. The special characters and associated time intervals are listed below.
%Y = Year %H = hour %m = Month %M = minute %d = day
For example if the file string is specified as “Skystream%H” a new file is created every hour since the smallest time interval character is %H – an hour.
The time interval is based on the PC clock running the DataLogger software. Also be aware that in the above case only 24 files will be created since
the first file will be appended (data will be added to end of file) the next day at the same hour. For this reason it is recommended to use the complete
YearMonthDay_Hour code in most cases.
File sizes are not limited. If a time interval of a year is selected and the sample rate is set to one second expect a very large file. Data is stored as comma
separated data and is readily imported into spreadsheet programs such as Excel for analysis.
2-3-4 TURBINE SETUP
Use of the Turbine Setup Screen is described in detail in Section THREE - Setting up for Battery Charging.
2-3-5 FIRMWARE UPDATES
The Firmware Update Screen may be utilized to update inverter, RF Communications, Battery Sensor or Remote Display software. If a software update is required
specific instructions will be provided with the update.

Skystream 3.7® Interface and Software Guide 13
Data Logging Screen
2-3-6 INSTALLER
Use of the Installer Screen is described in detail in Section THREE - Setting Up for Battery Charging.

14 Skystream 3.7® Interface and Software Guide
3-1 INTRODUCTION
Skystream is easy to adapt for battery charging systems or battery-backed
grid connected installations. To operate correctly, however, requires config-
uring each turbine in the system and the battery voltage sensor using the
DataLogger Software. The Wireless Remote Display – if equipped must
also be set up for battery charging. Setting up for battery charging consists
of four basic steps:
• Entering turbine serial numbers into DataLogger Software
• Configuring Battery Voltage Sensor
• Configuring turbines for battery charging.
• Configuring Wireless Remote Display (if equipped)
3-2 BATTERY VOLTAGE SENSOR INSTALLATION
The Battery Voltage Sensor is shown at the right. Customer is required to
supply two battery connection terminals and color coded wire.
Install sensor as follows:
●The battery voltage sensor connector will accept #20 to #14 AWG
wire. Use largest gauge wire compatible with battery connection
terminals. Follow good practice and color code wires – red for positive,
black for negative is typical.
●Determine sensor mounting location, maximum recommended wire
length is 150 ft and 30 ft for #14 and #20 AWG wire respectively.
●Strip approximately 1/4” of insulation from wires and insert in green
connector supplied with Battery Voltage Sensor. Tighten screws to
secure wires. Correct wire locations (battery + and -) are indicated on
Battery Voltage Sensor cover. Refer to Fig. 9
●Strip insulation from other end of wires ends and install battery con-
nection terminals following manufacturer’s recommended procedure.
Connect battery connection terminals to batteries.
●Insert green connector into Battery Voltage Sensor.
The sensor is now powered and ready
for configuration with your system. Do
not leave sensor connected to bat-
teries without configuring sensor and
Skystream for battery charging.
3-3 REQUIREMENTS
Setting up a battery charging
system requires:
• PC or laptop with DataLogger Software installed. (version 1.4.5 or
greater).
• USB converter, cat 5 ethernet cable, USB adapter cable, DO NOT
CONNECT WIRELESS REMOTE DISPLAY TO PC.
• Installed Battery Voltage Sensor, sensor must be powered during con-
figuration. See 3-2 Battery Voltage Sensor Installation.
• Skystream 3.7 installed according to recommended battery charging
options shown in Section 2 of Skystream manual.
3-4 ENTERING SERIAL NUMBERS INTO DATALOGGER SOFTWARE
Perform following steps to enter turbine serial numbers into DataLogger
Software. The “Turbine Setup” screen is shown on page 15. Buttons or
areas of the screen referenced in the instruction are indicated with the
instruction number.
1. Start DataLogger software and go to Turbine setup screen as shown
on page 15.
2. Enter the turbine serial number in the “SN# (1234-5678)” text box
and depress “Add turbine” button. This enters the serial number in
DataLogger software. (leading digit defaults to 1)
3. If there is more than one Skystream in the system enter the serial
number of each turbine. Verify serial numbers are entered correctly.
THREE - Setting Up for Battery Charging
IMPORTANT: Battery Voltage Sensor
and Skystream must be configured for
battery charging or serious damage to
batteries may result.
Battery Voltage Sensor

Skystream 3.7® Interface and Software Guide 15
10
2
7
8
6
9
Turbine Setup Screen
28.8

16 Skystream 3.7® Interface and Software Guide
Battery
Sensor
USB Converter
PC with
DataLogger Software
Batteries
3-5 CONFIGURING THE BATTERY SENSOR
4. Connect the Battery Voltage Sensor to PC or laptop (with
DataLogger software). Use ethernet cable, USB cable and USB
converter as shown at right.
5. Connect Battery Voltage Sensor to batteries, the sensor MUST be
powered during update - refer to sensor installation instructions.
6. Select “Enable Advanced Settings” from “File” pull down menu in
upper left hand corner of screen. This will cause “Installer” tab to be
displayed. Do not go to Installer screen yet - remain on Turbine setup
screen.
7. Enter the system “float voltage” text box in the “Battery float voltage”
text box. Float voltage is defined as the system voltage when there
is no current draw. Southwest Windpower recommends the following
float voltage settings:
System Voltage Float Voltage Setting
12 volts 14.1 volts
24 volts 28.2 volts
36 volts 42.3 volts
48 volts 56.4 volts
8. Select the communication channel number from the pull down menu
labeled “Frequency”. This will be the communication frequency of the
battery charging system.
9. Depress the “Send setup” button. This sends the float voltage, the
selected frequency and the turbine serial numbers listed in the
“Known turbines” test box to the Battery Voltage Sensor. Make sure
the numbers are correct and all turbines are listed. If communication
is successful the “success” light at the bottom of the screen will turn
green.
Information flow for battery charging configuration.
Warning: Incorrectly setting float
voltage may cause battery over-
charge and damage.
10. At any time, Battery Voltage Sensor settings may be viewed by
depressing the “Get current settings” button. “success” light at the
bottom of the screen must turn green and sensor information is
under “Get current setup” button.

Skystream 3.7® Interface and Software Guide 17
3-6 CONFIGURING TURBINE(S) FOR
BATTERY CHARGING.
11. Select “Installer” screen shown at right
by clicking on Installer tab.
12. Select the turbine from the “Turbine
Select ” pull down menu at the top
of the screen (see above). Observe
“Inverter Comm” light illuminate when
communication occurs (see below).
13. Set access level to “Tech” from pull
down menu from “change access”
field as shown above. Depress
“change access” button after “Tech” is
selected. Success will be indicated by
the “success” light turning green.
14. Set “Battery charging” to “Enable” as
shown above. Enter “1” in the text box
labeled “Group ID”. This value MUST
be set “1”.
15. Depress “Battery Charging” button
to upload settings to Skystream.
Successful transmission will be indi-
cated by illumination of the “success”
light.
16. Depress the “Calc CRC” button at the
bottom of the page. Success is indi-
cated by illumination of the “success”
light.
17. Depress the “Save Settings” button,
success will be indicated by illumina-
tion of the “success” light.
18. Repeat steps 9 through 15 for
remainder of turbines from the
“Turbine Select” pull down menu.
IMPORTANT: “Battery charging” MUST be set to “ENABLE” or
serious damage to batteries may result.
Installer Screen
12
12 15
16 17
14
13
11

18 Skystream 3.7® Interface and Software Guide
FOUR - Skystream DataLogger Installation Instructions
4. Choose “Install from a list or specific location.”
3. Choose “No, not this time” on the first screen
of the “Hardware Wizard.”
1. Attach the USB converter to the computer’s
USB port using the black USB cable provided.
2. Insert the CD “Skystream Datalogger
and USB Converter” into the CD drive of
your desktop or laptop PC. PC must have
Windows 2000 or Windows XP operating
system. Find and open the file “Quick Start
Guide” and follow the instructions to install
the Skystream DataLogger program and
USB converter. The instructions. The Quick
Start Guide follows:
4-1 INSTALL THE USB DRIVERS
5. The drivers are located in the “Drivers” folder
on the CD-ROM. If you choose “Search remov-
able media” Windows should find the drivers.
6. Click “Continue Anyway”. 7. You will be prompted to install another driver.
Repeat steps 3 through 6

Skystream 3.7® Interface and Software Guide 19
4-2 INSTALL SKYSTREAM DATALOGGER
1. Run the file “setup.exe” included on this
CD-ROM.
2. Choose the folder you want to install the
software to. You will see the following
screens during the installation process:
4. “Accept” the License Agreement.
3. Change directory if needed. Click “Next”.
7. Click “Finish”.
5. Verify the version. 6. No action required.

4-3 RUN DATALOGGER
8. Now that the software is installed you can run “Skystream Data Logger” from
Start >
Program Files >
Southwest Windpower >
Skystream Data Logger
20 Skystream 3.7® Interface and Software Guide
