SOYO SY-5EMA Pro Super 7 Use and care manual

SY-5EMA Pro
Super 7 TM
Motherboard
************************************************
Pentium® Class CPU supported
ETEQ82C663 PCI/AGP Motherboard
ATX Form Factor
************************************************
User's Guide
&
Technical Reference

NSTL “Year 2000 Test”Certification Letter
November, 1998
Testing Date: November 6, 1998
Certification Date: November 6, 1998
Certification Number: NCY2000-981106-005
To Whom It May Concern:
We are please to inform you that the “SY-5EMA+”system has passed NSTL Year 2000
certification test program. The Year 2000 test program tests a personal computer for its ability to
support the year 2000. The “SY-5EMA+: system is eligible to carry the NSTL :Year 2000
Certification”seal.
The Year 2000 certification test has been done under the following system configuration:
Company Name : SOYO COMPUTER INC.
System Model Name : SY-5EMA+
Hardware Revision : N/A
CPU Model : Intel Pentium 233/66Mhz
On Board Memory/L2 Cache : SDRAM DIMM 32MBx1 /1MB
System BIOS : Award Modular BIOS V4.51PG, 09/07/1998-VP3-586B-
8669-2A5LES2BC-00
Best regards,

Declaration of Conformity
According to 47 CFR, Part 2 and 15 of the FCC Rules
Declaration No.: D8D0404 Dec. 09, 1998’
The following designated product
EQUIPMENT: Main Board
MODEL NO.: SY-5EMA+
which is the Class B digital device complies with 47 CFR Parts 2 and 15 of the FCC rules.
Operation is subject to the following two conditions : (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The product was tested with the following configuration:
Monitor: SONY/AK8GDM17SE2T Printer: HP/DS17XU2225
USB Mouse: WINIC/F4ZFDM-A50 PS/2 Keyboard: SILITED/GYUM99SK
PS/2 Mouse: GENIUS/FSUGMZFC Modem: ACEEX/IF AXDM1414
This declaration is given for the manufacturer
SOYO COMPUTER INC.
No.21,Wu-Kung 5 Rd., Hsing Chuang City,
Taipei Hsien, Taiwan, R.O.C.
The test was carried out by
SPORTON INTERNATIONAL INC.
6F, No. 106, Hsin TaiWu Rd., Sec. 1, His Chih,
Taipei Hsien, Taiwan, R.O.C.
SPORTON INTERNATIONAL INC.

SOYO™SY-5EMA Pro
i
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the Motherboard. Information in this guide has been carefully checked
for reliability; however, no guarantee is given as to the correctness of the contents.
The information in this document is subject to change without notice.
Copyright Notice
Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: June 2000
Version 1.0
5EMA Pro SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%

Table of Contents SY-5EMA Pro
ii
Table of Contents
SY-5EMA PRO MOTHERBOARD LAYOUT........................................ 1
CHAPTER 1 INTRODUCTION........................................................... 2
1-1 KEY FEATURES ............................................................ 2
1-2 HANDLING THE MOTHERBOARD ............................... 5
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS......... 5
CHAPTER 2 HARDWARE SETUP.................................................... 6
2-1 PREPARATIONS ........................................................6
2-2 UNPACKING THE MOTHERBOARD.........................7
2-3 INSTALLATION GUIDE...............................................8
CHAPTER 3 BIOS SETUP UTILITY................................................ 38
3-1 STANDARD CMOS SETUP......................................... 41
3-2 BIOS FEATURES SETUP............................................ 44
3-3 CHIPSET FEATURES SETUP..................................... 49
3-4 POWER MANAGEMENT SETUP................................ 54
3-5 PNP/PCI CONFIGURATION SETUP........................... 57
3-6 LOAD SETUP DEFAULTS ........................................... 61
3-7 LOAD BIOS DEFAULTS............................................... 65
3-8 INTEGRATED PERIPHERALS .................................... 66
3-9 SUPERVISOR PASSWORD........................................ 67
3-10 USER PASSWORD...................................................... 68
3-11 IDE HDD AUTO DETECTION...................................... 69
CHAPTER 4 DRIVERS INSTALLATION ......................................... 70

Introduction SY-5EMA Pro
1
SY-5EMA Pro Motherboard Layout
Back Panel SY-5EMA Pro Platform
Flash BIOS
JP44
13
AGP Slot
ISA Slot #1
3V
Lithium
Battery
RST
PW2
Power
LED
_
+
ETEQ
®
EQ82C6638
P.B. SRAM
64Kx64
P.B. SRAM
64Kx64
TAG 32Kx8
JP10
1
1
3
3
JP9
JP8
IDE 2
1
FDC
1
IDE 1
1
DIMM 1
DIMM 2
DIMM3
SMC
®
FDC37C669Q
*
1
CPUFAN
JP11
PCI Slot #2
PCI Slot #3
PCI Slot #4
PCI Slot #5
PCI Slot #1
ISA Slot #2
IR 5
1
SW1
ON
USB1USB2
PS/2 Mouse
Connector
PS/2 KB
Connector
ATX Power
(Optional)
WOL
Header
SW2
ON
531
62 4
5312 4
JP5
1
3
SPK
Turbo
LED
_ _
_
+ +
+
1
CHAFAN
ETEQ
EQ82C686A

Introduction SY-5EMA Pro
2
Chapter 1
INTRODUCTION
The SY-5EMA Pro AGP/PCI Motherboard is a high-performance
ATX form-factor system board. SY-5EMA Pro uses the
ETEQ82C663 PCI Chipset technology and supports Pentium® class
processors. This Motherboard is fully compatible with industry
standards and adds many technical enhancements.
1-1 KEY FEATURES
ØSupports Intel Pentium Processor P54C/P55C series
CPUs featuring speeds of 100-233 MHz
ØSupports Cyrix 6x86/6x86L/6x86MX CPUs with PR150-
PR266 MHz speeds and Cyrix M II-300-366 MHz speeds
CPU
ØSupports AMD K5 CPUs running at PR100-PR166 MHz
speeds, AMD K6 CPUs running at speeds of 166-300 MHz
speeds, AMD K6-2 266-550 MHz Speeds CPU and AMD
K6-III 400-450 MHz speeds CPU
ØSupports IDT X86 CPU C6/2-200/225, IDT WinCip 2-233-
300 MHz speeds CPU
ØSupports Rise mP6 PR-266 MHz speeds CPU
ØFeatures Socket 7 for CPU easy upgrade
ØSupports P54C/P55C series SIMM Mode and CPU Stop
Clock
lL2 Cache Controller
ØOn-board 512KB/1M Level 2 Pipeline Burst SRAM Cache

Introduction SY-5EMA Pro
3
lDRAM Controller
ØSupports 3 strips of 168-pin SDRAM unbeffured DIMM
3 x 168-pin DIMM banks support 8/16/32/64/128/256 MB
unbuffered DIMM modules
ØMemory configuration:
uSystem memory: 8MB to 768MB with EDO/SDRAM
SY-5EMA Pro PLATFORM FEATURES
Board Size 4-layer PCB, 19x30.5cm(7.5”x12”), ATX Form Factor
Socket 7 Socket for Pentium® class CPUs
with Host Bus frequency of 66/100MHz Supports:
ØIntel Pentium® Processors P54C/P55C (100-233MHz)
ØCyrix 6x86™(PR166+-PR200+),
Cyrix 6x86 MX™(PR166-PR266) and Cyrix M II™
(300~366)
ØAMD K5™(PR100-PR166), and AMD K6™(166-300)
and AMD K6™-2 (266~550) and AMD K6-III 400/450
ØIDT X86 CPU C6/W2 200/225 and X86 CPU 2 (233-300)
ØRise mP6 PR266
Chipset ETEQ82C663 PCI/AGP Bus Chipset
ATX Power 20-pin Male Connector
CPUFAN 3-pin CPU Cooling Fan Connector
CHAFAN 3-pin Chassis Cooling Fan Connector
Memory DIMM Bank (DIMM1 & DIMM2 & DIMM3)
Ø168-pin Unbuffered SDRAM DIMM Module
ØSupports 8~256MB DIMM in each Bank
ØSupports ECC configuration
BIOS System BIOS built-in, Award BIOS
ØAPM, ACPI and "Plug-and-Play" function
ØSupports multiple-boot function
ØY2K Compliant
PCI Slots 5 x 32-bit Bus Mastering Slots
ISA Slots 2 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
ØSupports Ultra DMA/33
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)

Introduction SY-5EMA Pro
4
SIR 5-pin Serial Infrared Device Connector
Keylock 5-pin KeyLock Connector
Reset 2-pin Reset Switch Connector
Speaker 4-pin PC Speaker Connector
TB_LED 2-pin Turbo LED Connector
HDD_LED 2-pin IDE Device LED Connector
PWRBT ATX Power On/Off Switch 2-pin Connector
JP5 CMOS Clear Jumper
JP8 CPU bus clock frequency Jumper
JP9, JP10 SDRAM frequency Jumpers
JP11 CPU Frequency of 83MHz Jumper
JP44 WOL (Wake-On-LAN) 3-pin Connector
SW1 CPU frequency Settings Jumper
SW2 CPU Voltage Selection Jumper
BACK-PANEL FEATURES
PRT 1 x Onboard 25-pin Female Parallel Printer Port
COM1, COM2 2 x Onboard RS-232 Serial Port
PS/2 KB 1 x Onboard PS/2 Keyboard Connector
PS/2 Mouse 1 x Onboard PS/2 Mouse Connector
USB1, USB2 2 x Onboard USB (Universal Serial Bus) Connectors

Introduction SY-5EMA Pro
5
1-2 HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules
while unpacking:
ØBefore handling the Motherboard, ground yourself by grasping
an unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold
the Motherboard by the edges and avoid touching its
components.
ØCheck the Motherboard for damage. If any chip appears loose,
press carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the Motherboard in dry or air-conditioned
environment.
To protect your equipment from electrostatic discharge, take the
following precautions:
ØDo not remove the anti-static packaging until you are ready to
install.
ØGround yourself before removing any system component from
its protective anti-static packaging. (To ground yourself, grasp
the expansion slot covers or other unpainted portions of the
computer chassis.)
ØFrequently ground yourself while working or use a grounding
strap.

Hardware Setup SY-5EMA Pro
6
Chapter 2
HARDWARE SETUP
Congratulations on your purchase of SY-5EMA Pro Super 7 TM
Motherboard. You are about to install and connect your new
Motherboard.
Note: Do not unpack the Motherboard from its protective
anti-static packaging until you have made the following
preparations.
2-1 Preparations
Gather and prepare all the following hardware equipment to
complete the installation successfully:
1. Pentium processor with CPU cooling fan.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. Keyboard
6. Pointing Device (PS/2 mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)

Hardware Setup SY-5EMA Pro
7
2-2 Unpacking the Motherboard
When unpacking the Motherboard, check for the following items:
ØThe SY-5EMA Pro ETEQ82C663 PCI/AGP Motherboard
ØThis Quick Start Guide *
ØThe Installation CD-ROM *
ØOne IDE Device ATA66 Flat Cable
ØOne Floppy Disk Drive Flat Cable
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the Motherboard from its anti-
static packaging until you are ready to install it.
Like most electronic equipment, your Motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the Motherboard carefully, holding it by the edges.
You are now ready to start the installation.

Hardware Setup SY-5EMA Pro
8
2-3 Installation Guide
We will now begin the installation of the Motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.
Step 1. CPU Installation
Follow these instructions to install your Pentium® class processor
correctly.
Locate the CPU socket labeled Socket 7 on your Motherboard and
note the distinctive pinhole arrangement.
Note the corresponding pinhole arrangement on the processor.
CPU
Socket 7
Blunt Edge Blunt Edge

Hardware Setup SY-5EMA Pro
9

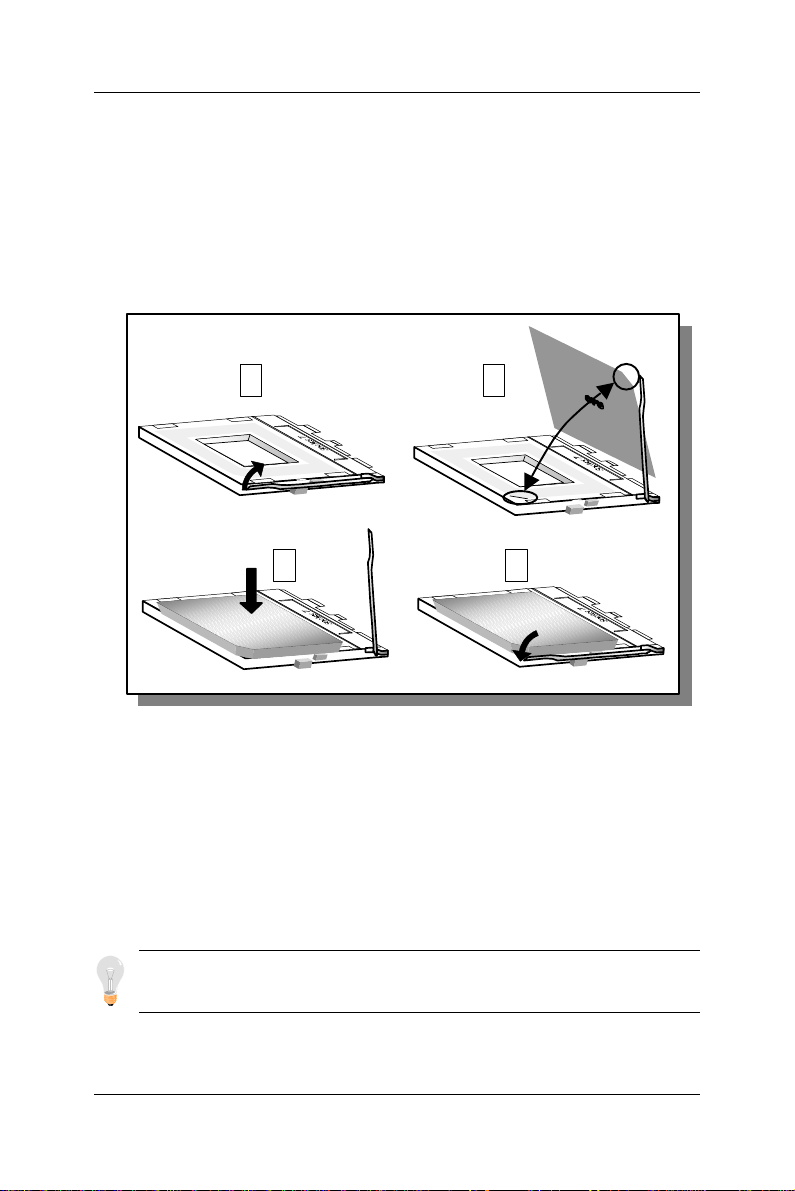

Follow these steps to install the CPU in the Socket 7:
1. Lift the socket handle up to a vertical position.
2. Align the blunt edge of the CPU with the matching pinhole
distinctive edge on the socket.
3. Seat the processor in the socket completely and without forcing.
4. Then close the socket handle to secure the CPU in place.
Step 2. CPU Fan Installation
Your Pentium® processor kit comes with a cooling fan. Mount the fan
on the processor according to the instructions provided by the
manufacturer. The fan is a key component that will ensure system
stability. The fan prevents overheating, therefore prolonging the life
of your CPU.
Note: Remember to connect the fan to the appropriate power
source.
1 2
34

Hardware Setup SY-5EMA Pro
10

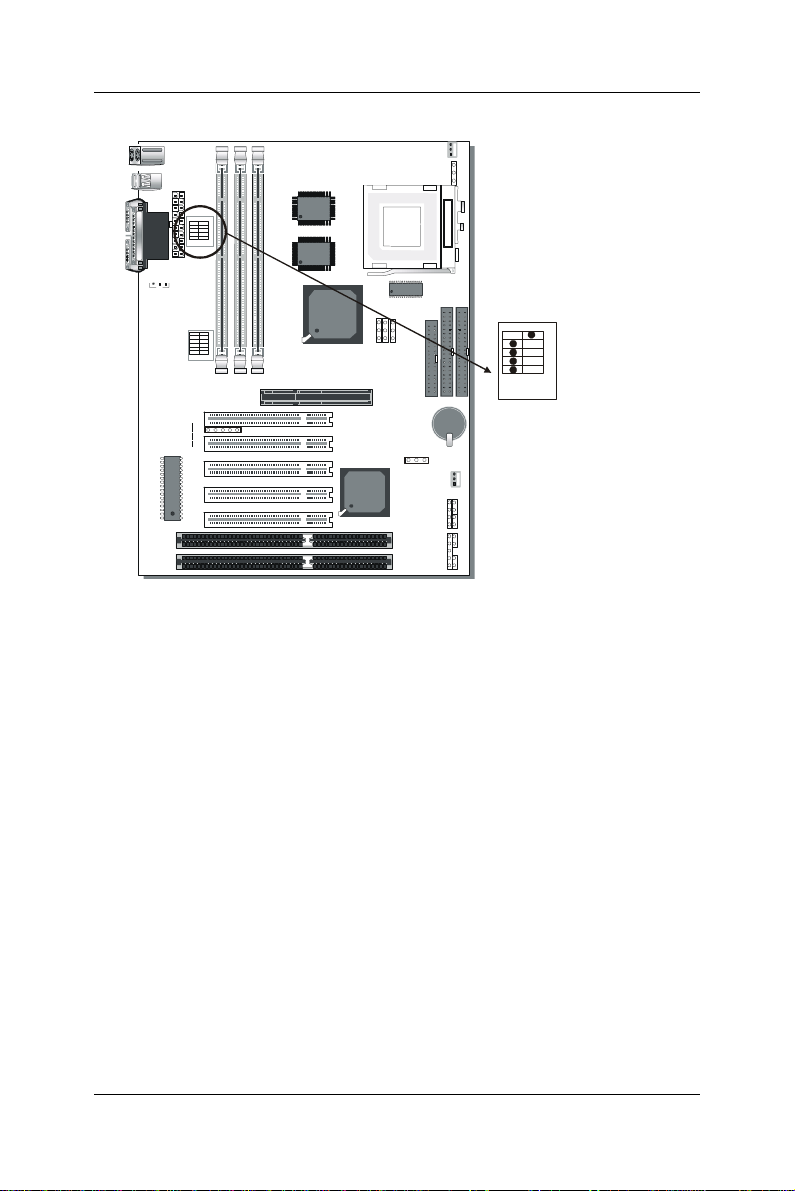

Step 3. CPU Voltage Setting (SW2)
Please verify the correct voltage with your dealer before installation.
Use the following tables to set SW2 to the proper "Voltage Value",
according to the specifications marked on your CPU: This
Motherboard comes with pre-configured setting of CPU voltage.
However the voltage of your CPU maybe different with the default
setting.
lCPU VOLTAGE SETTING (SW2)
SW2 is used to set the CPU core voltage.
There are two kinds of CPU voltages currently on the market
depending on the CPU manufacturer:
ØSingle Voltage (CPU: P54C, AMD-K5, Cyrix 6x86, IDT X86
CPU C6/W2,Rise mP6)
ØDual Voltage (CPU: P55C, AMD-K6, AMD-K6-2, AMD-K6-
III, Cyrix 6x86L,Cyrix 6x86MX, Cyrix M II)
Those processors may come in various voltages on different
markets. Therefore, always make sure you know the type of the
®
®
*
SW2
1
5
4
3
2
ON
CPU Voltage

Hardware Setup SY-5EMA Pro
11
CPU you are installing and adjust the settings on SW2 accordingly.
This motherboard supports CPU core voltages from 2.0 to 3.5V in
0.1V increments. Use the following tables to set the CPU voltage
jumpers SW2 to match the voltage value of your CPU:
CPU Core Voltage Setting: SW2
Voltage Value 12345
3.5V on on on on off
3.4V off on on on off
3.3V on off on on off
3.2V off off on on off
3.1V on on off on off
3.0V off on off on off
2.9V on off off on off
2.8V off off off on off
2.7V on on on off off
2.6V off on on off off
2.5V on off on off off
2.4V off off on off off
2.3V on on off off off
2.2V off on off off off
2.1V on off off off off
2.0V off on on on on

Hardware Setup SY-5EMA Pro
12
Voltage Settings for Various Processors
Processor
Voltage Setting Voltage Value: SW2
Intel P54C - P100
Intel P54C - P133
Single Voltage
VORE:3.3V
VI/O:3.3V
Intel P54C - P166
Intel P54C - P200
Single Voltage
VORE:3.5V
VI/O:3.5V
Intel P55C - P166
Intel P55C - P200
Intel P55C - P233
Dual Voltage
VORE:2.8V
VI/O:3.3V
AMD K5 - PR100
AMD K5 - PR133
AMD K5 - PR166
Single Voltage
VORE:3.5V
VI/O:3.3V
AMD K6 166
AMD K6 200
Dual Voltage
VORE:2.9V
VI/O:3.3V
AMD K6 233 Dual Voltage VORE:3.2V
VI/O:3.3V
AMD K6 266
AMD K6 300
AMD K6-2 266
AMD K6-2 300
AMD K6-2 333
AMD K6-2 350
AMD K6-2 366
AMD K6-2 380
AMD K6-2 400
AMD K6-2+ 450
AMD K6-2 533
Dual Voltage
VORE:2.2V
VI/O:3.3V
AMD K6-2 450
AMD K6-2 475
AMD K6-2 500
AMD K6-III 400
AMD K6-III 450
Dual Voltage
VORE:2.2V
VI/O:3.3V
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON

Hardware Setup SY-5EMA Pro
13
Voltage Settings for Various Processors (continued)
Processor
Voltage Setting Voltage Value: SW2
Intel P54C - P100
Intel P54C - P133
Single Voltage
VORE:3.3V
VI/O:3.3V
Intel P54C - P166
Intel P54C - P200
Single Voltage
VORE:3.5V
VI/O:3.5V
Intel P55C - P166
Intel P55C - P200
Intel P55C - P233
Dual Voltage
VORE:2.8V
VI/O:3.3V
AMD K5 - PR100
AMD K5 - PR133
AMD K5 - PR166
Single Voltage
VORE:3.5V
VI/O:3.3V
AMD K6 166
AMD K6 200
Dual Voltage
VORE:2.9V
VI/O:3.3V
AMD K6 233 Dual Voltage VORE:3.2V
VI/O:3.3V
AMD K6 266
AMD K6 300
AMD K6-2 266
AMD K6-2 300
AMD K6-2 333
AMD K6-2 350
AMD K6-2 366
AMD K6-2 380
AMD K6-2 400
AMD K6-2+ 450
AMD K6-2 533
Dual Voltage
VORE:2.2V
VI/O:3.3V
AMD K6-2 450
AMD K6-2 475
AMD K6-2 500
AMD K6-III 400
AMD K6-III 450
Dual Voltage
VORE:2.2V
VI/O:3.3V
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON
1
5
4
3
2
ON

Hardware Setup SY-5EMA Pro
14
Step 4. CPU Frequency Setting (SW1)
The SY-5EMA Pro Motherboard is designed to support most
Pentium® class processors currently on the market. Jumpers SW1 is
used to configure the Motherboard frequency parameters to match
the working frequency of your CPU.
®
®
*
Host Bus Frequency
Frequency Multiplier
1
6
5
4
3
2
1
6
5
4
3
2
SW1
ON
ON
SW1

Hardware Setup SY-5EMA Pro
15
lCPU FREQUENCY SETTING (SW1)
Configure the SW1 jumpers to the settings that match your CPU speed.
Refer to the following tables to set the Frequency Multiplier and Host Bus
Frequency of your CPU:
Frequency Multiplier Host Bus Frequency
Multiplier 1 2 3 Host Bus
Frequency4 5 6
1.5/3.5x off off off 66MHz off on on
2.0x* on off off 75MHz off off on
2.5x on on off 83MHz off on off
3.0x off on off 95MHz on off off
4.0x on off on 97MHz on off on
4.5x on on on 100MHz off off off
5.0x off on on
5.5x off off on
Example: If the working frequency of your CPU is 133MHz, then
select Multiplier=2.0x and Host Bus Frequency=66Mhz accordingly.
Note: The multiplier settings listed apply to all common CPUs. The
IDT X86 CPU CPUs do not conform to the values listed here, refer
to the detailed CPU list that follows for more information.
Also, as newer and higher frequency CPUs may not be listed in this
section, please refer to the tables CPU Frequency Settings for Various
Processors on page 8 for complementary information.
