SP tools SP80020 User manual

USER MANUAL
IMPORTANT
ALL PERSONS WHO ARE TO USE THIS EQUIPMENT MUST THOROUGHLY READ
AND UNDERSTAND THIS INSTRUCTION MANUAL PRIOR TO OPERATION.
SP80020
DIAGNOSTIC
PUMP KIT –DUAL
MODE 2WAY
QUICK SWITCH
RETAIN THESE INSTRUCTIONS
AND ATTACH RECEIPT TO
MANUAL FOR FUTURE
REFERENCE
NOTE: Proof of purchase must be retained by
the customer as it will be required in the
event of a claim under warranty.
AFTER SALES SUPPORT:
AUSTRALIA: Visit the website’s contact page to get in
touch with your local service department.
WWW.SPTOOLS.COM
INTERNATIONAL: Use the county selector to get in touch
with your service department in your country or region.

2
CONTENTS
Operation - Vacuum Mode 2
Operation - Pressure Mode 3
Warranty Details 5
INTRODUCTUCTION
Operation - Vacuum Mode
1.1 Set rotating sleeve to vacuum position
1.2 Attach vacuum hose to pump
1.3 Select and attach required accessory fitting

3
1.4 Connect pump to system to be tested
1.5 Operate pump to generate required testing vacuum

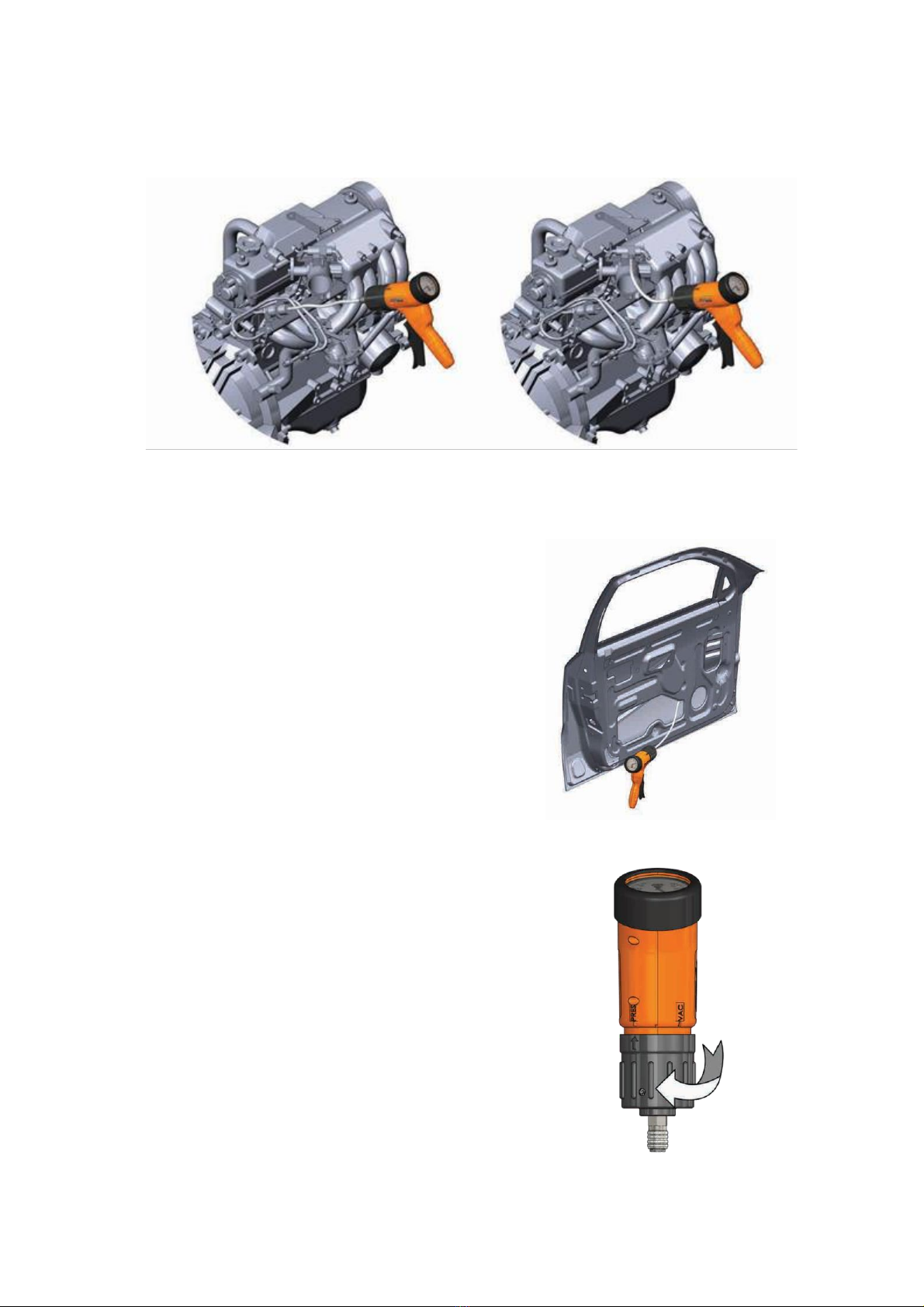

Test Fuel Pressure Regulator Test Manifold Vacuum
Additional application examples
•Test:
- EGR valves
- Fuel pressure regulators
- MAP sensors
- Thermal vacuum switches
- Electric vacuum switches
- One-way vacuum valves
- Heating and ventilation control valves
- Automatic transmission modulator valves
- Central lock systems
Operation - Pressure Mode
2.1 Set rotating sleeve to pressure position
2.2 Attach pressure hose to pump

4
2.3 Select and attach required accessory fitting
2.4 Connect pump to system to be tested
2.5 Operate pump to generate required testing pressure

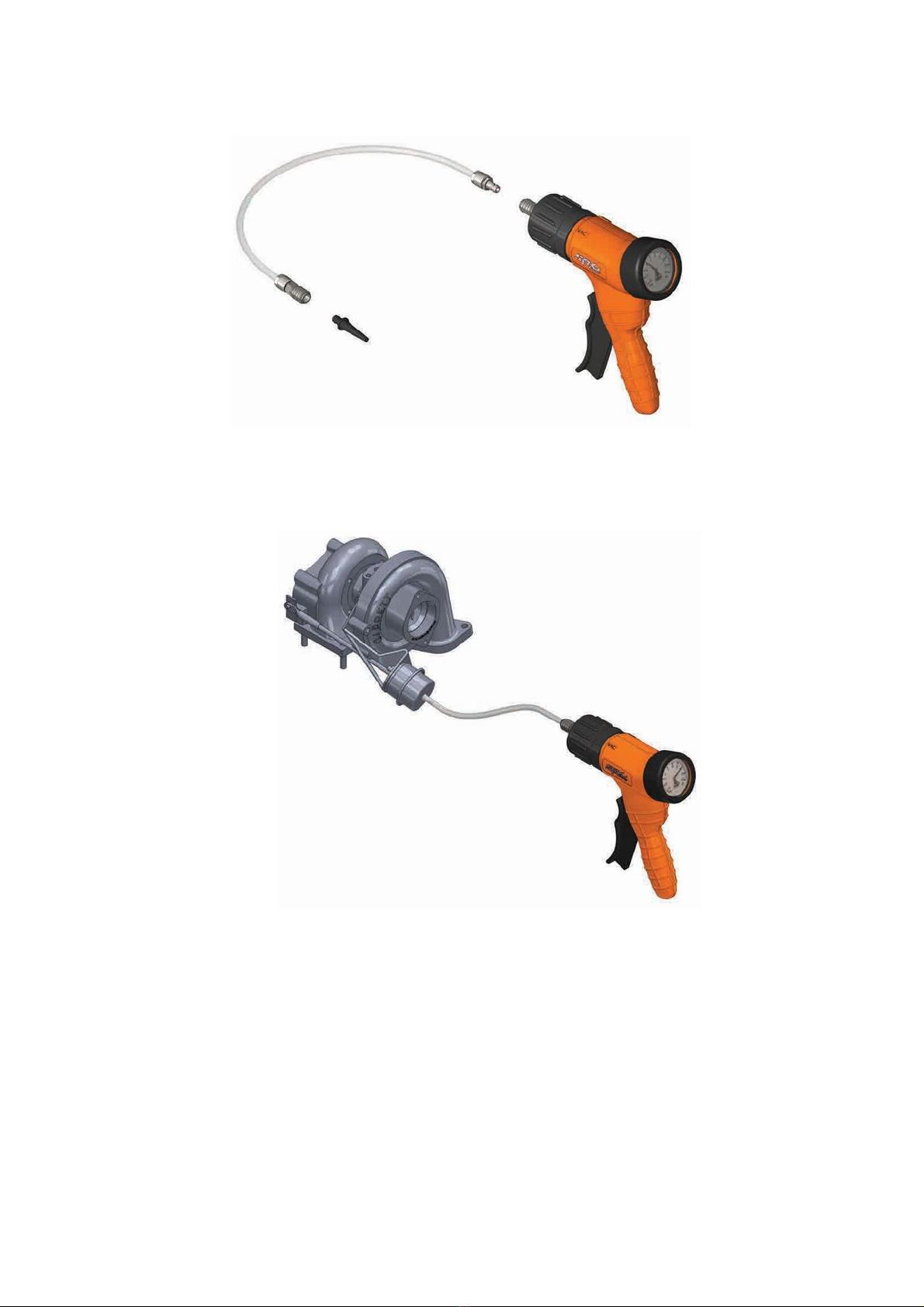

Test and Adjust
Turbo Charger Waste
Gate Actuator
Additional application examples
•Test:
- Turbo charger waste gate actuator
- Fuel tank vent valves
- Fuel pressure regulators
- Thermal switches
- Electric switches
- Small engine fault diagnosis and repair

5
