Space-Ray LoPro LPBH40-N5 User manual

Form No. 43539510
May 2020
LOW PROFILE RADIANT GAS BROODER
MODELS: LPBH40-N5 / LPBH40-L5 with DIRECT SPARK IGNITION
INSTALLATION
AND OPERATION
INSTRUCTIONS
Patent Pending
OWNER/INSTALLER: For your safety this manual must be carefully read before installing, operating or
servicing this brooder. This brooder is intended for use with either Natural Gas or Propane Gas. It must be
installed by a qualified service person or a licensed contractor in accordance with state and local codes. In
the absence of these codes, the installation must conform to the National Fuel Gas Code ANSI Z223.1 (latest
edition) also know a NFPA54 or the CAN/CGA-B149.1/2 Installation Code in Canada.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury, property
damage or death. Refer to this manual. For assistance or additional information, consult a qualified
installer, service agency or the gas supplier.
INSPECT all combustion air openings into the building and, if necessary, clear as they become blocked by
litter, dust, feathers or other matter.
INSPECT and clean the brooder filters on a regular basis to allow proper brooder operation.
FOR YOUR SAFETY: EXHAUST FANS MUST be operating on an appropriate cycle when brooders are
operating to avoid a high concentration of carbon monoxide. When used without fresh air, this brooder may
give off carbon monoxide, an odorless and poisonous gas. CARBON MONOXIDE POISONING MAY LEAD TO
DEATH. Early signs of carbon monoxide poisoning resemble the flu with headaches, dizziness and nausea. If
you experience these signs, GET FRESH AIR IMMEDIATELY! Have the brooders serviced as soon as possible
and check the ventilation in the house.
These brooders are designed for agricultural applications and may operate with the use of either Natural Gas
or Liquid Propane (LP) Gas. Check the brooder’s nameplate to determine the correct gas type before
proceeding with installation.
IF YOU SMELL GAS:
!DO NOT try to light any appliance.
!DO NOT touch any electrical switch; do not use any
telephone in your building.
!IMMEDIATELY call your gas supplier from a neighbor's
telephone. Follow the gas supplier's instructions. If you
cannot reach your gas supplier, call the fire department.
DO NOT store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
SAVE THIS MANUAL
FOR FUTURE REFERENCE.
FOR YOUR SAFETY

Form No. 43539510
May 2020 –1–
TABLE OF CONTENTS
Section
Description Page
1.0)
GENERAL INFORMATION .........................................................................................1
2.0)
BROODER SPECIFICATIONS....................................................................................2
3.0)
BROODER CONTROL DESCRIPTION .......................................................................2
3.1)
BROODER ACCESSORIES .......................................................................................3
3.2)
PACKING LIST...........................................................................................................4
4.0)
BROODER ASSEMBLY..............................................................................................5
4.1)
GAS VALVE WIRE CONNECTIONS............................................................................9
5.0)

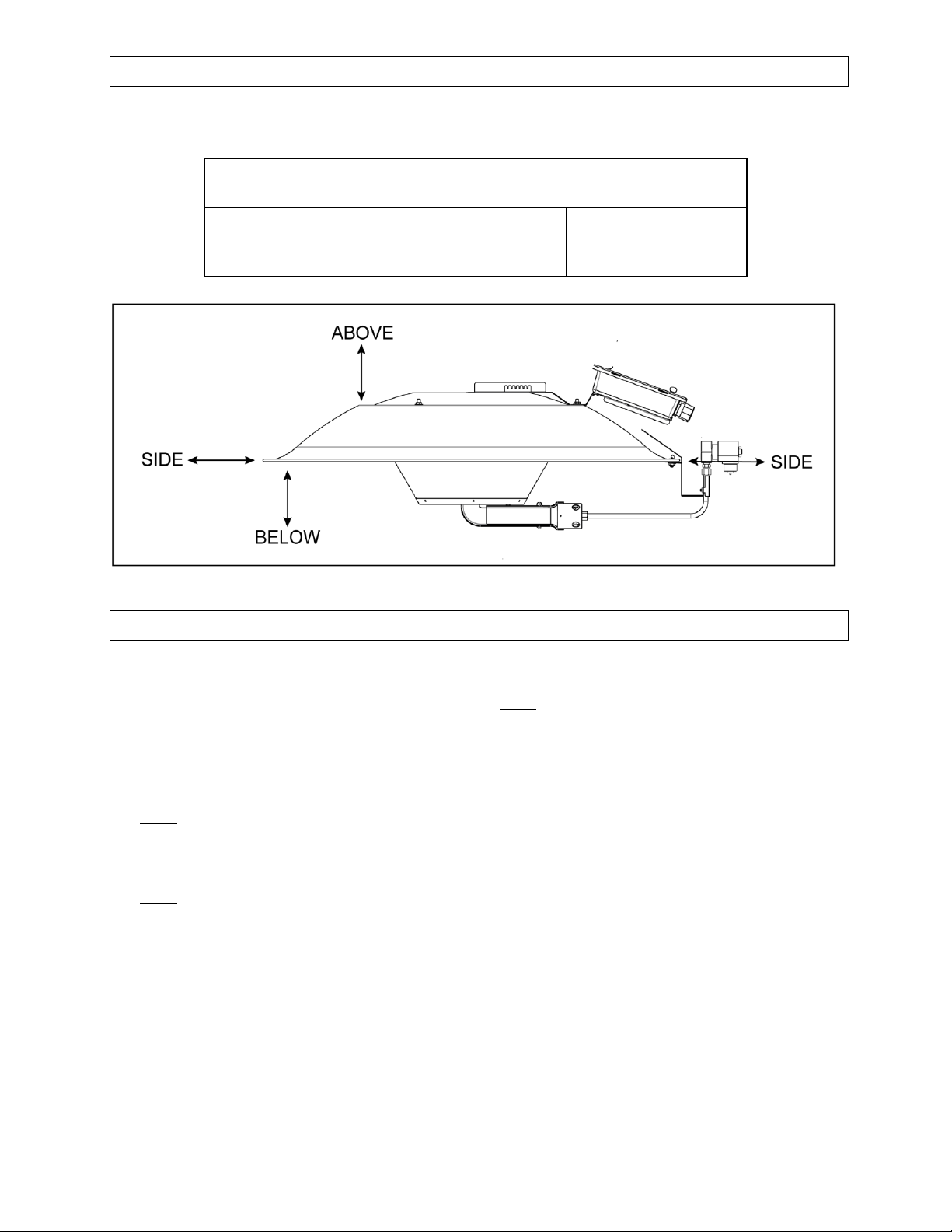

MINIMUM CLEARANCES TO COMBUSTIBLES.........................................................11
6.0)
BROODER INSTALLATION........................................................................................11
7.0)
GAS CONNECTIONS..................................................................................................12
7.1)
INSTRUCTIONS FOR TESTING OF GAS LEAKS AND PROPER GAS PRESSURE ...15
7.2)
GAS PIPE SIZING EXAMPLE ....................................................................................16
8.0)
ELECTRICAL CONNECTIONS ....................................................................................18
9.0)
LIGHTING AND SHUTDOWN INSTRUCTIONS ..........................................................20
10.0)
VENTILATION.............................................................................................................21
11.0)
CLEANING AND ANNUAL MAINTENANCE ...............................................................21
12.0)
TROUBLESHOOTING.................................................................................................24
13.0)
REPLACEMENT PARTS GUIDE.................................................................................27
1.0) GENERAL INFORMATION
This brooder is a self-contained infrared radiant brooder for agricultural locations where flammable gases or
vapors are not generally present.
Installation of the brooders must be in accordance with all applicable codes shown in the instructions and/or
the local codes and authorities having jurisdiction. In the absence of local codes, the brooder must be
installed in accordance to the National Fuel Gas Code ANSI Z223.1/NFPA54 in the U.S. or the CAN/CGA-
B149.1/2 Installation Code in Canada. Clearances to combustibles as outlined in the manual should always
be observed.
Inspect all openings and filters regularly and clean as necessary. This is necessary because litter, dust
feathers and other matter can become airborne and clog openings and filters and adversely affect brooder
operation and performance.
Every brooder should be located with respect to building construction and other equipment so as to permit
access to the brooders. Each installer shall use skillful and reliable installation practices when locating the
brooders and must give consideration to service accessibility.
This brooder is for INDOOR INSTALLATION ONLY and is used in an UNVENTED mode. The term Unvented
actually means Indirect Vented. While the products of combustion are expelled into the building, national
codes require ventilation in the building to dilute these products of combustion. This ventilation must be
provided by gravity or mechanical means. Ventilation requirements are addressed further in these
instructions.
This heater complies with IAS U.S. No. 8-94 (Draft No. 2) and CAN-1-2-20-M85.
Copies of the National Fuel Gas Code (ANSI Z223.1-latest edition) are available from the CSA at 8501 E.
Pleasant Valley Rd., Cleveland, OH 44131 or 55 Scarsdale Road, Don Mills, Ontario M3B 2R3. All NFPA
codes are available from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.
This product can expose you to chemicals including ceramic fibers,
which are known to the State of California to cause cancer, and carbon
monoxide, which is known to the State of California to cause birth
defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov.

Form No. 43539510
–2–May 2020
2.0) BROODER SPECIFICATIONS
INPUT RATING
Propane Gas:
40,000 Btu/hr (11.72 kW)
Natural Gas:
40,000 Btu/hr (11.72 kW)
Propane/Butane Mix Gas
40,000 Btu/hr (11.72 kW)
GAS SUPPLY PRESSURE
Propane Gas:
5.0 PSIG (345 mbar) MAX
5.0 PSIG (345 mbar) MIN
Natural Gas:
5.0 PSIG (345 mbar) MAX
5.0 PSIG (345 mbar) MIN
Propane/Butane Mix Gas
5.0 PSIG (345 mbar) MAX
5.0 PSIG (345 mbar) MIN
MANIFOLD PRESSURE
Propane Gas:
5 PSIG (345 mbar)
Natural Gas:
5 PSIG (345 mbar))
Propane/Butane Mix Gas
5 PSIG (345 mbar)
ORIFICE SIZE
(MAIN BURNER)
Propane Gas:
5/64” (.0781”)
Natural Gas:
3.1mm (.1220”)
Propane/Butane Mix Gas
1.8mm (.0709”)
ORIFICE SIZE
(VALVE OUTLET)
Propane Gas:
#61 (.0390”)
Natural Gas:
1.2mm (.0470”)
Propane/Butane Mix Gas
#64 (.0360”)
MOUNTING HEIGHT
Recommended - 72” (1830mm)
BROODER SPACING
25’ – 40’ (7.6m – 12.2m)
BROODER SIZE
Canopy Diameter:
35” (890mm)
Brooder Height:
13.75” (349mm)
WEIGHT
Assembled Brooder:
21.5 lbs (10 kg)
VENTILATION REQUIRED
Per Brooder:
160 CFM (272 m3/hr)
GAS CONSUMPTION
Propane Gas:
0.43 GPH (1.63 L/hr)
Natural Gas:
0.40 Therm (42.2 MJ/Hr)
Propane/Butane Mix Gas
0.43 GPH (1.63 L/Hr)
ELECTRICAL SUPPLY
120 VAC, 1 PH, 60Hz
3.0) BROODER CONTROL DESCRIPTION
Brooder Control No. 5 is designed for single or multi-zone installations using one or more thermostats. The
burner is controlled with a Direct Spark Ignition (DSI) switch, which is designed to provide 100 percent gas
shut off of the main valve in the event that the main burner flame is not sensed.

Form No. 43539510
May 2020 –3–
3.1) BROODER ACCESSORIES

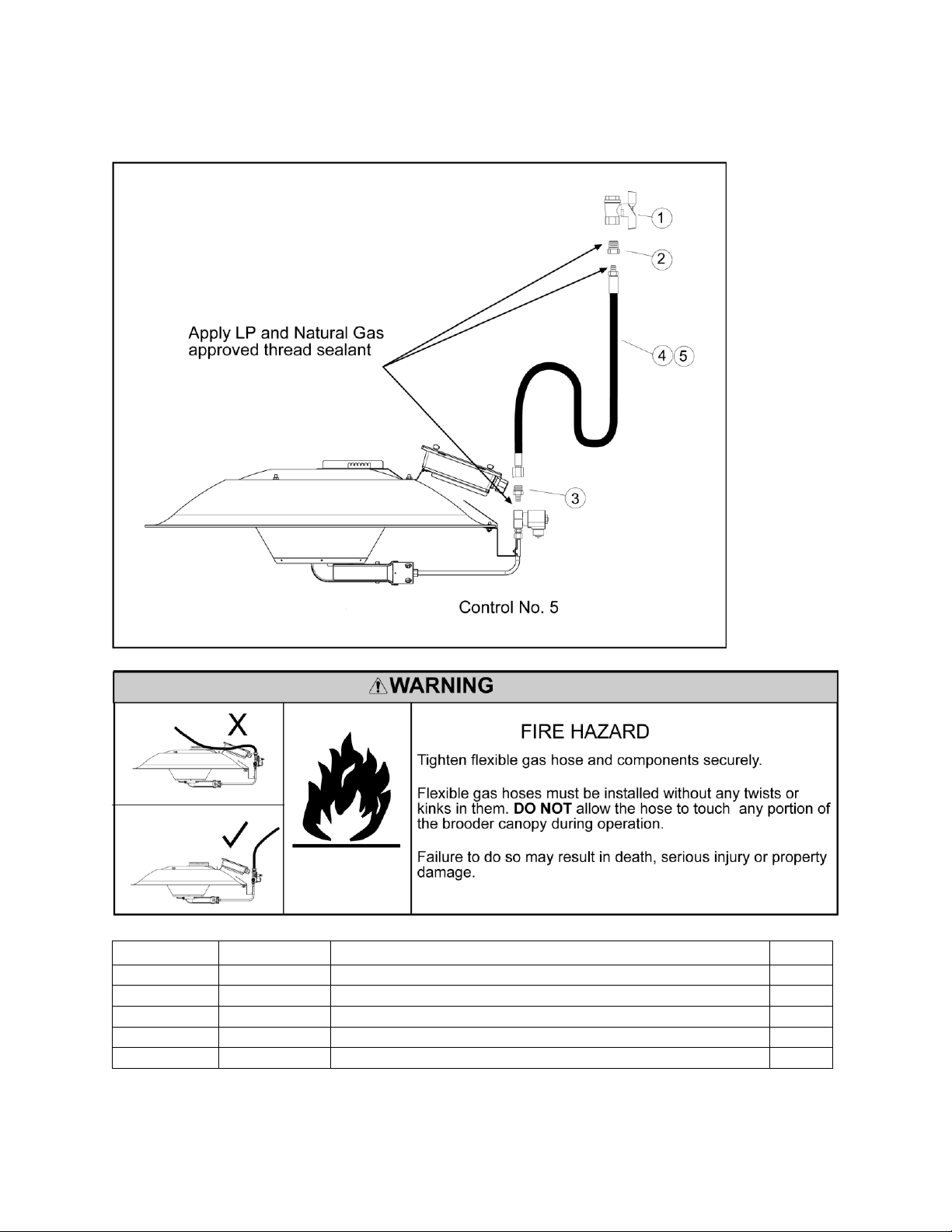

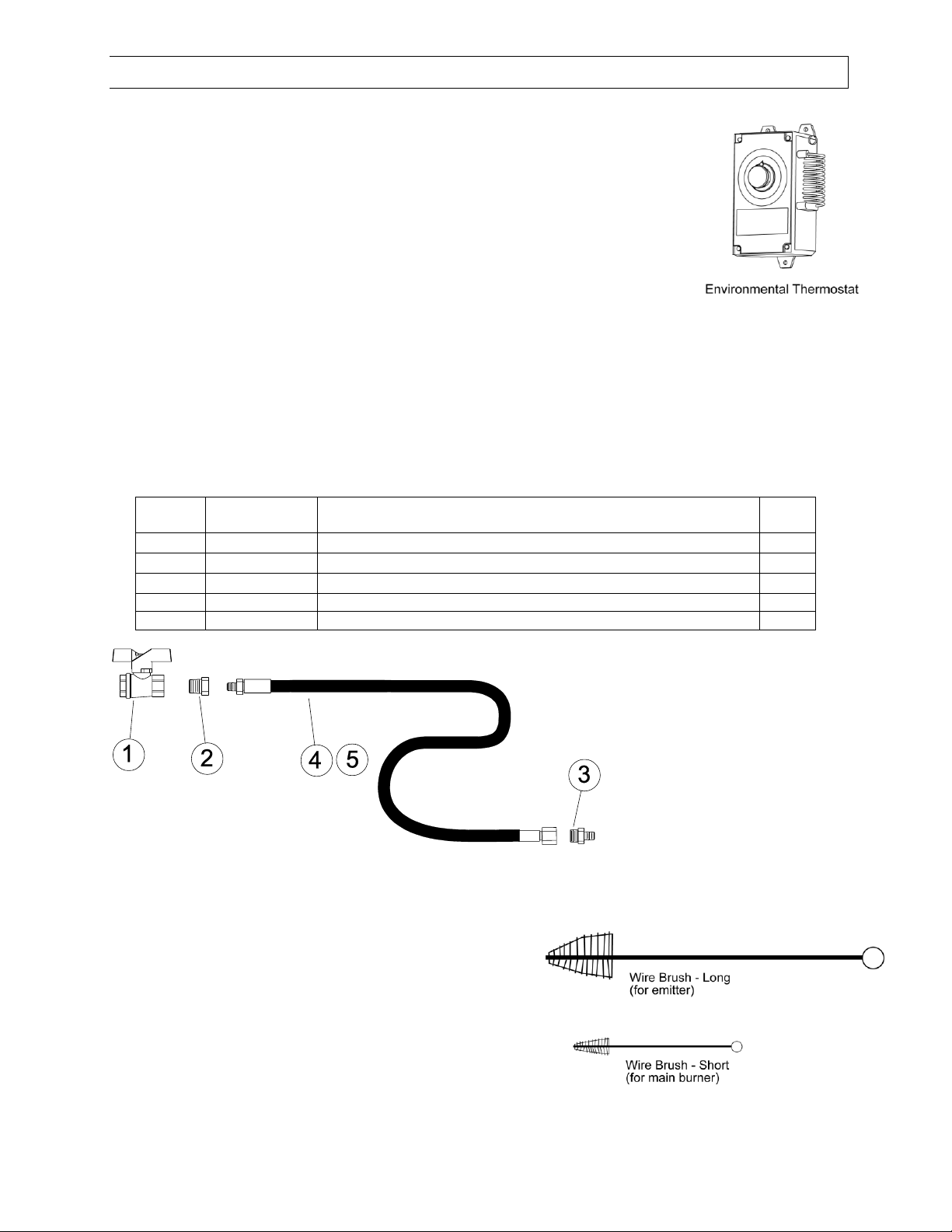

A) Thermostat –Environmental (EW-4-20), Part No. 30525010
Ratings: SPDT 120/240VAC, 16A Full Load
Temperature range: -40 Deg. F to 104 Deg. F +/- 2.5 Deg.F
Differential
Housing: Watertight ABS plastic meets NEMA 4x and NEC Article 547-
4 requirements for use in harsh environments. Adjustable dial allows
thermostat to be recalibrated.
B) Quick Connect Hose Kit - No. 5 Controls –Part No. 30522290
1/4” ID x 6 FT hose with 9/16-18 LH welding connector x 1/8”male pipe at one end and
1/4" male pipe opposite end.
C) Quick Connect Hose Kit - No. 5 Controls –Part No. 30522300
1/4” ID x 10 FT hose with 9/16-18 LH welding connector x 1/8”male pipe at one end and
1/4" male pipe opposite end.
Each kit includes the following:
D) Wire Brush –Long, Part #43295020
Wire Brush –Short, Part #43295010
Item
No.
Part Number
Description
Qty
1
30285000
Manual Ball Valve 1/2 Female Pipe
1
2
03338100
Bushing, 1/2 x 1/4 Galv.
1
3
30714020
LH Welding Connector 9/16-18 x 1/8 Male Pipe
1
4
30523290
Hose, 1/4” ID x 6 FT with LH Welding Swivel x 1/4 Male Pipe
1
5
30523300
Hose, 1/4” ID x 10 FT with LH Welding Swivel x 1/4 Male Pipe
1

Form No. 43539510
–4–May 2020

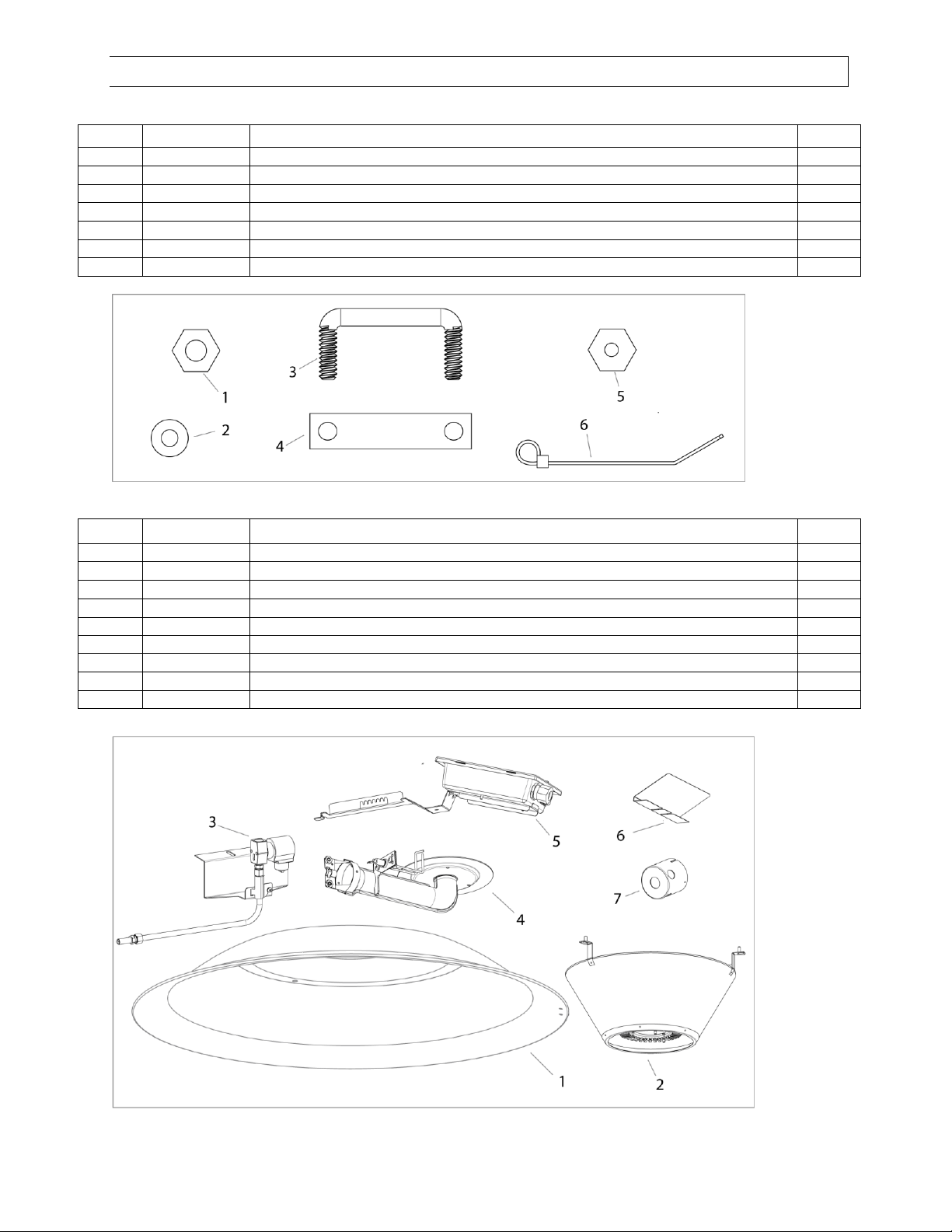

3.2) PACKING LIST
A. Fastener Kit - 43534140
Ref.
Part No.
Each Fastener Kit Includes:
Qty.
1
02167019
Hex Locknut 1/4-20 KEPS
5
2
02129100
Flat Washer 1/4
5
3
42873050
U-Bolt Clamp 1/4-20
1
4
42873059
Stand-Off Plate
1
5
02127250
Hex Nut #10-24 SS –7/16” AF
3
6
30257000
Minature Cable Tie
1
B. Main Brooder Components
Ref.
Part No.
Each Package Includes:
Qty.
1
43303000
Reflector Canopy
1
2
43524550
Emitter Assembly –(with stamped cap & spacers)
1
3
44542500
Gas Control Arm Assembly –Propane Gas (with manifold bracket and v-clamp)
1
4
44464208
Burner Base Assembly –(with electrode)
1
5
44543150
Ignition Control Assembly (120V)
1
6
43311900
Plate, Label Holder
1
7
43316250
Cup, Air Restrictor (Natural gas only)
1
8
43539510
Installation and Operation Manual -not shown-
1

Form No. 43539510
May 2020 –5–
4.0) BROODER ASSEMBLY
1. Make sure that all components are present before assembling the brooder.
The Fastener Kit contains all the nuts, screws and washers required for brooder assembly. You will need
the following tools for brooder assembly:
Nut Driver - Size 7/16”
Crescent Wrench (2 each)
STEP 1: Place the canopy over the emitter assembly and locate the (2) studs that are located above the
slotted center cut out. Loosely attach to the studs (2) 1/4-20 hex nuts and flat washers.
STEP 2: Insert the tab of the ignition control assembly bracket into the slotted hole of the canopy. Lower
the ignition control over the mounting stud of the emitter Secure with a 1/4-20 hex nut and washer.
Tighten this nut and washer and the two from above.

Form No. 43539510
–6–May 2020
STEP 3: Loosen the screws from the lid and remove. Route the ignition cable through the cable gland.
STEP 4: Flip the emitter and canopy over. Align the burner with the holes in the canopy. Attach the burner
using (2) #10-24 hex nuts.
STEP 5: The gas control arm comes equipped with the manifold bracket pre-attached using a v-clamp and
#10-24 screw. Prior to assembly, rotate the manifold bracket as shown without loosening the screw.

Form No. 43539510
May 2020 –7–

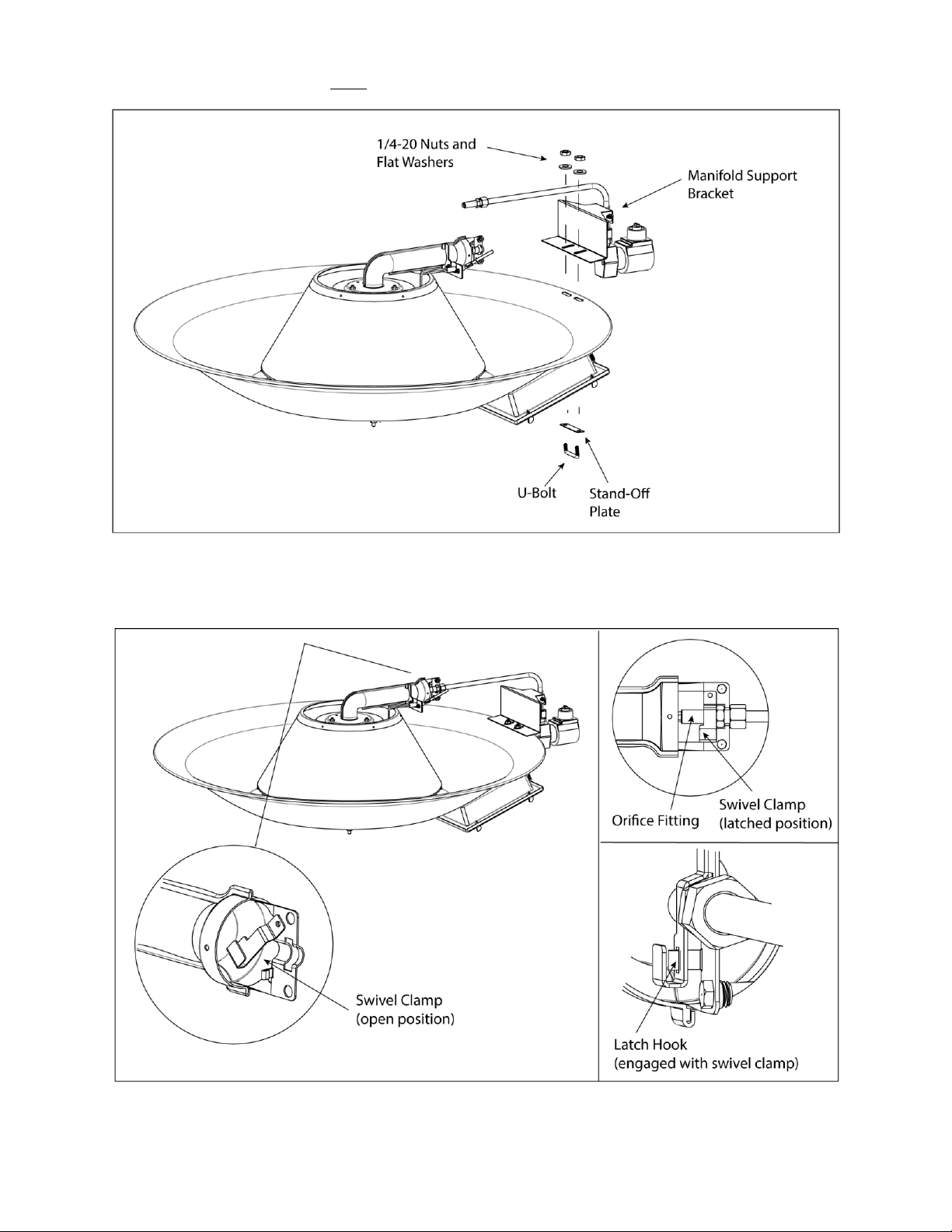

STEP 6: Attach the manifold support bracket to the rim of the canopy using the U-bolt, (2) 1/4-20 hex nuts,
flat washers and stand-off plate. NOTE: DO NOT COMPLETELY TIGHTEN FASTENERS AT THIS STAGE YET.
STEP 7: Open the swivel clamp located on the burner by carefully lifting the clamp over the latch. Place the
orifice fitting into the slotted portion of the burner and latch in position by engaging the swivel clamp over the
latch. *
*Note: For natural gas versions see STEP 10.

Form No. 43539510
–8–May 2020

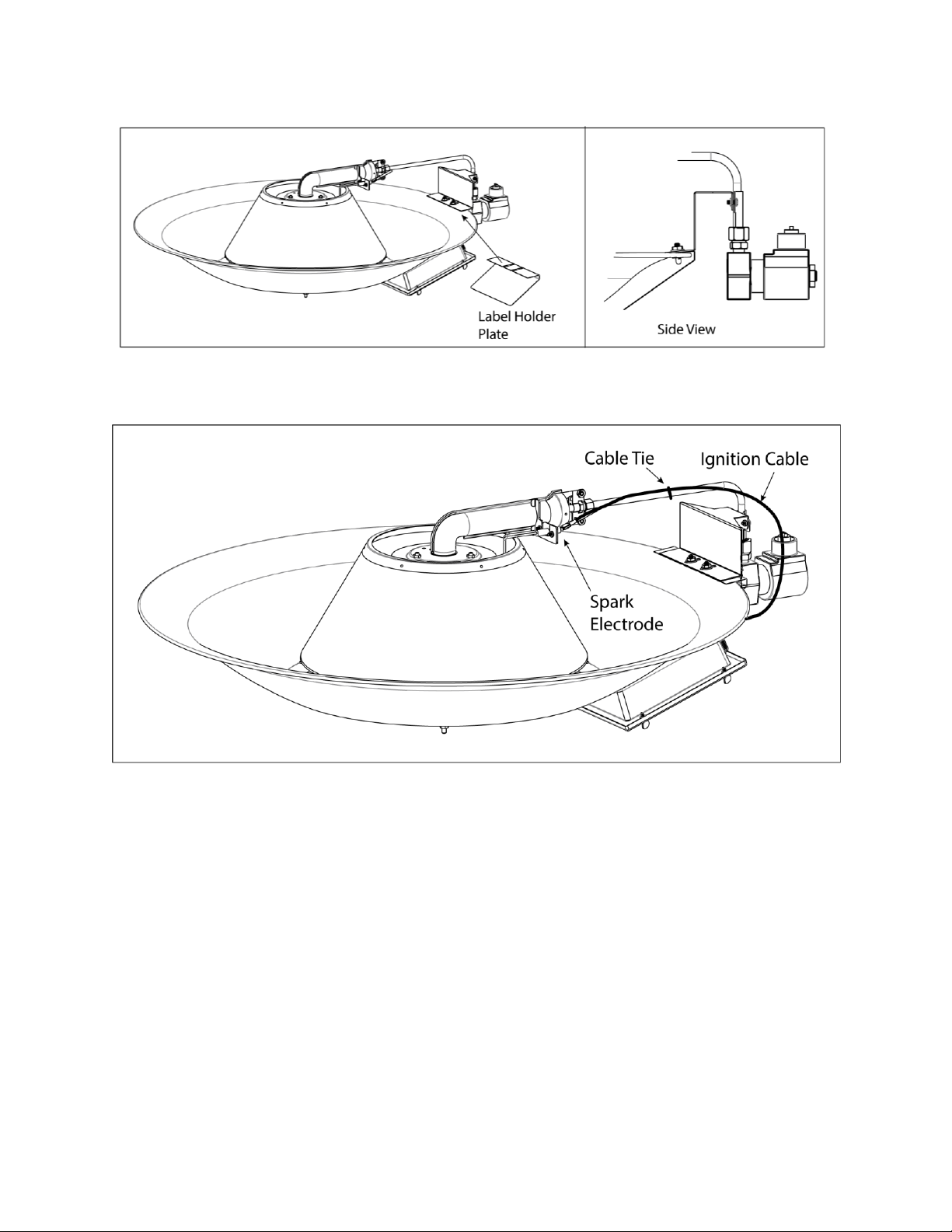

STEP 8: Slide the label holder plate between the manifold support bracket and rim of canopy as shown. The
control arm and burner to be in line with each other. Tighten the hex nuts from STEP 6 above after any
adjustments are made.
STEP 9: Connect the female quick connect receptacle of the ignition cable to the electrode. Secure the cable
portion to the gas control arm using a wire tie included in the fastener kit.

Form No. 43539510
May 2020 –9–
STEP 10: NATURAL GAS UNITS REQUIRE USE OF AN AIR RESTRICTOR CUP. Place the cup on the burner
manifold tubing before attaching the gas control as shown above in STEP 7. Engage the slots from the cup
with the hemmed flanges of the burner. Engage the round bosses of the cup with the holes in the burner.
WARNING: ONCE THE BROODER IS ASSEMBLED AND BEFORE IT IS FIRST FIRED, YOU MUST CHECK FOR
GAS LEAKS! USE A SOAP AND WATER SOLUTION AND APPLY AT ORIFICE FITTING AND FIELD CONNECTIONS
TO THE GAS VALVE.

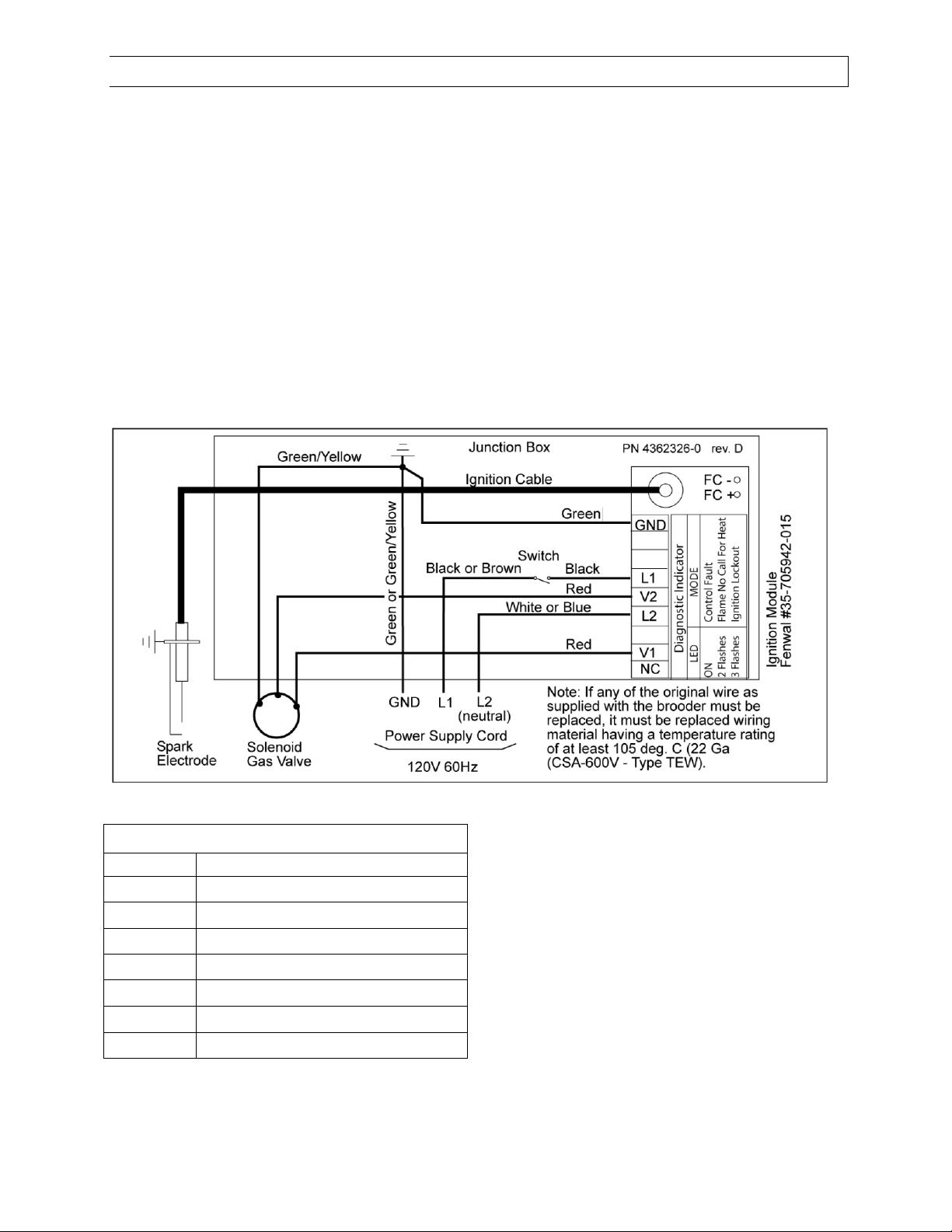

4.1) GAS VALVE WIRE CONNECTIONS

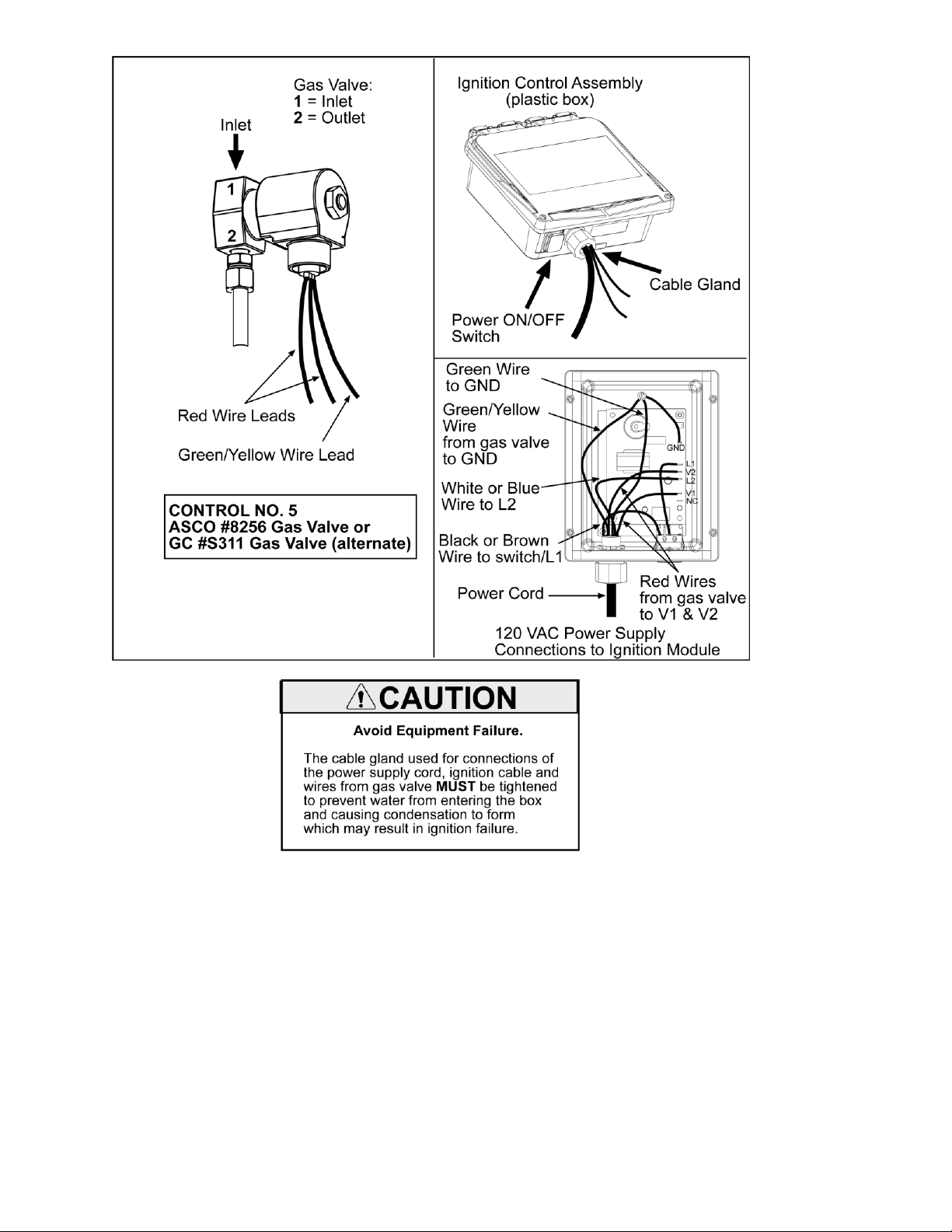

STEP 1: Flip the brooder over and Insert the red and green/yellow wire leads from the gas valve through the
cable gland of the ignition control box. See below.
STEP 2: Connect both red wires of the gas valve to the terminals marked V1 and V2 of the ignition module.
Note: The wires emerging from the coil must point down.
STEP 3: Connect the green/yellow wire of the gas valve to the ground screw
Refer to the wiring diagrams located in Section 8, Electrical Connections for the incoming power connections.
Re-tighten the cable gland after all wiring connections are complete.

Form No. 43539510
–10–May 2020

Form No. 43539510
May 2020 –11–
5.0) MINIMUM CLEARANCES TO COMBUSTIBLES
Minimum clearances to combustible materials shall be measured from the outer surface of the canopy as
shown in the following table:
MINIMUM CLEARANCES TO COMBUSTIBLES
Sides:
Below:
Above:
36” (915mm)
72” (1830mm)
18” (460mm)
6.0) BROODER INSTALLATION
1. Locate brooders approximately 25’ to 40’ (8m to 12m) apart, in a row, as needed for bird comfort and
building heat loss. If more than one row is desired, stagger rows for best heat distribution. Attach the
Chain Kit (optional) to the top of the brooder Canopy. NOTE: Make sure that the large hook (short chain
length) is secured to the hanging lug on the side of the brooder closest to the gas valve.
2. Suspend the brooder at the desired height above the floor (litter) level, normally 60” to 72” (1520mm to
1830mm). For brooders connected to a winch (to allow for adjustment of brooder height), connect each
Chain Kit using a chain or cable suitable for the weight of each brooder. DO NOT USE ROPE.Size the
winch and cable so that it is capable of handling the total weight of all brooders and gas piping involved.
NOTE: Connect a safety chain to each brooder and anchor it to the house structure above each brooder
to prevent it from falling onto the litter if the cable/chain breaks or the winch fails. THE GAS HOSE
SHOULD NEVER BE USED AS A SAFETY CHAIN!
3. Connect the gas line and electrical supply (if required) to each brooder as outlined in Sections 7 and 8.
NOTE: After connection of the gas line, make sure that the brooder is suspended with the control side
approximately ½” (13mm) below the other side of the brooder to prevent hot products of combustion
from damaging the gas control valve.

Form No. 43539510
–12–May 2020
7.0) GAS CONNECTIONS
1. Gas piping for the house must be sized to be capable of satisfying the entire demands of the house
should all equipment be operating at the same time. Please use Table 1 (taken from the National Fuel
Gas Code) for the sizing of piping for the house. An example using this table is shown.
2. Connect to the supply tank or manifold in accordance with the latest edition of the National Fuel Gas
Code (ANSI Z223.1) and/or local codes. Authorities having jurisdiction should be consulted before the
installation is made. Refer to the latest edition of CAN/CGA B.149-1/2 Installation Codes for Gas
Burning Appliances and Equipment in Canada.
3. Pipe joint compounds must be resistant to the action of liquefied petroleum (LP) gases.

Form No. 43539510
May 2020 –13–
4. Gas connections to individual brooders shall be made using flexible gas connectors, or they can utilize
rubber hosing suitable for LP gas usage (to allow movement of the brooders for cleaning, etc.). Check
with the authorities having jurisdiction and/or local codes prior to choosing an individual gas connection
method.
5. Connection to a new installation with accessory hose and fittings is shown below:
Item Number
Part Number
Description
Qty
1
30285000
Manual Ball Valve 1/2 Female Pipe
1
2
03338100
Bushing, 1/2 x 1/4 Galv.
1
3
30714020
LH Welding Connector 9/16-18 x 1/8 Male Pipe
1
4
30523290
Hose, 1/4” ID x 6 FT with LH Welding Swivel x 1/4 Male Pipe
1
5
30523300
Hose, 1/4” ID x 10 FT with LH Welding Swivel x 1/4 Male Pipe
1
Make sure connection is secure before turning on the gas. See section 7.1) for procedures to test for gas
leaks before putting the brooders into operation.

Form No. 43539510
–14–May 2020
6. Suspend the gas hose line to the ceiling structure using safety cable. This will reduce the potential that
the hose can touch the canopy when the brooder is lowered or raised.
7. It is strongly recommended that a field installed manual shut-off valve be installed in the gas piping to
each brooder. This will allow service of individual brooders without having to shut down the entire gas
supply system. When installing the gas line, it is recommended to connect a sediment trap (shown
below) in the gas line at a point before the gas line enters the house. This trap or “drip leg” acts to trap
impurities and water that can condense out of the gas. It helps to keep impurities from entering the
appliance and causing potential damage to gas valves, etc. Periodically remove the cap from the drip leg
and drain any accumulation of dirt and/or water.
8. After all gas connections and adjustments are made, check all gas connections for leaks (not just the gas
connections at the brooders) using a heavy soapsuds solution or by using one of the methods listed in
Appendix D of the National Fuel Gas Code. WARNING: DO NOT USE AN OPEN FLAME OF ANY KIND TO
TEST FOR LEAKS!
9. It is recommended that a pressure gauge be installed at the end of the gas piping run to allow you to
check the gas supply pressure in the system. This needs to be capable of accurately measuring in units
of inches of water column or mbar.

Form No. 43539510
May 2020 –15–
7.1) INSTRUCTIONS FOR TESTING FOR GAS LEAKS AND PROPER GAS
PRESSURE
W A RNIN G : D O NO T O MI T T HE SE T E S T S !
TESTING THE INSTALLATION FOR GAS LEAKS:
1. Inspect all connections and appliance valves to be sure connections are wrench-tight and that all
appliance valves are closed, including the pilot valves.
2. Connect a high-pressure test set to the piping system just upstream of the brooder.
3. Fully open slowly the LP gas container valve to pressurize the piping system. Once the system is
pressurized and stabilized, close the container valve tightly.
If the pressure remains unchanged on the gauge for at least 10 minutes, the system can be assumed leak-
tight. If a drop in pressure does occur, it indicates a leak in the system.
If the pressure drop occurs, check the joints, connectors, and other possible points of leakage with an
approved, high quality leak detection solution. NEVER USE A MATCH OR OPEN FLAME TO CHECK FOR
LEAKS.Once a leak has been located and repaired, repeat Steps 3 and 4 above. If there is an increase in
pressure, it indicates that the LP gas container valve is not shut off tightly. Shut off the valve tightly and
repeat Step 4 above.
NOTE: Do not expose final stage piping to excessive heat or direct sunshine during the leak test.
Pressure build-up in the line due to heat may compensate for pressure loss due to leaks. This will prevent
the gauge reading from indicating system leaks.
WARNING: Gas Pressure Testing is to be performed only by qualified personnel.
CHECK GAS INLET (SUPPLY) PRESSURE:
1. Be sure the shut off valve is in the “OFF” position before disconnecting the hose. Connect a suitable high

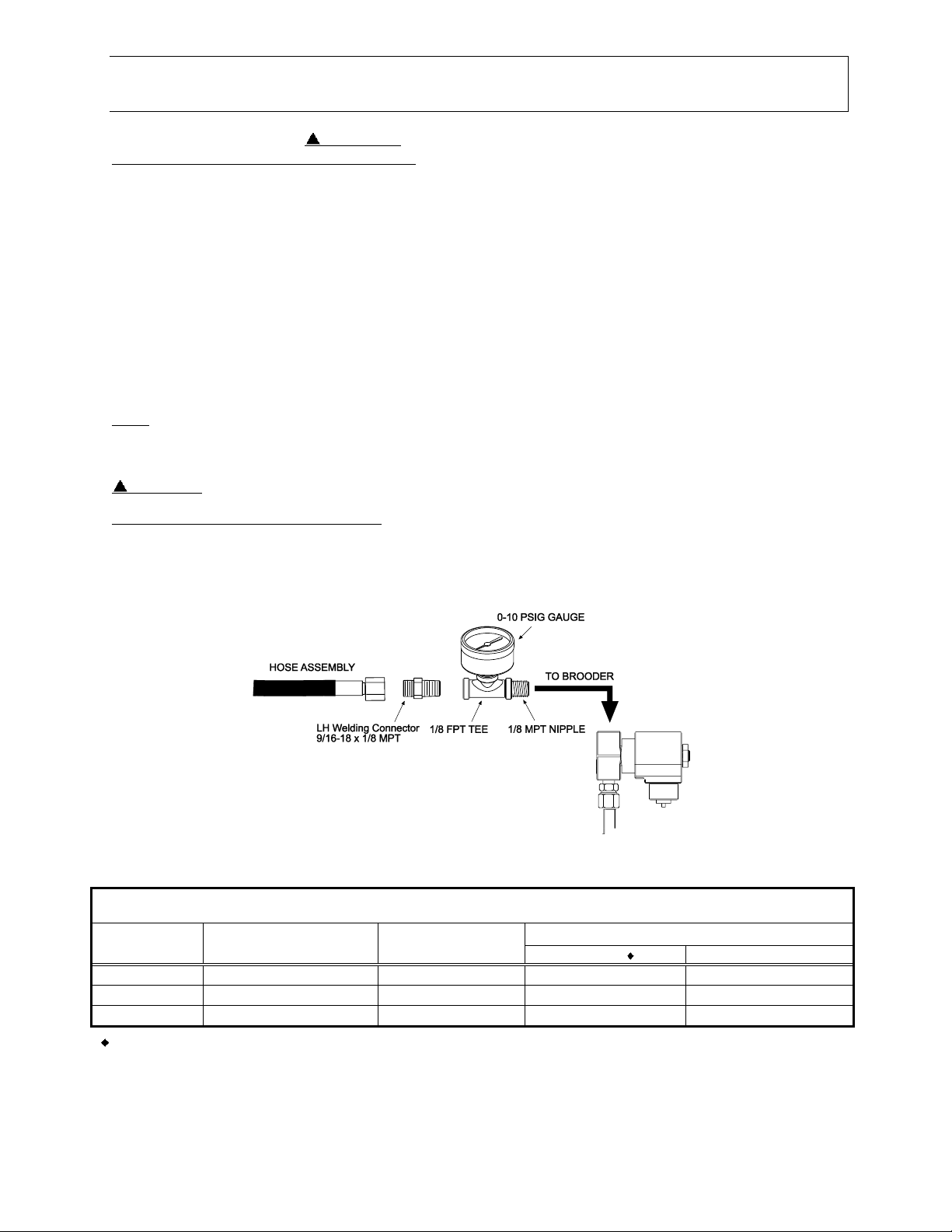

pressure gauge as shown below at the furthest brooder from the second stage regulator. Turn the shut
off valve to the “ON” position and light the brooders with the thermostat set to the highest temperature
to give maximum gas pressure. DO NOT EXCEED 5 PSI INLET PRESSURE TO THE BROODER.
2. Turn the shut off valve back to the “OFF” position before removing the test set. Repeat the gas leak test.
GAS PRESSURE TABLE
BROODER
MODEL
GAS TYPE
MANIFOLD
PRESSURE
SUPPLY PRESSURE
Minimum
Maximum
LPBH40-N5
Natural Gas
5.0 PSIG (345 mbar)
5.0 PSIG (345 mbar)
5.0 PSIG (345 mbar)
LPBH40-L5
Propane Gas
5.0 PSIG (345 mbar)
5.0 PSIG (345 mbar)
5.0 PSIG (345 mbar)
LPBH40-B5
Propane/Butane Mix Gas
5.0 PSIG (345 mbar)
5.0 PSIG (345 mbar)
5.0 PSIG (345 mbar)
Minimum permissible gas supply pressure for the purpose of input adjustment.

Form No. 43539510
–16–May 2020
REGULATOR LOCK-UP AND LEAKAGE:
After the leak testing and delivery pressure tests have proven satisfactory, the regulator lock-up and leakage
test may be performed. The lock-up pressure of the final stage regulator should be slightly higher than, but
not more than, 120% of the set delivery pressure. For example, on a delivery pressure setting of 5 PSIG, the
maximum allowable lock-up pressure is 6 PSIG.
To perform the lock-up and leakage test, follow these steps:
1. With the LP tank valve fully open, shut off all appliance valves so there is no demand for gas. This
includes shutting off all pilots.
2. A slight rise in pressure will occur under these conditions. This rise should be no more than 120% of the
delivery pressure. This is the lock up pressure. NOTE:A quick rise in pressure above the allowable lock-
up point could indicate undersized piping, a worn seat disc or foreign material in the seating area. This
condition must be corrected before putting the system in service.
3. Continue the test for five minutes or more. If a creeping rise in pressure is noticed, the final stage
regulator seat is not closing off properly. The regulator must be replaced or repaired, and the system
retested, before putting the system in service.
7.2) GAS PIPE SIZING EXAMPLE
House Size: 40’ x 400’
Brooder Quantity: 14
Individual Brooder Capacity: 40,000 Btu/hr
Second Stage Regulator Pressure: 14” W.C.
Operating Pressure: 11”W.C., LP gas with all brooders operating
STEP 1.Gas should be run at high pressure from the LP tank to the second stage regulator at the house.
Using the above house configuration example, calculate the gas pipe sizing. First, calculate the total distance

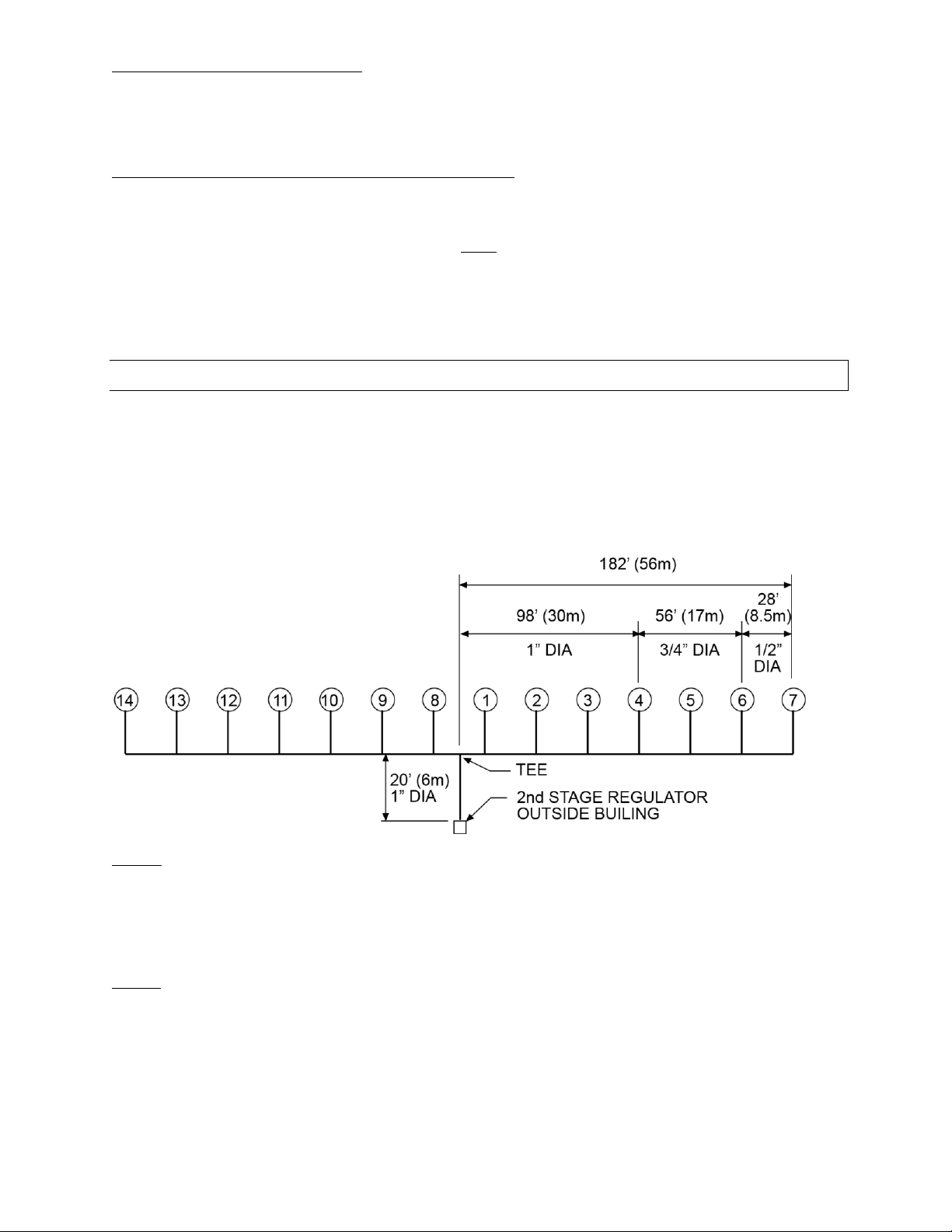

from the second stage regulator to the furthest brooder. In the figure above, that distance equals 202’ (20’ +
182’). Using Table 1, look up the row for 200’ and select the smallest pipe size that has the capacity for the
flow of the end brooder (40,000). The smallest pipe size is ½” with a capacity of up to 58,000 Btu/hr over
200’.
STEP 2.Calculate the distance from the second furthest brooder to the secondary regulator. In the example,
that distance equals 174’. Using Table 1, look up the row for 174’. As 174’ is not listed, you will use the next
distance up, in this case, 200’. Then select the smallest pipe size that has the capacity for the flow of both
the furthest (#7) and second furthest (#6) brooders, which combines to 80,000 Btu/hr. The smallest pipe
size is ¾” with a capacity of up to 120,000 Btu/hr over 200’. Repeat this process for each brooder until you
reach the Tee. Table 2 shows the completed example.

Form No. 43539510
May 2020 –17–
STEP 3.At the Tee, calculate the total distance to the secondary regulator. In this example, that equals 20’.
Using Table 1, look up the row for 20’ and select he smallest pipe size that has the capacity for the flow of all
the brooders connected to the pipe system (560,000). The smallest pipe size is 1” with a capacity of up to
788,0000 Btu/hr over 20’.
TABLE 1.-- LP Gas Pipe Sizing Between Single or Second Stage Regulator and Brooders Per ANSI Z223.1 National Fuel Gas Code-1992
Tubing Size, O.D. Type L
Nominal Pipe Size, I.D. Schedule 40
3/8”
1/2”
5/8”
3/4”
7/8”
1-1/8”
1/2”
3/4”
1”
1-1/4”
1-1/2”
2”
3”
4”
10 Ft.
39
92
199
329
501
935
291
608
1,146
2,353
3,525
6,789
19,130
39,018
20 Ft.
26
62
131
216
346
630
200
418
788
1,617
2,423
4,666
13,148
26,817
30 Ft.
21
50
107
181
277
500
161
336
632
1,299
1,946
3,747
10,558
21,535
40 Ft.
19
41
90
145
233
427
137
287
541
1,111
1,665
3,207
9,036
18,431
50 Ft.
18
37
79
131
198
376
122
255
480
985
1,476
2,842
8,009
16,335
60 Ft.
16
35
72
121
187
340
110
231
435
892
1,337
2,575
7,256
14,801
80 Ft.
13
29
62
104
155
289
94
198
372
764
1,144
2,204
6,211
12,668
100 Ft.
11
26
55
90
138
255
84
175
330
677
1,014
1,954
5,504
11,227
125 Ft.
10
24
48
81
122
224
74
155
292
600
899
1,731
4,878
9,950
150 Ft.
9
21
43
72
109
202
67
141
265
544
815
1,569
4,420
9,016
200 Ft.
8
19
39
66
100
187
58
120
227
465
697
1,343
3,783
7,716
250 Ft.
8
17
36
60
93
172
51
107
201
412
618
1,190
3,353
6,839
300 Ft.
---
---
---
---
---
---
46
97
182
374
560
1,078
3,038
6,196
350 Ft.
---
---
---
---
---
---
43
89
167
344
515
992
2,795
5,701
400 Ft.
---
---
---
---
---
---
40
83
156
320
479
923
2,600
5,303
Maximum propane capacities listed are based on 1/2” W.C. pressure drop at 11” W.C. setting - Capacities in 1,000 BTU/hr.
TABLE 2.
Brooder #
Distance from
Regulator (ft.)
Flow Capacity
Required (Btu/hr)
Distance Used from
Table (ft.)
Smallest Pipe Size and
Capacity From Table
7 and 14
202
40,000
200
½”
--
58,000
6 and 13
174
80,000
200
¾”
--
120,000
5 and 12
146
120,000
150
¾”
--
141,000
4 and 11
118
160,000
125
1”
--
292,000
3 and 10
90
200,000
100
1”
--
330,000
2 and 9
62
240,000
60 Note 1
1”
--
435,000
1 and 8
34
280,000
40
1”
--
541,000 Note 2
Note 1: The distance used is rounded down to 60.
Note 2: The actual smallest pipe size for the required capacity is ¾” from the table. However, the gas pipe size from brooders 3 and 4
to the regulator must be 1” diameter and therefore a smaller diameter pipe cannot be used. If ¾” pipe was used from the Tee to
brooder 1, the pressure drop in the rest of the system would exceed the design pressure drop of ½”W.C.

Form No. 43539510
–18–May 2020
8.0) ELECTRICAL CONNECTIONS
1. All electrical wiring shall conform to the latest edition of the National Electrical Code (ANSI/NFPA No.
70), or the code legally authorized in the locality where the installation is made. DO NOT use phone cable
for electric supply wiring.
2. The electrical system must be electrically grounded in accordance with the National Electrical Code
(ANSI/NFPA No. 70 - latest edition) or the Canadian Electrical Code (C22.1 Part 1 - latest edition) as
appropriate.
3. Each brooder requires a 120 volt - power supply
4. A Thermostat (available as an accessory, Part No. 30525010, or an environmental controller, etc.) is also
required for each brooder or group of brooders as shown in the schematic. The schematic below shows a
group of four (4) brooders controlled by one (1) thermostat. Additional zone groups having more or less
brooders can be added. These should be wired the same as shown in the schematic.
Contact the factory for pricing and availability for the Thermostat.
Terminal Designations
B. GND
Burner Ground
L1
Power Supply - Hot
V2
Valve Ground
L2
Power Supply - Neutral
V1
Valve Power
NC
-NOT USED-
FC-
Flame Current –
FC+
Flame Current +
A. INTERNAL CONNECTION WIRING DIAGRAM –120V Power Supply

Form No. 43539510
May 2020 –19–
B. SCHEMATIC WIRING DIAGRAM –Zone Control Connections
