Space Seating 32-E3371F3 User manual

32-E3371F3

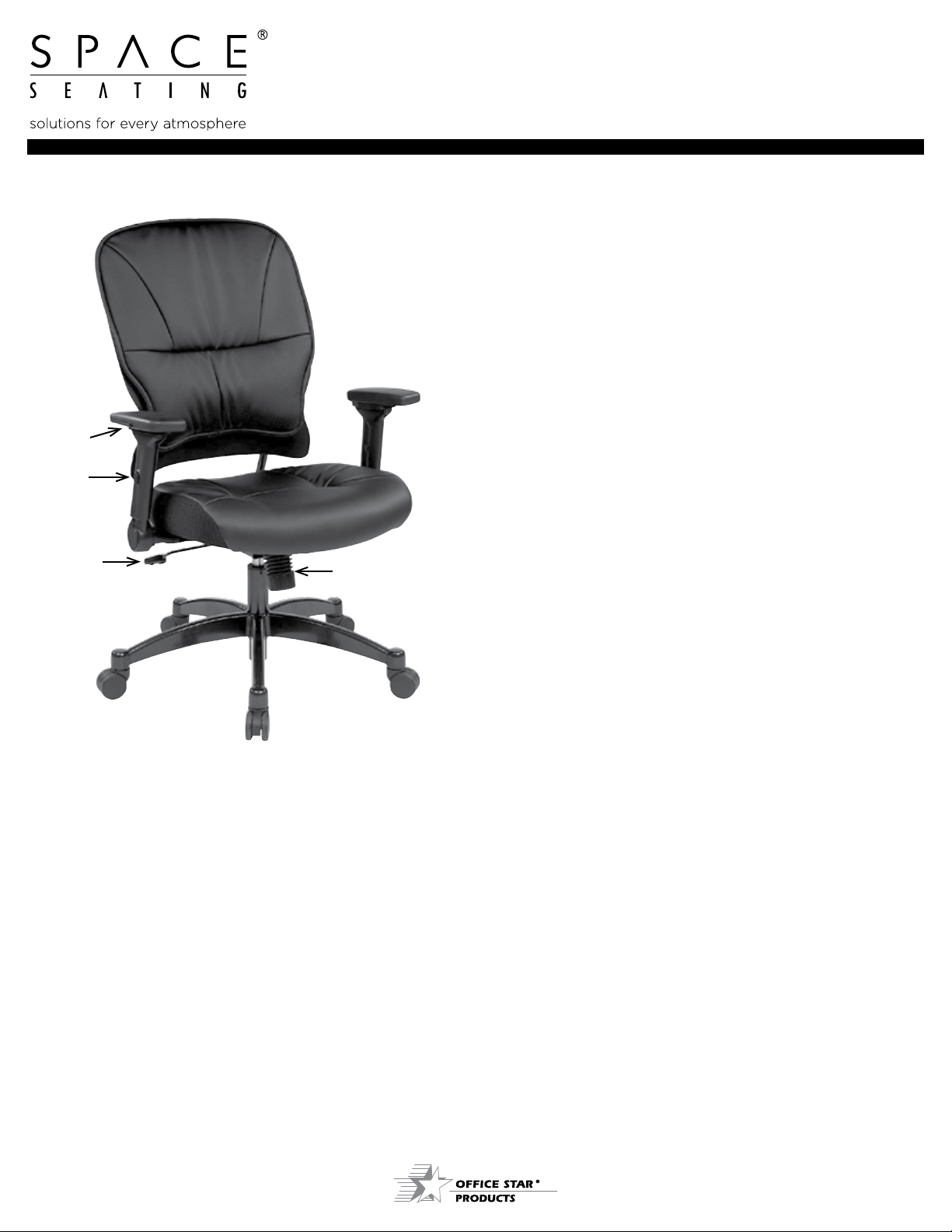

ECO LEATHER MANAGER’S CHAIR
OPERATING INSTRUCTIONS
LIMITED WARRANTY
SPACE®chairs are warranted* from the date of purchase against failure due to material and workmanship as follows:
• Lifetime on component parts including pneumatic cylinder, control mechanism, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• Leather is not warranted against routine scratching and scuffing, as leather is subject to minor blemishes in use.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs. or
less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other
event beyond the control of Office Star Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or
consequential damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a five
year warranty on all parts applies. Fabric is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
To make a warranty claim, contact Parts Department via e-mail parts@officestar.net, by Fax [phone], or toll free parts
number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time. Provide model number and description of the
problem and obtain confirmation number. At it’s option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer’s component.
It is the customer’s responsibility to prepay freight on any components returned to the factory. Return freight on components
covered by warranty will be paid by Office Star Products.
WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs are securely
tightened.
3. Check that all bolts screws and knobs are tight every three months or
as needed.
4. Do not overturn back tilt knob when decreasing tension.
5. Dispose of packing material properly. Do not use plastic cover as
head covering. It may cause suffocation.
6. Do not use chair as a stepladder.
7. Use this chair for its intended purpose only.
8. Use mild detergent only for cleaning.
FEATURES
• PNEUMATIC SEAT HEIGHT ADJUSTMENT
To raise seat remove pressure from seat and pull lever (1) up. To
lower seat height sit on chair and pull lever (1) up.
NOTE: It is normal for chair to slightly lower under body weight.
• 2-TO-1 SYNCHRO TILT ADJUSTMENT
For individual comfort, this chair has been equipped with
an adjustment knob that will allow the user to change the
tension of the tilting feature. Turn knob (2) clockwise to increase
tension and counter-clockwise to decrease or ease the
tension. To lock return chair to the upright position and push
lever (1) in. To unlock pull lever (1) out.
NOTE: Be careful not to loosen back tilt adjustment knob completely.
• ADJUSTABLE ARMS
- Height Adjustment: Push button (3) in to allow arms to move up or
down freely, release button (3) once the desired height is reached.
- Flip Arm: To flip arms up, simply pull up on arm.
To lower arm, simply pull down on arm.
- 3D PU Pads: Press button (4) to move arm pad backwards,
inwards, outwards or forward. Release button (4) once the
desired postion is reached.
4
3
12

STEP 1 STEP 2 STEP 3
STEP 4 STEP 5
32-E3371F3
ECO LEATHER MANAGER’S CHAIR
ASSEMBLY INSTRUCTIONS
© Office Star Products October 2013
PART QTY
1. Base ..........................1
2. Casters ........................5
3. Pneumatic Cylinder ..............1
4. Seat Plate ......................1
5. Seat Cushion ...................1
6. Back Assembly ..................1
7. Arms (7L & 7R) ..................2
8. Flat Washers....................6
9. Arm Screws ....................6
10. Seat Plate Screws ..............4
11. Back Support Screws ............3
12. Back Support (Pre-Installed) ......1
13. Allen Wrench ..................1
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place.
STEP 2 Attach Arms (7L & 7R) to Seat Cushion (5) using three Flat Washers (8) and three Arm Screws (9) for each arm. FULLY TIGHTEN
ALL SCREWS USING ALLEN WRENCH (13).
STEP 3 Attach Seat Plate (4) to Seat Cushion (5) with arrow pointing towards the front of the chair, secure Seat Plate (4) using four Seat Plate
Screws (10). FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (13).
STEP 4 Attach Back Support (12) to rear of Seat Plate (4) using three Back Support Screws (11),
FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (13).
STEP 5 Insert Pneumatic Cylinder (3) into Base (1), place the assembled seat on top of Pneumatic Cylinder (3) and apply downward pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
1
2
7R
8
13
910
5
7L
X5
3
4
13
11
12
6
X3
13
X3
X3
X3
X3
8
9
5
4
X4
1
