SPACEMAKER RGB1012ONEU Use and care manual

Owner's Manual & Assembly Instructions
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
3,0 m x 3,7 m 307,3 cm x 363,9 cm 313,1 cm 370,2 cm 208,6 cm 300,4 cm 356,9 cm 205,4 cm 141,0 cm 175,9 cm
728400319
Storage Area: 115 Sq. Ft. 734 Cu. Ft.
10,7 m220,8 m3
BUILDING DIMENSIONS * Size rounded o to the nearest foot
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
JE01
Model No. RGB1012ONEU
RGB1012FGEU
10' x 12' 121" X 143 1/4" 123 1/4" 145 3/4" 82 1/8" 118 1/4" 140 1/2" 80 7/8" 55 1/2" 69 1/4"

Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and base
materials are not included with your building. Your assembly instructions provide information
on a few methods commonly used to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for
your building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the Parts List page.
•If you nd that a part is missing, include the model number of your building and contact:
•Separate contents of the carton by the part number while reviewing parts list. The rst few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
HS02a
For customers in Germany –
Please contact 50NRTH GmbH
50NRTH GmbH
Straßburgstrasse 14-16
54516 Wittlich / Germany
[email protected]
+49 (0) 6571 - 95117-0
For customers in Switzerland –
Please contact Ritter
Ritter Products AG
Dägermoos 5
Erlinsbach SO 5015
Switzerland
Tel. [phone]
[e-mail]
www.ritter.ch
For customers in France & Belgium –
Please contact Leisure and Pleasure
Leisure & Pleasure
1 Rue Raoul Follereau
59390 LYS
LEZ LANNOY FRANCE
Tel: [phone]
Email: [email protected]
www.leisurenpleasure.com
For customers in Israel –
Please contact IDGarden
IDGarden
Moshav Pedaya 24
Pedaya 99796
Israel
Tel: [phone]
Email: [email protected]
3

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the rst steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A04

5

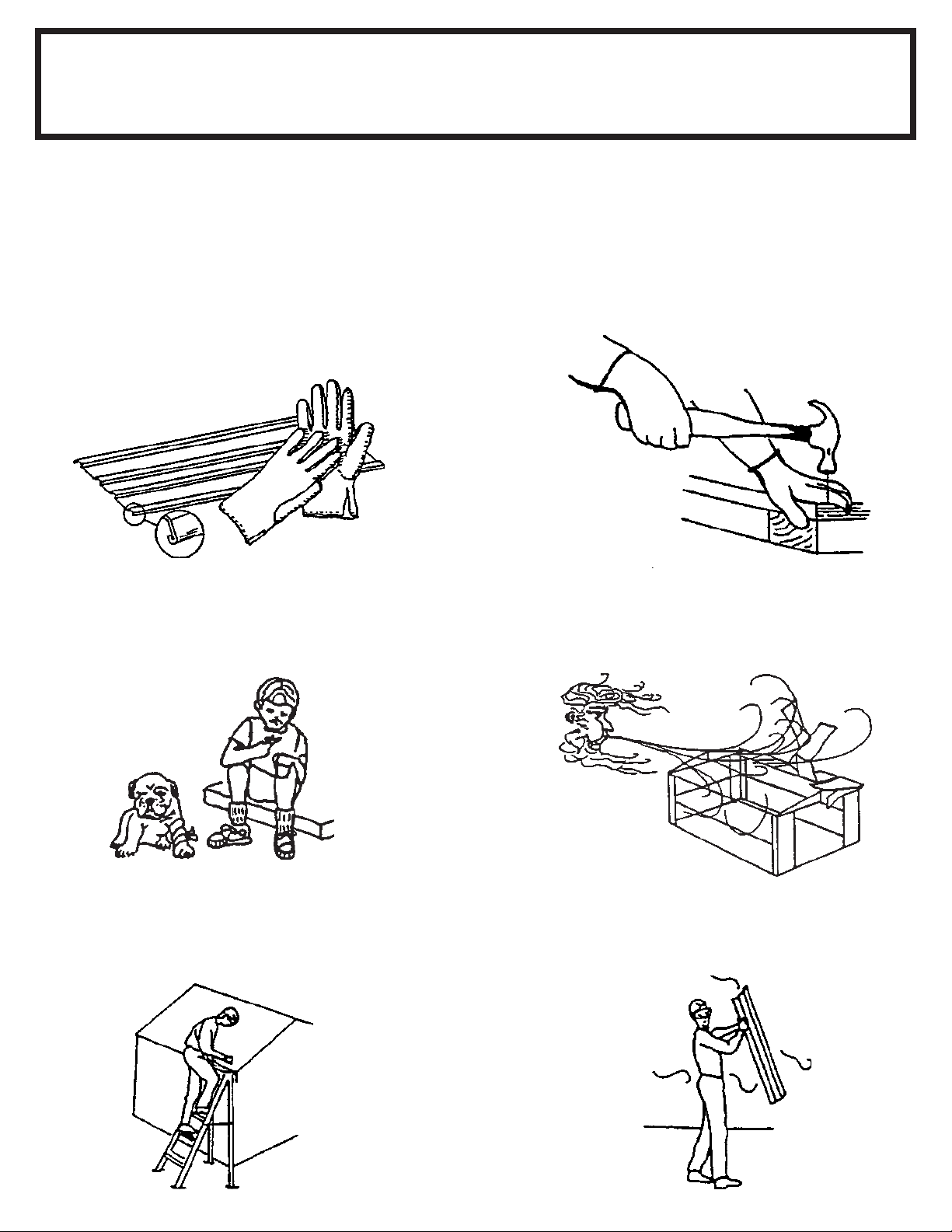

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds.
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction dicult and unsafe.
SAFETY FIRST....
XA04
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep doors
closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather inltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire oor area with good
ventilation will reduce condensation.
Other Tips....
• Wash o inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
6
CARE & MAINTENANCE....
XA05

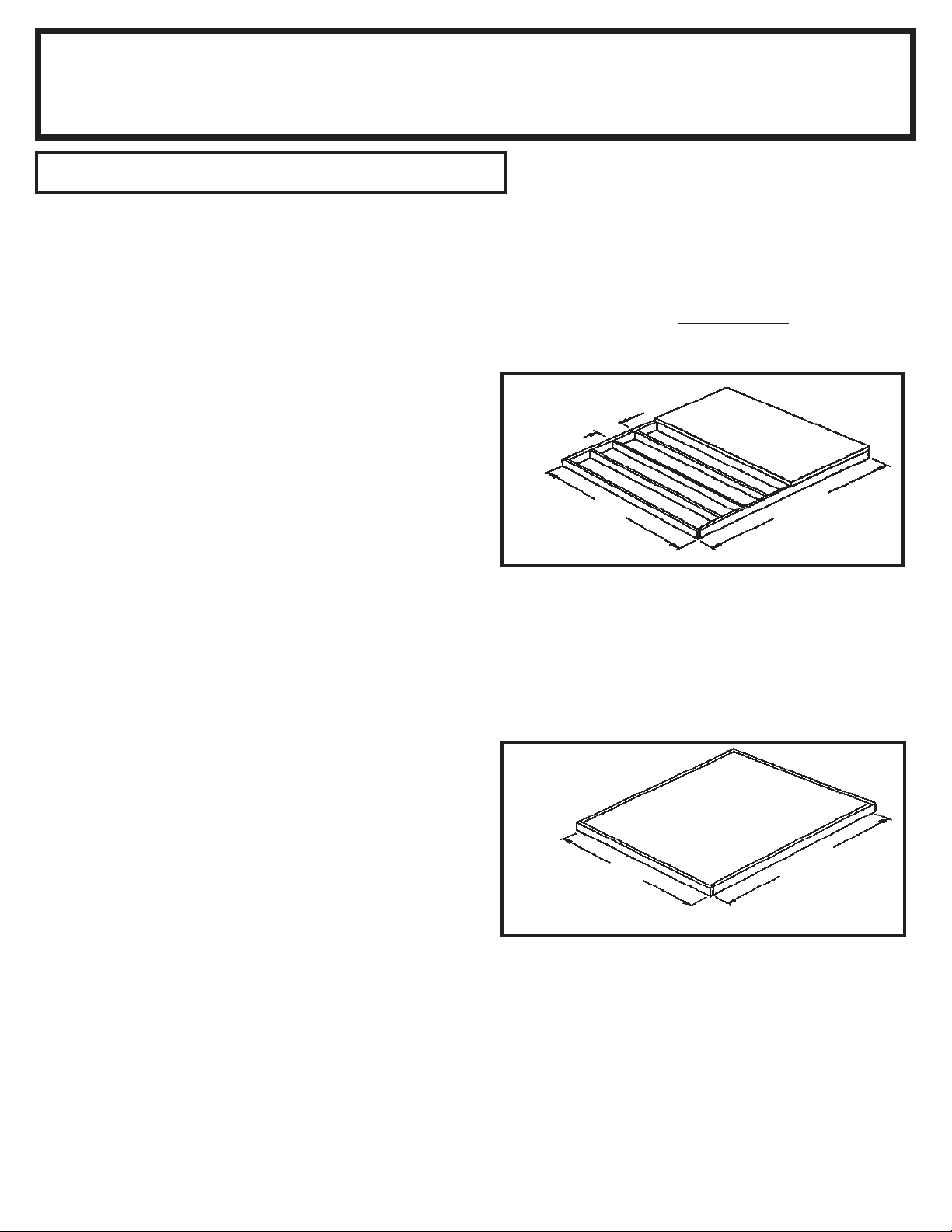

OPTION 1: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
2 x 4's (38 mm x 89 mm) Pressure Treated Lumber
5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it
will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
10 & 4 penny Galvanized Nails Concrete Blocks (optional)
The platform should be level and at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 2: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame.
The following are the recommended materials for your base.
1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
Concrete Sheet of 6 mil plastic
We recommend for a proper strength concrete to use a mix of:
1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
16"/24"
40,6 cm/61,0 cm
The Base For Your Building
FRONT
(DOOR)
FRONT
(DOOR)
Base
Note: Finished Slab dimensions, with lumber removed.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond oor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roong cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
121"
307,3 cm
143 1/4"
363,9 cm
121"
307,3 cm
143 1/4"
363,9 cm
7
DL07

It is important that the entire oor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
XA07
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
1. 2.
1. 2.
8

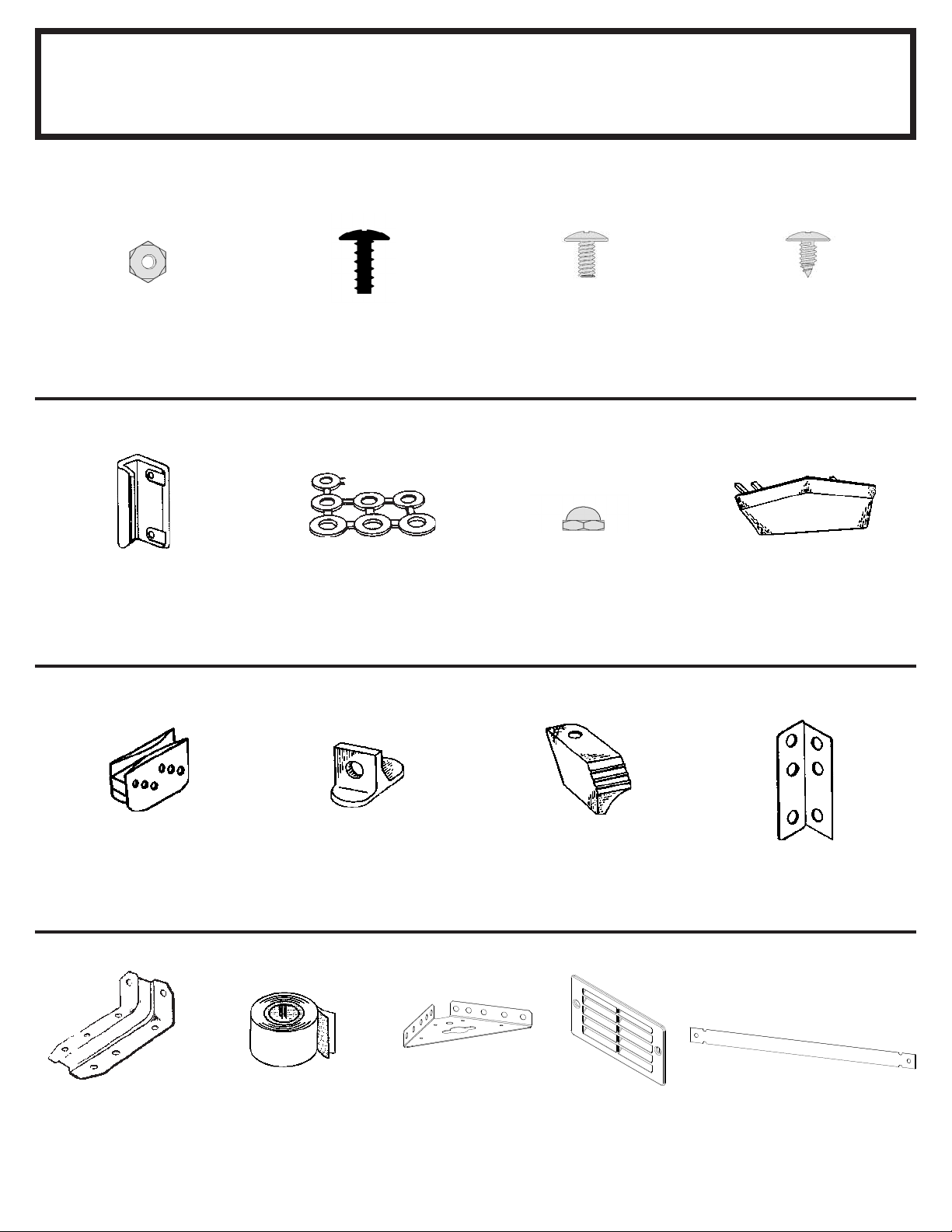

Remove from bag of screws
and save for the last step
67545
Weather Stripping (1)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer (428)
(11 sheets of 40)
65109
#8-32 Acorn Nut (4)
(Packed with Screws)
67468SPM
Peak Cap (2)
Hardware
6228
Track Support (2)
5971
Roof Beam Bracket (4)
66769
Door Slide (4)
65004
#8Ax5/16" (8 mm)
Screw (430)
65923
#8-32x3/8" (10 mm)
Bolt (179)
65900A
#10Bx1/2" (13 mm)
Black Screw (8)
(Packed with Screws)
65103
#8-32 Hex Nut (179)
9
JE09
8397
Corner Brace (4)
66847
Vent Gable (4)
11241
Gusset Strap (2)

Parts List
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 11236 Right Gable 2
2 80173 Left Gable 2
3 10497 Horizontal Door Brace 4
4 6529 Roof Panel 6
5 6640 Right Roof Panel 2
6 6641 Left Roof Panel 2
7 10472 Right and Left Doors 2
8 9371 Door Jamb 2
9 9375 Front Wall Panel 2
10 6521 Wall Panel 10
11 6520 Corner Panel 4
12 3719 Door Handle Brace 2
13 6301 Vertical Door Brace 2
14 6403 Door Track Splice 1
15 6014 Side Roof Trim 2
16 6015 Side Roof Trim 4
17 6868 Ridge Cap 1
18 6869 Ridge Cap 2
19 9366 Door Track 2
20 5986 Rear Wall Angle 2
21 10389 Rear Wall Channel 2
22 9365 Front Wall Channel 2
23 10397 Roof Beam 8
24 10390 Side Wall Channel 4
25 10393 Side Wall Angle 4
26 10392 Side Floor Frame 4
27 8936 Rear Floor Frame 2
28 9367 Front Floor Frame 2
29 6635 Gable Brace 2
30 8934 Ramp 1
31 67521 Edge Trim 1
10
JE10

1
2
16
16
15 17
18
18 4
4
4
4
4
4
5
5
6
6
29
23 23
23
23
1
216
16
15
29
23
23
23
23
11

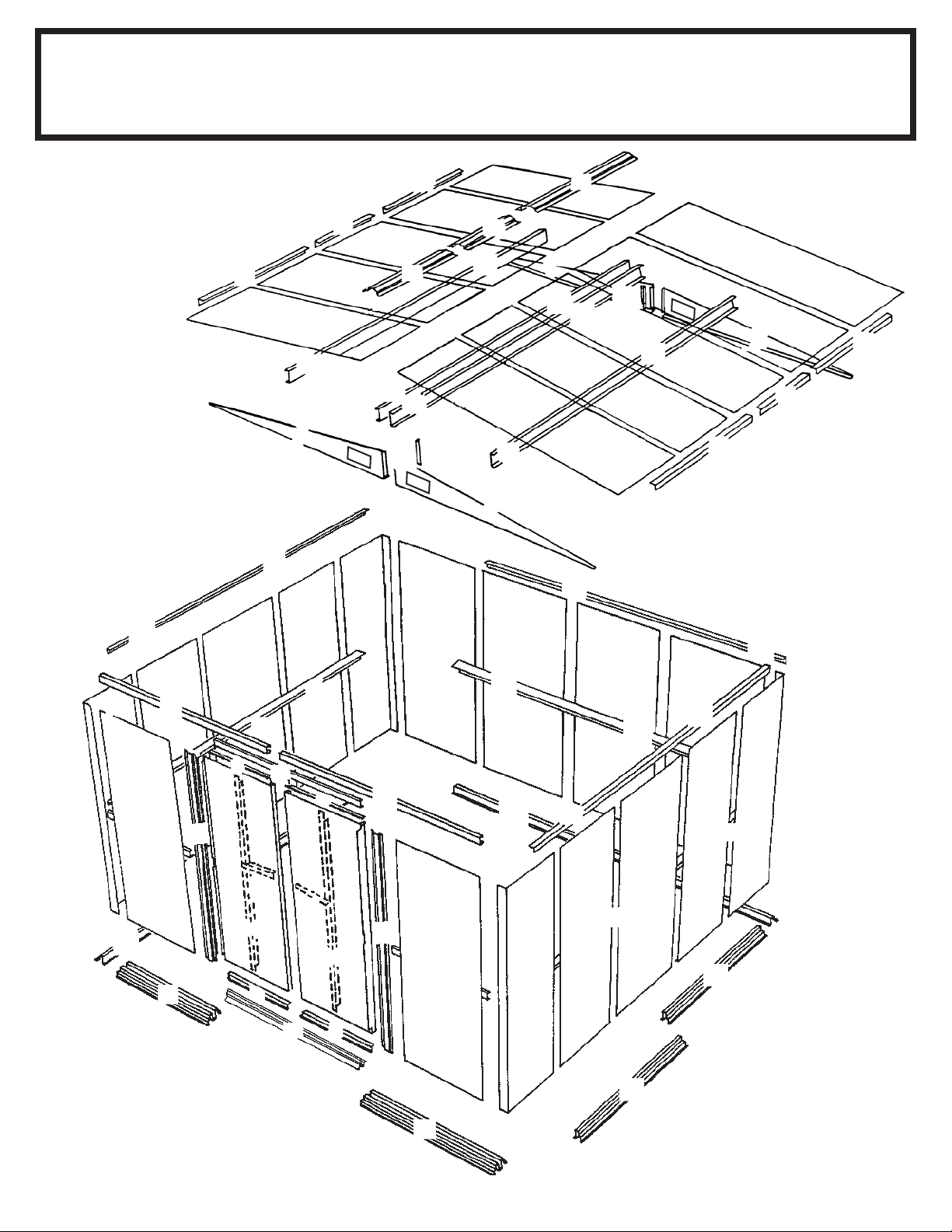

Assembly by Key No.
3
3
3
3
7
7
8
8
9
9
10
10
10
10
10
10 10
10
10
10
11
11
11
11
12
12
13
13
14
19
19
20
20
21
21
22
22
24
24
24
24
25
25
25
25
26
26
26
27
27
28
28
30
o
o
o
o
o
o
JE11

The front oor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made
up of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:

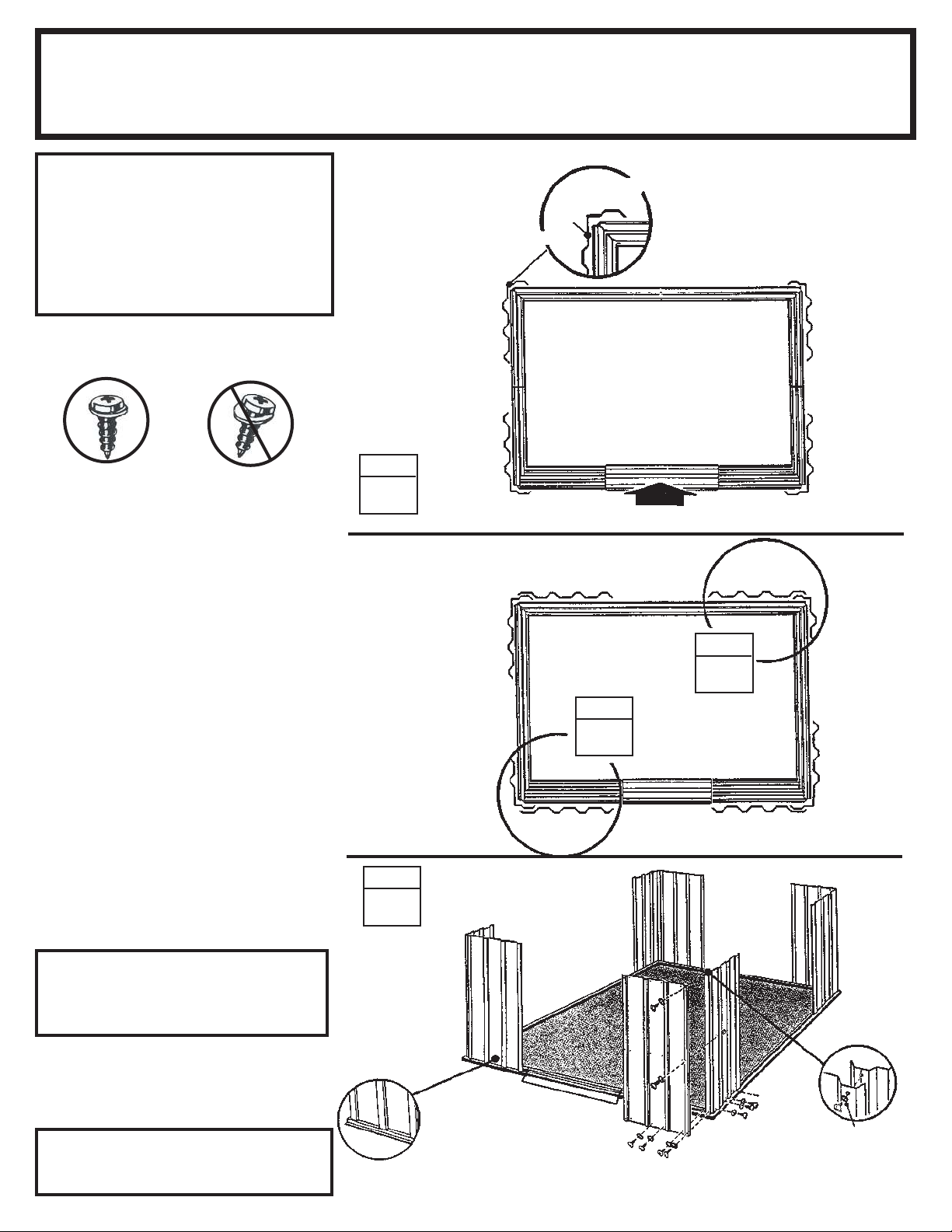

1 Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front oor frames. Join the frames by
inserting eight screws.
2 Overlap the side floor frames
and the rear oor frames as shown.
The holes in these pieces will align
when the pieces are positioned with
correct amount of overlap. See the
illustrations below for the proper over-
all length of the side and rear oor
frames. Join the frames by inserting
four/ve bolts into each frame set as
shown.
3 Double check the length of each
and set these pieces aside for later
use.
Step 1
SV14
 Parts Needed For 
Floor Frame Assemblies
 8934 Ramp (1)
 9367 Front Floor Frame (2)
 8936 Rear Floor Frame (2)
 10392 Side Floor Frame (4)
9367
STEP
1
8934
9367
DRAIN HOLES FACE
OUTSIDE
Front Floor
Frame Assembly
119 3/8" 303,2 cm
8936
10392
9367
8934
9367
10392
10392
Side Floor Frame 141 5/8" 359,7 cm
8936 8936
Rear Floor Frame 119 3/8"
303,2 cm
STEP
2
STEP
3
141 5/8" 359,7 cm
141 5/8" 359,7 cm
119 3/8" 303,2 cm
Front & Rear
119 3/8" 303,2 cm
Sides
12

Step 2
SV15
 Parts Needed For 
Frame Assemblies

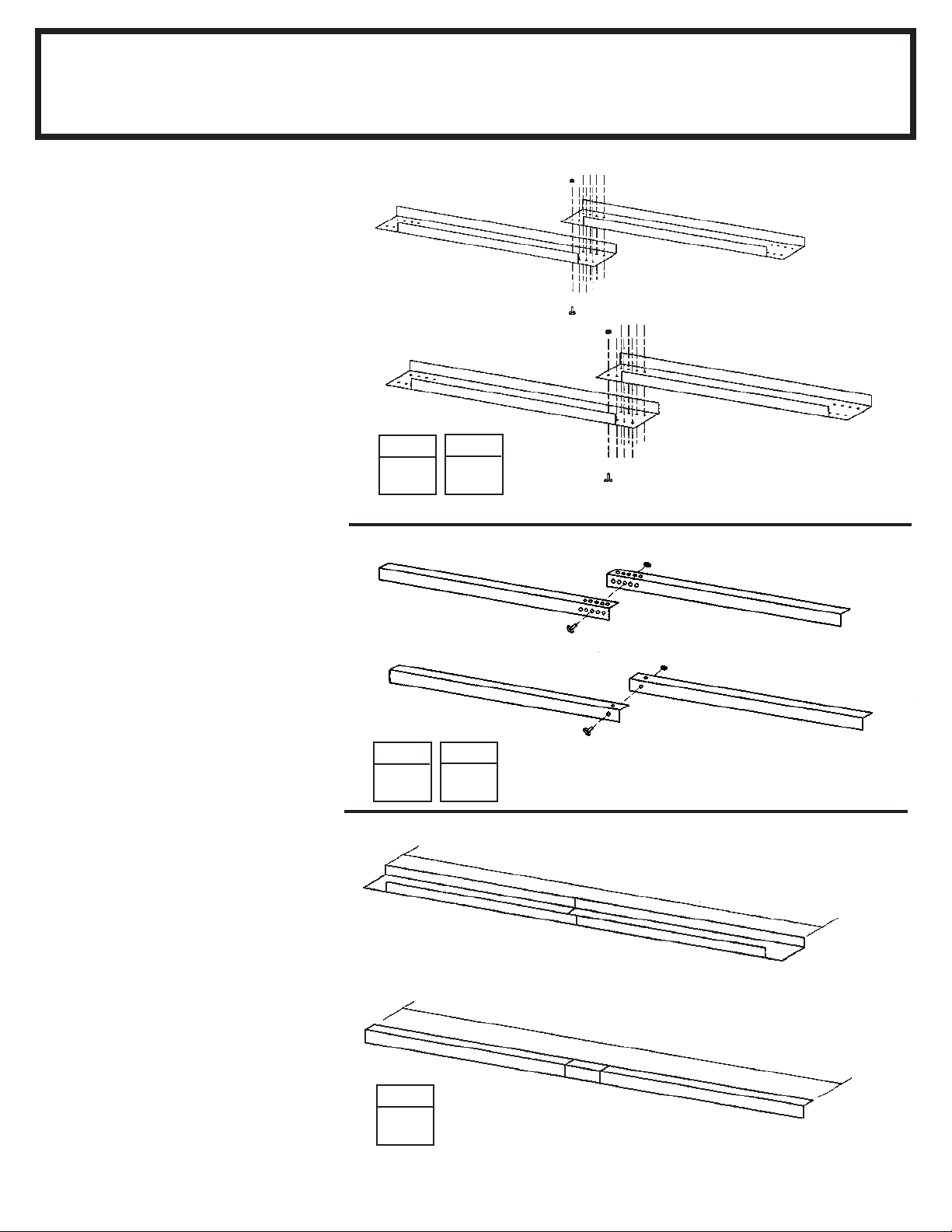

The main frame pieces reinforce
the walls. These pieces will later be
installed in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
eight bolts as shown.
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with eight bolts as shown.
3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one bolt
in the center hole.
4 Make two side wall angles by
overlapping the side wall angle pieces
as shown. Fasten each set together
with one bolt thru the large hole at
the end of each part.
5 Double check the length of each
and set these pieces aside for later
use.
 5986 Rear Wall Angle (2)
 10389 Rear Wall Channel (2)
 10390 Side Wall Channel (4)
 10393 Side Wall Angle (4)
STEP
1
STEP
2
10389
10390 Side Wall Channels
140 3/8" 356,6 cm
Rear Wall Angle
118 1/8" 300,0 cm
5986
5986
10393 Side Wall Angles
140 3/8" 356,6 cm
STEP
34
Rear Wall Angle 118 1/8" 300,0 cm
Side Wall Angles 140 3/8" 356,6 cm (2 Assemblies)
STEP
5
STEP
Rear Wall Channel
118 1/8" 300,0 cm
10390
10389
10393
Rear Wall Channel 118 1/8" 300,0 cm
Side Wall Channels 140 3/8" 356,6 cm (2 Assemblies)
13

The roof beams join the two gables
and support the roof panels. The
main roof beam is made up of four
pieces overlapped back to back at
the center. The left and right roof
beam assemblies are made up of
two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.
1 Place one end of a roof beam in-
side another roof beam so that the six
holes in each piece align. Make four
sets of roof beams by repeating this
procedure. Do not insert bolts yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assem-
bly. Hold the assembly together and
fasten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Double check the length of each
and set these pieces aside for later
use.
Step 3
SV16
 Parts Needed For 
Roof Beam Assemblies
 10397 Roof Beam (8)
10397
STEP
1
10397
Assembled
142 3/8" 361,6 cm
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
End
View
142 3/8"
361,6 cm
Build two Single Beam
Assemblies
STEP
2
STEP
3
142 3/8"
361,6 cm
14

Step 4
A17 ctr
 Parts Needed For 
Door Track Assembly
 6403 Door Track Splice (1)
 9366 Door Track (2)

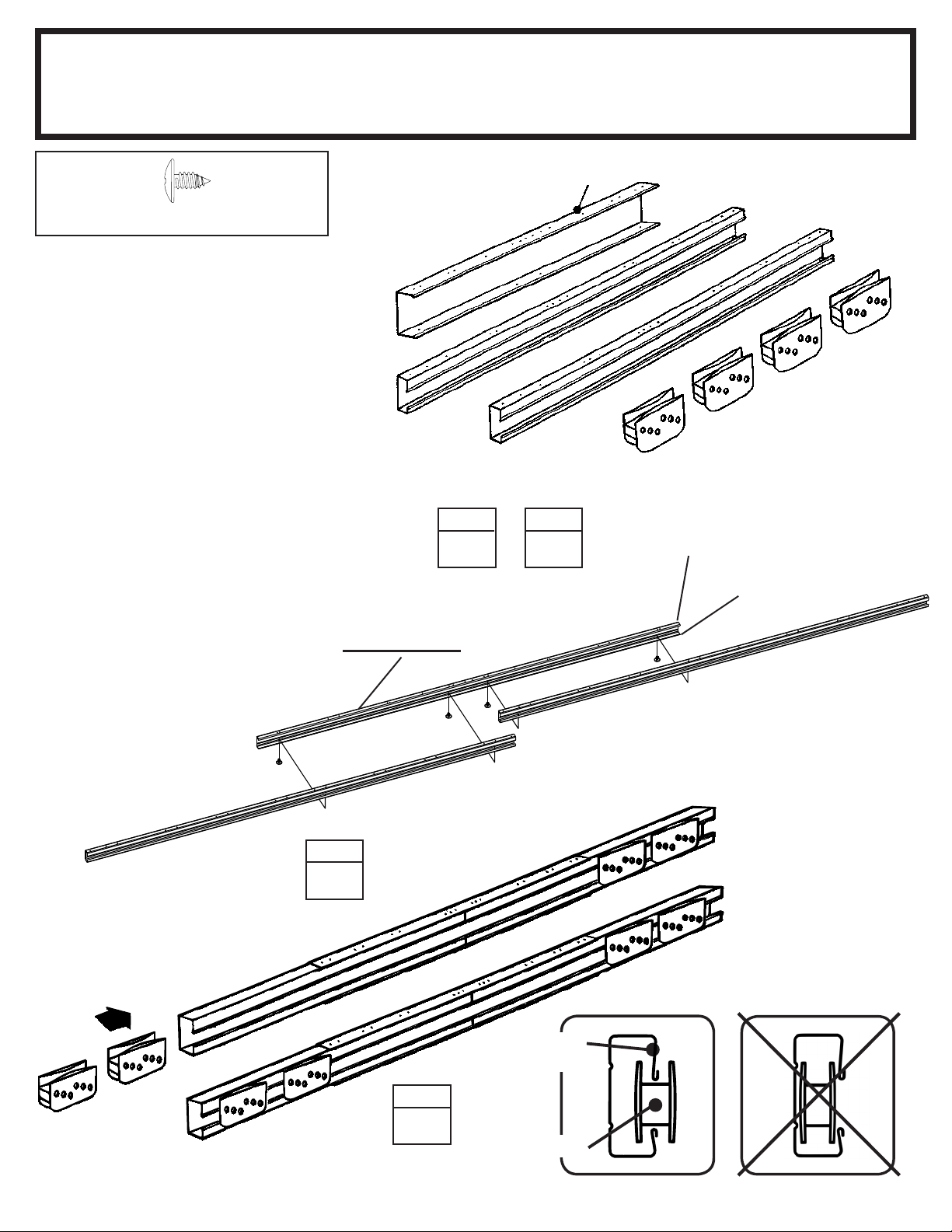

The door track assembly supports the
sliding doors and reinforces the front
wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the
underside only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall
in a later step.
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.
(4)
15
NOTE:
Door Track Splice (painted part)
STEP
1
STEP
2
Long Leg
on Top
Short Leg
on Bottom
9366
9366
6403
66769
66769
STEP
3
STEP
4
118 1/8"
300,0 cm
118 1/8"
300,0 cm
CORRECT INCORRECT
Long Leg
on top.
Door Slide
END VIEW
6403
Painted Part
9366
9366

 Front Floor Assembly (1)
 Side Floor Assembly (2)
 Rear Floor Assembly (1)
 8397 Corner Brace (4)
 Parts Needed For 
Floor Frame
Step 5
The oor frame must be square
and level or holes will not align.
1 Assemble the four corners of
the oor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2 Measure the oor frame diagonally.
When the diagonal measurements are
equal, the oor frame is square.
NOTE
If using a wood platform or
concrete slab do not fasten the
oor frames to your base at this
time. You will anchor the
building after it is erected.
STEP
1
10392
RIGHT
REAR
8936
Level
10392
RIGHT
FRONT
9367
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
16
JE16
(24) (2)
8397
8397
8397
8397

1 Position a corner panel at the
corner of the oor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the oor frame
with four screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2 Attach the front wall panels to
the front corner panels, as shown.
A small gap will exist between front
wall panel and ramp.
3 Attach the wall panels to the rear
corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown
 6521 Wall Panel (2)
 9375 Front Wall Panel (2)
 6520 Corner Panel (4)
Step 6  Parts Needed For 
Corners
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall
requires a washer.
4 Double-check the part numbers of
the wall panels, before proceeding.
The oor frame must be square
and level or holes will not align.
STEP
1
6521
9375 9375
6520
6520
REAR
FRONT
9375
Panels rest on
frame as shown
6520
SIDE TOP VIEW
Narrow
Side
6520
6521
Wide Side
STEP
3
STEP
2
STEP
46520
6520
9375
6521
6521
6520
Washer
Crimped Rib
Underneath
6520
SIDE
CORRECT INCORRECT
17
JE17

 Rear Wall Channel Assembly (1)
 Side Wall Channel Assembly (2)
 Parts Needed For 
Mid Frames
Step 7
The mid frame pieces give rigidity to
the side and rear walls.
1 Fasten the rear wall channel
across the middle of the rear wall
using screws.
2 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in
rear corners with bolts and nuts, at
two locations. See the gure.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step. STEP
1
10390
10389
FRONT
2
STEP
18
JE18

 Door Track Assembly (1)
 Rear Wall Angle Assembly (1)
 Side Wall Angle Assembly (2)
 Parts Needed For 
Top Frames
Step 8
SQ21
The top frame pieces give rigidity to
the walls and provide a surface for
attaching the gables which support
the roof.

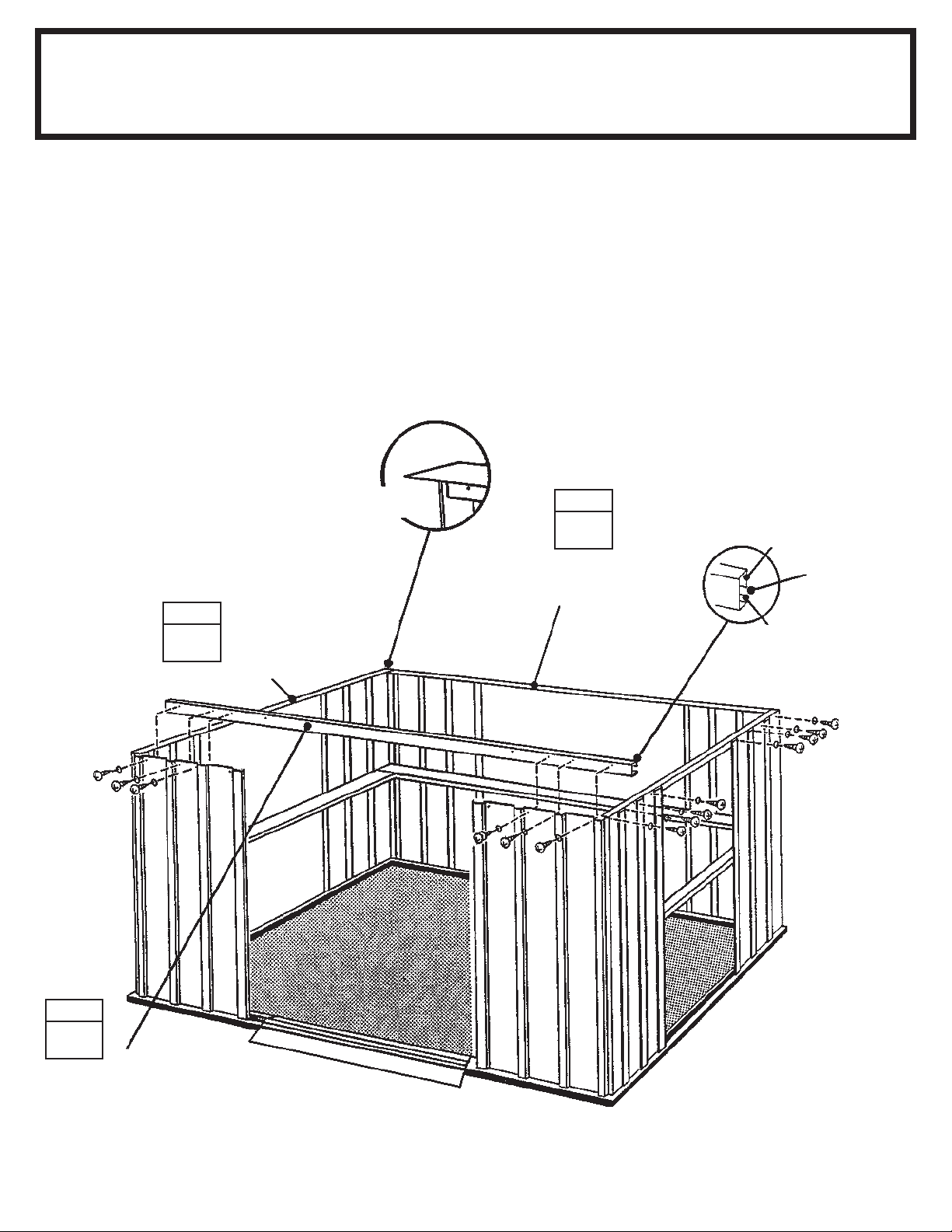

1 Fasten the rear wall angle across
the inside top of the rear wall using
screws.
2 Fasten the side wall angles across
the inside top of the side panels us-
ing screws. Side wall angles must
overlap rear wall angle in corners.
3 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the gure.
STEP
1
3
STEP
9366
5986
FRONT
2
STEP
10393
Long Leg
on Top
Opening
facing in
Short Leg
on Bottom
Wall Angles
Must Face
Inside
Building
DOOR TRACK ASSEMBLY
19

 Parts Needed For 
Wall Panels
Step 9
Each wall panel has a crimped rib
on one side. The crimped rib should
go under the rib of the panel that
follows it.
1 Locate all of the wall panels and
set each one alongside the building.
2 Fasten the wall panels at the top
and bottom with screws.
3 Fasten the center of each panel to
the wall channel with screws.
4 Fasten overlapping ribs as before.
STEP
1
3
STEP
4
STEP
6521
Bolt and nut
does not go
thru wall
channel at
overlap
Panels rest on
frame as shown
6521
Crimped Rib
Underneath 2
STEP
Detail Showing
Center of Panel
Screwed to
Wall Channel
Use bolts and nuts
thru wall angle
overlap at the top
of panel at rear.
20
JE20
 6521 Wall Panel (8)
 11241 Gusset Strap (2)
 67521 Edge Trim (1)
11241
13”
33,0 cm
67521
X2
11241
67521
