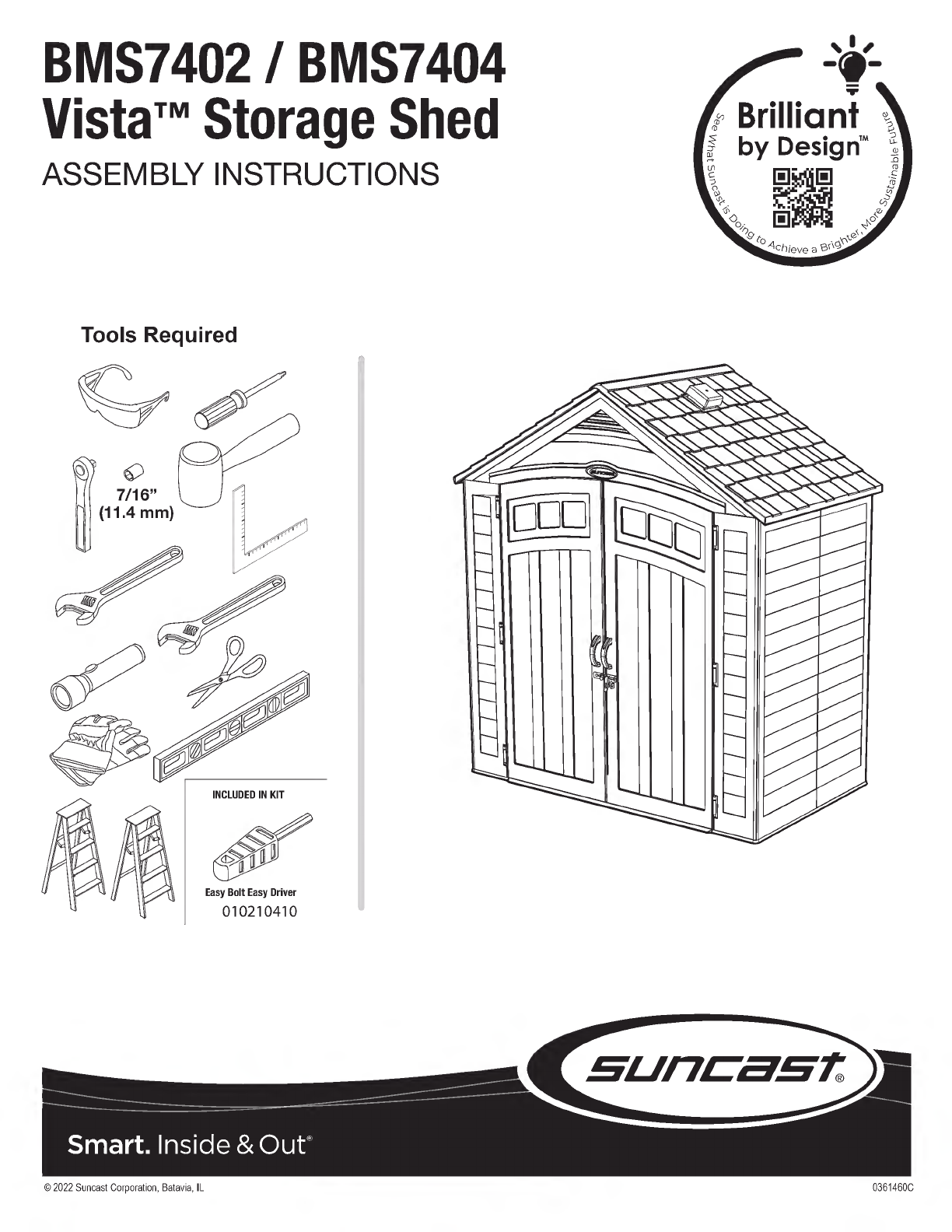

Suncast Vista BMS7402 User manual

BMS7402 / BMS7404
VistaTM Storage Shed
ASSEMBLY INSTRUCTIONS
Tools Required
Easy Bolt Easy Driver
010210410
Brilliant
by Design' ui
0 2022 Suncast Corporation, Batavia, IL 0361460C

Register your product for Limited Warranty!
Must register product within 90 days of purchase for limited warranty
Scan for updated Limited Warranty
www.suncast.com/warranty or call US 1 ( 800) 846-2345
Have Questions?
We are here to help. Check out our resource library along with helpful tips, videos and FAQ's.
You may call the Contact Center directly at: 1 ( 800) 846-2345 or write
Suncast Corporation, Contact Center, 701 N. Kirk Road, Batavia, IL 60510 ( USA)
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call. www.suncast.com
1-800-846-2345 or 1-630-381-6309

A BEFORE YOU BEGIN
• Consult your local authorities for any permits required to construct shed.
Prior to the construction of your shed, check with the local building code official to review any
required permits or building limitations.
• A level and sturdy foundation is required before shed construction can begin.
Site preparation information is available on pages 10-11. A foundation that differs from the
suggestions within this manual could prevent proper assembly and may damage parts.
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Assistance is required during entire assembly.
hmi
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED IN EACH BOX.
PLEASE REFERENCE PARTS LIST WITHIN THIS MANUAL TO VERIFY ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE UNPACKING ALL PARTS.
A CAUTION
• Proper site preparation required.
• Shed not intended for use in extreme weather conditions.
• Shed not intended for storage of flammable or caustic chemicals.
• Store heavy items near the bottom of shed.
• Shed not intended for use by children.
• DO NOT stand, sit, or store items on storage shed roof.
• Treat carefully in extreme temperatures.
• Repair or replace broken parts immediately.
• Suncast is not responsible for damage caused by weather or misuse.
• At regular intervals, inspect your shed to make sure that assembly integrity has been maintained.
• Periodically check that the location you have chosen to set your shed is still level.
• This kit contains parts with metal edges. Please be careful when handling.
3

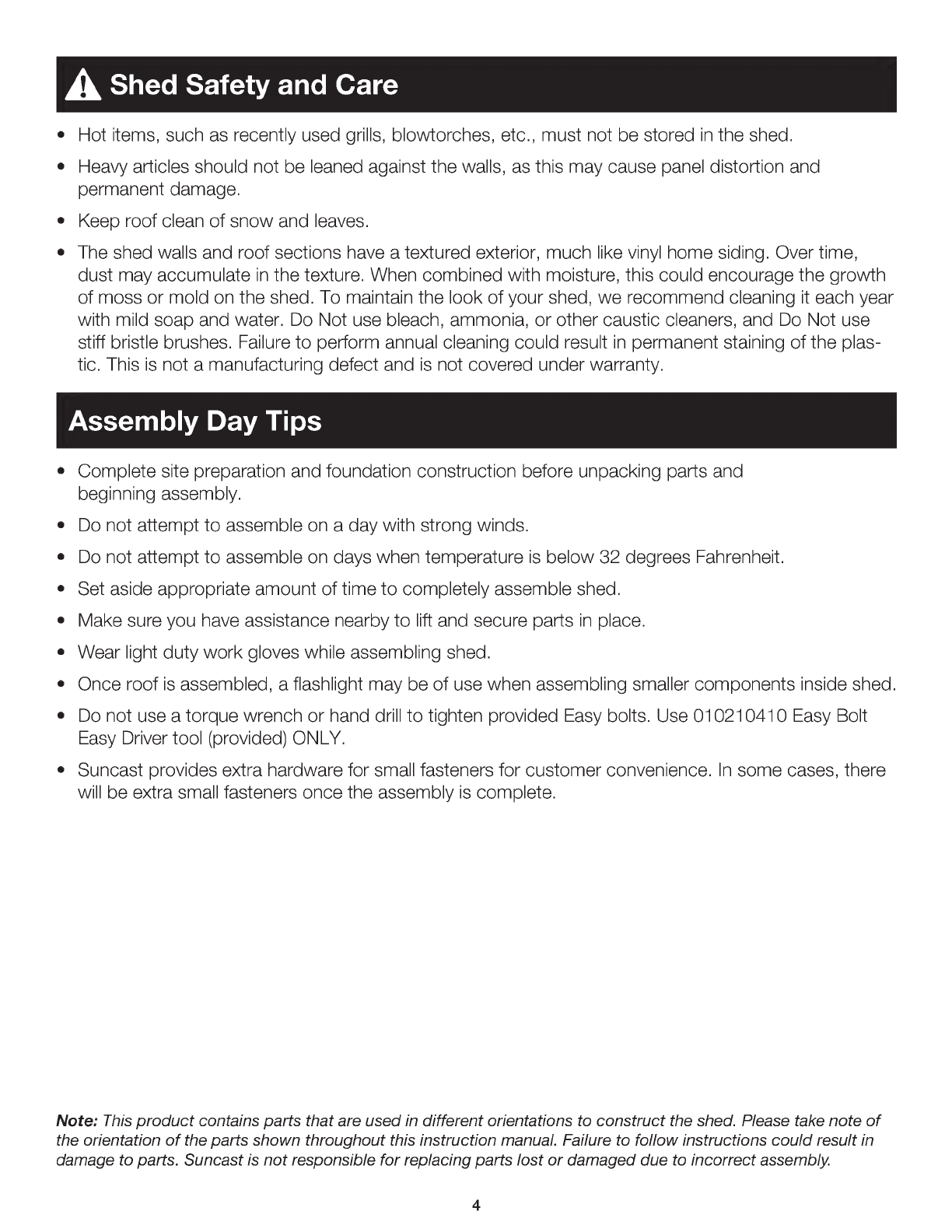

A Shed Safety and Care
• Hot items, such as recently used grills, blowtorches, etc., must not be stored in the shed.
• Heavy articles should not be leaned against the walls, as this may cause panel distortion and
permanent damage.
• Keep roof clean of snow and leaves.
• The shed walls and roof sections have a textured exterior, much like vinyl home siding. Over time,
dust may accumulate in the texture. When combined with moisture, this could encourage the growth
of moss or mold on the shed. To maintain the look of your shed, we recommend cleaning it each year
with mild soap and water. Do Not use bleach, ammonia, or other caustic cleaners, and Do Not use
stiff bristle brushes. Failure to perform annual cleaning could result in permanent staining of the plas-
tic. This is not a manufacturing defect and is not covered under warranty.
Assembly Day Tips
• Complete site preparation and foundation construction before unpacking parts and
beginning assembly.
• Do not attempt to assemble on a day with strong winds.
• Do not attempt to assemble on days when temperature is below 32 degrees Fahrenheit.
• Set aside appropriate amount of time to completely assemble shed.
• Make sure you have assistance nearby to lift and secure parts in place.
• Wear light duty work gloves while assembling shed.
• Once roof is assembled, a flashlight may be of use when assembling smaller components inside shed.
• Do not use a torque wrench or hand drill to tighten provided Easy bolts. Use 010210410 Easy Bolt
Easy Driver tool ( provided) ONLY.
• Suncast provides extra hardware for small fasteners for customer convenience. In some cases, there
will be extra small fasteners once the assembly is complete.
Note: This product contains parts that are used in different orientations to construct the shed. Please take note of
the orientation of the parts shown throughout this instruction manual. Failure to follow instructions could result in
damage to parts. Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
4

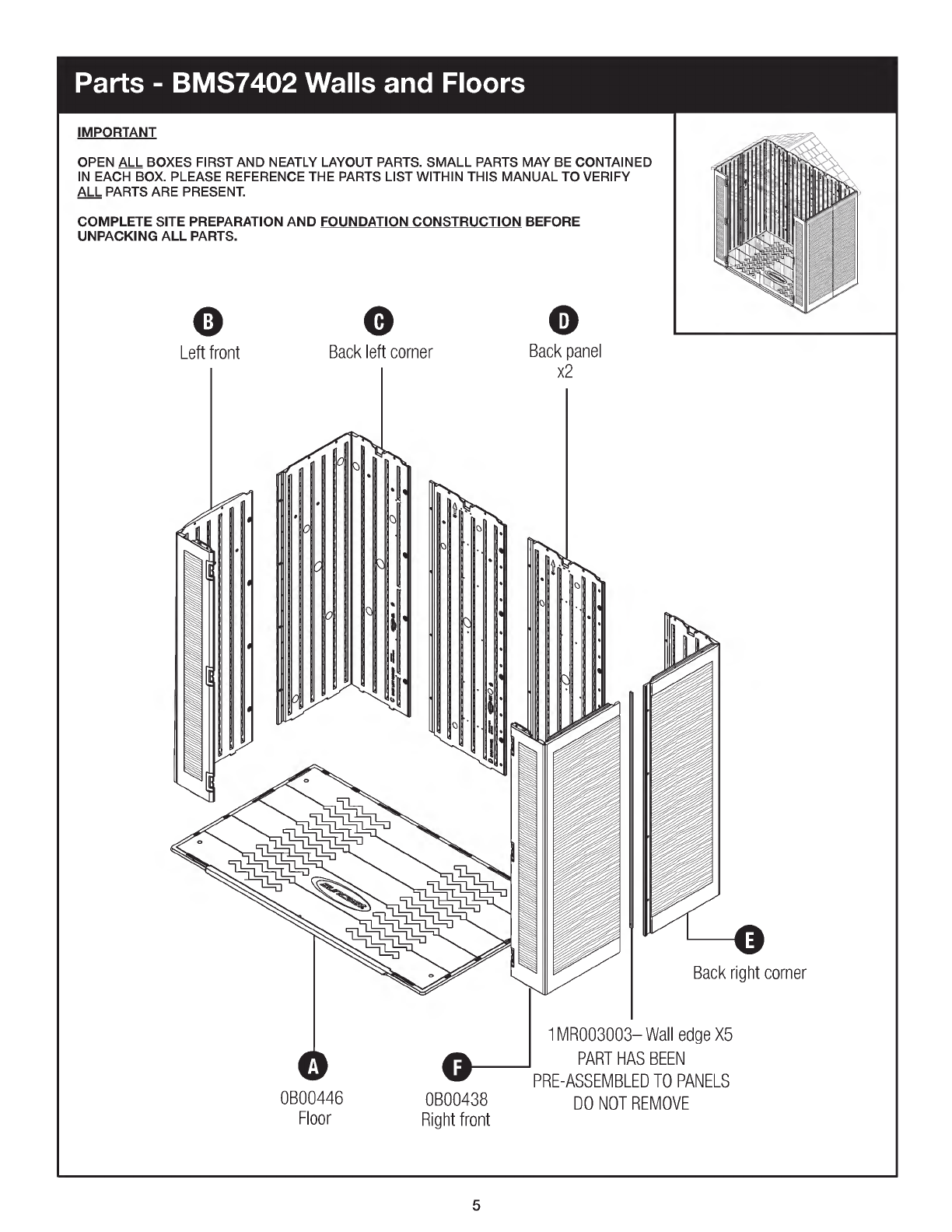

Pads - BMS7402 Walls and Floors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
Left front
o
Back left corner
OB00446
Floor
o
0
Back panel
x2
OB00438
Right front
Back right corner
1MR003003— Wall edge X5
PART HAS BEEN
PRE- ASSEMBLED TO PANELS
DO NOT REMOVE
5

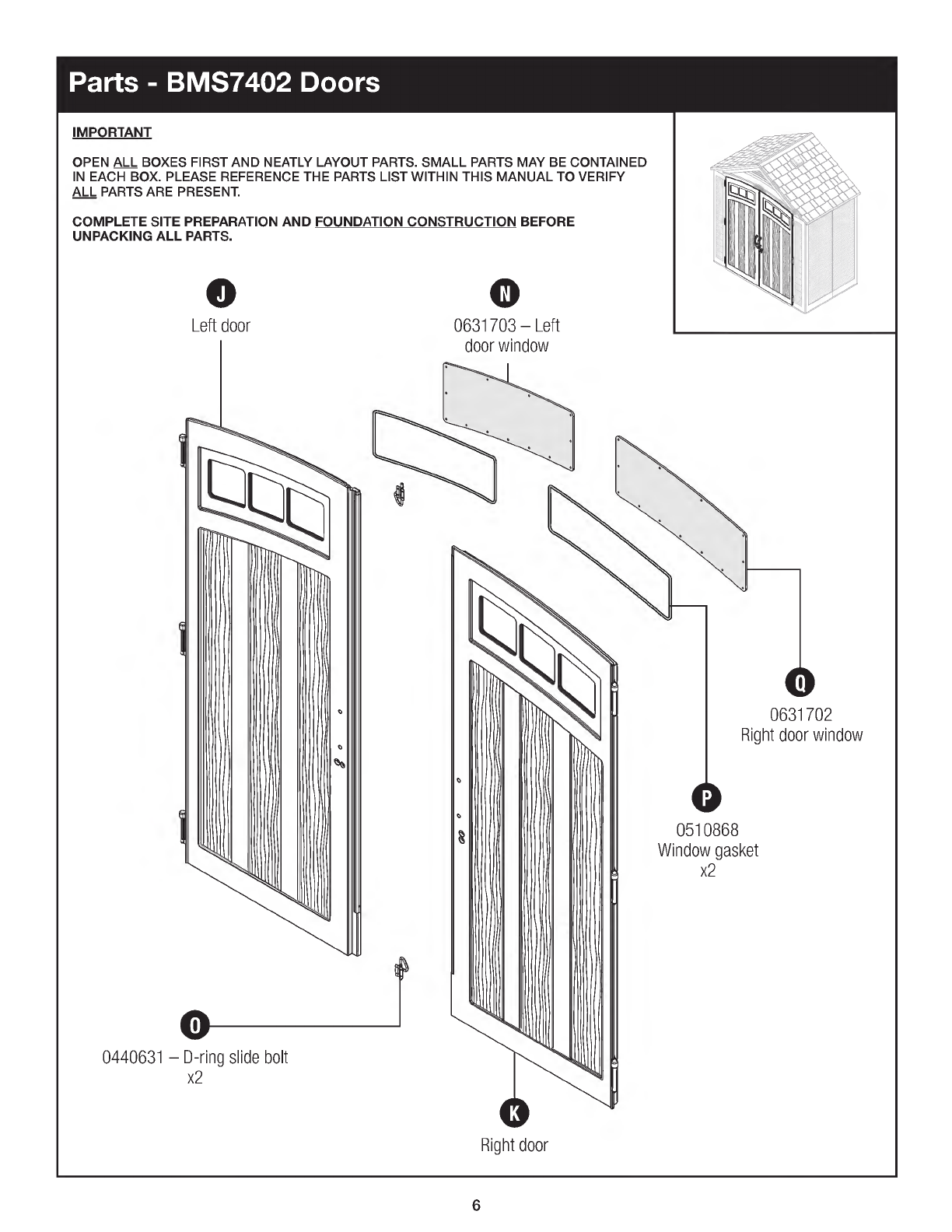

Parts - BMS7402 Doors
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
Left door
0440631 — D- ring slide bolt
x2
o
0631703 — Left
door window
Right door
0631702
Right door window
0510868
Window gasket
x2
6

Parts - BMS7402 Headers
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
11;
o
OMR001011 — Ridge Beam
0440878 — Vent Screen
x2
OB00444 — Front Header
0
OMP000001—Header Bracket
x2
0
OB00445 — Rear Header
OMR002002 — Front Header Beam
(57 inches.)
x1
OMR002001—Rear Header Beam
(62 inches.)
x1
7

Parts - BMS7402 Roof
IMPORTANT
OPEN ALL BOXES FIRST AND NEATLY LAYOUT PARTS. SMALL PARTS MAY BE CONTAINED
IN EACH BOX. PLEASE REFERENCE THE PARTS LIST WITHIN THIS MANUAL TO VERIFY
ALL PARTS ARE PRESENT.
COMPLETE SITE PREPARATION AND FOUNDATION CONSTRUCTION BEFORE
UNPACKING ALL PARTS.
o
0102231 — Skylight
x1
OB00448 — Left roof
x1
o
0440691 — Skylight
gasket
x1 set 0
OMR009013 — Roof
support bar
x4
0102476 — lllumiventTM
base
x1
o
0102475 — Illumiyentmcoyer
x1
OB00447 — Right roof
x1
8

Hardware - BMS7402
x6
0480337- Hardware Bag
o
x6
x6
0480452
Hardware Bag
46)
uu
x9
0480374 — Hardware Bag
(fteUttlfftd
x2
e
x2
0480445 — Hardware Bag
x4
x4
0480446 — Hardware Bag
x24
Hardware shown at actual size (* unless otherwise noted). E
x22
*Easy Bolt Easy Driver
xtra hardware provided. Not all are
0480298A — Hardware Bag
x42
0480314A — Hardware Bag
used.
x68
9

Door Handle Kit - Parts - BMS7402
0463795 - Door handle kit 0463797 - Door latch kit
Hardware
#10 x 1"
x4
o
01 02479
x2
OMP000020
e
0463812
0480370 - Hardware bag 0480439 - Hardware bag
CR)
à) . 25"
x4
ED
#10 x21/4" . 25"
x4 x4
.25" x 20 x1 1/2"
x4
Hardware shown at actual size (* unless otherwise noted). Extra hardware provided. Not all are used.
10

Site Preparation and Platform Construction
Materials NOT supplied with BMS7402 Shed Kit
Note: Site preparation is required for this shed. Placing the shed on a constructed foundation is required. Without
a constructed foundation, settling will probably occur, causing distortion and damage to the shed. Suncast is not
responsible for replacing parts damaged or property lost due to incorrect assembly. Warranty requires foundation.
Note: Complete the site preparation and foundation construction before unpacking parts and beginning assembly. For
tips on site preparation, go to www.suncast.com, consult retailer, or local code.
To prepare your shed site, follow the steps below:
1) Consult your local authorities for building codes and covenants before beginning foundation or erecting shed.
2) Before any digging, check with local utilities to determine location of buried cables, pipes, etc.
3) Decide which type of foundation you want:
- Concrete slab, 4" thick
OR
Wood platform
Use exterior grade wood. The wood platform should be set on pier blocks or footing. Consult your local retailer for
help to determine the best anchoring method for your particular installation. The provided plans are sized for the
minimum number of cuts to lumber and plywood.
4) Prepare the building site:
- The ground should slope away from the foundation area to provide drainage.
- The foundation surface must be flat and level.
- A vapor barrier should be provided to prevent excessive condensation in the shed.
- Follow local building codes for a proper vapor barrier.
5) Anchoring the shed to the foundation:
- Consult your local retailer for help to determine the best anchoring method for your particular installation.
- To secure the shed to a concrete slab, use masonry fasteners available at your local hardware retailer.
- To secure the shed to a wood platform, use 1/4" x 3" long lag screws with washers.
Anchoring floor panel to concrete slab
• Secure shed to concrete slab using masonry
fasteners.
• Dimensions allow for shed to fit within the nearest
1" on each side.
Anchoring floor panel to wood platform
• Secure shed to wood platform using 1/4" x 3" lag
screws.
11

Site Preparation and Platform Construction ( continued)
Materials NOT supplied with BM7402 Shed Kit
Wood platform critical spacing
-ffli 43 1/2"
-we 29 1/2"
15 1/2"
29
1/2" AN.-
15 1/2"
50"
JA
-.0-
7 5/8"
12 1/2" --
- 8 1/2"
7 5/8"
-- 12 1/2" - 01.-
8 1/2"
36 7/£
• Check all critical spacing measurements.
FRONT
85 1/2"
Wood platform materials list
"
Item
a
Qty
2
b 4
C 2
d 7
Size
50" x 42.75" x . 75"
2" x 6" x 12.5"
2" x 6" x 85.5"
2" x 6" x 47"
• Please Note - dimensional lumber is actually 1/2"
smaller than noted sizes.
12

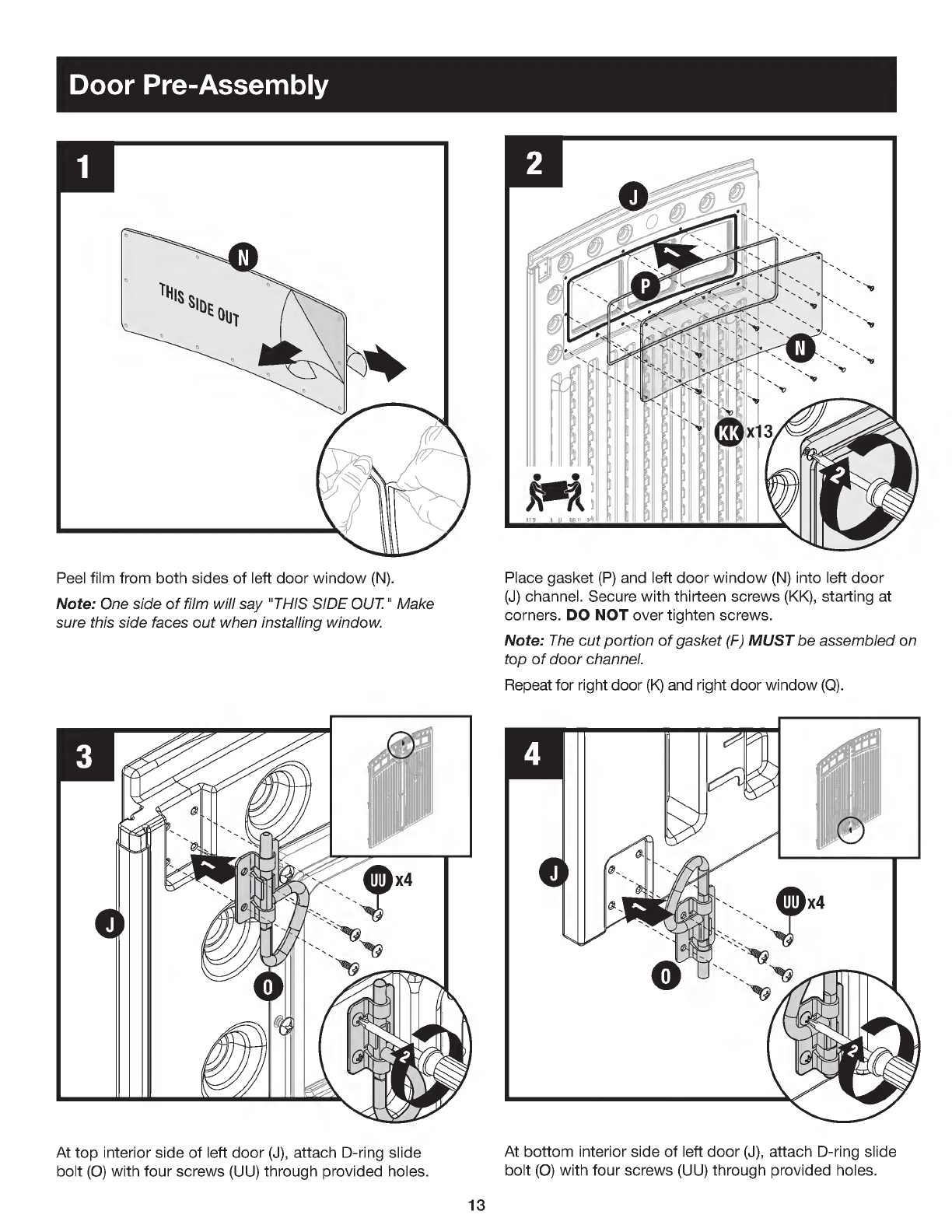

Door Pre- Assembly
Peel film from both sides of left door window ( N).
Note: One side of film will say " THIS SIDE OUT" Make
sure this side faces out when installing window.
Place gasket ( P) and left door window ( N) into left door
(J) channel. Secure with thirteen screws ( KK), starting at
corners. DO NOT over tighten screws.
Note: The cut portion of gasket ( F) MUST be assembled on
top of door channel.
Repeat for right door ( K) and right door window ( Q).
At top interior side of left door ( J), attach D- ring slide
bolt ( 0) with four screws ( UU) through provided holes.
13
At bottom interior side of left door ( J), attach D- ring slide
bolt ( 0) with four screws ( UU) through provided holes.

Header Pre- Assembly
Slide roof ridge beam bracket ( S) under tabs on
inside peak of front header ( G) and secure with two
screws ( KK). DO NOT over tighten screws.
Place vent screen ( T) in front header ( G). Secure through
back of header with 11 screws ( H H).
DO NOT over tighten screws.
Repeat for rear header ( H).
Lay front header ( G) on ground with lettering side facing
up. Place front header beam ( U, 57") into pocket on
inside of front header ( G). Attach with six screws ( KK).
DO NOT over tighten screws.
Repeat for rear header ( H) and rear header beam
(U2, 62").
14

Place IllumiventTM cover ( Y) onto bottom ( Z). Secure
from underside with four screws ( KK). Place gasket ( W)
into IllumiventTM bottom ( Z).

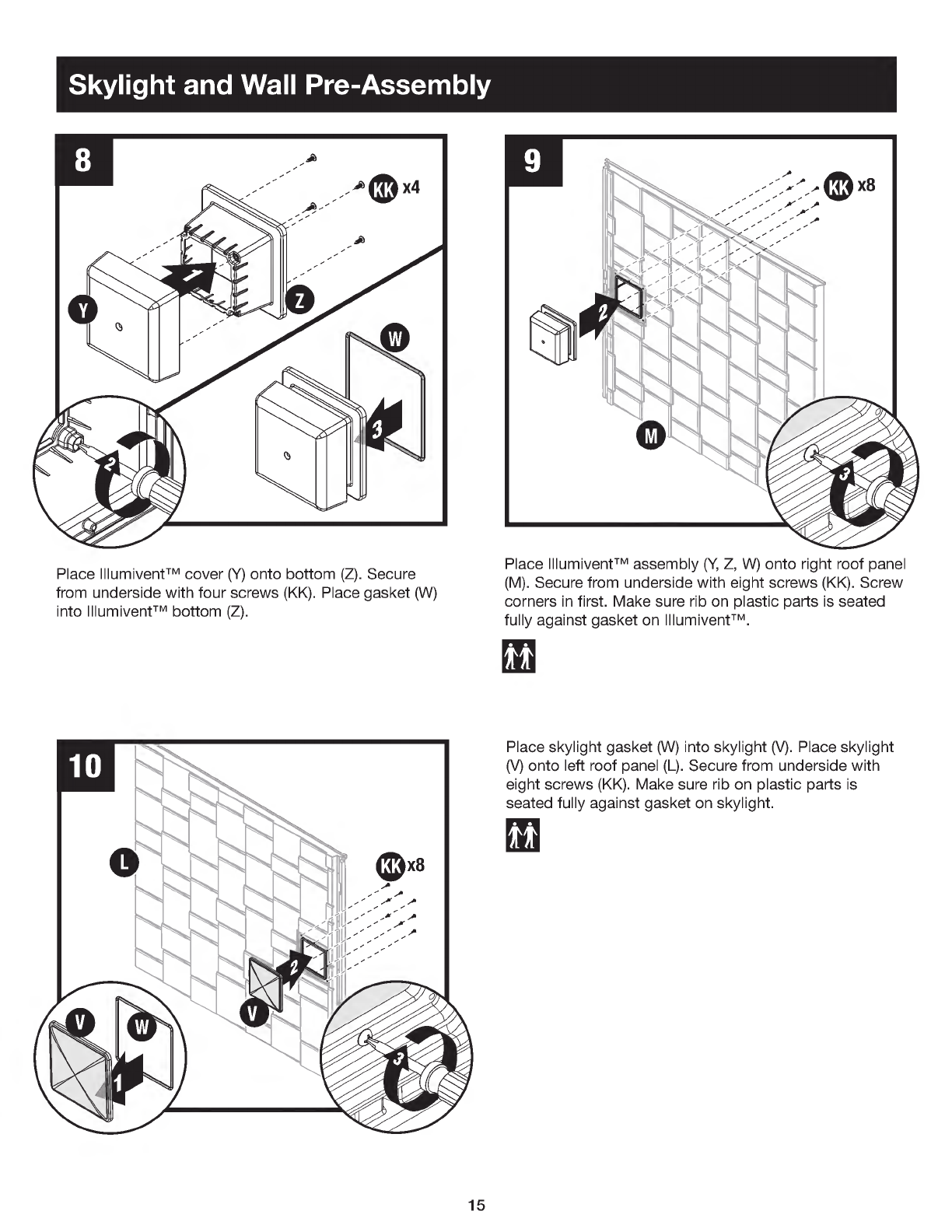

Skylight and Wall Pre- Assembly
Place IllumiventTM assembly (y z, W) onto right roof panel
(M). Secure from underside with eight screws ( KK). Screw
corners in first. Make sure rib on plastic parts is seated
fully against gasket on IllumiventTM.
[1]
Place skylight gasket ( W) into skylight ( V). Place skylight
(V) onto left roof panel ( L). Secure from underside with
eight screws ( KK). Make sure rib on plastic parts is
seated fully against gasket on skylight.
gi
15

Shed Assembly/Walls
Align tab on bottom right side of left front corner ( B) with

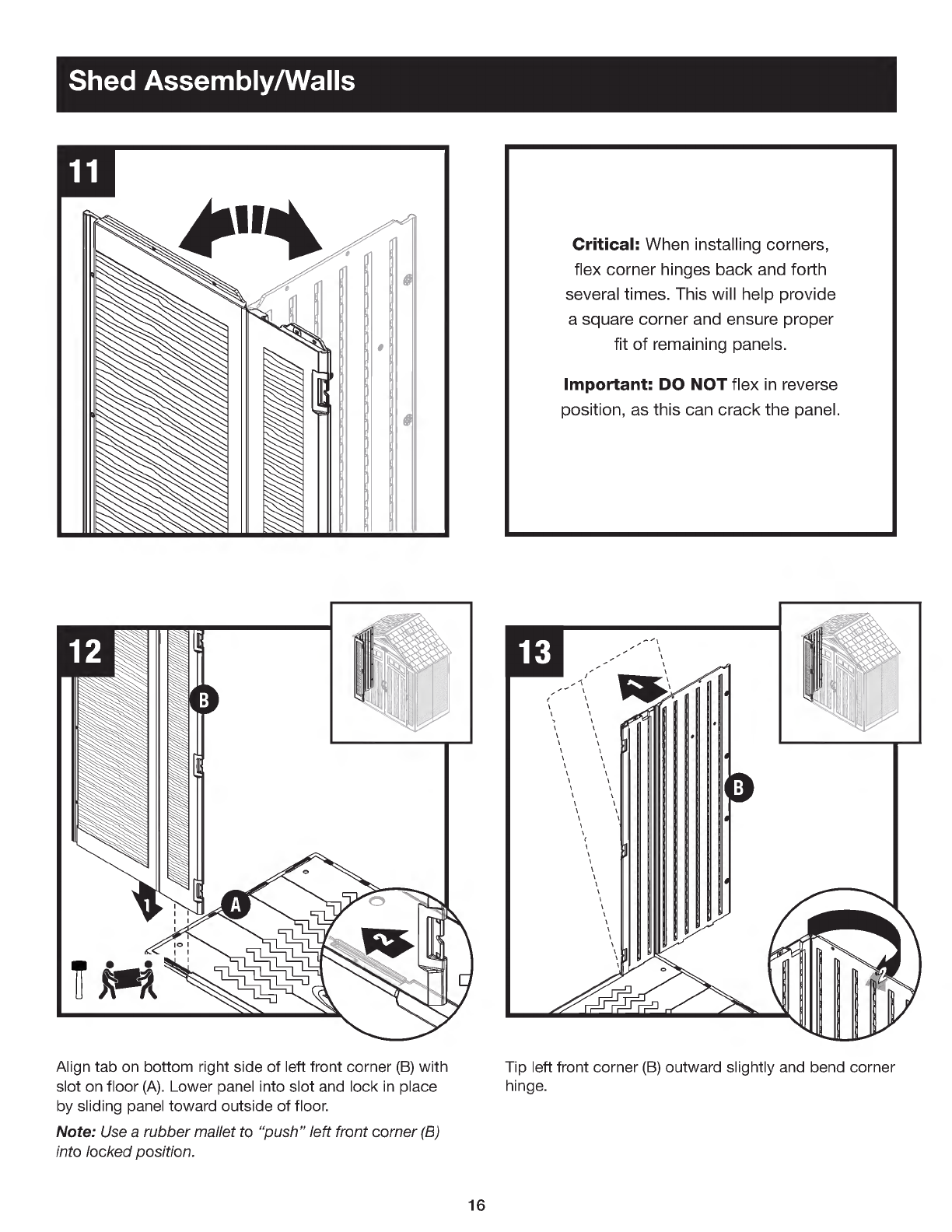

slot on floor ( A). Lower panel into slot and lock in place
by sliding panel toward outside of floor.
Note: Use a rubber mallet to " push" left front corner ( 5)
into locked position.
Critical: When installing corners,
flex corner hinges back and forth
several times. This will help provide
a square corner and ensure proper
fit of remaining panels.
Important: DO NOT flex in reverse
position, as this can crack the panel.

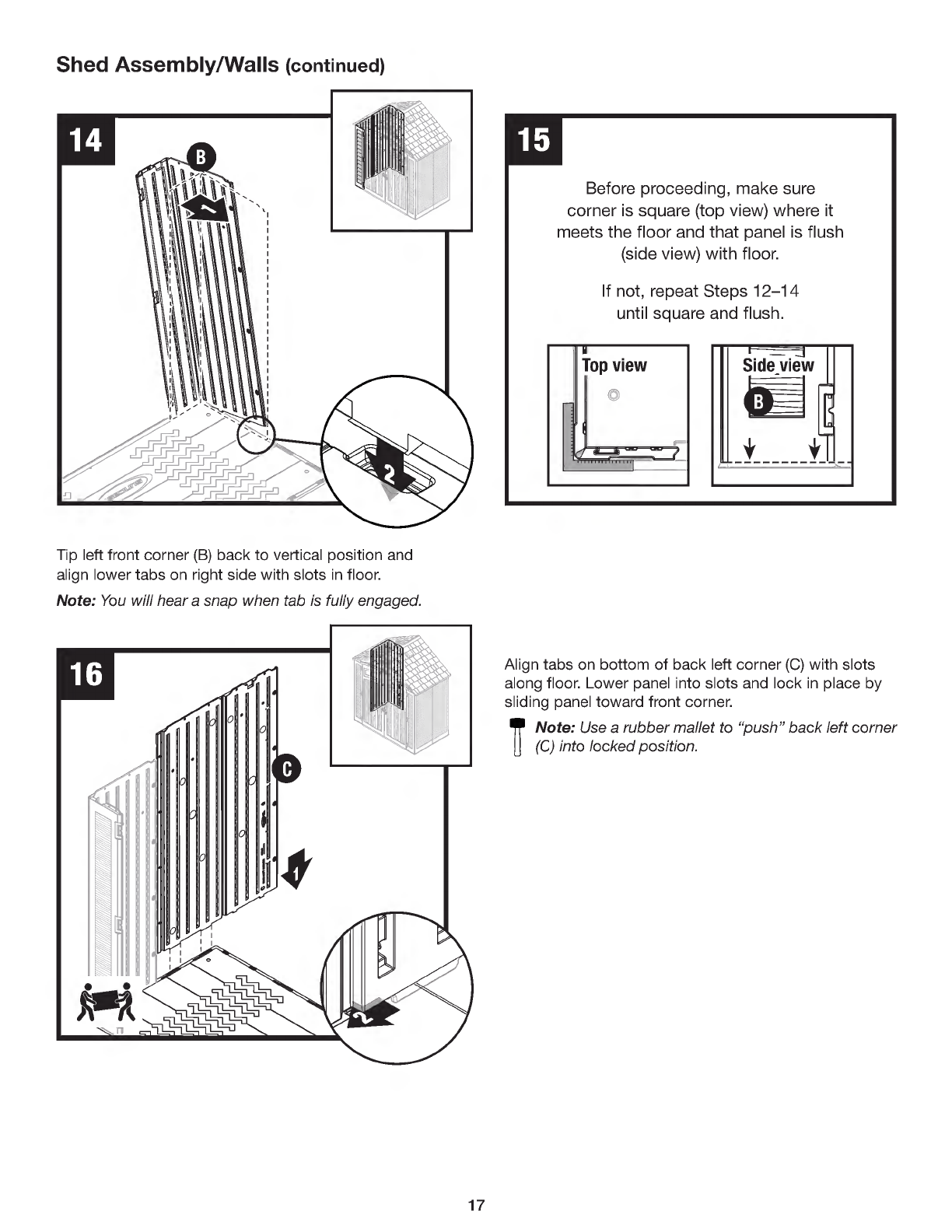

Tip left front corner ( B) outward slightly and bend corner
hinge.
16

Shed Assembly/Walls ( continued)
Tip left front corner ( B) back to vertical position and
align lower tabs on right side with slots in floor.
Note: You will hear a snap when tab is fully engaged.
15
Before proceeding, make sure
corner is square ( top view) where it
meets the floor and that panel is flush
(side view) with floor.
If not, repeat Steps 12-14
until square and flush.
Top view
o
Side view
B
Align tabs on bottom of back left corner ( C) with slots
along floor. Lower panel into slots and lock in place by
sliding panel toward front corner.
7
Note: Use a rubber mallet to " push" back left corner
(C) into locked position.
17

Shed Assembly/Walls ( continued)

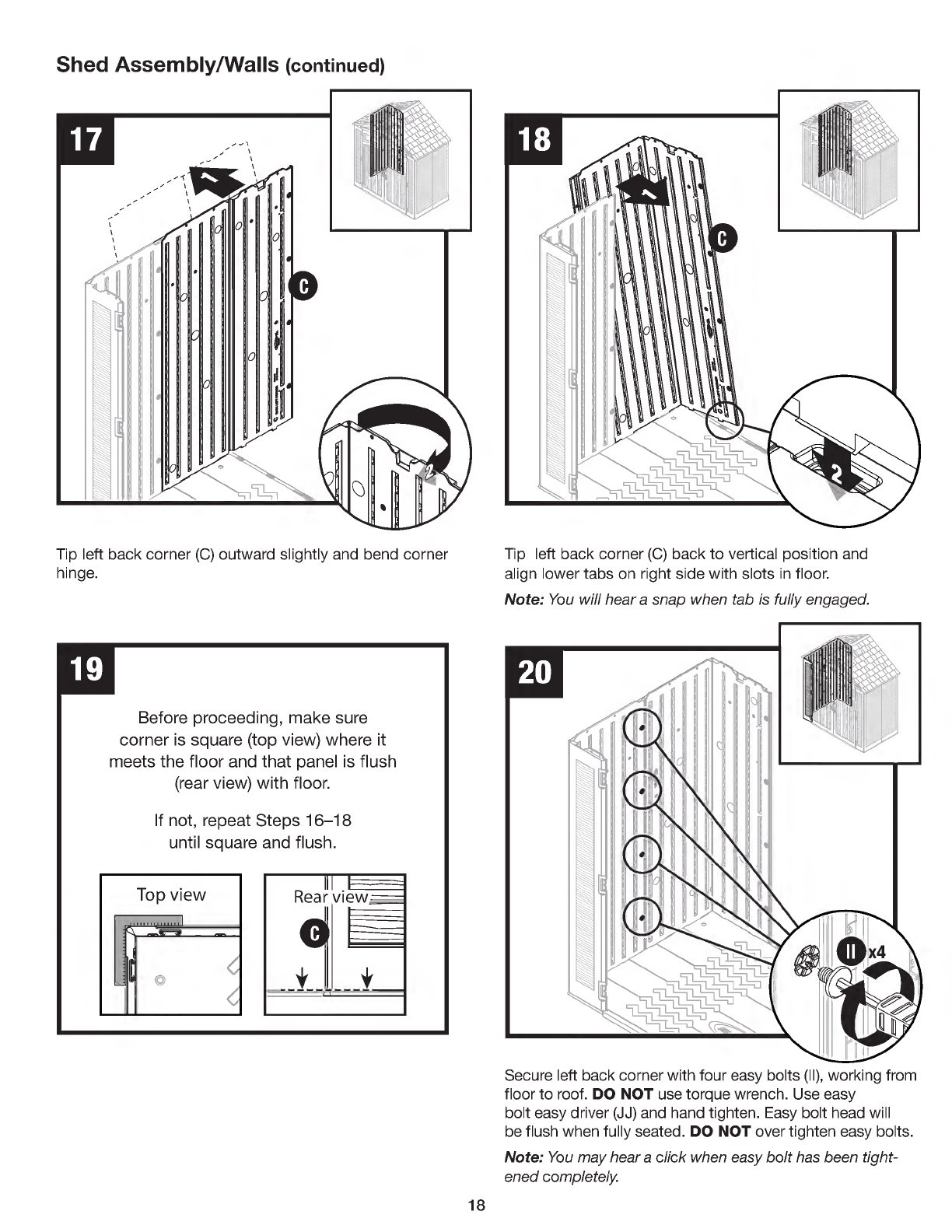

Tip left back corner ( C) outward slightly and bend corner
hinge.
19
Before proceeding, make sure
corner is square ( top view) where it
meets the floor and that panel is flush
(rear view) with floor.
If not, repeat Steps 16-18
until square and flush.
Top view
- <S, ....... '.1
i
0
..•
<
<
Rear view
Tip left back corner ( C) back to vertical position and
align lower tabs on right side with slots in floor.
Note: You will hear a snap when tab is fully engaged.
20
Secure left back corner with four easy bolts ( II), working from
floor to roof. DO NOT use torque wrench. Use easy
bolt easy driver ( JJ) and hand tighten. Easy bolt head will
be flush when fully seated. DO NOT over tighten easy bolts.
Note: You may hear a click when easy bolt has been tight-
ened completely.
18

21
Hardware Needed
41) x16
km*

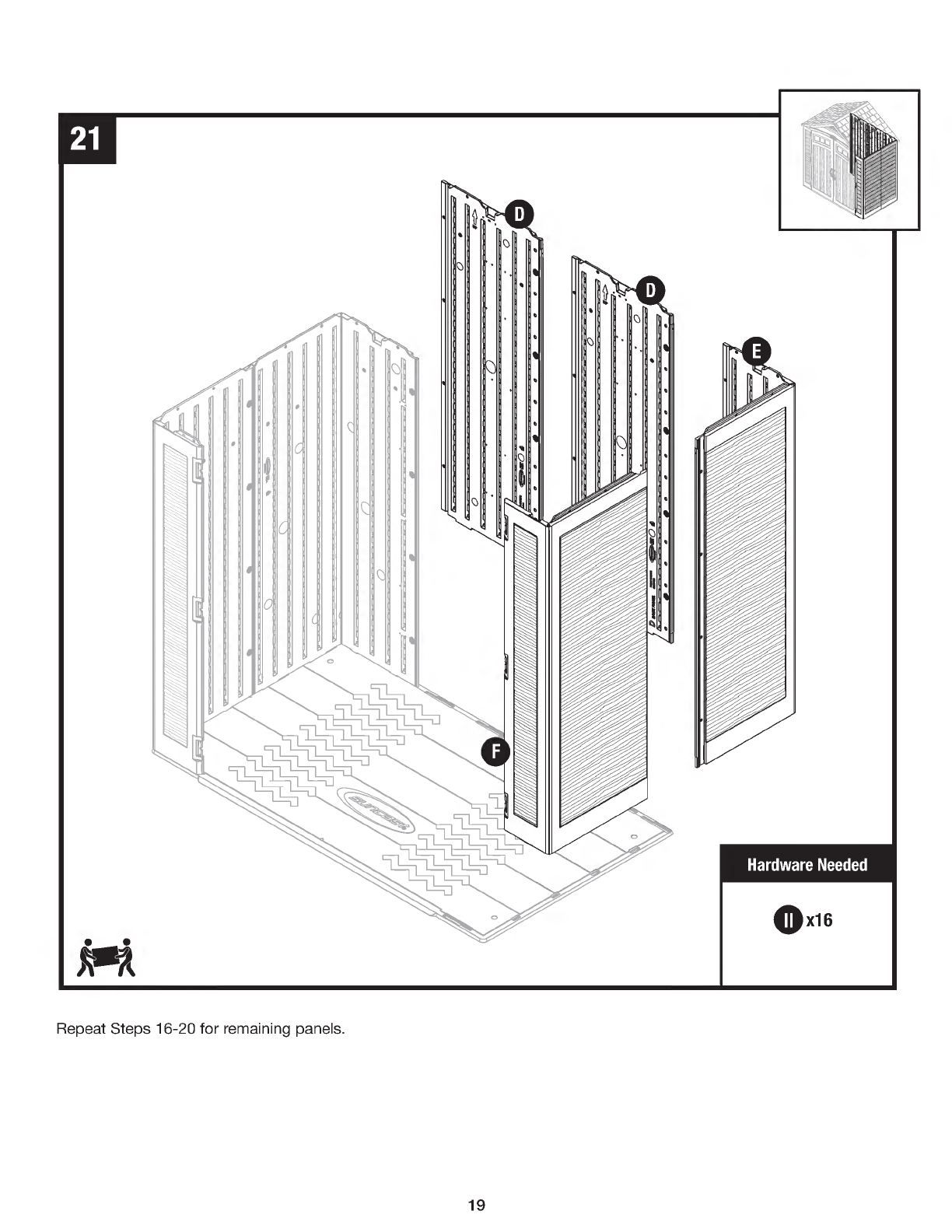

Repeat Steps 16-20 for remaining panels.
19

Shed Assembly/Headers
Place front header ( G) over door opening and fit two
protruding support legs into pockets molded in front
corners. Secure front header using two screws ( KK) in
each front corner.
Place rear header ( H) over back walls and fit four
protruding support legs into pockets molded in back
walls. Secure rear header using eight screws ( KK).
20
