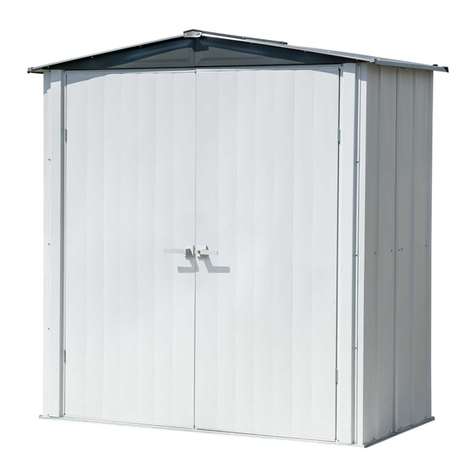

SPACEMAKER RGB86ONEU Use and care manual

* Size rounded off to the nearest foot
BUILDING DIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
727640319
Model No. RGB86ONEU
Owner's Manual & Assembly Instructions
Exterior Dimensions Interior Dimensions Door
*Approx. Foundation (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
8' x 6' 97 1/2" x 68 3/4" 99 3/4" 71 1/4" 79 1/8" 94 3/4" 66" 77 7/8" 43 1/2" 69 1/4"
2,4m x 1,8m 247,7cm x 174,6cm 253,4cm 181,0cm 201,0cm 240,7cm 167,6cm 197,8cm 110,5cm 175,9cm
HX01a
Storage Area: 43 Sq. Ft. 271 Cu. Ft.
4,0 m27,7 m3
RGB86FGEU

Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and base
materials are not included with your building. Your assembly instructions provide information
on a few methods commonly used to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for
your building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the Parts List page.
•If you find that a part is missing, include the model number of your building and contact:
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
HS02a
For customers in Germany –
Please contact 50NRTH GmbH
50NRTH GmbH
Straßburgstrasse 14-16
54516 Wittlich / Germany
[email protected]
+49 (0) 6571 - 95117-0
For customers in Switzerland –
Please contact Ritter
Ritter Products AG
Dägermoos 5
Erlinsbach SO 5015
Switzerland
Tel. [phone]
[e-mail]
www.ritter.ch
For customers in France & Belgium –
Please contact Leisure and Pleasure
Leisure & Pleasure
1 Rue Raoul Follereau
59390 LYS
LEZ LANNOY FRANCE
Tel: [phone]
Email: [email protected]
www.leisurenpleasure.com
For customers in Israel –
Please contact IDGarden
IDGarden
Moshav Pedaya 24
Pedaya 99796
Israel
Tel: [phone]
Email: [email protected]
3

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A04

5
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds.
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction difficult and unsafe.
SAFETY FIRST....
XA04
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep doors
closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
6
CARE & MAINTENANCE....
XA05

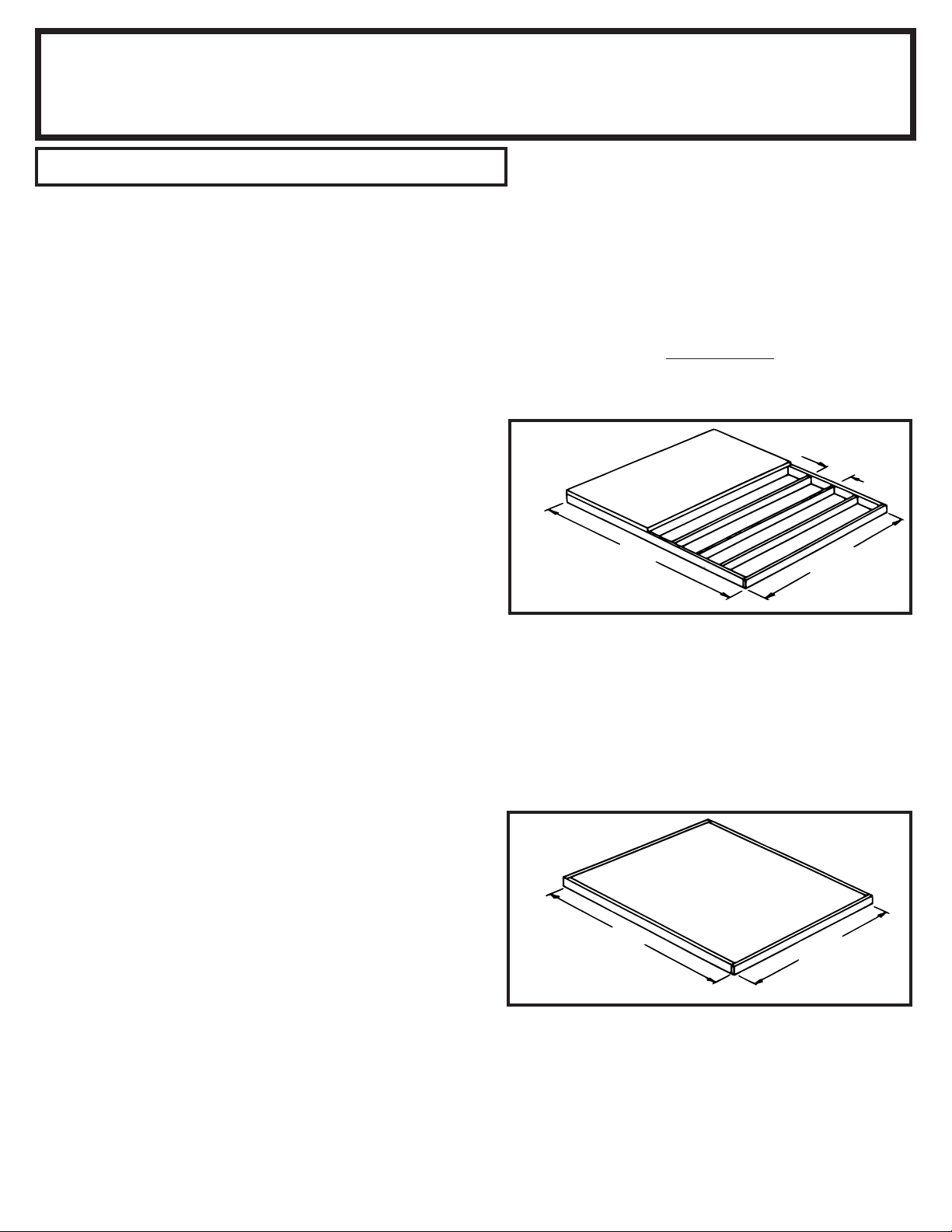

OPTION 1: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
2 x 4's (38 mm x 89 mm) Pressure Treated Lumber
5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it
will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
10 & 4 penny Galvanized Nails Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 2: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your base.
1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
Concrete Sheet of 6 mil plastic
We recommend for a proper strength concrete to use a mix of:
1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
The Base For Your Building
FRONT
(DOOR)
FRONT
(DOOR)
Base
Note: Finished Slab dimensions, with lumber removed.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond floor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roofing cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
97 1/2"
247,7 cm
16"/24"
40,6 cm/61,0 cm
68 3/4"
174,6 cm
7
68 3/4"
174,6 cm
97 1/2"
247,7 cm
FZ07

It is important that the entire floor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
XA07
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
1. 2.
1. 2.
8

Remove from bag of screws
and save for the last step
67293
Weather Stripping (1)
66775
Plug (2)
(Packed with Screws)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer (273)
(8 sheets of 40)
65109
#8-32 Acorn Nut (6)
(Packed with Screws)
67468SPM
Peak Cap (2)
65004
#8Ax5/16" (8 mm)
Screw (290)
65923
#8-32x3/8" (10 mm)
Bolt (105)
65900A
#10Bx1/2" (13 mm)
Black Screw (8)
(Packed with Screws)
65103
#8-32 Hex Nut (105)
Hardware
6228
Track Support (2)
7916
Roof Beam Bracket (4)
66769
Door Slide (4)
9
GW09
8397
Corner Brace (6)
6481
Gusset (2)
66847
Vent Gable (4)

10
Parts List
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 6615 Rear Wall Angle 2
2 6617 Door Track Splice 1
3 10498 Horizontal Door Brace 4
4 6658 Gable Brace 2
5 7875 Roof Panel 4
6 11148 Right Gable 2
7 80139 Left Gable 2
8 8461 Ridge Cap 1
9 8466 Right Roof Panel 2
10 8467 Left Roof Panel 2
11 8474 Roof Beam 3
12 8476 Side Wall Angle 3
13 9920 Side Wall Channel 2
14 8482 Side Roof Trim 2
15 8941 Ramp 1
16 8946 Side Floor Frame 2
17 6521 Wall Panel 4
18 6301 Vertical Door Brace 2
19 10484 Door 2
20 6155 Wall Panel 2
21 9371 Door Jamb 2
22 9924 Rear Wall Channel 2
23 9377 Rear Floor Frame 2
24 9378 Door Track 2
25 9379 Front Floor Frame 2
26 9383 Front Corner Panel 2
27 9387 Rear Corner Panel 2
GW10

11

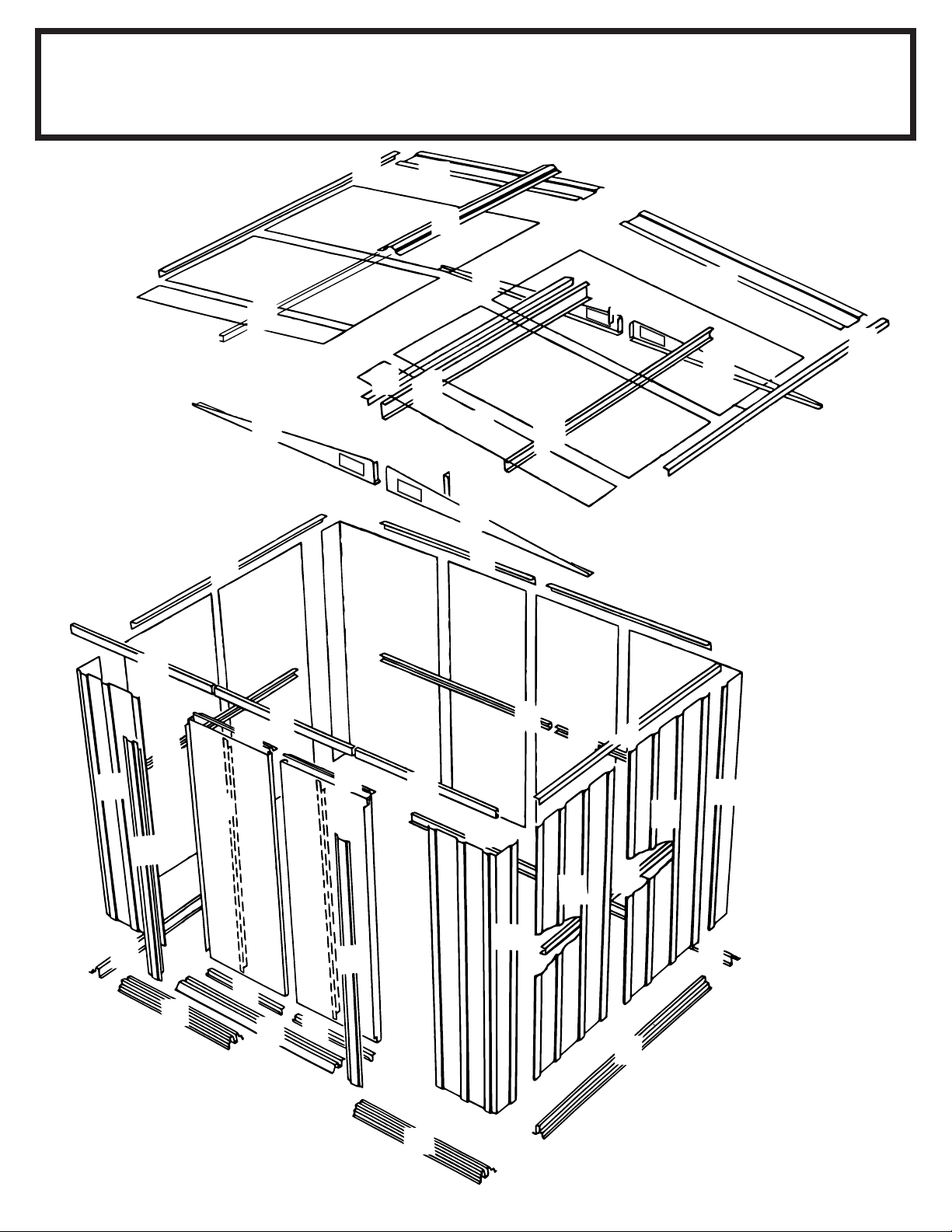

Assembly by Key No.
11
9
5
5
10
14
8
12
12
11
11
10
6
7
9
5
5
14
7
6
4
24
24
2
3
3
1
1
20
20
27
27
17
17 13
13
17
17
26
26
21
21
18
18
19
19
16
16
25
25
15
3
3
23
23
12
22
22
4
GW11
o
o
o
o
o
o
o

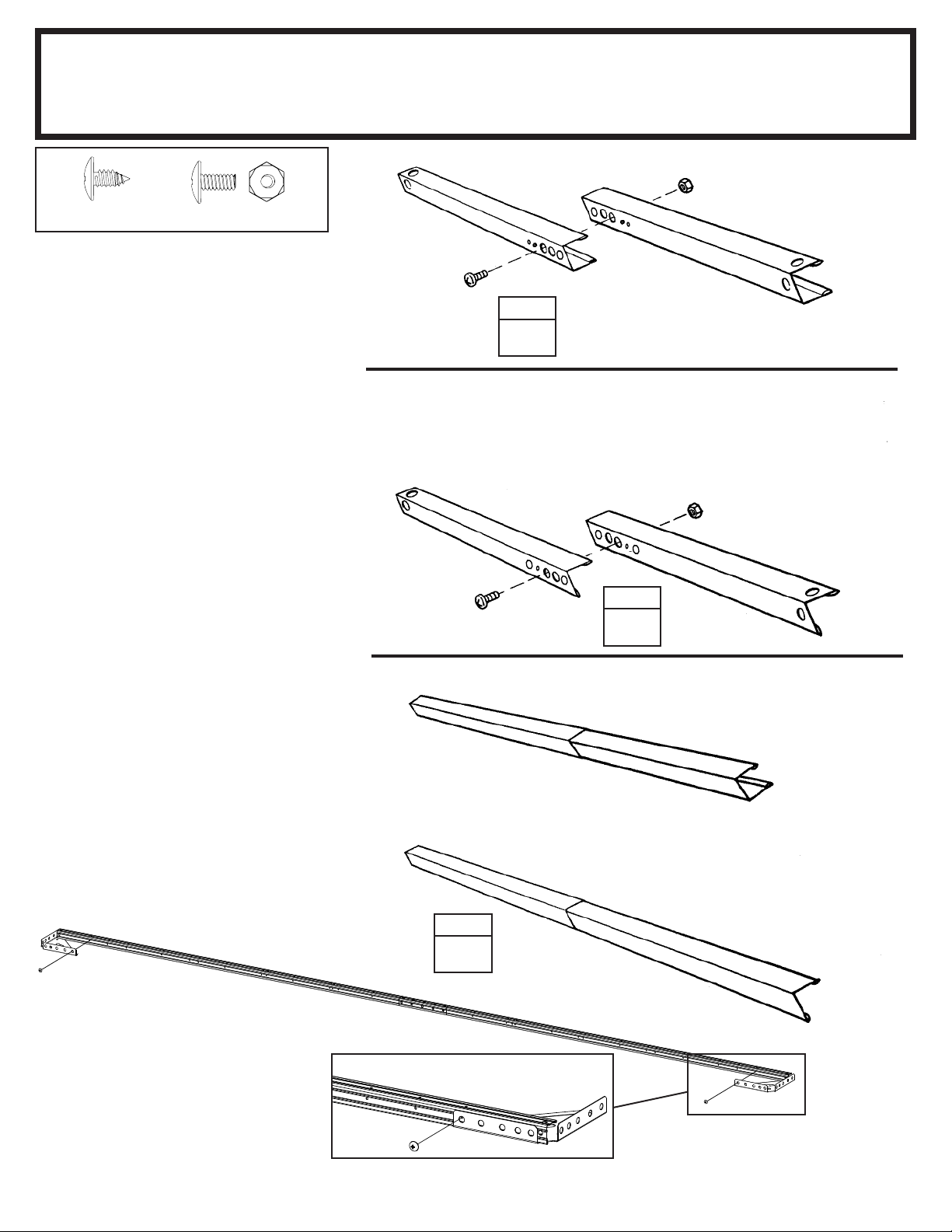

The front floor frame is made up of
three pieces. The rear floor frame is
made up of two pieces. The holes
in these pieces will align when the
pieces are positioned with correct
amount of overlap. The illustrations
below show the proper overall length
for the front and rear. Proceed as
follows:
1 Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front floor frames. Join the frames by
inserting eight screws.
2 Overlap the rear floor frames as
shown. The holes in these pieces will
align when the pieces are positioned
with correct amount of overlap. See
the illustrations below for the proper
overall length of the rear floor frame.
Join the frames by inserting five bolts
into frame set as shown.
3 Double check the length of each
and set these pieces aside for later
use.
Step 1
B14 ctr
 Parts Needed For 
Floor Frame Assemblies
 8941 Ramp (1)
 9379 Front Floor Frame (2)
 9377 Rear Floor Frame (2)
9379
STEP
18941
Front Floor
Frame Assembly
95 7/8" 243,5 cm
STEP
2
9379
9377
Rear Floor Frame
95 7/8" 243,5 cm
9377
95 7/8" 243,5 cm Front
95 7/8" 243,5 cm Rear
STEP
3
9377
9379
8941
9379
DRAIN HOLES FACE
OUTSIDE
(8) (5)
12

Step 2  Parts Needed For 
Frame Assemblies
 6615 Rear Wall Angle (2)
 9924 Rear Wall Channel (2)
 8397 Corner Brace (2)
The main frame pieces reinforce
the walls. These pieces will later be
installed in the center and at the top
edge of the rear wall. Proceed as
follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
one bolt in the center hole (five holes
will align).
2 Overlap the rear wall angle pieces
as shown in the figure and fasten
them together with one bolt in the
center hole.
3 Double check the length of each
and set these pieces aside for later
use.
9924
9924
STEP
1
Rear Wall Channel
94 5/8" 240,3 cm
6615
STEP
2
6615
Rear Wall Angle
94 5/8" 240,3 cm
Rear Wall Channel
94 5/8" 240,3 cm
Rear Wall Angle
94 5/8" 240,3 cm
STEP
3
(2)
13
Rear Wall Angle
8397
8397
(2)
GW13

Step 3
B16 ctr
 Parts Needed For 
Roof Beam Assembly
 8474 Roof Beam (1)
 8476 Side Wall Angle (1)
The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of two pieces
fastened together.
1 Place the side wall angle, back-
to-back, with a roof beam and fasten
together using ten screws.
2 Set this piece aside for later use.
Assembled
8476 Side Wall Angle
8474 Roof Beam
Main Roof Beam
STEP
1
(10)
14

NOTE:
Door Track Splice (painted part)
Step 4
B17 ctr
 Parts Needed For 
Door Track Assembly
 6617 Door Track Splice (1)
 9378 Door Track (2)
The door track assembly supports the
sliding doors and reinforces the front
wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the
underside only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall
in a later step.
3 Position door slides onto the legs,
from the end of door track assembly,
as shown in the end view.
4 Set this piece aside for later use.
66769
STEP
3
94 5/8" 240,3 cm
STEP
4
STEP
1
STEP
2
9378
9378
6617
66769
94 5/8"
240,3 cm
(4)
15
Long Leg
on Top
Short Leg
on Bottom
CORRECT INCORRECT
Long Leg
on top.
Door Slide
END VIEW
6617
Painted Part
9378
9378

 Front Floor Assembly (1)
 8946 Side Floor Frame (2)
 Rear Floor Assembly (1)
 8397 Corner Brace (4)
 Parts Needed For 
Floor Frame

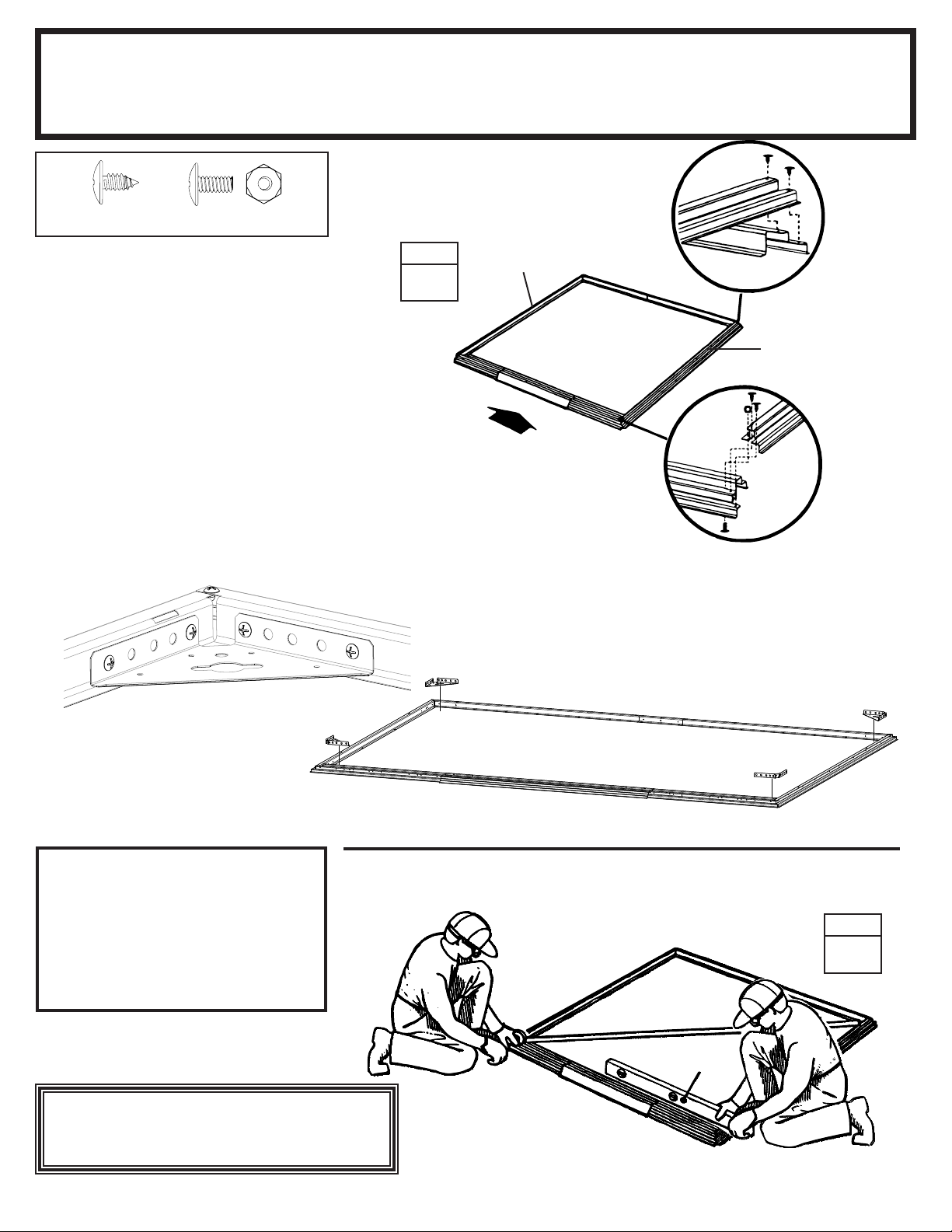

Step 5

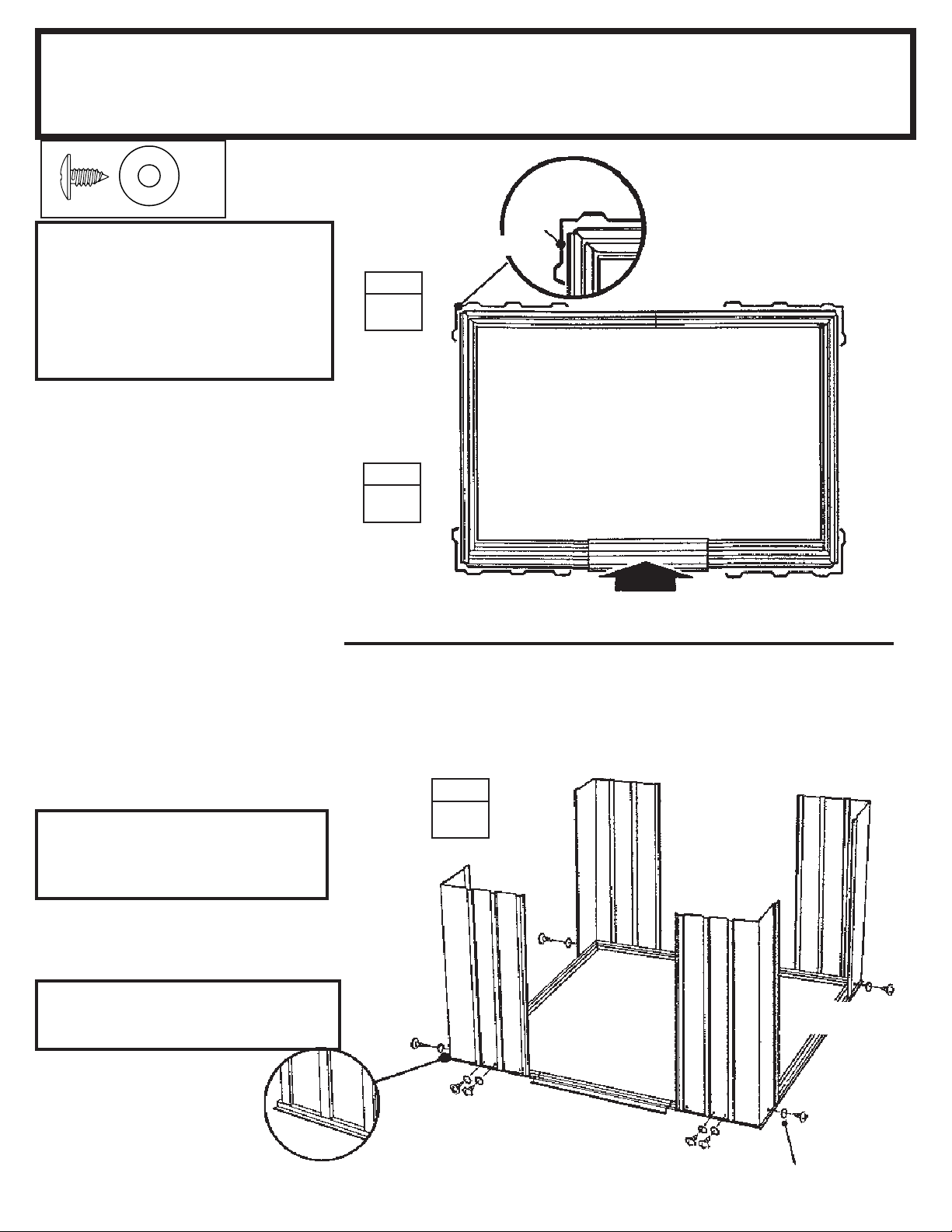

The floor frame must be square
and level or holes will not align.
1Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from the bottom
with nuts on top.
2 Measure the floor frame diagonally.
When the diagonal measurements are
equal, the floor frame is square.
STEP
19377
RIGHT
REAR
8946
8946
Level
RIGHT
FRONT
9379
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
8946
8946
(24) (2)
16
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the building
after it is erected.
GW16
8397
8397
8397
8397

17
1 Position the rear corner panels
at the rear corners, as shown. The
widest part of each rear corner panel
must be placed along the rear of the
building. Attach the corner panels to
the floor frame with four screws.
2 Position a front corner panel
at the corner of the floor frame as
shown. The widest part of each front
corner panel must be placed along
the front of the building. A small gap
will exist between front corner panel
and ramp. Fasten the corner panel
to the floor frame with three screws.
NOTE
Be careful to install the correct
panel in each position as shown
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall re-
quires a washer.
3 Double-check the part numbers of
the wall panels, before proceeding.
The floor frame must be square
and level or holes will not align.
 9383 Front Corner Panel (2)
 9387 Rear Corner Panel (2)
 Parts Needed For 
Corners
Step 6
FRONT
STEP
TOP VIEW
9387
SIDE
REAR
Wide
Side
9383
SIDE
Narrow Side
9387
2
9383
STEP
1
Washer
Panels rest on
frame as shown
9383
9387
9387
9383
STEP
3
GW17
(14)

 Parts Needed For 
Frames
Step 7
 Door Track Assembly (1)
 Rear Wall Angle Assembly (1)
 8476 Side Wall Angle (2)
 Rear Wall Channel Assembly (1)
 9920 Side Wall Channel (2)
 6481 Gusset (2)
The main frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which support
the roof.
1 Fasten the rear wall angle
assembly across the inside top of
the rear wall using screws.
2 Fasten the rear wall channel
assembly across the middle of the
rear wall using screws.
3 Fasten the side wall angles across
the inside top of the side panels using
screws. Side wall angles must overlap
rear wall angle in corners.
4 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in rear
corners with screws.
5 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the figure.
9920
STEP
2
FRONT
6615
1
9924
8476
STEP
9378
Long Leg
on Top
Opening
Facing in
FRONT
Short Leg
on Bottom
FRONT
5
STEP
Wall Angles
Must Face
Inside
Building
DOOR TRACK ASSEMBLY
(6)
18
GW18
6615
8476
9387
4
39924
9920
6481
STEP STEP
(24)

19
 6521 Wall Panel (4)
 6155 Wall Panel (2)
 Parts Needed For 
Wall Panels
Step 8
The wall panels come in two widths.
Each wall panel has a crimped rib on
one side. The crimped rib should go
undertheribof thepanel thatfollowsit.
1 Locate all of the wall panels and set
each one alongside the building.
2 Be sure that you have the correct
panels in each position. Do this by
overlapping the panels and determin-
ing if the holes line up with the holes
in the frame.
3 Fasten the wall panels at the top
and bottom with screws.
4 Fasten the center of each panel to
the wall channel with screws. Fasten
overlapping ribs using a bolt and nut
with two screws.
5Whenyouhaveattachedallwallpan-
elsin thecorrect positions,the building
will look like this.
STEP
2
6155
Panels rest on
frame as shown
6155
6521
6521
6521
6521
Crimped Rib
Underneath
Detail Showing
Center of Panel
Screwed to
Wall Channel
Bolt and nut
does not go thru
wall channel
at overlap
STEP
4
STEP
3
Use bolts and
nuts thru wall
angle overlap
at the top of
panel at rear.
STEP
5
STEP
1
GW19
(82) (11)

20
(8)
(6)
(2)
 Parts Needed For 
Door Jamb
Step 9  9371 Door Jamb (2)
The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both
door jambs.
1 Fasten a door jamb to the front
panel with three bolts, nuts and
acorn nuts, as shown. Push a plug
into hole at center of jamb, closest
to door opening.
2 Fasten the top of the door jamb
to the door track with two screws. Do
the same for the bottom into frame.
Repeat steps 1 through 2 for the
opposite door jamb.
Cross-Section
Top View
1
STEP
INSIDE OF
BUILDING
2
STEP
Plug
9371
Hex Nut
Plug
Acorn Nut
TOP VIEW
Door Track
9371
(3) bolts
Bolt
FRONT
TOP VIEW
Door Track
TOP VIEW
Door Track
Screw Screw
GW20
