SPACEMAKER RGB1010ONEU Use and care manual

Owner's Manual & Assembly Instructions
728311220
* Size rounded o to the nearest foot
BUILDING DIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
3,0 m x 3,0 m 307,3 cm x 290,8 cm 313,1 cm 297,2 cm 208,6 cm 300,4 cm 283,8 cm 205,4 cm 141,0 cm 175,9 cm
Storage Area: 92 Sq. Ft. 584 Cu. Ft.
8,5 m216,5 m3
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
JD01a
Model No. RGB1010ONEU
RGB1010FGEU
10' x 10' 121" x 114 1/2" 123 1/4" 117" 82 1/8" 118 1/4" 111 3/4" 80 7/8" 55 1/2" 69 1/4"

Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and base
materials are not included with your building. Your assembly instructions provide information
on a few methods commonly used to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for
your building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the Parts List page.
•If you nd that a part is missing, include the model number of your building and contact:
•Separate contents of the carton by the part number while reviewing parts list. The rst few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
HS02b
3

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the rst steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A04

5

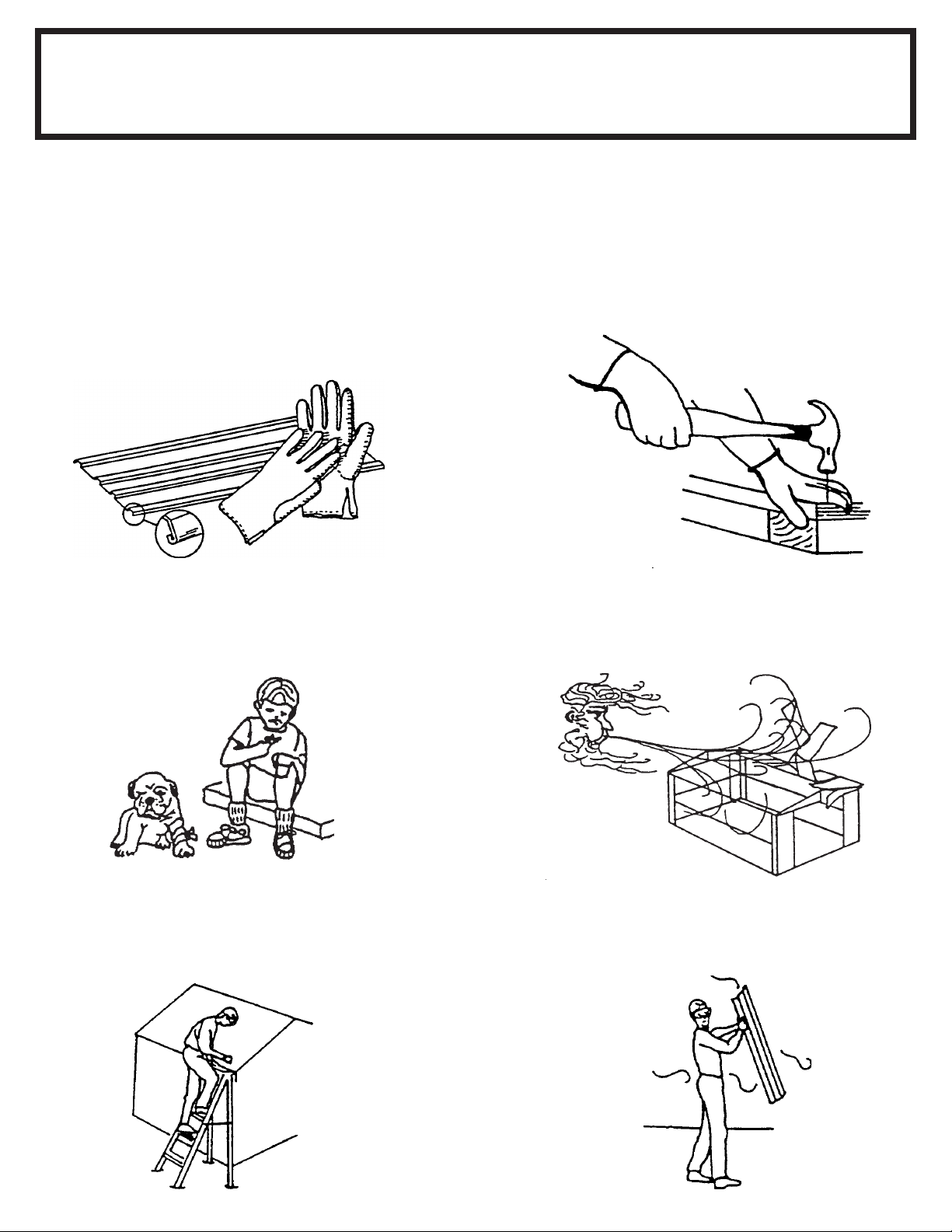

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds.
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction dicult and unsafe.
SAFETY FIRST....
XA04
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep doors
closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather inltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire oor area with good
ventilation will reduce condensation.
Other Tips....
• Wash o inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
6
CARE & MAINTENANCE....
XA05

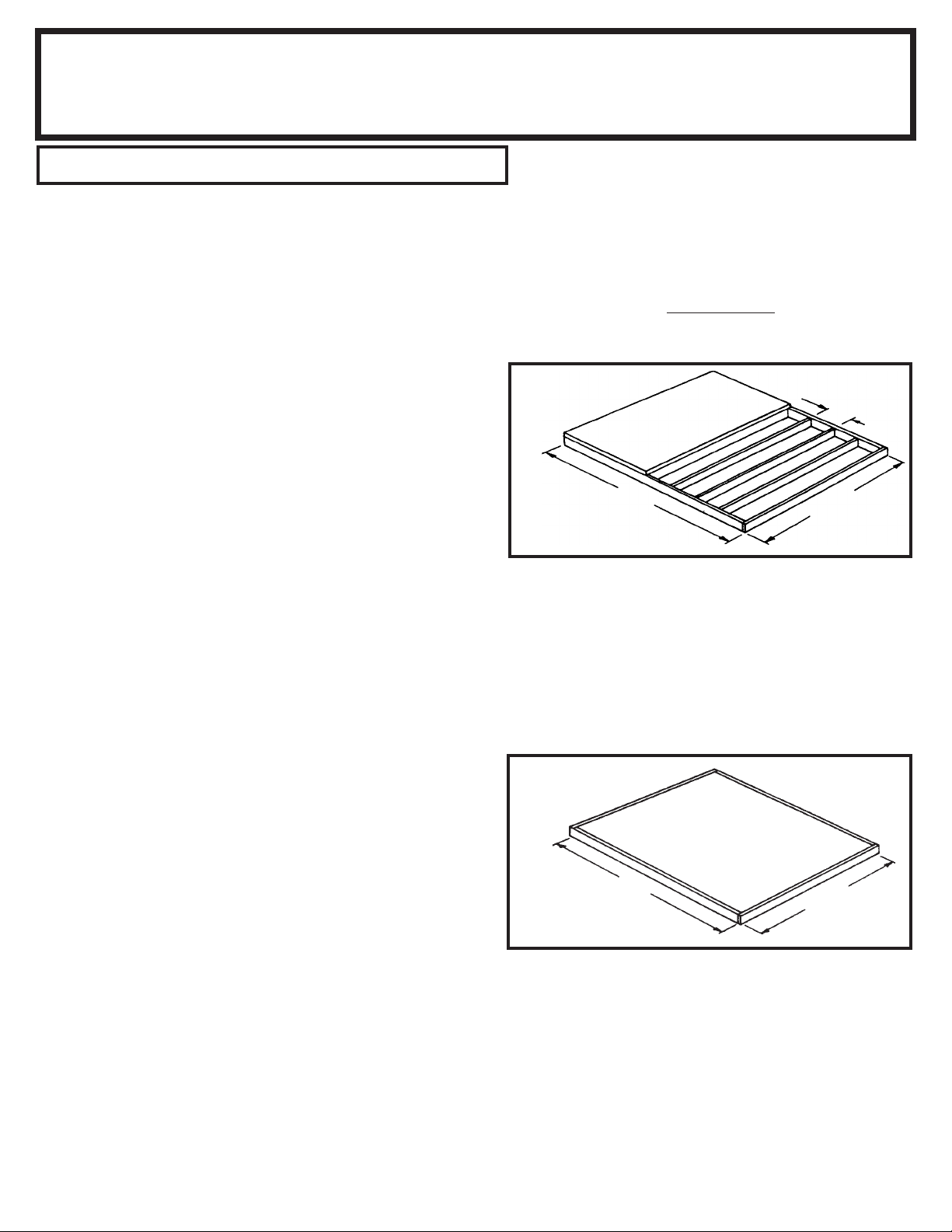

OPTION 1: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
2 x 4's (38 mm x 89 mm) Pressure Treated Lumber
5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it
will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
10 & 4 penny Galvanized Nails Concrete Blocks (optional)
The platform should be level and at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 2: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame.
The following are the recommended materials for your base.
1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
Concrete Sheet of 6 mil plastic
We recommend for a proper strength concrete to use a mix of:
1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
114 1/2"
290,8 cm
The Base For Your Building
FRONT
(DOOR)
FRONT
(DOOR)
Base
Note: Finished Slab dimensions, with lumber removed.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond oor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a
roong cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
121"
307,3 cm
16"/24"
40,6 cm/61,0 cm
121"
307,3 cm
7
114 1/2"
290,8 cm
DK07

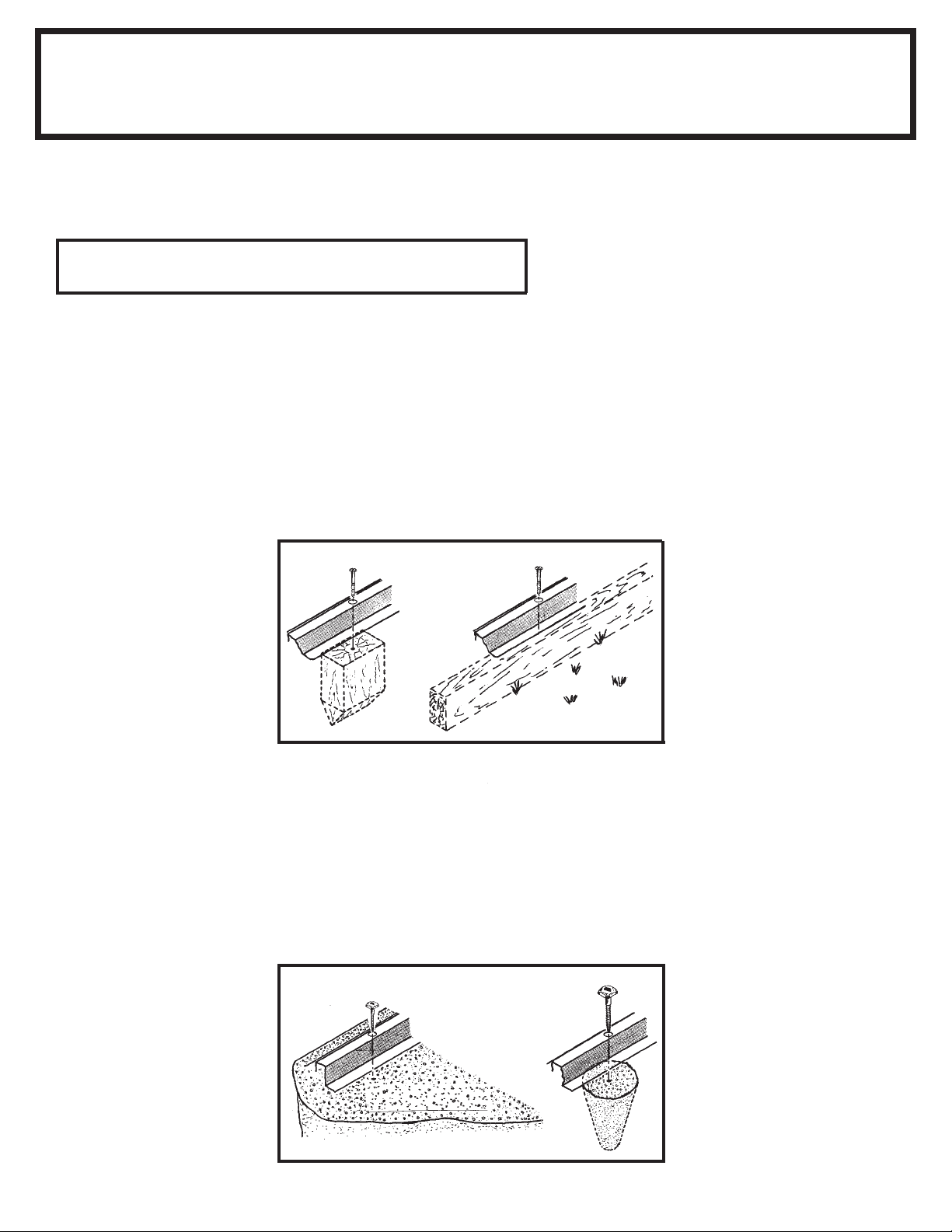

It is important that the entire oor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
XA07
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
1. 2.
1. 2.
8

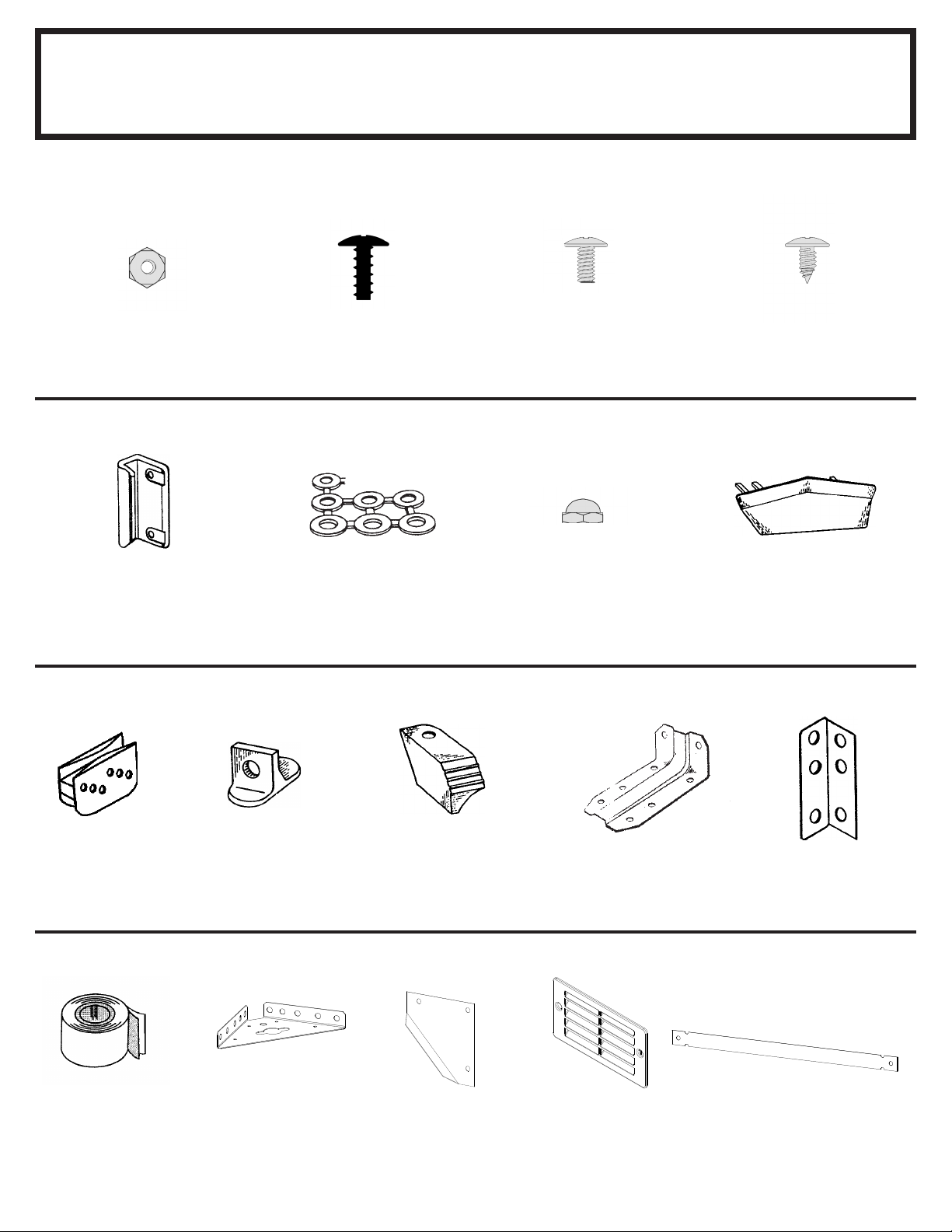

Remove from bag of screws
and save for the last step
67545
Weather Stripping (1)
5971
Roof Beam Bracket (4)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer (381)
(10 sheets of 40)
65109
#8-32 Acorn Nut (4)
(Packed with Screws)
67468SPM
Peak Cap (2)
65004
#8Ax5/16" (8 mm)
Screw (376)
65923
#8-32x3/8" (10 mm)
Bolt (157)
65900A
#10Bx1/2" (13 mm)
Black Screw (8)
(Packed with Screws)
65103
#8-32 Hex Nut (157)
Hardware
6228
Track Support (2)
66769
Door Slide (4)
9
JD09
8397
Corner Brace (4)
6481
Gusset (2)
66847
Vent Gable (4)
11241
Gusset Strap (2)

Parts List
Assembly Part Part Quantity Check
Key No. Number Description in Carton List
1 3719 Door Handle Brace 2
2 5986 Rear Wall Angle 2
3 11236 Right Gable 2
4 80173 Left Gable 2
5 6015 Side Roof Trim 4
6 10497 Horizontal Door Brace 4
7 6301 Vertical Door Brace 2
8 6403 Door Track Splice 1
9 6520 Corner Panel 4
10 6521 Wall Panel 8
11 6529 Roof Panel 4
12 6635 Gable Brace 2
13 6640 Right Roof Panel 2
14 6641 Left Roof Panel 2
15 6869 Ridge Cap 2
16 9917 Rear Wall Channel 2
17 10472 Right and Left Doors 2
18 8934 Ramp 1
19 8936 Rear Floor Frame 2
20 9923 Side Wall Channel 4
21 10518 Roof Beam 8
22 9298 Side Wall Angle 4
23 9299 Side Floor Frame 4
24 9365 Front Wall Channel 2
25 9366 Door Track 2
26 9367 Front Floor Frame 2
27 9371 Door Jamb 2
28 9375 Front Wall Panel 2
29 67521 Edge Trim 1
10
JD10

11
Assembly by Key No.
5
5 14
15
11
11
13
22
22
21
21
15
11
13
11
2121 3
45
4
3
2121
12
5
21
14
10
10
910
2
12
10
10
10
22
2
9
20
10
10
20
9
19
23
17
17 7
7
6
6
26
23
27
27
18
24
28 22
1
1
28
24
925
20
6
68
25
23
19
20 16
16
23
26
JD11
o
o
o
o
o
o
21

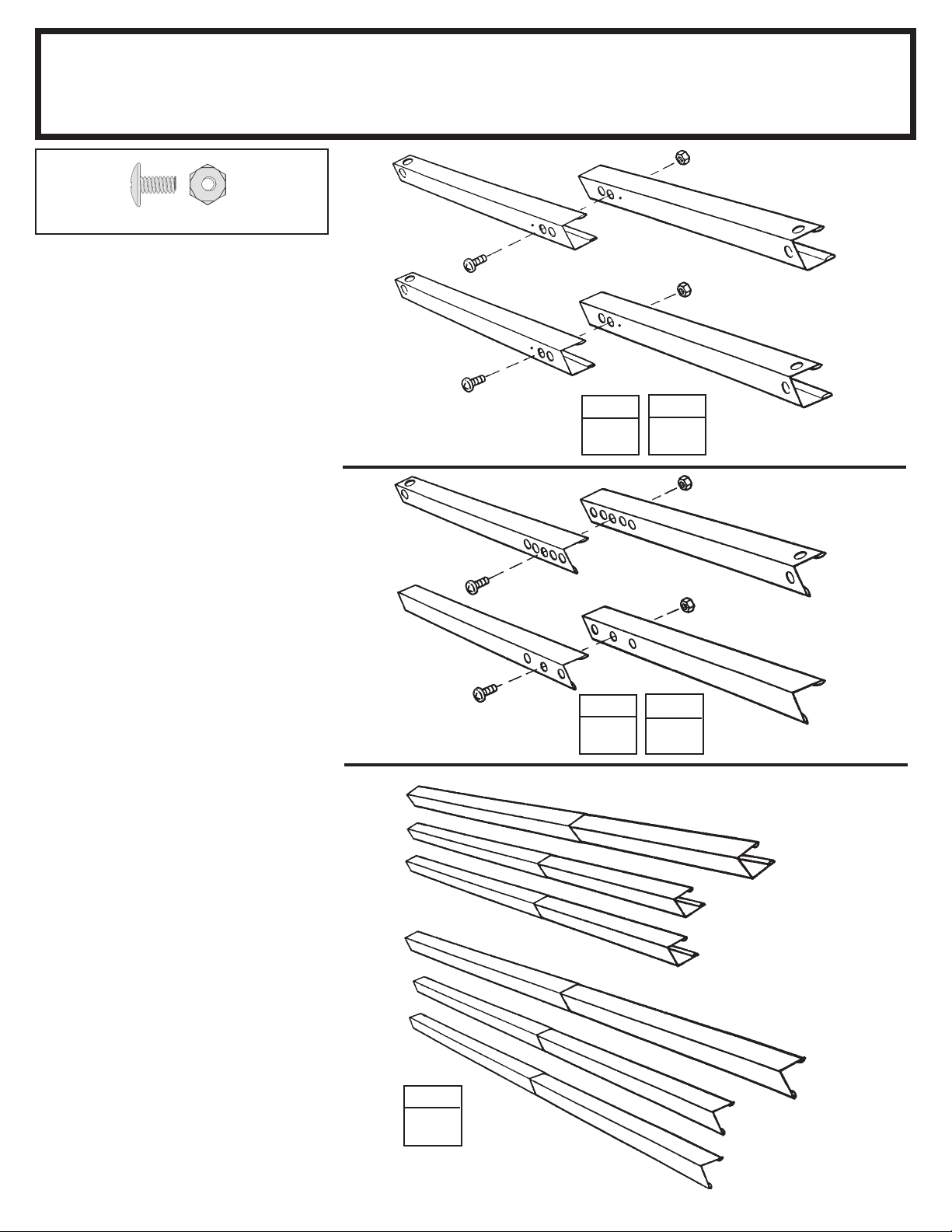

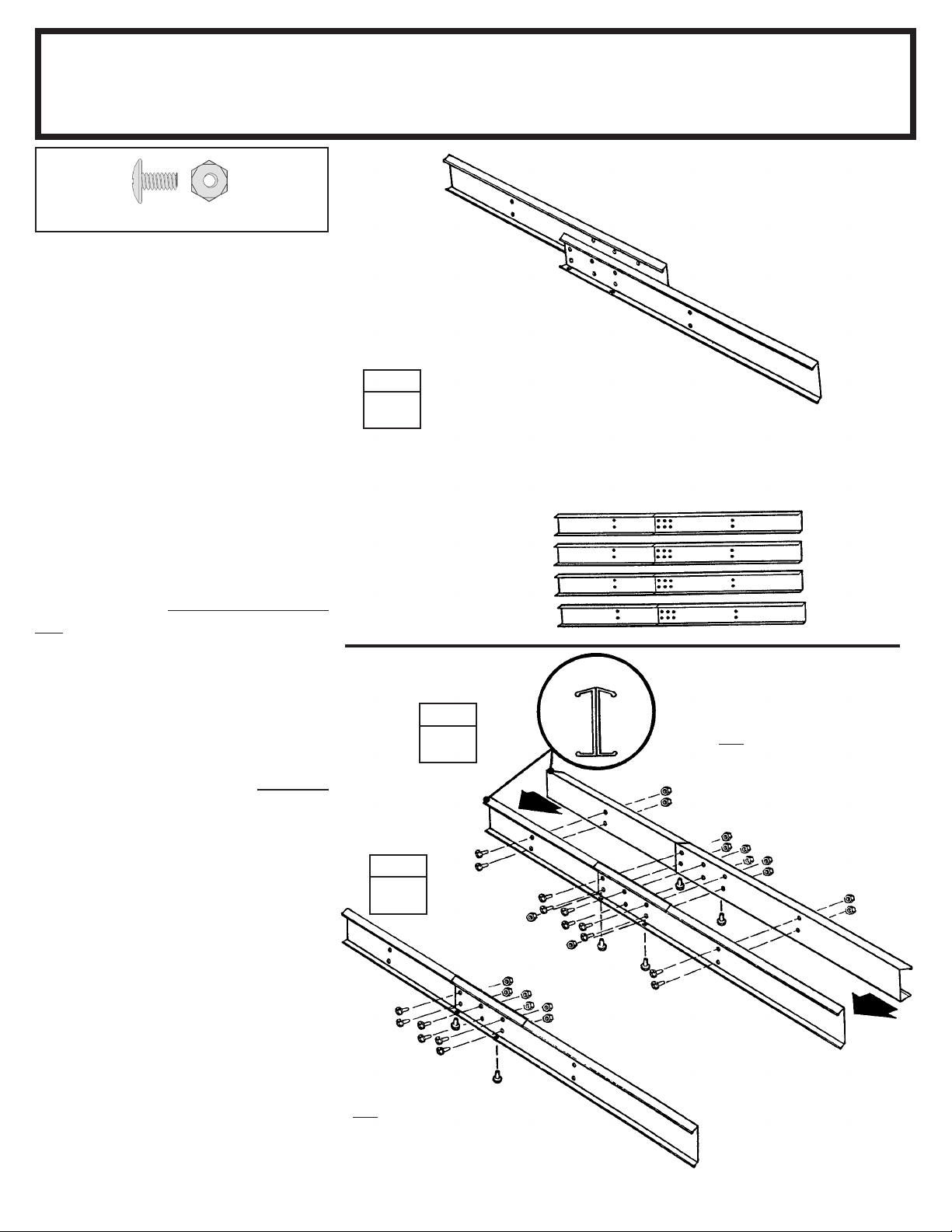

The front oor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made
up of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:
1 Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front oor frames. Join the frames by
inserting eight screws.
2 Overlap the side floor frames
and the rear oor frames as shown.
The holes in these pieces will align
when the pieces are positioned with
correct amount of overlap. See the
illustrations below for the proper
overall length of the side and rear
oor frames. Join the frames by in-
serting ve bolts into each frame set
as shown.
3 Double check the length of each
and set these pieces aside for later
use.
Step 1
S14 ctr
 Parts Needed For 
Floor Frame Assemblies
 8934 Ramp (1)
 9367 Front Floor Frame (2)
 8936 Rear Floor Frame (2)
 9299 Side Floor Frame (4)
9367
STEP
1
8934
9367
DRAIN HOLES FACE
OUTSIDE
Front Floor
Frame Assembly
119 3/8" 303,2 cm
8936
9299
9367
8934
9367
9299
9299
Side Floor Frame 112 7/8"
286,7 cm
8936 8936
Rear Floor Frame 119 3/8"
303,2 cm
STEP
2
STEP
3
112 7/8" 286,7 cm
119 3/8" 303,2 cm
Front & Rear
119 3/8" 303,2 cm
112 7/8" 286,7 cm
Side
(8) (15)
12

Step 2
S15 ctr
 Parts Needed For 
Frame Assemblies
The main frame pieces reinforce
the walls. These pieces will later be
installed in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
one bolt in the center hole (three
holes will align).
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with one bolt in the center
hole of each set.
3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one bolt
in the center hole.
4 Make two side wall angles by
overlapping the side wall angle pieces
as shown. Fasten each set together
with one bolt in the center hole.
5 Double check the length of each
and set these pieces aside for later
use.
 5986 Rear Wall Angle (2)
 9917 Rear Wall Channel (2)
 9923 Side Wall Channel (4)
 9298 Side Wall Angle (4)
STEP
1
Rear Wall Channel
118 1/8" 300,0 cm
STEP
2
9917
9923
Side Wall Channels
111 5/8" 283,5 cm
9923
Rear Wall Angle
118 1/8" 300,0 cm
5986
5986
9298
9298 Side Wall Angles
111 5/8" 283,5 cm
STEP
34
Rear Wall Channel
118 1/8" 300,0 cm
Side Wall Channels
111 5/8" 283,5 cm
Side Wall Angles
111 5/8" 283,5 cm
Rear Wall Angle
118 1/8" 300,0 cm
STEP
5
STEP
9917
(6)
13

The roof beams join the two gables
and support the roof panels. The
main roof beam is made up of four
pieces overlapped back to back at
the center. The left and right roof
beam assemblies are made up of
two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.
1 Place the end of one roof beam
inside a second roof beam so that the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure. Do not insert bolts
yet.
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assem-
bly. Hold the assembly together and
fasten with 14 bolts. Build only one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Double check the length of each
and set these pieces aside for later
use.
Step 3
S16 ctr
 Parts Needed For 
Roof Beam Assemblies
 10518 Roof Beam (8)
10518
STEP
1Roof Beam 113 7/16" 288,1 cm
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
END
VIEW
10518
Build two Single Beam Assemblies
STEP
2
STEP
3
10518
10518
10518
10518
ASSEMBLED
113 7/16"
288,1 cm
113 7/16"
288,1 cm
(30)
14

Step 4
A17 ctr
 Parts Needed For 
Door Track Assembly
 6403 Door Track Splice (1)
 9366 Door Track (2)
The door track assembly supports the
sliding doors and reinforces the front
wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the
underside only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall
in a later step.
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.
(4)
15
NOTE:
Door Track Splice (painted part)
STEP
1
STEP
2
Long Leg
on Top
Short Leg
on Bottom
9366
9366
6403
66769
66769
STEP
3
STEP
4
118 1/8"
300,0 cm
118 1/8"
300,0 cm
CORRECT INCORRECT
Long Leg
on top.
Door Slide
END VIEW
6403
Painted Part
9366
9366

 Front Floor Assembly (1)
 Side Floor Assembly (2)
 Rear Floor Assembly (1)
 8397 Corner Brace (4)
 Parts Needed For 
Floor Frame
Step 5

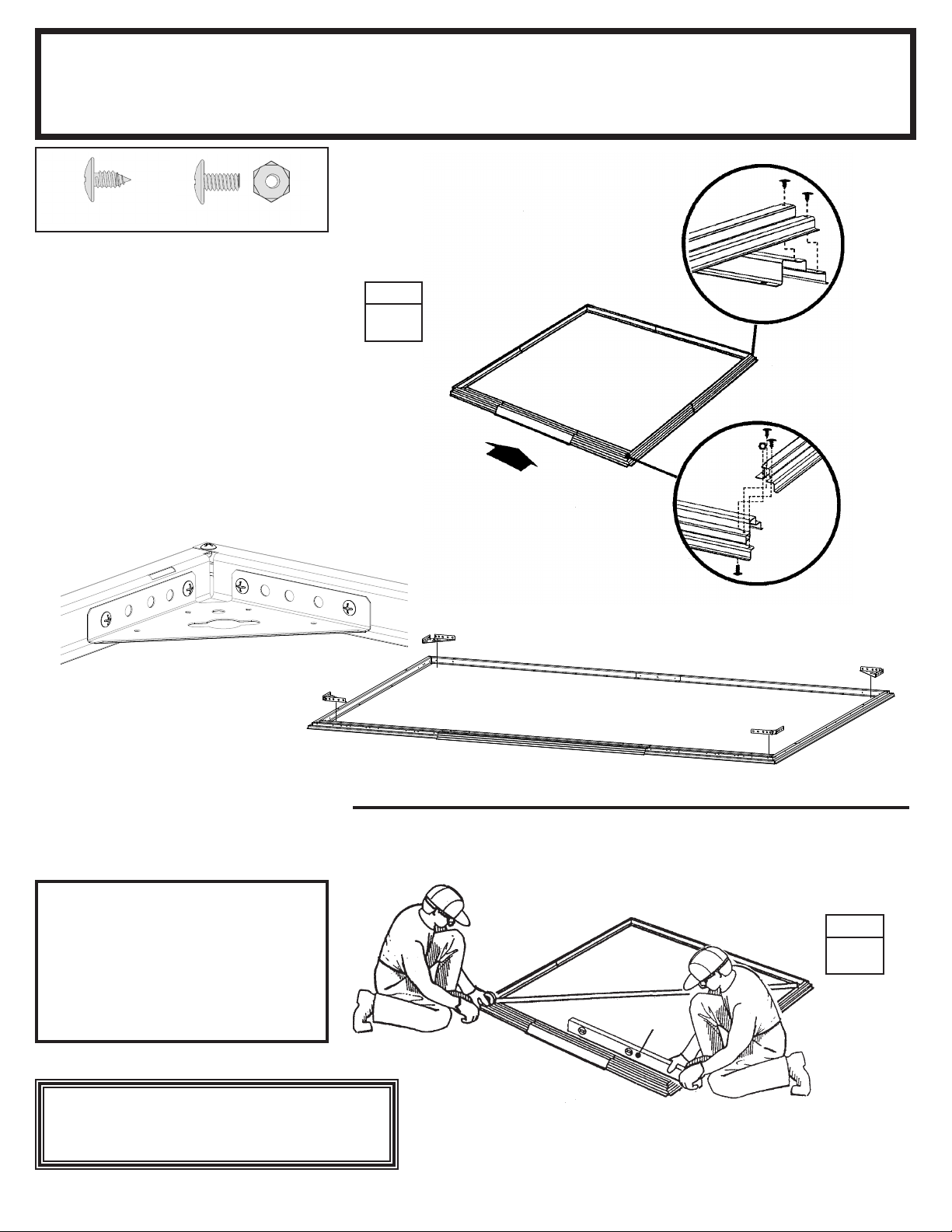

The oor frame must be square
and level or holes will not align.
1 Assemble the four corners of
the oor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2 Measure the oor frame diagonally.
When the diagonal measurements are
equal, the oor frame is square.
NOTE
If using a wood platform or
concrete slab do not fasten the
oor frames to your base at this
time. You will anchor the
building after it is erected.
STEP
1
9299
RIGHT
REAR
8936
Level
9299
RIGHT
FRONT
9367
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
(24) (2)
16
JD16
8397
8397
8397
8397

 6521 Wall Panel (2)
 9375 Front Wall Panel (2)
 6520 Corner Panel (4)
Step 6  Parts Needed For 
Corners
STEP
1
6521
9375 9375
6520
6520
REAR
FRONT
9375
Panels rest on
frame as shown
6520
SIDE TOP VIEW
Narrow
Side
6520
6521
Wide Side
STEP
3
STEP
2
STEP
4
6521
9375
6520
6521
#8-32x3/8" Bolt (10 mm)
Washer
Crimped Rib
Underneath
SIDE
#8Ax5/16" Screw (8 mm)
#8-32 Hex Nut
1 Position a corner panel at the
corner of the oor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the oor frame
with four screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2 Attach the front wall panels to
the front corner panels, as shown.
A small gap will exist between front
wall panel and ramp.
3 Attach the wall panels to the rear
corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
4 Double-check the part numbers of
the wall panels, before proceeding.
The oor frame must be square
and level or holes will not align.
Each screw and bolt in the wall
requires a washer.
CORRECT INCORRECT
(38) (4)
17
JD17

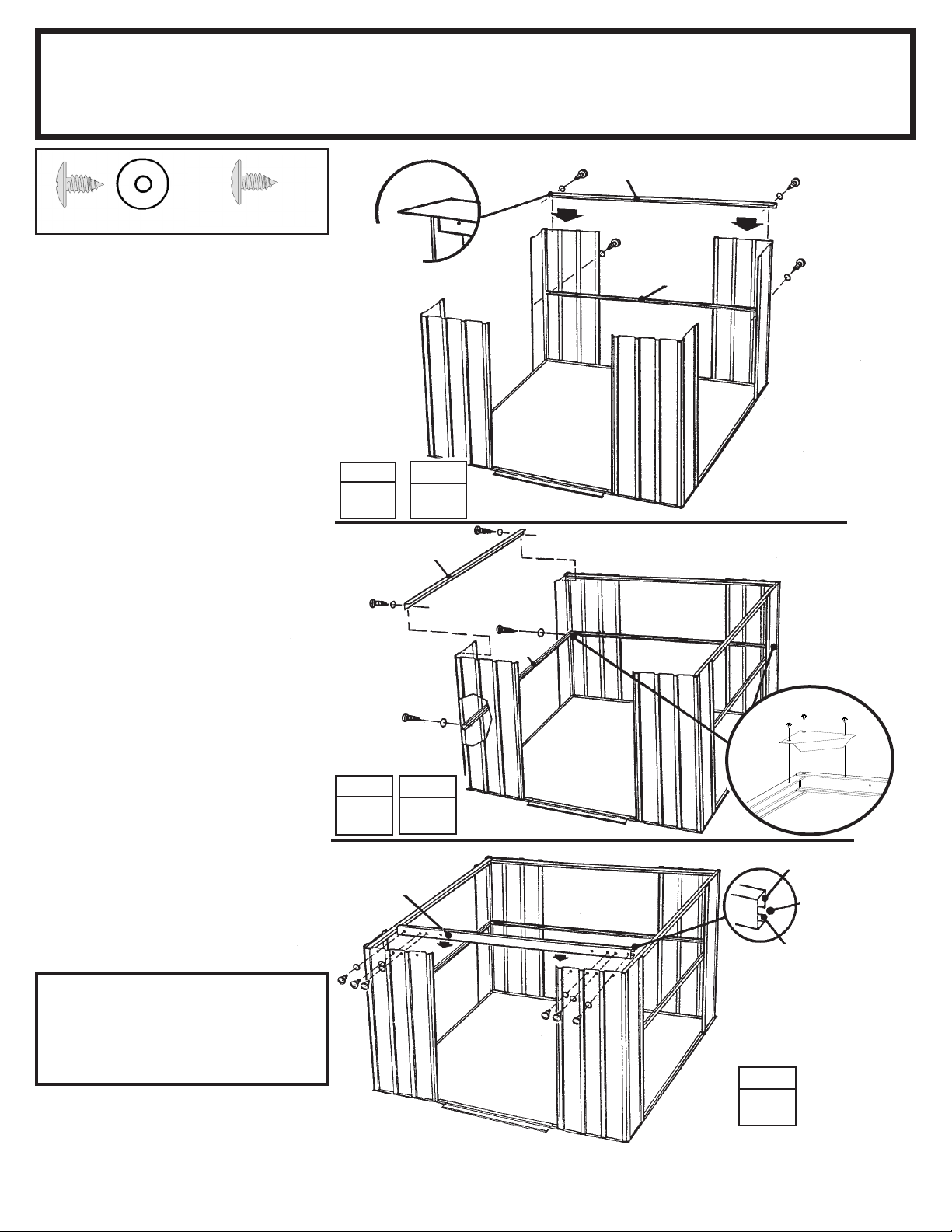

The main frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
1 Fasten the rear wall angle as-
sembly across the inside top of the
rear wall using screws.
2 Fasten the rear wall channel as-
sembly across the middle of the rear
wall using screws.
3 Fasten the side wall angles across
the inside top of the side panels using
screws. Side wall angles must overlap
rear wall angle in corners.
4 Fasten the side wall channel as-
semblies across the middle of the
side panels using screws. Fasten
overlaps in rear corners with screws.
5 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the gure.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step.
 Door Track Assembly (1)
 Rear Wall Angle Assembly (1)
 Side Wall Angle Assemblies (2)
 Rear Wall Channel Assembly (1)
 Side Wall Channel Assemblies (2)
 6481 Gusset (2)
 Parts Needed For 
Frames
Step 7
5
Short Leg
on Bottom
STEP
3
Opening
Facing in
STEP
4
Long Leg
on Top
STEP
FRONT
9366
FRONT
9923
9298
FRONT
Wall Angles
Must Face
Inside
Building 9917
5986
1
STEP
2
STEP
Door Track Assembly
(54) (6)
18
JD18
9917
9923
6481

 6521 Wall Panel (6)
 11241 Gusset Strap (2)
 67521 Edge Trim (1)
 Parts Needed For 
Wall Panels
Step 8

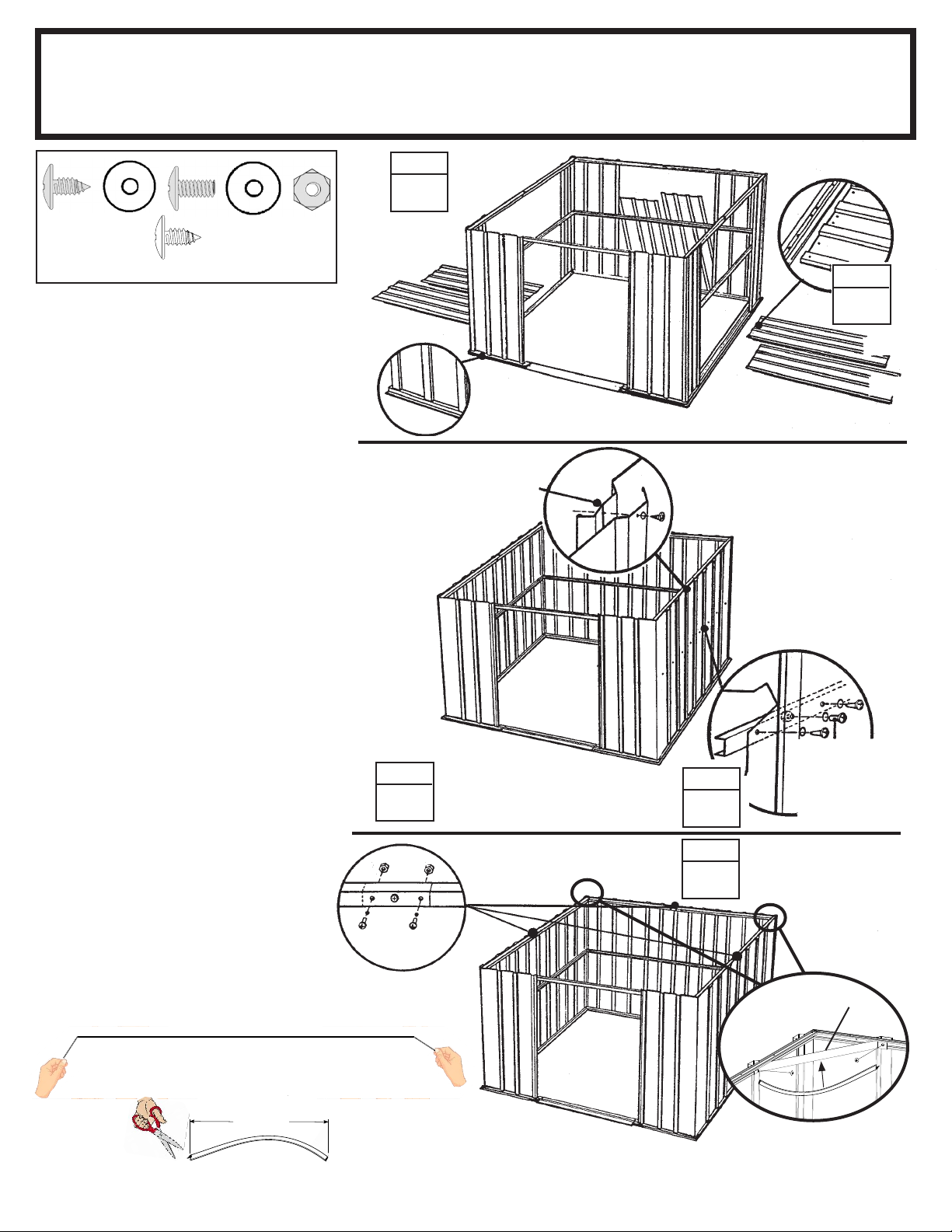

Each wall panel has a crimped rib on
one side. The crimped rib should go
undertheribof thepanel thatfollowsit.
1 Locate all of the wall panels and
set each one alongside the building.
2 Be sure that you have the correct
panels in each position. Do this
by overlapping the panels and
determining if the holes line up with
the holes in the frame.
3 Fasten the wall panels at the top
and bottom with screws.
4 Fasten the center of each panel to
the wall channel with screws. Fasten
overlapping ribs using a bolt and nut
with two screws.
5 When you have attached all wall
panels in the correct positions, the
building will look like this.
STEP
2
6521
Panels rest on
frame as shown
6521
6521
6521
6521
6521
Crimped Rib
Underneath
Detail Showing
Center of Panel
Screwed to
Wall Channel
Bolt and nut
does not go thru
wall channel
at overlap
STEP
4
STEP
3
Use bolts and nuts thru wall angle overlap
at the top of panel at sides and rear.
STEP
5
STEP
1
(84) (15)
19
JD19
(4)
11241
13”
33,0 cm
67521
X2
11241
67521

 9371 Door Jamb (2)
 9365 Front Wall Channel (2)
 Parts Needed For 
Front Channel/Door Jamb
Step 9

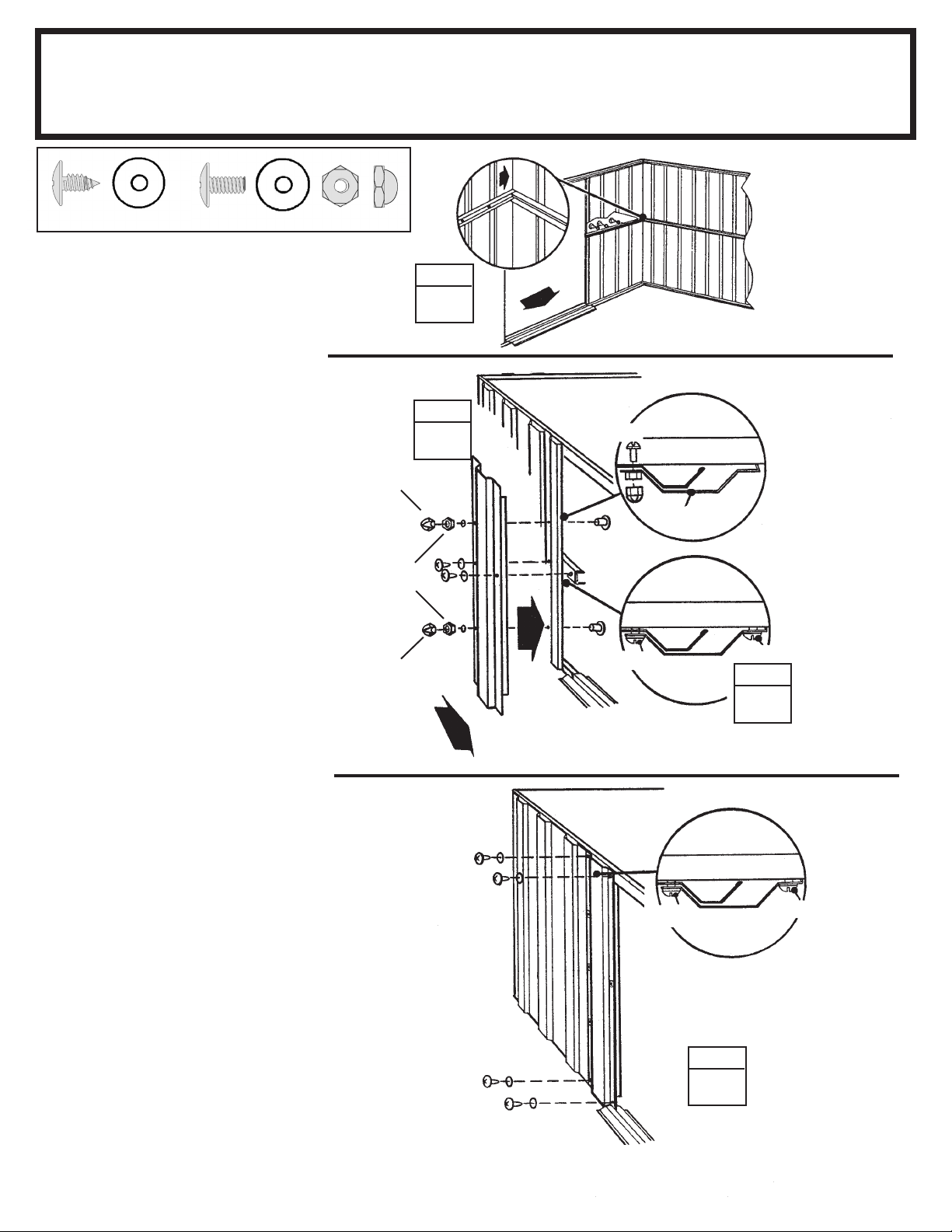

The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both
door jambs.
1 Fasten the front wall channels
in their positions between the end of
the side wall channel and the corner
panel using screws. Do not put a
screw in the hole at the end behind
the door opening at this time.
2 Fasten a door jamb to the front
panel with two bolts, nuts and acorn
nuts, as shown.
3 Fasten the center of the door
jamb to the front wall panel and the
front wall channel with two screws.
4 Fasten the top of the door jamb
to the door track with two screws. Do
the same for the bottom into frame.
Repeat steps 2 through 4 for the
opposite door jamb.
Acorn Nut
Hex Nut
9371
FRONT
Screw
Screw
TOP VIEW
TOP VIEW
Door Track
9371
Front Wall Channel
Front Wall Channel
Cross-Section
Top View
(2) bolts
Bolt
INSIDE OF
BUILDING
9365
FRONT
TOP VIEW
Screw Screw
Door Track
STEP
4
STEP
3
STEP
2
STEP
1
Acorn Nut
(18) (4)
20
JD20
