spaceslide TOWER UNIT 3 DRAWERS 450mm User manual

https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499 SS_INSTRUC_TU_DR_10.2018_V2.1Page 1 of 5
TOWER UNIT 3 DRAWERS
(450 & 600mm wide)
Assembly Instructions
V2.1
CONTENTS:
A1x Top panel
B 1x Side panel (left)
C 1x Side panel (right)
D4x Shelves
E 1x Plinth panel
F6x Soft close drawer runners
(3x left, 3x right)
G2x Drawer inll panels
H2x Metal inll strips
I3x Drawer sides (left)
J3x Drawer sides (right)
K3x Drawer bases
L3x Drawer fronts
M3x Drawer backs
22x
Cams 22x Dowels 2x Wall mounting
brackets
We recommend you use the wall mounting
brackets provided to x the Tower Unit to a
wall (where possible). This will prevent the
unit being pulled over. Use suitable xings.
• TOOLS: Screwdriver
• TWO PERSON BUILD
RECOMMENDED:
TOWER UNIT PACK
DRAWER PACK
20x
Wooden
dowels
18x
Euro Screws 6x Cams 24x Wooden dowels
6x
Dowels

https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499 SS_INSTRUC_TU_DR_10.2018_V2.1
x9
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
x11x10
4
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
1 2
34
Place the cams in the holes. (Apply to all shelves).
Lay panels (B&C) on a at surface. Fit cams & dowels to both panels.
Note: B panel shown
Page 2 of 5
x4
Insert the screws into the holes shown on both sides (B & C). 5
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
x2
FIX THROUGH THESE HOLES HIGHLIGHTED
1 2 3

https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499 SS_INSTRUC_TU_DR_10.2018_V2.1
7
Page 3 of 5
Attach shelves (D) onto side panel (C). Attach the other side panel (B).
8
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
1 2
x2
Slot inll (G) onto the sticky side of
the tape on the drawer inll strip (H).
1- Insert the cams into both inll panels (G). On the metal strip (H)
remove the plastic backing from the double-sided tape then stick the
metal strip to the drawer inll (G). 2 - Attach drawer inll panels onto the side panel (C) and tighten the cams.
6

https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499 SS_INSTRUC_TU_DR_10.2018_V2.1Page 4 of 5
9
910 (Repeat on all drawer sides). (Repeat on all drawer fronts). 10 11
MAKING THE DRAWERS
x1
x4
x2
1 2 3
Drawer back
Drawer back
Drawer base
Drawer base
Drawer front
Drawer side
Drawer side
1 – Lay drawer side (I) on a at surface, insert the base (K) into the
groove then hold the back panel (M) in place.
2 – Place the other drawer side (J) over the base and fasten the
back panel (M).
3 – Turn the drawer around and add the drawer front (L) .
(Repeat on all drawers).
12

https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499 SS_INSTRUC_TU_DR_10.2018_V2.1Page 5 of 5
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
Use two people to stand up right.
14
PRELIMINARY DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
QUOTATION PURPOSES ONLY
ISSUED DRAWING
ISSUED BY: A.SIMMONS
ISSUE DATE:18/06/12
ISSUED TO: SUPPLIER
15
USE SUITABLE
WALL FIXINGS

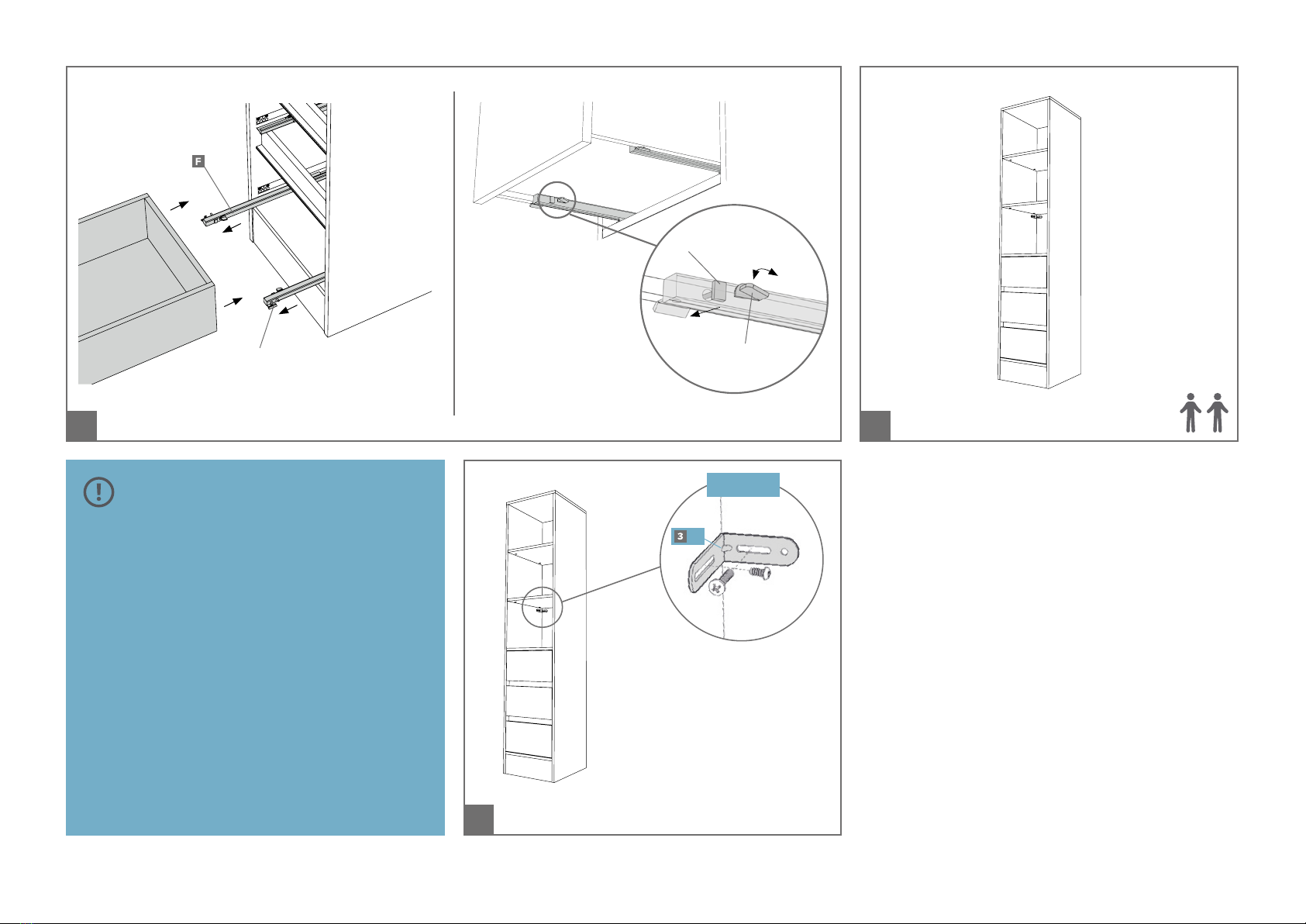

Fix the wall mounting bracket to both sides of the Tower Unit.
(Use suitable xings when attaching to the wall).
x2
We recommend you use
the Wall Mounting
Brackets provided to x the
Tower Unit to a wall (where
possible).This will prevent
the unit being pulled over.
Use suitable xings.
WALL MOUNTING
BRACKETS
13
1 2
Turn to
adjust height
Locking button
Pull the sliding part of the lower
drawers out rst and hold in place.
1 - Pull the sliding part of the lower drawer runners out (F) and sit
the drawer on top. Whilst holding the runners in place, slide the
drawer back until the drawer clicks into place.
2 - Use the locking button to secure the drawer. Repeat for all
drawers. To remove a drawer, reverse the operation.
Drawer shown from
underneath.
