SPARTAN sport 1006N User manual

BASIC Magnetic Elliptical
Transorbit
ITEM NO.: 1006N
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.

1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 2
PARTS LIST ------------------------------------------------------------------------------- 3
TOOLS -------------------------------------------------------------------------------------- 5
HARDWARE LISTAND ASSEMBLY PART --------------------------------------- 6
EXPLODED VIEW ----------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8
HOW TO MOVE THE ELLIPTICALTRAINER ------------------------------------ 20
OPERATING THE COMPUTER ------------------------------------------------------ 21
ADJUSTMENTS -------------------------------------------------------------------------- 23
MAINTENANCE -------------------------------------------------------------------------- 24
TROUBLESHOOTING ------------------------------------------------------------------ 24
WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 25

2
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that might catch any part of the equipment.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Be careful when step on or leave the pedal always hold the handlebars first. Make the
pedal at your side at the lowest position, step on the pedal, and stride over the main
frame then step on the other pedal. When using, please hold the handlebar by hands,
make the pedals running smoothly by push or pull handlebars, then run the equipment
regularly by cooperation of hands and feet. After exercise, please also make one
pedal at the lowest position and leave your foot on the higher pedal first and then
another.
7. Do not use the equipment outdoors.
8. This equipment is for household use only. It is not a commercial model.
9. Only one person at a time should use this equipment.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
11. Care should be taken in mounting or dismounting the equipment.
12. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
13. The maximum weight capacity for this product is 110 kg.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

3
PARTS LIST
No.
Description
Qty
No.
Description
Qty
001
Main Frame Ø50x1.5
1
022
Washer 7/8”
1
002L
Left Foot Bar 40x20x1.5
1
023
U Shape Bracket
2
002R
Right Foot Bar 40x20x1.5
1
024
Nylon Nut M8
2
003L
Left HandrailArm Ø32x1.5
1
025
Washer Ø16xØ8x1.5
3
003R
Right Handrail Arm Ø32x1.5
1
026
Hexagon Head Bolt M8x50
2
004L
Left Handrail Ø32x1.5
1
027
Nylon Nut M6
8
004R
Right Handrail Ø32x1.5
1
028
Washer Ø6
6
005
Front Post Ø50x1.5
1
029
Hexagon Head Bolt M6x40
6
006
Wire Grommet Ø12.1
2
030
Tension Cable L=1600 mm
1
007
Cross Recessed Pan Head Bolt
M6x10
1
031
Bolt Cap S13
2
008
Cross Recessed Pan Head
Tapping Screw ST2.9x10
2
032
Cross Recessed Pan Head
Tapping Screw ST4.2x25
8
009
Hexagon Socket Pan Head Cap
Bolt M8x20
1
033L
Foot Bar Cover-A
2
010
Front Stabilizer Ø50x1.5
1
033R
Foot Bar Cover-B
2
011
Rear Stabilizer Ø50x1.5
1
034
Big Washer Ø26xØ8x2
2
012
Carriage Bolt M10x57
4
035
Hexagon Socket Flat Head Cap
Bolt Ø15.8x62.5
2
013
Rear Stabilizer End Cap Ø50
2
036
Left Foot Pedal 395x150x65
1
014
Big Curve Washer Ø10
4
037
Right Foot Pedal 395x150x65
1
015
Cap Nut M10
4
038
Front Stabilizer End Cap Ø50
2
016L
Bolt for left U Shape Bracket 1/2”
1
039
Hexagon Head Bolt M6x48
2
016R
Bolt for right U Shape Bracket
1/2”
1
040
Transport Wheel Ø23xØ6x32
2
017L
Left Nylon Nut 1/2”
1
041
Hexagon Socket Pan Head Cap
Bolt M8x16
6
017R
Right Nylon Nut 1/2”
1
042
Curve Washer Ø20xØ8
6
018
Wave Washer Ø28xØ17x0.3
2
043
Hexagon Head Bolt M10x18
2
019
Powder Metal Bushing
Ø29xØ16x14
8
044
Spring Washer Ø18xØ10x2
2
020
Spring Washer Ø20
2
045
Washer Ø28x5
2
021
Bearing 6000 2Z
2
046
Powder Metal Bushing
Ø33xØ29xØ16x14x4
4

4
PARTS LIST
No.
Description
Qty
No.
Description
Qty
047
Carriage Bolt M6x35
4
069
Hand Pulse Sensor Wire
L=750 mm
2
048
Curve Washer Ø6
4
070
Left Cover 540x366x74
1
049
Bolt Cap S16
2
071
Right Cover 540x366x78
1
050
Cap Nut M6
4
072
Bearing Cup
2
051
Plastic Bushing Ø32xØ16x5xØ50
2
073
Ball Bearing
2
052L
Left HandrailArm Cover-A
1
074
Bearing Nut I 15/16”
1
052R
Right Handrail Arm Cover-A
1
075
Bearing Nut II 7/8”
1
053L
Left HandrailArm Cover-B
1
076
Washer 15/16”
1
053R
Right Handrail Arm Cover-B
1
077
Hexagon Nut 7/8”
1
054
Tension Control Knob
1
078
Belt Pulley with Crank
6.5" / Ø240
1
055
Cross Recessed Pan Head
Tapping Screw ST2.9x12
8
079
Powder Metal Bushing Ø18xØ8.5
4
056
Computer
1
080
M10x1 Nut for Flywheel
2
057
Cross Recessed Pan Head Bolt
M5x12
4
081
Flywheel Ø230x40x32
1
058
Hand Pulse Sensor
2
082
Belt PJ330 J6
1
059
Handrail Foam Grip
Ø31xØ37x480
2
083
Idle Wheel Bracket
1
060
Spring Washer Ø8
6
084
Hexagon Socket Pan Head Cap
Bolt M8x20
2
061
Handrail End Cap Ø32x1.5
2
085
Eyebolt M6x36
2
062
Hand Pulse Sensor Spring Wire
2
086
Tension Bracket
2
063
Cross Recessed Pan Head
Tapping Screw ST4.2x20
2
087
Spring Washer Ø6
2
064
Curve Washer Ø20xØ5.2
1
088
Nut M6
2
065
Cross Recessed Pan Head Bolt
M5x25
1
089
Hexagon Socket Pan Head Cap
Bolt M8x10
1
066
Cross Recessed Pan Head
Drilling Screw with Tapping Screw
Thread ST4.2x25
8
090
Big Washer Ø10
2
067
Extension Sensor Wire
L= 1100 mm
1
091
Cover Cap
2
068
Sensor with Wire L= 950 mm
1

5

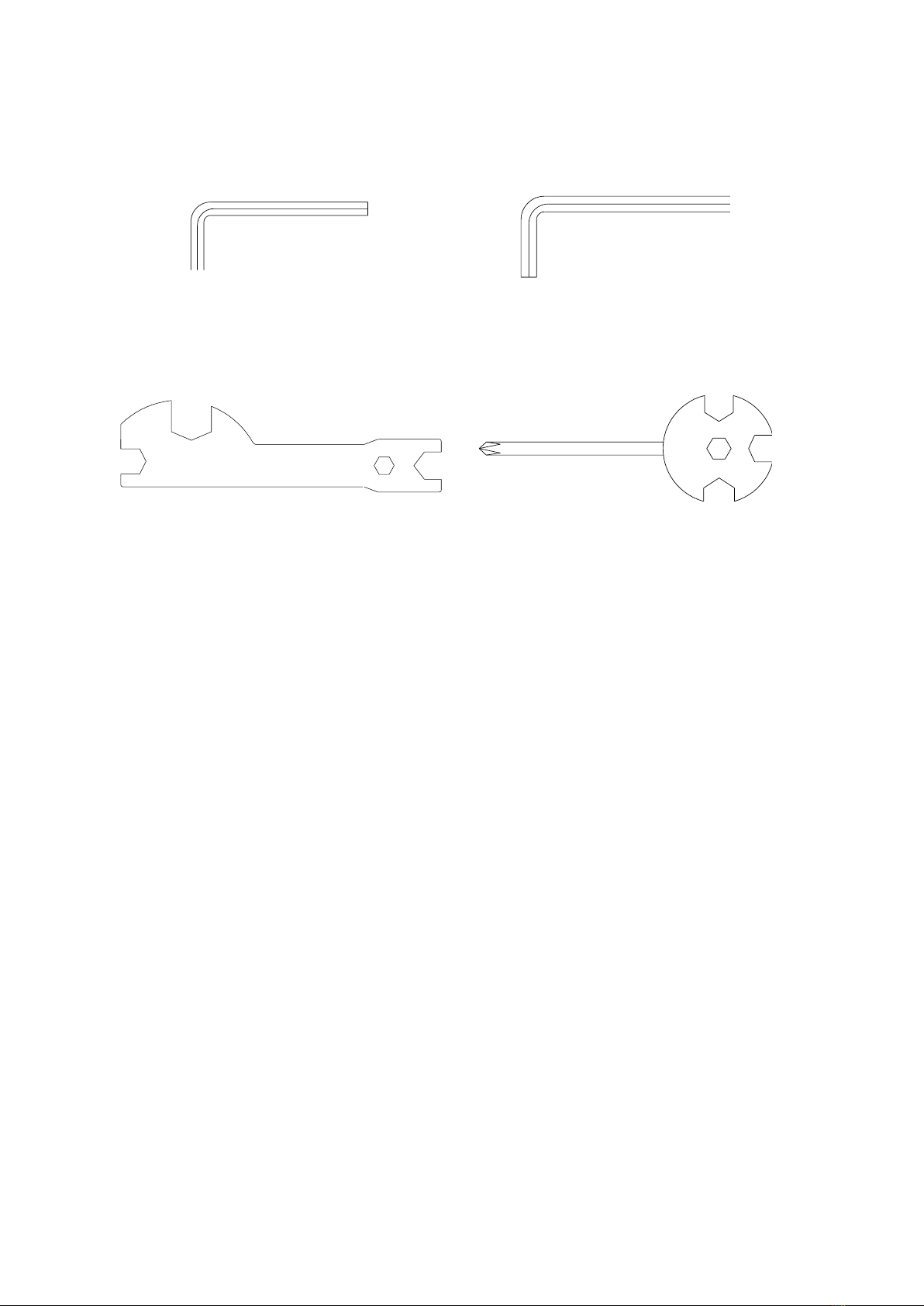

TOOLS
Multi Hex Tool
S10, S13, S17, S19
1 PC
Allen Wrench S6
1 PC
Allen Wrench S8
1 PC
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
1 PC

6

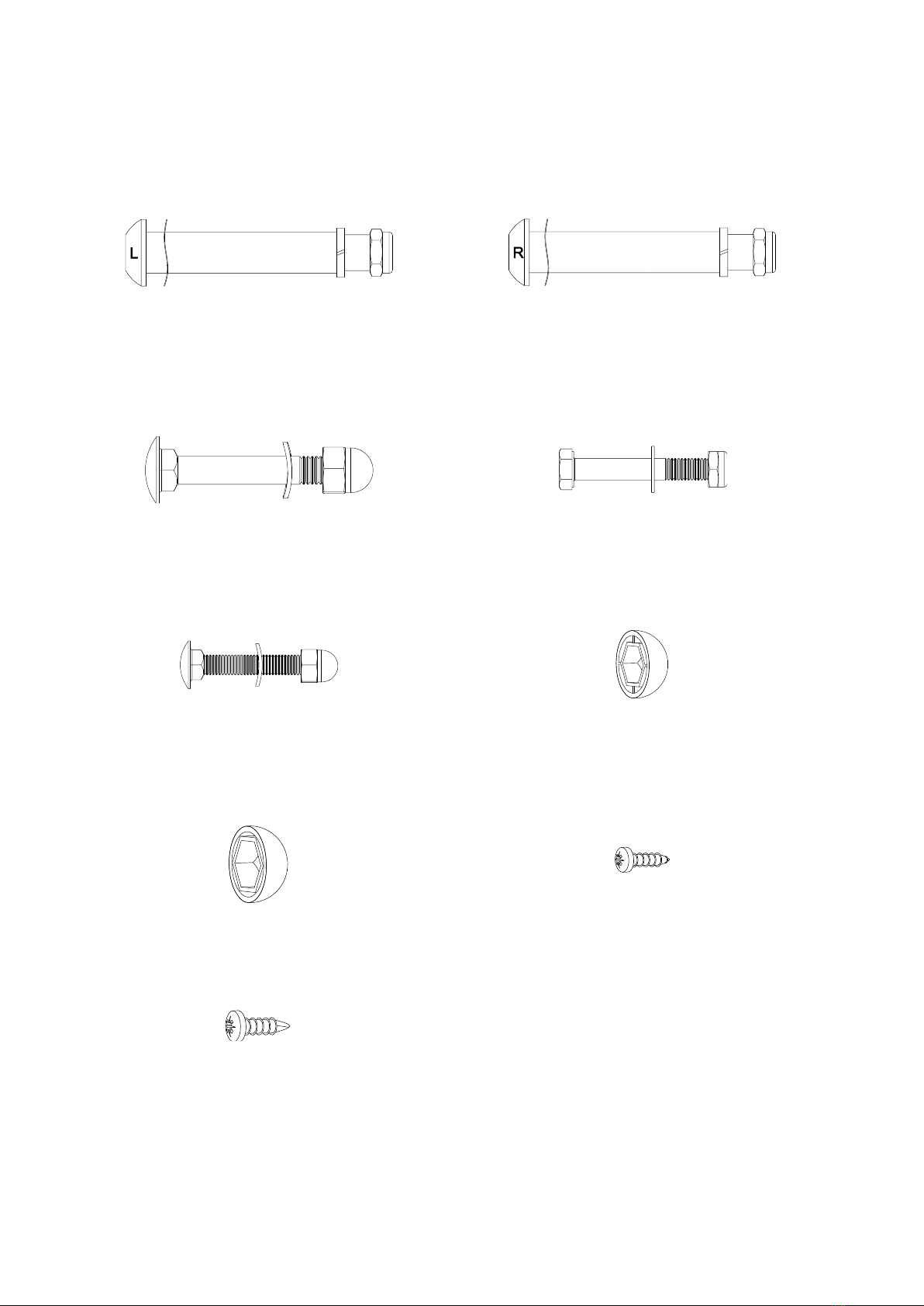

HARDWARE LIST AND ASSEMBLY PART
(16L) Bolt for left U Shape Bracket 1 PC
(17L) Left Nylon Nut 1 PC
(18) Wave Washer 1 PC
(20) Spring Washer 1 PC
(16R) Bolt for right U Shape Bracket
1 PC
(17R) Right Nylon Nut 1 PC
(18) Wave Washer 1 PC
(20) Spring Washer 1 PC
(12) Carriage Bolt 4 PCS
(14) Big Curve Washer 4 PCS
(15) Cap Nut 4 PCS
(27) Nylon Nut 6 PCS
(28) Washer 6 PCS
(29) Hexagon Head Bolt 6 PCS
(47) Carriage Bolt 4 PCS
(48) Curve Washer 4 PCS
(50) Cap Nut 4 PCS
(31) Bolt Cap
2 PCS
(49) Bolt Cap
2 PCS
(55) Cross Recessed Pan
Head Tapping Screw
8 PCS
(66) Cross Recessed Pan
Head Drilling Screw with
Tapping Screw Thread
4 PCS

7
EXPLODED VIEW

8
ASSEMBLY INSTRUCTIONS

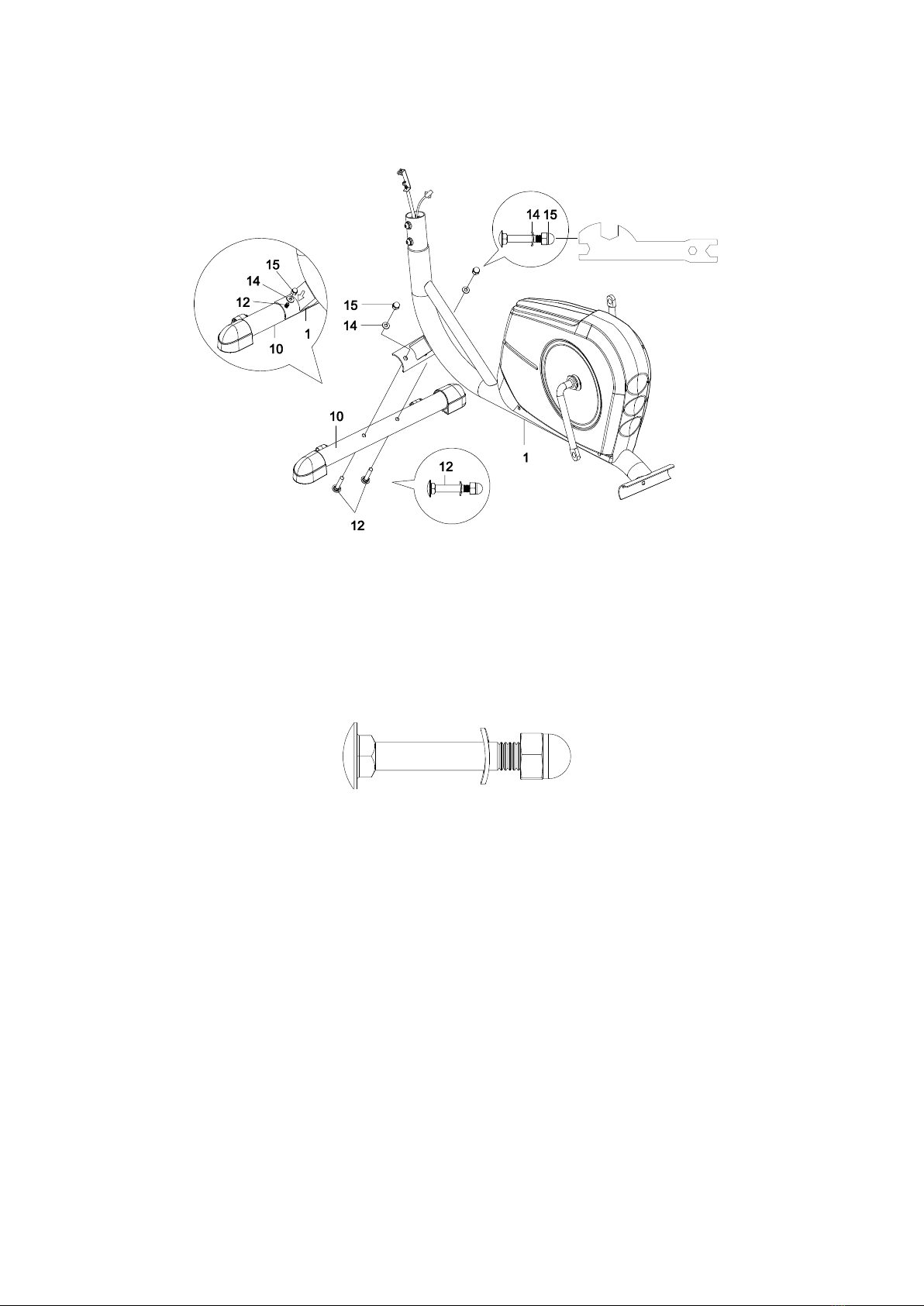

STEP 1
Position the Front Stabilizer (10) in front of the Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (10) onto the front curve of the Main Frame (1) with two Carriage
Bolts (12), two Big Curve Washers (14), and two Cap Nuts (15). Tighten cap nuts with the
Multi Hex Tool provided.
Hardware:
(12) Carriage Bolt 2 PCS
(14) Big Curve Washer 2 PCS
(15) Cap Nut 2 PCS

9

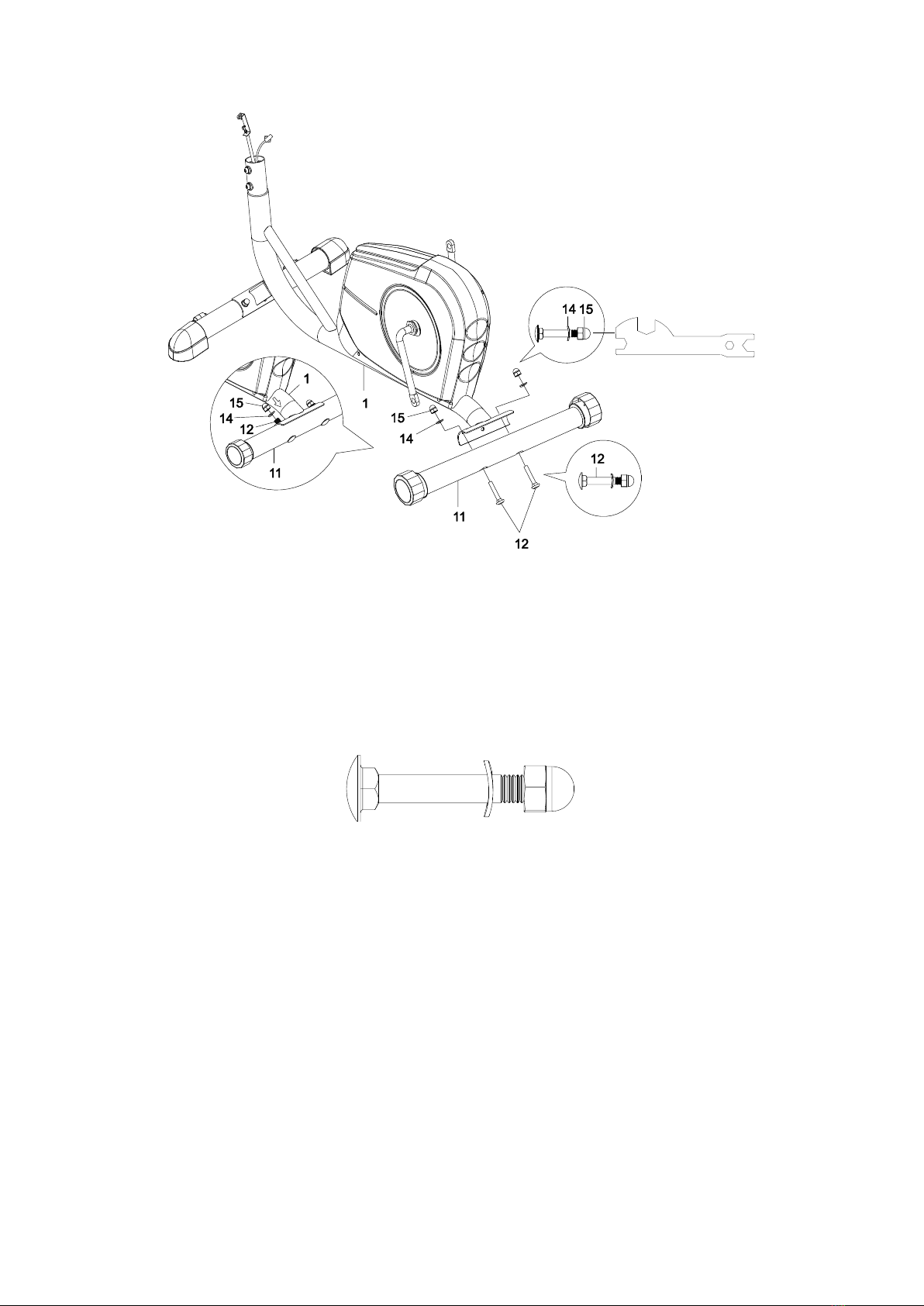

STEP 2
Position the Rear Stabilizer (11) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (11) onto the rear curve of the Main Frame (1) with two Carriage
Bolts (12), two Big Curve Washers (14), and two Cap Nuts (15). Tighten cap nuts with the
Multi Hex Tool provided.
Hardware:
(12) Carriage Bolt 2 PCS
(14) Big Curve Washer 2 PCS
(15) Cap Nut 2 PCS

10

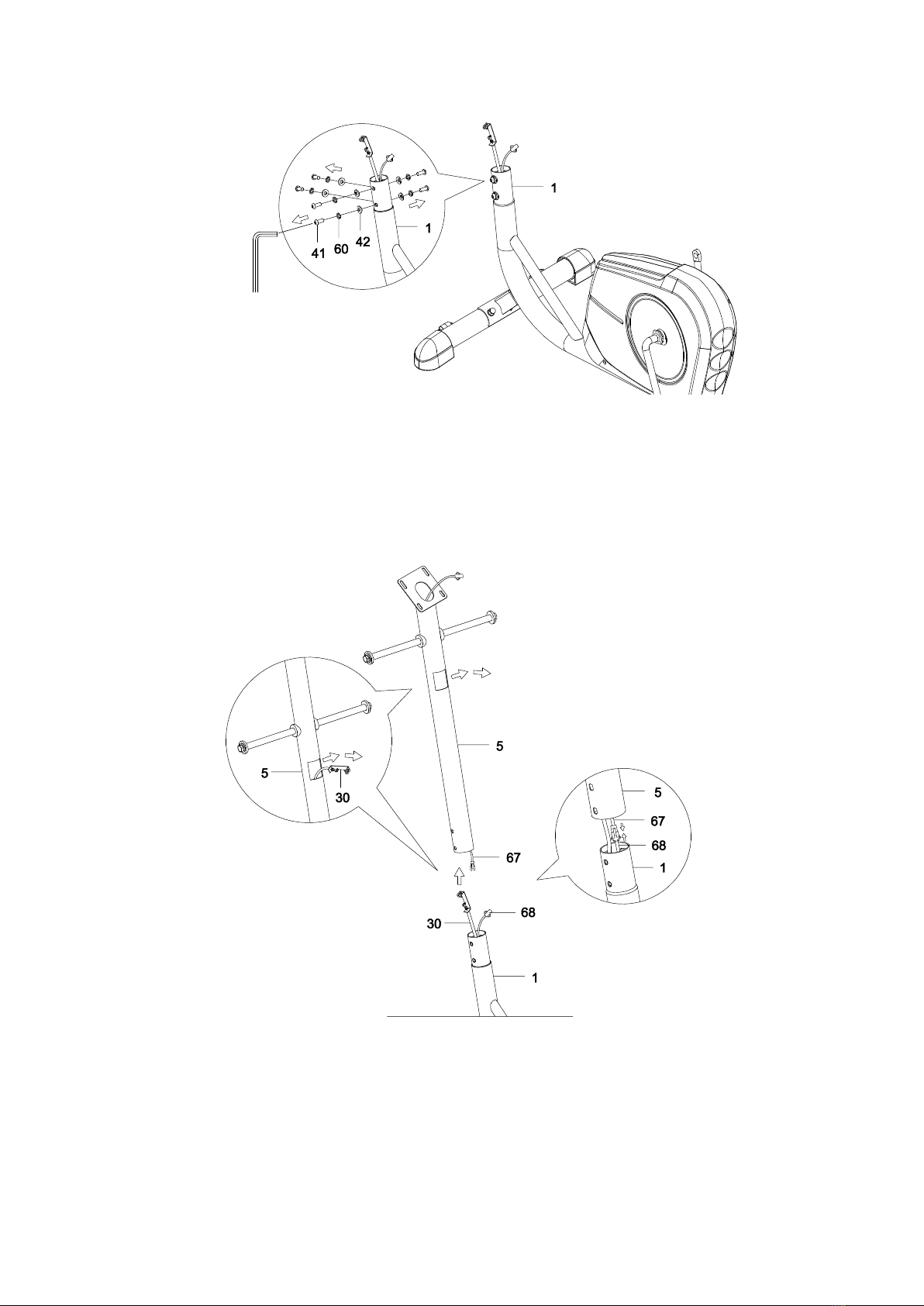

STEP 3
Remove six Hexagon Socket Pan Head Cap Bolts (41), six Spring Washers (60), and six
Curve Washers (42) from the Main Frame (1). Remove bolts with the S6 Allen Wrench
provided.
STEP 4
It is recommended to have a second person assist with this step. One person should hold
the Front Post (5) in place while the other person to connect the wires.
Insert the Tension Cable (30) through into the bottom hole of the Front Post (5) and pull it
out from the square hole of the Front Post (5).
Connect the Sensor Wire (68) from the Main Frame (1) to the Extension Sensor Wire (67)
from the Front Post (5).
Allen Wrench S6

11
STEP 5
Insert the Front Post (5) onto the tube of the Main Frame (1) and secure with six Hexagon
Socket Pan Head Cap Bolts (41), six Spring Washers (60), and six Curve Washers (42) that
were removed. Tighten bolts with the S6Allen Wrench provided.
STEP 6
Remove one Cross Recessed Pan Head Bolt (65) and one Curve Washer (64) from the
Tension Control Knob (54). Remove bolt with the Multi Hex Tool with Phillips Screwdriver
provided.
Allen Wrench S6

12

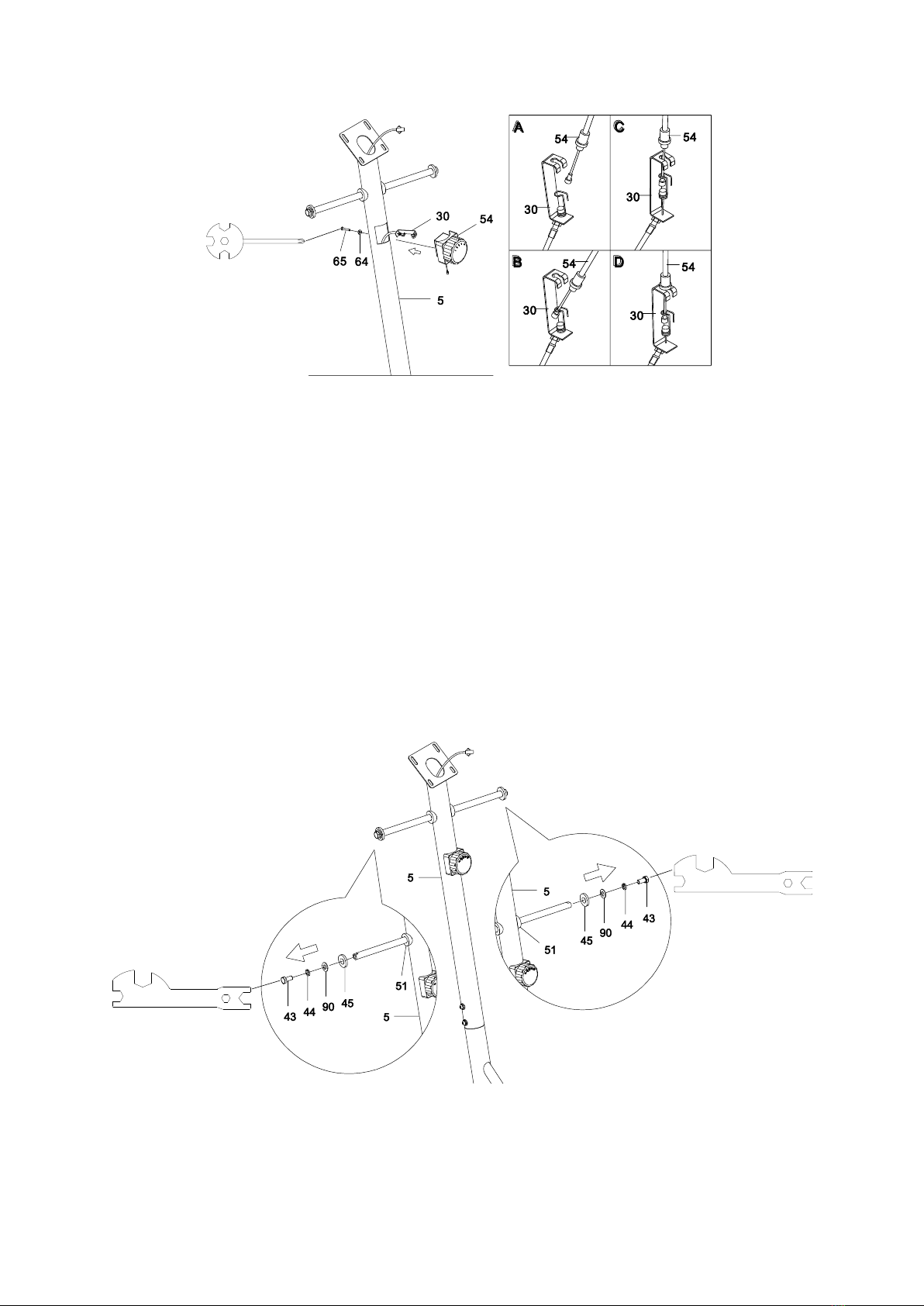

STEP 7
Put the cable end of resistance cable of Tension Control Knob (54) into the cable lock of
Tension Cable (30), see Figure A.
Pull the resistance cable of Tension Control Knob (54) up and force it into the slot of metal
bracket of Tension Cable (30), see Figure B.
Insert the metal fitting on the resistance cable of Tension Control Knob (54) into the hole at
the end of the slot in the metal bracket of Tension Cable (30), see Figure C.
Connect the resistance cable of Tension Control Knob (54) to Tension Cable (30) complete,
see Figure D.
Attach the Tension Control Knob (54) onto the Front Post (5) with one Cross Recessed Pan
Head Bolt (65) and one Curve Washer (64) that were removed. Tighten bolt with the Multi
Hex Tool with Phillips Screwdriver provided.
STEP 8
Remove two Hexagon Head Bolts (43), two Spring Washers (44), two Big Washers (90), and
two Washers (45) from the left and right horizontal axes of the Front Post (5). Remove
bolts with the Multi Hex Tool provided.

13

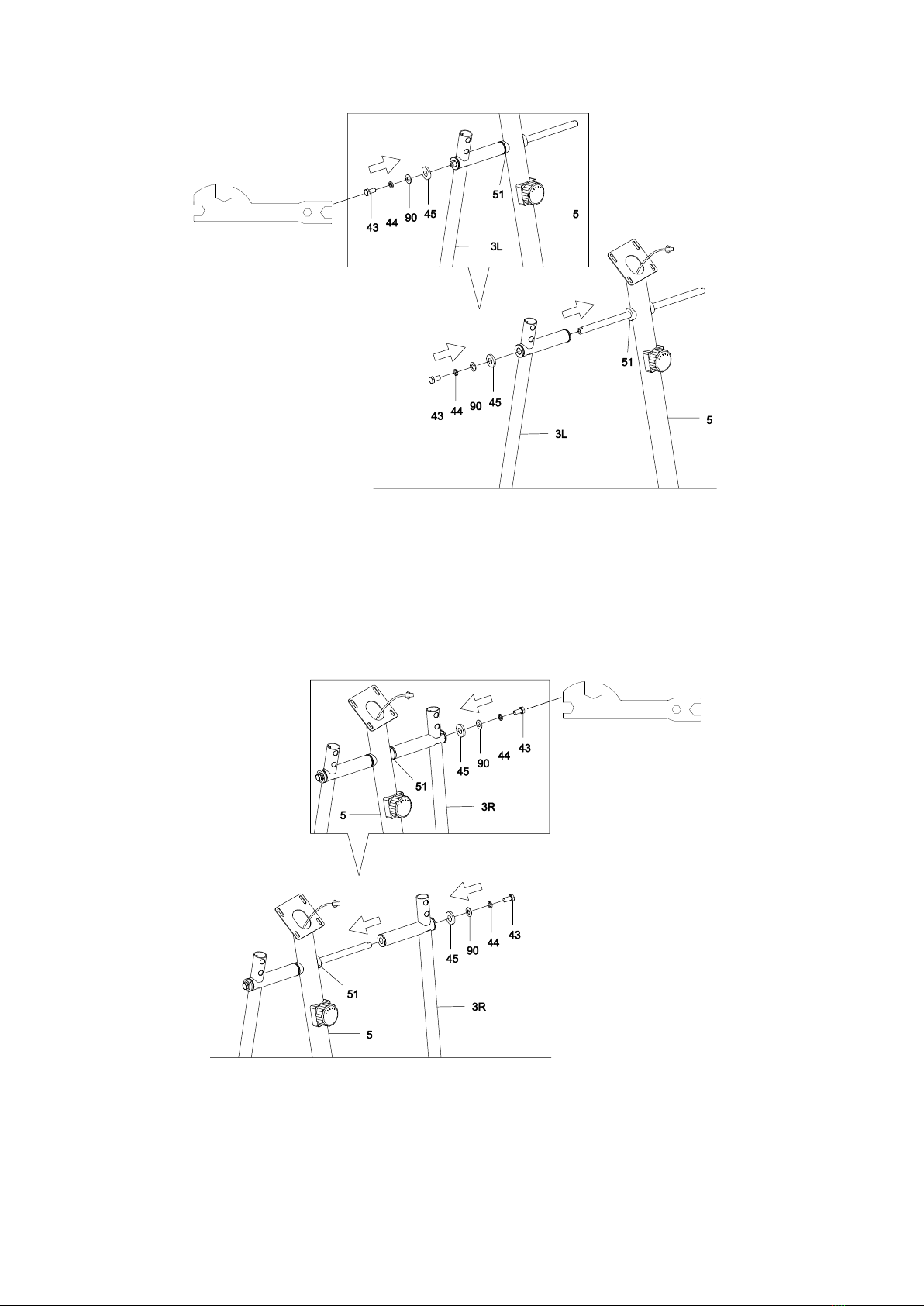

STEP 9

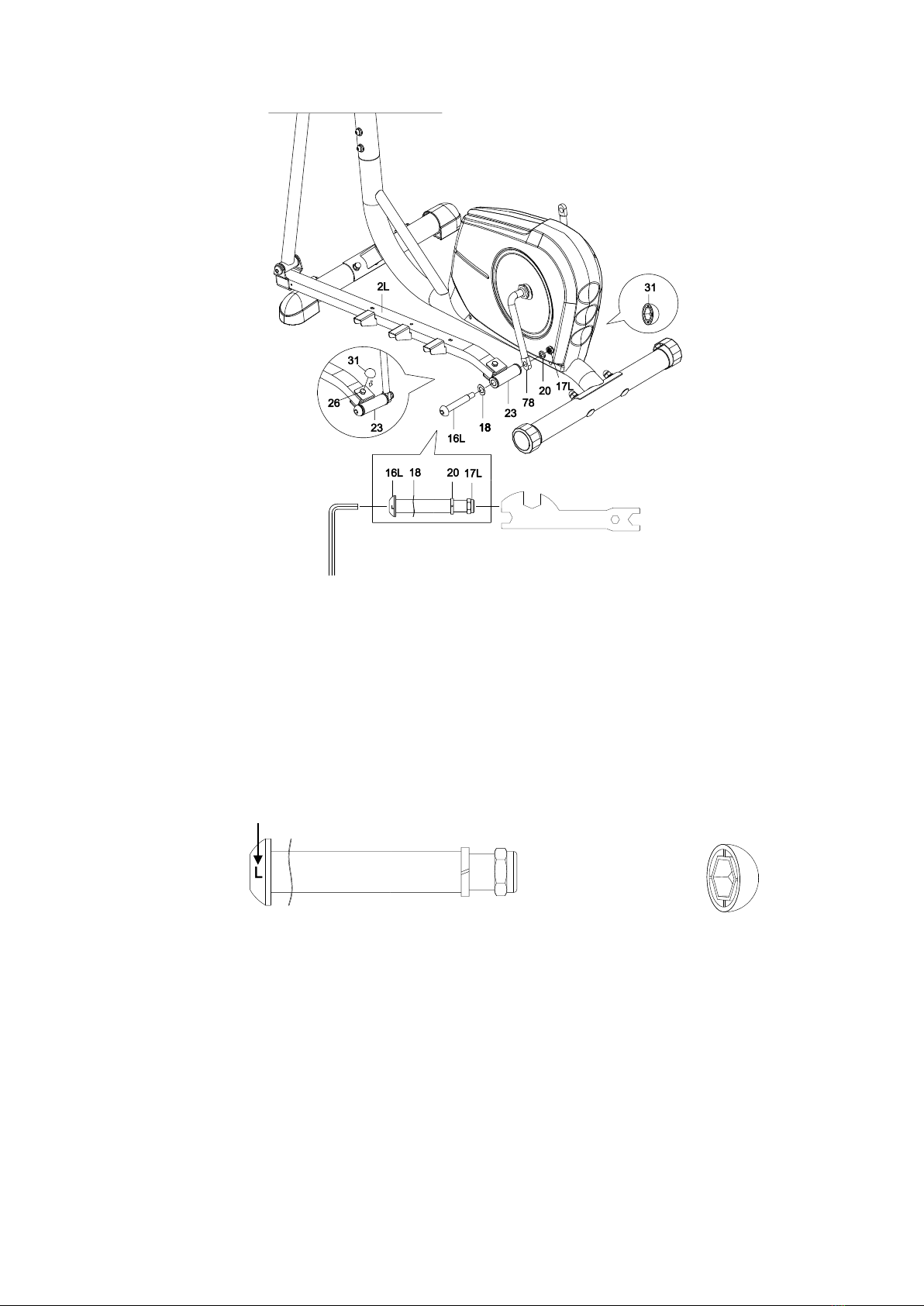

Attach the Left Handrail Arm (3L) onto the left horizontal axis of the Front Post (5) with one
Hexagon Head Bolt (43), one Spring Washer (44), one Big Washer (90), and one Washer
(45) that were removed. Tighten bolt with the Multi Hex Tool provided.
STEP 10
Attach the Right Handrail Arm (3R) onto the right horizontal axis of the Front Post (5) with
one Hexagon Head Bolt (43), one Spring Washer (44), one Big Washer (90), and one
Washer (45) that were removed. Tighten bolt with the Multi Hex Tool provided.

14
STEP 11
Attach the left U Shape Bracket (23) to the left Crank (78) with one Bolt for left U Shape
Bracket (16L), one Wave Washer (18), one Spring Washer (20), and one Left Nylon Nut
(17L). Tighten bolt and nylon nut with the S8Allen Wrench and Multi Hex Tool provided.
Install a Bolt Cap (31) onto the Hexagon Head Bolt (26).
NOTE: Bolt for left U Shape Bracket (16L) is marked “L” for Left.
Hardware & Assembly Part:
Allen Wrench S8
Bolt is marked “L” for Left.
(16L) Bolt for left U Shape Bracket 1 PC
(17L) Left Nylon Nut 1 PC
(18) Wave Washer 1 PC
(20) Spring Washer 1 PC
(31) Bolt Cap
1 PC

15
STEP 12
Attach the left U Shape Bracket (23) to the right Crank (78) with one Bolt for right U Shape
Bracket (16R), one Wave Washer (18), one Spring Washer (20), and one Right Nylon Nut
(17R). Tighten bolt and nylon nut with the S8 Allen Wrench and Multi Hex Tool provided.
Install a Bolt Cap (31) onto the Hexagon Head Bolt (26).
NOTE: Bolt for right U Shape Bracket (16R) is marked “R” for Right.
Hardware & Assembly Part:
Allen Wrench S8
Bolt is marked “R” for Right.
(31) Bolt Cap
1 PC
(16R) Bolt for right U Shape Bracket
1 PC
(17R) Right Nylon Nut 1 PC
(18) Wave Washer 1 PC
(20) Spring Washer 1 PC

16

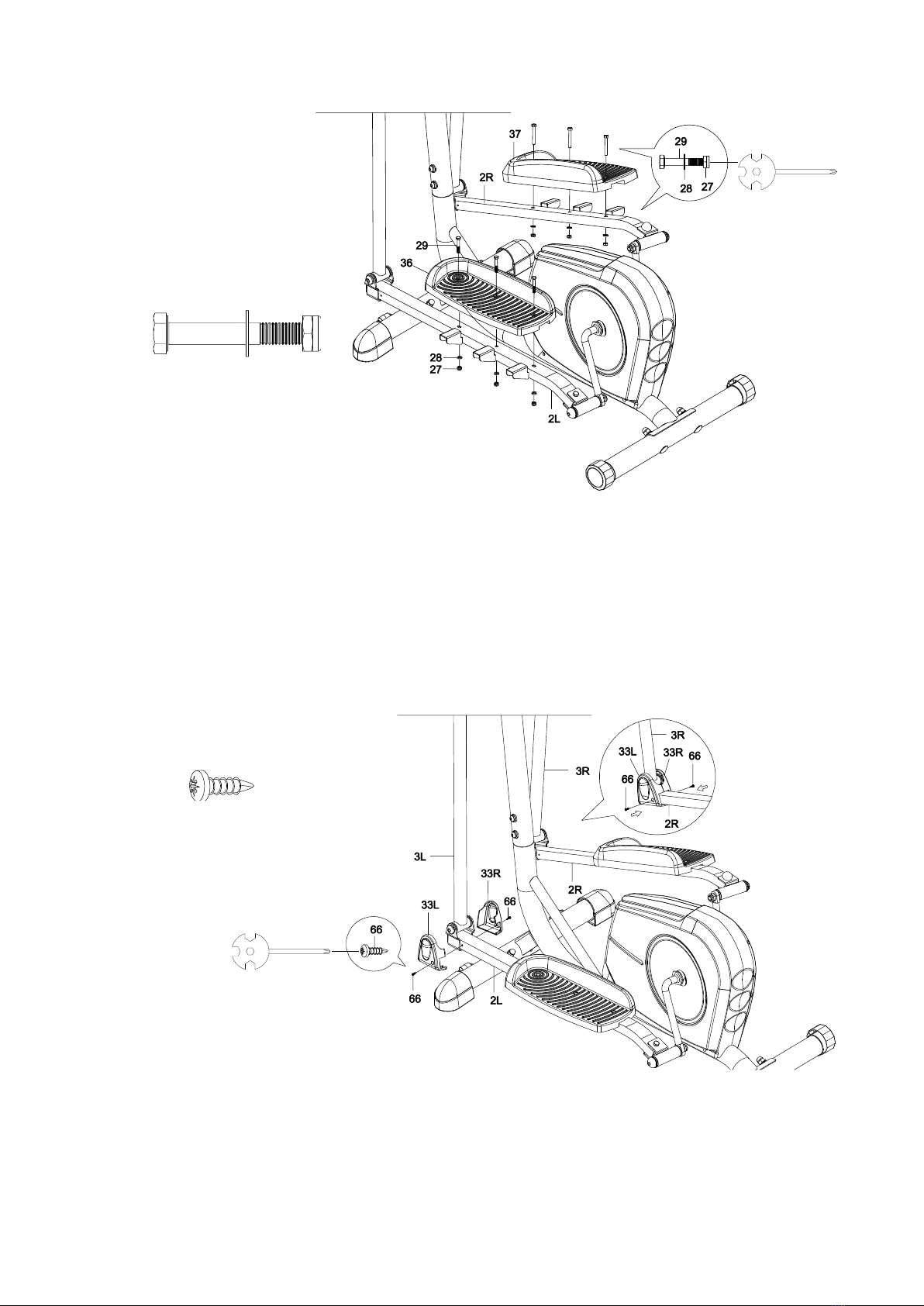

STEP 13
Attach the Left Foot Pedal (36) onto the Left Foot Bar (2L) with three Hexagon Head Bolts
(29), three Washers (28), and three Nylon Nuts (27). Tighten the nylon nuts with the Multi
Hex Tool with Phillips Screwdriver provided.
Attach the Right Foot Pedal (37) onto the Right Foot Bar (2R) with three Hexagon Head
Bolts (29), three Washers (28), and three Nylon Nuts (27). Tighten the nylon nuts with the
Multi Hex Tool with Phillips Screwdriver provided.
STEP 14
Attach two Foot Bar Covers-A (33L) and two Foot Bar Covers-B (33R) onto the front end of
the Left and Right Foot Bars (2L, 2R) with four Cross Recessed Pan Head Drilling Screws
with Tapping Screw Thread (66). Tighten screws with the Multi Hex Tool with Phillips
Screwdriver provided.
(27) Nylon Nut 6 PCS
(28) Washer 6 PCS
(29) Hexagon Head Bolt 6 PCS
Hardware:
(66) Cross Recessed Pan
Head Drilling Screw with
Tapping Screw Thread
4 PCS
Hardware:

17

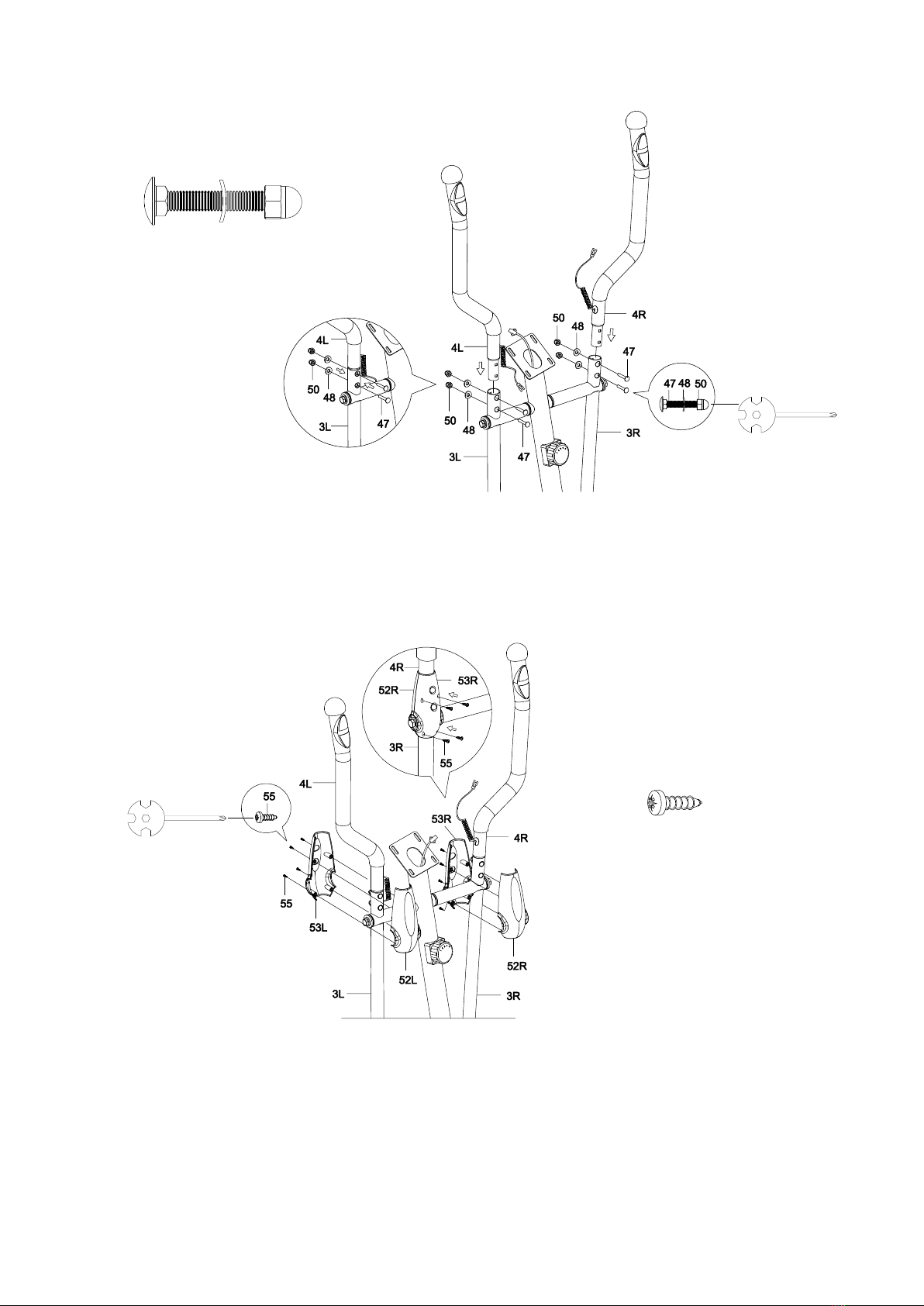

STEP 15
Attach both Right and Left Handrails (4R, 4L) into the top ends of both Right and Left
Handrail Arms (3R, 3L) with four Carriage Bolts (47), four Curve Washers (48), and four
Cap Nuts (50). Tighten cap nuts with the Multi Hex Tool Phillips Screwdriver provided.
STEP 16
Attach the Left HandrailArm Cover-A (52L) and Left Handrail Arm Cover-B (53L) onto the
Left HandrailArm (3L) with four Cross Recessed Pan Head Tapping Screws (55). Tighten
screws with the Multi Hex Tool with Phillips Screwdriver provided.
Attach the Right HandrailArm Cover-A (52R) and Right Handrail Arm Cover-B (53R) onto
The Right Handrail Arm (3R) with four Cross Recessed Pan Head Tapping Screws (55).
Tighten screws with the Multi Hex Tool with Phillips Screwdriver provided.
(47) Carriage Bolt 4 PCS
(48) Curve Washer 4 PCS
(50) Cap Nut 4 PCS
Hardware:
(55) Cross Recessed Pan
Head Tapping Screw
8 PCS
Hardware:

18
STEP 17
Install a two Bolt Caps (49) onto two Hexagon Head Bolts (43).
STEP 18
Insert the Hand Pulse Sensor Spring Wires (62) from Right/Left Handrails (4R, 4L) into the
hole on the Front Post (5) and then pull them out from the top end of the Front Post (5).
(49) Bolt Cap
2 PCS
Assembly Part:

19
STEP 19
Remove four Cross Recessed Pan Head Bolts (57) from the Computer (56). Remove bolts
with the Multi Hex Tool with Phillips Screwdriver provided.
STEP 20
It is recommended to have a second person assist with this step. One person should hold
the Computer (56) in place while the other person to connect the wires.
Connect the Hand Pulse Sensor Spring Wires (62) and Extension Sensor Wire (67) to the
wires that come from the Computer (56). Tuck wires into the Front Post (5).
Attach the Computer (56) onto the top end of the Front Post (5) with four Cross Recessed
Pan Head Bolts (57) that were removed. Tighten bolts with the Multi Hex Tool with Phillips
Screwdriver provided.
