MS230-1 MULTISTRIPPER
OPERATING MANUAL
This manual covers to the best of our knowledge, the operation and maintenance of the
MS230 Multistripper. Before operation of the equipment the manual should be read and
understood by the operator. The safety regulations must be followed at all times. Service of
electrical components should be carried out by authorised personnel. Failure to follow these
instructions could result in damage to the machine and/or serious personal injury or death.
WARNING
Failure to follow these instructions may result in serious personal injury or death. SPE
disclaims all responsibility for damage to persons or objects arising as a consequence of
incorrect handling of the machine and failure to inspect the machine fordamage orotherfaults
that may influence the operation prior to starting work.

MS230-1
MULTISRIPPER
Operating Manual
INDEX
Page No
1 Starting Work
Electrical Instructions
2 Maintenance
Blade Change
Blade Angle
Basic Maintenance Checklist
3 Safety
4 Spare Parts Breakdown
5 Body Components
6 Operational Parts
7 Electrical Listing

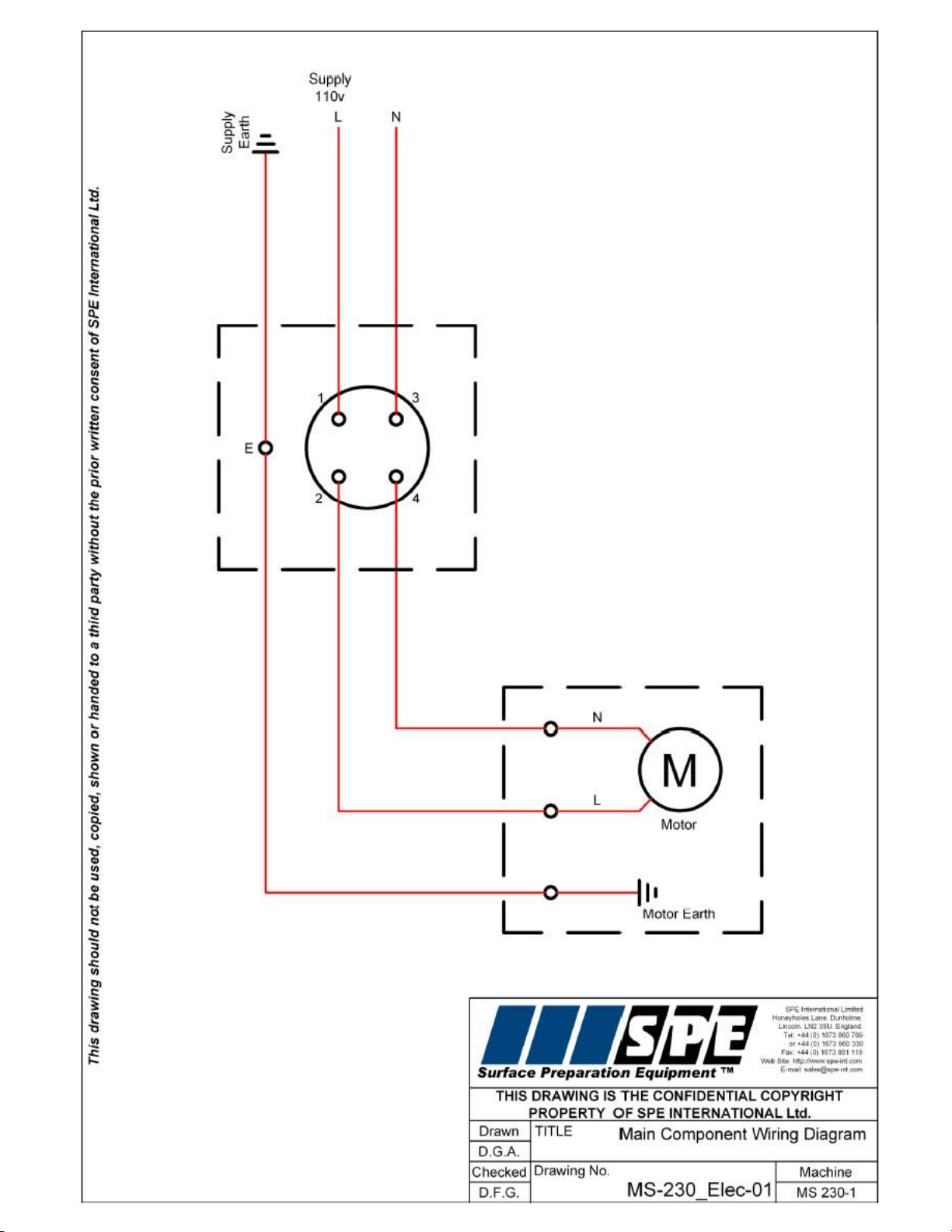

8 Wiring Diagram
9 Specifications
10 Noise/Vibration Assessment
11 Warranty
12 Declaration of Conformity
13 Conditions of Sales

1
MS230-1
MULTISRIPPER
Operating Manual
STARTING WORK
1) Check the condition of the blade assembly
2) Check all bolts and nuts for tightness
3) Check all leads for damage where applicable
4) Before starting the machine ensure that the blade is clear of any obstructions
5) Adjust the handlebar to a comfortable height and position.
6) Adjust the blade angle to a suitable setting –See blade angle (page 2)
7) Start the motor by turning the switch to the on position.
NOTE: If removing sheet vinyl or carpet cut the material into strips with a knife at
approximately the width of the MS230 blade.
ELECTRICAL INSTRUCTIONS
The MS230 110v machine requires a 3 kva transformer providing a 16 amp supply. Extension
cables must be no less than 2.5 mm (normal length 30 metres) fitted with 16 amp plugs and
sockets.
All cables should be fully uncoiled and never left wrapped around cable reels or tied in loops.

2
MS230-1
MULTISRIPPER
Operating Manual
AFTER USE:
MAINTENANCE
- Clean the machine to remove all the build up of dust and surface residue. If using a
hosepipe or pressure washer take care that water is not directed onto electricalcomponents
and switches.
(Note: Motors and switches are not waterproof)
- All components should be checked daily for tightness
BLADE CHANGE
1) Isolate from the power supply
2) Loosen the blade clamp bolts and slide out the blade. Insert the newblade and tighten the
clamp bolts
Note: The operator should be aware that the blades are sharp and use suitable
protection when handling them.
BLADE ANGLE
The angle of the blade can be altered to suit different applications
1) Loosen the thumb screws on either side of the chassis
2) Adjust the angle to a suitable setting
3) Tighten the thumb screws.
BASIC MAINTENANCE/CHECKLIST:
This checklist should be undertaken every8hrs to 10hrs -taking into accountthevibrating
action of machine
- DISCONNECT FROM THE POWER SUPPLY
- Check the condition of the blade
- Check all bolts and nuts for tightness
- Grease all moving parts on the sliding blade mechanism
- Check all the electric cables and plugs

3
MS230-1
MULTISRIPPER
Operating Manual
SAFETY
1) Only trained operatives should be allowed to work the MS230
2) Appropriate PPE must be worn.
3) Keep hands and feet away from the moving blade at all times
4) Keep the electric lead away from the moving blade
5) Never leave the MS230 unattended whilst in use. Always stop the motor before
leaving the machine.
6) Always ensure that all power leads are disconnected before attempting to
service the machine. Never tip the machine backwards until the blade has stopped moving.
7) Do not use in wet conditions
8) Always use the correct voltage for the machine and RCD protection
9) Be careful when working around pipes or ducts protruding from the floor as the moving
blade may cause damage to them
10) Extreme care should be taken when changing the blades. The blades are sharp and
suitable protection should be used when handling them.
11) Equipment must be used in line with guidelines laid down by the Health & Safety
Executive.
Noise and vibration will occur at various levels dependent on the attachments and work being
completed. SPE have assessments conducted under test conditions detailed in the operating
manual, see page 10. However, it is recommended that additional tests are taken on site to
provide the operator with accurate information on using the equipment within the guidelines
laid down by the Health and Safety Executive.

ITEM #
SPE P/N
DESCRIPTION
QTY.
1
C305
MOTOR (110V)
CAPACITORS SOLD SEPARATELY
1
2
C306
ECCENTRIC BUSHING
1
3
C307
BEARING
1
4
C309
SWITCH
1
5
C311
CHASSIS
1
6
C312
DRIVE ARM
1
7
C313
BEARING ARM
1
8
C314
DEFLECTOR
1
9
C315
MOTION ARM
1
10
C318
SIDE ARM
2
11
C319
HANDLE
1
12
C321
THREADED KNOB (M10X25)
2
13
C323
AXLE FORK
1
14
C323B
AXLE SPACER
4
15
C324
WHEEL BEARING SPACER
2
16
C327
DRIVE ARM BUSHING
1
17
C328
WEAR STRIP
1
18
C331
BOLT SPACER
2
19
C334
INDEXED CLAMPING LEVER
2
20
C341
SPRING
1
21
6013
WHEEL
2
22
9104
HANDLEBAR GRIP
2
23
TI/009
TUBE INSERT (BLACK)
2
24
BOLT000
M6 X 30 HEX BOLT
1
25
BOLT000
M8 X 25 HEX BOLT
6
26
BOLT000
M8 X 35 HEX BOLT
6
40
C301
BLADE
1
ITEM #
SPE P/N
DESCRIPTION
QTY
NOT SHOWN
30MF@400V
RUN CAPACITOR 110V
1
NOT SHOWN
125MF@240V
START CAPACITOR 110V
1

MS230-1
MULTISRIPPER
Operating Manual

7
ELECTRICAL COMPONENTS
NOT ILLUSTRATED
Part no
Description
Qty
30MF@400V
Run Capacitor 110v
1
125MF@240V
Start Capacitor 110v
1
SP210-304
110v 16A 3pin Trailing Plug
1
7512
2.5mm Cable - Yellow
5 mtrs
MS230-1
MULTISRIPPER
Operating Manual

9
MS230-1
MULTISRIPPER
Operating Manual

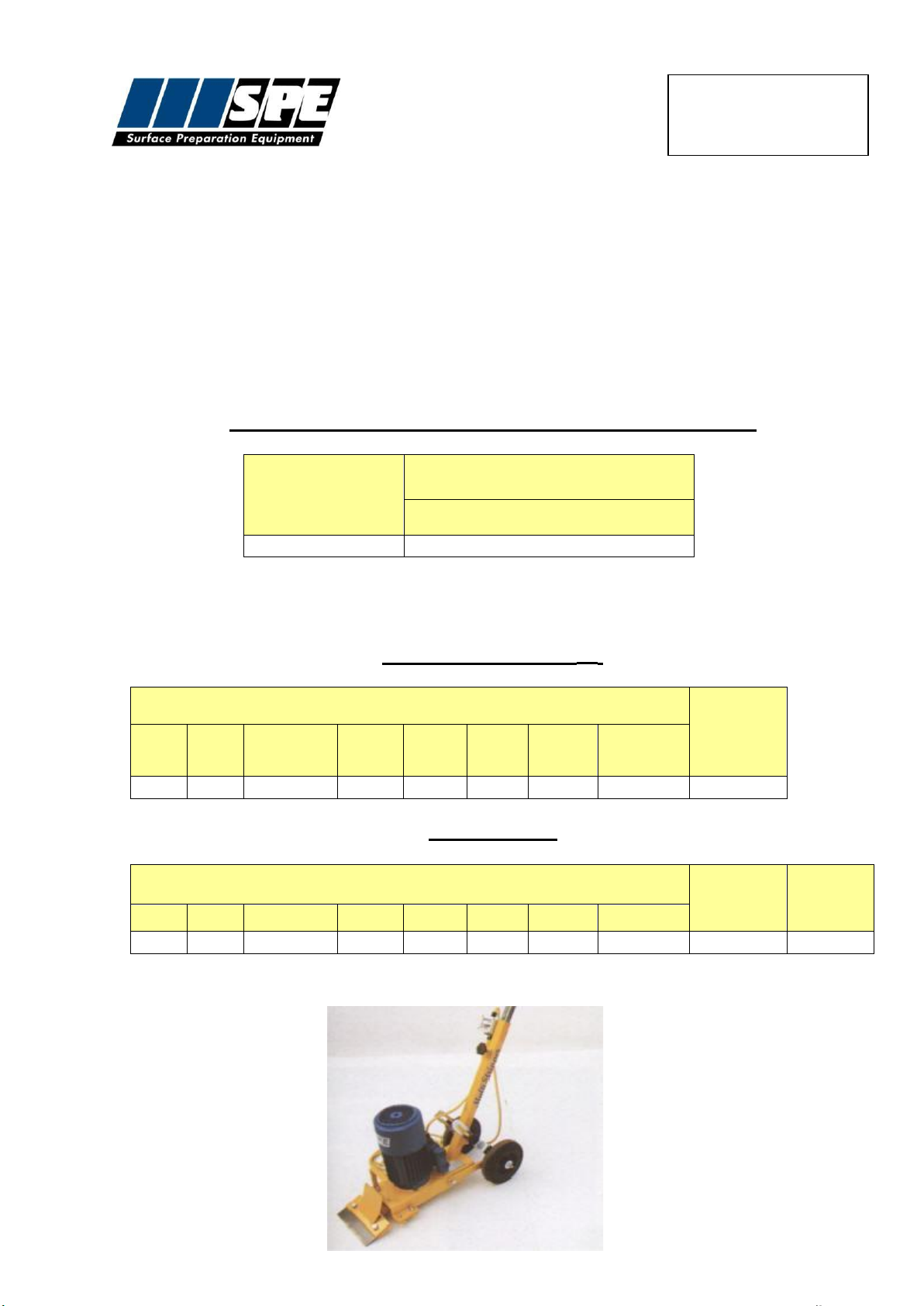

SPECIFICATION SHEET
Type
MS230 Electric
Part number
MS230-1
Power output
2.0 h.p
Voltage
110v
Cycles
50
Machine
dimensions (mm)
Length
Width
Height
Weight (kg)
685
380
787
45
Working width mm
230
Engine/Motor rpm
1400
ELECTRICAL REQUIREMENTS
Machine
Volts
Plug
size
Cable size
(mm)
Norm Cable
Length
Transformer
Generator
MS230
110
16A
3 pin
2.5mm
3 core
30 metres
3 Kva
5 Kva

10
MS230-1
MULTISRIPPER
Operating Manual
RECORD OF NOISE AND VIBRATION ASSESSMENT
Manufacturer: SPE
Type: Tile Lifter
Model No. MS230-1 Electric
Operation : Removing vinyl tiles
Running Conditions: 1420 rpm
HAV Note: Operc
HAND-ARM VIBRATION
Frequency Weighted Energy Equivalent Accelerations (ah,w)
Measurement
Position
Acceleration (m/s2)
Vector Sum
Handle
13.5
NOISE LEVELS
Sound Power Level (LWA)
LWA at Octave Band Centre Frequency (Hz)
Sound
Power
Level
LWA
63
125
250
500
1000
2000
4000
8000
46.2
57.0
63.8
69.3
69.3
76.6
73.4
64.5
79.5
Operator's Ear
LAeq,T at Octave Band Centre Frequency (Hz)
Overall
Level
(LAeq,T)
LPeak
dB(C)
63
125
250
500
1000
2000
4000
8000
29.6
36.9
44.6
51.3
61
63.1
59.6
49.8
68.3
85.9

11
MS230-1
MULTISRIPPER
Operating Manual
Distributor:
WARRANTY
The standard warranty period of this equipment is 12 months from the date below in
accordance with the company Conditions of Sale (copy attached).
Warranty start date:
As despatch date
Model:
MS230-1
Serial no:
Customer name:
Customer Address:
Manufacturer:
SPE International Ltd
Honeyholes Lane
Dunholme
Lincoln
LN2 3SU
England
Telephone:
[phone]
Fax:
[phone]
Email:
[e-mail]
Web site:
www.spe-int.com

12
MS230-1
MULTISRIPPER
Operating Manual
DECLARATION OF CONFORMITY
WE
SPE INTERNATIONAL LTD
OF
Honeyholes Lane
Dunholme
Lincoln
LN2 3SU
DECLARE that under our sole responsibility for the supply/manufacture of the product
(Description/name) MS230 Multistripper
(Model/type) MS230-1
to which this declaration relates is in conformity with the following standards and other
normative documents following the provisions of Directive 2006/42/EC.
.........................................................
Brian Jacklin –Technical Manager
SPE INTERNATIONAL LTD
SPE International Ltd, Honeyholes Lane, Dunholme, Lincoln. LNS 3SU England
Tel: [phone] Fax: [phone] Web: www.spe-int.com e-mail: [e-mail]

13
MS230-1
MULTISRIPPER
Operating Manual
CONDITIONS OF SALE
The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE
International Limited is referred to as the “Company”.
1. Validity of quotation
No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
2. Prices
Prices quoted by the Company are firm for 30 days only or until previously withdrawn. Unless otherwise stated all prices are exclusive
of any applicable Value Added Tax for which the customer shall be additionally liable to the Company.
3. Delivery
Delivery periods and dates are given in good faith but are not the subject of any warranty or condition and time shall not be of the
essence of the contract in these respects. No liability will attach to the Company if delivery periods or dates are not met for any
reason whatsoever.
4. Payment
Save as may otherwise be agreed in writing the customer shall pay the price in full on or before the estimated delivery date
whereupon the Company shall raise a receipted invoice. Each invoice includes an Overdue Account Levy of 5% of the total invoice
value inclusive of VAT. Subject to payment in full being made on or before the due date a sum equal to the Overdue Account Levy
shall be credited to the customers account with the Company. Until such time as payment in full has been made the Company shall
be under no obligation to allow or effect of any goods to the customer.
5. Warranty
The Company warrants that all goods supplied by it will correspond to their specifications and will be free from defects in materials or
workmanship for a period of 12 months from the date of delivery. The Company’s obligation in the event of a breach of this warranty
is limited to the repair or replacement of any defective goods which shall be returned at the cost and expense of the customer to the
Company. This warranty is given in lieu of all the other warranty or conditions expressed or implied (whether by statute or otherwise)
and is subject to the following conditions:-
5.1 Claims must be notified in writing to the Company within seven days from the date of delivery or (where the defect is not
apparent on reasonable inspection) as soon as practicable after discovery of thedefect.
5.2 The Companyshall be under no liability in respect of any defect in the goods arising from any drawing, design or specification
supplied by the customer.
5.3 The Company shall be under no liability if the defect or failure in the reasonable opinion of the Company arises from wilful
damage or misuse, negligence by the customer or any third party. Failure to follow the Company instructions, usage of non-
recommended parts and materials, alteration or repair of the goods without the prior approval of the Company or non-recommended
maintenance.
5.4 The Company shall be under no liability if the price for the goods has not been paid by the due date for payment.
5.5 The above warranty does not extendto:-
5.5.1 Parts, materials or equipment not manufactured by the company in respect of which the customer shall be entitled only to the
benefit of any such warranty or guarantee as is given by the manufacturer to the Company.
5.5.2 Anycomponent part of the goods or associated parts coming into contact with abrasive elements or dust within surface
Preparation equipment.
5.5.3 Fair wear and tear of moving parts within thegoods.
5.6 Except in the case of death or personal injury caused by the Company negligence, the Companyshall not be liable for any
consequential loss or damage (whether for loss of profit or otherwise) or other claims for consequential compensation.
6. Carriage
Packing, carriage and insurance charges in respect of delivery of the goods to the customer will be charged to the customer at cost to
the company.
7. Damage in Transit
The company does not accept any liability for loss or damage to the goods while in transit to the customer.
8. Risk
The risk in the goods shall pass to the customer on delivery to the customer or (if earlier) when possession of the goods is taken by a
carrier for delivery to the customer.
9. Force Majeure
The Company shall not be liable to the customer or be deemed to be in breach of any contract with the customer by reason of any
delay in performing or any failure to perform any obligation of the Company obligation in relation to the goods if the delay or failure
was due to force majeure or to any other cause beyond the Company’s reasonable control.
10. Reservation of Title
The goods sold under these conditions shall remain the absolute property of the Company and legal title in the goods shall remain
vested in the Company until payment in full of all amounts invoiced or due to the Company in respect of the goods. If the customer
shall enter into liquidation have a winding up order made against it or have a Liquidator, receiver, administrator or administrator
receiver shall be appointed over its assets, income or any part there of before the property in the goods has passed in accordance
with this condition the Company shall be entitled immediately after giving notice of its intention to repossess any goods to enter upon
the premises of the customer with such transport as may be necessary and to repossess any goods to which it has title under this
condition. No liquidator, receiver, administrator or administrative receiver of the customer shall have authority to sell goods to which
the Company has title without the prior written consent of the Company.
11 Insolvency of Customer
If the customer being a body corporate, shall pass a resolution or suffer an order of the Court to be made for winding –up, or if a
Receiver, Administrator or Administrative Receiver shall be appointed or, being an individual or partnership, shall suspend payment ,
propose or enter into any composition or arrangement with his or their creditors, or have a bankruptcy order made against him or
them, then the Company shall have the right, without prejudice to any other contract with the customer, not to proceed further with the
contract and shall be entitled to charge for work already carried out ( whether completed or not) and for goods and materials already
purchased for the customer such charge to be an immediate debt due from the customer.
12. Patent Rights, etc
The acceptance of a quotation includes the recognition by the customer of the Company under any patents, trademarks, registered
designs or other intellectual property rights relating to the goods and the customer undertakes that patent numbers, trademarks or
other trade markings on goods supplied shall not be obliterated, altered or defaced.
13. Applicable Law
These conditions shall be governed by and construed in accordance with English law and parties acknowledge and accept the
exclusive jurisdiction of the English Courts.
