Spear & Jackson GT600 User manual

INSTRUCTION
MANUAL
Important - Please read these instructions fully before operating or maintaining your grass trimmer
GRASS TRIMMER
600W
GT600
These instructionscontain important informationthat will help you get the best
from your grass trimmer,protecting your power tool investment.
AFTERSALES SERVICE
01904 727505
MON-FRI 9am-5pm SAT/SUN 11am-4pm
www.spearandjackson-power.com

2AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
THANK YOU!
Dear Customer,
Thank you for choosing a Spear and Jackson grass trimmer.
Spear and Jackson was founded in 1760 in the city of Shefeld, which is world
famous for the production of steel, cutlery and garden and hand tools.
Through continuous innovation and the use of new technologies and materials,
Spear and Jackson has gained an enviable reputation as a supplier of reliable,
high performance and high quality products designed to make your work in the
garden as easy and enjoyable as possible.
We are so condent in the quality of our products we provide a 2 year guarantee
on our garden power tools. We offer 12 month extended warranty for all registered
garden power tools. Simply register your product within 28 days of purchase via
www.spearandjackson-power.com to extend the standard manufacturer’s warranty
with an additional 12 months. After registering your product, your garden power tool
will be covered for parts and labour for 3 years from the date of purchase, subject to
the terms of the guarantee. If you do not wish to register your product within 28 days,
your product is guaranteed for 2 year after date of purchase. It’s important to retain
your proof of purchase.
We want you to get the best out of your products. Our easy-to-read instruction
manual guides you with best practice use and maintenance tips. You can also visit
www.spearandjackson-power.com for online help, general tips and useful videos
about your garden product. However if you prefer to speak to one of technicians
please call 01904 727505, Mon-Fri 9am-5pm and Sat/Sun 11am-4pm, we can
solve around 80% of questions directly over the phone.
We hope you enjoy your product and looking forward to any feedback, as this allows
us to develop even better products for the future.
FREE EXTENDED WARRANTY
7 DAYS A WEEK TECHNICAL SUPPORT

3www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
CONTENTS
Safety Information 04
Description of symbols 04
General safety 05
Safety warnings 05
Personal safetyY06
Operational safety 07
Maintenance and storage safety 08
Intended use 08
Box Content / Parts 09
Assembly 10
Safety guard assembly 10
Front handle assemble 10
Plant protector assemble 10
Connect to main supply 11
Operation 12
General operation 12
Height adjustment 12
Handle adjustment 12
Edging 13
Tilt adjustment 13
Automatic line feeding 13
Plant protector 14
Switching on/off 14
Trimming 15
Tips 16
Maintenance 17
Replacing the spool. 17
Winding the line. 17
UK plug 18
Storage 19
Transportation 19
After use 19
Recycling and disposal 19
Technical Data 20
Troubleshooting 21
Guarantee 22
EC DECLARATION OF CONFORMITY 23

AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
Please read these instructions fully before operating or maintaining your machine
4
The following warning symbols appear throughout this manual and indicate the appropriate
safety measures you should take when operating and maintaining the grass trimmer.
DESCRIPTION OF SYMBOLS
SAFETY INFORMATION
Warning! Cutting device continues to
rotate after the motor
is switched off.
Objects thrown by the product could
hit the user or other
bystanders. Always ensure that other
people and pets remain at
a safe distance from the product
when it is in operation.
In general, children must not come
near the area where the
product is.
Do not expose the product to rain or
wet conditions (moisture).
Warning! Keep other people
out of working area during
operation. A distance of at
least 15 m must be observed.
Double insulations, Class II
appliance.
Waste Disposal and Environmental
Protection!
Be environmentally friendly. Return
the tool, accessories and packaging
to a recycling centre when you have
finished with them.
Electrical machines do not belong in
domestic waste.
Take the equipment to a waste
disposal site. The plastic and metal
parts that are used can be separated
out into pure grade, which allows
recycling.
IMPORTANT!
Please read all of the safety and
operating instructions carefully
before using this tool. Please pay
particular attention to all sections of
this user guide that carry warning
symbols and notices.
WARNING!
This is a warning symbol. This
symbol is used throughout the user
guide whenever there is a risk of
personal injury. Ensure that these
warnings are read and understood
at all times.
Wear eye and ear protections.
Disconnect the mains plug
immediately if the cable is
damaged, has been badly twisted
or is completely cut through and
in the event that the device is left
unattended for a short time.
Objects thrown by the product
could hit the user or other
bystanders. Always ensure that
other people and pets remain at
a safe distance from the product
when it is in operation.
In general, children must not come
near the area where the
product is.
Guaranteed sound power level.
96

www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
Please read these instructions fully before operating or maintaining your machine
5
IMPORTANT!
■Keep this instruction manual in a safe
place for future reference.
■Read the instructions carefully. Be familiar
with the controls and the proper use of the
equipment.
■Never use the machine while people,
especially children, or pets are nearby.
Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
■This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
■Children should be supervised to ensure
that they do not play with the appliance.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
■Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
■Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
■Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
■Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
■When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
■If operating a power tool in a damp location
is unavoidable, use a residual current
device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
■Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
GENERAL SAFETY
SAFETY WARNINGS
SAFETY INFORMATION

AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com6
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
PERSONAL SAFETY
■Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
■Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools aredangerous in the hands of
untrained users.
■Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
■Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
■Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
■Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
■Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for
appropriate conditions will reduce personal
injuries.
■Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have
the switch on invites accidents.
■Remove any adjusting key or wrench before
turning the power tool on. A wrench or a
key left attached to a rotating part of the
power tool may result in personal injury.
■Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
■Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught
in moving parts.
■If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce
dust-related hazards.

www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
PERSONAL SAFETY
7
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
■Use the product only in daylight or good
artificial light.
■Never operate the product with damaged
guards or shields or without guards or
shields in place.
■Keep hands and feet away from the cutting
attachment at all times and especially when
switching on the motor.
■Before use check the controls and proper
use of the product.
■Before using the product and after any
impact, check for signs of wear or damage
and repair as necessary.
■Always disconnect the product from the
power supply (i.e. remove the plug from the
power supply or the battery pack)
– whenever leaving the product
unattended;
– before clearing a blockage;
– before checking, cleaning or working on
the product
– after striking a foreign object;
– whenever the product starts vibrating
abnormally.
■Take care against injury to feet and hands
from the cutting attachment.
■Always ensure that the air vents are kept
clear of debris.
■After extending new cutter line always
return the product to its normal operating
position before switching on.
■Never fit metal cutting elements.
■Never replace non-metallic cutting means
with metallic cutting means.
■Never use replacement parts or
accessories not provided or recommended
by the manufacturer.
■The product should be supplied via a
residual current device (RCD) with a tripping
current of not more than 30 mA.
■Avoid using the product in bad weather
conditions especially when there is a risk of
lightning.
■Position the cord so that it will not be
caught by the cutting attachment during
operation.
■Disconnect from the power supply when
the cord becomes damaged or tangled.
■If the cord becomes damaged during
use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD
BEFORE DISCONNECTING THE SUPPLY.
■Do not use the product if the cord is
damaged or worn.
■Warning! The cutting elements continue to
rotate after the product is switched off.
■Keep the extension cord away from cutting
elements.
■Only use an extension cord not lighter than:
– if rubber insulated, ordinary tough rubber
sheathed flexible cord (code designation
60245 IEC 53);
– if polyvinyl chloride insulated, ordinary
polyvinyl chloride sheathed flexible cord
(code designation 60227 IEC 53).
■Do not expose the product to rain.
■Disconnect the product from the power
supply (i.e. remove the plug from the power
OPERATIONAL SAFETY
MAINTENANCE AND STORAGE SAFETY

8AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
SAFETY INFORMATION
supply or the battery pack) and check for
damage after use.
■Disconnect the product from the power
supply (i.e. remove the plug from the power
supply or the battery pack) before carrying
out maintenance or cleaning work.
■Use only the manufacturer’s recommended
replacement parts and accessories.
■Inspect and maintain the product regularly.
Have the product repaired only by an
authorised service centre or similar qualified
specialist.
■When not in use, store the product out of
the reach of children.
■Have your power tools serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
safety of the power tool is maintained.
This electric grass trimmer is designed for
domestic use only:
to trim grass, lawn edges and light foliage.
This machine is not designed for heavy duty
or commercial use.
Any use of the machine that deviates from
its intended use and is not included in these
instructions is considered unauthorized use
and relieves the manufacturer from his or her
legal liability.
INTENDED USE
Please read these instructions fully before operating or maintaining your machine

9www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
BOX CONTENT
PARTS
If there are any parts missing, please call the customer helpline on 01904 727505
Pig tail
Main handle
On/off Switch
Cable retainer
Front handle
Locking sleeve length adjustment
Guard
Plant guard
Tilt adjustment pedal
Pole
Knob
Wheel
Angle adjustment button
Cable collector
Extension cable
Screw x4
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
3
2
5
6
8
9
4
1
716
15
14
12
10
13
11

10 AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
ASSEMBLY
Safety guard assembly
i. Align the guard (7) to the trimmer head and place it
over it.
ii. Secure the guard with the screws.
Front handle assemble
i. Loosen the knob and remove it together with the
bolt from the auxiliary handle.
ii. Align the auxiliary handle to the support and place
it onto it.
iii. Insert the bolt from the right through the opening.
Ensure that the bolt head sits properly in the
recessed shape in the support then tighten the
knob.
Plant protector assemble
i. Assemble the plant protector into the slot in
between the guard and the trimmer head.
1
2
3

11www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
ASSEMBLY
iv. Connect the plug of the extension cable to the mains
socket - this product runs on 240V.
For safety reasons the product is equipped with a short
power cord. Do not connect the product to the power
supply via this power cord. A suitable extension cable
is provided with the product. Observe the technical
requirements for this product when purchasing an
extension cord.
Connect to main supply
4
i. Make sure the on/off switch is in its off position.
ii. Double the extension cord, about 3cm from the end.
Lead the loop through the hole on the rear safe guard
and hook the loop over the cord strain relief. Gently pull
on the cord to ensure that it is firmly attached.
iii. Connect the extension lead to the pig tail.

12 AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
OPERATION
Height adjustment
i. Loose the locking sleeve anti-clockwise.
ii. Adjust the pole length to fit your body height.
iii. Tighten the locking sleeve counter clockwise.
General operation
i. Check the product, its power cord and plug as well as
accessories for damage before each use. Do not use the product
if it is damaged or shows wear.
ii. Double check that accessories or cutting device are properly
fixed.
iii. Always hold the product on its handles Keep the handles dry to
ensure safe support.
Handle adjustment
Adjust the angle of the auxiliary handle to ease operation and
prevent loss of control.
i. Loosen the knob and move the handle up or downward.
ii. Tighten the knob to secure the auxiliary handle in the
adjusted position.

13www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
Edging
i. Adjust the trimmer head to 90 degrees for edging by
pressing the locking button.
ii. Turn the head 90 degrees.
iii. Twist the plant guard to an angle of 90°.
OPERATION
Tilt adjustment
Adjust the vertical angle of the trimmer head to fit
the trimming conditions.
i. Press the tilt adjustment pedal down with your
foot.
ii. Adjust the angle of the pole, up or down.
iii. Release the unlock pedal and keep moving the
pole until it locks in place.
Automatic line feeding
The equipment features a fully automatic dual line system.
The lines will automatically elongate every time you turn on the
NOTE: Always ensure that the pedal snaps into place after
adjusting the trimmer in one of the three positions!

14 AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
OPERATION
appliance. To support proper line elongation, ensure that the coil has
stopped moving completely before turning on the appliance again.
The lines are automatically cut to the correct length by the line cutter.

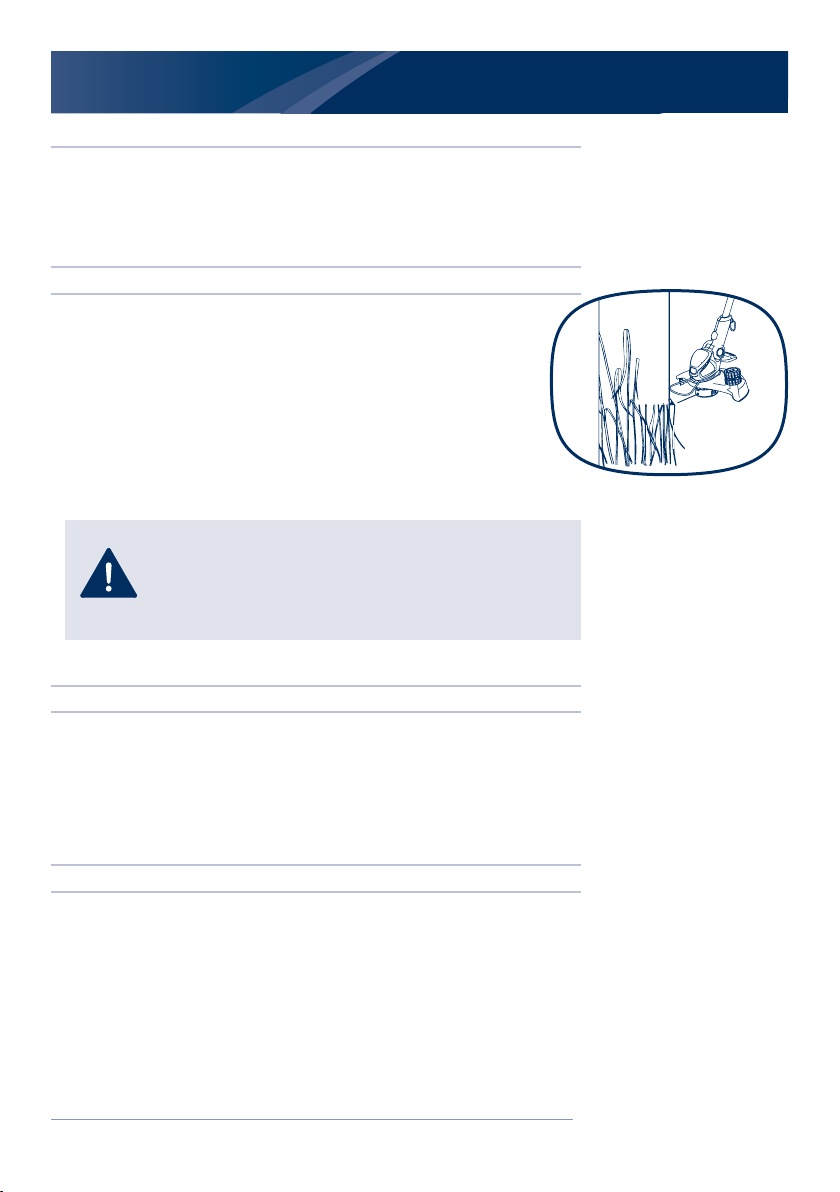

Plant protector
Use the plant protector to keep distance to plants like flowers,
trees or other objects that could be hit by the cutting device.
i. Fold the plant protector out for trimming / edging operation.
ii. Fold the plant protector in for storage.
WARNING! Adjust the plant protector position only
when the product is switched off and the cutting
device is at a complete stop!
Switching on/off
i. Press the on/off switch (3) to turn the product on.
ii. Release the on/off switch (3) to turn the product off.
Trimming
i. Ensure the knife protector label is removed before use use.
Ensure you wear gloves when removing this label.
ii. Adjust the trimmer head angle to 0° for trimming operation.
iii. Hold the grass trimmer firmly, keeping your balance with feet
slightly apart. Alter the height of the product if needed to ensure
an upright posture.

15www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505

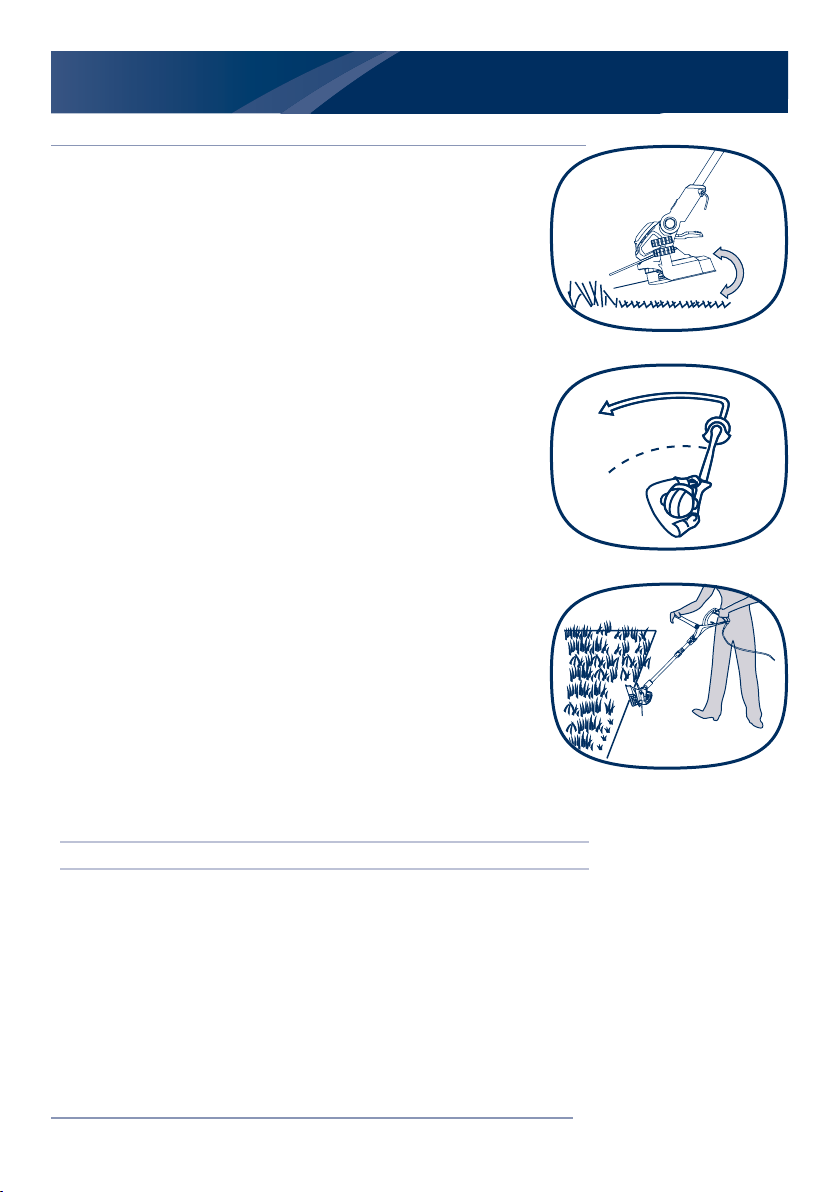

30o
OPERATION
iv. Hold the trimmer head just above the ground at an angle of
approximately 30°.
v. Move the product slowly from side to side in a swinging
motion.
vi. Ensure the cutting device remains clean and free from off-cuts
that may cause it to jam. Check regularly. Release the on/
off switch and disconnect the product from the power supply
before checking.
vii. Trim longer grass in stages; do not cut long grass in one cut.
For the best results, cut longer grass in steps.
viii. Place the trimmer along the edge of the lawn, resting on the
wheel.
ix. Turn product on and push the trimmer forward slowly, letting
the wheel guide you while edging the lawn.
Tips
i. For best results, do not cut wet grass because it tends to stick
to the cutting head and guard, prevents proper discharge of
grass trimmings, and could cause you to slip and fall.
ii. Do not allow the spool cover to drag on the ground or other
surfaces.

16 AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
OPERATION
iii. Pay special attention when performing the work close to
trees and bushes. The cutting head could damage sensitive
bark, and damage fence posts.
iv. Fold the plant protector out to avoid bringing the cutting
device into contact with hard objects such as walls and
kerbstones.
NOTE: The trimming line will wear faster and require more feeding
if the cutting or edging is done along sidewalks or other abrasive
surfaces or heavier weeds are being cut.

17www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
MAINTENANCE
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualied person to have it checked and repaired.
Replacing the spool
NOTE: Before replace the spool, make sure the mains plug is
disconnected from the unit.
i. Press together both locking device tabs on the spool cover
and remove the cover.
ii. Remove the old spool from the spool cover
ii. Clean out any dirt or grass residue.
iii. Put the new spool in the spool housing, thread the line into
the hole.
Warning! Please always keep the spring in position.
Winding the line
NOTE: Should you wish to wind the line yourself, the instructions are
provided below:
Self-winding, however, is NOT recommended because if the line is not
wound properly it can cause the trimmer’s feed system to malfunction.
For this reason, users are strongly urged to purchase the pre-wound
spool.

18 AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
MAINTENANCE
i. Hold the loose ends of the line together with one hand,
find the center of the line with the other hand and hook this
center loop into the groove on the spool.
ii. Wind the line following the directional arrows on the spool
housing and hook the two ends into the side grooves.
UK plug
If you need to replace the fitted plug, then this must be replaced
using a BS1363/A Mains plug fitted with a BS1362 approved
fuse of identical value to the original fuse. Proceed as follows:
IMPORTANT: The wires in the mains lead are coloured in
accordance with the following code:
Blue – Neutral, Brown – Live In case the colours of the wires in
the mains lead don’t match the colour marking on the terminals,
please proceed as follow.
Connect the blue wire to the terminal marked N (Neutral) or
coloured black. The brown wire must be connected to the
terminal marked L or coloured red.

19www.spearandjackson-power.com AFTER sAlEs suppoRT 01904 727505
MAINTENANCE
Storage
i. Store the product and its accessories in a dry, frost-free place.
ii. Always store the product in a place that is inaccessible to children.
The ideal storage temperature is between 10 and 30°C.
Transportation
i. Switch the product off and disconnect from power supply before
transporting it anywhere.
ii. Protect the product against scratching and secure it to avoid
damage from impact.
After use
i. Switch the product off, disconnect it from the power supply and let
it cool down.
ii. Fold the plant protector in.
iii. Check, clean and store the product as described below.
Recycling and disposal
i. Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or local store for recycling advice.
ii. The product comes in a packaging that protects it against
transportation damage. Keep hold of the packaging until you
are sure that all the parts have been delivered and the product is
functioning properly. Recycle the packaging afterwards.

20 AFTER sAlEs suppoRT 01904 727505 www.spearandjackson-power.com
TECHNICAL DATA
Model GT600
Input voltage rating 240 V , 50 Hz
Input power 600W
No load speed 9800min-1
Trimming line Ø 1.4 mm, length 8m
Cutting capacity 300mm
Angle adjustment 0°~90°
Weight 4kg
Dimensions 92x50x27cm
Part number Accessories
GT600-57 Front handle
GT600-56 Knob
GT600-45 Trimmer spool
GT600-19 Plant guard
GT600-47-51 Guard with wheels
