Spear & Jackson N1F-GT-250-C User guide

ORIGINAL
INSTRUCTION
MANUAL
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your trimmer, ensuring it is assembled correctly
and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2067
AFTER SALES SUPPORT
0345 605 2067
350W
Electric
Grass Trimmer
N1F-GT-250/350-C

2AFTER SALES SUPPORT 0345 605 2067
SPEAR & JACKSON SINCE 1760
For more than 250 years gardeners have enjoyed high quality performance and
great results using Spear & Jackson tools.
Our garden power tools combine continuous innovation and the latest in
manufacturing technologies with a proud heritage.
Each product is carefully designed with performance, comfort and durability
rmly in mind, which has earned Spear & Jackson an enviable reputation as a
maker of tools to trust.
As a testament to the quality of our products, we offer a 3 year manufacturers war-
ranty and a comprehensive after sales service.
The warranty covers manufacturing faults, however in the event that the item has
been deliberately damaged, used in a commercial environment or disassembled then
the warranty will be null and void.
Please retain proof of purchase.
We want you to get the best out of your products. Our easy-to-read instruction manu-
al guides you with best practice use and maintenance tips. Please call 0345 605 2067
for technical support, we can solve around 80% of questions directly over the phone.
We hope you enjoy your product and we look forward to any feedback, as this allows
us to develop even better products for the future.
3 YEARS GUARANTEE
7 DAYS A WEEK TECHNICAL SUPPORT

3AFTER SALES SUPPORT 0345 605 2067
CONTENTS
Safety Information 04
Description of symbols 04
General safety 05
Safety warnings 05
Personal safetyY07
Operational safety 08
Maintenance and storage safety 10
Intended use 11
Box Content / Parts 12
Assemble 13
Unpacking 13
Safety guard assemble 13
Front handle assemble 13
Shaft assemble 13
Connect to main supply 14
Operate 15
General operate 15
Switching on/off 15
Bump line feeding 15
Trimming 16
Tips 17
Maintenance 18
Technical Data 21
Troubleshooting 23
Warranty 24

AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
4
The following warning symbols appear throughout this manual and indicate the appropriate
safety measures you should take when operating and maintaining the grass trimmer.
DESCRIPTION OF SYMBOLS
SAFETY INFORMATION
Warning! Cutting device continues to
rotate after the motor
is switched off.
Do not expose the product to rain or
wet conditions (moisture).
Warning! Keep other people out of
working area during operation. A
distance of at least 15 m must be
observed.
Double insulations, Class II appliance.
Waste electrical products should not
be disposed of with household waste.
Please recycle
where facilities exist. Check with your
local authority or retailer for recycling
device.
The product complies with the
applicable European directives and an
evaluation method of
conformity for these directives was
done.
IMPORTANT!
Please read all of the safety and
operating instructions carefully before
using this tool. Please pay particular
attention to all sections of this user
guide that carry warning symbols
and notices.
WARNING!
This is a warning symbol. This
symbol is used throughout the user
guide whenever there is a risk of
personal injury. Ensure that these
warnings are read and understood at
all times.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Disconnect the mains plug
immediately if the cable is
damaged, has been badly twisted
or is completely cut through and
in the event that the device is left
unattended for a short time.
There is a risk that some objects
could be thrown out by the shredder.
Keep bystanders
away.
Guaranteed sound power level.
96

AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
5
IMPORTANT!
■Keep this instruction
manual in a safe
place for future reference.
■Read the instructions
carefully. Be familiar
with the controls and
the proper use of the
equipment.
■Never use the machine
while people, especially
children, or pets are
nearby. Keep in mind that
the operator or user is
responsible for accidents
or hazards occurring
to other people or their
property.
■This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
■Children should be
supervised to ensure that
they do not play with the
appliance.
WORK AREA SAFETY
■Keep work area clean and
well lit. Cluttered or dark
areas invite accidents.
■Do not operate power
tools in explosive
atmospheres, such as in
the presence of flammable
liquids, gases or dust.
Power tools create sparks
which may ignite the dust
or fumes.
■Keep children and
bystanders away while
operating a power tool.
Distractions can cause you
to lose control.
GENERAL SAFETY
SAFETY WARNINGS
SAFETY INFORMATION

AFTER SALES SUPPORT 0345 605 206766
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
ELECTRICAL SAFETY
■Power tool plugs must
match the outlet. Never
modify the plug in any
way. Do not use any
adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and
matching outlets will
reduce risk of electric
shock.
■Avoid body contact with
earthed or grounded
surfaces, such as pipes,
radiators, ranges and
refrigerators. There is an
increased risk of electric
shock if your body is
earthed or grounded.
■Do not expose power tools
to rain or wet conditions.
Water entering a power
tool will increase the risk of
electric shock.
■Do not abuse the cord.
Never use the cord
for carrying, pulling or
unplugging the power
tool. Keep cord away from
heat, oil, sharp edges or
moving parts. Damaged or
entangled cords increase
the risk of electric shock.
■When operating a power
tool outdoors, use an
extension cord suitable for
outdoor use. Use of a cord
suitable for outdoor use
reduces the risk of electric
shock.
■If operating a power tool
in a damp location is
unavoidable, use a residual
current device (RCD)
protected supply. Use of
an RCD reduces the risk of
electric shock.
POWER TOOL USE AND CARE
■Do not force the power
tool. Use the correct power
tool for your application.
The correct power tool will
do the job better and safer
at the rate for which it was
designed.
■Do not use the power
tool if the switch does
not turn it on and off. Any
power tool that cannot be
controlled with the switch
is dangerous and must be

AFTER SALES SUPPORT 0345 605 2067 7
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
repaired.
■Disconnect the plug from
the power source and/
or the battery pack from
the power tool before
making any adjustments,
changing accessories, or
storing power tools. Such
preventive safety measures
reduce the risk of starting
the power tool accidentally.
■Store idle power tools out of
the reach of children and do
not allow persons unfamiliar
with the power tool or these
instructions to operate the
power tool. Power tools
aredangerous in the hands
of untrained users.
■Maintain power tools.
Check for misalignment or
binding of moving parts,
breakage of parts and any
other condition that may
affect the power tool’s
operation. If damaged, have
the power tool repaired
before use. Many accidents
are caused by poorly
maintained power tools.
■Keep cutting tools sharp
and clean. Properly
maintained cutting tools
with sharp cutting edges
are less likely to bind and
are easier to control.
■Use the power tool,
accessories and tool bits
etc. in accordance with
these instructions, taking
into account the working
conditions and the work to
be performed. Use of the
power tool for operations
different from those
intended could result in a
hazardous situation.
■Stay alert, watch what
you are doing and use
common sense when
operating a power tool. Do
not use a power tool while
you are tired or under the
influence of drugs, alcohol
or medication. A moment of
inattention while operating
power tools may result in
PERSONAL SAFETY

8AFTER SALES SUPPORT 0345 605 2067
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
serious personal injury.
■Use personal protective
equipment. Always wear
eye protection. Protective
equipment such as dust
mask, non-skid safety
shoes, hard hat, or hearing
protection used for
appropriate conditions will
reduce personal injuries.
■Prevent unintentional
starting. Ensure the switch
is in the off-position before
connecting to power source
and/or battery pack, picking
up or carrying the tool.
Carrying power tools with
your finger on the switch or
energising power tools that
have the switch on invites
accidents.
■Remove any adjusting
key or wrench before
turning the power tool
on. A wrench or a key left
attached to a rotating part
of the power tool may result
in personal injury.
■Do not overreach. Keep
proper footing and balance
at all times. This enables
better control of the
power tool in unexpected
situations.
■Dress properly. Do not wear
loose clothing or jewellery.
Keep your hair, clothing and
gloves away from moving
parts. Loose clothes,
jewellery or long hair can be
caught in moving parts.
■If devices are provided
for the connection of dust
extraction and collection
facilities, ensure these are
connected and properly
used. Use of dust collection
can reduce dust-related
hazards.
■Use the product only in
daylight or good artificial
light.
■Never operate the machine
with damaged guards or
shields or without guards or
shields in place.
■Take care against injury to
OPERATIONAL SAFETY

9AFTER SALES SUPPORT 0345 605 2067
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
feet and hands from the
cutting means.
■Before use check the
controls and proper use of
the product.
■Before using the product
and after any impact, check
for signs of wear or damage
and repair as necessary.
■Always disconnect the
product from the power
supply (i.e. remove the plug
from the power supply or
the battery pack)
– whenever leaving the
product unattended;
– before clearing a blockage;
– before checking, cleaning
or working on the product
– after striking a foreign
object;
– whenever the product
starts vibrating abnormally.
■Take care against injury to
feet and hands from the
cutting attachment.
■Switch on the motor only
when the hands and feet
are away from the cutting
means.
■Always ensure that the
air vents are kept clear of
debris.
■After extending new
cutter line always return
the product to its normal
operating position before
switching on.
■Never fit metal cutting
elements.
■Never replace non-metallic
cutting means with metallic
cutting means.
■Never use replacement
parts or accessories not
provided or recommended
by the manufacturer.
■The product should be
supplied via a residual
current device (RCD) with a
tripping current of not more
than 30 mA.
■Avoid using the product
in bad weather conditions
especially when there is a
risk of lightning.
■Position the cord so that it
will not be caught by the
cutting attachment during
operation.

10 AFTER SALES SUPPORT 0345 605 2067
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
■Disconnect from the power
supply when the cord
becomes damaged or
tangled.
■If the cord becomes
damaged during use,
disconnect the cord from
the supply immediately.
DO NOT TOUCH
THE CORD BEFORE
DISCONNECTING THE
SUPPLY.
■Do not use the product if
the cord is damaged or
worn.
■Warning! The cutting
elements continue to
rotate after the product is
switched off.
■Keep the cord away from
cutting elements.
■Only use an extension cord
not lighter than:
– if rubber insulated, ordinary
tough rubber sheathed
flexible cord (code
designation 60245 IEC 53);
– if polyvinyl chloride
insulated, ordinary polyvinyl
chloride sheathed flexible
cord (code designation
60227 IEC 53).
■Do not expose the product
to rain.
■Disconnect the product
from the power supply
(i.e. remove the plug from
the power supply or the
battery pack) and check for
damage after use.
■Disconnect the product
from the power supply (i.e.
remove the plug from the
power supply or the battery
pack) before carrying out
maintenance or cleaning
work.
■Use only the manufacturer’s
recommended replacement
parts and accessories.
■Inspect and maintain the
product regularly. Have the
product repaired only by an
authorised service centre or
PERSONAL SAFETY
MAINTENANCE AND STORAGE
SAFETY

11AFTER SALES SUPPORT 0345 605 2067
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
similar qualified specialist.
■When not in use, store the
product out of the reach of
children.
■Have your power tools
serviced by a qualified
repair person using only
identical replacement
parts. This will ensure that
safety of the power tool is
maintained.
This electric grass trimmer
is designed for domestic
use only:
to trim grass, lawn edges
and light foliage.
This machine is not
designed for heavy duty or
commercial use.
Any use of the machine that
deviates from its intended
use and is not included
in these instructions is
considered unauthorized
use and relieves the
manufacturer from his or
her legal liability.
INTENDED USE

12 AFTER SALES SUPPORT 0345 605 2067
BOX CONTENT
PARTS
If there are any parts missing, please call the customer helpline on 0345 605 2067
Pigtail cable
Main handle
On/off Switch
Cable retainer
Front handle
Guard
Cutting head
1
2
3
4
5
6
7
1
3
2
5
7
6
4

13AFTER SALES SUPPORT 0345 605 2067
ASSEMBLE

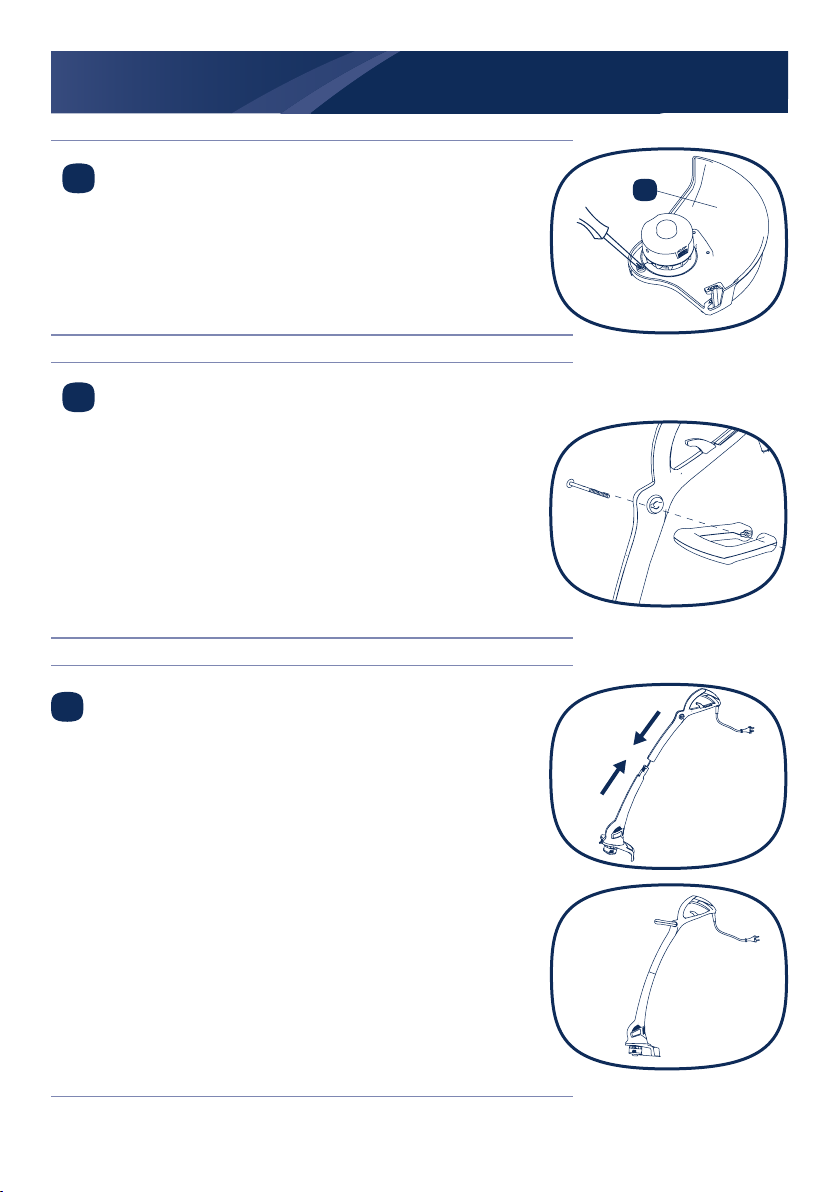

Safety guard assemble
i. Align the guard (6) to the trimmer head and place it
over it.
ii. Secure the guard with the three screws which are
pre-assembled on motor housing.
Front handle assemble
i. Loosen the bolt with a screw driver from the front
handle.
ii. Align the front handle to the support and place it
onto it.
iii. Insert the bolt from the right through the opening.
And tighten the bolt with a screw driver.
2
3
Shaft assemble
i. Fix the lower shaft into the upper shaft.
4
6

14 AFTER SALES SUPPORT 0345 605 2067
ASSEMBLE
Connect to main supply
5
i. Make sure the on/off switch is in its off position.
iii. Double the extension cord, about 3cm from the end.
Lead the loop through the hole on the rear safe guard
and hook the loop over the cord strain relief. Gently pull
on the cord to ensure that it is firmly attached.
ii. Connect the short cord to the extension cord delivered
as part of the twin pack.

15AFTER SALES SUPPORT 0345 605 2067
OPERATE
General operate
i. Check the product, its power cord and plug as well as
accessories for damage before each use. Do not use the product
if it is damaged or shows wear.
ii. Double check that accessories or cutting device are properly
fixed.
iii. Always hold the product by its handles. Keep the handles dry to
ensure safe support.

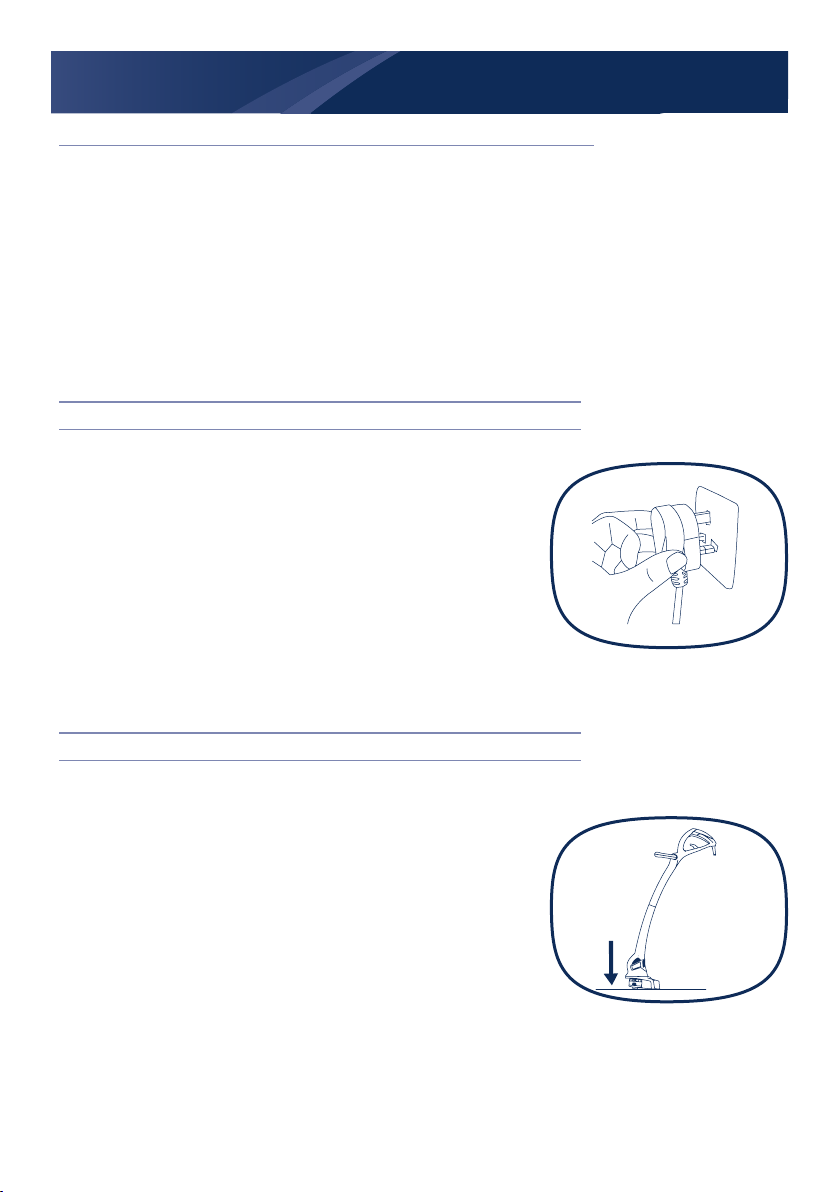

Bump line feeding
i. While the line spool is running at full speed, tap its underside
briefly against the ground.
ii. If the spool lines are still not sufficiently extended, tap the
underside against the ground again.
iii. If the line has already become too short, it will no longer be
extended by pressing the underside against the ground. You
must pull it out from the line spool by hand.
Switching on/off
i. Connect the plug to the mains socket - this product
runs on 240V.
ii. Press the on/off switch (3) to turn the product on.
iii. Release the on/off switch (3) to turn the product off.

16 AFTER SALES SUPPORT 0345 605 2067
OPERATION
Trimming
i. Ensure the knife protector label is removed before use.
Ensure you wear gloves when removing this label.

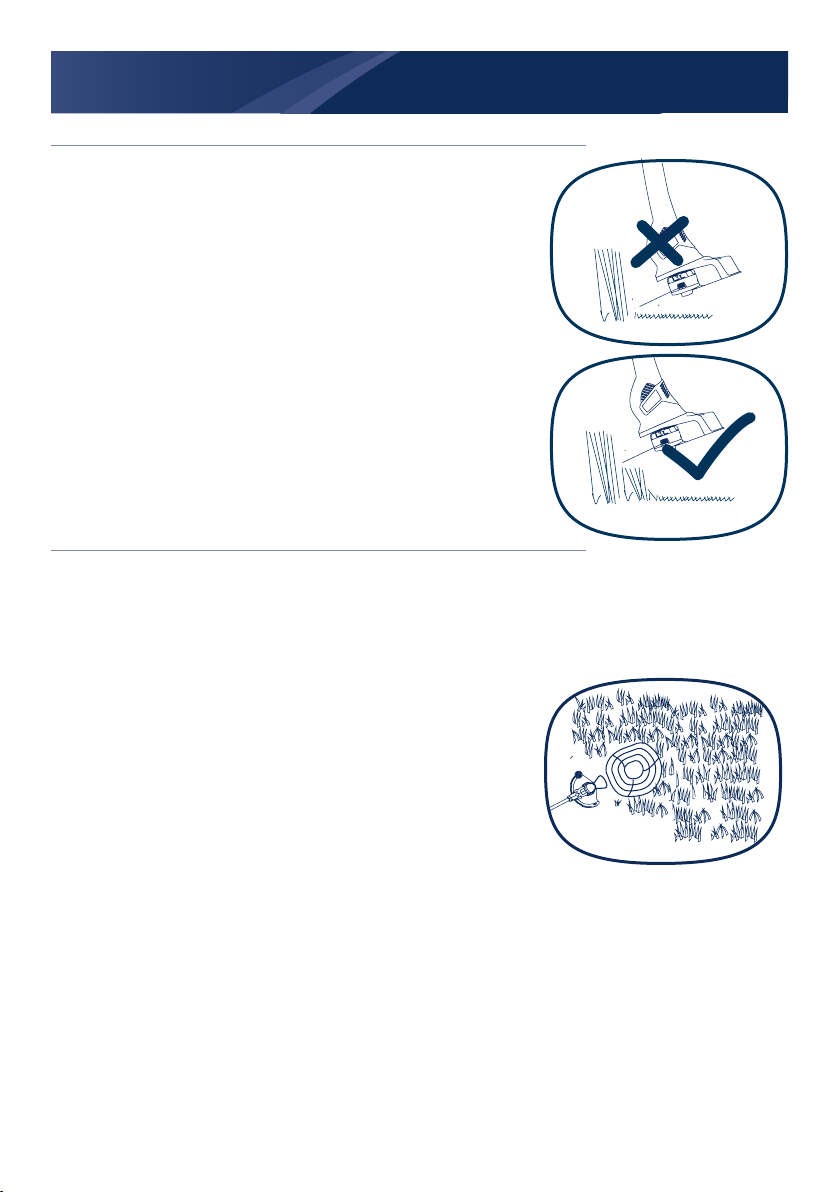

ii. Hold the grass trimmer firmly, keeping your balance with feet
slightly apart. Alter the height of the product if needed to
ensure an upright posture.
iv. Hold the trimmer head just above the ground at an angle of
approximately 30°.
v. Move the product slowly from side to side in a swinging
motion.
vi. Ensure the cutting device remains clean and free from off-
cuts that may cause it to jam. Check regularly. Release the
on/off switch and disconnect the product from the power
supply before checking.
vii. Trim longer grass in stages; do not cut long grass in one
cut. For the best results, cut longer grass in steps.
30o

17AFTER SALES SUPPORT 0345 605 2067
OPERATION
Tips
i. For best results, do not cut wet grass because it tends to stick to
the cutting head and guard, prevents proper discharge of grass
trimmings, and could cause you to slip and fall.
ii. Do not allow the spool cover to drag on the ground or other
surfaces.
iii. Pay special attention when performing the work close to
trees and bushes. The cutting head could damage sensitive
bark, and damage fence posts.
WARNING!
· Always fit the guard before using the product
· When cutting longer /high grass, please make sure that
you cut this down in 2 to 3 stages.
· DO NOT cut long grass in one cut, as this will damage
your grass trimmer, and make your warranty invalid.

18 AFTER SALES SUPPORT 0345 605 2067
MAINTENANCE
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualied person to have it checked and repaired.
Replacing the spool
NOTE: Before replace the spool, make sure the mains plug is
disconnected from the unit.
i. Press together both locking device tabs on the spool cover
and remove the cover.
ii. Remove the old spool from the spool cover
ii. Clean out any dirt or grass residue.
iii. Put the new spool in the spool housing, thread the line into
the hole.
Warning! Please always keep the spring in position.
Winding the line
NOTE: Should you wish to wind the line yourself, the instructions are
provided below:
Self-winding, however, is NOT recommended because if the line is not
wound properly it can cause the trimmer’s feed system to malfunction.
For this reason, users are strongly urged to purchase the pre-wound
spool.

19AFTER SALES SUPPORT 0345 605 2067
MAINTENANCE
i. Hold the loose ends of the line together with one hand, find
the center of the line with the other hand and hook this center
loop into the groove on the spool.
ii. Wind the line following the directional arrows on the spool
housing and hook the two ends into the side grooves.

20 AFTER SALES SUPPORT 0345 605 2067
MAINTENANCE
Storage
i. Store the product and its accessories in a dry, frost-free place.
ii. Always store the product in a place that is inaccessible to children.
The ideal storage temperature is between 10°C and 30°C.
Transportation
i. Switch the product off and disconnect from power supply before
transporting it anywhere.
ii. Protect the product against scratching and secure it to avoid
damage from impact.
After use
i. Switch the product off, disconnect it from the power supply and let
it cool down.
ii. Check, clean and store the product as described below.
Recycling and disposal
i. Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or local store for recycling advice.
ii. The product comes in a packaging that protects it against
transportation damage. Keep hold of the packaging until you
are sure that all the parts have been delivered and the product is
functioning properly. Recycle the packaging afterwards.
